1. Reactive Streams 1.0.0
and why you should care
Dr. Roland Kuhn
@rolandkuhn — Akka Tech Lead

2. Reactive Streams 1.0.0

3. Philosophical Background
3
“You cannot step twice into the same stream.
For as you are stepping in,
other waters are ever flowing on to you.”
— Heraclitus

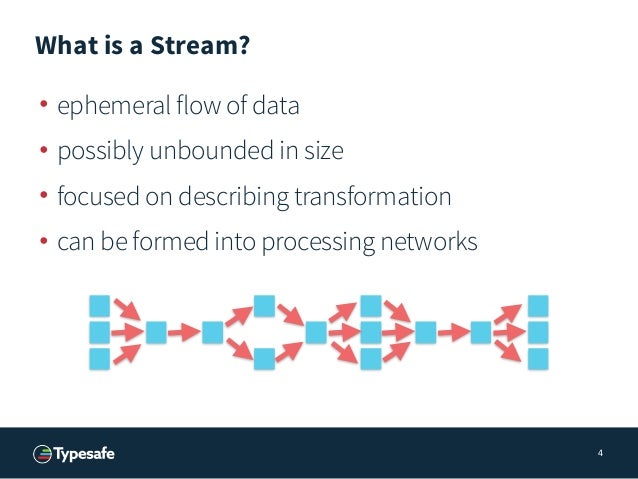

4. What is a Stream?
• ephemeral flow of data
• possibly unbounded in size
• focused on describing transformation
• can be formed into processing networks
4

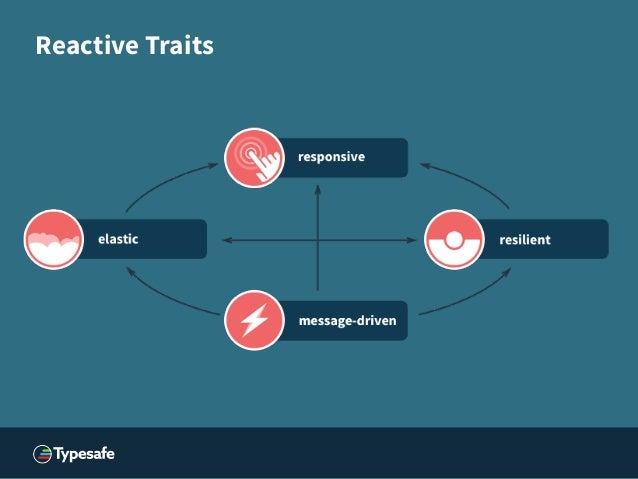

5. Reactive Traits

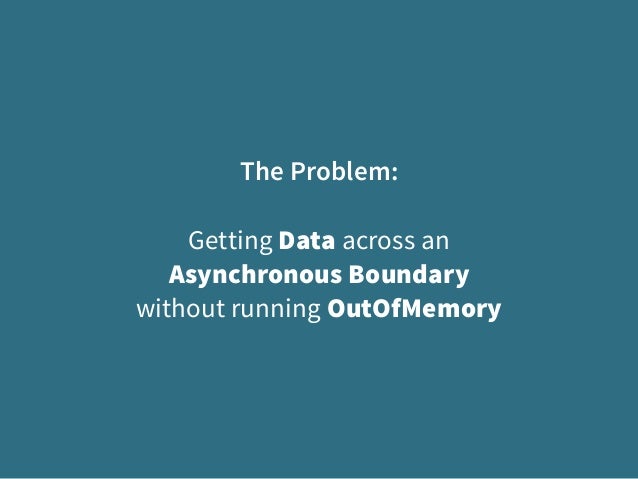

6. The Problem:
Getting Data across an
Asynchronous Boundary
without running OutOfMemory

7. Enter Reactive Streams
7
“Reactive Streams is an initiative to provide a
standard for asynchronous stream processing with
non-blocking back pressure on the JVM.”
— reactive-streams.org

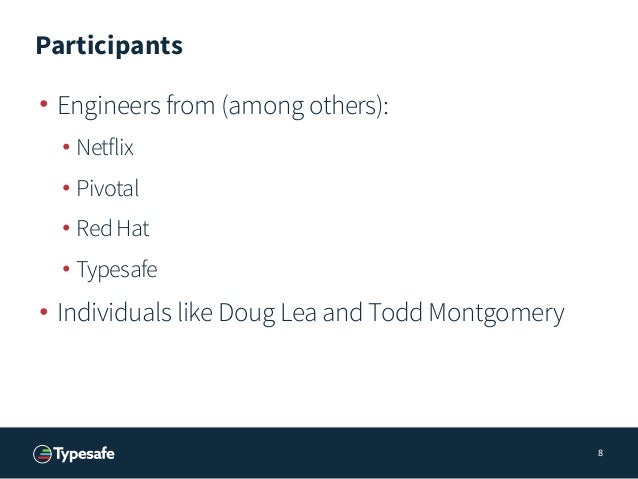

8. Participants
• Engineers from (among others):
• Netflix
• Pivotal
• Red Hat
• Typesafe
• Individuals like Doug Lea and Todd Montgomery
8

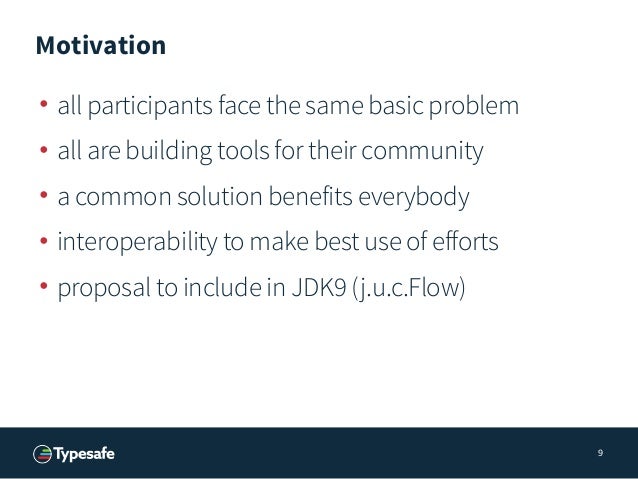

9. Motivation
• all participants face the same basic problem
• all are building tools for their community
• a common solution benefits everybody
• interoperability to make best use of efforts
• proposal to include in JDK9 (j.u.c.Flow)
9

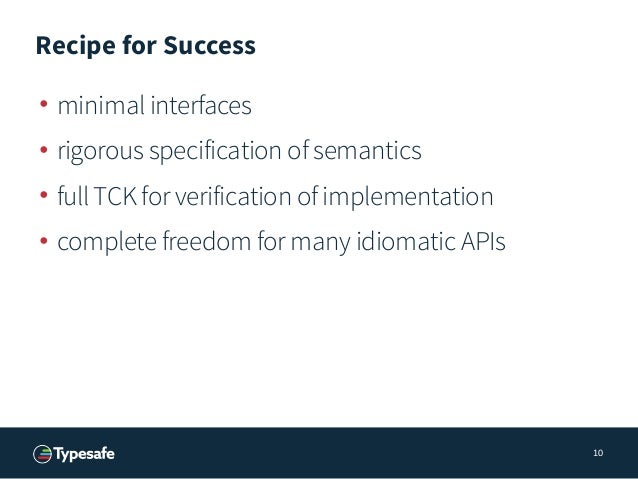

10. Recipe for Success
• minimal interfaces
• rigorous specification of semantics
• full TCK for verification of implementation
• complete freedom for many idiomatic APIs
10

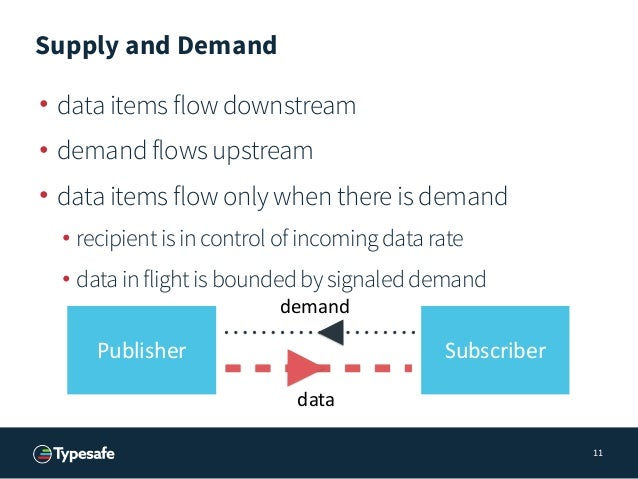

11. Supply and Demand
• data items flow downstream
• demand flows upstream
• data items flow only when there is demand
• recipient is in control of incoming data rate
• data in flight is bounded by signaled demand
11
Publisher Subscriber
data
demand

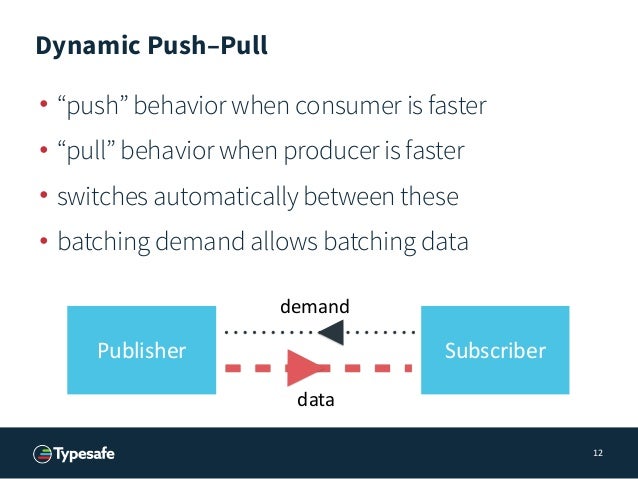

12. Dynamic Push–Pull
• “push” behavior when consumer is faster
• “pull” behavior when producer is faster
• switches automatically between these
• batching demand allows batching data
12
Publisher Subscriber
data
demand

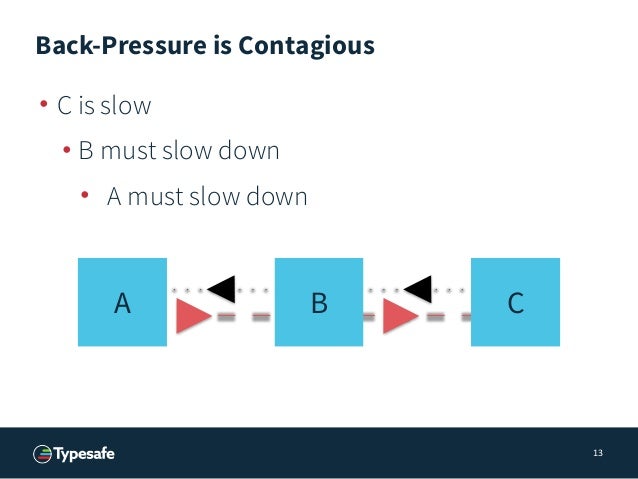

13. Back-Pressure is Contagious
• C is slow
• B must slow down
• A must slow down
13
CA B

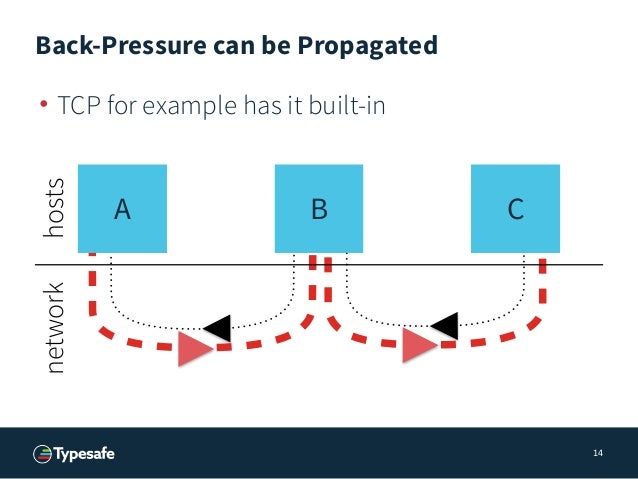

14. Back-Pressure can be Propagated
• TCP for example has it built-in
14
CA B
networkhosts

15. The Meat
15
trait Publisher[T] {
def subscribe(sub: Subscriber[T]): Unit
}
trait Subscription {
def request(n: Int): Unit
def cancel(): Unit
}
trait Subscriber[T] {
def onSubscribe(s: Subscription): Unit
def onNext(e: T): Unit
def onError(t: Throwable): Unit
def onComplete(): Unit
}

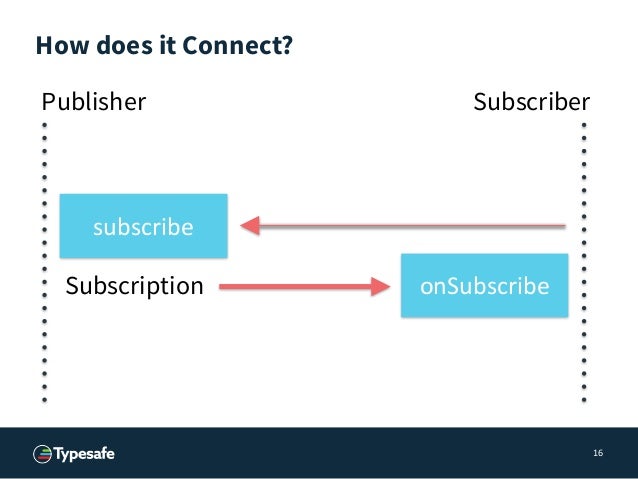

16. How does it Connect?
16
SubscriberPublisher
subscribe
onSubscribeSubscription

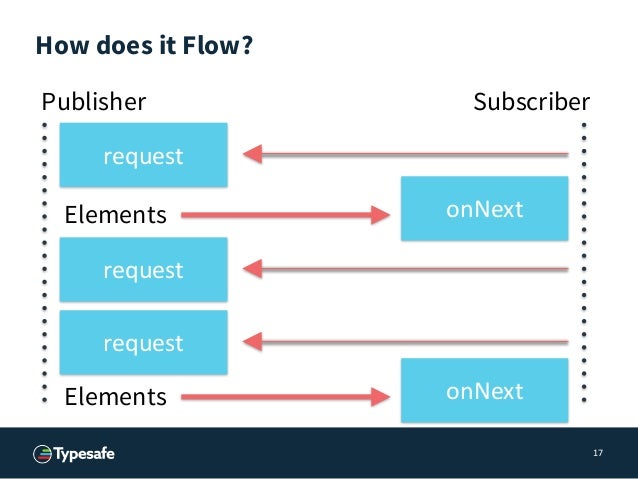

17. How does it Flow?
17
SubscriberPublisher
request
onNextElements
request
onNextElements
request

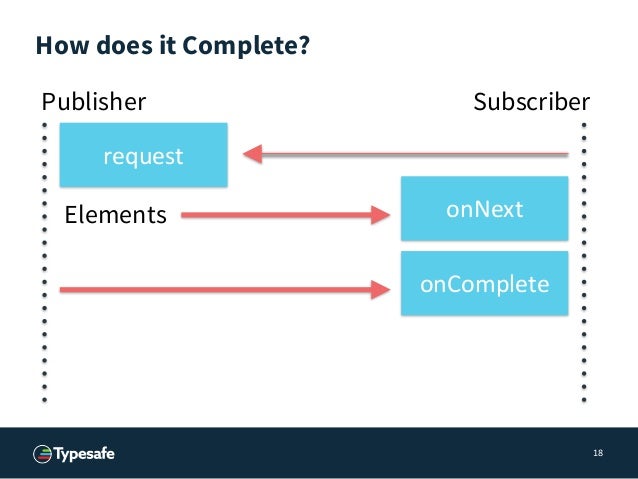

18. How does it Complete?
18
SubscriberPublisher
request
onNextElements
onComplete

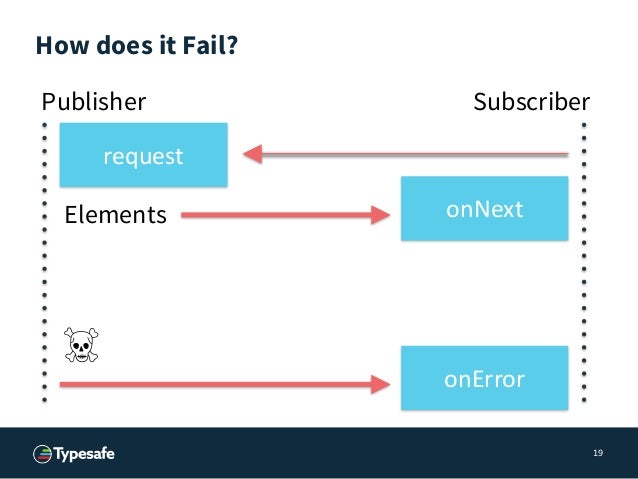

19. How does it Fail?
19
SubscriberPublisher
request
onNextElements
onError

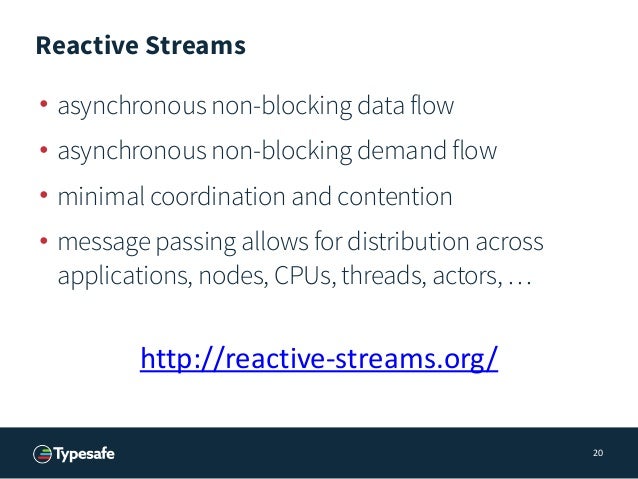

20. Reactive Streams
• asynchronous non-blocking data flow
• asynchronous non-blocking demand flow
• minimal coordination and contention
• message passing allows for distribution across
applications, nodes, CPUs, threads, actors, …
20
http://reactiveEstreams.org/

21. What is it good for?

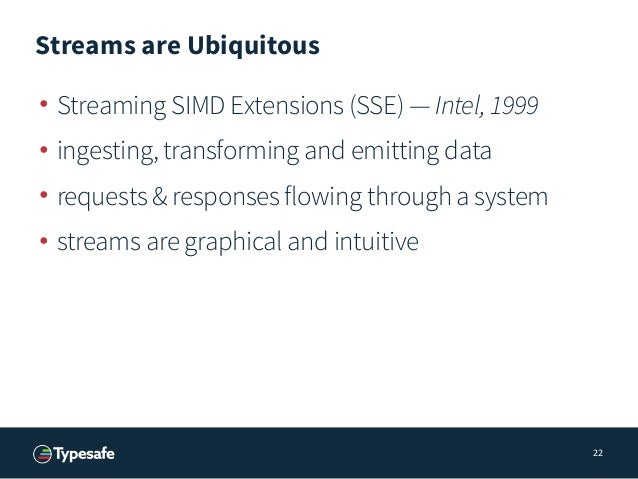

22. Streams are Ubiquitous
• Streaming SIMD Extensions (SSE) — Intel,1999
• ingesting, transforming and emitting data
• requests & responses flowing through a system
• streams are graphical and intuitive
22

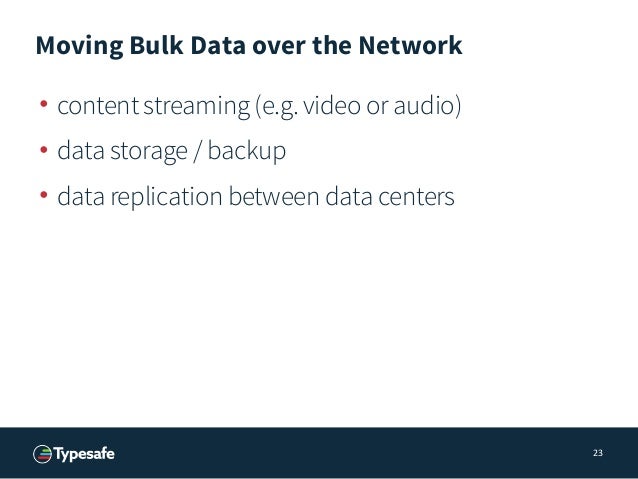

23. Moving Bulk Data over the Network
• content streaming (e.g. video or audio)
• data storage / backup
• data replication between data centers
23

24. Mobile Devices
• streams of updates from the server
• streams of user commands from the client
• bad connection quality—need for back-pressure
24

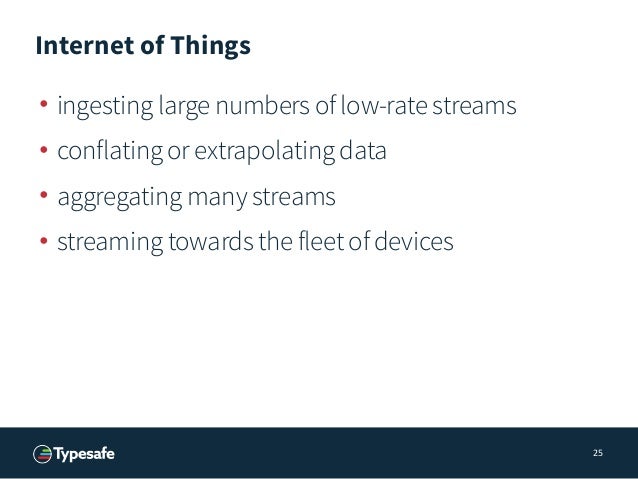

25. Internet of Things
• ingesting large numbers of low-rate streams
• conflating or extrapolating data
• aggregating many streams
• streaming towards the fleet of devices
25

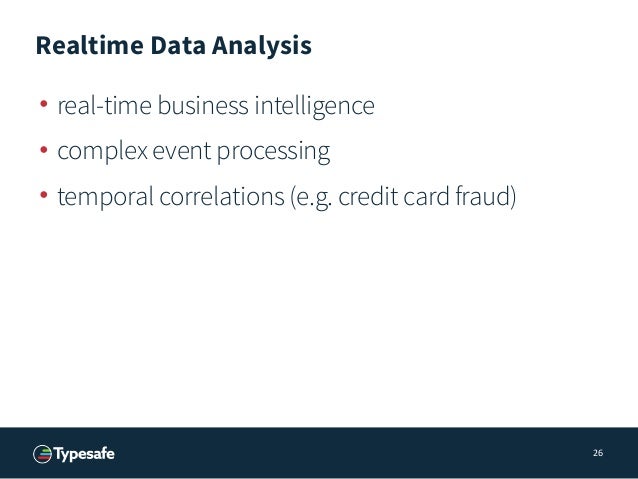

26. Realtime Data Analysis
• real-time business intelligence
• complex event processing
• temporal correlations (e.g. credit card fraud)
26

27. The Ecosystem

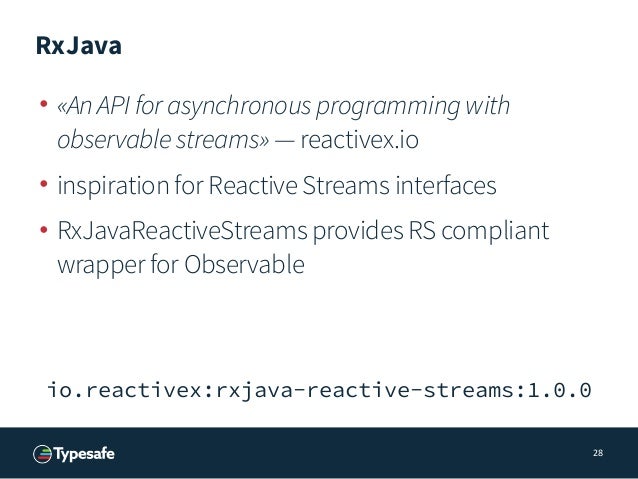

28. RxJava
• «AnAPIforasynchronousprogrammingwith
observablestreams» — reactivex.io
• inspiration for Reactive Streams interfaces
• RxJavaReactiveStreams provides RS compliant
wrapper for Observable
28
io.reactivex:rxjava-reactive-streams:1.0.0

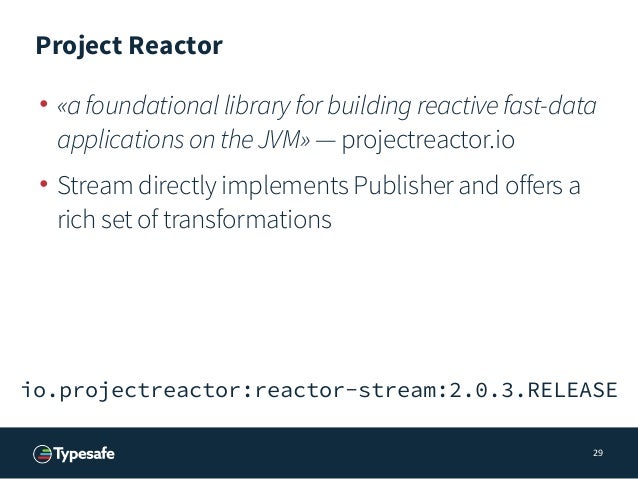

29. Project Reactor
• «afoundationallibraryforbuildingreactivefast-data
applicationsontheJVM» — projectreactor.io
• Stream directly implements Publisher and offers a
rich set of transformations
29
io.projectreactor:reactor-stream:2.0.3.RELEASE

30. Akka Streams
• compose any kind of stream processing topology
from immutable and reusable blueprints
• creates RS compliant Publisher/Subscriber when
materializing a flow graph into Actors
• high-level flow graph DSL
30
com.typesafe.akka:akka-stream-experimental:1.0-RC3

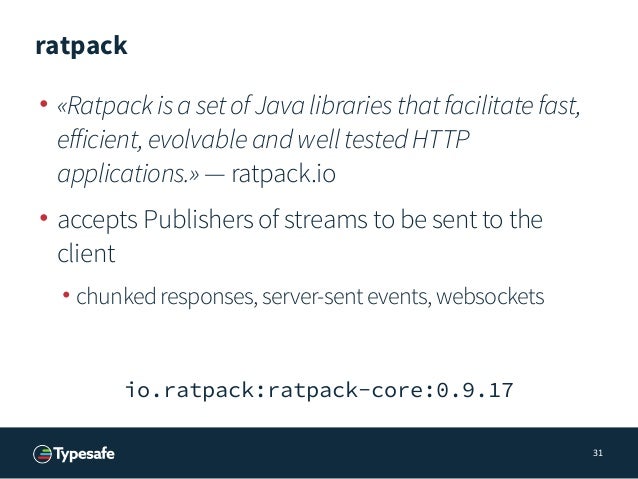

31. ratpack
• «RatpackisasetofJavalibrariesthatfacilitatefast,
efficient,evolvableandwelltestedHTTP
applications.» — ratpack.io
• accepts Publishers of streams to be sent to the
client
• chunked responses, server-sent events, websockets
31
io.ratpack:ratpack-core:0.9.17

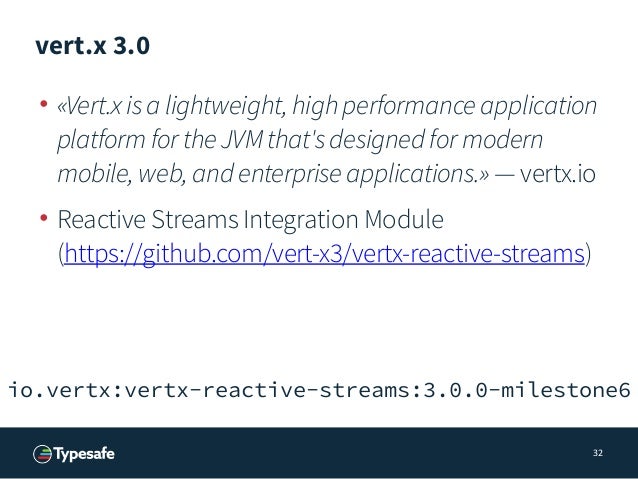

32. vert.x 3.0
• «Vert.xisalightweight,highperformanceapplication
platformfortheJVMthat'sdesignedformodern
mobile,web,andenterpriseapplications.» — vertx.io
• Reactive Streams Integration Module
(https://github.com/vert-x3/vertx-reactive-streams)
32
io.vertx:vertx-reactive-streams:3.0.0-milestone6

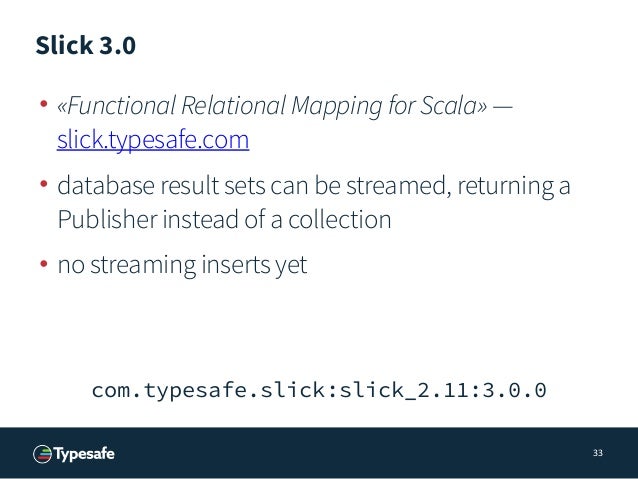

33. Slick 3.0
• «FunctionalRelationalMappingforScala»—
slick.typesafe.com
• database result sets can be streamed, returning a
Publisher instead of a collection
• no streaming inserts yet
33
com.typesafe.slick:slick_2.11:3.0.0

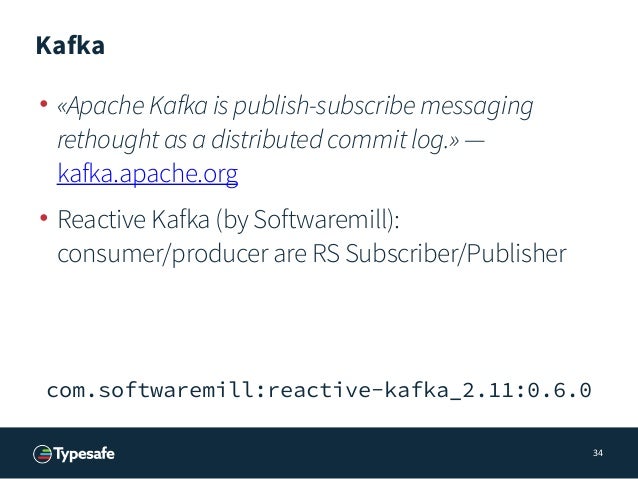

34. Kafka
• «ApacheKafkaispublish-subscribemessaging
rethoughtasadistributedcommitlog.» —
kafka.apache.org
• Reactive Kafka (by Softwaremill):
consumer/producer are RS Subscriber/Publisher
34
com.softwaremill:reactive-kafka_2.11:0.6.0

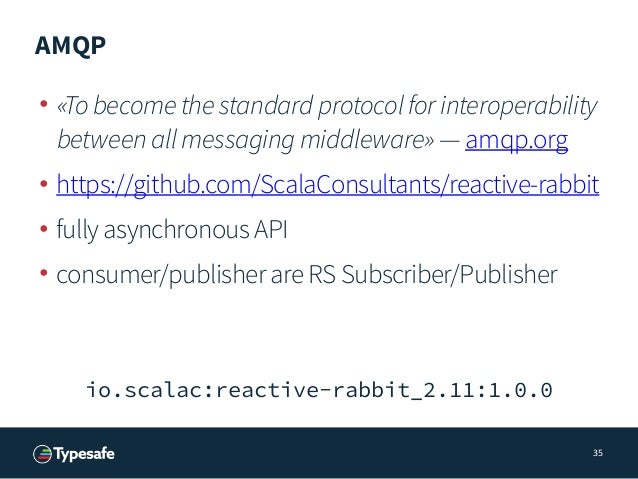

35. AMQP
• «Tobecomethestandardprotocolforinteroperability
betweenallmessagingmiddleware» — amqp.org
• https://github.com/ScalaConsultants/reactive-rabbit
• fully asynchronous API
• consumer/publisher are RS Subscriber/Publisher
35
io.scalac:reactive-rabbit_2.11:1.0.0

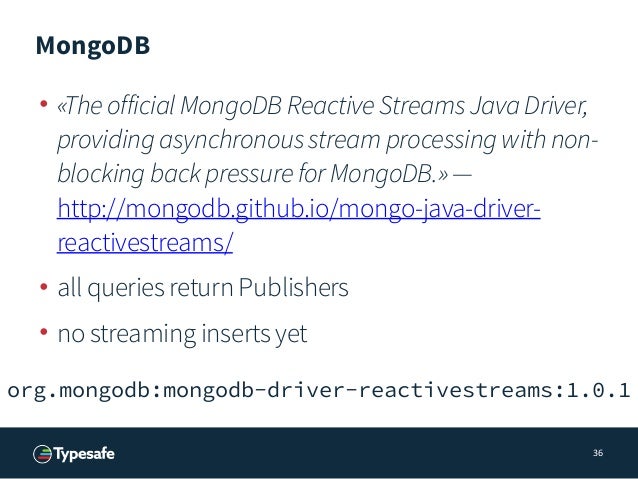

36. MongoDB
• «TheofficialMongoDBReactiveStreamsJavaDriver,
providingasynchronousstreamprocessingwithnon-
blockingbackpressureforMongoDB.»—
http://mongodb.github.io/mongo-java-driver-
reactivestreams/
• all queries return Publishers
• no streaming inserts yet
36
org.mongodb:mongodb-driver-reactivestreams:1.0.1

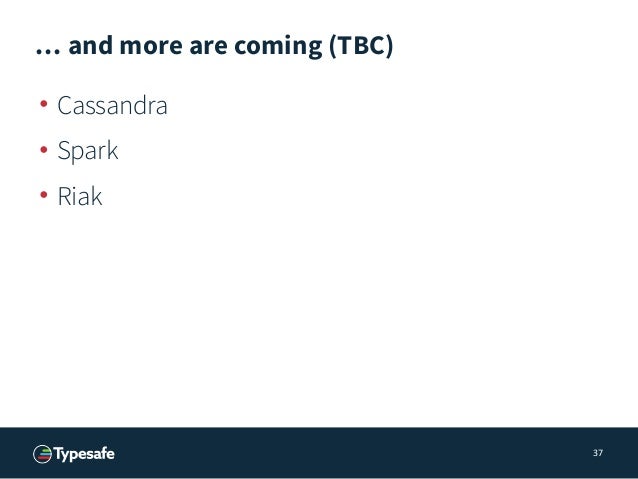

37. … and more are coming (TBC)
• Cassandra
• Spark
• Riak
37

38. Reactive Streams in the
Typesafe Reactive Platform

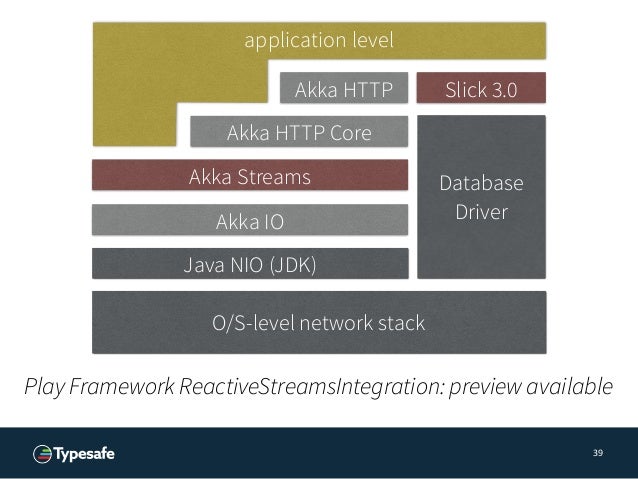

39. 39
O/S-level network stack
Java NIO (JDK)
Akka IO
Akka HTTP Core
Akka HTTP
application level
Akka Streams Database
Driver
Slick 3.0
Play Framework ReactiveStreamsIntegration: preview available

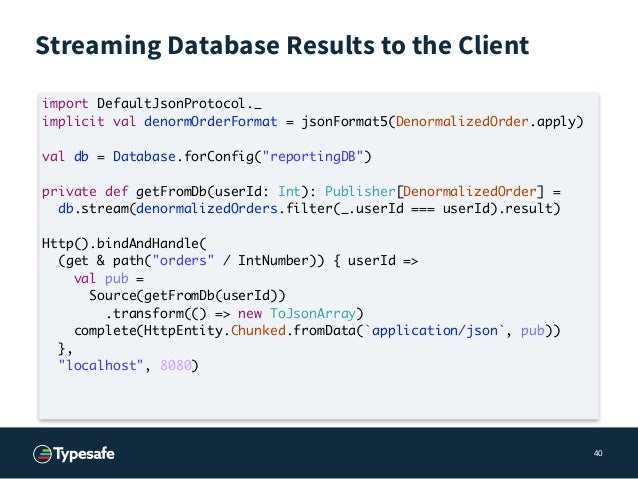

40. Streaming Database Results to the Client
40
import DefaultJsonProtocol._
implicit val denormOrderFormat = jsonFormat5(DenormalizedOrder.apply)
val db = Database.forConfig("reportingDB")
private def getFromDb(userId: Int): Publisher[DenormalizedOrder] =
db.stream(denormalizedOrders.filter(_.userId === userId).result)
Http().bindAndHandle(
(get & path("orders" / IntNumber)) { userId =>
val pub =
Source(getFromDb(userId))
.transform(() => new ToJsonArray)
complete(HttpEntity.Chunked.fromData(`application/json`, pub))
},
"localhost", 8080)

41. REACTIVE PLATFORM
Full Lifecycle Support for Play, Akka, Scala and Spark
Give your project a boost with Reactive Platform:
• Monitor Message-Driven Apps
• Resolve Network Partitions Decisively
• Integrate Easily with Legacy Systems
• Eliminate Incompatibility & Security Risks
• Protect Apps Against Abuse
• Expert Support from Dedicated Product Teams
Enjoy learning? See about the availability of
on-site training for Scala, Akka, Play and Spark!
Learn more about our offersCONTACT US
