Efficient Clothes Dryers
Christopher Dymond, Sr. Product Manager
Dryer Summit
November 14th , 2013
1 NORTHWEST ENERGY EFFICIENCY ALLIANCE

2.

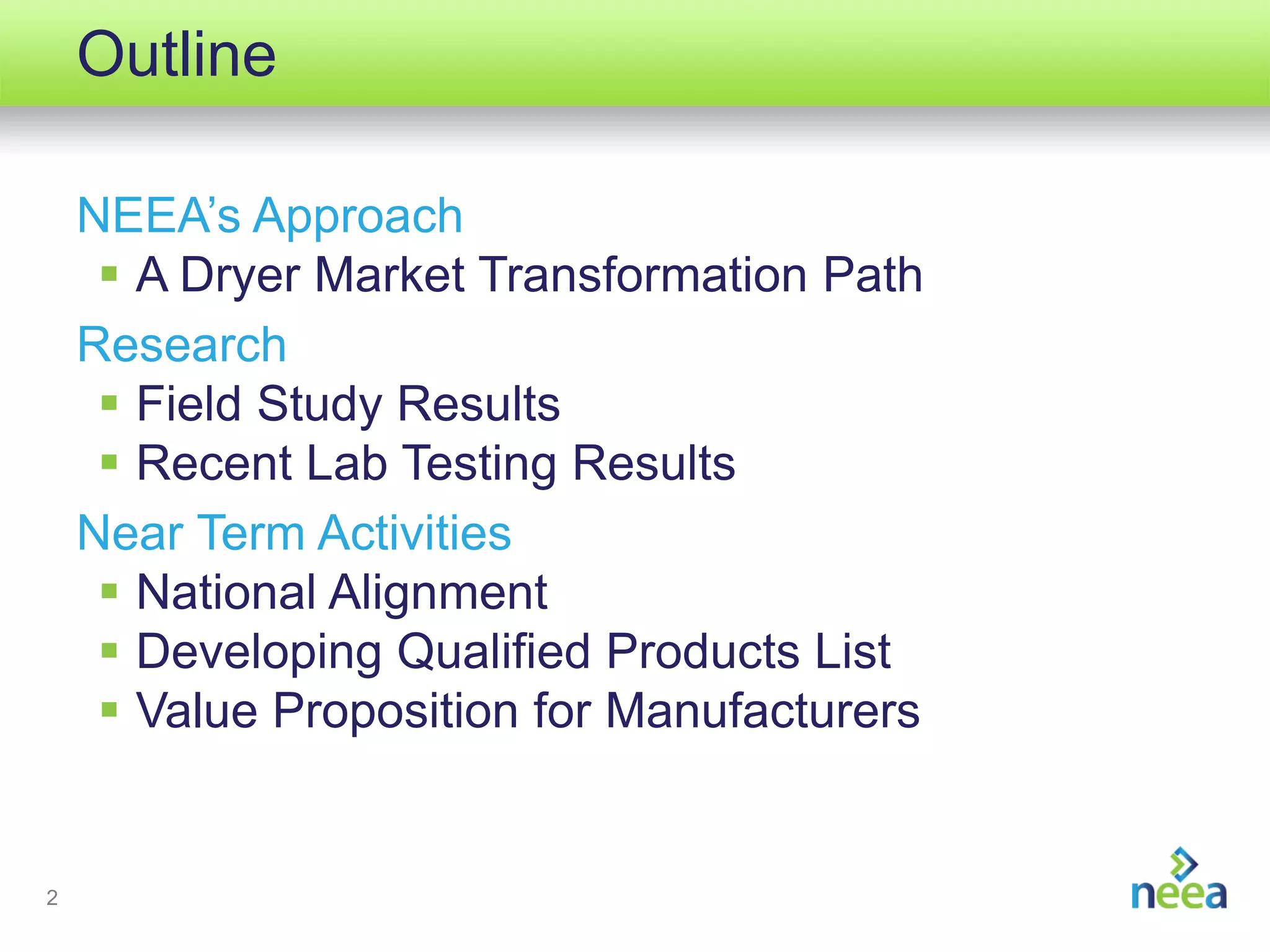

Outline
NEEA’s Approach
 A Dryer Market Transformation Path
Research
 Field Study Results
 Recent Lab Testing Results
Near Term Activities
 National Alignment
 Developing Qualified Products List
 Value Proposition for Manufacturers
2

3.

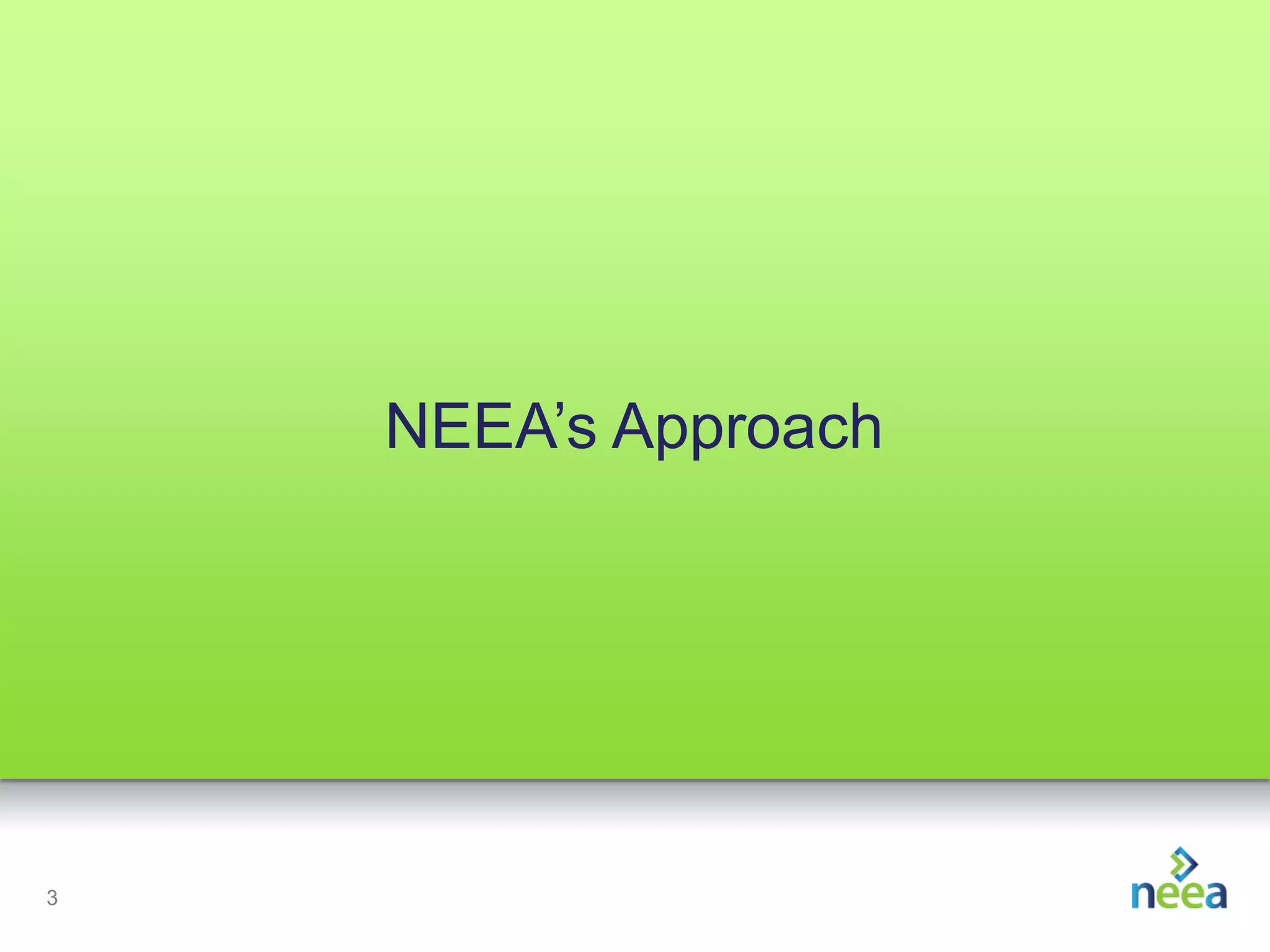

NEEA’s Approach
3

4.

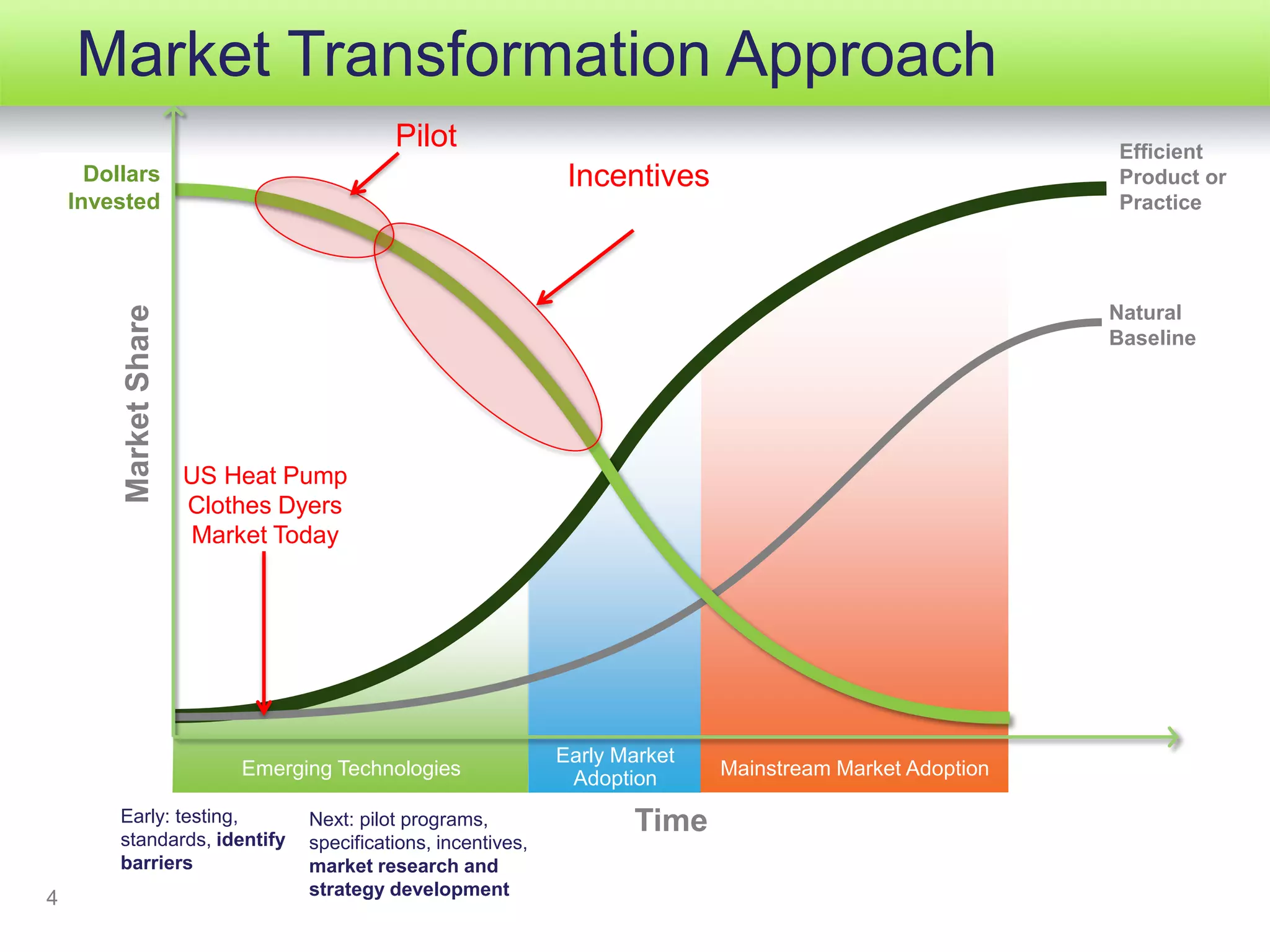

Market Transformation Approach
Pilot
Market Share
Natural
Baseline
US Heat Pump
Clothes Dyers
Market Today
Emerging Technologies
Early: testing,
standards, identify
barriers
4
Efficient
Product or
Practice
Incentives
Dollars
Invested
Next: pilot programs,
specifications, incentives,
market research and
strategy development
Early Market
Adoption
Time
Mainstream Market Adoption

5.

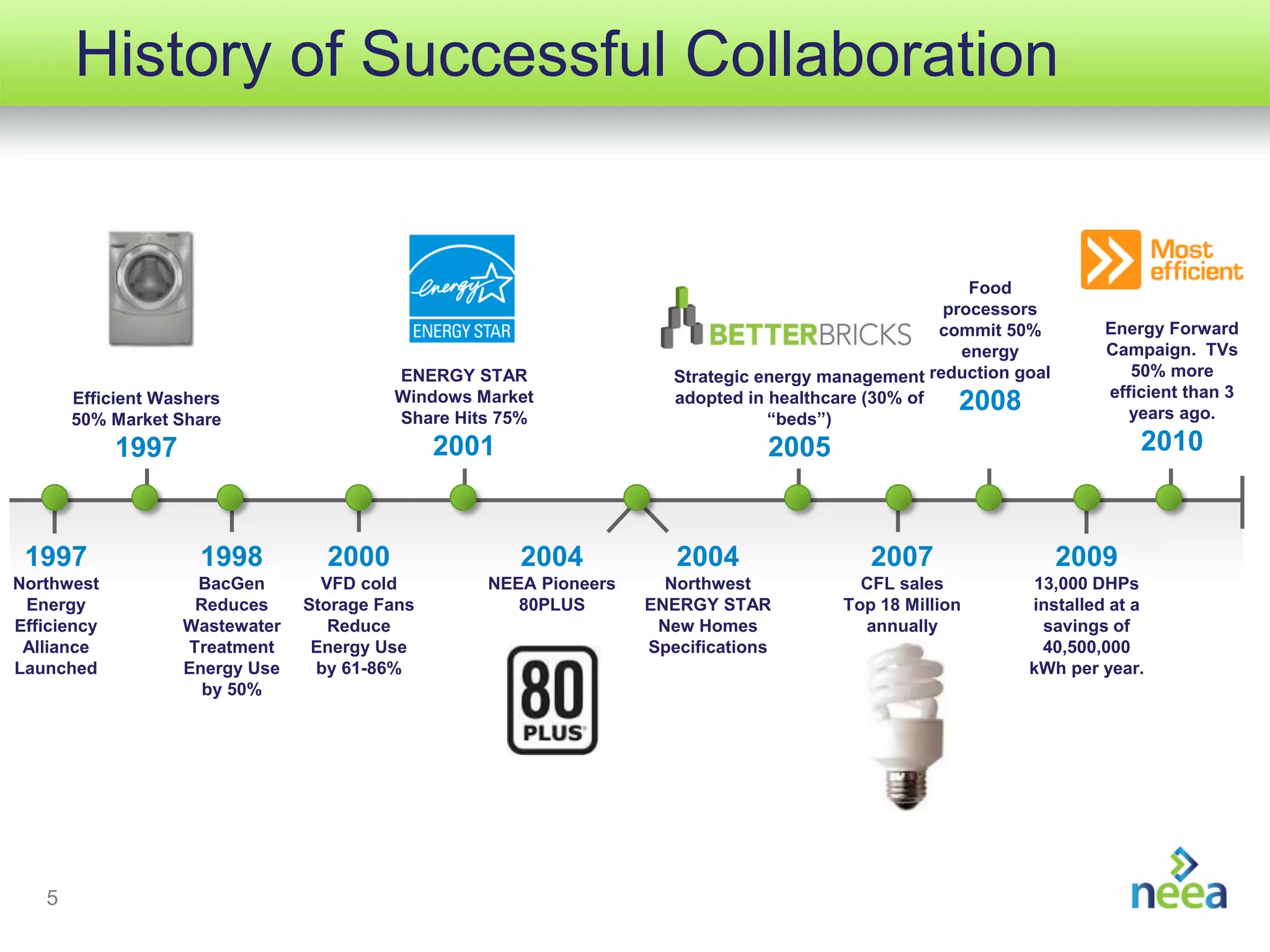

History of Successful Collaboration
Efficient Washers
50% Market Share
ENERGY STAR
Windows Market
Share Hits 75%
1997
Food
processors
commit 50%
energy
reduction goal
Strategic energy management
adopted in healthcare (30% of
“beds”)
2001
2008
Energy Forward
Campaign. TVs
50% more
efficient than 3
years ago.
2010
2005
1997
1998
2000
2004
2004
2007
2009
Northwest
Energy
Efficiency
Alliance
Launched
BacGen
Reduces
Wastewater
Treatment
Energy Use
by 50%
VFD cold
Storage Fans
Reduce
Energy Use
by 61-86%
NEEA Pioneers
80PLUS
Northwest
ENERGY STAR
New Homes
Specifications
CFL sales
Top 18 Million
annually
13,000 DHPs
installed at a
savings of
40,500,000
kWh per year.
5

6.

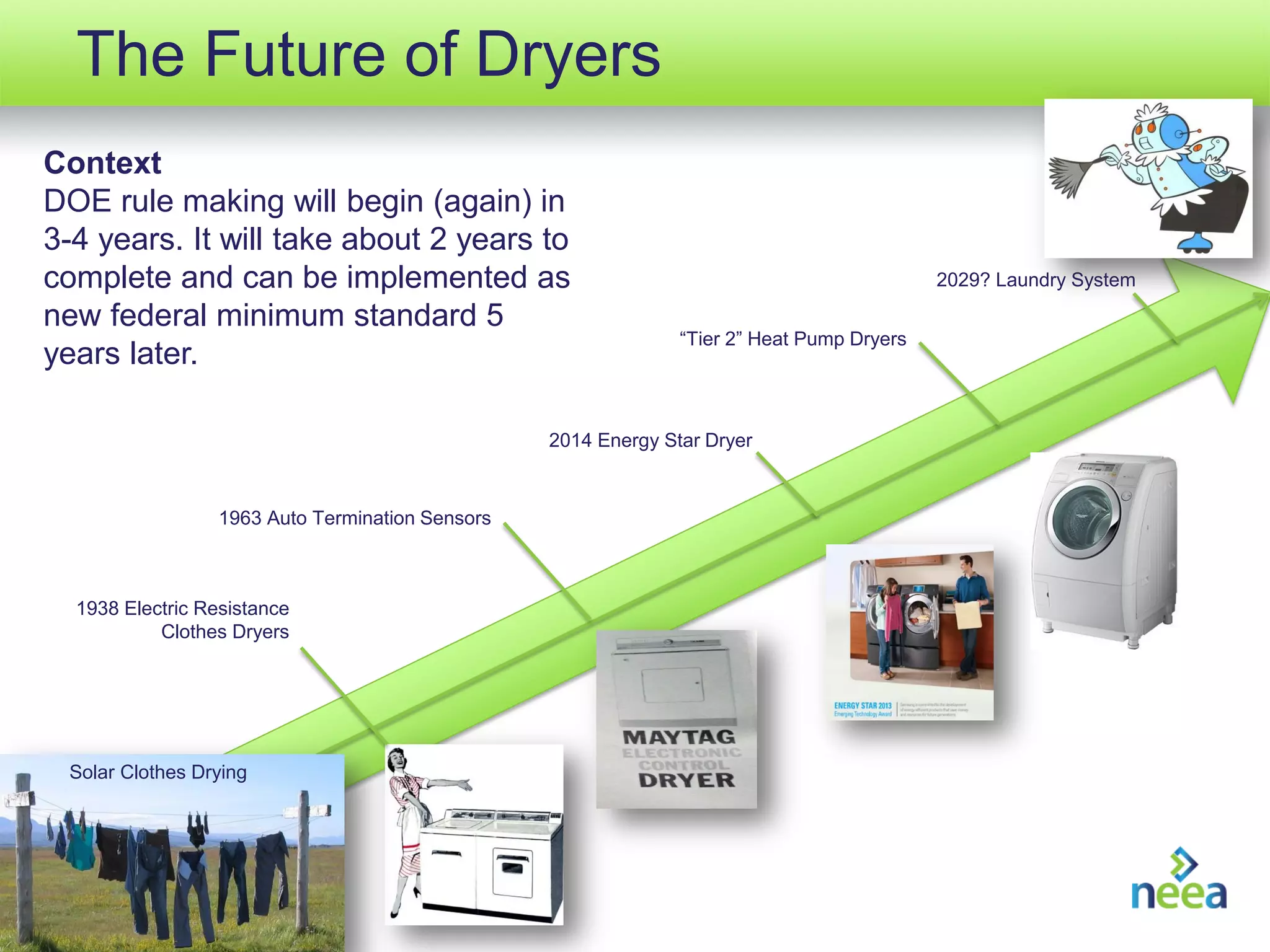

The Future of Dryers
Context
DOE rule making will begin (again) in
3-4 years. It will take about 2 years to
complete and can be implemented as
new federal minimum standard 5
years later.
2029? Laundry System
“Tier 2” Heat Pump Dryers
2014 Energy Star Dryer
1963 Auto Termination Sensors
1938 Electric Resistance
Clothes Dryers
Solar Clothes Drying
6

7.

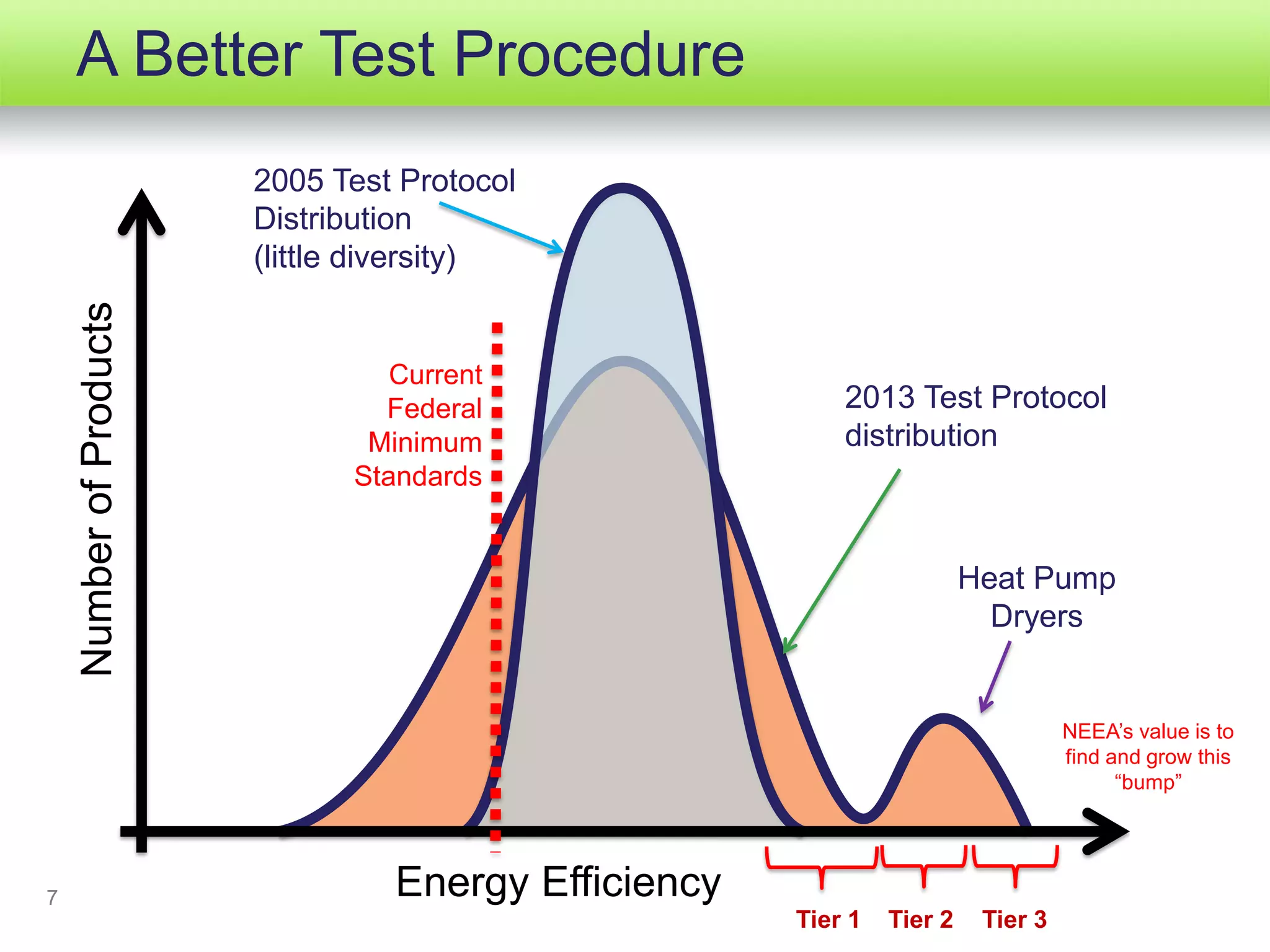

A Better Test Procedure
Number of Products
2005 Test Protocol
Distribution
(little diversity)
Current
Federal
Minimum
Standards
2013 Test Protocol
distribution
Heat Pump
Dryers
NEEA’s value is to
find and grow this
“bump”
7
Energy Efficiency
Tier 1
Tier 2
Tier 3

8.

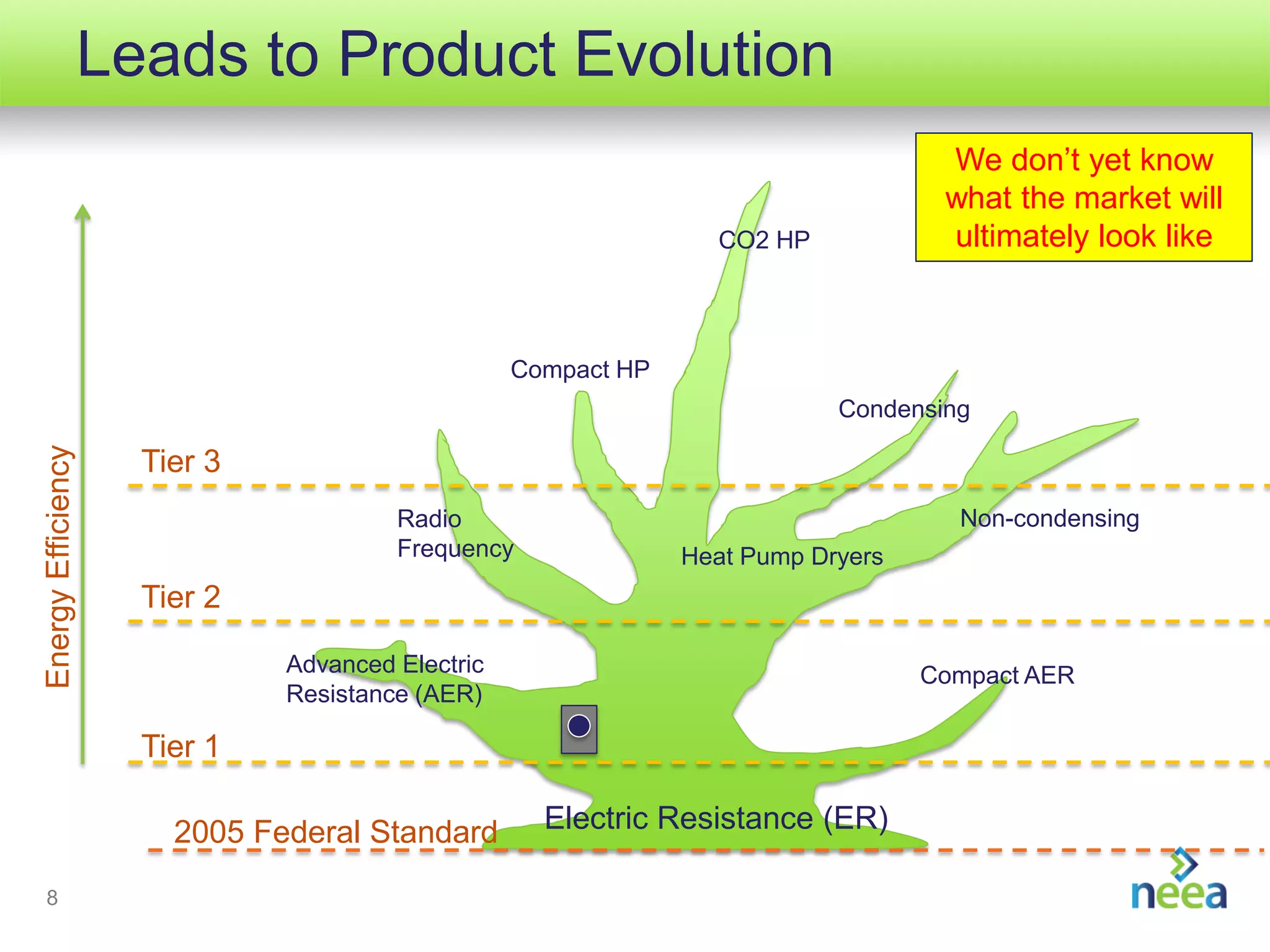

Leads to Product Evolution
We don’t yet know
what the market will
ultimately look like
CO2 HP
Compact HP
Energy Efficiency
Condensing
Tier 3
Radio
Frequency
Non-condensing
Heat Pump Dryers
Tier 2
Advanced Electric
Resistance (AER)
Compact AER
Tier 1
2005 Federal Standard
8
Electric Resistance (ER)

9.
Field Research
9

10.

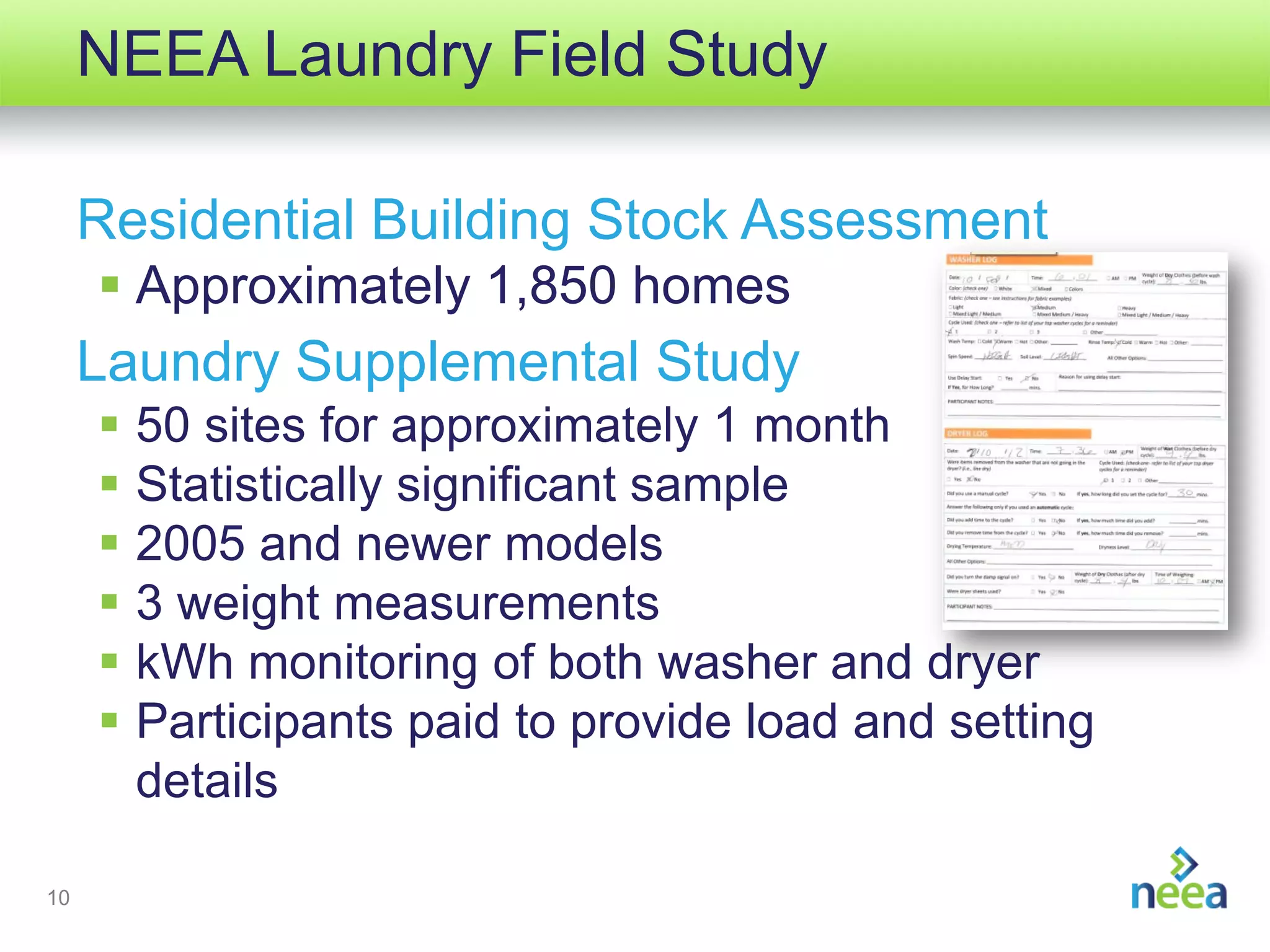

NEEA Laundry Field Study
Residential Building Stock Assessment
 Approximately 1,850 homes
Laundry Supplemental Study






10
50 sites for approximately 1 month
Statistically significant sample
2005 and newer models
3 weight measurements
kWh monitoring of both washer and dryer
Participants paid to provide load and setting
details

11.

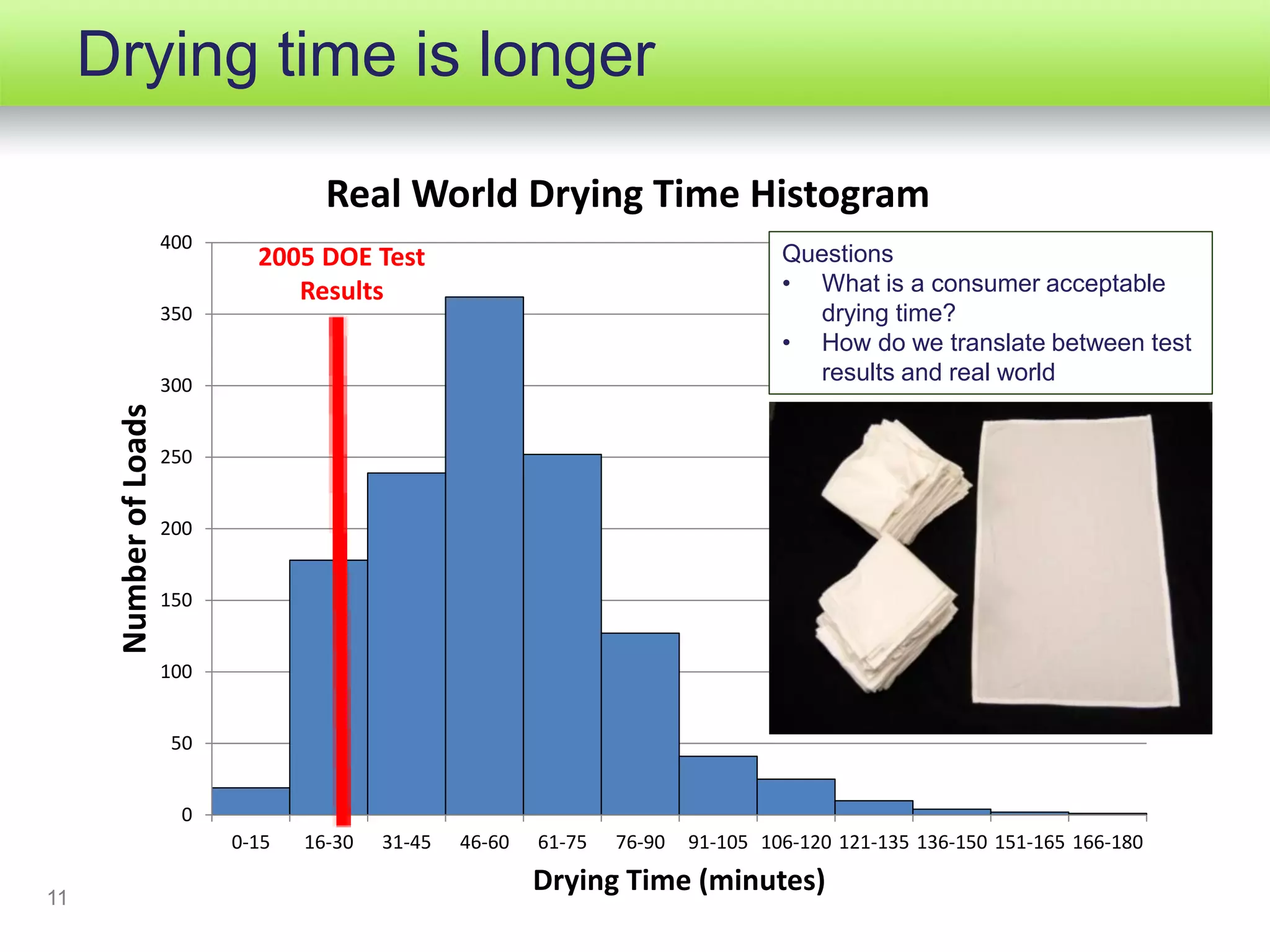

Drying time is longer
Real World Drying Time Histogram
400
350
Questions
• What is a consumer acceptable
drying time?
• How do we translate between test
results and real world
2005 DOE Test
Results
Number of Loads
300
250
200
150
100
50
0
0-15
11
16-30
31-45
46-60
61-75
76-90
91-105 106-120 121-135 136-150 151-165 166-180
Drying Time (minutes)

12.

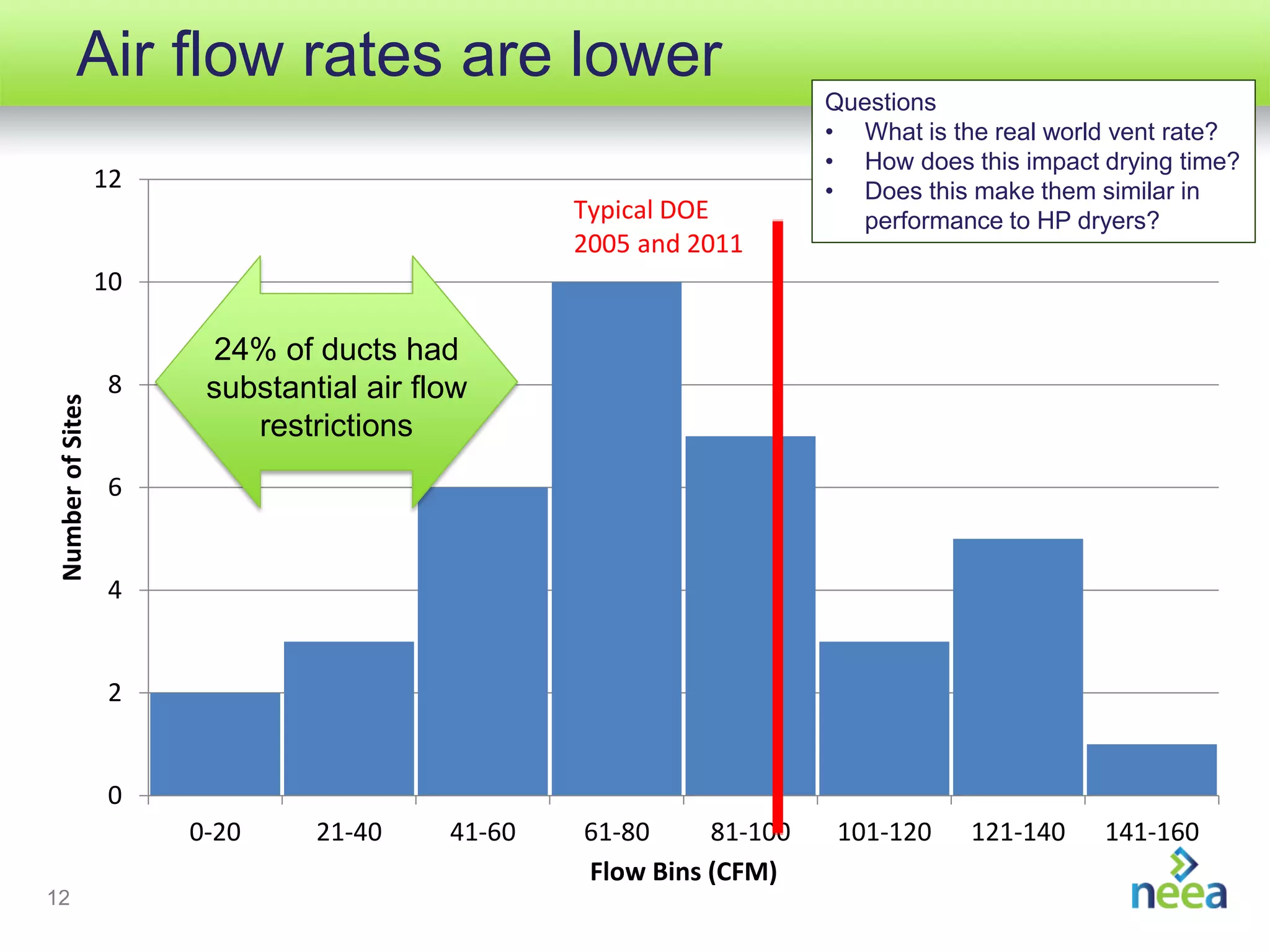

Air flow rates are lower
12
Typical DOE
2005 and 2011
Questions
• What is the real world vent rate?
• How does this impact drying time?
• Does this make them similar in
performance to HP dryers?
Number of Sites
10
8
24% of ducts had
substantial air flow
restrictions
6
4
2
0
0-20
12
21-40
41-60
61-80
81-100
Flow Bins (CFM)
101-120
121-140
141-160

13.

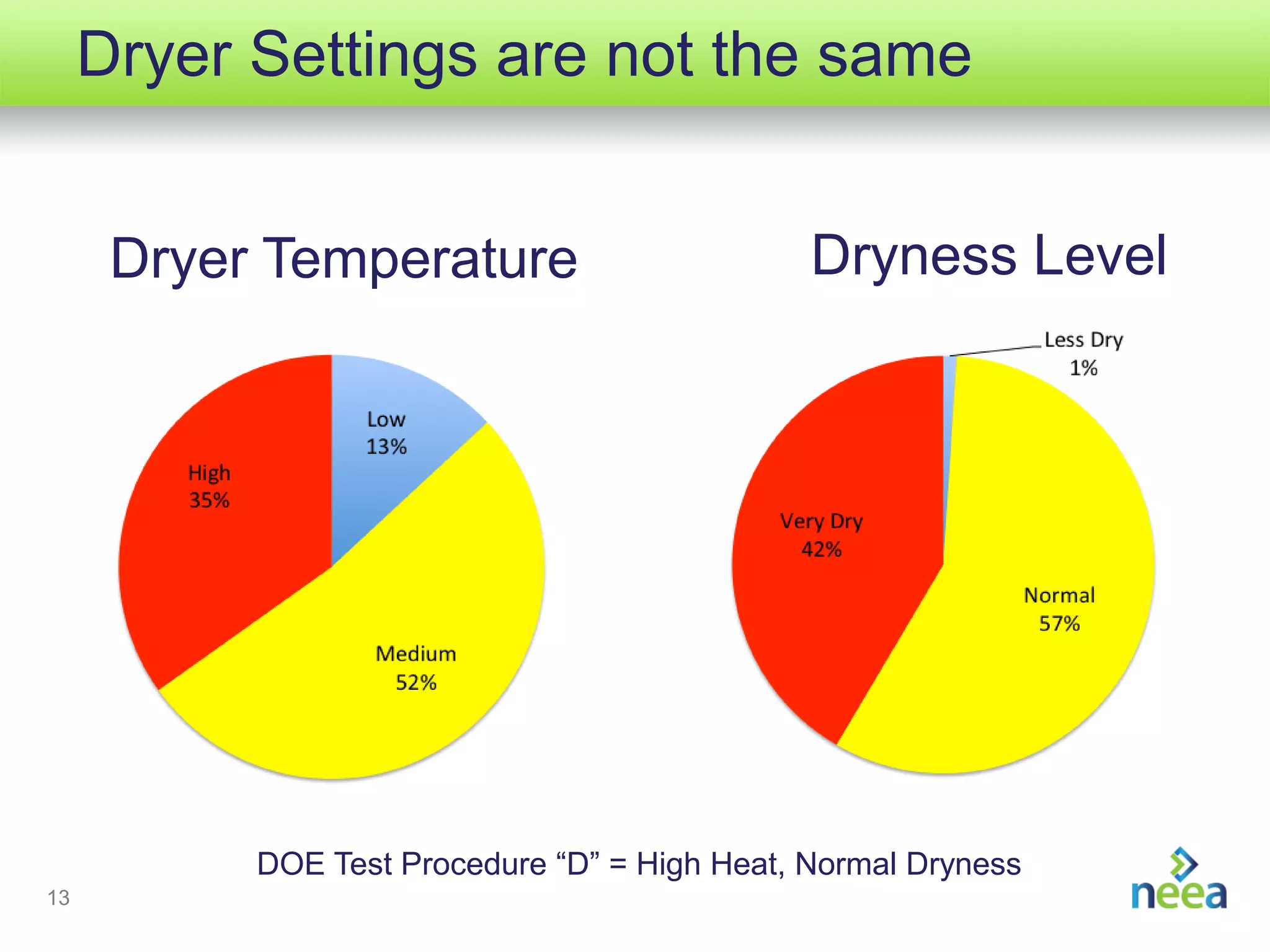

Dryer Settings are not the same
Dryer Temperature
Dryness Level
DOE Test Procedure “D” = High Heat, Normal Dryness
13

14.

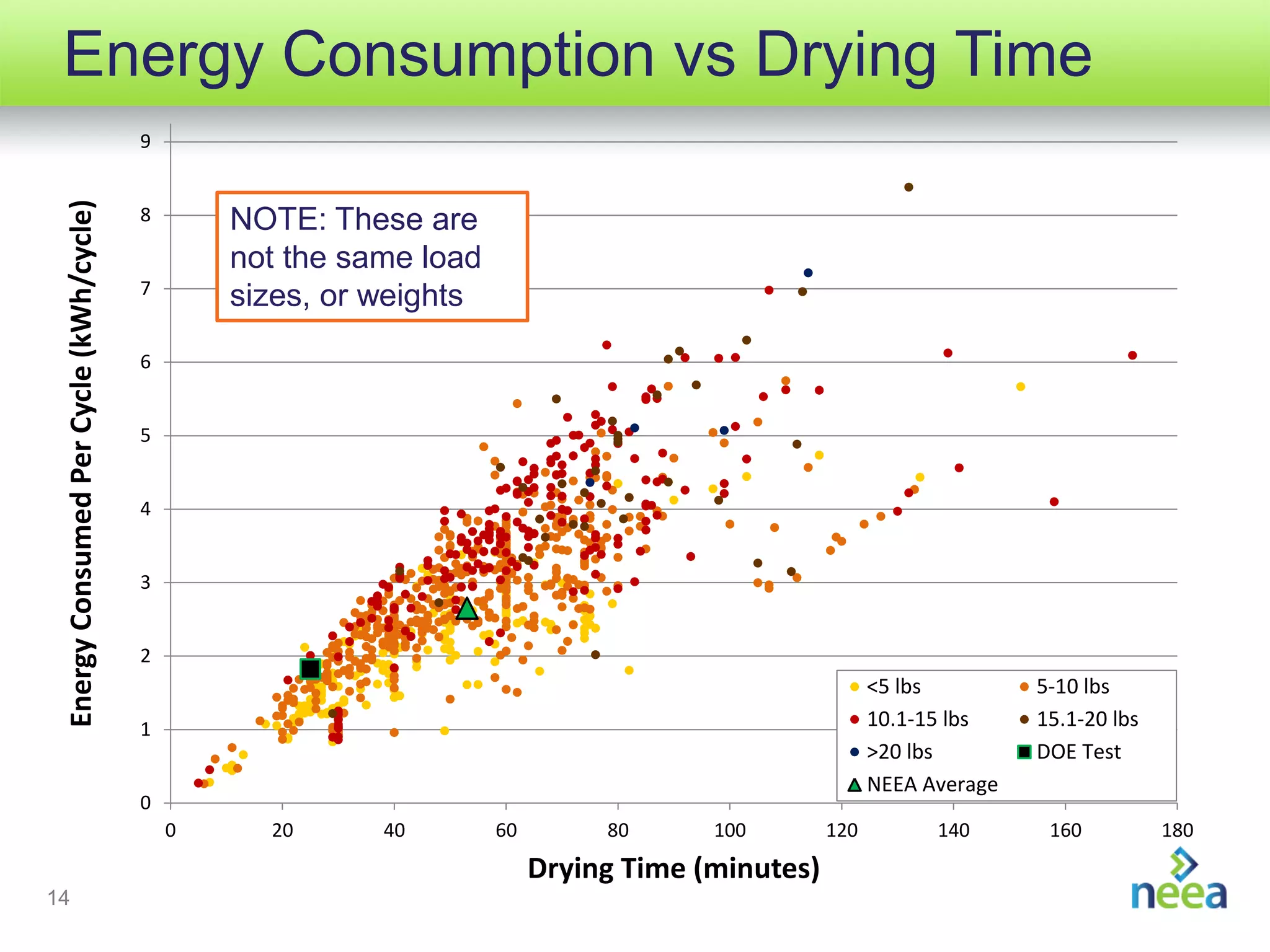

Energy Consumption vs Drying Time
Energy Consumed Per Cycle (kWh/cycle)
9
8
NOTE: These are
not the same load
sizes, or weights
7
6
5
4
3
2
<5 lbs
10.1-15 lbs
>20 lbs
NEEA Average
1
0
0
20
40
60
80
100
Drying Time (minutes)
14
120
140
5-10 lbs
15.1-20 lbs
DOE Test
160
180

15.

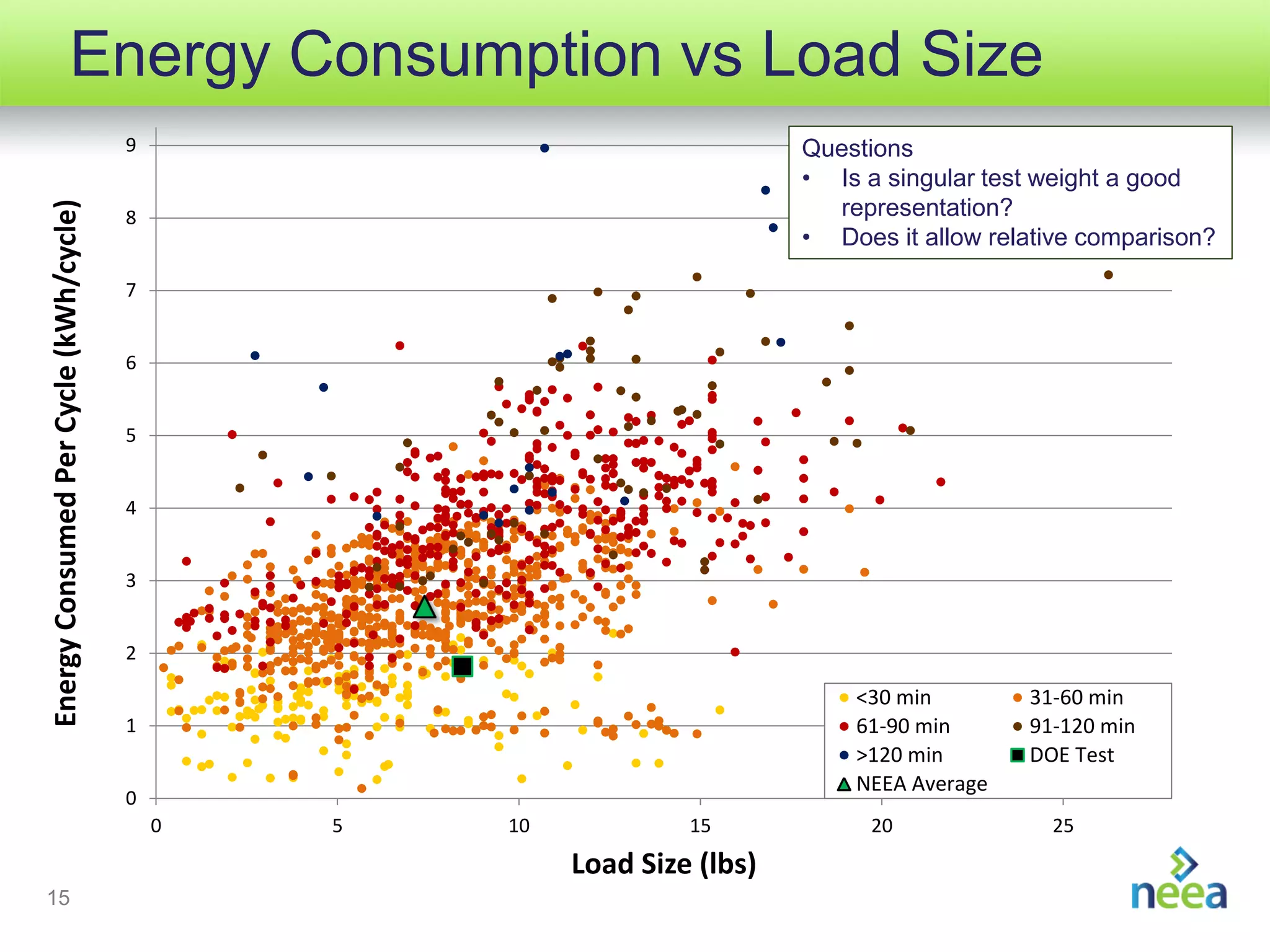

Energy Consumption vs Load Size
Energy Consumed Per Cycle (kWh/cycle)
9
Questions
• Is a singular test weight a good
representation?
• Does it allow relative comparison?
8
7
6
5
4
3
2
<30 min
61-90 min
>120 min
NEEA Average
1
0
0
5
10
15
Load Size (lbs)
15
20
31-60 min
91-120 min
DOE Test
25

16.

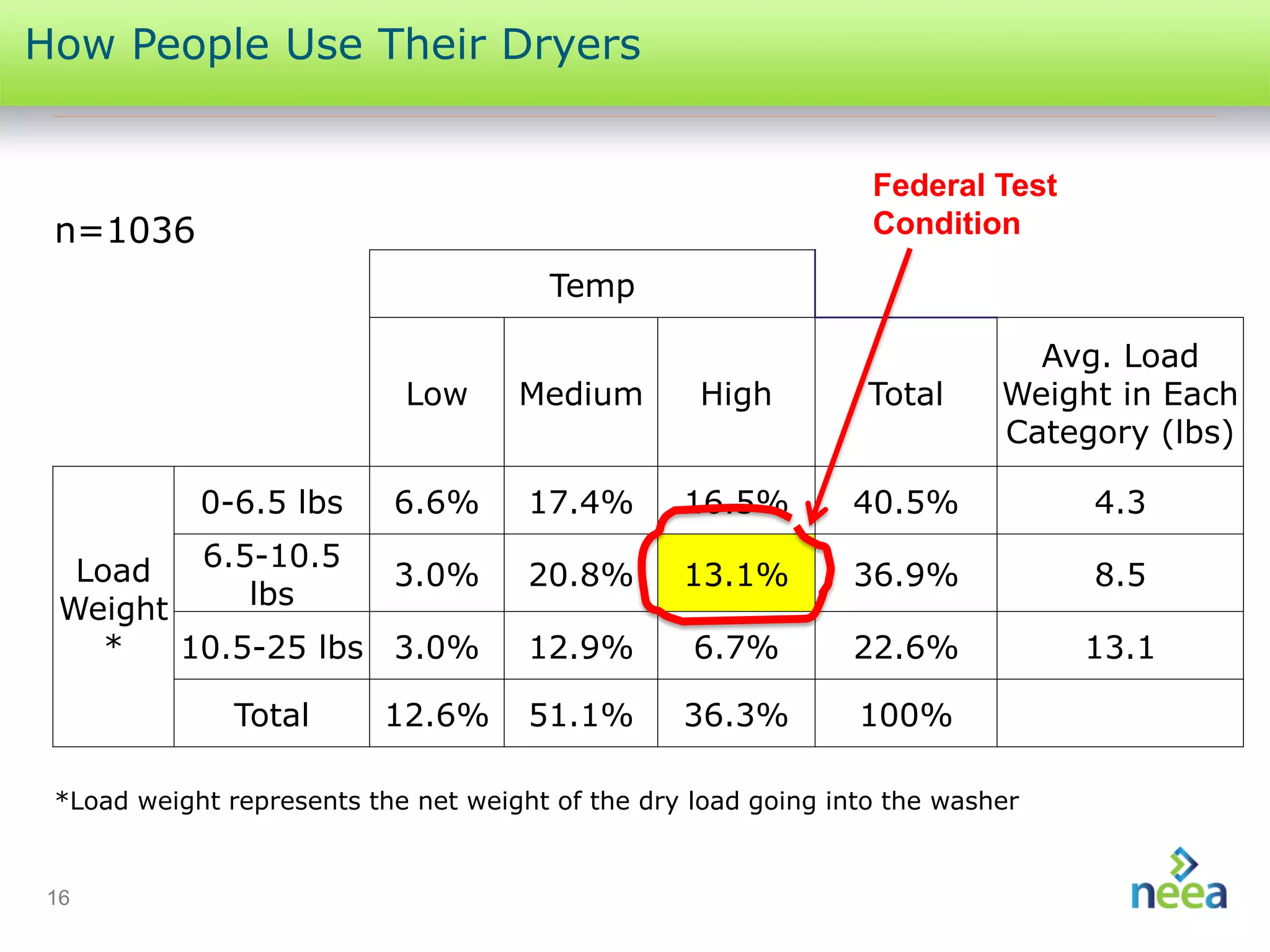

How People Use Their Dryers
Federal Test
Condition
n=1036
Temp
Low
0-6.5 lbs
Medium
High
Total
Avg. Load
Weight in Each
Category (lbs)
6.6%
17.4%
16.5%
40.5%
4.3
20.8%
13.1%
36.9%
8.5
12.9%
6.7%
22.6%
13.1
51.1%
36.3%
100%
6.5-10.5
Load
3.0%
lbs
Weight
*
10.5-25 lbs 3.0%
Total
12.6%
*Load weight represents the net weight of the dry load going into the washer
16

17.
Initial Moisture
17

18.

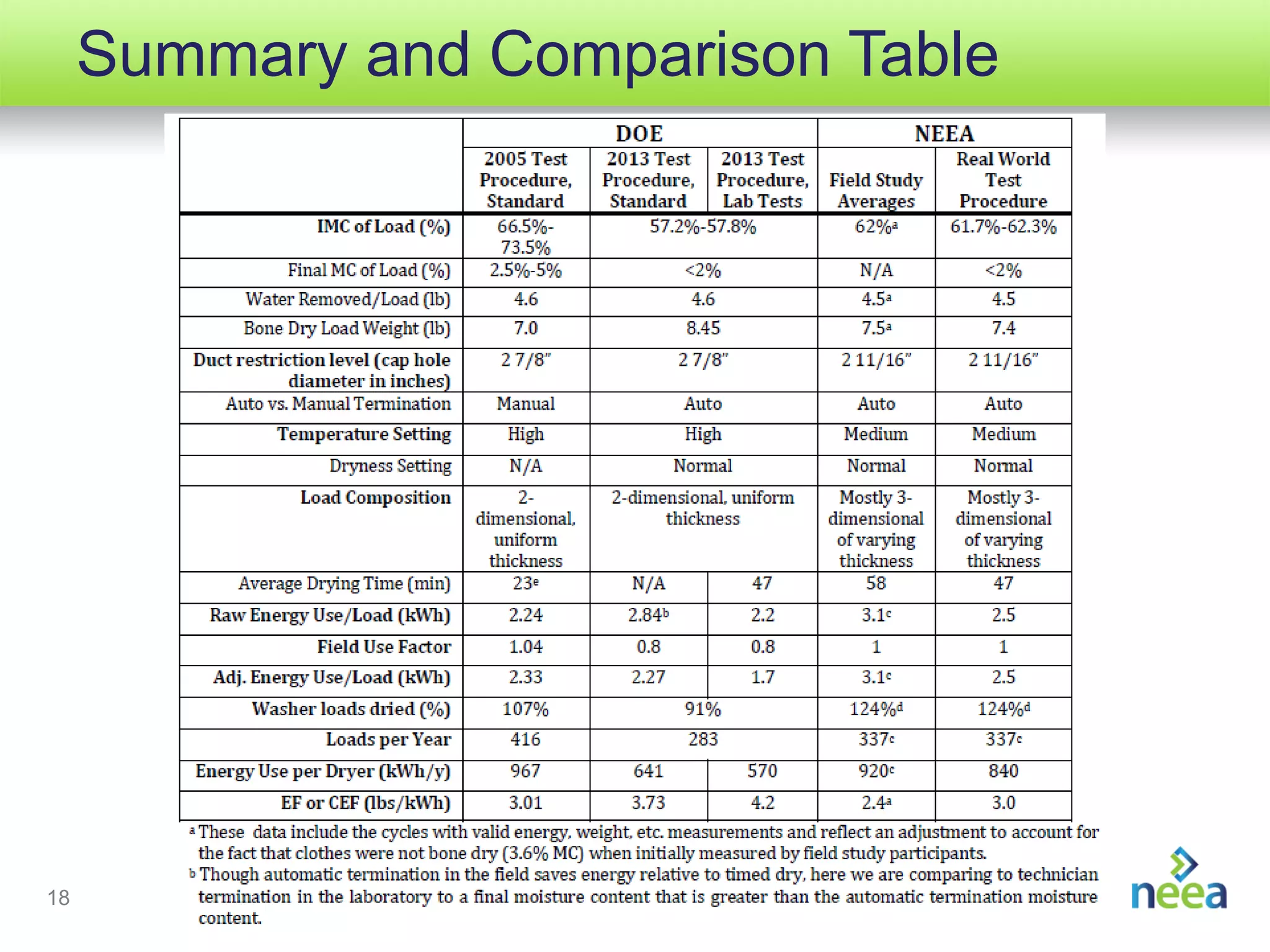

Summary and Comparison Table
18

19.

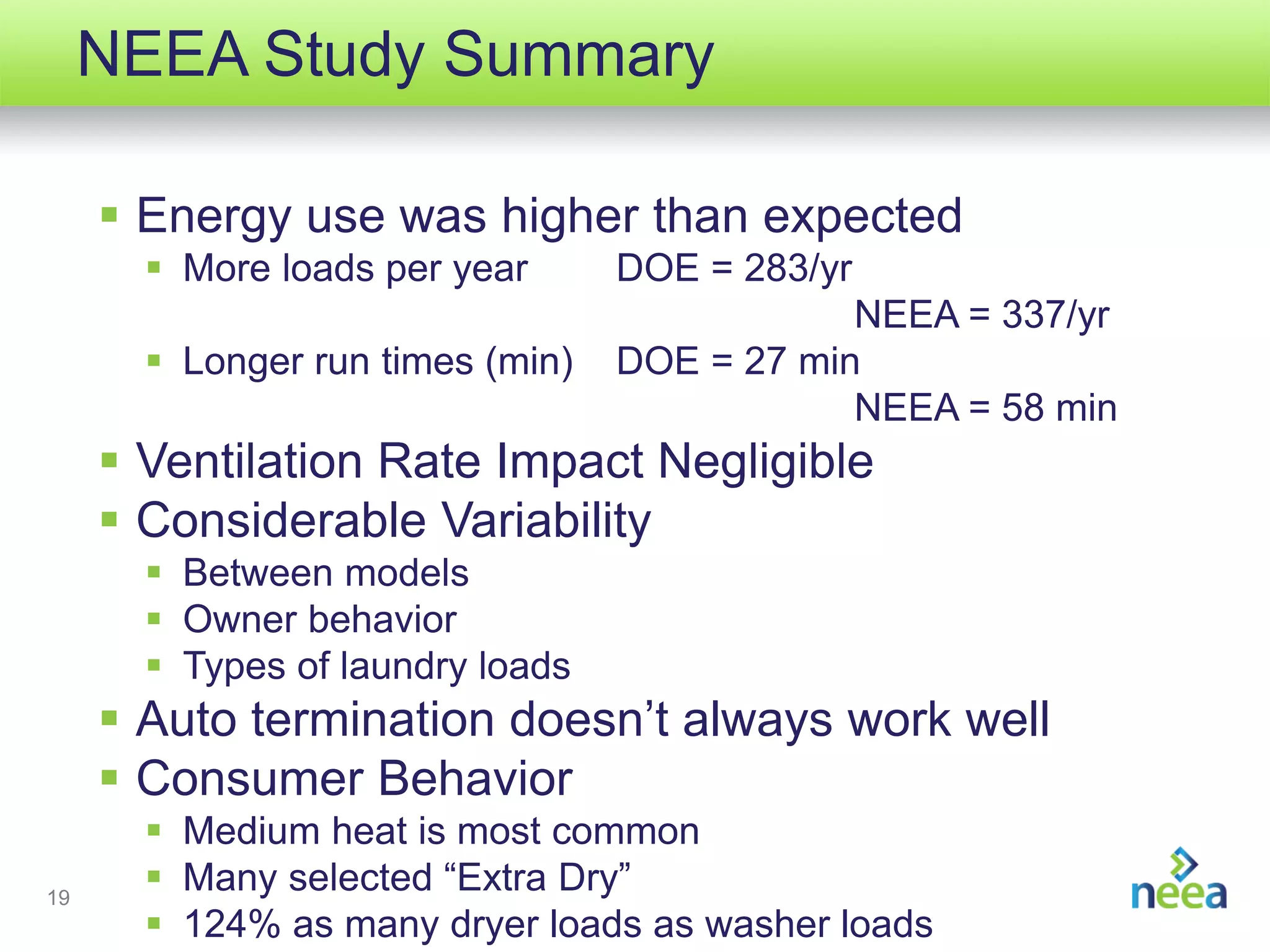

NEEA Study Summary
 Energy use was higher than expected
 More loads per year
DOE = 283/yr
 Longer run times (min)
NEEA = 337/yr
DOE = 27 min
NEEA = 58 min
 Ventilation Rate Impact Negligible
 Considerable Variability
 Between models
 Owner behavior
 Types of laundry loads
 Auto termination doesn’t always work well
 Consumer Behavior
19
 Medium heat is most common
 Many selected “Extra Dry”
 124% as many dryer loads as washer loads

20.
Recent Lab Testing Results
(Performed by Ecova)
20

21.

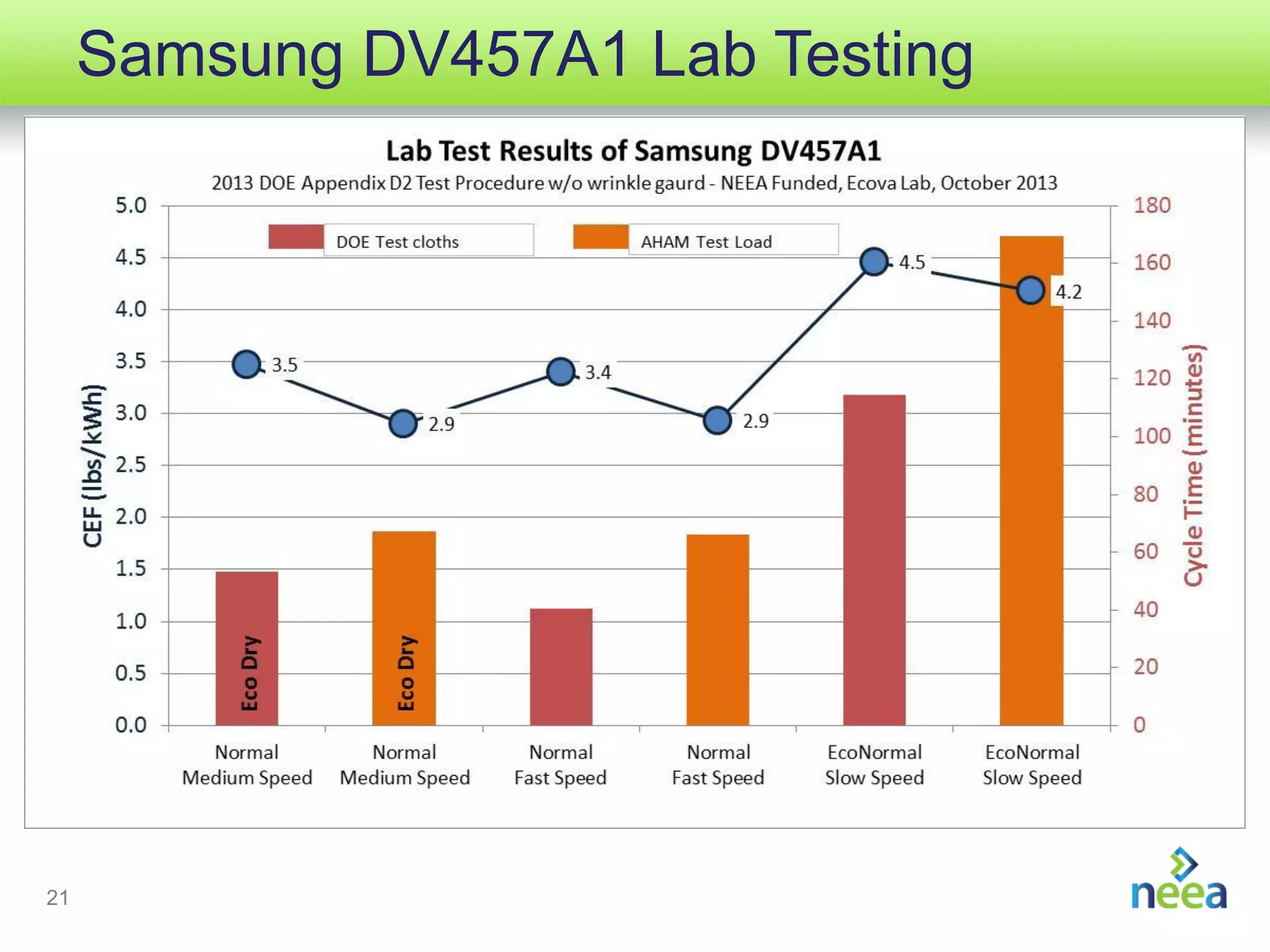

Samsung DV457A1 Lab Testing
Testing to DOE Appendix D2
 Auto termination, no wrinkle-guard, both
DOE test cloths and AHAM load
21

22.

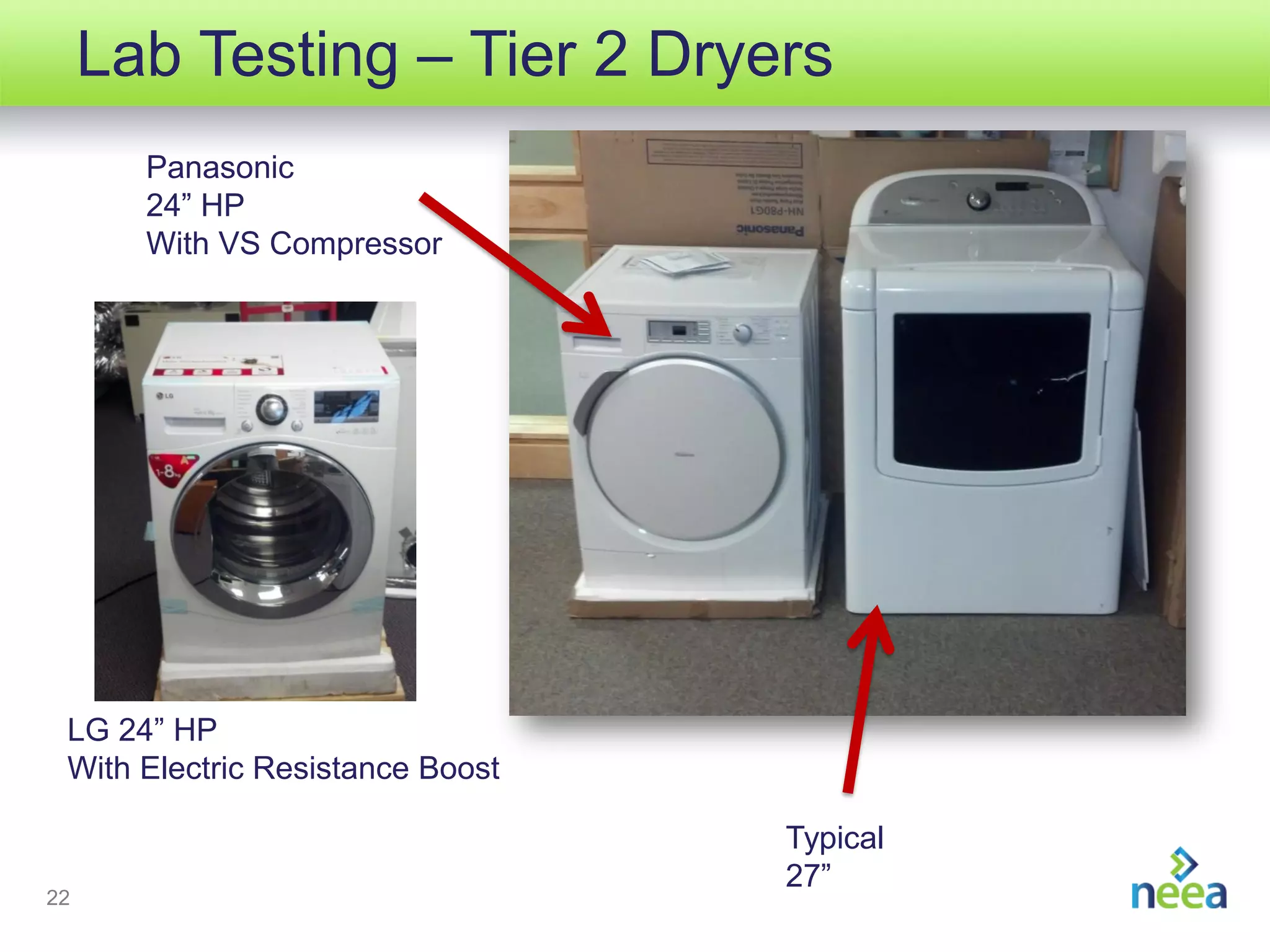

Lab Testing – Tier 2 Dryers
Panasonic
24” HP
With VS Compressor
LG 24” HP
With Electric Resistance Boost
22
Typical
27”

23.

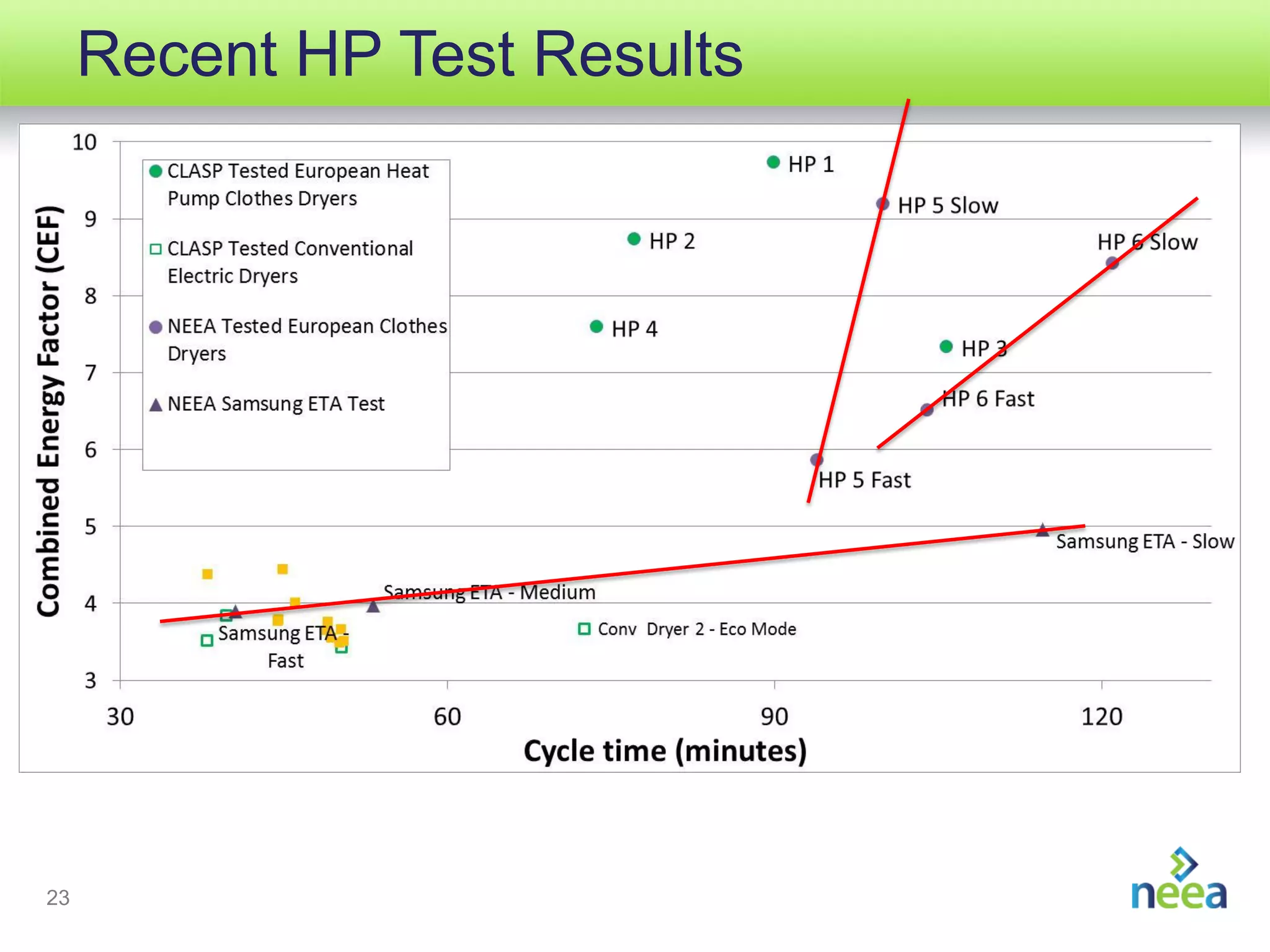

Recent HP Test Results
23

24.

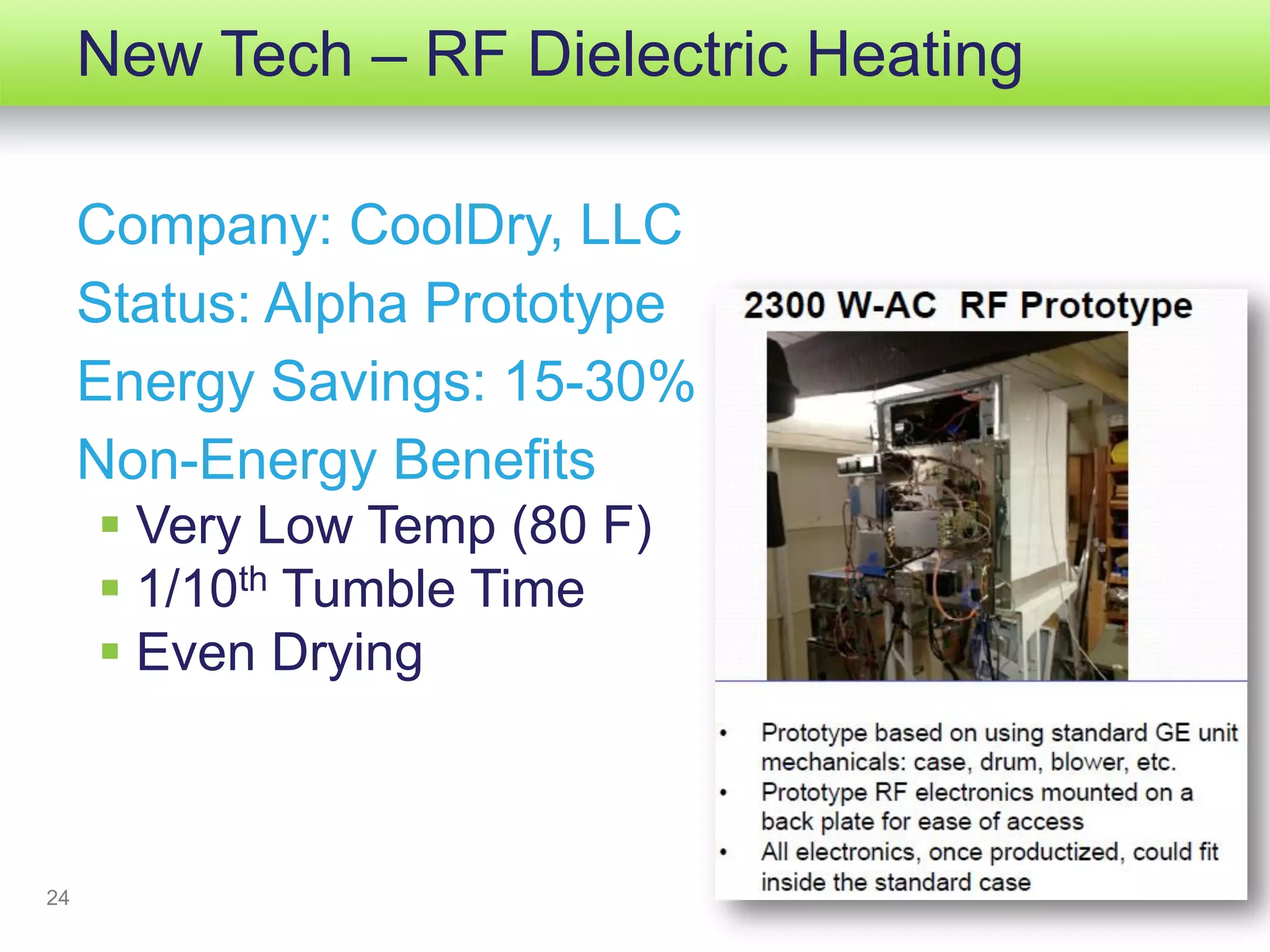

New Tech – RF Dielectric Heating
Company: CoolDry, LLC
Status: Alpha Prototype
Energy Savings: 15-30%
Non-Energy Benefits
 Very Low Temp (80 F)
 1/10th Tumble Time
 Even Drying
24

25.
Near Term Activities
25

26.

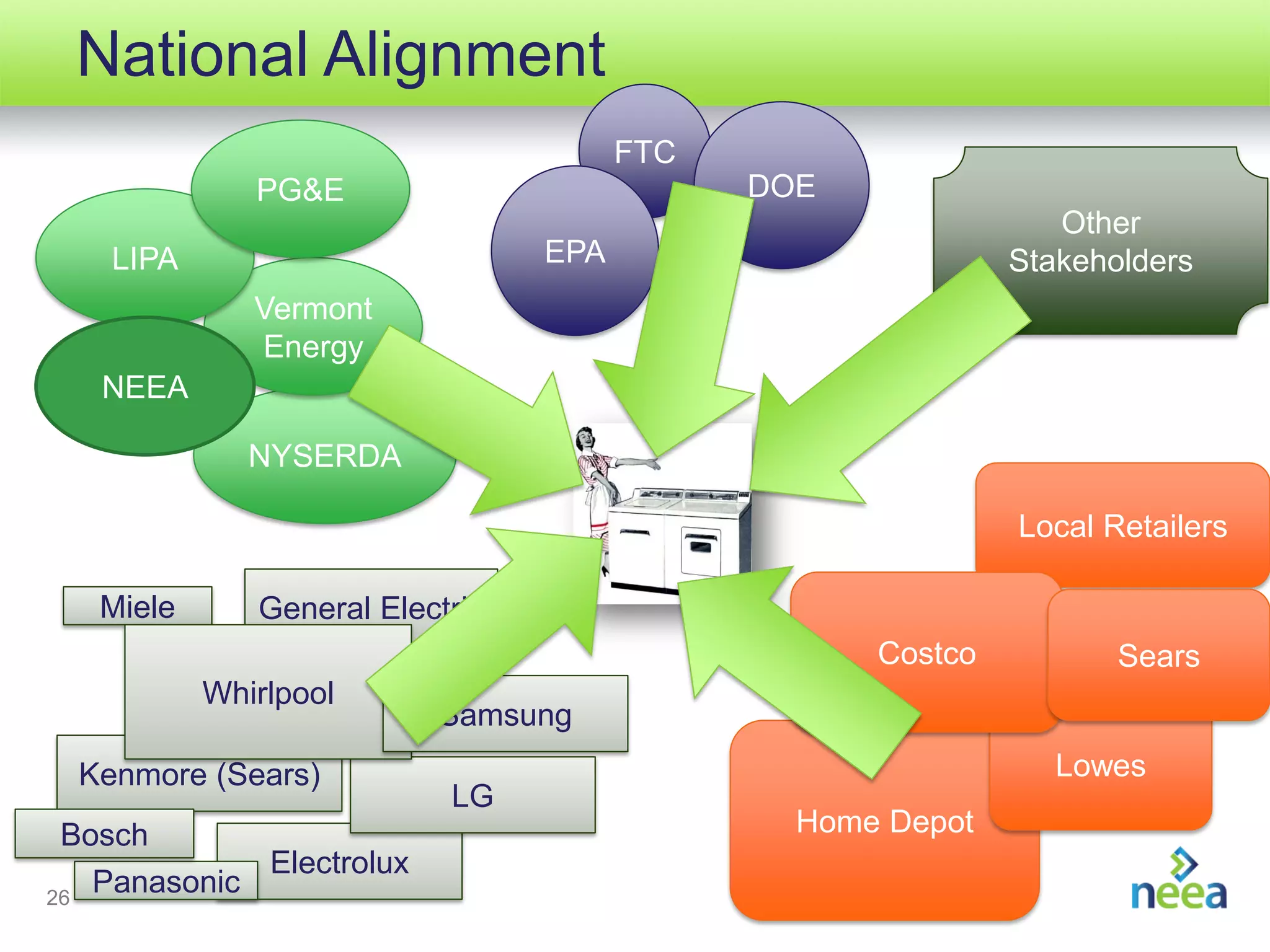

National Alignment
FTC
DOE
PG&E
Other
Stakeholders
EPA
LIPA
Vermont
Energy
NEEA
NYSERDA
Local Retailers
Miele
General Electric
Costco
Whirlpool
Kenmore (Sears)
Bosch
Electrolux
Panasonic
26
Sears
Samsung
Lowes
LG
Home Depot

27.

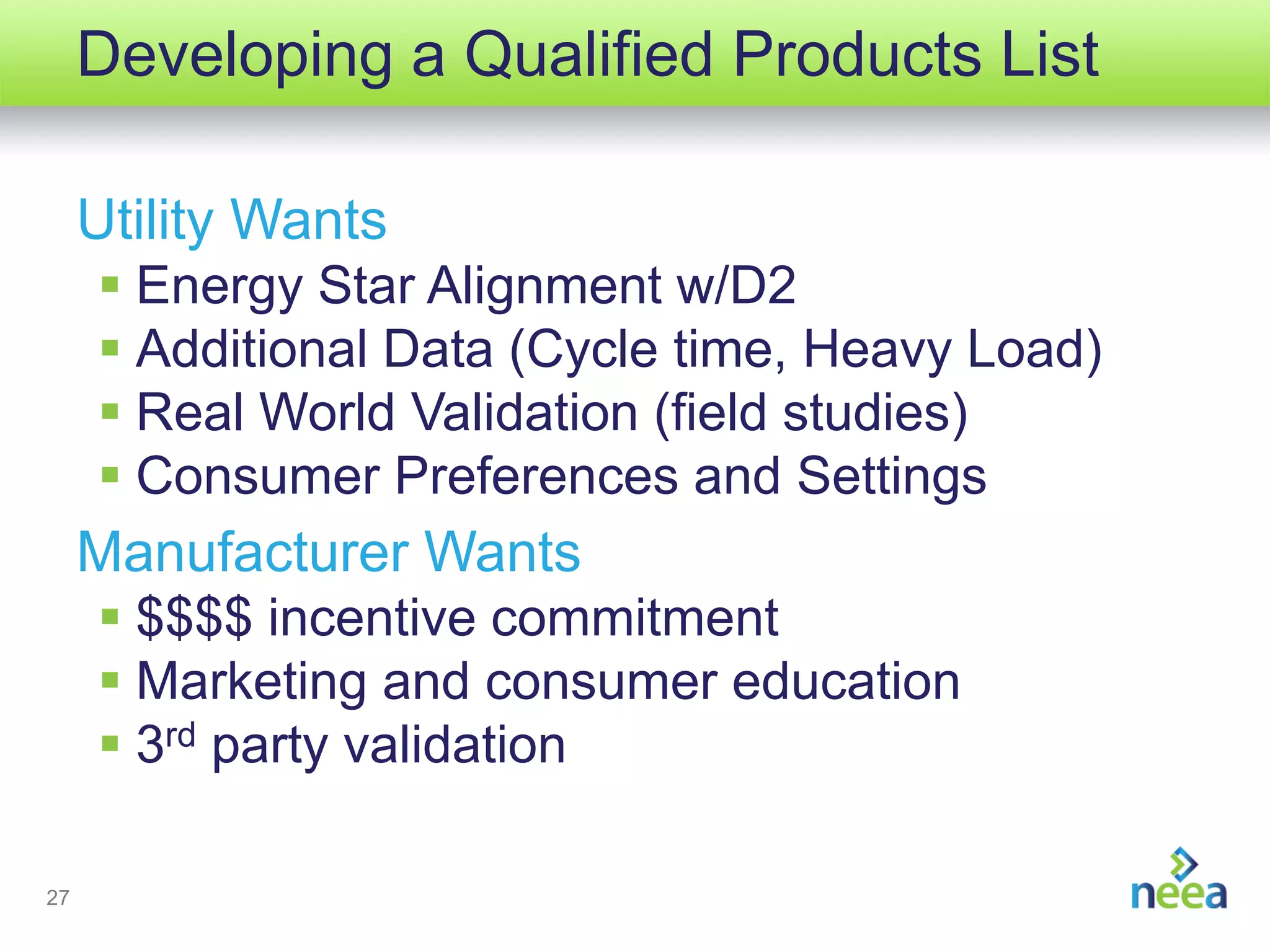

Developing a Qualified Products List
Utility Wants
 Energy Star Alignment w/D2
 Additional Data (Cycle time, Heavy Load)
 Real World Validation (field studies)
 Consumer Preferences and Settings
Manufacturer Wants
 $$$$ incentive commitment
 Marketing and consumer education
 3rd party validation
27

28.

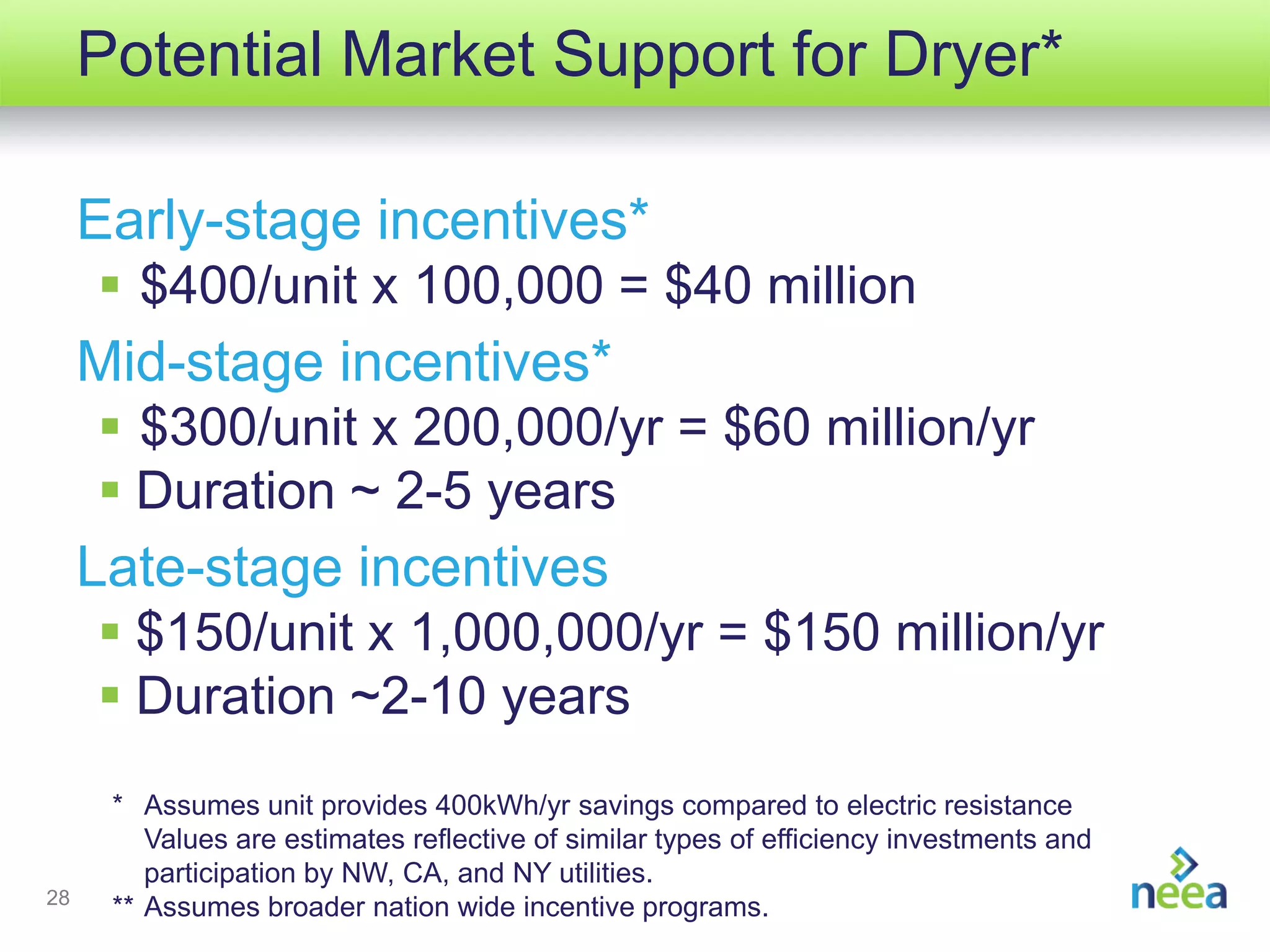

Potential Market Support for Dryer*
Early-stage incentives*
 $400/unit x 100,000 = $40 million
Mid-stage incentives*
 $300/unit x 200,000/yr = $60 million/yr
 Duration ~ 2-5 years
Late-stage incentives
 $150/unit x 1,000,000/yr = $150 million/yr
 Duration ~2-10 years
28
* Assumes unit provides 400kWh/yr savings compared to electric resistance
Values are estimates reflective of similar types of efficiency investments and
participation by NW, CA, and NY utilities.
** Assumes broader nation wide incentive programs.

29.
Discussion of Implications
29

30.
Questions & Comments
Filling the
Energy
Efficiency
Pipeline
Accelerating
Market
Adoption
Delivering
Regional
Advantage
Thank You!
