Mongo DB Monitoring - Become a MongoDB DBA

2. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Monitoring and trending ● Why do we collect data? ● What metrics to collect from MongoDB? ● Key MongoDB metrics in depth ● Available MongoDB monitoring tools ● How to monitor MongoDB using ClusterControl Agenda

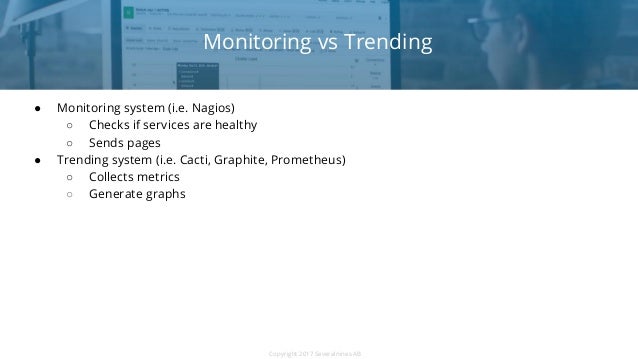

6. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Monitoring system (i.e. Nagios) ○ Checks if services are healthy ○ Sends pages ● Trending system (i.e. Cacti, Graphite, Prometheus) ○ Collects metrics ○ Generate graphs Monitoring vs Trending

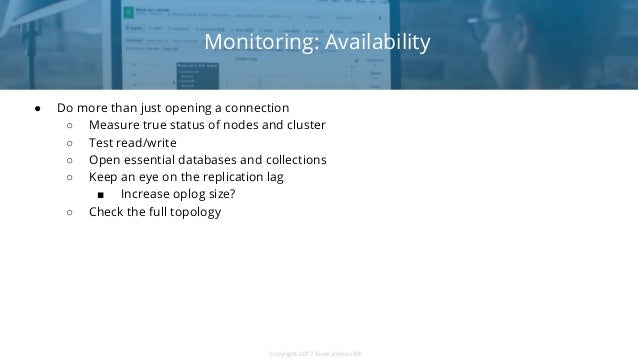

7. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Do more than just opening a connection ○ Measure true status of nodes and cluster ○ Test read/write ○ Open essential databases and collections ○ Keep an eye on the replication lag ■ Increase oplog size? ○ Check the full topology Monitoring: Availability

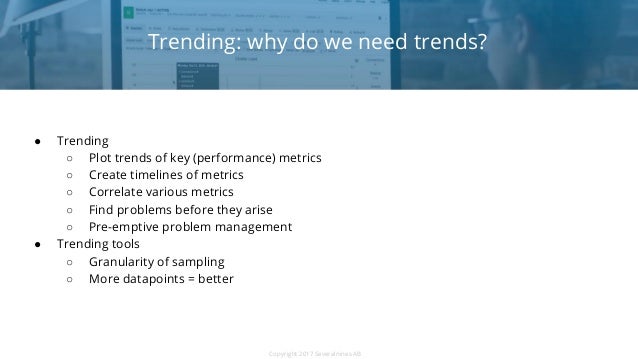

8. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Trending ○ Plot trends of key (performance) metrics ○ Create timelines of metrics ○ Correlate various metrics ○ Find problems before they arise ○ Pre-emptive problem management ● Trending tools ○ Granularity of sampling ○ More datapoints = better Trending: why do we need trends?

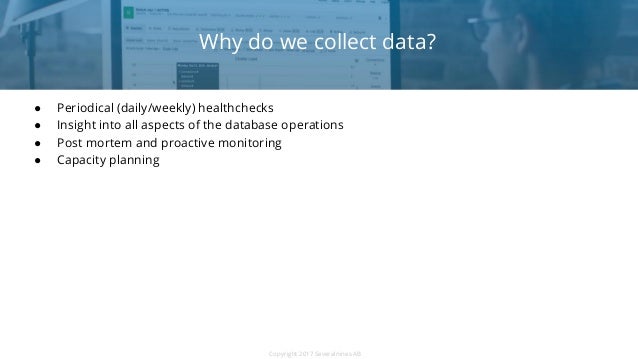

10. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Periodical (daily/weekly) healthchecks ● Insight into all aspects of the database operations ● Post mortem and proactive monitoring ● Capacity planning Why do we collect data?

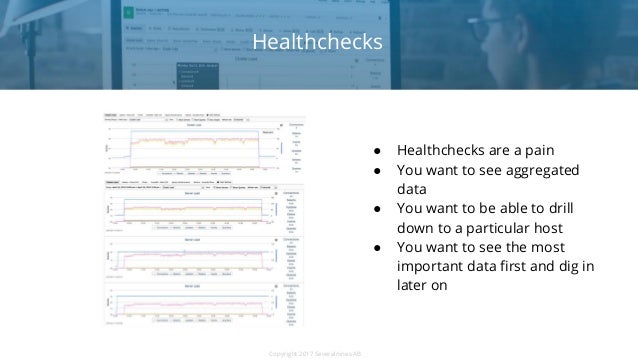

11. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Healthchecks are a pain ● You want to see aggregated data ● You want to be able to drill down to a particular host ● You want to see the most important data first and dig in later on Healthchecks

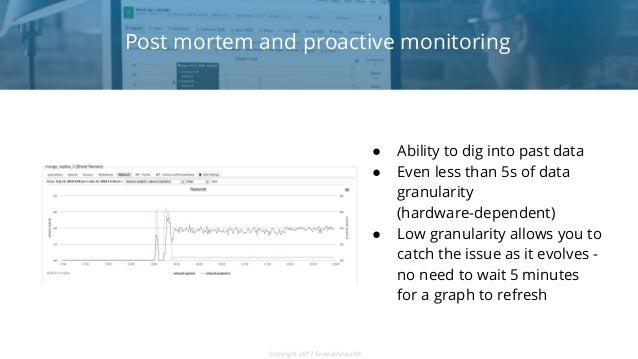

12. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Ability to dig into past data ● Even less than 5s of data granularity (hardware-dependent) ● Low granularity allows you to catch the issue as it evolves - no need to wait 5 minutes for a graph to refresh Post mortem and proactive monitoring

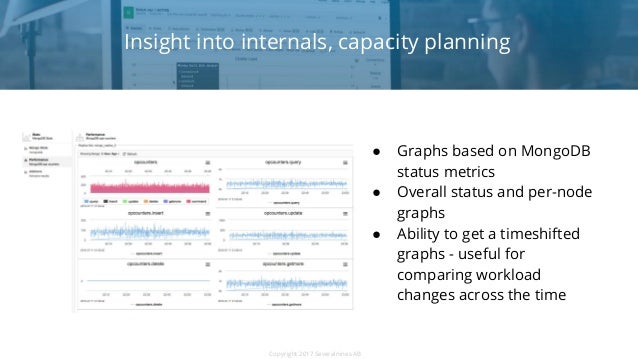

13. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Graphs based on MongoDB status metrics ● Overall status and per-node graphs ● Ability to get a timeshifted graphs - useful for comparing workload changes across the time Insight into internals, capacity planning

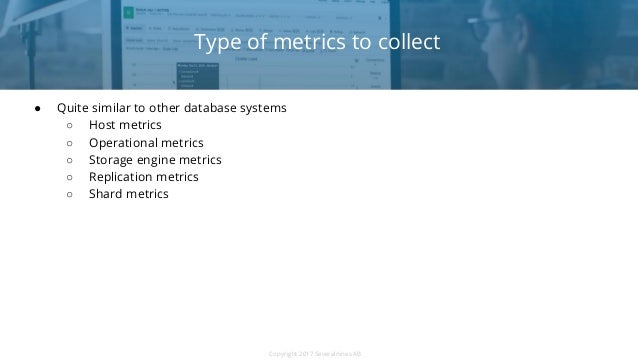

15. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Quite similar to other database systems ○ Host metrics ○ Operational metrics ○ Storage engine metrics ○ Replication metrics ○ Shard metrics Type of metrics to collect

16. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Similar to most other databases ● Understand the utilization of the machine ● Capacity planning ● Determine the type of an issue ○ I/O related? ○ CPU related? ○ Network related? Host metrics: what for?

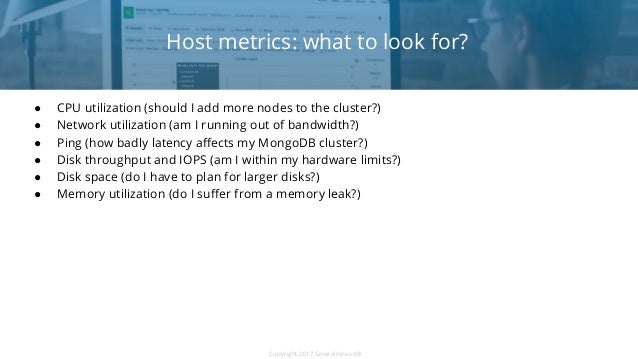

17. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● CPU utilization (should I add more nodes to the cluster?) ● Network utilization (am I running out of bandwidth?) ● Ping (how badly latency affects my MongoDB cluster?) ● Disk throughput and IOPS (am I within my hardware limits?) ● Disk space (do I have to plan for larger disks?) ● Memory utilization (do I suffer from a memory leak?) Host metrics: what to look for?

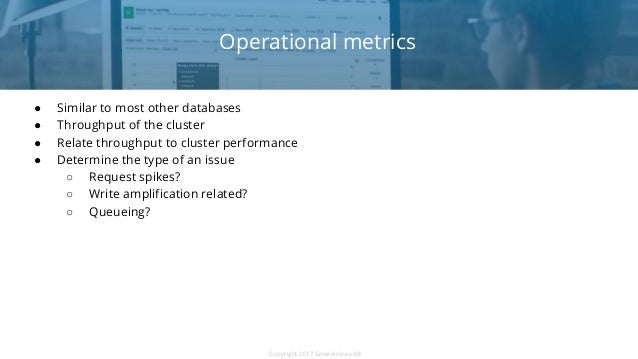

18. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Similar to most other databases ● Throughput of the cluster ● Relate throughput to cluster performance ● Determine the type of an issue ○ Request spikes? ○ Write amplification related? ○ Queueing? Operational metrics

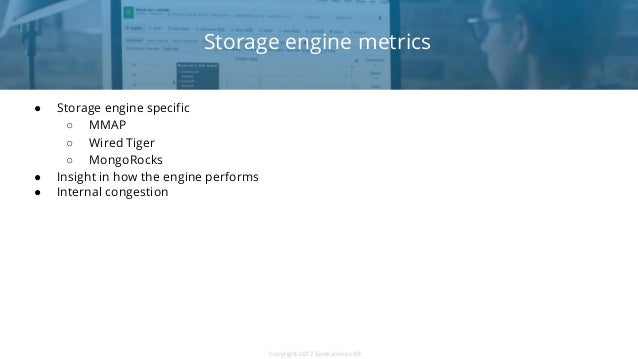

19. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Storage engine specific ○ MMAP ○ Wired Tiger ○ MongoRocks ● Insight in how the engine performs ● Internal congestion Storage engine metrics

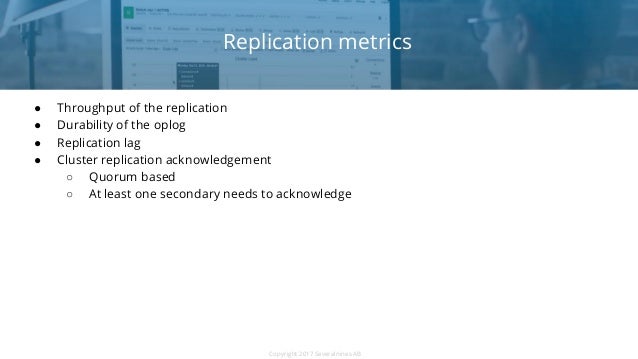

20. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Throughput of the replication ● Durability of the oplog ● Replication lag ● Cluster replication acknowledgement ○ Quorum based ○ At least one secondary needs to acknowledge Replication metrics

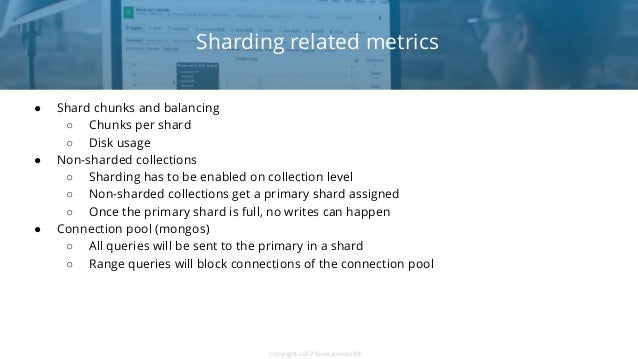

22. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Shard chunks and balancing ○ Chunks per shard ○ Disk usage ● Non-sharded collections ○ Sharding has to be enabled on collection level ○ Non-sharded collections get a primary shard assigned ○ Once the primary shard is full, no writes can happen ● Connection pool (mongos) ○ All queries will be sent to the primary in a shard ○ Range queries will block connections of the connection pool Sharding related metrics

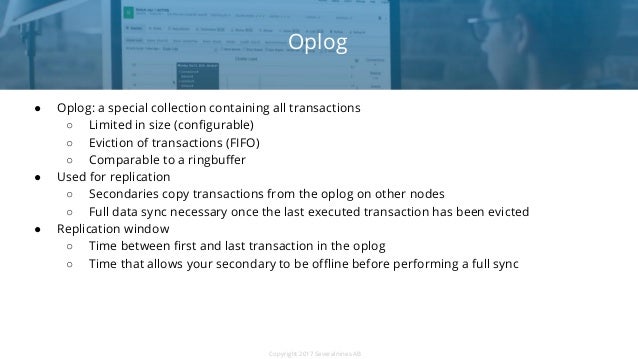

24. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Oplog: a special collection containing all transactions ○ Limited in size (configurable) ○ Eviction of transactions (FIFO) ○ Comparable to a ringbuffer ● Used for replication ○ Secondaries copy transactions from the oplog on other nodes ○ Full data sync necessary once the last executed transaction has been evicted ● Replication window ○ Time between first and last transaction in the oplog ○ Time that allows your secondary to be offline before performing a full sync Oplog

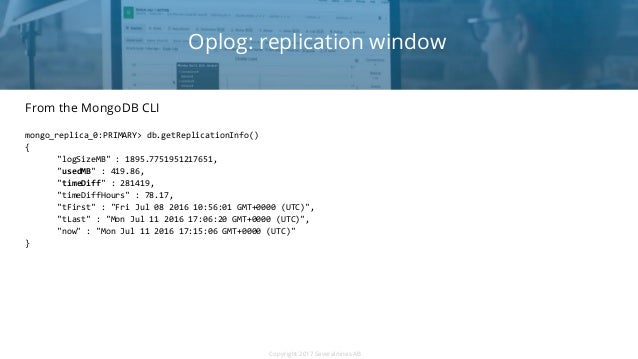

25. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI mongo_replica_0:PRIMARY> db.getReplicationInfo() { "logSizeMB" : 1895.7751951217651, "usedMB" : 419.86, "timeDiff" : 281419, "timeDiffHours" : 78.17, "tFirst" : "Fri Jul 08 2016 10:56:01 GMT+0000 (UTC)", "tLast" : "Mon Jul 11 2016 17:06:20 GMT+0000 (UTC)", "now" : "Mon Jul 11 2016 17:15:06 GMT+0000 (UTC)" } Oplog: replication window

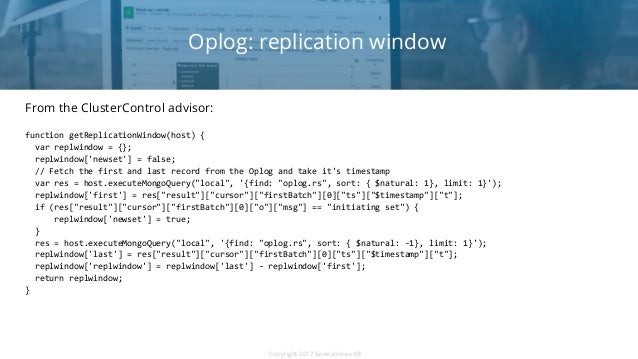

26. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the ClusterControl advisor: function getReplicationWindow(host) { var replwindow = {}; replwindow['newset'] = false; // Fetch the first and last record from the Oplog and take it's timestamp var res = host.executeMongoQuery("local", '{find: "oplog.rs", sort: { $natural: 1}, limit: 1}'); replwindow['first'] = res["result"]["cursor"]["firstBatch"][0]["ts"]["$timestamp"]["t"]; if (res["result"]["cursor"]["firstBatch"][0]["o"]["msg"] == "initiating set") { replwindow['newset'] = true; } res = host.executeMongoQuery("local", '{find: "oplog.rs", sort: { $natural: -1}, limit: 1}'); replwindow['last'] = res["result"]["cursor"]["firstBatch"][0]["ts"]["$timestamp"]["t"]; replwindow['replwindow'] = replwindow['last'] - replwindow['first']; return replwindow; } Oplog: replication window

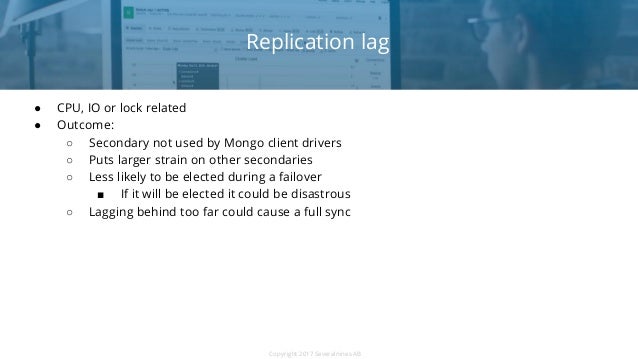

27. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● CPU, IO or lock related ● Outcome: ○ Secondary not used by Mongo client drivers ○ Puts larger strain on other secondaries ○ Less likely to be elected during a failover ■ If it will be elected it could be disastrous ○ Lagging behind too far could cause a full sync Replication lag

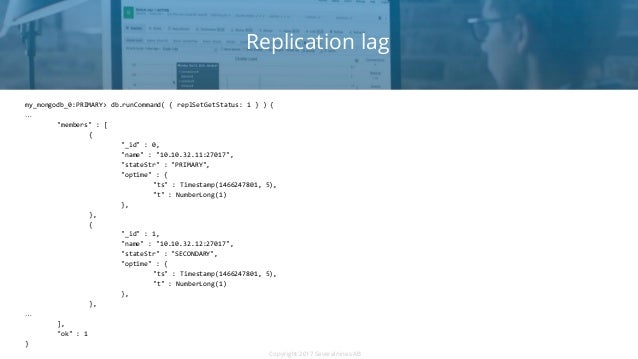

28. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB my_mongodb_0:PRIMARY> db.runCommand( { replSetGetStatus: 1 } ) { … "members" : [ { "_id" : 0, "name" : "10.10.32.11:27017", "stateStr" : "PRIMARY", "optime" : { "ts" : Timestamp(1466247801, 5), "t" : NumberLong(1) }, }, { "_id" : 1, "name" : "10.10.32.12:27017", "stateStr" : "SECONDARY", "optime" : { "ts" : Timestamp(1466247801, 5), "t" : NumberLong(1) }, }, … ], "ok" : 1 } Replication lag

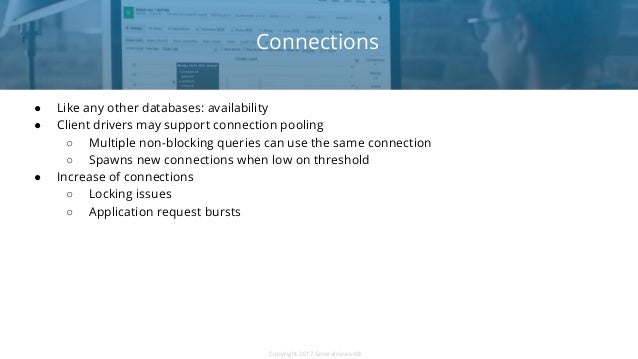

29. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Like any other databases: availability ● Client drivers may support connection pooling ○ Multiple non-blocking queries can use the same connection ○ Spawns new connections when low on threshold ● Increase of connections ○ Locking issues ○ Application request bursts Connections

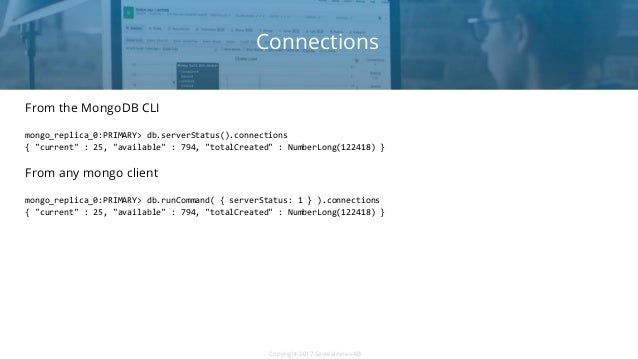

30. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI mongo_replica_0:PRIMARY> db.serverStatus().connections { "current" : 25, "available" : 794, "totalCreated" : NumberLong(122418) } From any mongo client mongo_replica_0:PRIMARY> db.runCommand( { serverStatus: 1 } ).connections { "current" : 25, "available" : 794, "totalCreated" : NumberLong(122418) } Connections

31. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Atomicity on document level ○ Wiredtiger and MongoRocks ● No “real” transactions ● Write data with the $isolated operator ○ Similar to READ UNCOMMITTED in MySQL (dirty reads in ANSI SQL) ○ No rollback ○ Does not work on shards Transactions

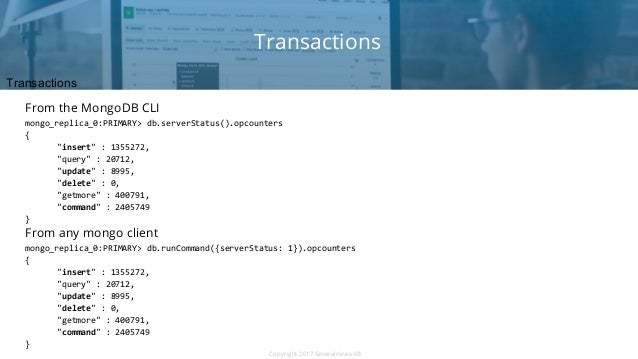

32. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB Transactions From the MongoDB CLI mongo_replica_0:PRIMARY> db.serverStatus().opcounters { "insert" : 1355272, "query" : 20712, "update" : 8995, "delete" : 0, "getmore" : 400791, "command" : 2405749 } From any mongo client mongo_replica_0:PRIMARY> db.runCommand({serverStatus: 1}).opcounters { "insert" : 1355272, "query" : 20712, "update" : 8995, "delete" : 0, "getmore" : 400791, "command" : 2405749 } Transactions

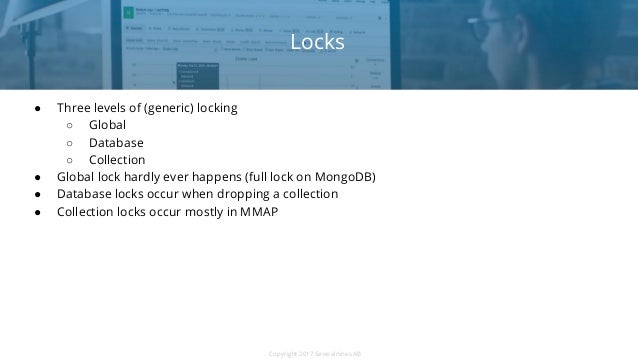

33. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Three levels of (generic) locking ○ Global ○ Database ○ Collection ● Global lock hardly ever happens (full lock on MongoDB) ● Database locks occur when dropping a collection ● Collection locks occur mostly in MMAP Locks

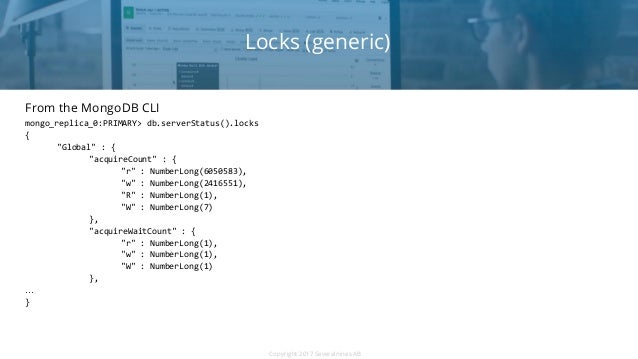

34. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI mongo_replica_0:PRIMARY> db.serverStatus().locks { "Global" : { "acquireCount" : { "r" : NumberLong(6050583), "w" : NumberLong(2416551), "R" : NumberLong(1), "W" : NumberLong(7) }, "acquireWaitCount" : { "r" : NumberLong(1), "w" : NumberLong(1), "W" : NumberLong(1) }, … } Locks (generic)

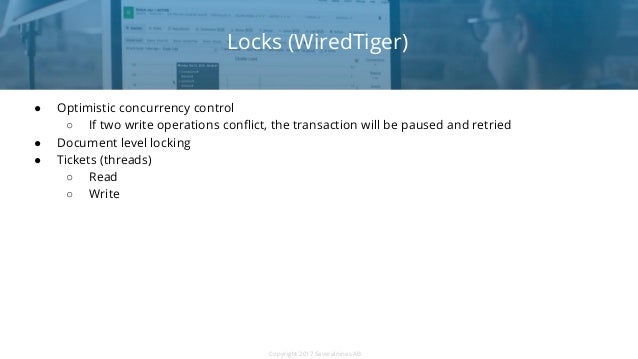

35. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Optimistic concurrency control ○ If two write operations conflict, the transaction will be paused and retried ● Document level locking ● Tickets (threads) ○ Read ○ Write Locks (WiredTiger)

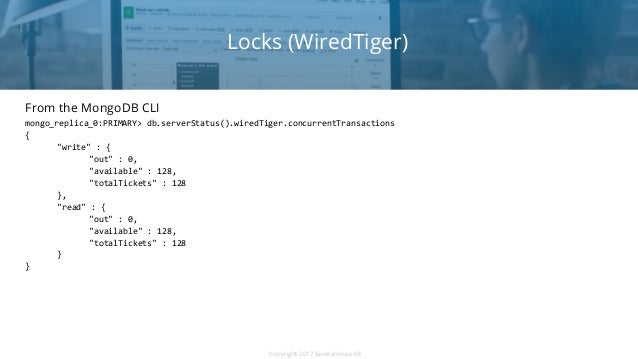

36. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI mongo_replica_0:PRIMARY> db.serverStatus().wiredTiger.concurrentTransactions { "write" : { "out" : 0, "available" : 128, "totalTickets" : 128 }, "read" : { "out" : 0, "available" : 128, "totalTickets" : 128 } } Locks (WiredTiger)

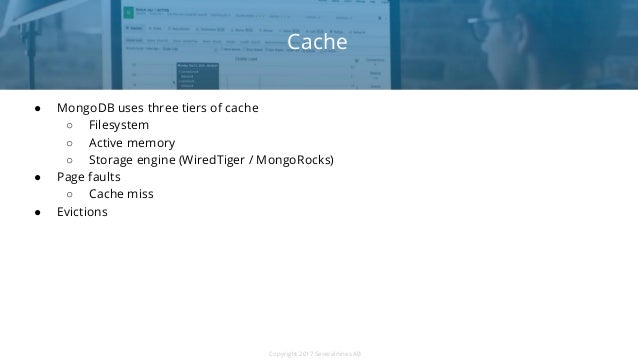

37. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● MongoDB uses three tiers of cache ○ Filesystem ○ Active memory ○ Storage engine (WiredTiger / MongoRocks) ● Page faults ○ Cache miss ● Evictions Cache

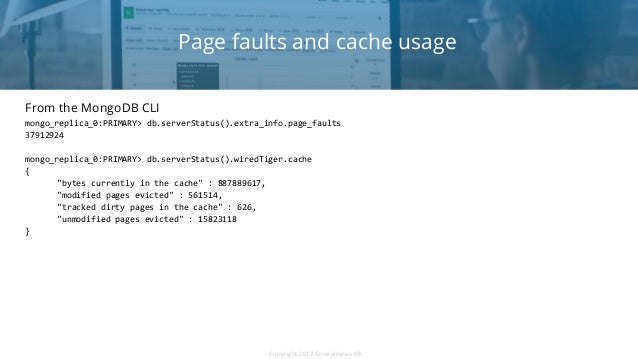

38. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI mongo_replica_0:PRIMARY> db.serverStatus().extra_info.page_faults 37912924 mongo_replica_0:PRIMARY> db.serverStatus().wiredTiger.cache { "bytes currently in the cache" : 887889617, "modified pages evicted" : 561514, "tracked dirty pages in the cache" : 626, "unmodified pages evicted" : 15823118 } Page faults and cache usage

39. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Shards make write scaling transparently ● Sharding can be solved with two methods: ○ Hash key distribution (limited) ○ Shard lookup table ● MongoDB uses a combination of hash key distribution and shard lookup table ○ Hash key (or range key) distribution gets divided into chunks (ranges) ○ The chunk metadata gets stored in the config server ● The config server is the most important data in a MongoDB sharded cluster! ● The shard router is the the second most important component ● Shards can get out of balance ○ Non-sharded collections ○ Heavy / large writes on a single chunk ○ Auto balancing by the primary of the Config server (3.4) or mongos (< 3.2) Shard metrics

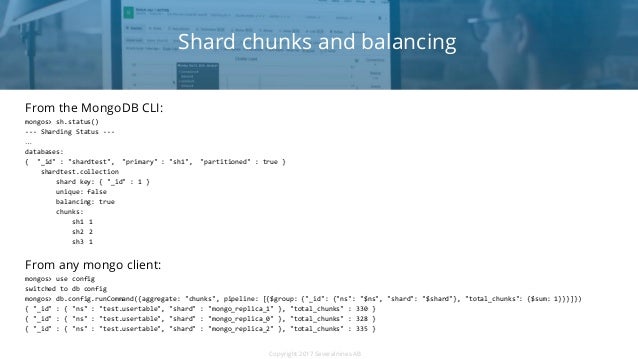

40. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI: mongos> sh.status() --- Sharding Status --- … databases: { "_id" : "shardtest", "primary" : "sh1", "partitioned" : true } shardtest.collection shard key: { "_id" : 1 } unique: false balancing: true chunks: sh1 1 sh2 2 sh3 1 From any mongo client: mongos> use config switched to db config mongos> db.config.runCommand({aggregate: "chunks", pipeline: [{$group: {"_id": {"ns": "$ns", "shard": "$shard"}, "total_chunks": {$sum: 1}}}]}) { "_id" : { "ns" : "test.usertable", "shard" : "mongo_replica_1" }, "total_chunks" : 330 } { "_id" : { "ns" : "test.usertable", "shard" : "mongo_replica_0" }, "total_chunks" : 328 } { "_id" : { "ns" : "test.usertable", "shard" : "mongo_replica_2" }, "total_chunks" : 335 } Shard chunks and balancing

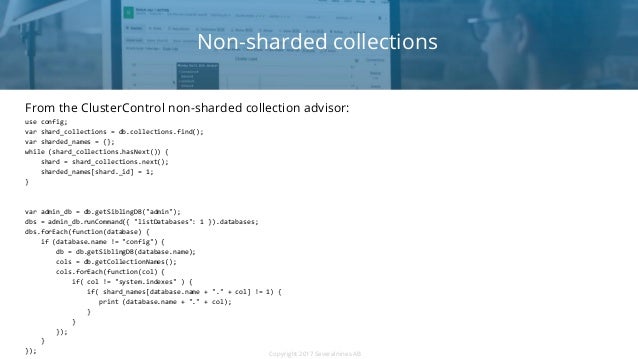

41. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the ClusterControl non-sharded collection advisor: use config; var shard_collections = db.collections.find(); var sharded_names = {}; while (shard_collections.hasNext()) { shard = shard_collections.next(); sharded_names[shard._id] = 1; } var admin_db = db.getSiblingDB("admin"); dbs = admin_db.runCommand({ "listDatabases": 1 }).databases; dbs.forEach(function(database) { if (database.name != "config") { db = db.getSiblingDB(database.name); cols = db.getCollectionNames(); cols.forEach(function(col) { if( col != "system.indexes" ) { if( shard_names[database.name + "." + col] != 1) { print (database.name + "." + col); } } }); } }); Non-sharded collections

42. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB From the MongoDB CLI mongos> db.runCommand( { "connPoolStats" : 1 } ) { "numClientConnections" : 10, "numAScopedConnections" : 0, "totalInUse" : 4, "totalAvailable" : 8, "totalCreated" : 23, "hosts" : { "10.10.34.11:27019" : { "inUse" : 1, "available" : 1, "created" : 1 }, "10.10.34.12:27018" : { "inUse" : 3, "available" : 1, "created" : 2 } }, ... "ok" : 1 } Connection pool

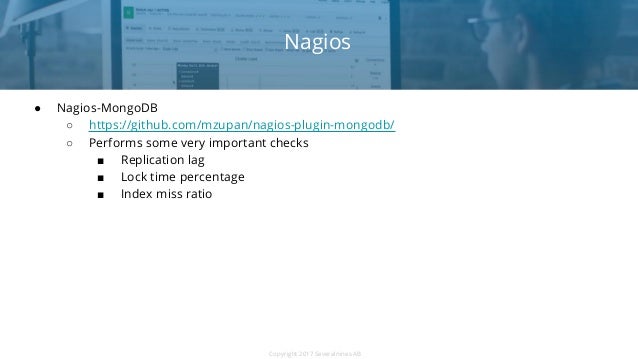

45. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Nagios-MongoDB ○ https://github.com/mzupan/nagios-plugin-mongodb/ ○ Performs some very important checks ■ Replication lag ■ Lock time percentage ■ Index miss ratio Nagios

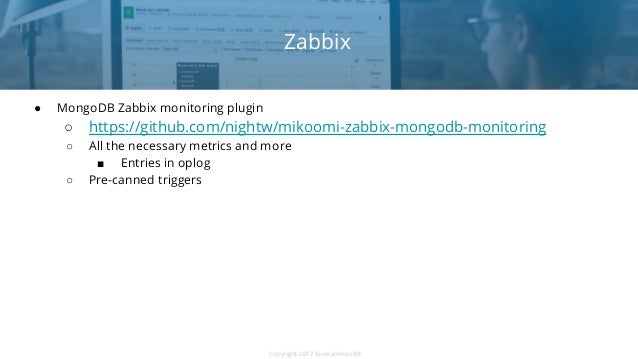

46. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● MongoDB Zabbix monitoring plugin ○ https://github.com/nightw/mikoomi-zabbix-mongodb-monitoring ○ All the necessary metrics and more ■ Entries in oplog ○ Pre-canned triggers Zabbix

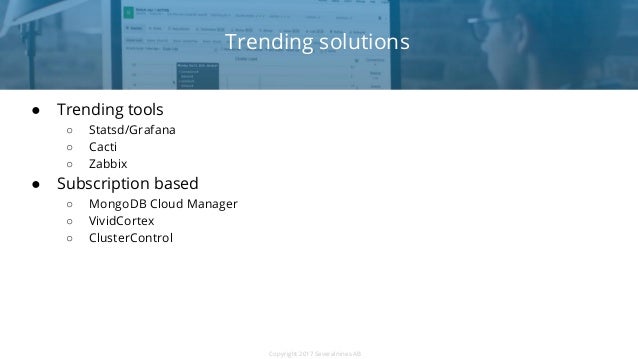

47. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Trending tools ○ Statsd/Grafana ○ Cacti ○ Zabbix ● Subscription based ○ MongoDB Cloud Manager ○ VividCortex ○ ClusterControl Trending solutions

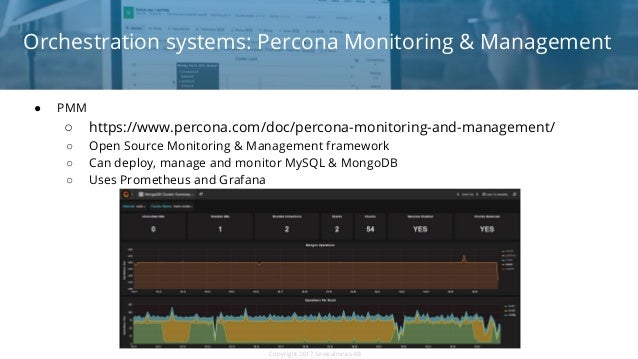

49. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● PMM ○ https://www.percona.com/doc/percona-monitoring-and-management/ ○ Open Source Monitoring & Management framework ○ Can deploy, manage and monitor MySQL & MongoDB ○ Uses Prometheus and Grafana Orchestration systems: Percona Monitoring & Management

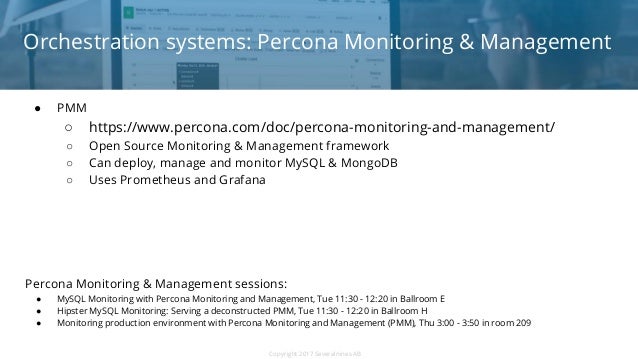

50. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● PMM ○ https://www.percona.com/doc/percona-monitoring-and-management/ ○ Open Source Monitoring & Management framework ○ Can deploy, manage and monitor MySQL & MongoDB ○ Uses Prometheus and Grafana Percona Monitoring & Management sessions: ● MySQL Monitoring with Percona Monitoring and Management, Tue 11:30 - 12:20 in Ballroom E ● Hipster MySQL Monitoring: Serving a deconstructed PMM, Tue 11:30 - 12:20 in Ballroom H ● Monitoring production environment with Percona Monitoring and Management (PMM), Thu 3:00 - 3:50 in room 209 Orchestration systems: Percona Monitoring & Management

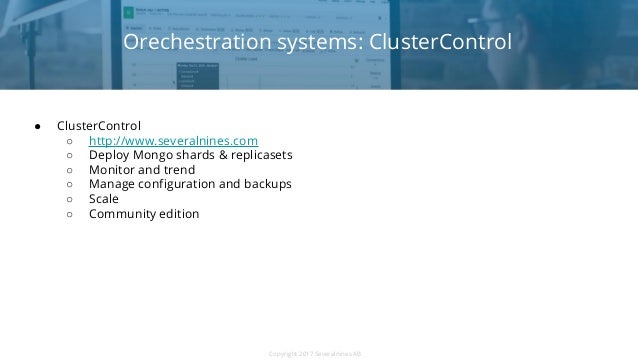

52. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● ClusterControl ○ http://www.severalnines.com ○ Deploy Mongo shards & replicasets ○ Monitor and trend ○ Manage configuration and backups ○ Scale ○ Community edition Orechestration systems: ClusterControl

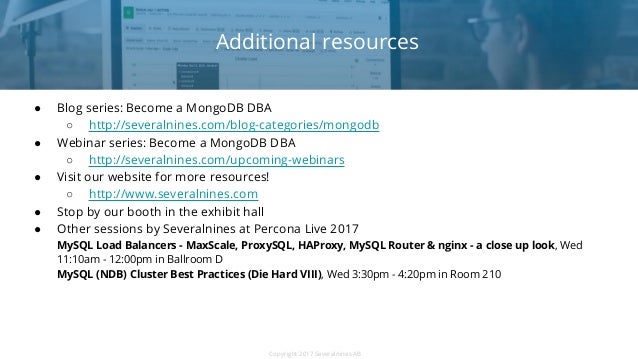

59. Copyright 2017 Severalnines ABCopyright 2017 Severalnines AB ● Blog series: Become a MongoDB DBA ○ http://severalnines.com/blog-categories/mongodb ● Webinar series: Become a MongoDB DBA ○ http://severalnines.com/upcoming-webinars ● Visit our website for more resources! ○ http://www.severalnines.com ● Stop by our booth in the exhibit hall ● Other sessions by Severalnines at Percona Live 2017 MySQL Load Balancers - MaxScale, ProxySQL, HAProxy, MySQL Router & nginx - a close up look, Wed 11:10am - 12:00pm in Ballroom D MySQL (NDB) Cluster Best Practices (Die Hard VIII), Wed 3:30pm - 4:20pm in Room 210 Additional resources
