SAMUEL LEVAC-LEVEY
MECHANICAL ENGINEERING STUDENT
DALHOUSIE UNIVERSITY

2.

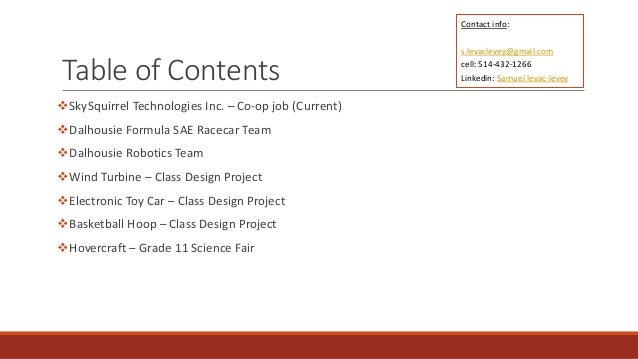

Table of Contents
SkySquirrel Technologies Inc. – Co-op job (Current)
Dalhousie Formula SAE Racecar Team
Dalhousie Robotics Team
Wind Turbine – Class Design Project
Electronic Toy Car – Class Design Project
Basketball Hoop – Class Design Project
Hovercraft – Grade 11 Science Fair
Contact info:
s.levaclevey@gmail.com
cell: 514-432-1266
Linkedin: Samuel levac-levey

3.

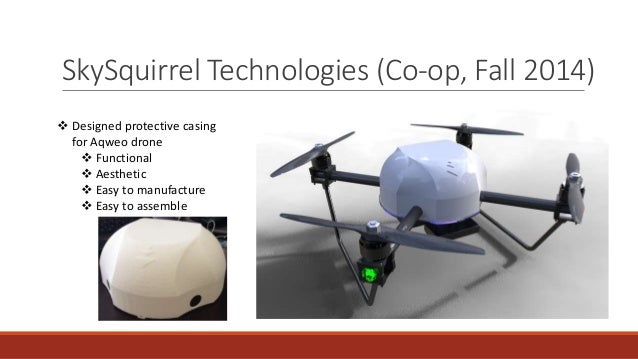

SkySquirrel Technologies (Co-op, Fall 2014)
 Designed protective casing
for Aqweo drone
 Functional
 Aesthetic
 Easy to manufacture
 Easy to assemble

4.

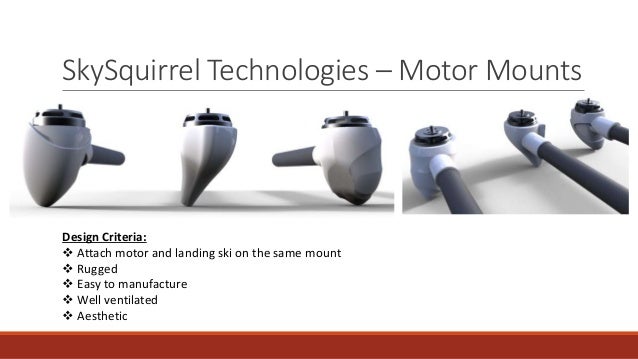

SkySquirrel Technologies –Motor Mounts
Design Criteria:
 Attach motor and landing ski on the same mount
 Rugged
 Easy to manufacture
 Well ventilated
 Aesthetic

5.
Dalhousie Formula SAE Team (2013-Present)
Member of Chassis Team
Primarily responsible for force calculations:
Forces on the wheels
 Using Excel Spreadsheets
Forces on Bell crank
Forces on engine mounts
Designed engine mounts
Assisted with cost report
Fabricated professional CAD drawings using SolidWorks
Assisted in assembly of vehicle

6.

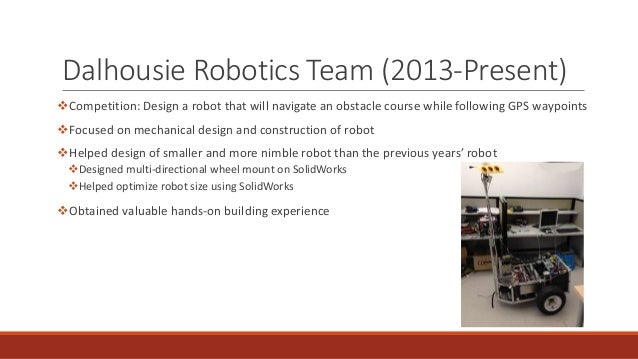

Dalhousie Robotics Team (2013-Present)
Competition: Design a robot that will navigate an obstacle course while following GPS waypoints
Focused on mechanical design and construction of robot
Helped design of smaller and more nimble robot than the previous years’ robot
Designed multi-directional wheel mount on SolidWorks
Helped optimize robot size using SolidWorks
Obtained valuable hands-on building experience

7.
Wind Turbine Design Project (Winter 2014)
Project goal: To design and build a wind turbine for the purpose of pumping water
Led team of 3 to design and build an innovative shrouded turbine
Performed 100+ SolidWorks Flow Simulations to optimize shroud design
Designed innovated ball bearing system with flanges for easy removal
Designed structural aerodynamic system for increased efficiency
Result: Shroud drastically increased power output and virtually eliminated noise and vibration

8.

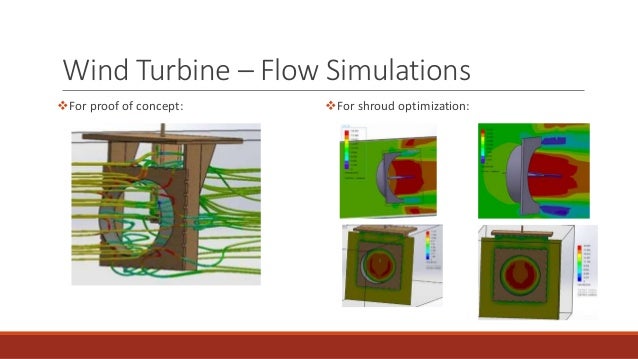

Wind Turbine – Flow Simulations
For proof of concept: For shroud optimization:

9.

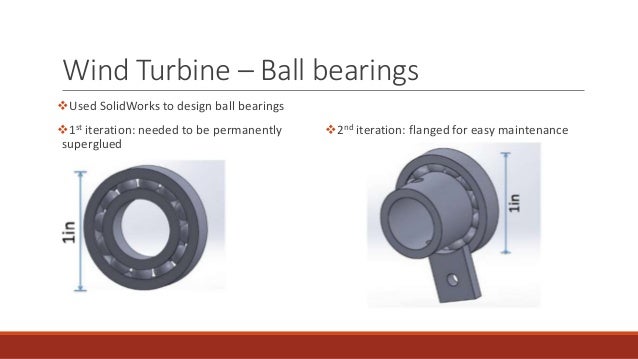

Wind Turbine – Ball bearings
Used SolidWorks to design ball bearings
1st iteration: needed to be permanently
superglued
2nd iteration: flanged for easy maintenance

10.

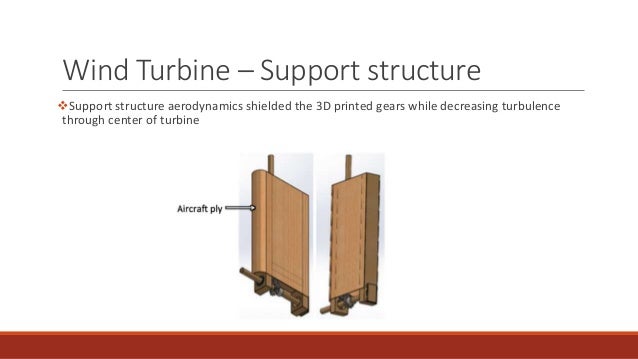

Wind Turbine – Support structure
Support structure aerodynamics shielded the 3D printed gears while decreasing turbulence
through center of turbine

11.

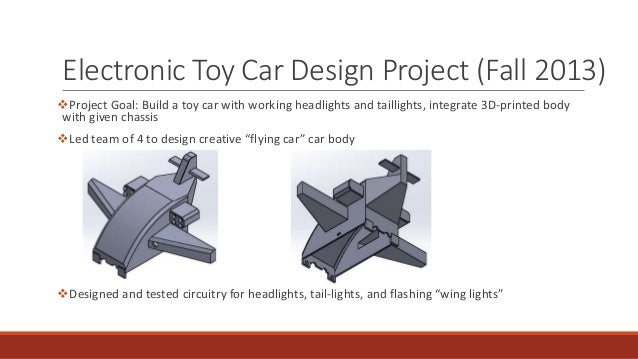

Electronic Toy Car Design Project (Fall 2013)
Project Goal: Build a toy car with working headlights and taillights, integrate 3D-printed body
with given chassis
Led team of 4 to design creative “flying car” car body
Designed and tested circuitry for headlights, tail-lights, and flashing “wing lights”

12.

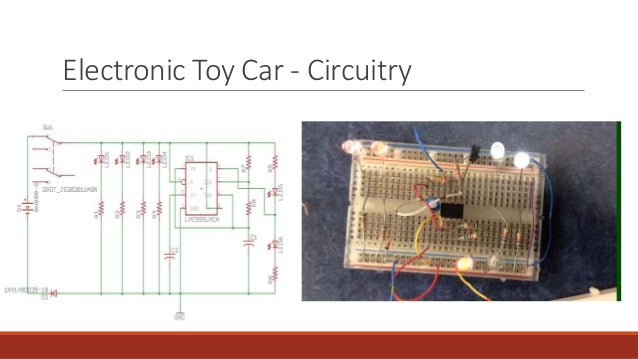

Electronic Toy Car - Circuitry

13.
Basketball Hoop Design Project (Fall 2012)
Project Goal: Design an outdoor basketball hoop which can resist high wind speeds, while
being packaged in a box with restricted dimensions and a weight limit
Led team of 2 to design a robust basketball hoop using Solid Edge ST4
Used McMaster Carr parts supplier to obtain CAD models for fasteners

14.

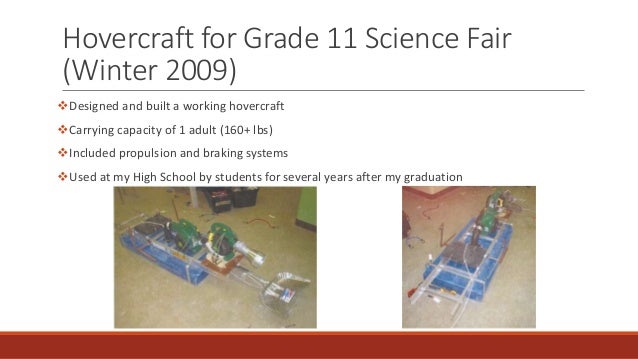

Hovercraft for Grade 11 Science Fair
(Winter 2009)
Designed and built a working hovercraft
Carrying capacity of 1 adult (160+ lbs)
Included propulsion and braking systems
Used at my High School by students for several years after my graduation
