Cad Portfolio

  1. 1. CAD PORTFOLIO Of Roger Cassel

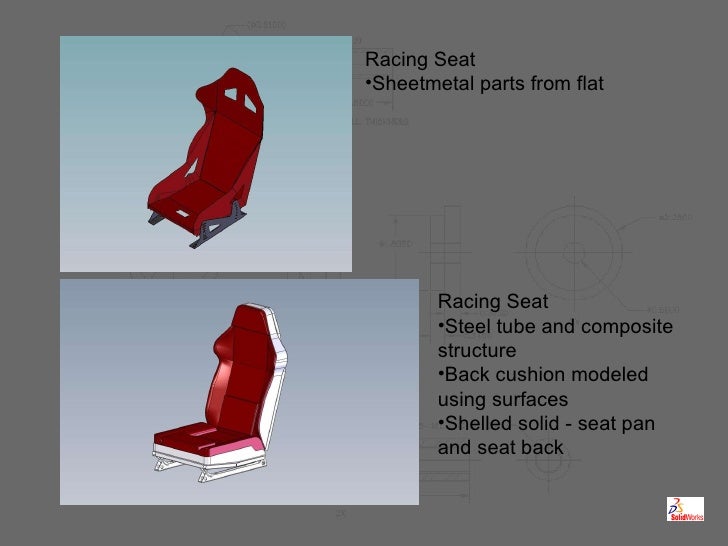

  2. 2. <ul><li>Racing Seat </li></ul><ul><li>Sheetmetal parts from flat </li></ul><ul><li>Racing Seat </li></ul><ul><li>Steel tube and composite structure </li></ul><ul><li>Back cushion modeled using surfaces </li></ul><ul><li>Shelled solid - seat pan and seat back </li></ul>

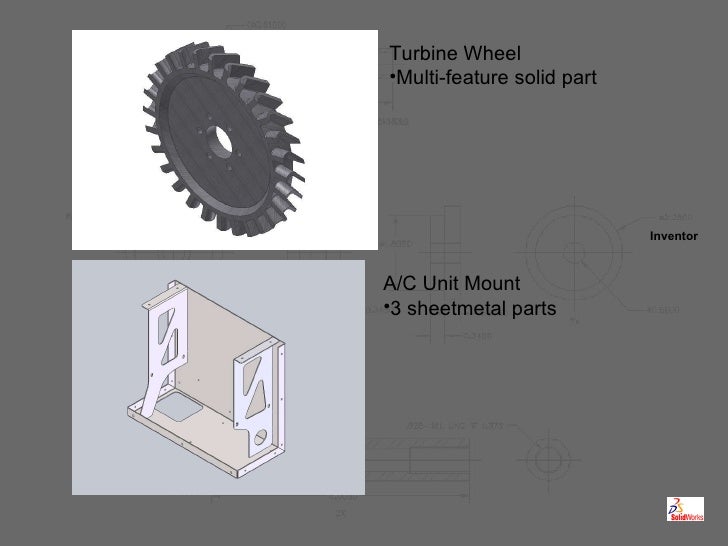

  3. 3. <ul><li>A/C Unit Mount </li></ul><ul><li>3 sheetmetal parts </li></ul><ul><li>Turbine Wheel </li></ul><ul><li>Multi-feature solid part </li></ul>Inventor
  4. 4. Seat Mount AutoCAD <ul><li>Welding Table </li></ul><ul><li>Weldment features </li></ul>

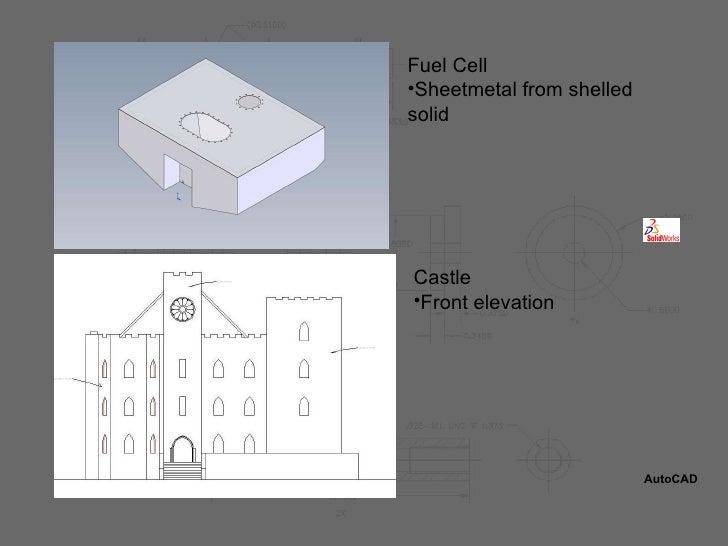

  5. 5. <ul><li>Fuel Cell </li></ul><ul><li>Sheetmetal from shelled solid </li></ul>AutoCAD <ul><li>Castle </li></ul><ul><li>Front elevation </li></ul>
  6. 6. <ul><li>Dash Insert Panel </li></ul><ul><li>Sheetmetal part </li></ul><ul><li>Dash Insert Panel Drawing </li></ul><ul><li>Sheetmetal part </li></ul>
  7. 7. <ul><li>House Plan - 1 st Floor </li></ul><ul><li>Dimension layer off </li></ul>AutoCAD <ul><li>Integrated Frame & Cage </li></ul><ul><li>75% imported geometry </li></ul><ul><li>25% extruded geometry </li></ul>Inventor

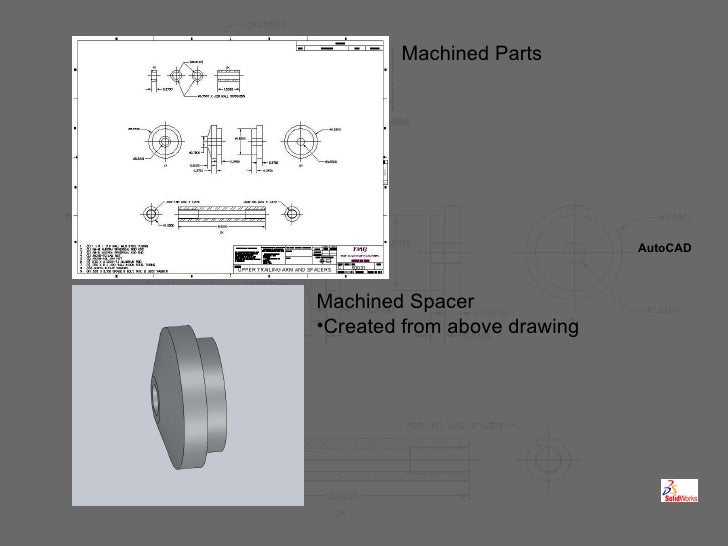

  8. 8. AutoCAD Machined Parts <ul><li>Machined Spacer </li></ul><ul><li>Created from above drawing </li></ul>

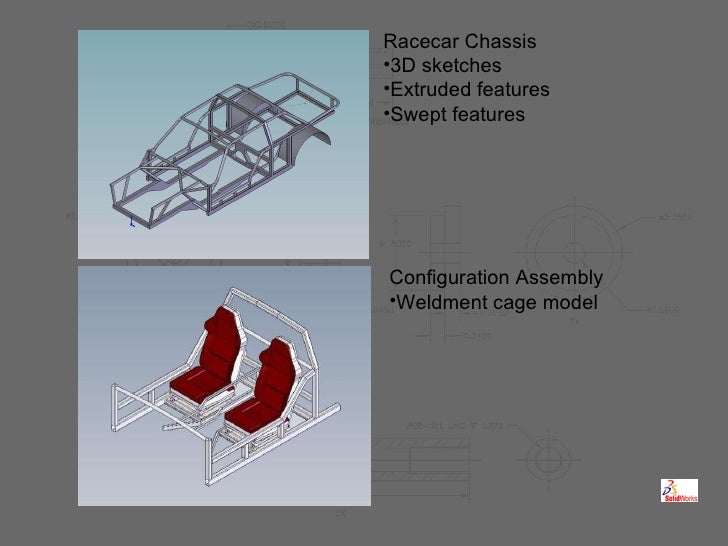

  9. 9. <ul><li>Racecar Chassis </li></ul><ul><li>3D sketches </li></ul><ul><li>Extruded features </li></ul><ul><li>Swept features </li></ul><ul><li>Configuration Assembly </li></ul><ul><li>Weldment cage model </li></ul>
  10. 10. <ul><li>Compressor Impeller </li></ul><ul><li>Rotated sketches </li></ul><ul><li>Patterned features </li></ul><ul><li>House Footer </li></ul><ul><li>Derived from 2D AutoCAD sketch </li></ul>Inventor
  11. 11. <ul><li>1 st Floor </li></ul><ul><li>Dimension layer off </li></ul><ul><li>1 st Floor </li></ul><ul><li>Derived from above floor plan </li></ul>AutoCAD

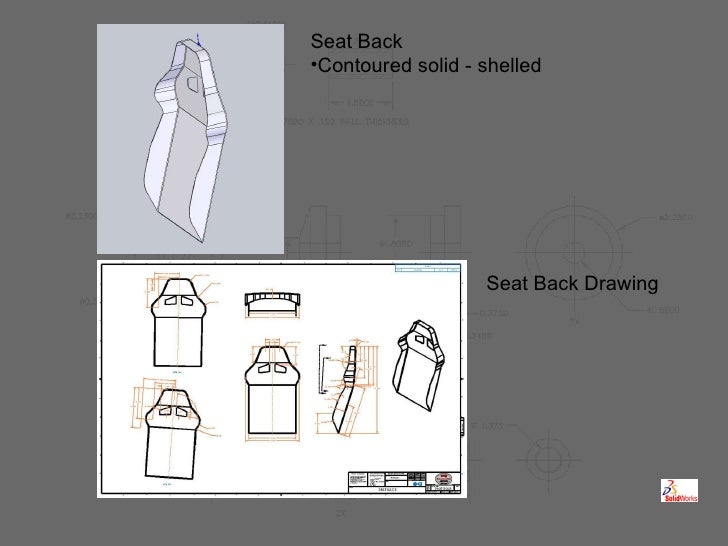

  12. 12. Seat Back Drawing <ul><li>Seat Back </li></ul><ul><li>Contoured solid - shelled </li></ul>

×
