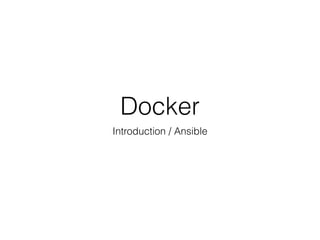

Docker
Introduction / Ansible

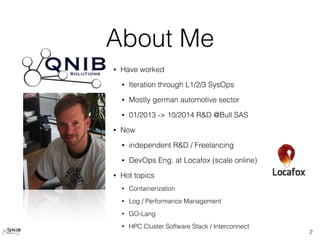

About Me
2
• Have worked
• Iteration through L1/2/3 SysOps
• Mostly german automotive sector
• 01/2013 -> 10/2014 R&D @Bull SAS
• Now
• independent R&D / Freelancing
• DevOps Eng. at Locafox (scale online)
• Hot topics
• Containerization
• Log / Performance Management
• GO-Lang
• HPC Cluster Software Stack / Interconnect
Docker in a (Coco-)Nutshell
• (chroot)2 != Virtual Machine
3
Traditional vs. Lightweight
Layers
4
SERVICE SERVICE SERVICE
InitSystem InitSystem InitSystem
Userland (OS) Userland (OS) Userland (OS)
KERNEL KERNEL
HYPERVISOR
InitSystem
HOST KERNEL
SERVER
KERNEL
Userland (OS)
SERVICE
SERVICE SERVICE
Userland (OS) Userland (OS) Userland (OS)
InitSystem
Userland (OS)
HOST KERNEL
SERVER
Traditional Virtualisation Docker Containerisation

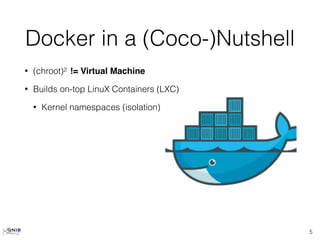

Docker in a (Coco-)Nutshell
• (chroot)2 != Virtual Machine
• Builds on-top LinuX Containers (LXC)
• Kernel namespaces (isolation)
5

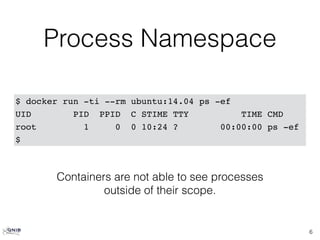

Process Namespace
6
$ docker run -ti --rm ubuntu:14.04 ps -ef
UID PID PPID C STIME TTY TIME CMD
root 1 0 0 10:24 ? 00:00:00 ps -ef
$
Containers are not able to see processes
outside of their scope.

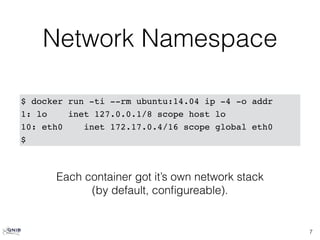

Network Namespace
7
$ docker run -ti --rm ubuntu:14.04 ip -4 -o addr
1: lo inet 127.0.0.1/8 scope host lo
10: eth0 inet 172.17.0.4/16 scope global eth0
$
Each container got it’s own network stack
(by default, configureable).

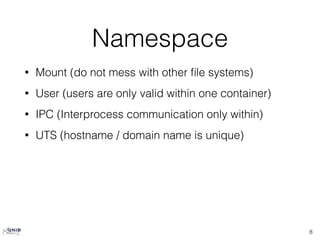

Namespace
• Mount (do not mess with other file systems)
• User (users are only valid within one container)
• IPC (Interprocess communication only within)
• UTS (hostname / domain name is unique)
8
Docker in a (Coco-)Nutshell
9
• (chroot)2 != Virtual Machine
• Builds on-top LinuX Containers (LXC)
• Kernel namespaces (isolation)
• cgroups (resource mgmt)
• intuitive build system

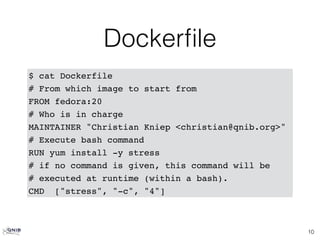

Dockerfile
10
$ cat Dockerfile
# From which image to start from
FROM fedora:20
# Who is in charge
MAINTAINER "Christian Kniep <christian@qnib.org>"
# Execute bash command
RUN yum install -y stress
# if no command is given, this command will be
# executed at runtime (within a bash).
CMD ["stress", "-c", "4"]

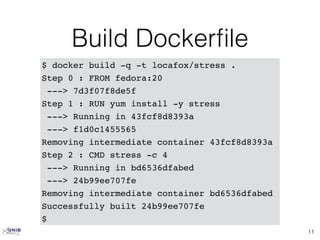

Build Dockerfile
11
$ docker build -q -t locafox/stress .
Step 0 : FROM fedora:20
---> 7d3f07f8de5f
Step 1 : RUN yum install -y stress
---> Running in 43fcf8d8393a
---> f1d0c1455565
Removing intermediate container 43fcf8d8393a
Step 2 : CMD stress -c 4
---> Running in bd6536dfabed
---> 24b99ee707fe
Removing intermediate container bd6536dfabed
Successfully built 24b99ee707fe
$

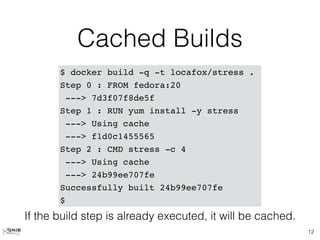

Cached Builds
12
$ docker build -q -t locafox/stress .
Step 0 : FROM fedora:20
---> 7d3f07f8de5f
Step 1 : RUN yum install -y stress
---> Using cache
---> f1d0c1455565
Step 2 : CMD stress -c 4
---> Using cache
---> 24b99ee707fe
Successfully built 24b99ee707fe
$
If the build step is already executed, it will be cached.
Docker in a (Coco-)Nutshell
• (chroot)2 != Virtual Machine
• Builds on-top LinuX Containers (LXC)
• Kernel namespaces (isolation)
• cgroups (resource mgmt)
• intuitive build system
13

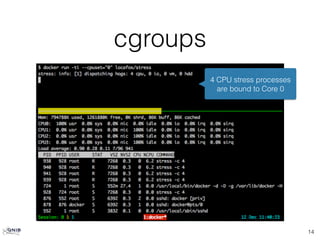

cgroups
14
4 CPU stress processes
are bound to Core 0

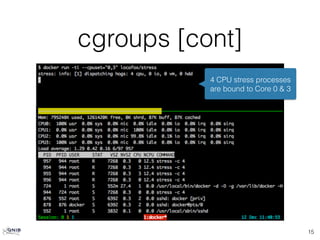

cgroups [cont]
15
4 CPU stress processes
are bound to Core 0 & 3

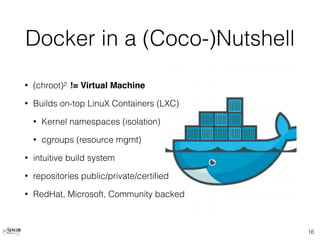

Docker in a (Coco-)Nutshell
• (chroot)2 != Virtual Machine
• Builds on-top LinuX Containers (LXC)
• Kernel namespaces (isolation)
• cgroups (resource mgmt)
• intuitive build system
• repositories public/private/certified
• RedHat, Microsoft, Community backed
16

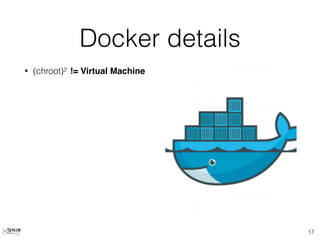

Docker details
• (chroot)2 != Virtual Machine
17
Docker != VM (srsly!)
http://en.wikipedia.org/wiki/Systemd
Virtual Machine
• Kicks off a complete Machine, hence the name!
• EveryoneTM disables security
• Hard to strip down
18
Docker
• Only spawns one process (in theory, at least)
• Easy to understand (theory, old friend)

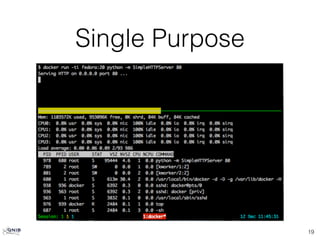

Single Purpose
19

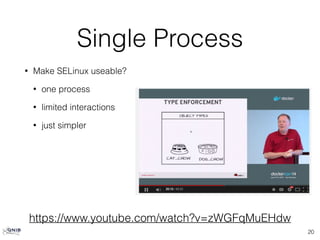

Single Process
• Make SELinux useable?
• one process
• limited interactions
• just simpler
20
https://www.youtube.com/watch?v=zWGFqMuEHdw

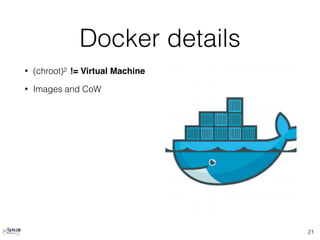

Docker details
• (chroot)2 != Virtual Machine
• Images and CoW
21
Images and CoW
• An image is an immutable layer
• A container is the RW layer,
which is executed on-top
22
qnib/slave
qnib/terminal
qnib/supervisor
qnib/fd20
Fedora
qnib/of_build
qnib/IB_build
qnib/slurm_build
qnib/build
qnib/master
qnib/gapi
qnib/carbon
qnib/elk
copy-on-write
/slurm
FROM points to the
parent-image and this
relationship sticks. If the
parent is changed, the
child has to be rebuild.
Docker details
• (chroot)2 != Virtual Machine
• Images and CoW
• Ports
• docker exec (since 1.3)
23

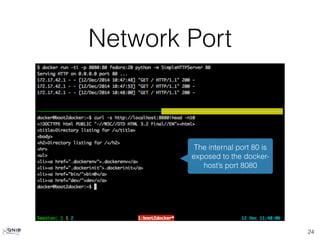

Network Port
24
The internal port 80 is
exposed to the docker-host’s
port 8080

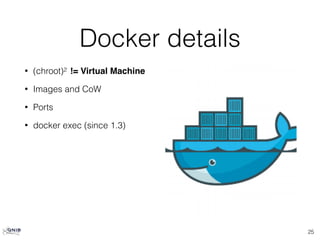

Docker details
• (chroot)2 != Virtual Machine
• Images and CoW
• Ports
• docker exec (since 1.3)
25

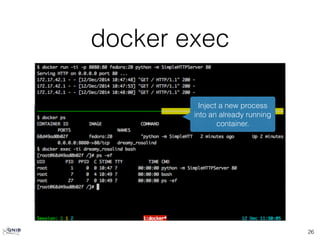

docker exec
26
Inject a new process
into an already running
container.

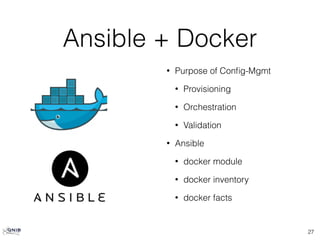

Ansible + Docker
• Purpose of Config-Mgmt
• Provisioning
• Orchestration
• Validation
• Ansible
• docker module
• docker inventory
• docker facts
27

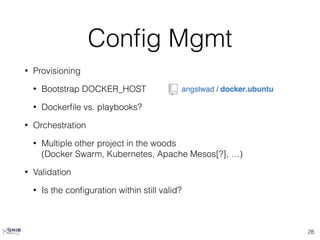

Config Mgmt
• Provisioning
• Bootstrap DOCKER_HOST
• Dockerfile vs. playbooks?
• Orchestration
• Multiple other project in the woods
(Docker Swarm, Kubernetes, Apache Mesos[?], …)
• Validation
• Is the configuration within still valid?
28
Ansible + Docker
• Purpose of Config-Mgmt
• Provisioning
• Orchestration
• Validation
• Ansible
• docker module
• docker inventory
• docker facts
29

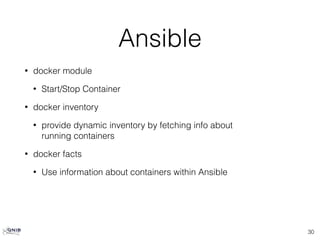

Ansible
• docker module
• Start/Stop Container
• docker inventory
• provide dynamic inventory by fetching info about
running containers
• docker facts
• Use information about containers within Ansible
30

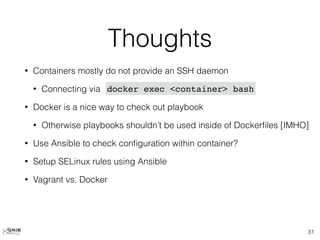

Thoughts
• Containers mostly do not provide an SSH daemon
• Connecting via
• Docker is a nice way to check out playbook
• Otherwise playbooks shouldn’t be used inside of Dockerfiles [IMHO]
• Use Ansible to check configuration within container?
• Setup SELinux rules using Ansible
• Vagrant vs. Docker
31
docker exec <container> bash
