Vending machine<br />For dummies<br />Thijs Platteau3IOTechnological Design<br />

2.

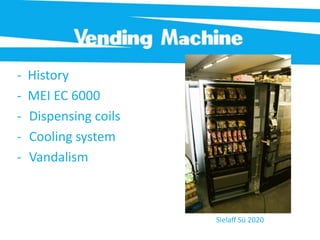

Vending Machine<br />- History<br />- MEI EC 6000<br /><ul><li>Dispensing coils

3.
Cooling system

4.
Vandalism</li></ul>Sielaff Sü 2020<br />

5.

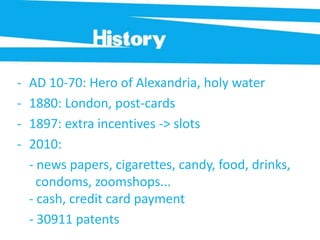

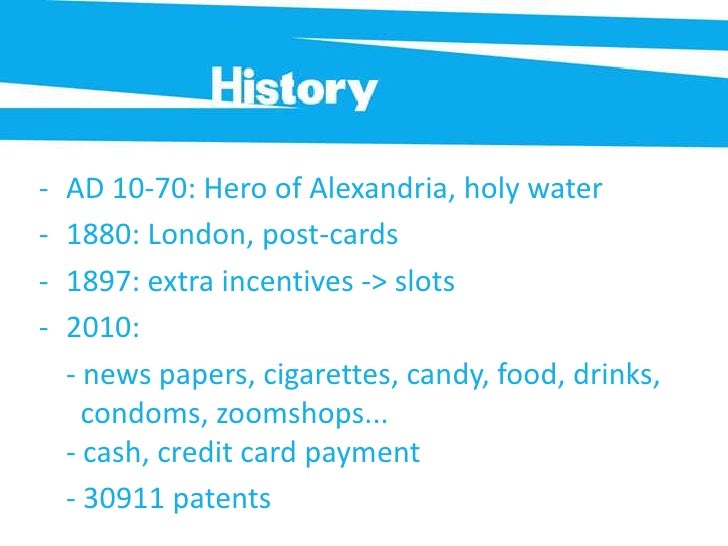

History<br /><ul><li>AD 10-70: Hero of Alexandria, holy water

6.
1880: London, post-cards

7.
1897: extra incentives -> slots

8.
2010: </li></ul> - news papers, cigarettes, candy, food, drinks, condoms, zoomshops...- cash, credit card payment<br /> - 30911 patents<br />

9.

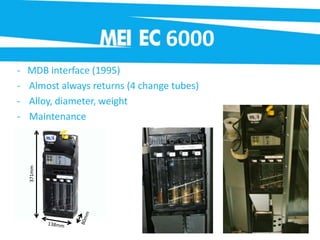

MEI EC<br />6000<br />- MDB interface (1995)<br /><ul><li>Almost always returns (4 change tubes)

10.
Alloy, diameter, weight

11.
Maintenance</li></ul>371mm<br />80mm<br />138mm<br />

12.

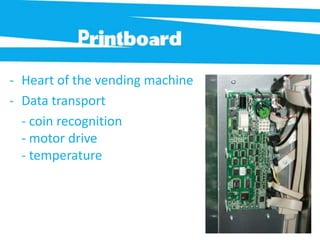

Printboard<br /><ul><li>Heart of the vending machine

13.
Data transport</li></ul> - coin recognition- motor drive- temperature<br />

14.

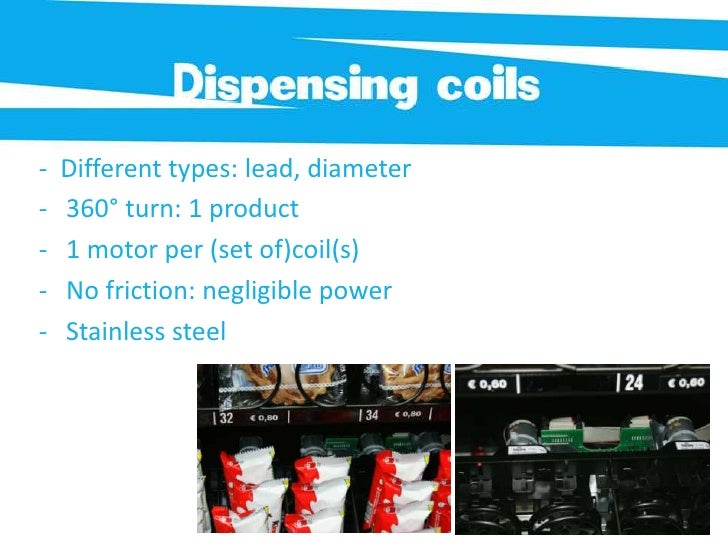

Dispensingcoils<br />- Different types: lead, diameter<br /><ul><li>360° turn: 1 product

15.
1 motor per (set of)coil(s)

16.
No friction: negligible power

17.

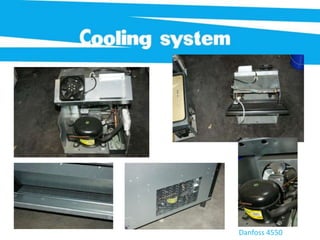

Stainless steel</li></li></ul><li>Coolingsystem<br />Danfoss 4550<br />

18.

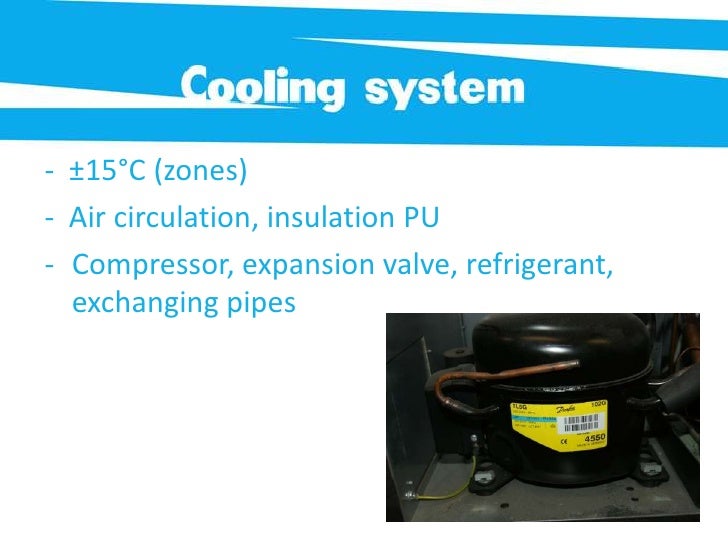

Coolingsystem<br />- ±15°C (zones)<br />- Air circulation, insulation PU<br /><ul><li>Compressor, expansion valve, refrigerant, exchanging pipes</li></li></ul><li>Coolingsystem<br />1. Compression of Freon: high-pressure hot gas2. Condensation into liquid, dissipation of heat3. Expansion valve controls amount of freon to evaporate into low-pressure cold gas4. Warmth absorption, back to compressor<br />ventilation<br />circulation<br />

19.

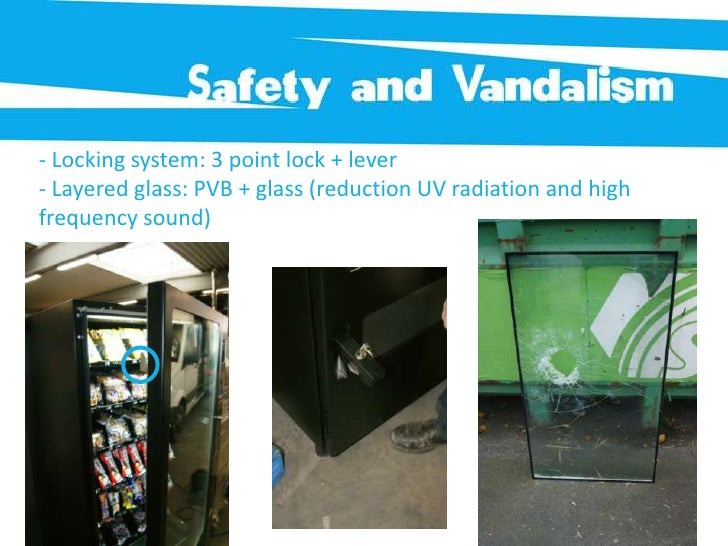

Safety and Vandalism<br /><ul><li> Locking system: 3 point lock + lever</li></ul>- Layered glass: PVB + glass (reduction UV radiation and high frequency sound)<br />

20.

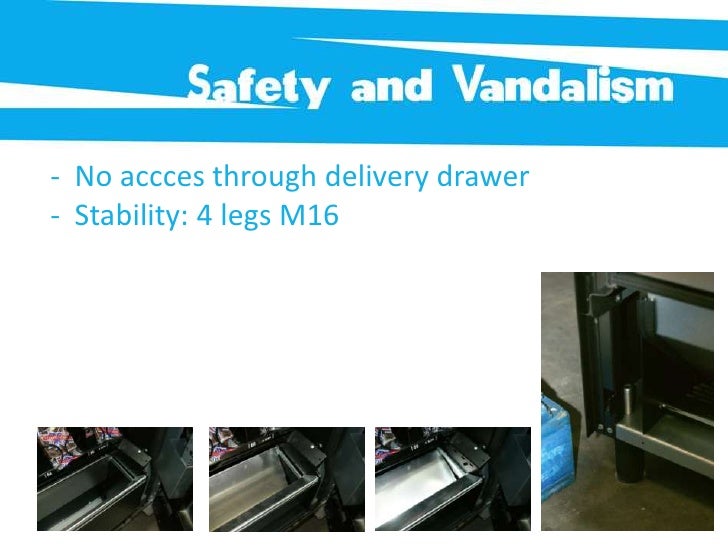

Safety and Vandalism<br /><ul><li> No accces through delivery drawer</li></ul>- Stability: 4 legs M16 <br />

21.

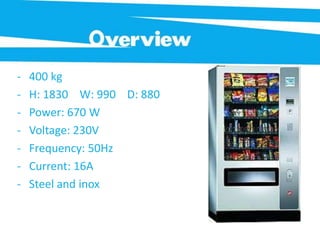

Overview<br /><ul><li>400 kg

22.
H: 1830 W: 990 D: 880

23.
Power: 670 W

24.
Voltage: 230V

25.
Frequency: 50Hz

26.
Current: 16A

27.
Steel and inox</li></li></ul><li>Thanks to:<br />
