1. Geode Security
Before and After

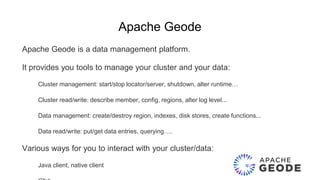

2. Apache Geode
Apache Geode is a data management platform.
It provides you tools to manage your cluster and your data:
Cluster management: start/stop locator/server, shutdown, alter runtime…
Cluster read/write: describe member, config, regions, alter log level...
Data management: create/destroy region, indexes, disk stores, create functions...
Data read/write: put/get data entries, querying….
Various ways for you to interact with your cluster/data:
Java client, native client

3. Geode Security
Authentication
Resolve identity, represented as a principal
Authorization
Resolve roles and permissions
Post Processing
Resolve final value presented back to user

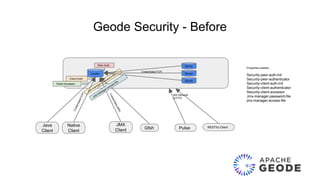

4. Geode Security - Before
Java
Client
JMX
Client Gfsh Pulse
Locator
Server
Server
Server
Native
Client
Credentials(TCP)
Peer Auth
RESTful Client
Client-Auth
Not Secured
(HTTP)
Client-Accessor
Properties needed:
Security-peer-auth-init
Security-peer-authenticator
Security-client-auth-init
Security-client-authenticator
Security-client-accessor
Jmx-manager-password-file
jmx-manager-access-file

5. Security
Manager
Security
Manager
Security
Manager

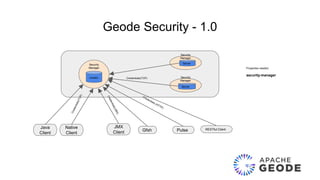

Geode Security - 1.0
Java
Client
JMX
Client Gfsh Pulse
Locator
Server
Server
Native
Client
Credentials(TCP)
RESTful Client
Properties needed:
security-manager

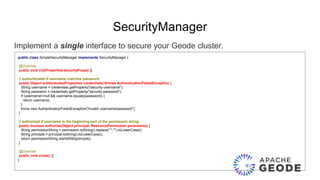

6. SecurityManager
Implement a single interface to secure your Geode cluster.
public class SimpleSecurityManager implements SecurityManager {
@Override
public void init(Properties securityProps) {}
// authenticated if username matches password
public Object authenticate(Properties credentials) throws AuthenticationFailedException {
String username = credentials.getProperty("security-username");
String password = credentials.getProperty("security-password");
If (username!=null && username.equals(password)) {
return username;
}
throw new AuthenticationFailedException("invalid username/password");
}
// authorized if username is the beginning part of the permission string
public boolean authorize(Object principal, ResourcePermission permission) {
String permissionString = permission.toString().replace(":","").toLowerCase();
String principle = principal.toString().toLowerCase();
return permissionString.startsWith(principle);
}
@Override
public void close() {}
}

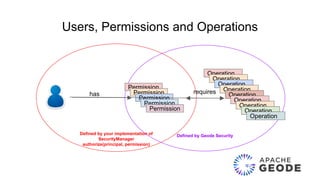

7. Defined by your implementation of
SecurityManager
authorize(principal, permission)
Defined by Geode Security
Users, Permissions and Operations
Permission
Permission
Permission
Permission
Permission
Operation
Operation
Operation
Operation
Operation
Operation
Operation
Operation
Operation
has requires

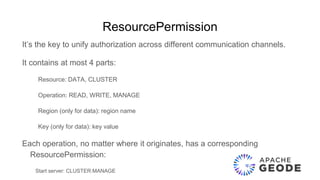

8. ResourcePermission
It’s the key to unify authorization across different communication channels.
It contains at most 4 parts:
Resource: DATA, CLUSTER
Operation: READ, WRITE, MANAGE
Region (only for data): region name
Key (only for data): key value
Each operation, no matter where it originates, has a corresponding
ResourcePermission:
Start server: CLUSTER:MANAGE

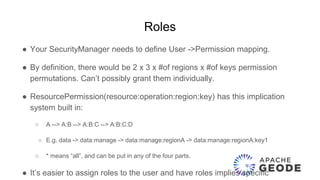

9. Roles
● Your SecurityManager needs to define User ->Permission mapping.
● By definition, there would be 2 x 3 x #of regions x #of keys permission
permutations. Can’t possibly grant them individually.
● ResourcePermission(resource:operation:region:key) has this implication
system built in:
○ A --> A:B --> A:B:C --> A:B:C:D
○ E.g. data -> data:manage -> data:manage:regionA -> data:manage:regionA:key1
○ * means “all”, and can be put in any of the four parts.
● It’s easier to assign roles to the user and have roles implies specific

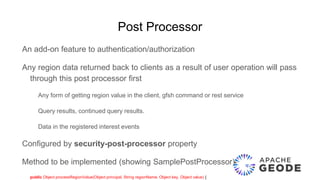

10. Post Processor
An add-on feature to authentication/authorization
Any region data returned back to clients as a result of user operation will pass
through this post processor first
Any form of getting region value in the client, gfsh command or rest service
Query results, continued query results.
Data in the registered interest events
Configured by security-post-processor property
Method to be implemented (showing SamplePostProcessor):
public Object processRegionValue(Object principal, String regionName, Object key, Object value) {

11. Demo

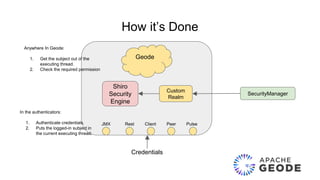

12. Geode
How it’s Done
Shiro
Security
Engine
Custom
Realm
SecurityManager
Client PeerJMX Rest Pulse
Credentials
In the authenticators:
1. Authenticate credentials.
2. Puts the logged-in subject in
the current executing thread.
Anywhere In Geode:
1. Get the subject out of the
executing thread.
2. Check the required permission

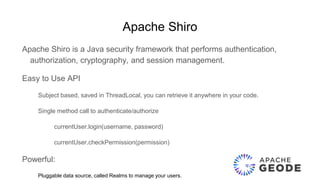

13. Apache Shiro
Apache Shiro is a Java security framework that performs authentication,
authorization, cryptography, and session management.
Easy to Use API
Subject based, saved in ThreadLocal, you can retrieve it anywhere in your code.
Single method call to authenticate/authorize
currentUser.login(username, password)
currentUser.checkPermission(permission)
Powerful:
Pluggable data source, called Realms to manage your users.

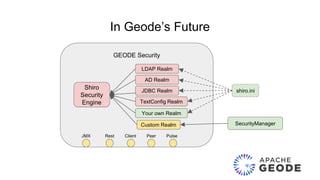

14. GEODE Security
In Geode’s Future
Shiro
Security
Engine
LDAP Realm
Custom Realm SecurityManager
shiro.ini
AD Realm
JDBC Realm
TextConfig Realm
Client PeerJMX Rest Pulse
Your own Realm
