1. Writing Unadulterated Services
with Kotlin and Coroutines
Zohaib Sibte Hassan
SpringOne 2021

2. About me
Zohaib Sibte Hassan
Working @DoorDash
Twitter: @zohaibility

3. DoorDash

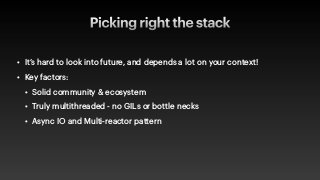

4. Picking right the stack
• It’s hard to look into future, and depends a lot on your context!
• Key factors:
• Solid community & ecosystem
• Truly multithreaded - no GILs or bottle necks
• Async IO and Multi-reactor pattern

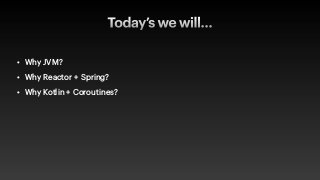

5. Today’s we will…
• Why JVM?
• Why Reactor + Spring?
• Why Kotlin + Coroutines?

6. Why JVM?

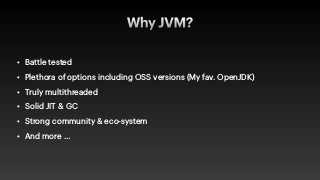

7. Why JVM?
• Battle tested
• Plethora of options including OSS versions (My fav. OpenJDK)
• Truly multithreaded
• Solid JIT & GC
• Strong community & eco-system
• And more …

8. Why true multi-threading…

9. Why Reactor + Spring?

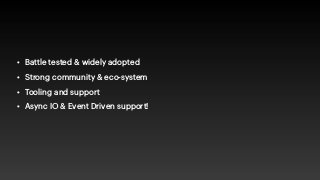

10. • Battle tested & widely adopted
• Strong community & eco-system
• Tooling and support
• Async IO & Event Driven support!

11. Reactor Pattern

12. Fragmentation ahead!

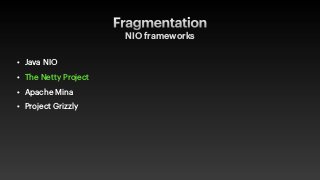

13. Fragmentation
NIO frameworks
• Java NIO
• The Netty Project
• Apache Mina
• Project Grizzly

14. Abstraction on top of I/O

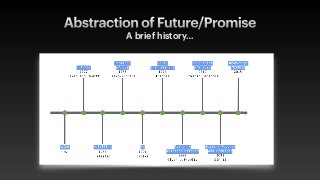

15. Abstraction of Future/Promise
A brief history…

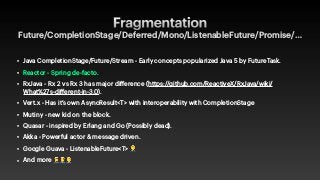

16. Fragmentation
Future/CompletionStage/Deferred/Mono/ListenableFuture/Promise/…
• Java CompletionStage/Future/Stream - Early concepts popularized Java 5 by FutureTask.
• Reactor - Spring de-facto.
• RxJava - Rx 2 vs Rx 3 has major difference (https://github.com/ReactiveX/RxJava/wiki/
What%27s-different-in-3.0).
• Vert.x - Has it’s own AsyncResult<T> with interoperability with CompletionStage
• Mutiny - new kid on the block.
• Quasar - inspired by Erlang and Go (Possibly dead).
• Akka - Powerful actor & message driven.
• Google Guava - ListenableFuture<T> 🤦
• And more 🤦🤦🤦

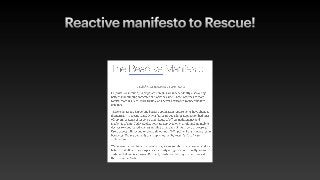

17. Reactive manifesto to Rescue!

18. Callback hell
Hard to read/reason/debug code…

19. What can we do?

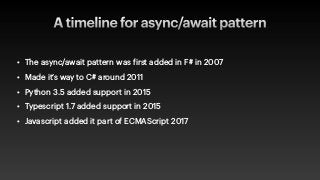

20. A timeline for async/await pattern
• The async/await pattern was
f
irst added in F# in 2007
• Made it’s way to C# around 2011
• Python 3.5 added support in 2015
• Typescript 1.7 added support in 2015
• Javascript added it part of ECMAScript 2017

21. Java async/await ?

22. Project Loom!
Return to virtual threads…

23. Why Kotlin & Coroutines?
WARNING: Code intensive slides ahead!

24. Testbed Setup

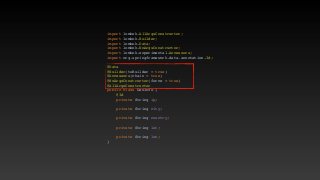

25. import lombok.AllArgsConstructor
;
import lombok.Builder
;
import lombok.Data
;
import lombok.NoArgsConstructor
;
import lombok.experimental.Accessors
;
import org.springframework.data.annotation.Id
;
@Dat
a
@Builder(toBuilder = true
)
@Accessors(chain = true
)
@NoArgsConstructor(force = true
)
@AllArgsConstructo
r
public class GeoInfo
{
@I
d
private String ip
;
private String city
;
private String country
;
private String lat
;
private String lon
;
}

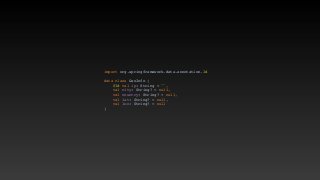

26. import org.springframework.data.annotation.I
d
data class GeoInfo
(
@Id val ip: String = ""
,
val city: String? = null
,
val country: String? = null
,
val lat: String? = null
,
val lon: String? = nul
l
)

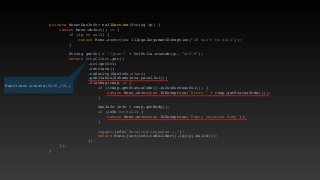

27. private Mono<GeoInfo> callService(String ip)
{
return Mono.defer(() ->
{
if (ip == null)
{
return Mono.error(new IllegalArgumentException("IP can't be null"))
;
}
String getUrl = "/json/" + UriUtils.encode(ip, "utf-8")
;
return httpClient.get(
)
.uri(getUrl
)
.retrieve(
)
.toEntity(GeoInfo.class
)
.publishOn(Schedulers.parallel()
)
.flatMap(resp ->
{
if (!resp.getStatusCode().is2xxSuccessful())
{
return Mono.error(new IOException("Error " + resp.getStatusCode()))
;
}
GeoInfo info = resp.getBody()
;
if (info == null)
{
return Mono.error(new IOException("Empty response body"))
;
}
logger.info("Received response...")
;
return Mono.just(info.toBuilder().ip(ip).build())
;
})
;
})
;
}
WebClient.create(BASE_URL
)

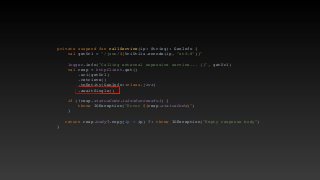

28. private suspend fun callService(ip: String): GeoInfo
{
val getUrl = "/json/${UriUtils.encode(ip, "utf-8")}
"
logger.info("Calling external expensive service... {}", getUrl
)
val resp = httpClient.get(
)
.uri(getUrl
)
.retrieve(
)
.toEntity(GeoInfo::class.java
)
.awaitSingle(
)
if (!resp.statusCode.is2xxSuccessful)
{
throw IOException("Error ${resp.statusCode}"
)
}
return resp.body?.copy(ip = ip) ?: throw IOException("Empty response body"
)
}

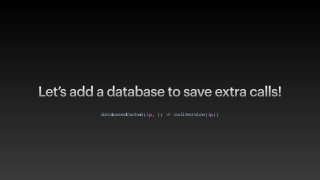

29. Let’s add a database to save extra calls!
databasedCached(ip, () -> callService(ip)
)

30. Reactive database?

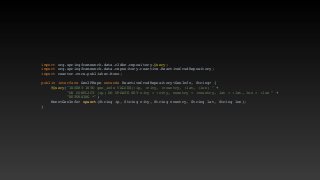

31. import org.springframework.data.r2dbc.repository.Query
;
import org.springframework.data.repository.reactive.ReactiveCrudRepository
;
import reactor.core.publisher.Mono
;
public interface GeoIPRepo extends ReactiveCrudRepository<GeoInfo, String>
{
@Query("INSERT INTO geo_info VALUES(:ip, :city, :country, :lat, :lon) "
+
"ON CONFLICT (ip) DO UPDATE SET city = :city, country = :country, lat = :lat, lon = :lon "
+
"RETURNING *"
)
Mono<GeoInfo> upsert(String ip, String city, String country, String lat, String lon)
;
}

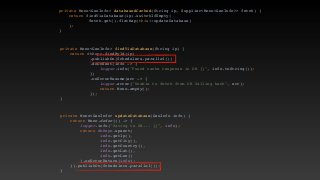

32. private Mono<GeoInfo> databasedCached(String ip, Supplier<Mono<GeoInfo>> fetch)
{
return findViaDatabase(ip).switchIfEmpty
(
fetch.get().flatMap(this::updateDatabase
)
)
;
}
private Mono<GeoInfo> findViaDatabase(String ip)
{
return dbRepo.findById(ip
)
.publishOn(Schedulers.parallel()
)
.doOnNext(info ->
{
logger.info("Found cache response in DB {}", info.toString())
;
}
)
.onErrorResume(err ->
{
logger.error("Unable to fetch from DB falling back", err)
;
return Mono.empty()
;
})
;
}
private Mono<GeoInfo> updateDatabase(GeoInfo info)
{
return Mono.defer(() ->
{
logger.info("Saving to DB... {}", info)
;
return dbRepo.upsert
(
info.getIp()
,
info.getCity()
,
info.getCountry()
,
info.getLat()
,
info.getLon(
)
).onErrorReturn(info)
;
}).publishOn(Schedulers.parallel())
;
}

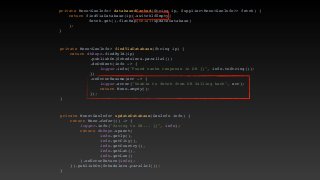

34. private Mono<GeoInfo> databasedCached(String ip, Supplier<Mono<GeoInfo>> fetch)
{
return findViaDatabase(ip).switchIfEmpty
(
fetch.get().flatMap(this::updateDatabase
)
)
;
}
private Mono<GeoInfo> findViaDatabase(String ip)
{
return dbRepo.findById(ip
)
.publishOn(Schedulers.parallel()
)
.doOnNext(info ->
{
logger.info("Found cache response in DB {}", info.toString())
;
}
)
.onErrorResume(err ->
{
logger.error("Unable to fetch from DB falling back", err)
;
return Mono.empty()
;
})
;
}
private Mono<GeoInfo> updateDatabase(GeoInfo info)
{
return Mono.defer(() ->
{
logger.info("Saving to DB... {}", info)
;
return dbRepo.upsert
(
info.getIp()
,
info.getCity()
,
info.getCountry()
,
info.getLat()
,
info.getLon(
)
).onErrorReturn(info)
;
}).publishOn(Schedulers.parallel())
;
}

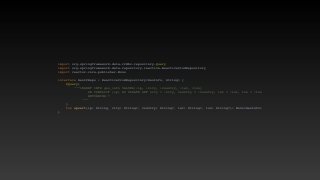

35. import org.springframework.data.r2dbc.repository.Quer
y
import org.springframework.data.repository.reactive.ReactiveCrudRepositor
y
import reactor.core.publisher.Mon
o
interface GeoIPRepo : ReactiveCrudRepository<GeoInfo, String>
{
@Query
(
"""INSERT INTO geo_info VALUES(:ip, :city, :country, :lat, :lon
)
ON CONFLICT (ip) DO UPDATE SET city = :city, country = :country, lat = :lat, lon = :lo
n
RETURNING
*
""
"
)
fun upsert(ip: String, city: String?, country: String?, lat: String?, lon: String?): Mono<GeoInfo
>
}

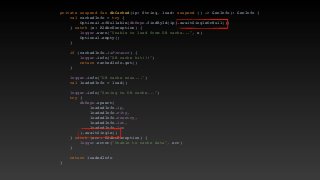

36. private suspend fun dbCached(ip: String, load: suspend () -> GeoInfo): GeoInfo
{
val cachedInfo = try
{
Optional.ofNullable(dbRepo.findById(ip).awaitSingleOrNull()
)
} catch (e: R2dbcException)
{
logger.warn("Unable to load from DB cache...", e
)
Optional.empty(
)
}
if (cachedInfo.isPresent)
{
logger.info("DB cache hit!!!"
)
return cachedInfo.get(
)
}
logger.info("DB cache miss..."
)
val loadedInfo = load(
)
logger.info("Saving to DB cache..."
)
try
{
dbRepo.upsert
(
loadedInfo.ip
,
loadedInfo.city
,
loadedInfo.country
,
loadedInfo.lat
,
loadedInfo.lo
n
).awaitSingle(
)
} catch (err: R2dbcException)
{
logger.error("Unable to cache data", err
)
}
return loadedInf
o
}

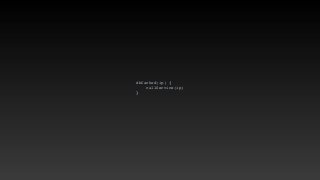

37. dbCached(ip)
{
callService(ip
)
}

38. suspend all the way…

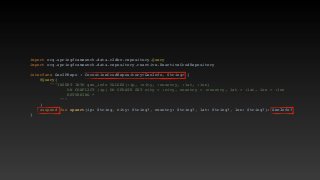

39. import org.springframework.data.r2dbc.repository.Quer
y
import org.springframework.data.repository.reactive.ReactiveCrudRepositor
y
interface GeoIPRepo : CoroutineCrudRepository<GeoInfo, String>
{
@Query
(
"""INSERT INTO geo_info VALUES(:ip, :city, :country, :lat, :lon
)
ON CONFLICT (ip) DO UPDATE SET city = :city, country = :country, lat = :lat, lon = :lo
n
RETURNING
*
""
"
)
suspend fun upsert(ip: String, city: String?, country: String?, lat: String?, lon: String?): GeoInfo
?
}

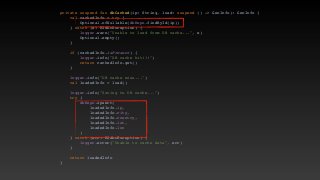

40. private suspend fun dbCached(ip: String, load: suspend () -> GeoInfo): GeoInfo
{
val cachedInfo = try
{
Optional.ofNullable(dbRepo.findById(ip)
)
} catch (e: R2dbcException)
{
logger.warn("Unable to load from DB cache...", e
)
Optional.empty(
)
}
if (cachedInfo.isPresent)
{
logger.info("DB cache hit!!!"
)
return cachedInfo.get(
)
}
logger.info("DB cache miss..."
)
val loadedInfo = load(
)
logger.info("Saving to DB cache..."
)
try
{
dbRepo.upsert
(
loadedInfo.ip
,
loadedInfo.city
,
loadedInfo.country
,
loadedInfo.lat
,
loadedInfo.lo
n
)
} catch (err: R2dbcException)
{
logger.error("Unable to cache data", err
)
}
return loadedInf
o
}

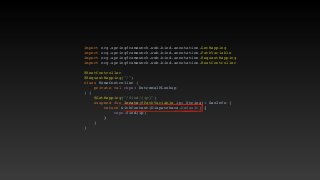

41. import org.springframework.web.bind.annotation.GetMappin
g
import org.springframework.web.bind.annotation.PathVariabl
e
import org.springframework.web.bind.annotation.RequestMappin
g
import org.springframework.web.bind.annotation.RestControlle
r
@RestControlle
r
@RequestMapping("/"
)
class HomeController
(
private val repo: ExtremeIPLooku
p
)
{
@GetMapping("/find/{ip}"
)
suspend fun locate(@PathVariable ip: String): GeoInfo
{
return withContext(Dispatchers.Default)
{
repo.find(ip
)
}
}
}

42. Dealing with async
fragmentation…
Almost…

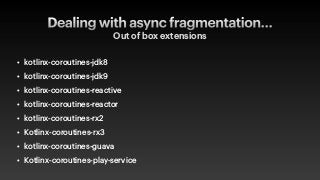

43. Dealing with async fragmentation…
Out of box extensions
• kotlinx-coroutines-jdk8
• kotlinx-coroutines-jdk9
• kotlinx-coroutines-reactive
• kotlinx-coroutines-reactor
• kotlinx-coroutines-rx2
• Kotlinx-coroutines-rx3
• kotlinx-coroutines-guava
• Kotlinx-coroutines-play-service

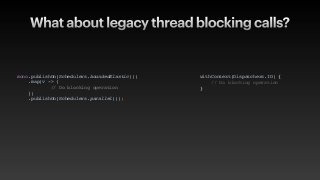

44. What about legacy thread blocking calls?
mono.publishOn(Schedulers.boundedElastic()
)
.map(v ->
{
// Do blocking operatio
n
}
)
.publishOn(Schedulers.parallel())
;
withContext(Dispatchers.IO)
{
// Do blocking operation
}

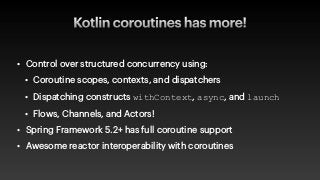

45. Kotlin coroutines has more!
• Control over structured concurrency using:
• Coroutine scopes, contexts, and dispatchers
• Dispatching constructs withContext, async, and launch
• Flows, Channels, and Actors!
• Spring Framework 5.2+ has full coroutine support
• Awesome reactor interoperability with coroutines

46. Keeping It Simple & Stupid.
What are the key takeaways?

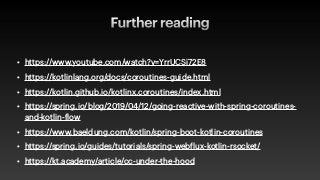

47. Further reading
• https://www.youtube.com/watch?v=YrrUCSi72E8
• https://kotlinlang.org/docs/coroutines-guide.html
• https://kotlin.github.io/kotlinx.coroutines/index.html
• https://spring.io/blog/2019/04/12/going-reactive-with-spring-coroutines-
and-kotlin-
f
low
• https://www.baeldung.com/kotlin/spring-boot-kotlin-coroutines
• https://spring.io/guides/tutorials/spring-web
f
lux-kotlin-rsocket/
• https://kt.academy/article/cc-under-the-hood

48. Thank you!
