Tap-As-A-Service: What You Need to Know Now
In Collaboration With April 28, 2016 Tap-as-a-service: What you need to know now
Copyright © PLUMgrid, Inc. 2011-2016 Introduction Speaker(s) Sr. Software Engineer PLUMgrid Inc Khaliq Fawad 2 Distinguished Engineer Gigamon Rao Anil Tech Lead NEC Technologies Banerjee Reedip Experienced Researcher Ericsson Yadhav Vinay Sr. Software Engineer Midokura Yamamoto Takashi

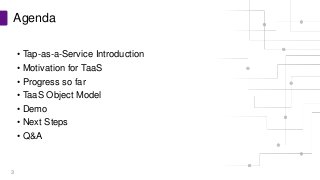

Copyright © PLUMgrid, Inc. 2011-2016 • Tap-as-a-Service Introduction • Motivation for TaaS • Progress so far • TaaS Object Model • Demo • Next Steps • Q&A Agenda 3
Tap-as-a-Service Introduction 4

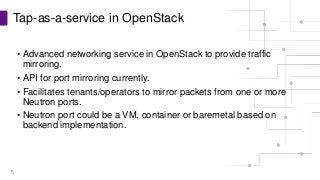

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service in OpenStack 5 • Advanced networking service in OpenStack to provide traffic mirroring. • API for port mirroring currently. • Facilitates tenants/operators to mirror packets from one or more Neutron ports. • Neutron port could be a VM, container or baremetal based on backend implementation.

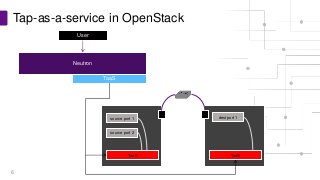

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service in OpenStack 6 TaaS Neutron source port 1 source port 2 TaaS dest port 1 TaaS User

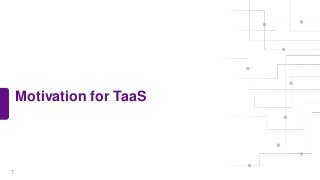

Motivation for TaaS 7

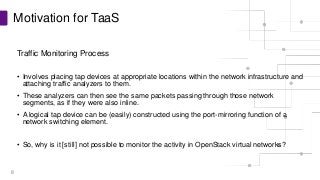

Copyright © PLUMgrid, Inc. 2011-2016 Motivation for TaaS 8 Traffic Monitoring Process • Involves placing tap devices at appropriate locations within the network infrastructure and attaching traffic analyzers to them. • These analyzers can then see the same packets passing through those network segments, as if they were also inline. • A logical tap device can be (easily) constructed using the port-mirroring function of a network switching element. • So, why is it [still] not possible to monitor the activity in OpenStack virtual networks?
Copyright © PLUMgrid, Inc. 2011-2016 Motivation for TaaS 9 Architectural Characteristics of Cloud Platforms Multi-tenancy Location Independency • Multi-tenancy allows available resources and services to be shared among different groups of users. • Each group, known as a tenant, is provided with an environment that is completely isolated from the others. • Members of a tenant are oblivious of the fact that other groups may be co-existing with them. • Multi-tenancy promotes delegation of control in a safe and secure manner. • Location independence is primarily concerned with hiding the identities of individual infrastructure components from virtualized workloads. • This has made it possible to relocate running virtual machines from one host to another. • An equally important but less appreciated benefit of location independence is the improved efficiency in resource allocation.
Copyright © PLUMgrid, Inc. 2011-2016 Motivation for TaaS 10 • Tenants are (typically) unaware of the physical hosts on which their VMs are running. • VMs belonging to different tenants may be placed on the same host. • Tenant virtual networks often extend across multiple hosts. • To avoid the possibility of cross-tenant data leakage, tenants are prevented from directly accessing the controls of the underlying switch fabric. - comprising of host-level virtual switches, top-of-rack switches, etc. • Unfortunately, this means that the port-mirroring capability of those switches is also not available.

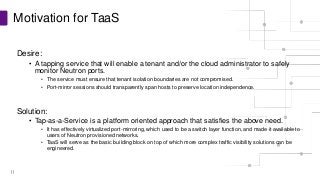

Copyright © PLUMgrid, Inc. 2011-2016 Motivation for TaaS 11 Desire: • A tapping service that will enable a tenant and/or the cloud administrator to safely monitor Neutron ports. • The service must ensure that tenant isolation boundaries are not compromised. • Port-mirror sessions should transparently span hosts to preserve location independence. Solution: • Tap-as-a-Service is a platform oriented approach that satisfies the above need. • It has effectively virtualized port-mirroring, which used to be a switch layer function, and made it available to users of Neutron provisioned networks. • TaaS will serve as the basic building block on top of which more complex traffic visibility solutions can be engineered.
Progress So Far 12
Copyright © PLUMgrid, Inc. 2011-2016 Progress So Far 13 • Version 0.1 for TaaS presented in Demo, with successful integration. • Source code resides on Github (https://github.com/openstack/tap-as-a-service). • Application for inclusion as an official OpenStack project in Governance and as a possible participant in Neutron Stadium. • Support for TaaS in Horizon Dashboard (Beta version). • TaaS is now available as a CLI with NeutronClient. • neutron tap-service-create/neutron tap-service-delete/neutron tap-service-show/neutron tap-service-list • neutron tap-flow-create/neutron tap-flow-delete/neutron tap-flow-show/neutron tap-flow-list • Tempest Jobs for TaaS are functional on the gate.
Tap-as-a-service Object Model 14
Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model 15 TAP SERVICE Represents the port on which the mirrored traffic is delivered. Any service (VM) that uses the mirrored data is attached to the port. TAP FLOW Represents the port from which the traffic needs to be mirrored. Multiple TAP FLOW instances can be associated with a single TAP SERVICE instance.

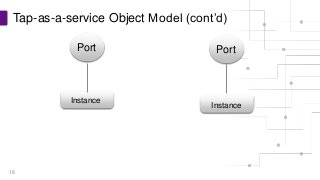

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model (cont’d) 16 PortPort Instance Instance

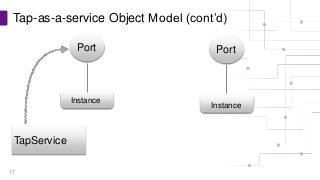

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model (cont’d) 17 TapService PortPort Instance Instance

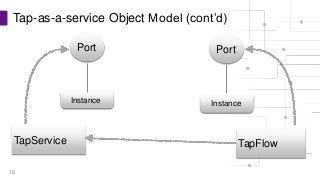

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model (cont’d) 18 TapFlowTapService PortPort Instance Instance

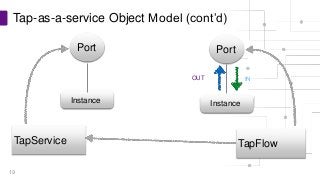

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model (cont’d) 19 TapFlowTapService PortPort OUT IN Instance Instance

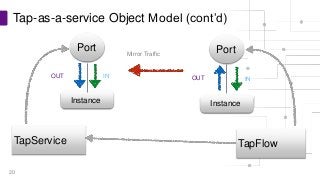

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model (cont’d) 20 TapFlowTapService PortPort Mirror Traffic OUT IN OUT IN Instance Instance

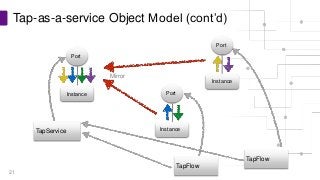

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Object Model (cont’d) 21 TapFlow TapService Port Port Mirror Instance Port TapFlow Instance Instance

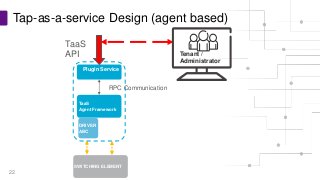

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Design (agent based) 22 SWITCHING ELEMENT TaaS Agent Framework Plugin Service DRIVER ABC RPC Communication TaaS API Tenant / Administrator

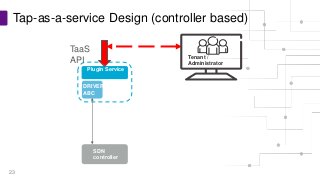

Copyright © PLUMgrid, Inc. 2011-2016 Tap-as-a-service Design (controller based) 23 SDN controller Plugin Service DRIVER ABC TaaS API Tenant / Administrator
DEMO 24

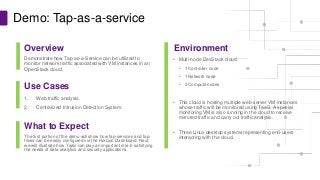

Copyright © PLUMgrid, Inc. 2011-2016 Demo: Tap-as-a-service Overview Environment Use Cases What to Expect Demonstrate how Tap-as-a-Service can be utilized to monitor network traffic associated with VM instances in an OpenStack cloud. 1. Web traffic analysis. 2. Centralized Intrusion Detection System. The first portion of the demo will show how tap-services and tap- flows can be easily configured via the Horizon Dashboard. Next, we will illustrate how TaaS can play an important role in satisfying the needs of data analytics and security applications. • Multi-node DevStack cloud • 1 Controller node • 1 Network node • 2 Compute nodes • This cloud is hosting multiple web-server VM instances whose traffic will be monitored using TaaS. A special monitoring VM is also running in the cloud to receive mirrored traffic and carry out traffic analysis. • Three Linux desktop systems representing end-users interacting with the cloud.
Next Steps 26

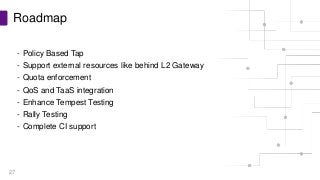

Copyright © PLUMgrid, Inc. 2011-2016 Roadmap 27 - Policy Based Tap - Support external resources like behind L2 Gateway - Quota enforcement - QoS and TaaS integration - Enhance Tempest Testing - Rally Testing - Complete CI support

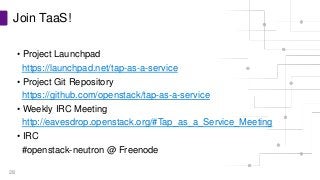

Copyright © PLUMgrid, Inc. 2011-2016 • Project Launchpad https://launchpad.net/tap-as-a-service • Project Git Repository https://github.com/openstack/tap-as-a-service • Weekly IRC Meeting http://eavesdrop.openstack.org/#Tap_as_a_Service_Meeting • IRC #openstack-neutron @ Freenode Join TaaS! 28
