OTOY GTC17 Presentation Slides: "The Future of GPU Rendering"

4,890 views

Published on

OTOY’s breakthroughs in compression and rendering on NVIDIA GPUs have dramatically reduced the barriers for rendering, making it a viable media format that gives content creators everywhere a simple, cost-effective way to bring high quality, interactive 3D content to multiple platforms for the world to enjoy.

Slide Annotations: https://www.facebook.com/groups/OctaneRender/permalink/802016643308749/

Published in: Software
  • Hello! Get Your Professional Job-Winning Resume Here - Check our website! https://vk.cc/818RFv
       Reply
    Are you sure you want to  Yes  No
    Your message goes here

OTOY GTC17 Presentation Slides: "The Future of GPU Rendering"

  1. 1. The Future of #GPU Rendering #GTC17 #Octane OTOY Inc. May 2017
  2. 2. OTOY’s Mission:  Practical digital holographic* content creation and publishing for everyone *(Digital Hologram: 8D light field volume + depth + reflectance)

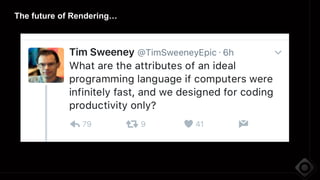

  3. 3. The future of Rendering…

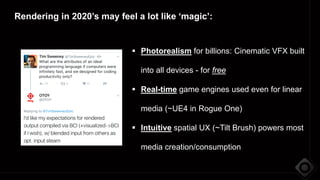

  4. 4. Rendering in 2020’s may feel a lot like ‘magic’:  Photorealism for billions: Cinematic VFX built into all devices - for free  Real-time game engines used even for linear media (~UE4 in Rogue One)  Intuitive spatial UX (~Tilt Brush) powers most media creation/consumption
  5. 5. 0..1..2..3..4..?2010 … 2012 … 2014 … 2016 … 2018… 2020 1.0 Images 2.0 Animations 3.0 Cinematic VFX 4.0 Real Time ….. (TBD – but AI important) A decade of GPU rendering phases in ~2 year increments:
  6. 6. 2016/17 Recap
  7. 7.  Launch of Octane 3.0 + ORC test drive in May ‘16  Subscriptions w/ plugin for < $20/month since Q1  Major Octane partnerships – Unity and Facebook   About to release 3.07… ~70% done with 3.x roadmap  Octane 3.10 alpha SDK looking good 
  8. 8. 3

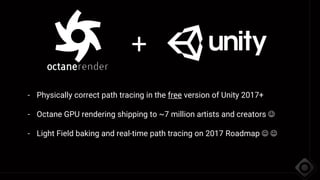

  9. 9. + - Physically correct path tracing in the free version of Unity 2017+ - Octane GPU rendering shipping to ~7 million artists and creators  - Light Field baking and real-time path tracing on 2017 Roadmap  
  10. 10. ORBX Facebook 6DOF Video Camera System

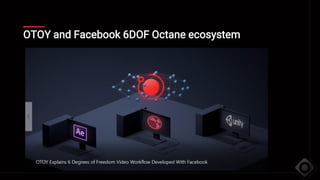

  11. 11. OTOY and Facebook 6DOF Octane ecosystem
  12. 12. 3.07 New features:  ORBX proxy import/editing  Full standalone UX now works from plug-ins  Full Operator nodes – textures, logic, math, vectors  Time, Frequency transform control  New baking system for real time viewport

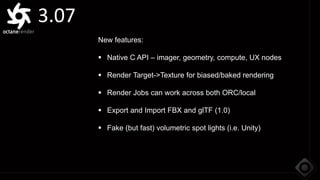

  13. 13. 3.07 New features:  Native C API – imager, geometry, compute, UX nodes  Render Target->Texture for biased/baked rendering  Render Jobs can work across both ORC/local  Export and Import FBX and glTF (1.0)  Fake (but fast) volumetric spot lights (i.e. Unity)

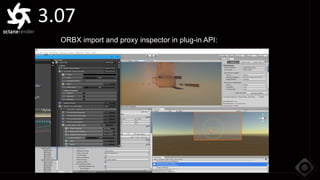

  14. 14. 3.07 ORBX import and proxy inspector in plug-in API:

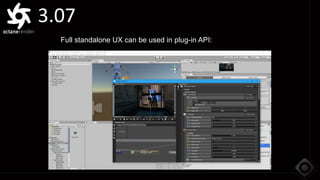

  15. 15. 3.07 Full standalone UX can be used in plug-in API:

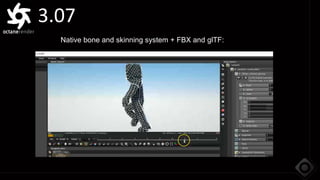

  16. 16. 3.07 Native bone and skinning system + FBX and glTF:

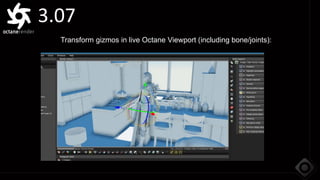

  17. 17. 3.07 Transform gizmos in live Octane Viewport (including bone/joints):
  18. 18. 3.07 Render To Texture - baking, displacement & biased compositing:

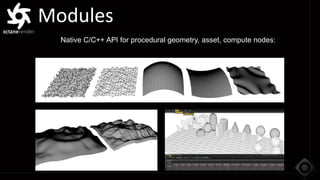

  19. 19. Modules Native C/C++ API for procedural geometry, asset, compute nodes:

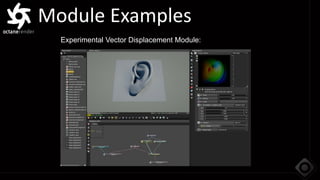

  20. 20. Module Examples Experimental Vector Displacement Module:

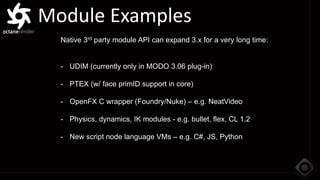

  21. 21. Module Examples Native 3rd party module API can expand 3.x for a very long time: - UDIM (currently only in MODO 3.06 plug-in) - PTEX (w/ face primID support in core) - OpenFX C wrapper (Foundry/Nuke) – e.g. NeatVideo - Physics, dynamics, IK modules - e.g. bullet, flex, CL 1.2 - New script node language VMs – e.g. C#, JS, Python

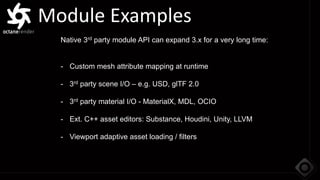

  22. 22. Module Examples Native 3rd party module API can expand 3.x for a very long time: - Custom mesh attribute mapping at runtime - 3rd party scene I/O – e.g. USD, glTF 2.0 - 3rd party material I/O - MaterialX, MDL, OCIO - Ext. C++ asset editors: Substance, Houdini, Unity, LLVM - Viewport adaptive asset loading / filters

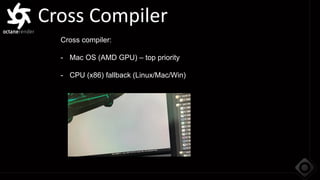

  23. 23. Cross Compiler Cross compiler: - Mac OS (AMD GPU) – top priority - CPU (x86) fallback (Linux/Mac/Win)

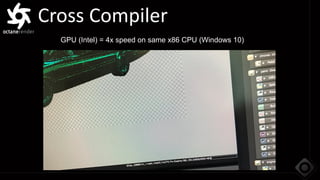

  24. 24. Cross Compiler GPU (Intel) = 4x speed on same x86 CPU (Windows 10)
  25. 25. 3.1 OSL Textures, Materials, Shaders and Environments:

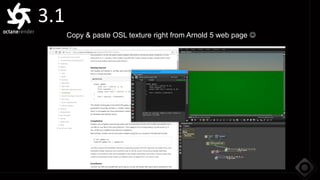

  26. 26. 3.1 Copy & paste OSL texture right from Arnold 5 web page 

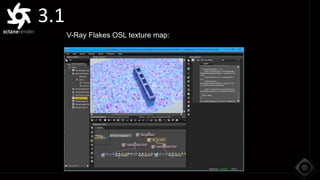

  27. 27. 3.1 V-Ray Flakes OSL texture map:
  28. 28. 3.1 OSL Textures , Materials, Volumes and Environments:
  29. 29. 3.1

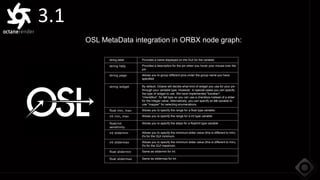

  30. 30. 3.1 OSL MetaData integration in ORBX node graph: string label Provides a name displayed on the GUI for the variable string help Provides a description for the pin when you hover your mouse over the pin string page Allows you to group different pins under the group name you have specified string widget By default, Octane will decide what kind of widget you use for your pin through your variable type. However, in special cases you can specify the type of widget to use. We have implemented "boolean", "checkBox", for int type so you can use a checkbox instead of a slider for the integer value. Alternatively, you can specify an int variable to use "mapper" for selecting enumerations. float min, max Allows you to specify the range for a float type variable int min, max Allows you to specify the range for a int type variable float/int sensitivity Allows you to specify the steps for a float/int type variable int slidermin Allows you to specify the minimum slider value (this is different to min), it's for the GUI minimum. int slidermax Allows you to specify the minimum slider value (this is different to min), it's for the GUI maximum. float slidermin Same as slidermin for int. float slidermax Same as slidermax for int.
  31. 31. ORC

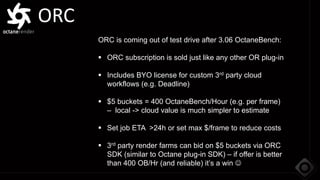

  32. 32. ORC ORC is coming out of test drive after 3.06 OctaneBench:  ORC subscription is sold just like any other OR plug-in  Includes BYO license for custom 3rd party cloud workflows (e.g. Deadline)  $5 buckets = 400 OctaneBench/Hour (e.g. per frame) – local -> cloud value is much simpler to estimate  Set job ETA >24h or set max $/frame to reduce costs  3rd party render farms can bid on $5 buckets via ORC SDK (similar to Octane plug-in SDK) – if offer is better than 400 OB/Hr (and reliable) it’s a win 

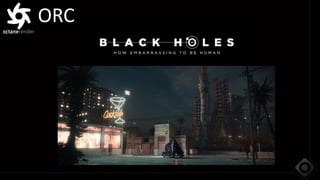

  33. 33. ORC

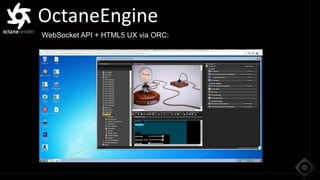

  34. 34. OctaneEngine WebSocket API + HTML5 UX via ORC:

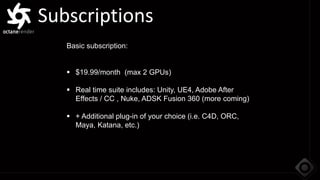

  35. 35. Basic subscription:  $19.99/month (max 2 GPUs)  Real time suite includes: Unity, UE4, Adobe After Effects / CC , Nuke, ADSK Fusion 360 (more coming)  + Additional plug-in of your choice (i.e. C4D, ORC, Maya, Katana, etc.) Subscriptions

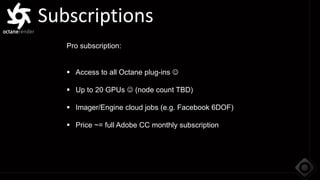

  36. 36. Pro subscription:  Access to all Octane plug-ins   Up to 20 GPUs  (node count TBD)  Imager/Engine cloud jobs (e.g. Facebook 6DOF)  Price ~= full Adobe CC monthly subscription Subscriptions

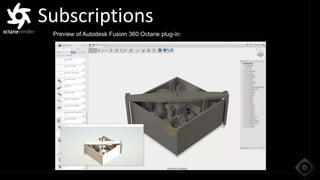

  37. 37. Preview of Autodesk Fusion 360 Octane plug-in: Subscriptions
  38. 38. OctaneImager
  39. 39. OctaneImager Compositing and post processing framework  Independent filter, custom LUT and imaging SDK  NPR effects  Multi-light  Light Field and 6DOF media  New: Direct Lighting, GI, AO, glossy ray-tracing  Experimental: Real Time denoising 

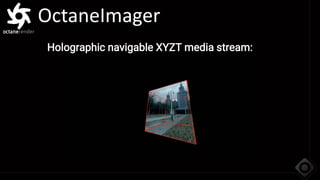

  40. 40. OctaneImager Holographic navigable XYZT media stream:

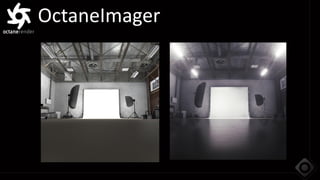

  41. 41. OctaneImager

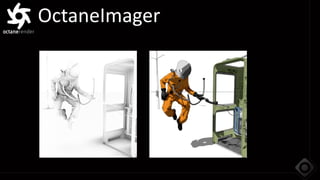

  42. 42. OctaneImager

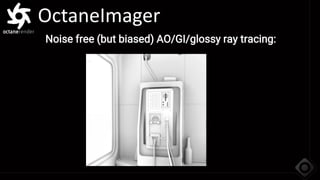

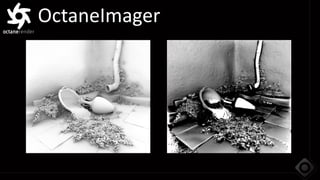

  43. 43. OctaneImager Noise free (but biased) AO/GI/glossy ray tracing:
  44. 44. 4 Real Time
  45. 45. 4  Octane 4 integrates all of Brigade’s features to date  Game engine API – working with Unity to optimize by ’18  Much faster IES lights, point lights. Etc.  Out of Core geometry on GPU (alt. to NV Link)  Support for Ray Tracing hardware (tested on PVR)

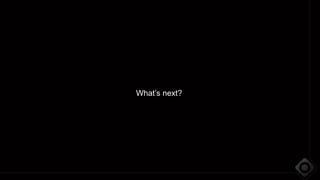

  46. 46. What’s next?
  47. 47. AI
  48. 48. Octane AI - Deep Learning/NN ORBX imager nodes  Super Resolution & denoising (real time on GTX 1080) AI

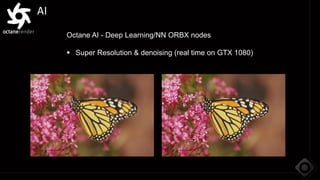

  49. 49. Octane AI - Deep Learning/NN ORBX nodes  Super Resolution & denoising (real time on GTX 1080) AI
  50. 50. AI

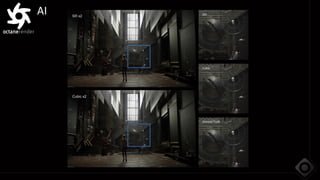

  51. 51. SR x2 Cubic x2 SR Cubic Ground Truth AI
  52. 52. SR x4 Cubic x4 SR Cubic Ground Truth AI

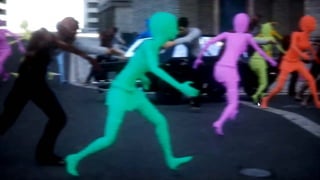

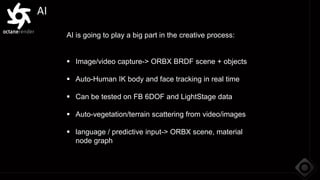

  53. 53. AI is going to play a big part in the creative process:  Image/video capture-> ORBX BRDF scene + objects  Auto-Human IK body and face tracking in real time  Can be tested on FB 6DOF and LightStage data  Auto-vegetation/terrain scattering from video/images  language / predictive input-> ORBX scene, material node graph AI
  54. 54. HAIR / FUR Thank you!
  55. 55. The Future of Rendering #GTC17 #OTOY #OctaneRender OTOY Inc. May 2017

×
