  1. 1. RADIUS and LDAP August 2015 Hangout Jim Pingle

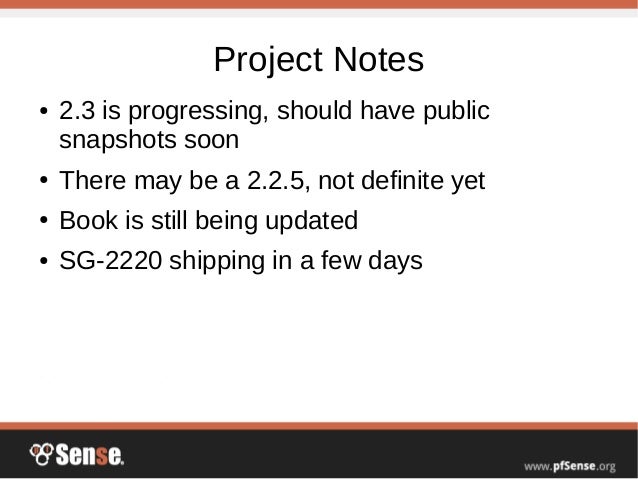

  2. 2. Project Notes ● 2.3 is progressing, should have public snapshots soon ● There may be a 2.2.5, not definite yet ● Book is still being updated ● SG-2220 shipping in a few days
  3. 3. About this Hangout ● RADIUS and LDAP intro ● Areas of pfSense that support RADIUS and LDAP ● Configuring RADIUS and LDAP servers for use by pfSense ● RADIUS and LDAP for the pfSense GUI ● RADIUS and LDAP for VPNs ● RADIUS for Captive Portal ● RADIUS for Wireless WPA2 Enterprise/802.1x ● User Manager, VPNs, Captive Portal, Wireless have all been covered in past hangouts, this hangout will focus only on RADIUS and LDAP authentication.

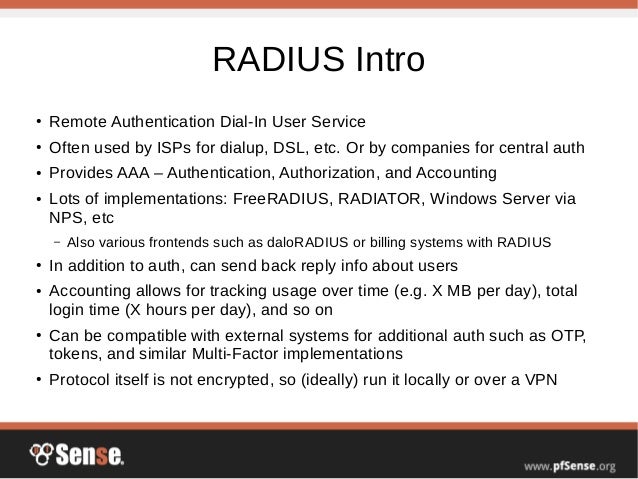

  4. 4. RADIUS Intro ● Remote Authentication Dial-In User Service ● Often used by ISPs for dialup, DSL, etc. Or by companies for central auth ● Provides AAA – Authentication, Authorization, and Accounting ● Lots of implementations: FreeRADIUS, RADIATOR, Windows Server via NPS, etc – Also various frontends such as daloRADIUS or billing systems with RADIUS ● In addition to auth, can send back reply info about users ● Accounting allows for tracking usage over time (e.g. X MB per day), total login time (X hours per day), and so on ● Can be compatible with external systems for additional auth such as OTP, tokens, and similar Multi-Factor implementations ● Protocol itself is not encrypted, so (ideally) run it locally or over a VPN
  5. 5. LDAP Intro ● Lightweight Directory Access Protocol ● Primarily a repository of information about users and organizations, but can be used for authentication via LDAP BIND operations ● Can be searched to find user info (e.g. group membership) ● Commonly used not just for authentication but also for e-mail contact storage, user profile information, and similar tasks. ● Found in many systems such as OpenLDAP, Active Directory, Novell Directory Services, Apple Open Directory, and many more – Some distributions such as ClearOS and Turnkey Linux use OpenLDAP ● LDAP Schemas vary widely, two common variations: – RFC 2307 (OpenLDAP default) – Group membership indicated by a list of users on a group object – RFC 2307bis/Active Directory – Group membership indicated by a list of groups on user object ● Can use SSL to encrypt queries

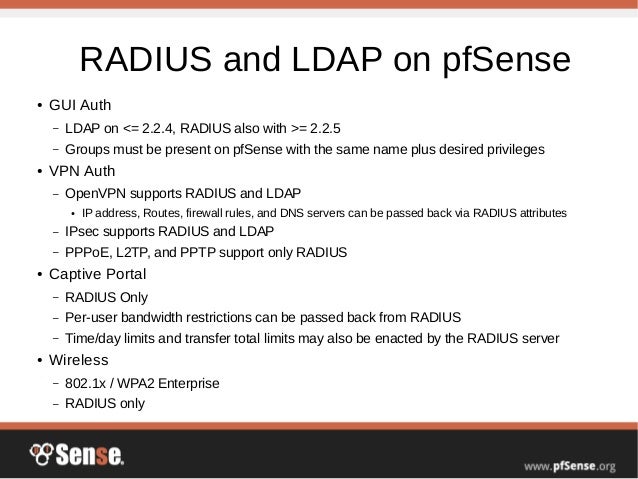

  6. 6. RADIUS and LDAP on pfSense ● GUI Auth – LDAP on <= 2.2.4, RADIUS also with >= 2.2.5 – Groups must be present on pfSense with the same name plus desired privileges ● VPN Auth – OpenVPN supports RADIUS and LDAP ● IP address, Routes, firewall rules, and DNS servers can be passed back via RADIUS attributes – IPsec supports RADIUS and LDAP – PPPoE, L2TP, and PPTP support only RADIUS ● Captive Portal – RADIUS Only – Per-user bandwidth restrictions can be passed back from RADIUS – Time/day limits and transfer total limits may also be enacted by the RADIUS server ● Wireless – 802.1x / WPA2 Enterprise – RADIUS only

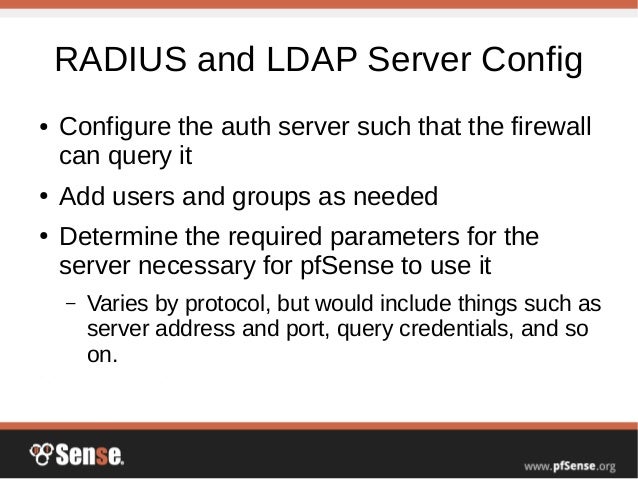

  7. 7. RADIUS and LDAP Server Config ● Configure the auth server such that the firewall can query it ● Add users and groups as needed ● Determine the required parameters for the server necessary for pfSense to use it – Varies by protocol, but would include things such as server address and port, query credentials, and so on.

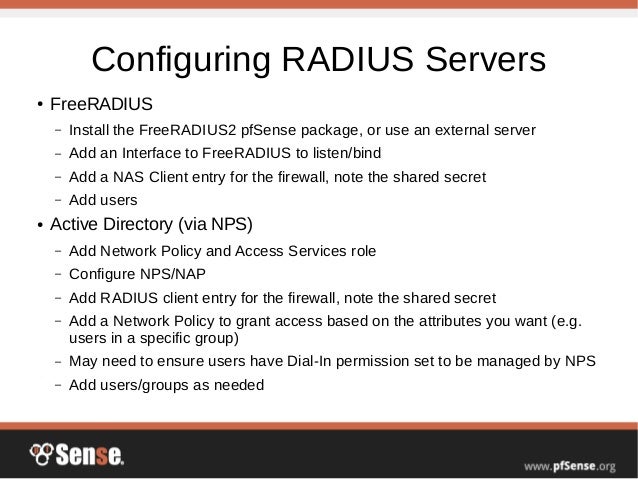

  8. 8. Configuring RADIUS Servers ● FreeRADIUS – Install the FreeRADIUS2 pfSense package, or use an external server – Add an Interface to FreeRADIUS to listen/bind – Add a NAS Client entry for the firewall, note the shared secret – Add users ● Active Directory (via NPS) – Add Network Policy and Access Services role – Configure NPS/NAP – Add RADIUS client entry for the firewall, note the shared secret – Add a Network Policy to grant access based on the attributes you want (e.g. users in a specific group) – May need to ensure users have Dial-In permission set to be managed by NPS – Add users/groups as needed
  9. 9. Configuring LDAP Servers ● OpenLDAP – Too complex to cover here, but there are many how-to docs out there – Be sure to add a cert for SSL support – Or use a distro such as Turnkey Linux or similar that has a frontend for it – Web-based LDAP Frontends can be helpful for finding info and managing users ● Active Directory – Support is already there in Windows Server by default – Add Certificate Authority role to use SSL – Use ADSI Edit to easily locate Base DN ● Others – Consult OS docs for info on what, if anything, needs to be done

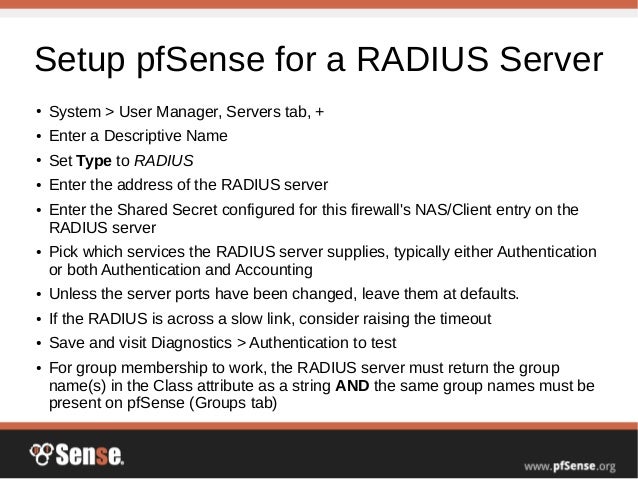

  10. 10. Setup pfSense for a RADIUS Server ● System > User Manager, Servers tab, + ● Enter a Descriptive Name ● Set Type to RADIUS ● Enter the address of the RADIUS server ● Enter the Shared Secret configured for this firewall's NAS/Client entry on the RADIUS server ● Pick which services the RADIUS server supplies, typically either Authentication or both Authentication and Accounting ● Unless the server ports have been changed, leave them at defaults. ● If the RADIUS is across a slow link, consider raising the timeout ● Save and visit Diagnostics > Authentication to test ● For group membership to work, the RADIUS server must return the group name(s) in the Class attribute as a string AND the same group names must be present on pfSense (Groups tab)

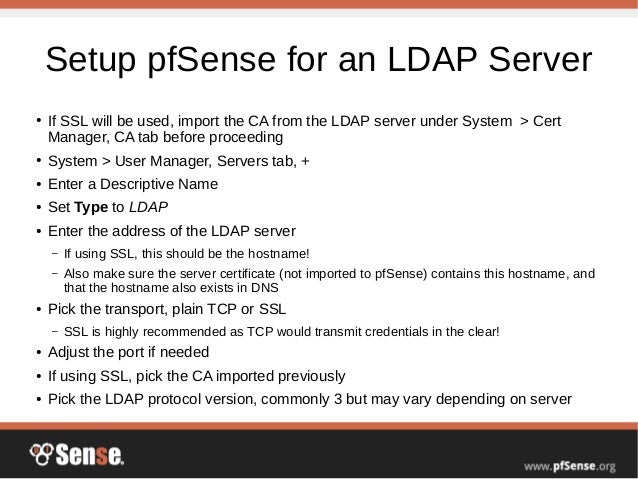

  11. 11. Setup pfSense for an LDAP Server ● If SSL will be used, import the CA from the LDAP server under System > Cert Manager, CA tab before proceeding ● System > User Manager, Servers tab, + ● Enter a Descriptive Name ● Set Type to LDAP ● Enter the address of the LDAP server – If using SSL, this should be the hostname! – Also make sure the server certificate (not imported to pfSense) contains this hostname, and that the hostname also exists in DNS ● Pick the transport, plain TCP or SSL – SSL is highly recommended as TCP would transmit credentials in the clear! ● Adjust the port if needed ● If using SSL, pick the CA imported previously ● Pick the LDAP protocol version, commonly 3 but may vary depending on server

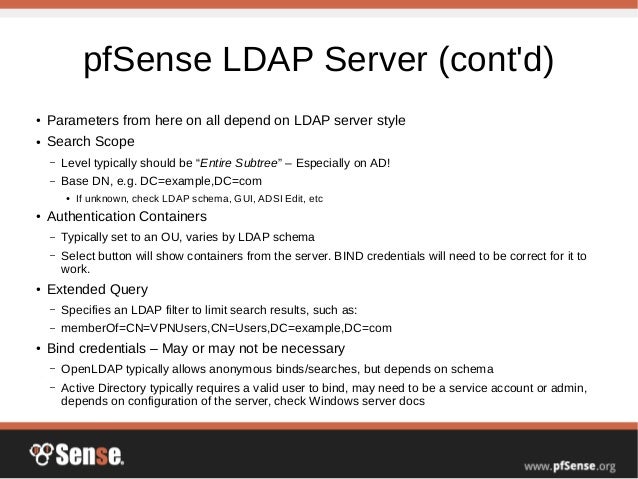

  12. 12. pfSense LDAP Server (cont'd) ● Parameters from here on all depend on LDAP server style ● Search Scope – Level typically should be “Entire Subtree” – Especially on AD! – Base DN, e.g. DC=example,DC=com ● If unknown, check LDAP schema, GUI, ADSI Edit, etc ● Authentication Containers – Typically set to an OU, varies by LDAP schema – Select button will show containers from the server. BIND credentials will need to be correct for it to work. ● Extended Query – Specifies an LDAP filter to limit search results, such as: – memberOf=CN=VPNUsers,CN=Users,DC=example,DC=com ● Bind credentials – May or may not be necessary – OpenLDAP typically allows anonymous binds/searches, but depends on schema – Active Directory typically requires a valid user to bind, may need to be a service account or admin, depends on configuration of the server, check Windows server docs

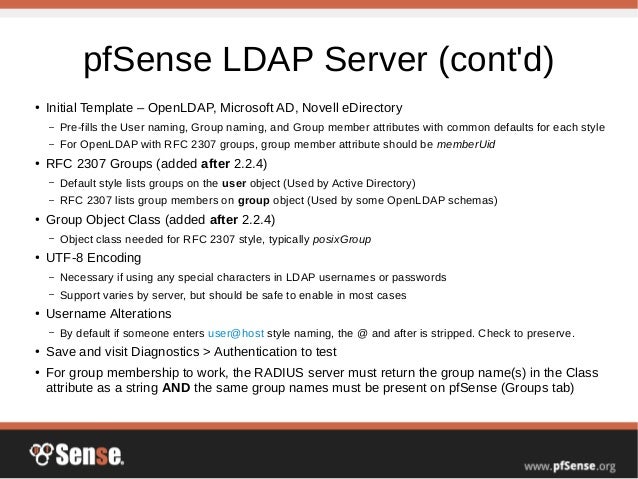

  13. 13. pfSense LDAP Server (cont'd) ● Initial Template – OpenLDAP, Microsoft AD, Novell eDirectory – Pre-fills the User naming, Group naming, and Group member attributes with common defaults for each style – For OpenLDAP with RFC 2307 groups, group member attribute should be memberUid ● RFC 2307 Groups (added after 2.2.4) – Default style lists groups on the user object (Used by Active Directory) – RFC 2307 lists group members on group object (Used by some OpenLDAP schemas) ● Group Object Class (added after 2.2.4) – Object class needed for RFC 2307 style, typically posixGroup ● UTF-8 Encoding – Necessary if using any special characters in LDAP usernames or passwords – Support varies by server, but should be safe to enable in most cases ● Username Alterations – By default if someone enters user@host style naming, the @ and after is stripped. Check to preserve. ● Save and visit Diagnostics > Authentication to test ● For group membership to work, the RADIUS server must return the group name(s) in the Class attribute as a string AND the same group names must be present on pfSense (Groups tab)

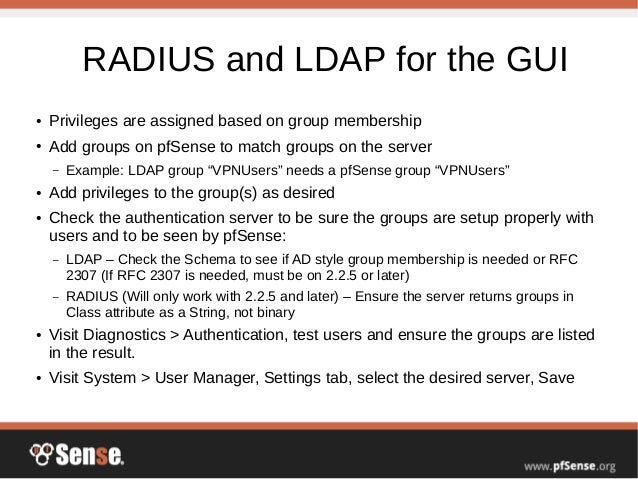

  14. 14. RADIUS and LDAP for the GUI ● Privileges are assigned based on group membership ● Add groups on pfSense to match groups on the server – Example: LDAP group “VPNUsers” needs a pfSense group “VPNUsers” ● Add privileges to the group(s) as desired ● Check the authentication server to be sure the groups are setup properly with users and to be seen by pfSense: – LDAP – Check the Schema to see if AD style group membership is needed or RFC 2307 (If RFC 2307 is needed, must be on 2.2.5 or later) – RADIUS (Will only work with 2.2.5 and later) – Ensure the server returns groups in Class attribute as a String, not binary ● Visit Diagnostics > Authentication, test users and ensure the groups are listed in the result. ● Visit System > User Manager, Settings tab, select the desired server, Save

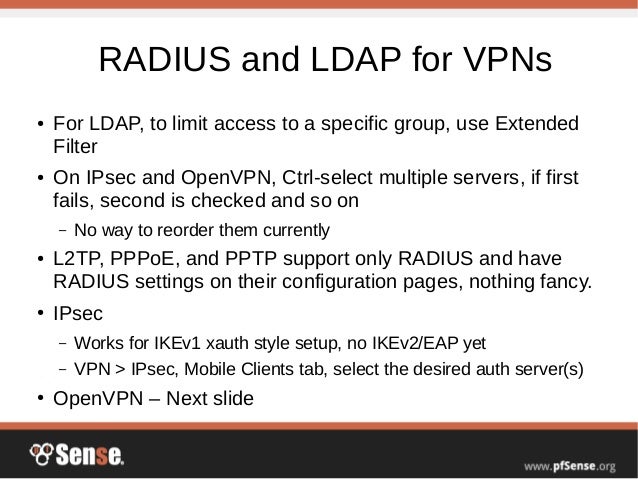

  15. 15. RADIUS and LDAP for VPNs ● For LDAP, to limit access to a specific group, use Extended Filter ● On IPsec and OpenVPN, Ctrl-select multiple servers, if first fails, second is checked and so on – No way to reorder them currently ● L2TP, PPPoE, and PPTP support only RADIUS and have RADIUS settings on their configuration pages, nothing fancy. ● IPsec – Works for IKEv1 xauth style setup, no IKEv2/EAP yet – VPN > IPsec, Mobile Clients tab, select the desired auth server(s) ● OpenVPN – Next slide

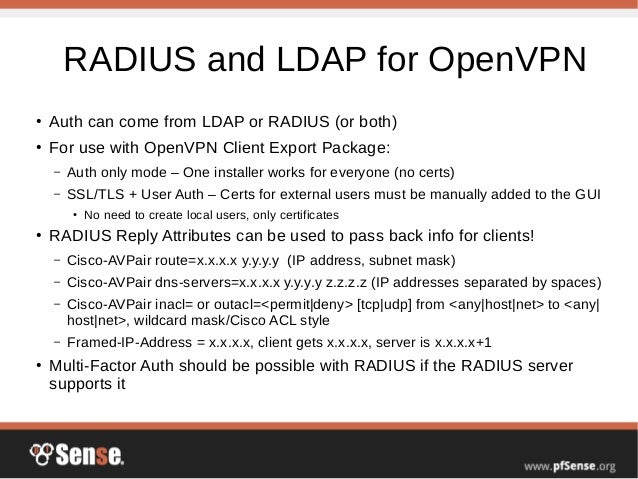

  16. 16. RADIUS and LDAP for OpenVPN ● Auth can come from LDAP or RADIUS (or both) ● For use with OpenVPN Client Export Package: – Auth only mode – One installer works for everyone (no certs) – SSL/TLS + User Auth – Certs for external users must be manually added to the GUI ● No need to create local users, only certificates ● RADIUS Reply Attributes can be used to pass back info for clients! – Cisco-AVPair route=x.x.x.x y.y.y.y (IP address, subnet mask) – Cisco-AVPair dns-servers=x.x.x.x y.y.y.y z.z.z.z (IP addresses separated by spaces) – Cisco-AVPair inacl= or outacl=<permit|deny> [tcp|udp] from <any|host|net> to <any| host|net>, wildcard mask/Cisco ACL style – Framed-IP-Address = x.x.x.x, client gets x.x.x.x, server is x.x.x.x+1 ● Multi-Factor Auth should be possible with RADIUS if the RADIUS server supports it
  17. 17. RADIUS for Captive Portal ● Captive Portal only supports RADIUS auth at this time ● RADIUS Authentication can use PAP, CHAP_MD5, MSCHAPv1, or MSCHAPv2 – Check RADIUS server config/docs to see what it supports ● Enter IP address and port for the RADIUS server ● Shared Secret is the “password” set in the RADIUS server for the firewall as a NAS/Client ● Four total RADIUS Servers permitted: – Primary Authentication Source and its backup – Secondary Authentication Source and its backup – Backups are consulted if the main servers do not respond – Secondary authentication source is consulted if the primary fails – Can be used to effectively have two sources of auth (e.g. pre-paid cards and standard users) – all up to the servers and what they support
  18. 18. RADIUS for Captive Portal ● RADIUS Accounting: – If enabled, sends information about user login sessions, data transferred, time of login/logout, and so on – Stop/start accounting only sends data on login and logout – Interim update sends periodic updates to the accounting server ● RADIUS Options – More here than are supported in the user manager ● Reauthentication – Forces a new auth request every minute. If users must be disconnected for time or bandwidth usage calculations this must be checked! ● RADIUS MAC Authentication – Sends the MAC address as user name and “MAC Authentication Secret” as the password. Allows automatic login by MAC address, MACs must be added to the RADIUS server as users. ● NAS IP – IP address sent in RADIUS requests to identify this firewall (e.g. Called-Station-Id) ● Session-Timeout – Obtain the client's allowed session time from the Session-Timeout RADIUS reply attribute. ● Type – Varies by need of RADIUS server, typically “default” – controls show Called-Station-Id and Calling- Station-Id are handled ● Accounting Style – Inverts value of input and output for bandwidth calculations to suit some RADIUS server assumptions ● NAT Identifier – A name passed to the RADIUS server to identify this firewall ● MAC Address Format – The format of the MAC address expected by the RADIUS server
  19. 19. RADIUS for Captive Portal ● Some parameters may be passed back in RADIUS Reply Attributes: – Varies by RADIUS vendor – WISPr-Bandwidth-Max-Up (and -Down) ● Sets up a limiter for this specific user to the given bw – WISPr-Redirection-URL ● Passes a string with a full URL to use for redirection – Acct-Interim-Interval – Session-Timeout – Idle-Timeout ● Do not set a simultaneous use limit on users that will use Captive Portal

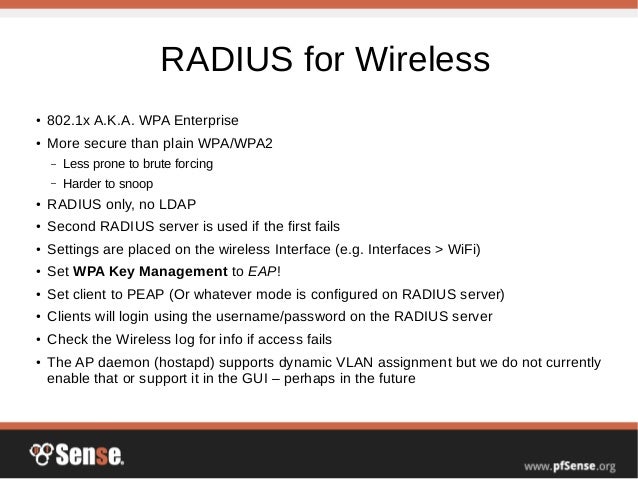

  20. 20. RADIUS for Wireless ● 802.1x A.K.A. WPA Enterprise ● More secure than plain WPA/WPA2 – Less prone to brute forcing – Harder to snoop ● RADIUS only, no LDAP ● Second RADIUS server is used if the first fails ● Settings are placed on the wireless Interface (e.g. Interfaces > WiFi) ● Set WPA Key Management to EAP! ● Set client to PEAP (Or whatever mode is configured on RADIUS server) ● Clients will login using the username/password on the RADIUS server ● Check the Wireless log for info if access fails ● The AP daemon (hostapd) supports dynamic VLAN assignment but we do not currently enable that or support it in the GUI – perhaps in the future

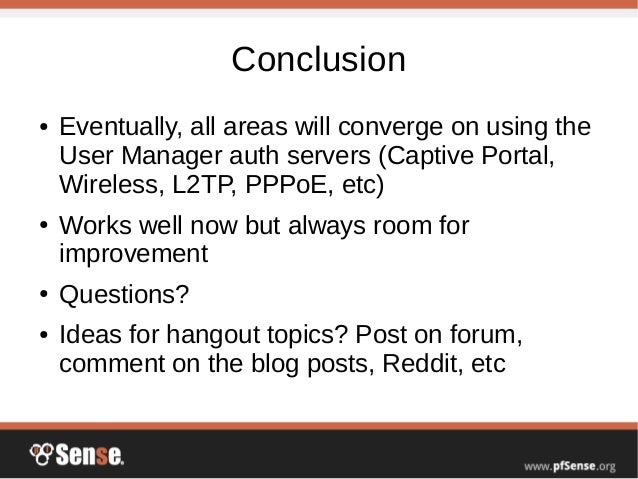

  21. 21. Conclusion ● Eventually, all areas will converge on using the User Manager auth servers (Captive Portal, Wireless, L2TP, PPPoE, etc) ● Works well now but always room for improvement ● Questions? ● Ideas for hangout topics? Post on forum, comment on the blog posts, Reddit, etc

×
