1.
July 2014 Hang Out
Network Address Translation
Chris Buechler

2.

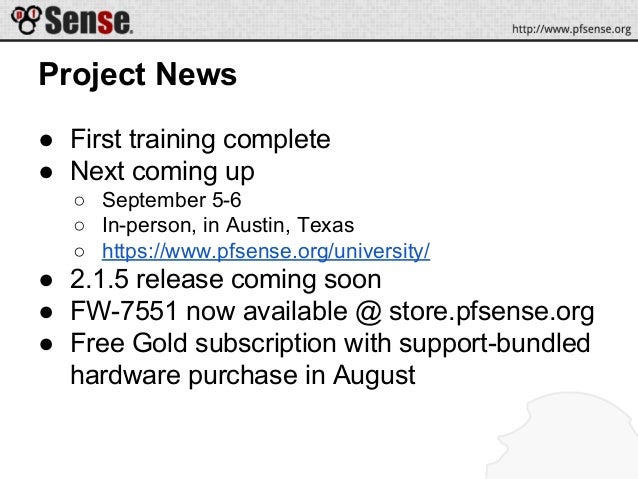

Project News
● First training complete
● Next coming up
○ September 5-6
○ In-person, in Austin, Texas
○ https://www.pfsense.org/university/
● 2.1.5 release coming soon
● FW-7551 now available @ store.pfsense.org
● Free Gold subscription with support-bundled
hardware purchase in August

3.

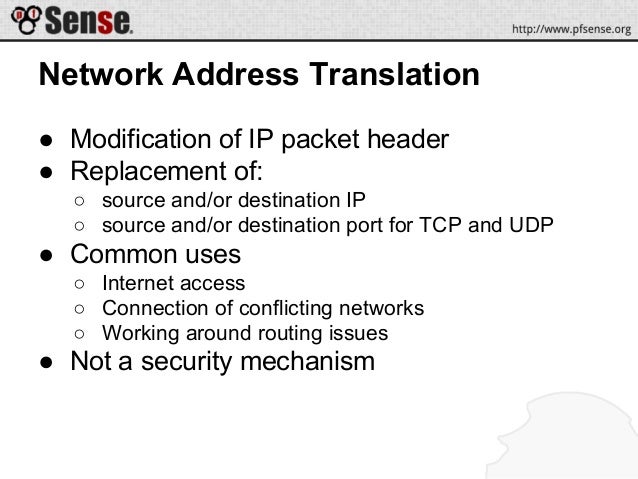

Network Address Translation
● Modification of IP packet header
● Replacement of:
○ source and/or destination IP
○ source and/or destination port for TCP and UDP
● Common uses
○ Internet access
○ Connection of conflicting networks
○ Working around routing issues
● Not a security mechanism

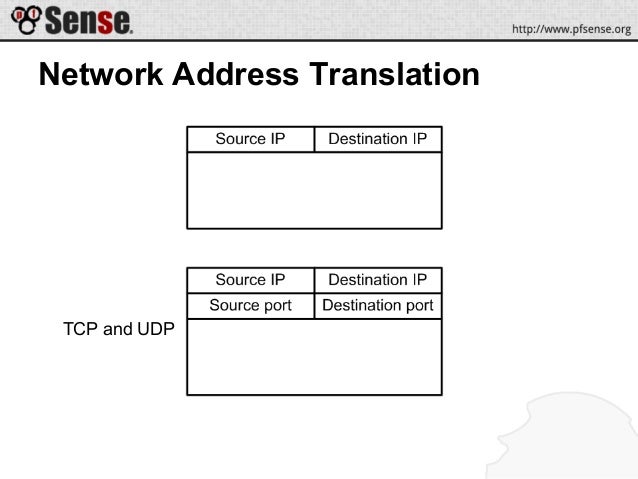

4.
Network Address Translation
TCP and UDP

5.

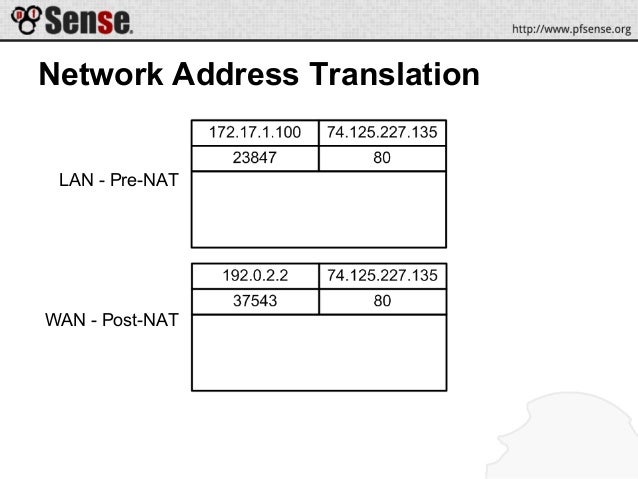

Network Address Translation
LAN - Pre-NAT
WAN - Post-NAT

6.

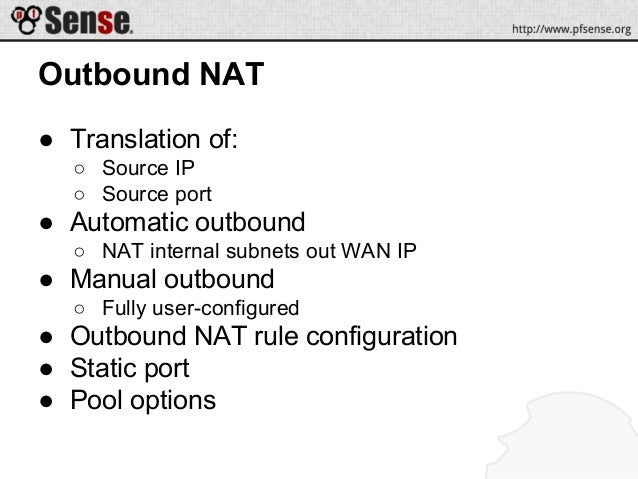

Outbound NAT
● Translation of:
○ Source IP
○ Source port
● Automatic outbound
○ NAT internal subnets out WAN IP
● Manual outbound
○ Fully user-configured
● Outbound NAT rule configuration
● Static port
● Pool options

7.

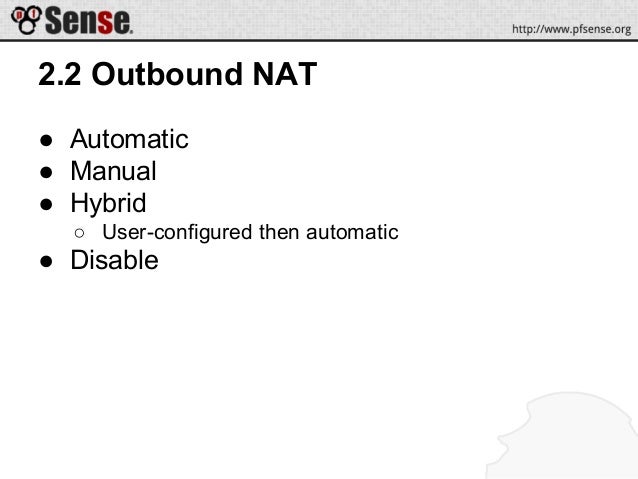

2.2 Outbound NAT
● Automatic
● Manual
● Hybrid
○ User-configured then automatic
● Disable

8.

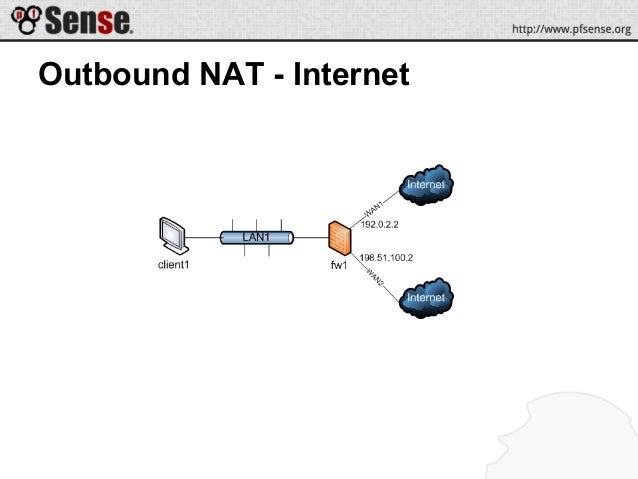

Outbound NAT - Internet

9.

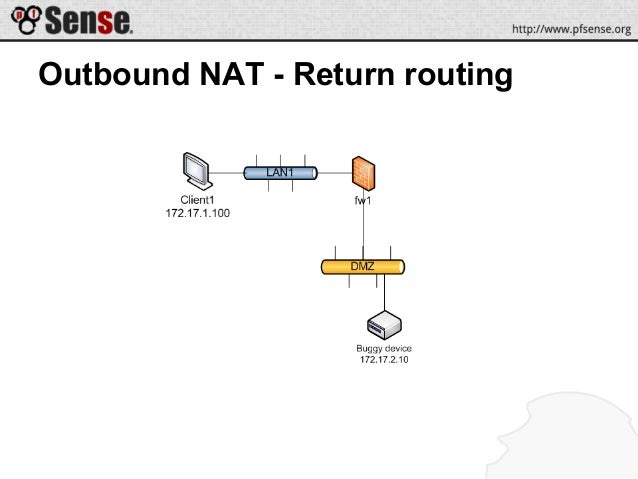

Outbound NAT - Return routing

10.

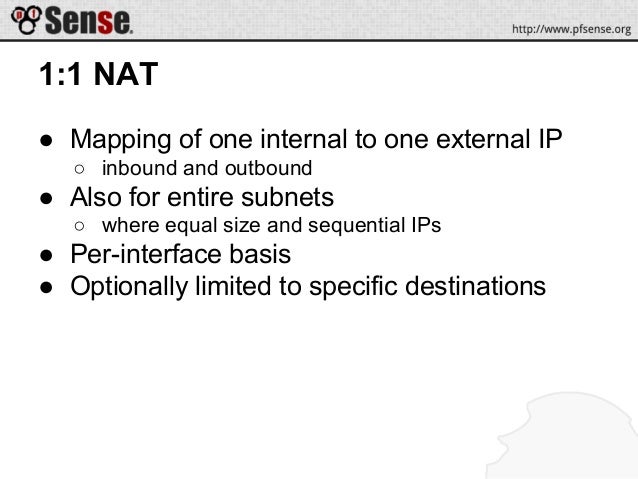

1:1 NAT
● Mapping of one internal to one external IP
○ inbound and outbound
● Also for entire subnets
○ where equal size and sequential IPs
● Per-interface basis
● Optionally limited to specific destinations

11.

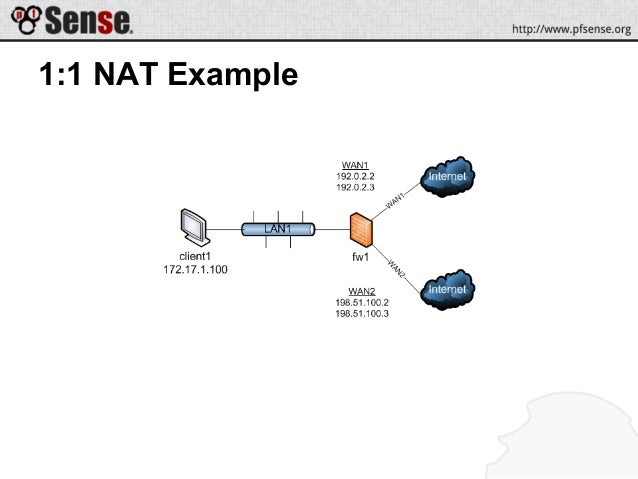

1:1 NAT Example

12.

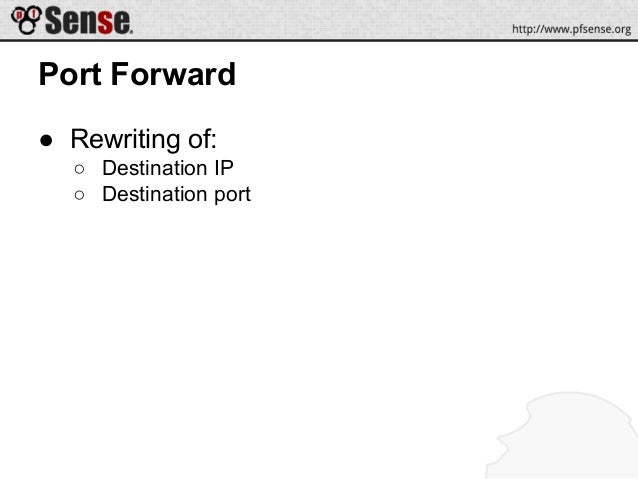

Port Forward
● Rewriting of:
○ Destination IP
○ Destination port

13.

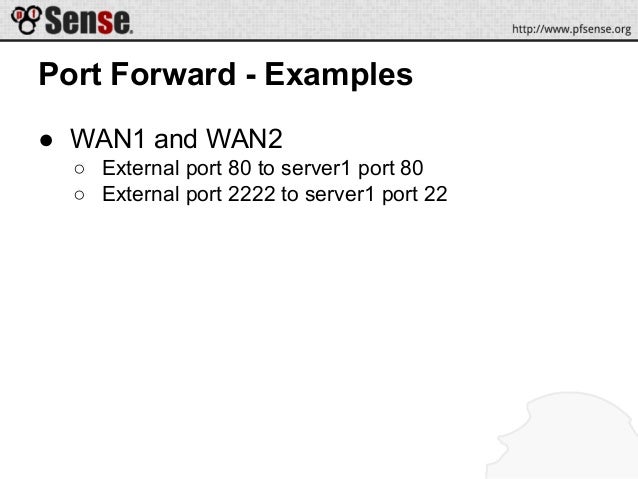

Port Forward - Examples
● WAN1 and WAN2
○ External port 80 to server1 port 80
○ External port 2222 to server1 port 22

14.

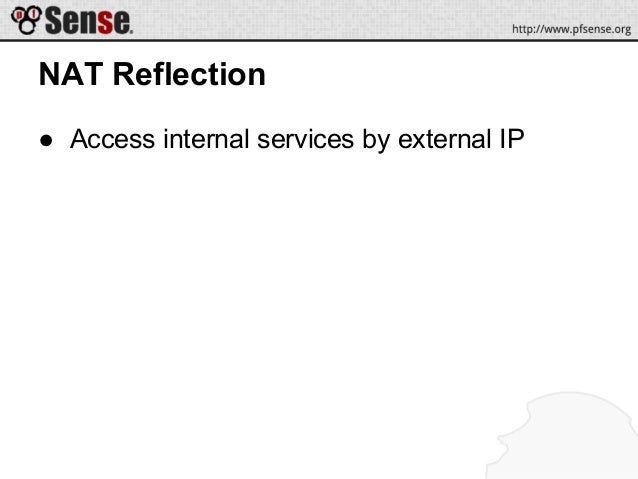

NAT Reflection
● Access internal services by external IP

15.
NAT Reflection
● Disabled by default
● Modes
○ Pure NAT - preferred
○ NAT + Proxy
● Per-rule control
● Split DNS is alternative

16.

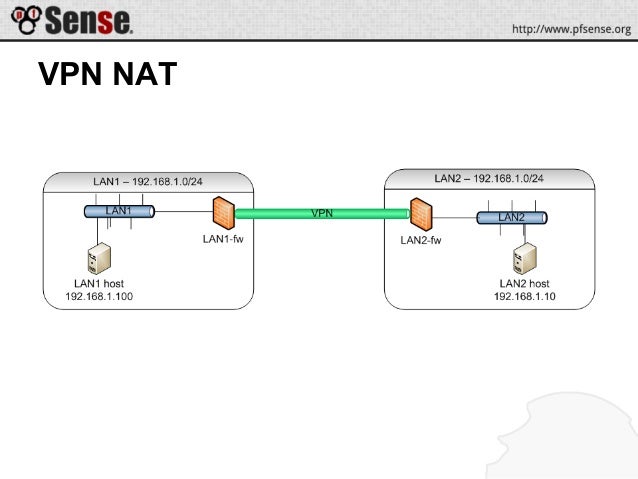

VPN NAT

17.

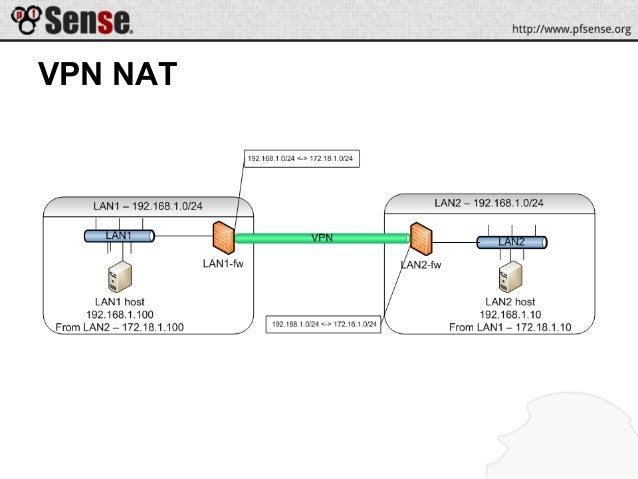

VPN NAT

18.

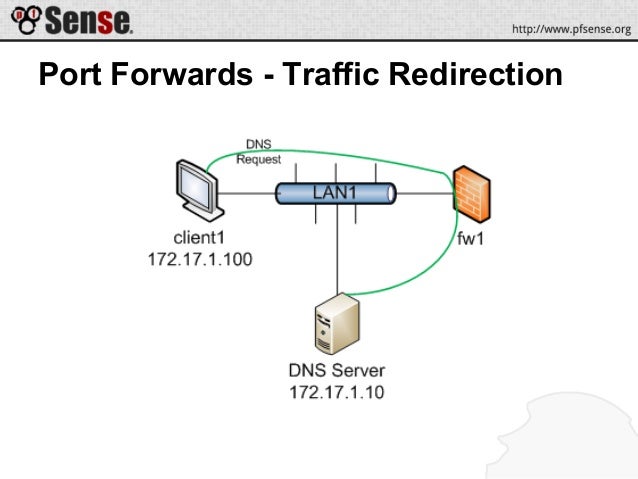

Port Forwards - Traffic Redirection

19.

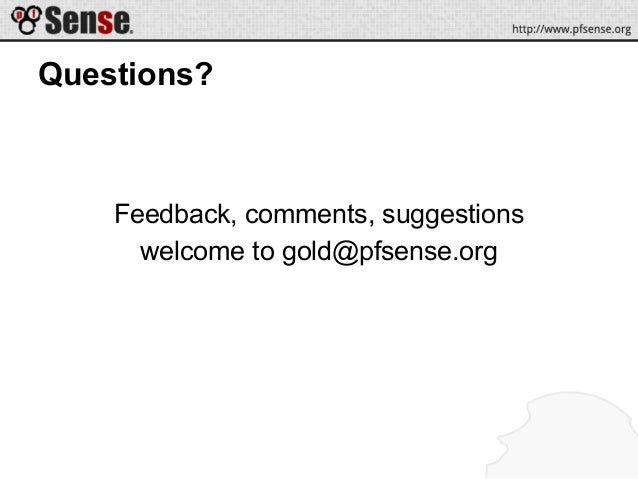

Questions?
Feedback, comments, suggestions
welcome to gold@pfsense.org
