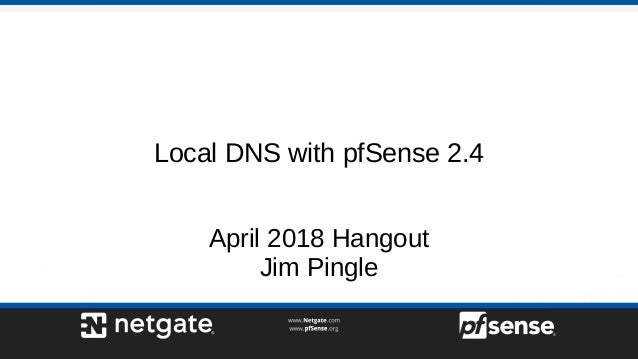

  1. 1. Local DNS with pfSense 2.4 April 2018 Hangout Jim Pingle
  2. 2. About this Hangout ● Project News ● DNS Overview ● When to use the firewall for DNS (and not to) ● DNS Resolver vs DNS Forwarder ● Host Overrides ● Domain Overrides ● DNS and VPNs ● DNS and Multi-WAN ● DHCP and DNS ● How the firewall assigns DNS servers to clients ● DNS over TLS Overview ● DNS over TLS Upstream Forwarders ● Providing DNS over TLS to local clients ● Intercepting DNS at the Firewall ● Miscellaneous additional DNS Resolver/Forwarder tidbits

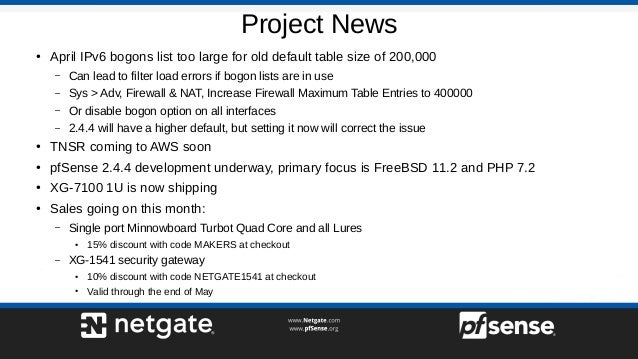

  3. 3. Project News ● April IPv6 bogons list too large for old default table size of 200,000 – Can lead to filter load errors if bogon lists are in use – Sys > Adv, Firewall & NAT, Increase Firewall Maximum Table Entries to 400000 – Or disable bogon option on all interfaces – 2.4.4 will have a higher default, but setting it now will correct the issue ● TNSR coming to AWS soon ● pfSense 2.4.4 development underway, primary focus is FreeBSD 11.2 and PHP 7.2 ● XG-7100 1U is now shipping ● Sales going on this month: – Single port Minnowboard Turbot Quad Core and all Lures ● 15% discount with code MAKERS at checkout – XG-1541 security gateway ● 10% discount with code NETGATE1541 at checkout ● Valid through the end of May
  4. 4. DNS Overview ● DNS is short for Domain Name System ● Translates host names into IP addresses ● Devices must communicate using IP addresses, not names, so DNS makes it easier for humans to find other devices without having to memorize IP addresses ● For example: to ● There are other types of records as well for various tasks: ● A for IPv4 address, AAAA for IPv6 address, PTR for reverse DNS, MX for mail exchange host for a domain, TXT information records, CNAME aliases, SRV to locate services, etc. ● Hierarchal structure: Clients talk to recursive forwarders or resolvers, forwarders talk to recursive resolvers, resolvers talk to roots and authoritative servers

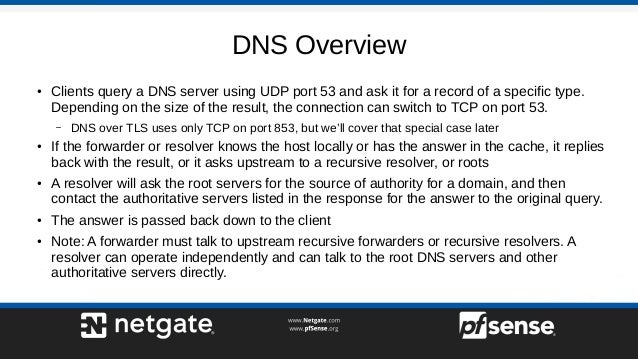

  5. 5. DNS Overview ● Clients query a DNS server using UDP port 53 and ask it for a record of a specific type. Depending on the size of the result, the connection can switch to TCP on port 53. – DNS over TLS uses only TCP on port 853, but we’ll cover that special case later ● If the forwarder or resolver knows the host locally or has the answer in the cache, it replies back with the result, or it asks upstream to a recursive resolver, or roots ● A resolver will ask the root servers for the source of authority for a domain, and then contact the authoritative servers listed in the response for the answer to the original query. ● The answer is passed back down to the client ● Note: A forwarder must talk to upstream recursive forwarders or recursive resolvers. A resolver can operate independently and can talk to the root DNS servers and other authoritative servers directly.

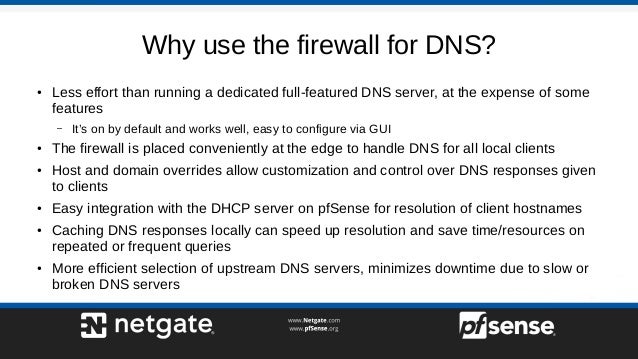

  6. 6. Why use the firewall for DNS? ● Less effort than running a dedicated full-featured DNS server, at the expense of some features – It’s on by default and works well, easy to configure via GUI ● The firewall is placed conveniently at the edge to handle DNS for all local clients ● Host and domain overrides allow customization and control over DNS responses given to clients ● Easy integration with the DHCP server on pfSense for resolution of client hostnames ● Caching DNS responses locally can speed up resolution and save time/resources on repeated or frequent queries ● More efficient selection of upstream DNS servers, minimizes downtime due to slow or broken DNS servers

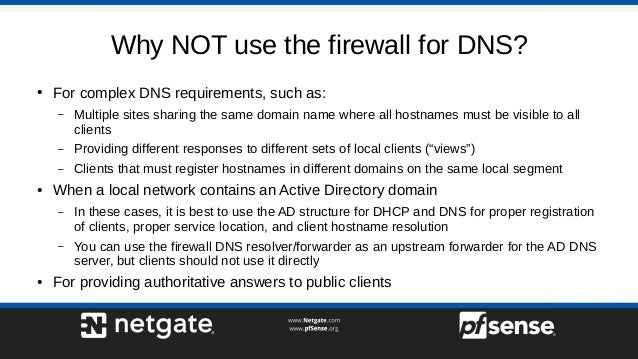

  7. 7. Why NOT use the firewall for DNS? ● For complex DNS requirements, such as: – Multiple sites sharing the same domain name where all hostnames must be visible to all clients – Providing different responses to different sets of local clients (“views”) – Clients that must register hostnames in different domains on the same local segment ● When a local network contains an Active Directory domain – In these cases, it is best to use the AD structure for DHCP and DNS for proper registration of clients, proper service location, and client hostname resolution – You can use the firewall DNS resolver/forwarder as an upstream forwarder for the AD DNS server, but clients should not use it directly ● For providing authoritative answers to public clients

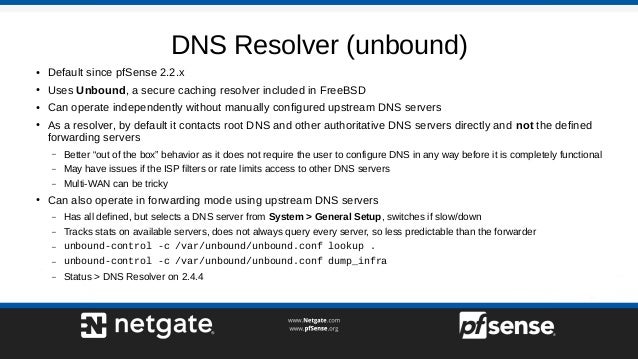

  8. 8. DNS Resolver (unbound) ● Default since pfSense 2.2.x ● Uses Unbound, a secure caching resolver included in FreeBSD ● Can operate independently without manually configured upstream DNS servers ● As a resolver, by default it contacts root DNS and other authoritative DNS servers directly and not the defined forwarding servers – Better “out of the box” behavior as it does not require the user to configure DNS in any way before it is completely functional – May have issues if the ISP filters or rate limits access to other DNS servers – Multi-WAN can be tricky ● Can also operate in forwarding mode using upstream DNS servers – Has all defined, but selects a DNS server from System > General Setup, switches if slow/down – Tracks stats on available servers, does not always query every server, so less predictable than the forwarder – unbound-control -c /var/unbound/unbound.conf lookup . – unbound-control -c /var/unbound/unbound.conf dump_infra – Status > DNS Resolver on 2.4.4

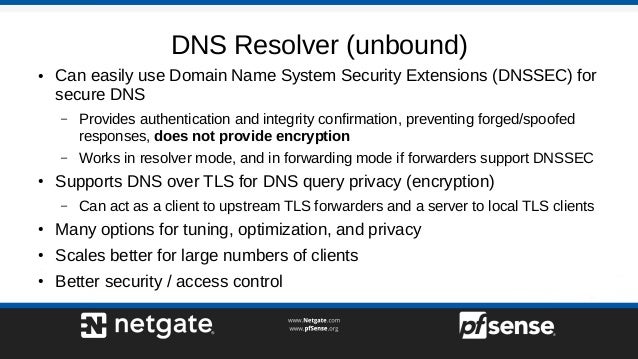

  9. 9. DNS Resolver (unbound) ● Can easily use Domain Name System Security Extensions (DNSSEC) for secure DNS – Provides authentication and integrity confirmation, preventing forged/spoofed responses, does not provide encryption – Works in resolver mode, and in forwarding mode if forwarders support DNSSEC ● Supports DNS over TLS for DNS query privacy (encryption) – Can act as a client to upstream TLS forwarders and a server to local TLS clients ● Many options for tuning, optimization, and privacy ● Scales better for large numbers of clients ● Better security / access control

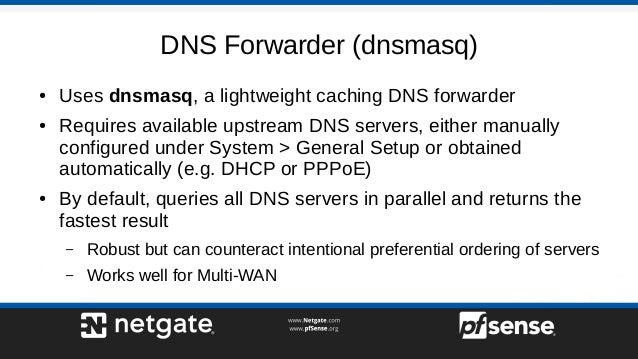

  10. 10. DNS Forwarder (dnsmasq) ● Uses dnsmasq, a lightweight caching DNS forwarder ● Requires available upstream DNS servers, either manually configured under System > General Setup or obtained automatically (e.g. DHCP or PPPoE) ● By default, queries all DNS servers in parallel and returns the fastest result – Robust but can counteract intentional preferential ordering of servers – Works well for Multi-WAN

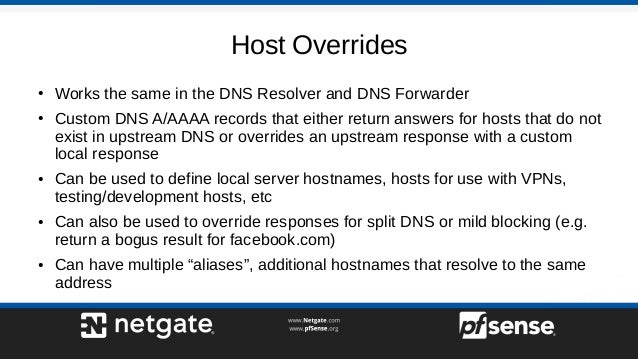

  11. 11. Host Overrides ● Works the same in the DNS Resolver and DNS Forwarder ● Custom DNS A/AAAA records that either return answers for hosts that do not exist in upstream DNS or overrides an upstream response with a custom local response ● Can be used to define local server hostnames, hosts for use with VPNs, testing/development hosts, etc ● Can also be used to override responses for split DNS or mild blocking (e.g. return a bogus result for ● Can have multiple “aliases”, additional hostnames that resolve to the same address

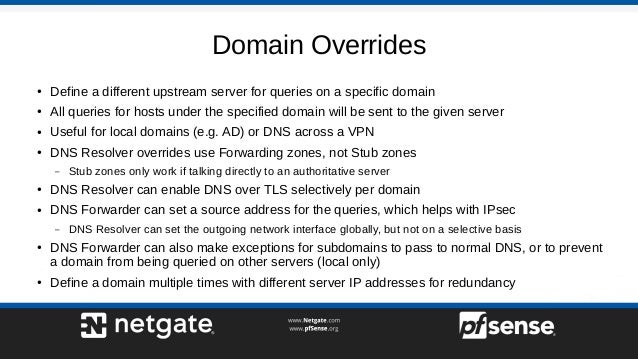

  12. 12. Domain Overrides ● Define a different upstream server for queries on a specific domain ● All queries for hosts under the specified domain will be sent to the given server ● Useful for local domains (e.g. AD) or DNS across a VPN ● DNS Resolver overrides use Forwarding zones, not Stub zones – Stub zones only work if talking directly to an authoritative server ● DNS Resolver can enable DNS over TLS selectively per domain ● DNS Forwarder can set a source address for the queries, which helps with IPsec – DNS Resolver can set the outgoing network interface globally, but not on a selective basis ● DNS Forwarder can also make exceptions for subdomains to pass to normal DNS, or to prevent a domain from being queried on other servers (local only) ● Define a domain multiple times with different server IP addresses for redundancy

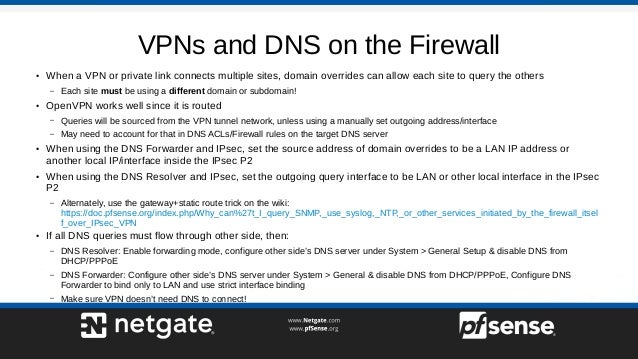

  13. 13. VPNs and DNS on the Firewall ● When a VPN or private link connects multiple sites, domain overrides can allow each site to query the others – Each site must be using a different domain or subdomain! ● OpenVPN works well since it is routed – Queries will be sourced from the VPN tunnel network, unless using a manually set outgoing address/interface – May need to account for that in DNS ACLs/Firewall rules on the target DNS server ● When using the DNS Forwarder and IPsec, set the source address of domain overrides to be a LAN IP address or another local IP/interface inside the IPsec P2 ● When using the DNS Resolver and IPsec, set the outgoing query interface to be LAN or other local interface in the IPsec P2 – Alternately, use the gateway+static route trick on the wiki:,_use_syslog,_NTP,_or_other_services_initiated_by_the_firewall_itsel f_over_IPsec_VPN ● If all DNS queries must flow through other side, then: – DNS Resolver: Enable forwarding mode, configure other side’s DNS server under System > General Setup & disable DNS from DHCP/PPPoE – DNS Forwarder: Configure other side’s DNS server under System > General & disable DNS from DHCP/PPPoE, Configure DNS Forwarder to bind only to LAN and use strict interface binding – Make sure VPN doesn’t need DNS to connect!
  14. 14. DNS and Multi-WAN ● Both DNS Resolver and DNS Forwarder can be compatible with Multi-WAN ● DNS Resolver by default queries random root servers and other authoritative servers, but can be adjusted to work with Multi-WAN – Multi-WAN Option 1: Enable Default Gateway Switching (System > Advanced, Misc) – Option 2: Enable Forwarding mode, then visit System > General Setup and configure at least one unique DNS server per WAN and choose a gateway for each one ● DNS Resolver in Forwarding mode may require disabling DNSSEC depending on the upstream forwarding servers ● For DNS Forwarder, same as resolver option 2, configure a DNS server per WAN with different gateways ● Alternately, do not use either the Resolver or the Forwarder: – Set clients to use public IP address DNS servers directly and their DNS requests will policy route like the rest of their traffic

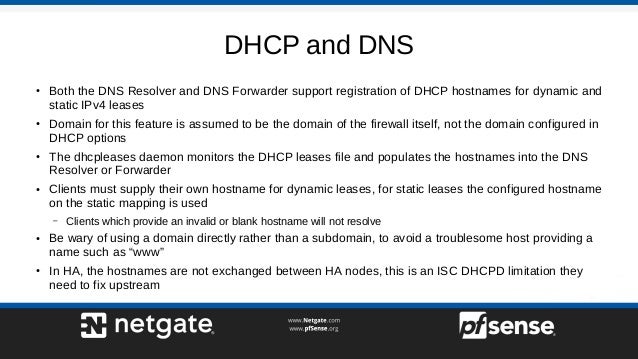

  15. 15. DHCP and DNS ● Both the DNS Resolver and DNS Forwarder support registration of DHCP hostnames for dynamic and static IPv4 leases ● Domain for this feature is assumed to be the domain of the firewall itself, not the domain configured in DHCP options ● The dhcpleases daemon monitors the DHCP leases file and populates the hostnames into the DNS Resolver or Forwarder ● Clients must supply their own hostname for dynamic leases, for static leases the configured hostname on the static mapping is used – Clients which provide an invalid or blank hostname will not resolve ● Be wary of using a domain directly rather than a subdomain, to avoid a troublesome host providing a name such as “www” ● In HA, the hostnames are not exchanged between HA nodes, this is an ISC DHCPD limitation they need to fix upstream

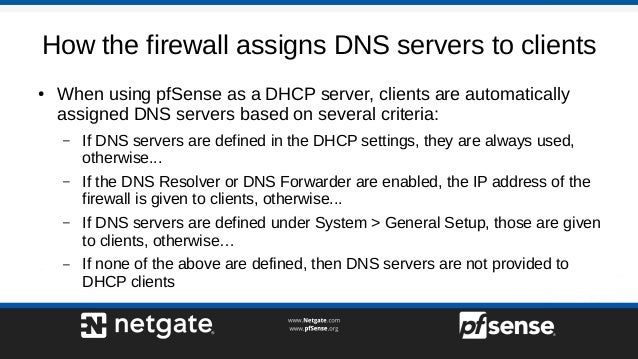

  16. 16. How the firewall assigns DNS servers to clients ● When using pfSense as a DHCP server, clients are automatically assigned DNS servers based on several criteria: – If DNS servers are defined in the DHCP settings, they are always used, otherwise... – If the DNS Resolver or DNS Forwarder are enabled, the IP address of the firewall is given to clients, otherwise... – If DNS servers are defined under System > General Setup, those are given to clients, otherwise… – If none of the above are defined, then DNS servers are not provided to DHCP clients

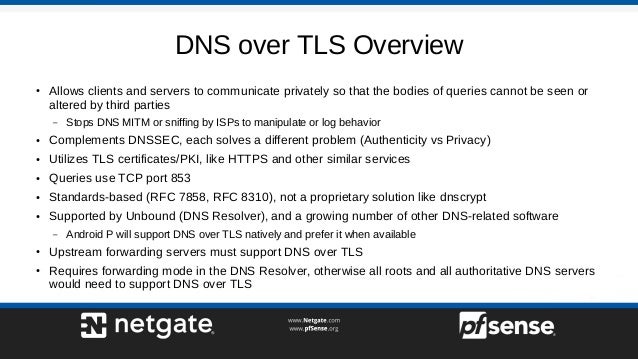

  17. 17. DNS over TLS Overview ● Allows clients and servers to communicate privately so that the bodies of queries cannot be seen or altered by third parties – Stops DNS MITM or sniffing by ISPs to manipulate or log behavior ● Complements DNSSEC, each solves a different problem (Authenticity vs Privacy) ● Utilizes TLS certificates/PKI, like HTTPS and other similar services ● Queries use TCP port 853 ● Standards-based (RFC 7858, RFC 8310), not a proprietary solution like dnscrypt ● Supported by Unbound (DNS Resolver), and a growing number of other DNS-related software – Android P will support DNS over TLS natively and prefer it when available ● Upstream forwarding servers must support DNS over TLS ● Requires forwarding mode in the DNS Resolver, otherwise all roots and all authoritative DNS servers would need to support DNS over TLS

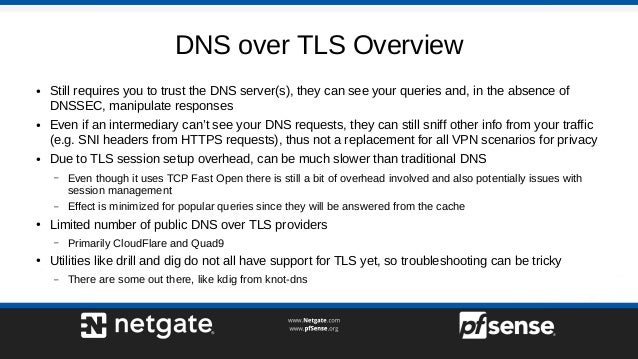

  18. 18. DNS over TLS Overview ● Still requires you to trust the DNS server(s), they can see your queries and, in the absence of DNSSEC, manipulate responses ● Even if an intermediary can’t see your DNS requests, they can still sniff other info from your traffic (e.g. SNI headers from HTTPS requests), thus not a replacement for all VPN scenarios for privacy ● Due to TLS session setup overhead, can be much slower than traditional DNS – Even though it uses TCP Fast Open there is still a bit of overhead involved and also potentially issues with session management – Effect is minimized for popular queries since they will be answered from the cache ● Limited number of public DNS over TLS providers – Primarily CloudFlare and Quad9 ● Utilities like drill and dig do not all have support for TLS yet, so troubleshooting can be tricky – There are some out there, like kdig from knot-dns

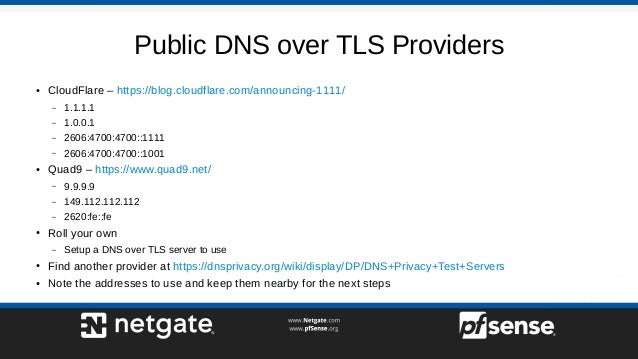

  19. 19. Public DNS over TLS Providers ● CloudFlare – – – – 2606:4700:4700::1111 – 2606:4700:4700::1001 ● Quad9 – – – – 2620:fe::fe ● Roll your own – Setup a DNS over TLS server to use ● Find another provider at ● Note the addresses to use and keep them nearby for the next steps
  20. 20. DNS over TLS Upstream Forwarders ● If using the DNS Forwarder, switch to the DNS Resolver instead ● Add the DNS servers to pfSense – Navigate to System > General Settings – Under DNS servers add the DNS server IP addresses noted previously – Pick appropriate gateways for each if using Multi-WAN, otherwise leave the gateway selection at ‘none’

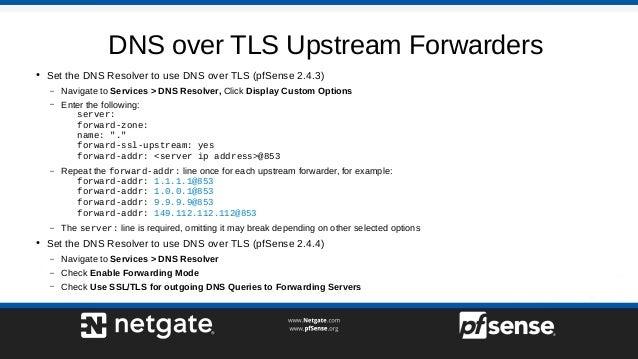

  21. 21. DNS over TLS Upstream Forwarders ● Set the DNS Resolver to use DNS over TLS (pfSense 2.4.3) – Navigate to Services > DNS Resolver, Click Display Custom Options – Enter the following: server: forward-zone: name: "." forward-ssl-upstream: yes forward-addr: <server ip address>@853 – Repeat the forward-addr: line once for each upstream forwarder, for example: forward-addr: forward-addr: forward-addr: forward-addr: – The server: line is required, omitting it may break depending on other selected options ● Set the DNS Resolver to use DNS over TLS (pfSense 2.4.4) – Navigate to Services > DNS Resolver – Check Enable Forwarding Mode – Check Use SSL/TLS for outgoing DNS Queries to Forwarding Servers

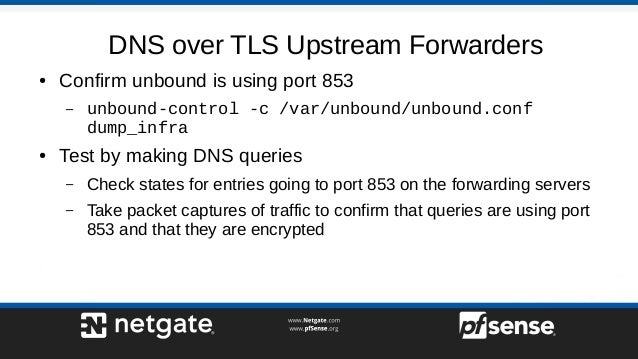

  22. 22. DNS over TLS Upstream Forwarders ● Confirm unbound is using port 853 – unbound-control -c /var/unbound/unbound.conf dump_infra ● Test by making DNS queries – Check states for entries going to port 853 on the forwarding servers – Take packet captures of traffic to confirm that queries are using port 853 and that they are encrypted

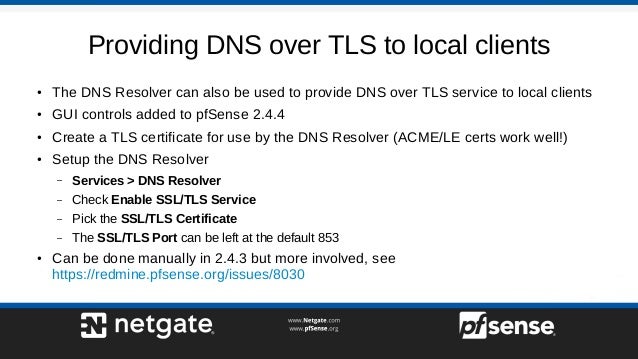

  23. 23. Providing DNS over TLS to local clients ● The DNS Resolver can also be used to provide DNS over TLS service to local clients ● GUI controls added to pfSense 2.4.4 ● Create a TLS certificate for use by the DNS Resolver (ACME/LE certs work well!) ● Setup the DNS Resolver – Services > DNS Resolver – Check Enable SSL/TLS Service – Pick the SSL/TLS Certificate – The SSL/TLS Port can be left at the default 853 ● Can be done manually in 2.4.3 but more involved, see

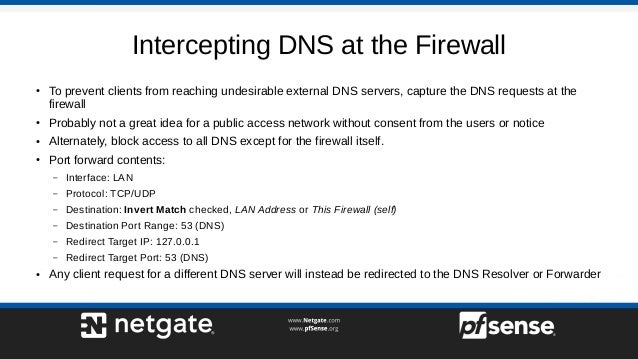

  24. 24. Intercepting DNS at the Firewall ● To prevent clients from reaching undesirable external DNS servers, capture the DNS requests at the firewall ● Probably not a great idea for a public access network without consent from the users or notice ● Alternately, block access to all DNS except for the firewall itself. ● Port forward contents: – Interface: LAN – Protocol: TCP/UDP – Destination: Invert Match checked, LAN Address or This Firewall (self) – Destination Port Range: 53 (DNS) – Redirect Target IP: – Redirect Target Port: 53 (DNS) ● Any client request for a different DNS server will instead be redirected to the DNS Resolver or Forwarder

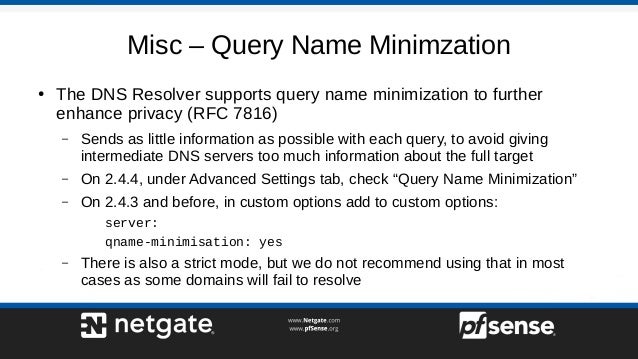

  25. 25. Misc – Query Name Minimzation ● The DNS Resolver supports query name minimization to further enhance privacy (RFC 7816) – Sends as little information as possible with each query, to avoid giving intermediate DNS servers too much information about the full target – On 2.4.4, under Advanced Settings tab, check “Query Name Minimization” – On 2.4.3 and before, in custom options add to custom options: server: qname-minimisation: yes – There is also a strict mode, but we do not recommend using that in most cases as some domains will fail to resolve
  26. 26. Misc – DNS Rebinding ● Both the DNS Resolver and DNS Forwarder provide DNS Rebinding Protection – This protection prevents an upstream DNS server from providing a private IP address response, to help protect against attacks redirecting you unknowingly to a local device – Sometimes private responses from servers can be desirable in certain exception cases – Can be selectively disabled or globally disabled – DNS Resolver: server: private-domain: "" – DNS Forwarder, use custom options: rebind-domain-ok=/

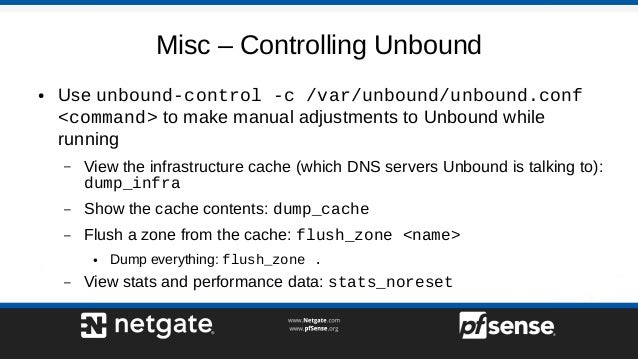

  27. 27. Misc – Controlling Unbound ● Use unbound-control -c /var/unbound/unbound.conf <command> to make manual adjustments to Unbound while running – View the infrastructure cache (which DNS servers Unbound is talking to): dump_infra – Show the cache contents: dump_cache – Flush a zone from the cache: flush_zone <name> ● Dump everything: flush_zone . – View stats and performance data: stats_noreset

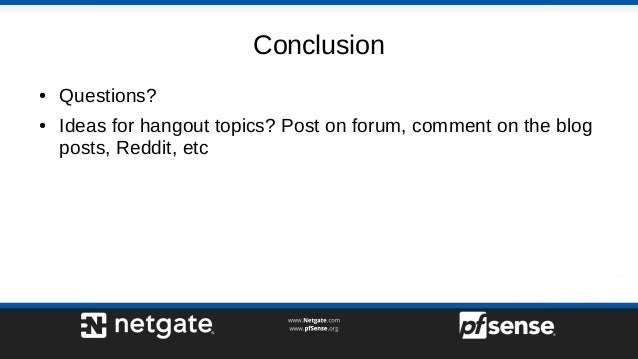

  28. 28. Conclusion ● Questions? ● Ideas for hangout topics? Post on forum, comment on the blog posts, Reddit, etc
