1. ALIX to APU Conversion
October 2014 Hangout
Jim Pingle

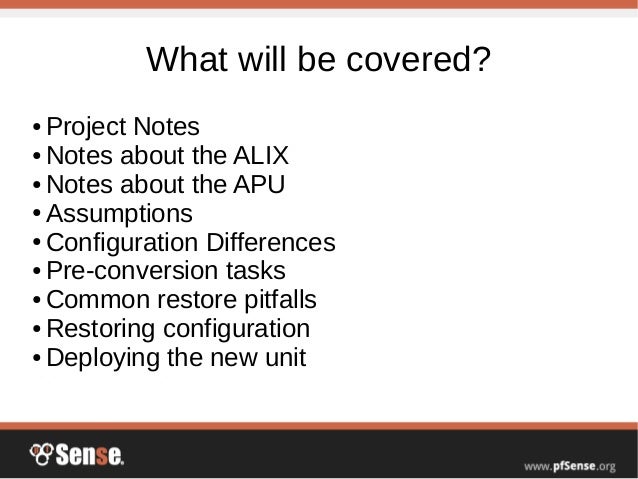

2. What will be covered?
● Project Notes
● Notes about the ALIX
● Notes about the APU
● Assumptions
● Configuration Differences
● Pre-conversion tasks
● Common restore pitfalls
● Restoring configuration
● Deploying the new unit

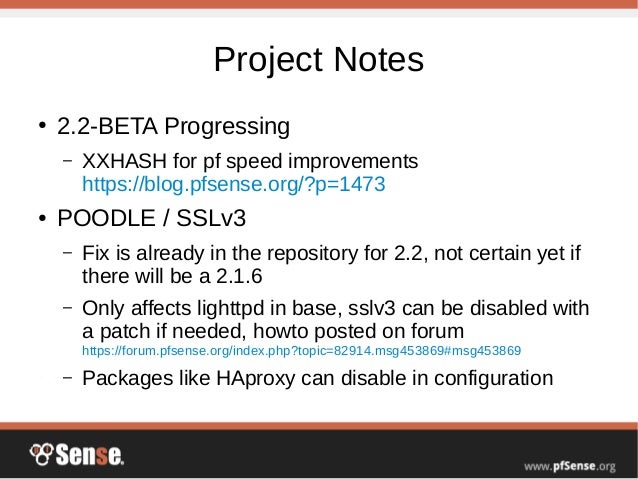

3. Project Notes
● 2.2-BETA Progressing
– XXHASH for pf speed improvements
https://blog.pfsense.org/?p=1473
● POODLE / SSLv3
– Fix is already in the repository for 2.2, not certain yet if
there will be a 2.1.6
– Only affects lighttpd in base, sslv3 can be disabled with
a patch if needed, howto posted on forum
https://forum.pfsense.org/index.php?topic=82914.msg453869#msg453869
– Packages like HAproxy can disable in configuration

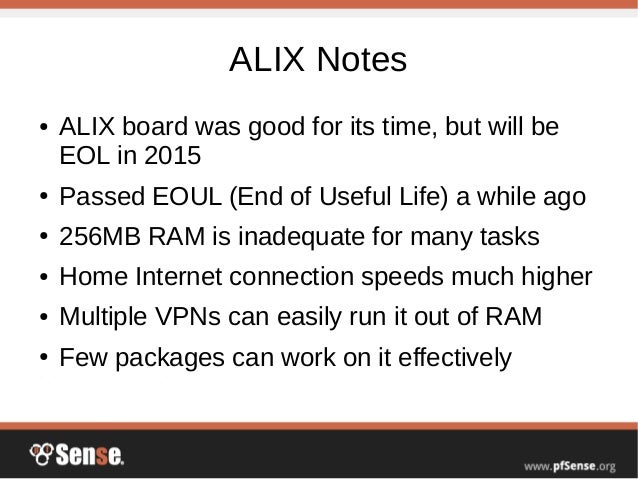

4. ALIX Notes
● ALIX board was good for its time, but will be
EOL in 2015
● Passed EOUL (End of Useful Life) a while ago
● 256MB RAM is inadequate for many tasks
● Home Internet connection speeds much higher
● Multiple VPNs can easily run it out of RAM
● Few packages can work on it effectively

5. APU Notes
● Similar form factor to ALIX
– Needs new case, different standoff height
– Passive cooling, case is used as a heat sink
– New PSU required, needs more power
● VK-T40E from pfSense Store
● APU2/APU4 from Netgate
● 2GB or 4GB RAM
● AMD CPU similar to Atom
● SD card (NanoBSD) or mSATA (Full Install)
● 3x Realtek RTL8111E Gigabit Ports
– Issues with forcing speed/duplex being investigated

6. Assumptions
● APU already has an installed and working OS
– If the device was purchased from pfSense/Netgate, it
is already OK
– If purchased elsewhere, check the forum for OS
installation procedures
● Target unit (APU) is running the most recent
firmware image available, currently pfSense 2.1.5
● Serial port (Hardwired or USB) and Null Modem
cable are available

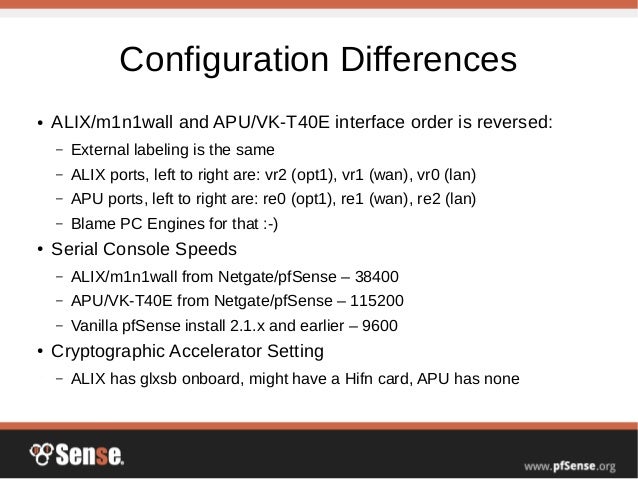

7. Configuration Differences
● ALIX/m1n1wall and APU/VK-T40E interface order is reversed:
– External labeling is the same
– ALIX ports, left to right are: vr2 (opt1), vr1 (wan), vr0 (lan)
– APU ports, left to right are: re0 (opt1), re1 (wan), re2 (lan)
– Blame PC Engines for that :-)
● Serial Console Speeds
– ALIX/m1n1wall from Netgate/pfSense – 38400
– APU/VK-T40E from Netgate/pfSense – 115200
– Vanilla pfSense install 2.1.x and earlier – 9600
● Cryptographic Accelerator Setting
– ALIX has glxsb onboard, might have a Hifn card, APU has none

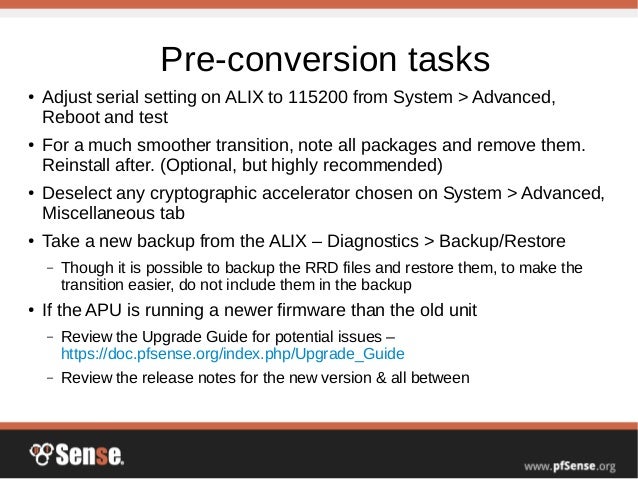

8. Pre-conversion tasks
● Adjust serial setting on ALIX to 115200 from System > Advanced,
Reboot and test
● For a much smoother transition, note all packages and remove them.
Reinstall after. (Optional, but highly recommended)
● Deselect any cryptographic accelerator chosen on System > Advanced,
Miscellaneous tab
● Take a new backup from the ALIX – Diagnostics > Backup/Restore
– Though it is possible to backup the RRD files and restore them, to make the
transition easier, do not include them in the backup
● If the APU is running a newer firmware than the old unit
– Review the Upgrade Guide for potential issues –
https://doc.pfsense.org/index.php/Upgrade_Guide
– Review the release notes for the new version & all between

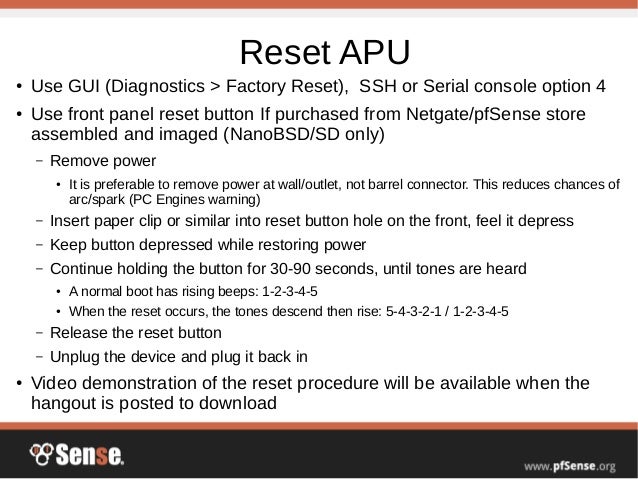

9. Reset APU
● Use GUI (Diagnostics > Factory Reset), SSH or Serial console option 4
● Use front panel reset button If purchased from Netgate/pfSense store
assembled and imaged (NanoBSD/SD only)
– Remove power
● It is preferable to remove power at wall/outlet, not barrel connector. This reduces chances of
arc/spark (PC Engines warning)
– Insert paper clip or similar into reset button hole on the front, feel it depress
– Keep button depressed while restoring power
– Continue holding the button for 30-90 seconds, until tones are heard
● A normal boot has rising beeps: 1-2-3-4-5
●
When the reset occurs, the tones descend then rise: 5-4-3-2-1 / 1-2-3-4-5
– Release the reset button
– Unplug the device and plug it back in
● Video demonstration of the reset procedure will be available when the
hangout is posted to download

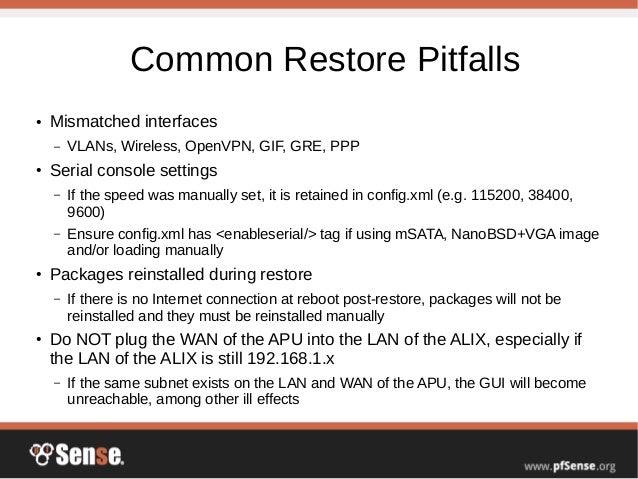

10. Common Restore Pitfalls
● Mismatched interfaces
– VLANs, Wireless, OpenVPN, GIF, GRE, PPP
● Serial console settings
– If the speed was manually set, it is retained in config.xml (e.g. 115200, 38400,
9600)
– Ensure config.xml has <enableserial/> tag if using mSATA, NanoBSD+VGA image
and/or loading manually
● Packages reinstalled during restore
– If there is no Internet connection at reboot post-restore, packages will not be
reinstalled and they must be reinstalled manually
● Do NOT plug the WAN of the APU into the LAN of the ALIX, especially if
the LAN of the ALIX is still 192.168.1.x
– If the same subnet exists on the LAN and WAN of the APU, the GUI will become
unreachable, among other ill effects

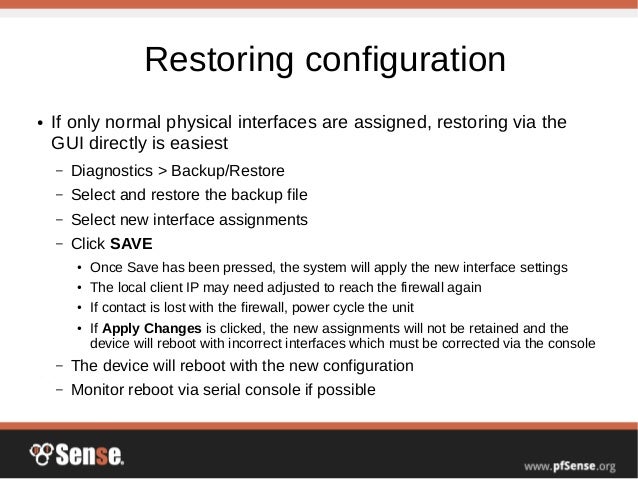

11. Restoring configuration
● If only normal physical interfaces are assigned, restoring via the
GUI directly is easiest
– Diagnostics > Backup/Restore
– Select and restore the backup file
– Select new interface assignments
– Click SAVE
●
Once Save has been pressed, the system will apply the new interface settings
● The local client IP may need adjusted to reach the firewall again
● If contact is lost with the firewall, power cycle the unit
● If Apply Changes is clicked, the new assignments will not be retained and the
device will reboot with incorrect interfaces which must be corrected via the console
– The device will reboot with the new configuration
– Monitor reboot via serial console if possible

12. Restoring configuration

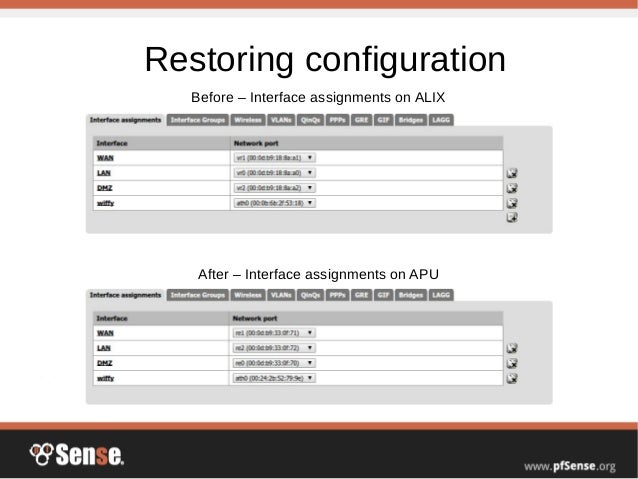

Before – Interface assignments on ALIX
After – Interface assignments on APU

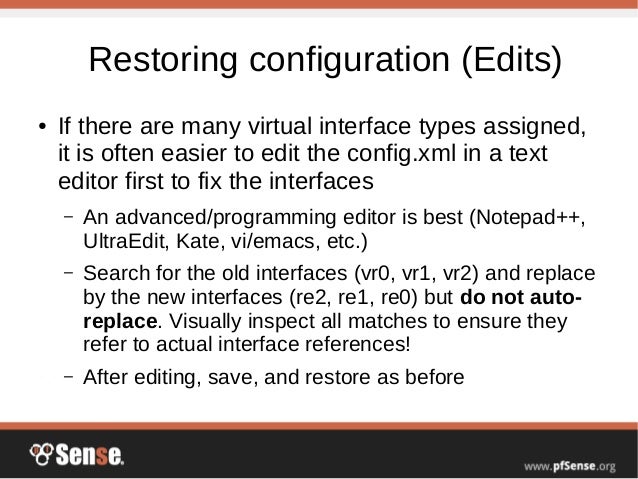

13. Restoring configuration (Edits)
● If there are many virtual interface types assigned,
it is often easier to edit the config.xml in a text
editor first to fix the interfaces
– An advanced/programming editor is best (Notepad++,
UltraEdit, Kate, vi/emacs, etc.)
– Search for the old interfaces (vr0, vr1, vr2) and replace
by the new interfaces (re2, re1, re0) but do not auto-
replace. Visually inspect all matches to ensure they
refer to actual interface references!
– After editing, save, and restore as before

14. Restoring configuration (Edits)

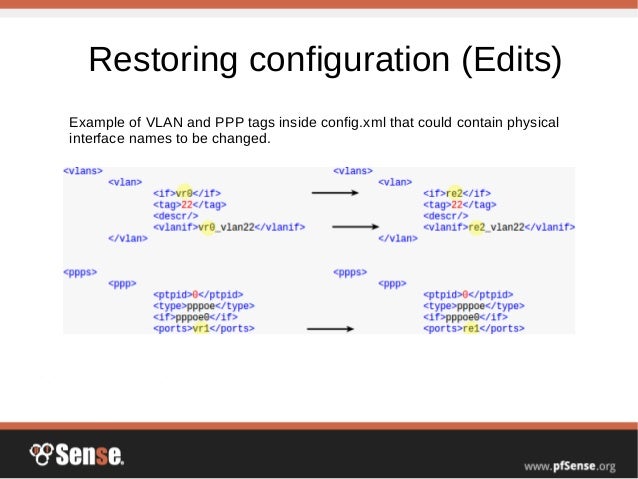

Example of VLAN and PPP tags inside config.xml that could contain physical
interface names to be changed.

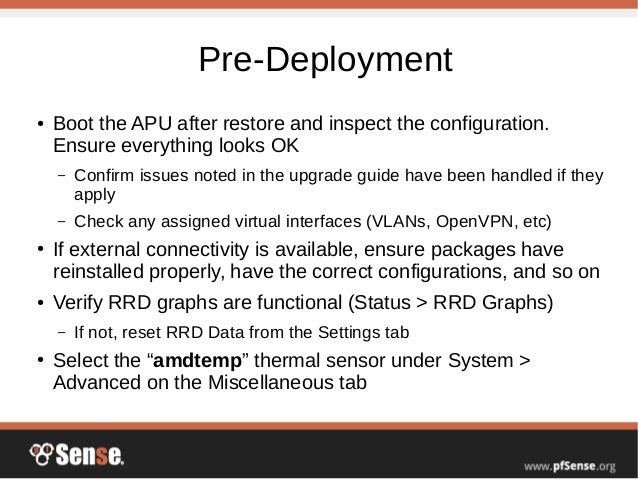

15. Pre-Deployment
● Boot the APU after restore and inspect the configuration.
Ensure everything looks OK
– Confirm issues noted in the upgrade guide have been handled if they
apply
– Check any assigned virtual interfaces (VLANs, OpenVPN, etc)
● If external connectivity is available, ensure packages have
reinstalled properly, have the correct configurations, and so on
● Verify RRD graphs are functional (Status > RRD Graphs)
– If not, reset RRD Data from the Settings tab
● Select the “amdtemp” thermal sensor under System >
Advanced on the Miscellaneous tab

16. Deployment
● Remove the ALIX and replace with the APU!
● Most common problem will be ARP issues due to the MAC changes
– Avoid spoofing MAC addresses if possible
– Power off cable modems and power back on
– Check managed switches/routers, etc
– May need to reboot some gear/workstations, but generally not required
● Check gateway status, should show online
● Check LAN-side connectivity to the Internet
● If the configuration contained packages, ensure they are all present under System >
Packages
– If they are missing, reinstall them now
– Some packages like squid or snort may require an update for rules/lists
● Test port forwards and other remaining services
● Salt to taste and enjoy!
