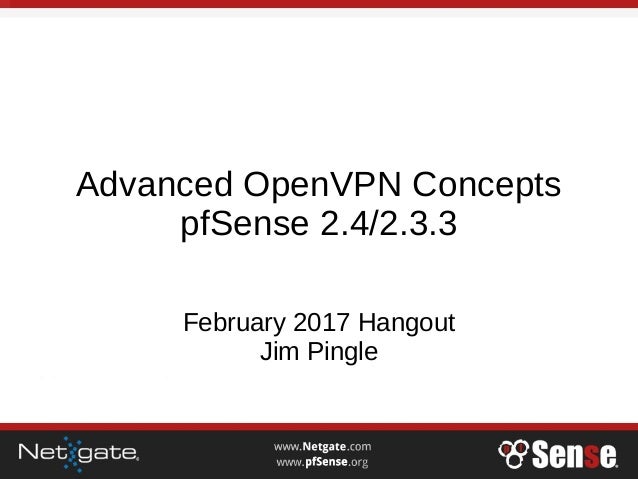

Advanced OpenVPN Concepts
pfSense 2.4/2.3.3
February 2017 Hangout
Jim Pingle
About this Hangout
● Primarily a presentation and discussion, not a complete demonstration for each topic
● Many of these ...

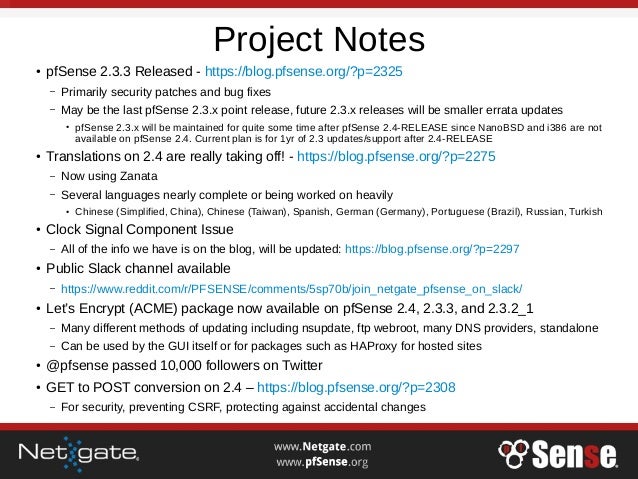

Project Notes
●
pfSense 2.3.3 Released - https://blog.pfsense.org/?p=2325
– Primarily security patches and bug fixes
– May...

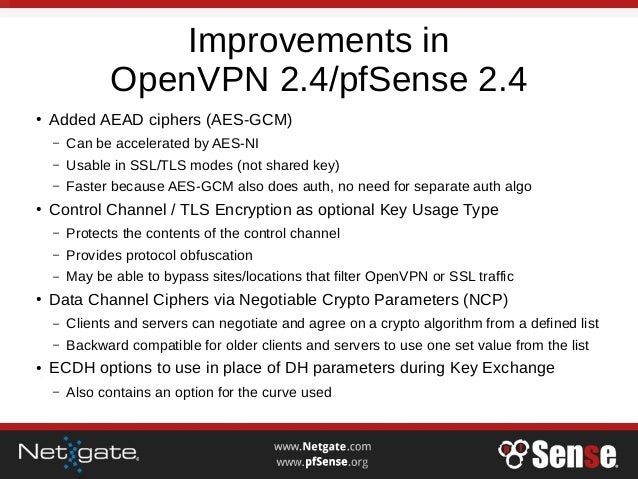

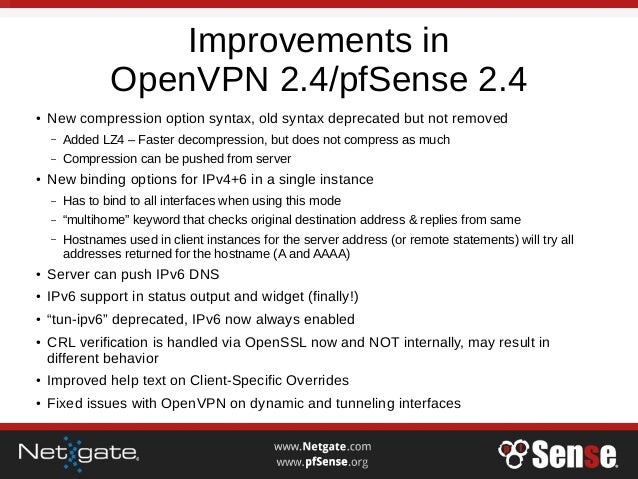

Improvements in
OpenVPN 2.4/pfSense 2.4
● Added AEAD ciphers (AES-GCM)
– Can be accelerated by AES-NI
– Usable in SSL/TLS ...
Improvements in
OpenVPN 2.4/pfSense 2.4
● New compression option syntax, old syntax deprecated but not removed
– Added LZ4...

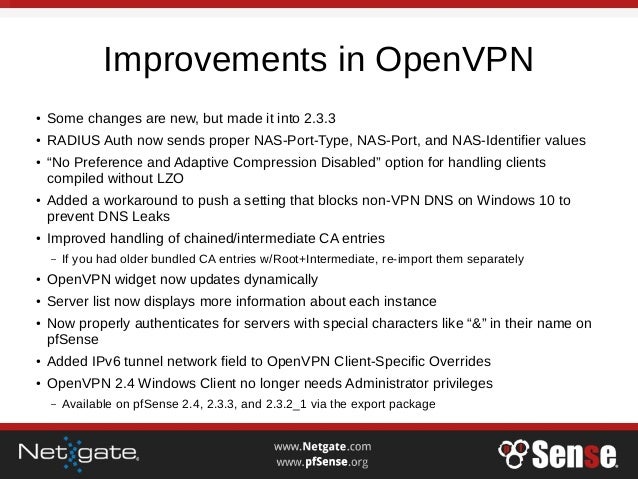

Improvements in OpenVPN
● Some changes are new, but made it into 2.3.3
● RADIUS Auth now sends proper NAS-Port-Type, NAS-P...

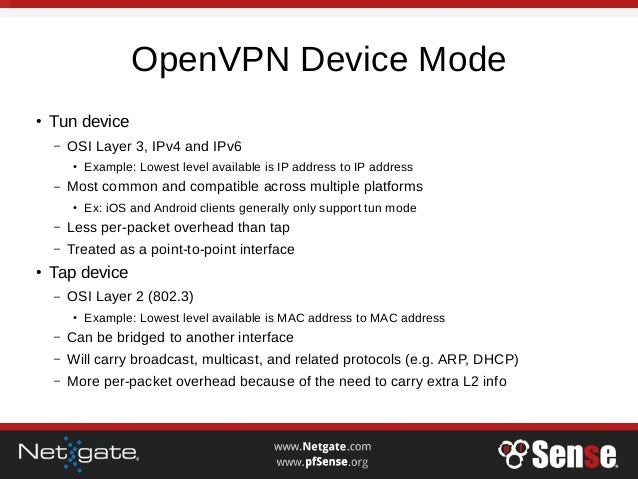

OpenVPN Device Mode
● Tun device
– OSI Layer 3, IPv4 and IPv6
● Example: Lowest level available is IP address to IP addres...

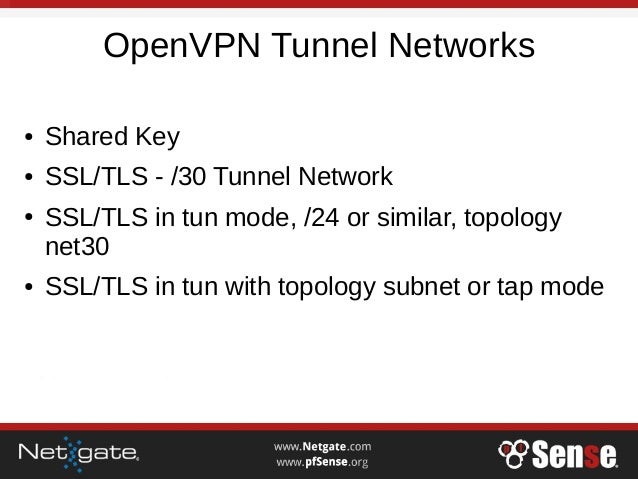

OpenVPN Tunnel Networks
● Shared Key
● SSL/TLS - /30 Tunnel Network
● SSL/TLS in tun mode, /24 or similar, topology
net30
...

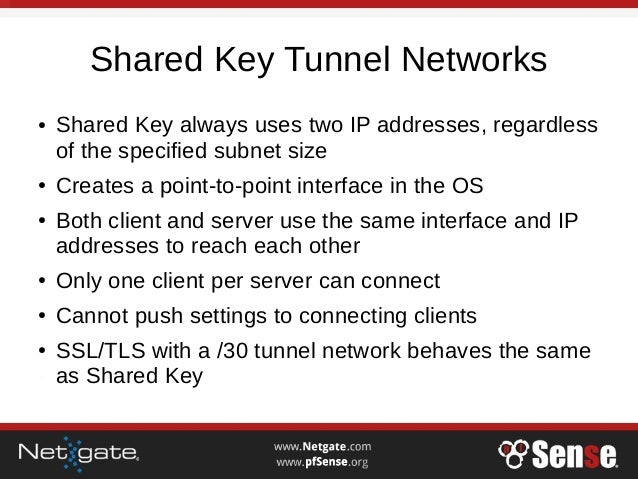

Shared Key Tunnel Networks
● Shared Key always uses two IP addresses, regardless
of the specified subnet size
● Creates a ...

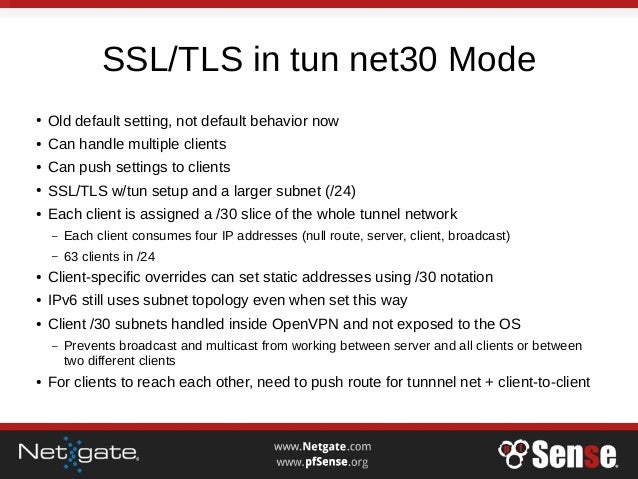

SSL/TLS in tun net30 Mode
● Old default setting, not default behavior now
● Can handle multiple clients
● Can push setting...

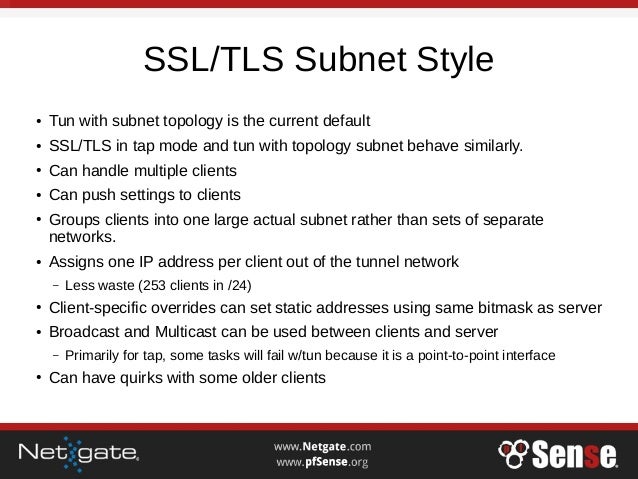

SSL/TLS Subnet Style
● Tun with subnet topology is the current default
● SSL/TLS in tap mode and tun with topology subnet ...

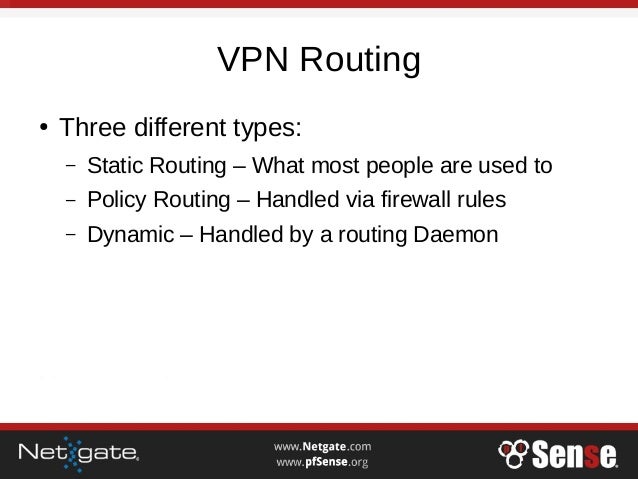

VPN Routing
● Three different types:
– Static Routing – What most people are used to
– Policy Routing – Handled via firewa...

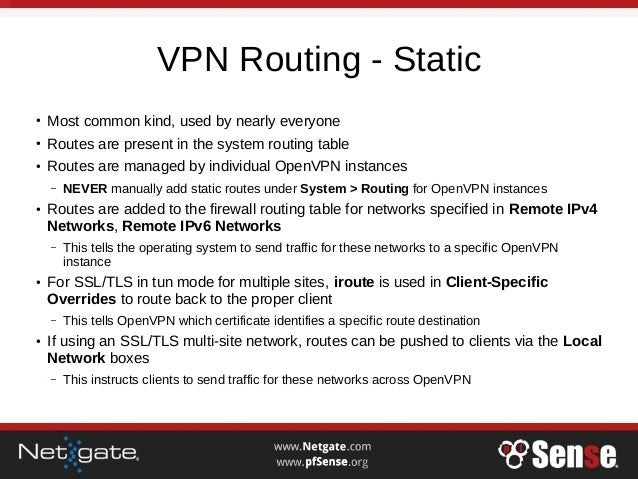

VPN Routing - Static
●
Most common kind, used by nearly everyone
●
Routes are present in the system routing table
●
Routes...
VPN Routing – Policy Routing
● Requires assigning the OpenVPN interface,
which creates a dynamic gateway
● Routes are not ...

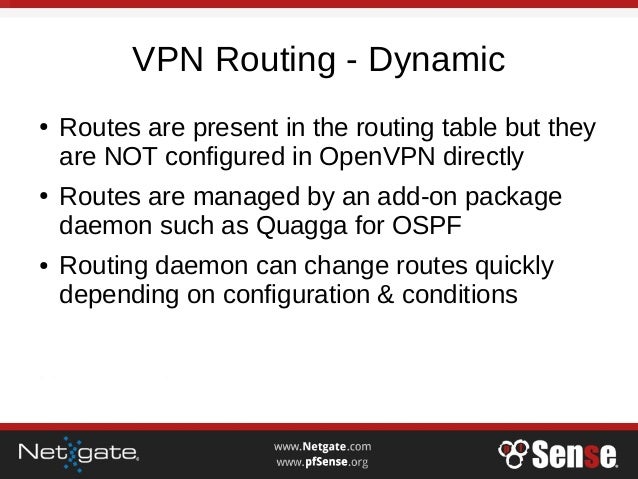

VPN Routing - Dynamic
● Routes are present in the routing table but they
are NOT configured in OpenVPN directly
● Routes a...
Assigning OpenVPN Interfaces
● Enables additional configuration possibilities for handling
traffic to/from the VPN
● Assig...
Assigning OpenVPN Interfaces
● Gateway added by the assignment action can:
– Be used for policy routing, for example:
● Se...
Assigning OpenVPN Interfaces
● Firewall tab added by assignment allows more fine-grained control of
traffic and the use of...
Assigning OpenVPN Interfaces
● Perform the assignment action from LAN or WAN, not over
this VPN
● Interfaces > Assignments...

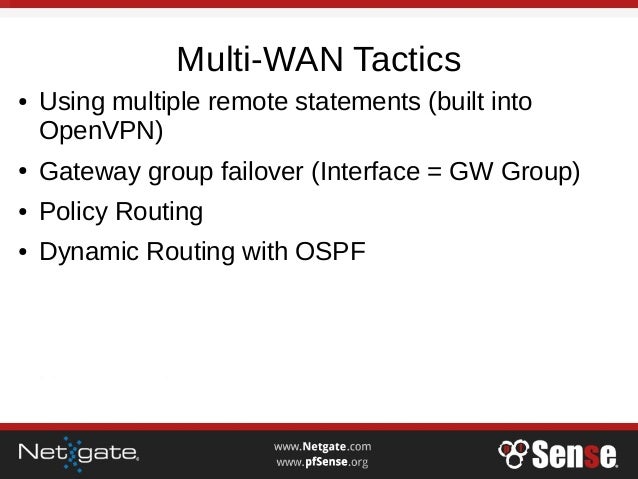

Multi-WAN Tactics
● Using multiple remote statements (built into
OpenVPN)
● Gateway group failover (Interface = GW Group)
...
Multi-WAN Tactics

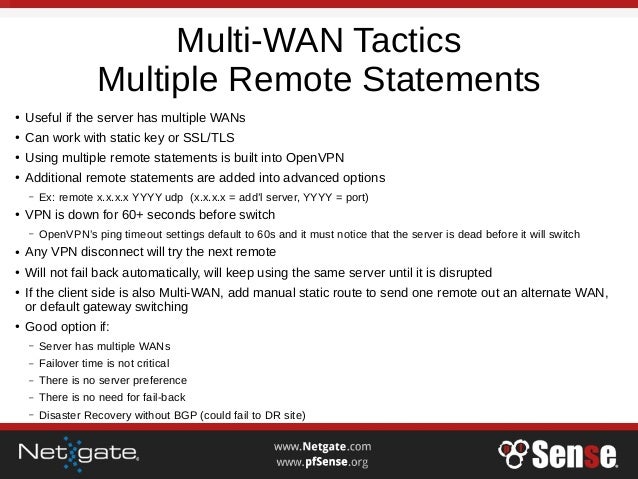

Multiple Remote Statements
●
Useful if the server has multiple WANs
●
Can work with static key or SSL/TL...
Multi-WAN Tactics

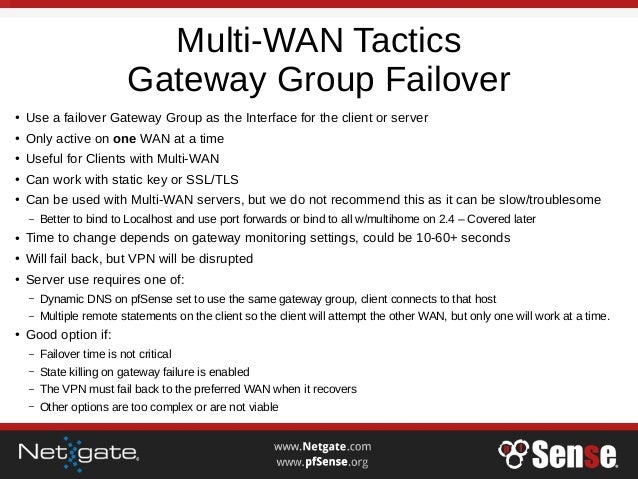

Gateway Group Failover
●
Use a failover Gateway Group as the Interface for the client or server
●
Only a...
Multi-WAN Tactics

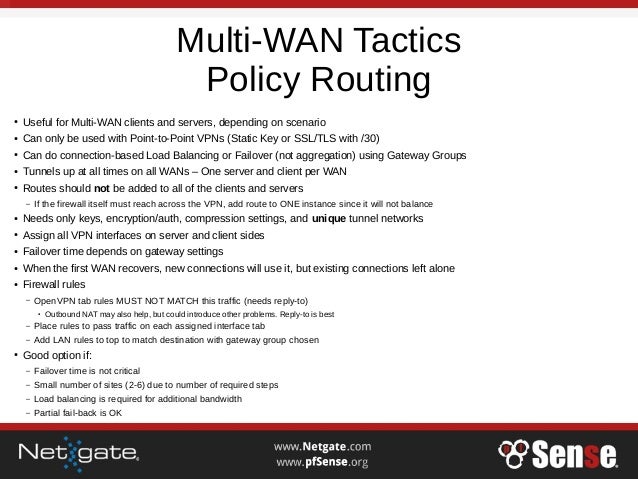

Policy Routing
● Useful for Multi-WAN clients and servers, depending on scenario
● Can only be used with...
Multi-WAN Tactics

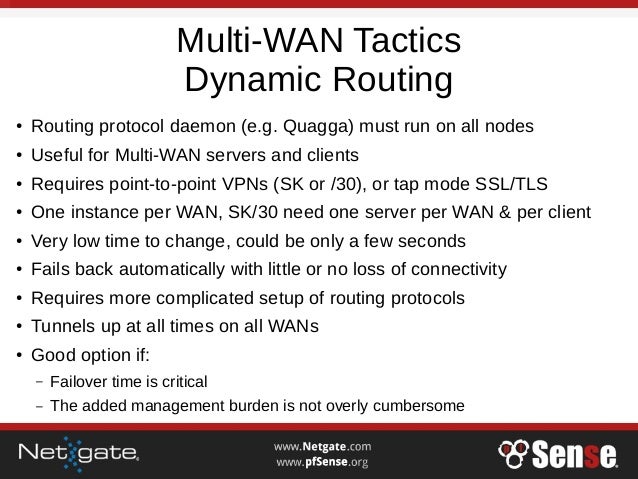

Dynamic Routing
●
Routing protocol daemon (e.g. Quagga) must run on all nodes
●
Useful for Multi-WAN ser...

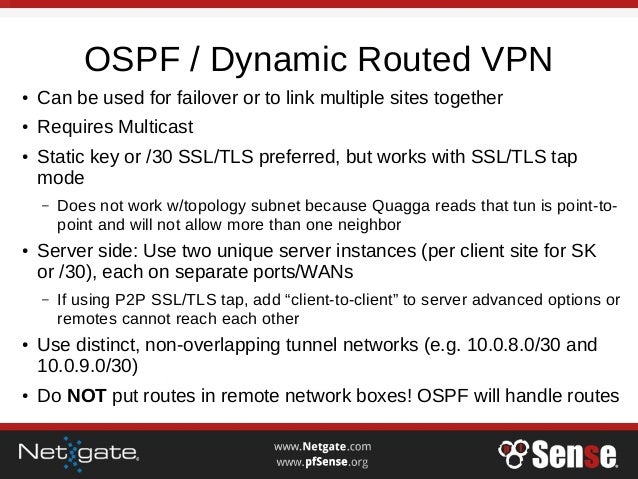

OSPF / Dynamic Routed VPN
● Can be used for failover or to link multiple sites together
● Requires Multicast
● Static key ...

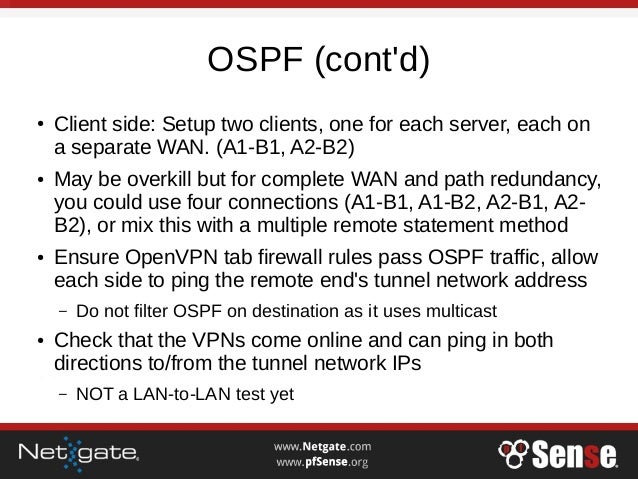

OSPF (cont'd)
● Client side: Setup two clients, one for each server, each on
a separate WAN. (A1-B1, A2-B2)
● May be overk...
OSPF - Quagga
● Install and configure the Quagga package on both sides
– Assigning interfaces is optional
● Interfaces tab...

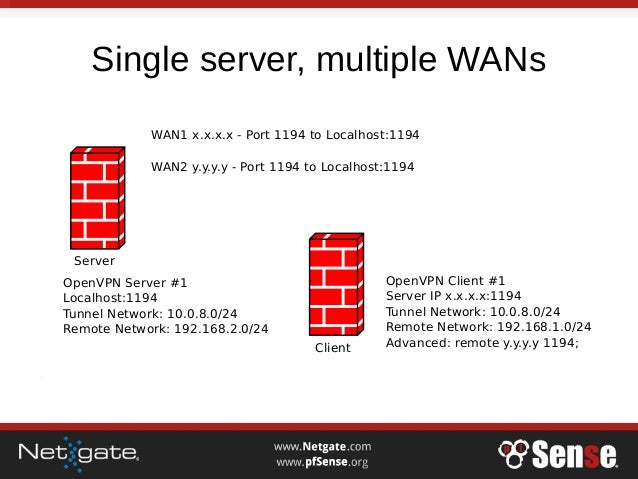

Single server, multiple WANs
Server
WAN1 x.x.x.x - Port 1194 to Localhost:1194
WAN2 y.y.y.y - Port 1194 to Localhost:1194
...

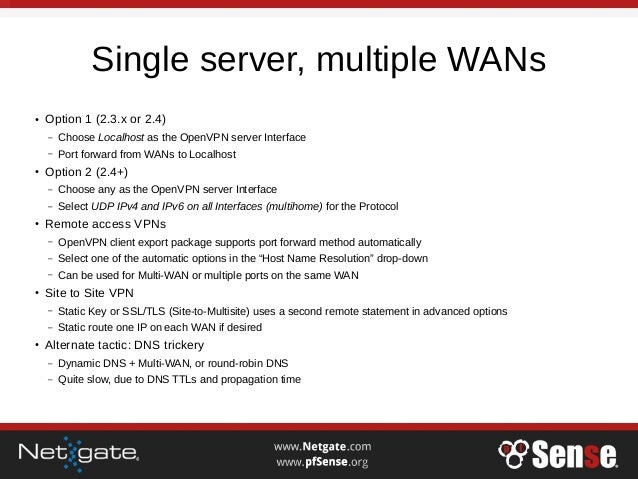

Single server, multiple WANs
●
Option 1 (2.3.x or 2.4)
– Choose Localhost as the OpenVPN server Interface
– Port forward f...

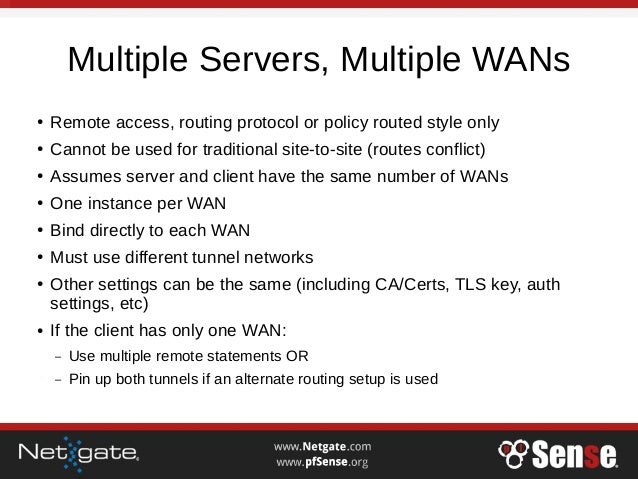

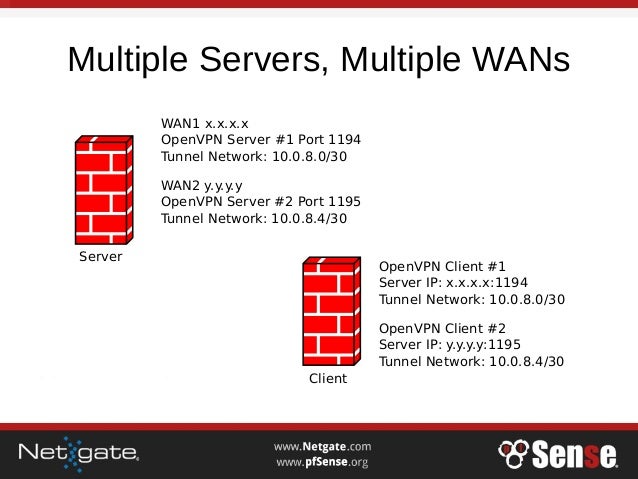

Multiple Servers, Multiple WANs
Server
WAN1 x.x.x.x
OpenVPN Server #1 Port 1194
Tunnel Network: 10.0.8.0/30
Client
WAN2 y....
Multiple Servers, Multiple WANs
● Remote access, routing protocol or policy routed style only
● Cannot be used for traditi...

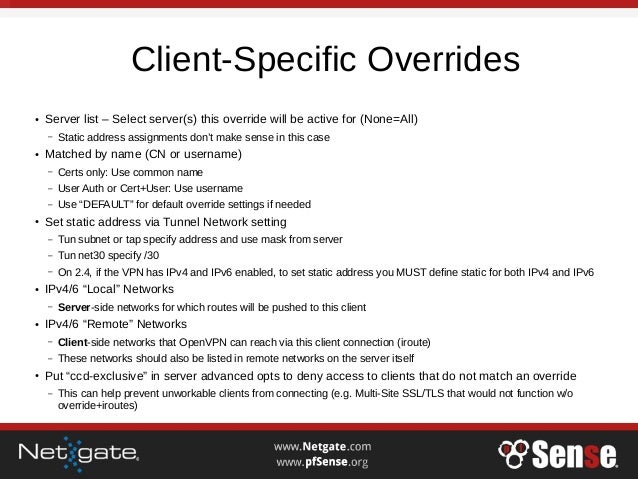

Client-Specific Overrides
● Server list – Select server(s) this override will be active for (None=All)
– Static address as...

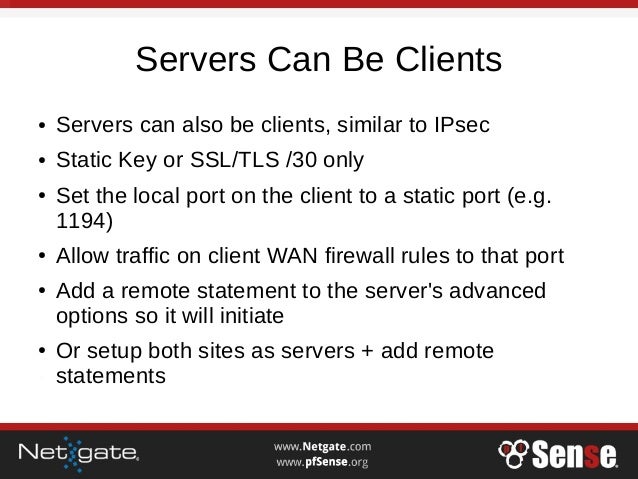

Servers Can Be Clients
● Servers can also be clients, similar to IPsec
● Static Key or SSL/TLS /30 only
● Set the local po...

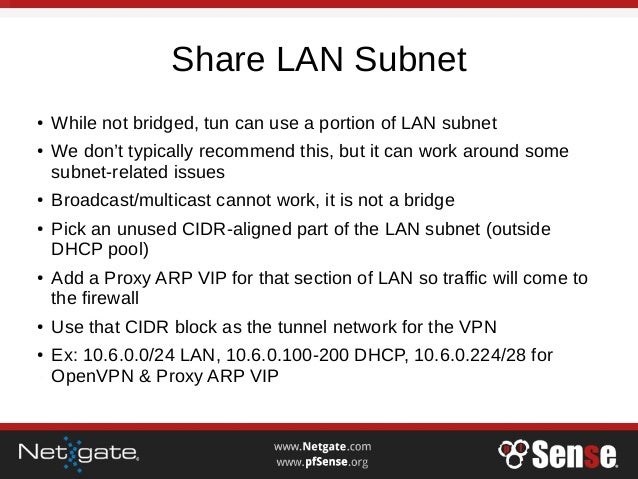

Share LAN Subnet
●
While not bridged, tun can use a portion of LAN subnet
●
We don’t typically recommend this, but it can ...

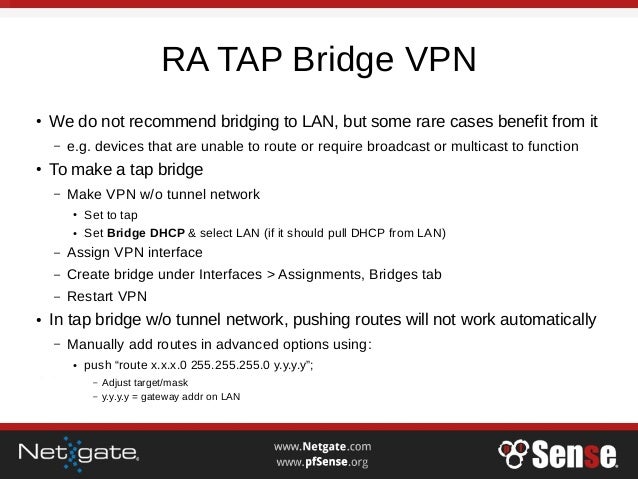

RA TAP Bridge VPN
● We do not recommend bridging to LAN, but some rare cases benefit from it
– e.g. devices that are unabl...

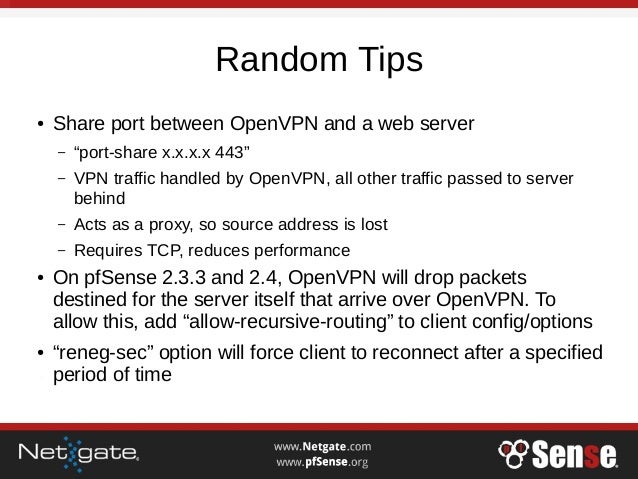

Random Tips
● Share port between OpenVPN and a web server
– “port-share x.x.x.x 443”
– VPN traffic handled by OpenVPN, all...
Conclusion
● Additional References:
– Oct 2016 Hangout on OpenVPN as a WAN (VPN
Providers)
– September/October 2015 Hangou...
