  1. 1. Advanced Captive Portal pfSense 2.3/2.4 June 2017 Hangout Jim Pingle

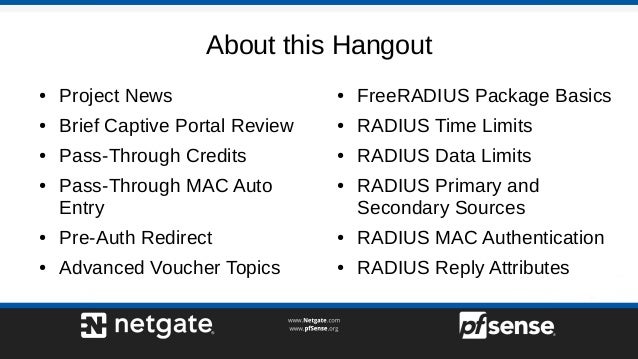

  2. 2. About this Hangout ● Project News ● Brief Captive Portal Review ● Pass-Through Credits ● Pass-Through MAC Auto Entry ● Pre-Auth Redirect ● Advanced Voucher Topics ● FreeRADIUS Package Basics ● RADIUS Time Limits ● RADIUS Data Limits ● RADIUS Primary and Secondary Sources ● RADIUS MAC Authentication ● RADIUS Reply Attributes

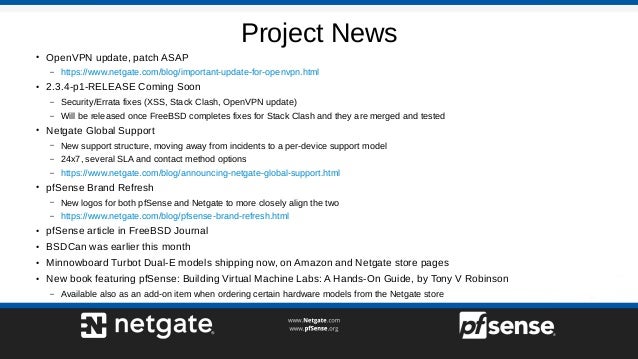

  3. 3. Project News ● OpenVPN update, patch ASAP – https://www.netgate.com/blog/important-update-for-openvpn.html ● 2.3.4-p1-RELEASE Coming Soon – Security/Errata fixes (XSS, Stack Clash, OpenVPN update) – Will be released once FreeBSD completes fixes for Stack Clash and they are merged and tested ● Netgate Global Support – New support structure, moving away from incidents to a per-device support model – 24x7, several SLA and contact method options – https://www.netgate.com/blog/announcing-netgate-global-support.html ● pfSense Brand Refresh – New logos for both pfSense and Netgate to more closely align the two – https://www.netgate.com/blog/pfsense-brand-refresh.html ● pfSense article in FreeBSD Journal ● BSDCan was earlier this month ● Minnowboard Turbot Dual-E models shipping now, on Amazon and Netgate store pages ● New book featuring pfSense: Building Virtual Machine Labs: A Hands-On Guide, by Tony V Robinson – Available also as an add-on item when ordering certain hardware models from the Netgate store

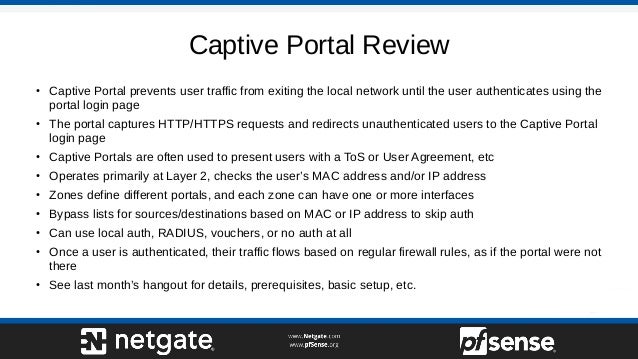

  4. 4. Captive Portal Review ● Captive Portal prevents user traffic from exiting the local network until the user authenticates using the portal login page ● The portal captures HTTP/HTTPS requests and redirects unauthenticated users to the Captive Portal login page ● Captive Portals are often used to present users with a ToS or User Agreement, etc ● Operates primarily at Layer 2, checks the user’s MAC address and/or IP address ● Zones define different portals, and each zone can have one or more interfaces ● Bypass lists for sources/destinations based on MAC or IP address to skip auth ● Can use local auth, RADIUS, vouchers, or no auth at all ● Once a user is authenticated, their traffic flows based on regular firewall rules, as if the portal were not there ● See last month’s hangout for details, prerequisites, basic setup, etc.

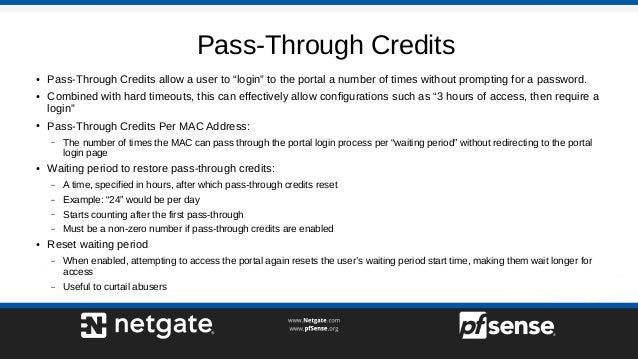

  5. 5. Pass-Through Credits ● Pass-Through Credits allow a user to “login” to the portal a number of times without prompting for a password. ● Combined with hard timeouts, this can effectively allow configurations such as “3 hours of access, then require a login” ● Pass-Through Credits Per MAC Address: – The number of times the MAC can pass through the portal login process per “waiting period” without redirecting to the portal login page ● Waiting period to restore pass-through credits: – A time, specified in hours, after which pass-through credits reset – Example: “24” would be per day – Starts counting after the first pass-through – Must be a non-zero number if pass-through credits are enabled ● Reset waiting period – When enabled, attempting to access the portal again resets the user’s waiting period start time, making them wait longer for access – Useful to curtail abusers
  6. 6. Pass-Through MAC Auto Entry ● Useful for user self-registration style setups – Allows the portal admin to force a login just once, without requiring a login each and every time – Useful for networks that do not change often, but still require authenticating each device – Another potential use cases is WISP networks where knowing which user has a MAC is important, but repeated logins would be undesirable ● Cannot be combined with RADIUS MAC Authentication ● Will not show a logout pop-up or page ● To remove a user, manually remove them from the MAC tab, or setup a script to POST the proper parameters ● “… with username” option – The username is stored along with the MAC address in the pass-through entry

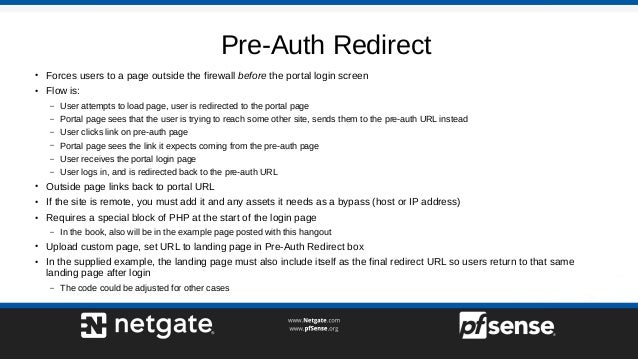

  7. 7. Pre-Auth Redirect ● Forces users to a page outside the firewall before the portal login screen ● Flow is: – User attempts to load page, user is redirected to the portal page – Portal page sees that the user is trying to reach some other site, sends them to the pre-auth URL instead – User clicks link on pre-auth page – Portal page sees the link it expects coming from the pre-auth page – User receives the portal login page – User logs in, and is redirected back to the pre-auth URL ● Outside page links back to portal URL ● If the site is remote, you must add it and any assets it needs as a bypass (host or IP address) ● Requires a special block of PHP at the start of the login page – In the book, also will be in the example page posted with this hangout ● Upload custom page, set URL to landing page in Pre-Auth Redirect box ● In the supplied example, the landing page must also include itself as the final redirect URL so users return to that same landing page after login – The code could be adjusted for other cases

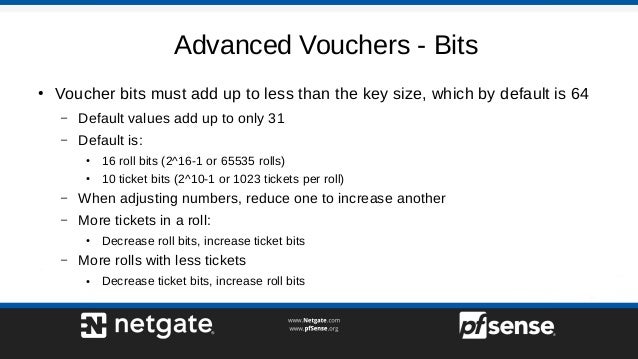

  8. 8. Advanced Vouchers - Bits ● Voucher bits must add up to less than the key size, which by default is 64 – Default values add up to only 31 – Default is: ● 16 roll bits (2^16-1 or 65535 rolls) ● 10 ticket bits (2^10-1 or 1023 tickets per roll) – When adjusting numbers, reduce one to increase another – More tickets in a roll: ● Decrease roll bits, increase ticket bits – More rolls with less tickets ● Decrease ticket bits, increase roll bits

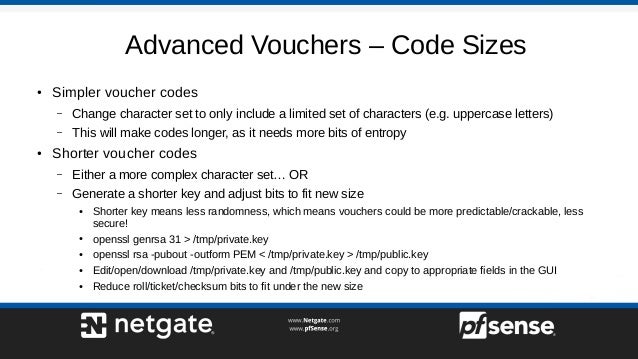

  9. 9. Advanced Vouchers – Code Sizes ● Simpler voucher codes – Change character set to only include a limited set of characters (e.g. uppercase letters) – This will make codes longer, as it needs more bits of entropy ● Shorter voucher codes – Either a more complex character set… OR – Generate a shorter key and adjust bits to fit new size ● Shorter key means less randomness, which means vouchers could be more predictable/crackable, less secure! ● openssl genrsa 31 > /tmp/private.key ● openssl rsa -pubout -outform PEM < /tmp/private.key > /tmp/public.key ● Edit/open/download /tmp/private.key and /tmp/public.key and copy to appropriate fields in the GUI ● Reduce roll/ticket/checksum bits to fit under the new size

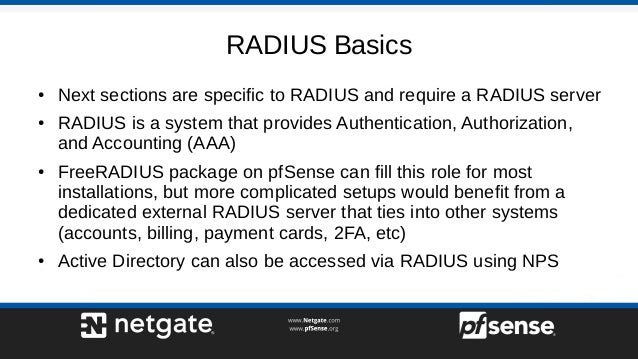

  10. 10. RADIUS Basics ● Next sections are specific to RADIUS and require a RADIUS server ● RADIUS is a system that provides Authentication, Authorization, and Accounting (AAA) ● FreeRADIUS package on pfSense can fill this role for most installations, but more complicated setups would benefit from a dedicated external RADIUS server that ties into other systems (accounts, billing, payment cards, 2FA, etc) ● Active Directory can also be accessed via RADIUS using NPS

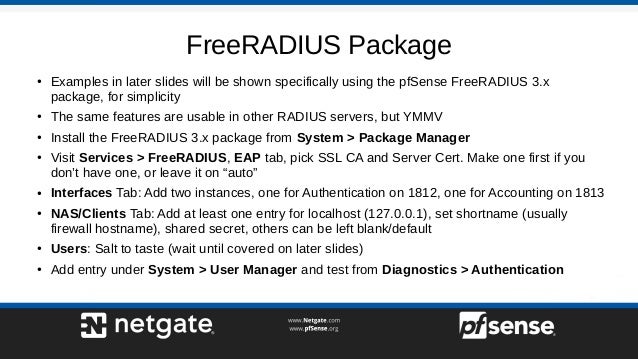

  11. 11. FreeRADIUS Package ● Examples in later slides will be shown specifically using the pfSense FreeRADIUS 3.x package, for simplicity ● The same features are usable in other RADIUS servers, but YMMV ● Install the FreeRADIUS 3.x package from System > Package Manager ● Visit Services > FreeRADIUS, EAP tab, pick SSL CA and Server Cert. Make one first if you don’t have one, or leave it on “auto” ● Interfaces Tab: Add two instances, one for Authentication on 1812, one for Accounting on 1813 ● NAS/Clients Tab: Add at least one entry for localhost (127.0.0.1), set shortname (usually firewall hostname), shared secret, others can be left blank/default ● Users: Salt to taste (wait until covered on later slides) ● Add entry under System > User Manager and test from Diagnostics > Authentication

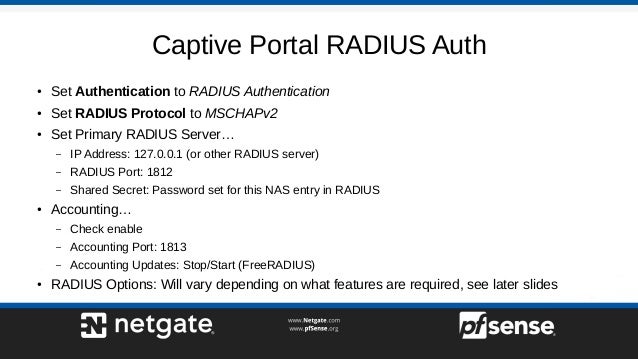

  12. 12. Captive Portal RADIUS Auth ● Set Authentication to RADIUS Authentication ● Set RADIUS Protocol to MSCHAPv2 ● Set Primary RADIUS Server… – IP Address: 127.0.0.1 (or other RADIUS server) – RADIUS Port: 1812 – Shared Secret: Password set for this NAS entry in RADIUS ● Accounting… – Check enable – Accounting Port: 1813 – Accounting Updates: Stop/Start (FreeRADIUS) ● RADIUS Options: Will vary depending on what features are required, see later slides

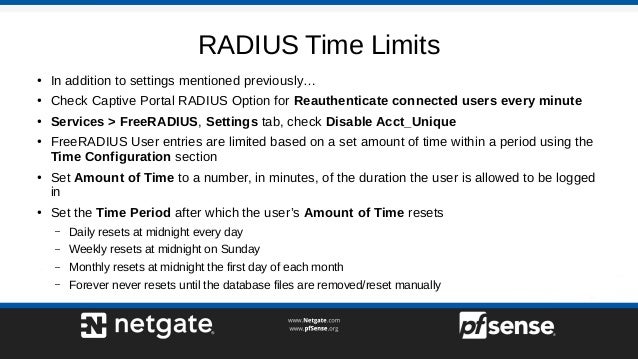

  13. 13. RADIUS Time Limits ● In addition to settings mentioned previously… ● Check Captive Portal RADIUS Option for Reauthenticate connected users every minute ● Services > FreeRADIUS, Settings tab, check Disable Acct_Unique ● FreeRADIUS User entries are limited based on a set amount of time within a period using the Time Configuration section ● Set Amount of Time to a number, in minutes, of the duration the user is allowed to be logged in ● Set the Time Period after which the user’s Amount of Time resets – Daily resets at midnight every day – Weekly resets at midnight on Sunday – Monthly resets at midnight the first day of each month – Forever never resets until the database files are removed/reset manually

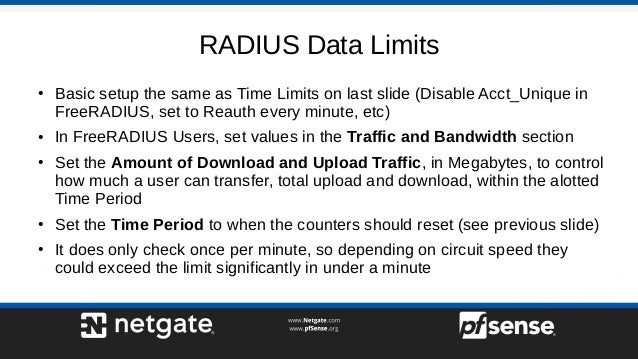

  14. 14. RADIUS Data Limits ● Basic setup the same as Time Limits on last slide (Disable Acct_Unique in FreeRADIUS, set to Reauth every minute, etc) ● In FreeRADIUS Users, set values in the Traffic and Bandwidth section ● Set the Amount of Download and Upload Traffic, in Megabytes, to control how much a user can transfer, total upload and download, within the alotted Time Period ● Set the Time Period to when the counters should reset (see previous slide) ● It does only check once per minute, so depending on circuit speed they could exceed the limit significantly in under a minute

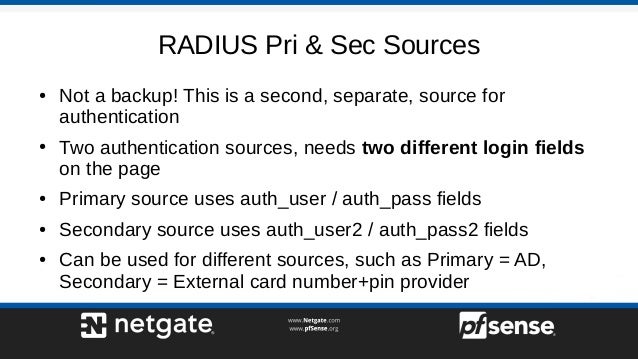

  15. 15. RADIUS Pri & Sec Sources ● Not a backup! This is a second, separate, source for authentication ● Two authentication sources, needs two different login fields on the page ● Primary source uses auth_user / auth_pass fields ● Secondary source uses auth_user2 / auth_pass2 fields ● Can be used for different sources, such as Primary = AD, Secondary = External card number+pin provider

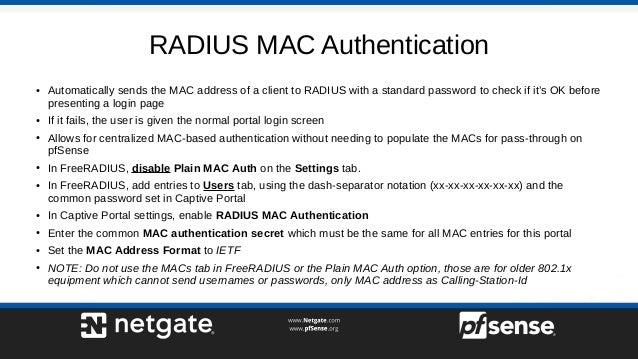

  16. 16. RADIUS MAC Authentication ● Automatically sends the MAC address of a client to RADIUS with a standard password to check if it’s OK before presenting a login page ● If it fails, the user is given the normal portal login screen ● Allows for centralized MAC-based authentication without needing to populate the MACs for pass-through on pfSense ● In FreeRADIUS, disable Plain MAC Auth on the Settings tab. ● In FreeRADIUS, add entries to Users tab, using the dash-separator notation (xx-xx-xx-xx-xx-xx) and the common password set in Captive Portal ● In Captive Portal settings, enable RADIUS MAC Authentication ● Enter the common MAC authentication secret which must be the same for all MAC entries for this portal ● Set the MAC Address Format to IETF ● NOTE: Do not use the MACs tab in FreeRADIUS or the Plain MAC Auth option, those are for older 802.1x equipment which cannot send usernames or passwords, only MAC address as Calling-Station-Id

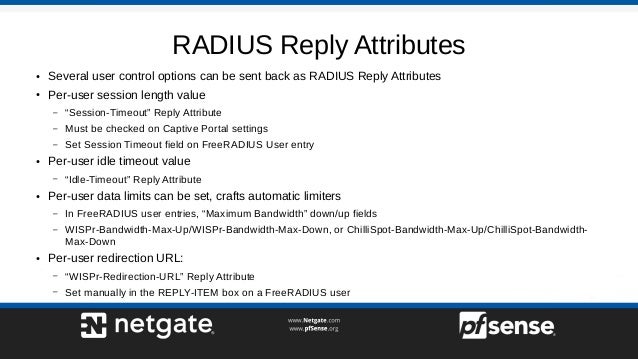

  17. 17. RADIUS Reply Attributes ● Several user control options can be sent back as RADIUS Reply Attributes ● Per-user session length value – “Session-Timeout” Reply Attribute – Must be checked on Captive Portal settings – Set Session Timeout field on FreeRADIUS User entry ● Per-user idle timeout value – “Idle-Timeout” Reply Attribute ● Per-user data limits can be set, crafts automatic limiters – In FreeRADIUS user entries, “Maximum Bandwidth” down/up fields – WISPr-Bandwidth-Max-Up/WISPr-Bandwidth-Max-Down, or ChilliSpot-Bandwidth-Max-Up/ChilliSpot-Bandwidth- Max-Down ● Per-user redirection URL: – “WISPr-Redirection-URL” Reply Attribute – Set manually in the REPLY-ITEM box on a FreeRADIUS user

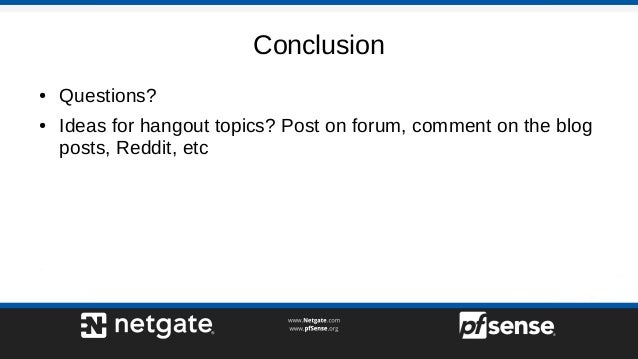

  18. 18. Conclusion ● Questions? ● Ideas for hangout topics? Post on forum, comment on the blog posts, Reddit, etc
