KuberNETes
Nathan Ness
Sr. Technical Product Manager,
VMware CNABU
nness@vmware.com
@nvpnathan
Agenda
1 Kubernetes Overview
2 Kubernetes Network Topologies
3 Kubernetes Services
4 Kubernetes Endpoints
5 A word on CNI
What is Kubernetes?
[1] http://kubernetes.io/docs/whatisk8s/ [0] http://static.googleusercontent.com/media/research.google...
Kubernetes Components
• API server: Target for all operations to the data model. External
API clients like the K8s CLI cli...
Kubernetes Components
• Kubelet: The Kubelet agent on the Nodes is watching for
‘PodSpecs’ to determine what it is suppose...
Kubernetes Cluster
• Cluster that is built to run container workloads
• Made up of a Kubernetes Master and a number of wor...
Kubernetes Pod
Pod
pause container
(‘owns’ the IP stack)
10.24.0.0/16
10.24.0.2
nginx
tcp/80
mgmt
tcp/22
logging
udp/514
•...
Node Wiring
Node Wiring
Node
int
eth0
10.240.0.3
int
cbr0
10.24.1.1/24
10.24.1.4
vethzz
10.24.1.2
vethxx
10.24.1.3
vethyy
• IaaS Netwo...
Kubernetes Network Toplogies
Node 2int
eth0
10.240.0.4
int
cbr0
10.24.2.1/24
10.24.2.2 10.24.2.3 10.24.2.4
Kubernetes Networking Topologies
Flat routed...
Another way to look at the cluster
• Physical routing required for each worker node’s CIDR Block
• Advertised across the p...
Kubernetes Networking Topologies
Node-to-Node overlay topology
Nodeint
eth0
10.240.0.4
int
cbr0
10.24.2.1/24
10.24.2.2 10....
Pod Traffic Flows
Pod intra-node communication
Node
int
eth0
10.240.0.3
int
cbr0
10.24.1.1/24
10.24.1.4
vethzz
10.24.1.2
vethxx
10.24.1.3
ve...
Node 2int
eth0
10.240.0.4
int
cbr0
10.24.2.1/24
10.24.2.2 10.24.2.3 10.24.2.4
ip route 10.24.1.0/24 10.240.0.3
ip route 10...
Pod to Pod across Nodes
Node-to-Node overlay topology
Node 2int
eth0
10.240.0.4
int
cbr0
10.24.2.1/24
10.24.2.2 10.24.2.3 ...
Kubernetes Services
Kubernetes Service
▶ kubectl describe svc redis-slave
Name: redis-slave
Namespace: default
Labels: name=redis-slave
Select...
Kubernetes N/S Load-Balancing
• N/S Load-Balancing: Can be achieved using various solutions in
K8s, this includes:
• K8s S...
A word on CNI
Kubernetes NSX Topology
Namespace: foo Namespace: bar
NSX/ K8s topology
• Namespaces: We are dynamically building a separa...
Q&A
Upcoming SlideShare
Loading in …5
×

KuberNETes - meetup

1,218 views

Published on

Containers require a new approach to networking. How are your containers communicating with each other? This talk will go through the different network topologies of Kubernetes. How Kubernetes addresses networking compared to traditional physical networking concepts. What are your options for networking using Kubernetes. What is the CNI (Container Network Interface) and how it affects Kubernetes networking.

Published in: Technology
  • Be the first to comment

  • Be the first to like this

KuberNETes - meetup

  1. 1. KuberNETes Nathan Ness Sr. Technical Product Manager, VMware CNABU nness@vmware.com @nvpnathan

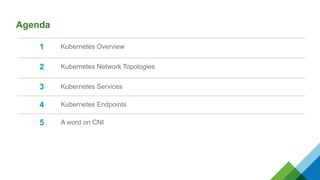

  2. 2. Agenda 1 Kubernetes Overview 2 Kubernetes Network Topologies 3 Kubernetes Services 4 Kubernetes Endpoints 5 A word on CNI

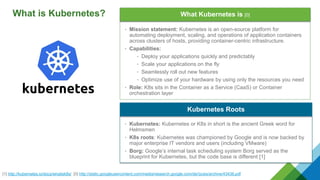

  3. 3. What is Kubernetes? [1] http://kubernetes.io/docs/whatisk8s/ [0] http://static.googleusercontent.com/media/research.google.com/de//pubs/archive/43438.pdf • Kubernetes: Kubernetes or K8s in short is the ancient Greek word for Helmsmen • K8s roots: Kubernetes was championed by Google and is now backed by major enterprise IT vendors and users (including VMware) • Borg: Google’s internal task scheduling system Borg served as the blueprint for Kubernetes, but the code base is different [1] Kubernetes Roots • Mission statement: Kubernetes is an open-source platform for automating deployment, scaling, and operations of application containers across clusters of hosts, providing container-centric infrastructure. • Capabilities: • Deploy your applications quickly and predictably • Scale your applications on the fly • Seamlessly roll out new features • Optimize use of your hardware by using only the resources you need • Role: K8s sits in the Container as a Service (CaaS) or Container orchestration layer What Kubernetes is [0]

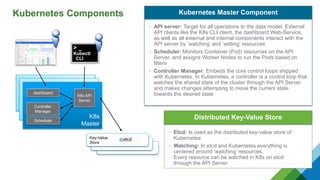

  4. 4. Kubernetes Components • API server: Target for all operations to the data model. External API clients like the K8s CLI client, the dashboard Web-Service, as well as all external and internal components interact with the API server by ’watching’ and ‘setting’ resources • Scheduler: Monitors Container (Pod) resources on the API Server, and assigns Worker Nodes to run the Pods based on filters • Controller Manager: Embeds the core control loops shipped with Kubernetes. In Kubernetes, a controller is a control loop that watches the shared state of the cluster through the API Server and makes changes attempting to move the current state towards the desired state Kubernetes Master Component • Etcd: Is used as the distributed key-value store of Kubernetes • Watching: In etcd and Kubernetes everything is centered around ‘watching’ resources. Every resource can be watched in K8s on etcd through the API Server Distributed Key-Value Store K8s master K8s master K8s Master Controller Manager K8s API Server > _ Kubectl CLI Key-Value Store dashboard Scheduler

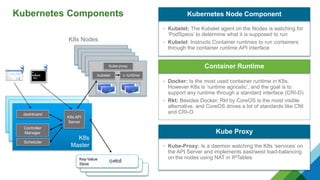

  5. 5. Kubernetes Components • Kubelet: The Kubelet agent on the Nodes is watching for ‘PodSpecs’ to determine what it is supposed to run • Kubelet: Instructs Container runtimes to run containers through the container runtime API interface Kubernetes Node Component • Docker: Is the most used container runtime in K8s. However K8s is ‘runtime agnostic’, and the goal is to support any runtime through a standard interface (CRI-O) • Rkt: Besides Docker, Rkt by CoreOS is the most visible alternative, and CoreOS drives a lot of standards like CNI and CRI-O Container Runtime K8s master K8s master K8s Master Controller Manager K8s API Server Key-Value Store dashboard Scheduler K8s node K8s node K8s node K8s node K8s Nodes kubelet c runtime Kube-proxy > _ Kubectl CLI • Kube-Proxy: Is a daemon watching the K8s ‘services’ on the API Server and implements east/west load-balancing on the nodes using NAT in IPTables Kube Proxy

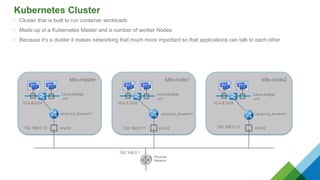

  6. 6. Kubernetes Cluster • Cluster that is built to run container workloads • Made up of a Kubernetes Master and a number of worker Nodes • Because it’s a cluster it makes networking that much more important so that applications can talk to each other k8s-master k8s-node1 k8s-node2 ens32 ens32 ens32192.168.0.10 192.168.0.11 192.168.0.12 net.ipv4.ip_forward=1 net.ipv4.ip_forward=1 net.ipv4.ip_forward=1 Physical Network 192.168.0.1 Linux-bridge ‚cni‘ 10.4.0.0/24 Linux-bridge ‚cni‘ 10.4.1.0/24 10.4.2.0/24 Linux-bridge ‚cni‘

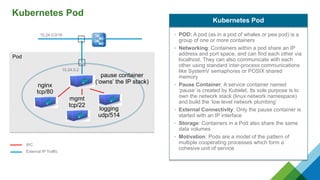

  7. 7. Kubernetes Pod Pod pause container (‘owns’ the IP stack) 10.24.0.0/16 10.24.0.2 nginx tcp/80 mgmt tcp/22 logging udp/514 • POD: A pod (as in a pod of whales or pea pod) is a group of one or more containers • Networking: Containers within a pod share an IP address and port space, and can find each other via localhost. They can also communicate with each other using standard inter-process communications like SystemV semaphores or POSIX shared memory • Pause Container: A service container named ‘pause’ is created by Kubelet. Its sole purpose is to own the network stack (linux network namespace) and build the ‘low level network plumbing’ • External Connectivity: Only the pause container is started with an IP interface • Storage: Containers in a Pod also share the same data volumes • Motivation: Pods are a model of the pattern of multiple cooperating processes which form a cohesive unit of service Kubernetes Pod IPC External IP Traffic
  8. 8. Node Wiring

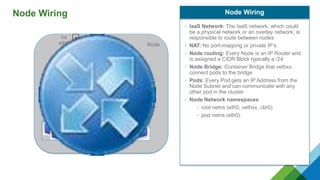

  9. 9. Node Wiring Node int eth0 10.240.0.3 int cbr0 10.24.1.1/24 10.24.1.4 vethzz 10.24.1.2 vethxx 10.24.1.3 vethyy • IaaS Network: The IaaS network, which could be a physical network or an overlay network, is responsible to route between nodes • NAT: No port-mapping or private IP’s. • Node routing: Every Node is an IP Router and is assigned a CIDR Block typically a /24 • Node Bridge: Container Bridge that vethxx connect pods to the bridge • Pods: Every Pod gets an IP Address from the Node Subnet and can communicate with any other pod in the cluster • Node Network namespaces • root netns (eth0, vethxx, cbr0) • pod netns (eth0) Node Wiring
  10. 10. Kubernetes Network Toplogies

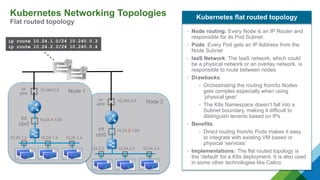

  11. 11. Node 2int eth0 10.240.0.4 int cbr0 10.24.2.1/24 10.24.2.2 10.24.2.3 10.24.2.4 Kubernetes Networking Topologies Flat routed topology ip route 10.24.1.0/24 10.240.0.3 ip route 10.24.2.0/24 10.240.0.4 • Node routing: Every Node is an IP Router and responsible for its Pod Subnet • Pods: Every Pod gets an IP Address from the Node Subnet • IaaS Network: The IaaS network, which could be a physical network or an overlay network, is responsible to route between nodes • Drawbacks: • Orchestrating the routing from/to Nodes gets complex especially when using ‘physical gear’ • The K8s Namespace doesn’t fall into a Subnet boundary, making it difficult to distinguish tenants based on IPs • Benefits: • Direct routing from/to Pods makes it easy to integrate with existing VM based or physical ‘services’ • Implementations: The flat routed topology is the ‘default’ for a K8s deployment. It is also used in some other technologies like Calico. Kubernetes flat routed topology Node 1int eth0 10.240.0.3 int cbr0 10.24.1.1/24 10.24.1.2 10.24.1.3 10.24.1.4

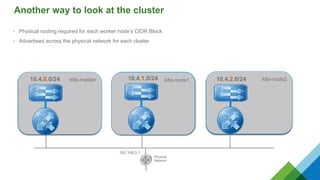

  12. 12. Another way to look at the cluster • Physical routing required for each worker node’s CIDR Block • Advertised across the physical network for each cluster k8s-master k8s-node1 k8s-node2 ens32 ens32 ens32192.168.0.10 192.168.0.11 192.168.0.12 net.ipv4.ip_forward=1 net.ipv4.ip_forward=1 net.ipv4.ip_forward=1 Physical Network 192.168.0.1 Linux-bridge ‚cni‘ 10.4.0.0/24 Linux-bridge ‚cni‘ 10.4.1.0/24 10.4.2.0/24 Linux-bridge ‚cni‘ k8s-master k8s-node1 k8s-node210.4.0.0/24 10.4.2.0/2410.4.1.0/24

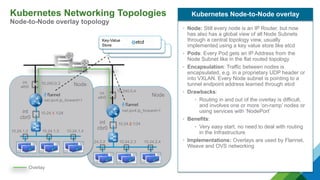

  13. 13. Kubernetes Networking Topologies Node-to-Node overlay topology Nodeint eth0 10.240.0.4 int cbr0 10.24.2.1/24 10.24.2.2 10.24.2.3 10.24.2.4 Nodeint eth0 10.240.0.3 int cbr0 10.24.1.1/24 10.24.1.2 10.24.1.3 10.24.1.4 net.ipv4.ip_forward=1 net.ipv4.ip_forward=1 Overlay • Node: Still every node is an IP Router, but now has also has a global view of all Node Subnets through a central topology view, usually implemented using a key value store like etcd • Pods: Every Pod gets an IP Address from the Node Subnet like in the flat routed topology • Encapsulation: Traffic between nodes is encapsulated, e.g. in a proprietary UDP header or into VXLAN. Every Node subnet is pointing to a tunnel endpoint address learned through etcd • Drawbacks: • Routing in and out of the overlay is difficult, and involves one or more ‘on-ramp’ nodes or using services with ‘NodePort’ • Benefits: • Very easy start, no need to deal with routing in the Infrastructure • Implementations: Overlays are used by Flannel, Weave and OVS networking Kubernetes Node-to-Node overlay Key-Value Store
  14. 14. Pod Traffic Flows

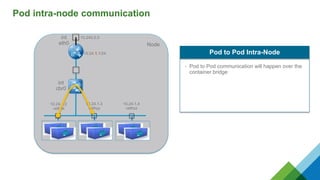

  15. 15. Pod intra-node communication Node int eth0 10.240.0.3 int cbr0 10.24.1.1/24 10.24.1.4 vethzz 10.24.1.2 vethxx 10.24.1.3 vethyy • Pod to Pod communication will happen over the container bridge Pod to Pod Intra-Node

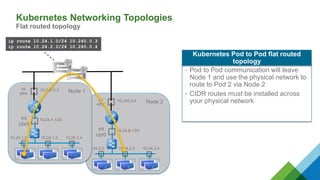

  16. 16. Node 2int eth0 10.240.0.4 int cbr0 10.24.2.1/24 10.24.2.2 10.24.2.3 10.24.2.4 ip route 10.24.1.0/24 10.240.0.3 ip route 10.24.2.0/24 10.240.0.4 Kubernetes Pod to Pod flat routed topology Node 1int eth0 10.240.0.3 int cbr0 10.24.1.1/24 10.24.1.2 10.24.1.3 10.24.1.4 Kubernetes Networking Topologies Flat routed topology • Pod to Pod communication will leave Node 1 and use the physical network to route to Pod 2 via Node 2 • CIDR routes must be installed across your physical network

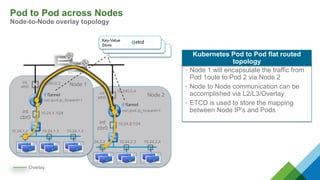

  17. 17. Pod to Pod across Nodes Node-to-Node overlay topology Node 2int eth0 10.240.0.4 int cbr0 10.24.2.1/24 10.24.2.2 10.24.2.3 10.24.2.4 Node 1int eth0 10.240.0.3 int cbr0 10.24.1.1/24 10.24.1.2 10.24.1.3 10.24.1.4 net.ipv4.ip_forward=1 net.ipv4.ip_forward=1 Overlay Key-Value Store Kubernetes Pod to Pod flat routed topology • Node 1 will encapsulate the traffic from Pod 1oute to Pod 2 via Node 2 • Node to Node communication can be accomplished via L2/L3/Overlay • ETCD is used to store the mapping between Node IP’s and Pods
  18. 18. Kubernetes Services

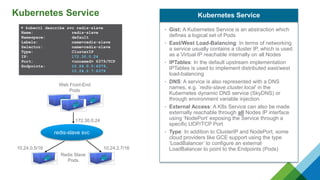

  19. 19. Kubernetes Service ▶ kubectl describe svc redis-slave Name: redis-slave Namespace: default Labels: name=redis-slave Selector: name=redis-slave Type: ClusterIP IP: 172.30.0.24 Port: <unnamed> 6379/TCP Endpoints: 10.24.0.5:6379, 10.24.2.7:6379 Redis Slave Pods redis-slave svc 10.24.0.5/16 10.24.2.7/16 172.30.0.24 • Gist: A Kubernetes Service is an abstraction which defines a logical set of Pods • East/West Load-Balancing: In terms of networking a service usually contains a cluster IP, which is used as a Virtual IP reachable internally on all Nodes • IPTables: In the default upstream implementation IPTables is used to implement distributed east/west load-balancing • DNS: A service is also represented with a DNS names, e.g. ’redis-slave.cluster.local’ in the Kubernetes dynamic DNS service (SkyDNS) or through environment variable injection • External Access: A K8s Service can also be made externally reachable through all Nodes IP interface using ‘NodePort’ exposing the Service through a specific UDP/TCP Port • Type: In addition to ClusterIP and NodePort, some cloud providers like GCE support using the type ‘LoadBalancer’ to configure an external LoadBalancer to point to the Endpoints (Pods) Kubernetes Service Web Front-End Pods

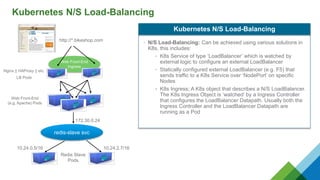

  20. 20. Kubernetes N/S Load-Balancing • N/S Load-Balancing: Can be achieved using various solutions in K8s, this includes: • K8s Service of type ‘LoadBalancer’ which is watched by external logic to configure an external LoadBalancer • Statically configured external LoadBalancer (e.g. F5) that sends traffic to a K8s Service over ‘NodePort’ on specific Nodes • K8s Ingress; A K8s object that describes a N/S LoadBalancer. The K8s Ingress Object is ’watched’ by a Ingress Controller that configures the LoadBalancer Datapath. Usually both the Ingress Controller and the LoadBalancer Datapath are running as a Pod Kubernetes N/S Load-Balancing Redis Slave Pods redis-slave svc 10.24.0.5/16 10.24.2.7/16 172.30.0.24 Web Front-End (e.g. Apache) Pods Web Front-End Ingress Nginx || HAProxy || etc. LB Pods http://*.bikeshop.com
  21. 21. A word on CNI

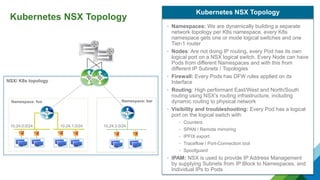

  22. 22. Kubernetes NSX Topology Namespace: foo Namespace: bar NSX/ K8s topology • Namespaces: We are dynamically building a separate network topology per K8s namespace, every K8s namespace gets one or mode logical switches and one Tier-1 router • Nodes: Are not doing IP routing, every Pod has its own logical port on a NSX logical switch. Every Node can have Pods from different Namespaces and with this from different IP Subnets / Topologies • Firewall: Every Pods has DFW rules applied on its Interface • Routing: High performant East/West and North/South routing using NSX’s routing infrastructure, including dynamic routing to physical network • Visibility and troubleshooting: Every Pod has a logical port on the logical switch with: • Counters • SPAN / Remote mirroring • IPFIX export • Traceflow / Port-Connection tool • Spoofguard • IPAM: NSX is used to provide IP Address Management by supplying Subnets from IP Block to Namespaces, and Individual IPs to Pods Kubernetes NSX Topology 10.24.0.0/24 10.24.1.0/24 10.24.3.0/24
  23. 23. Q&A

×
