Linux Disaster Recovery
Made Easy


Schlomo Schapiro                             Jeff Lindholm
Systems Architect / Open So...
Agenda

      Linux and disaster recovery

      Solutions: relax and recover

      Secure disaster recovery for enterpri...
Linux and Disaster Recovery
Disaster Recovery Strategies

    Copy Files and Store Disk             Disk Imaging
    Layout and Boot Info


         +...
Advantages of a Linux System


       All information is stored in files; all files always readable

       Operation syst...
Disaster Recovery – Media

    •   Most important: external storage!
    •   Bootable media: CD/DVD, USB key, LAN, tape .....
Disaster Recovery – How It Works

    •   Store the disk layout
         –   Partitioning, LVM and RAID configuration
    ...
Disaster Recovery – Rescue Media

    •   Create “rescue linux” from running system
    •   Optimally compatible “tool box...
Disaster Recovery – In Action

    •   Boot system from rescue media
    •   Restore disk layout
         –   Create parti...
Solutions: Relax and Recover
Commercial Solutions

     •   Usually part of backup software
     •   Extra licenses and can be costly (up to 1000€ / se...
Open Source Solutions

     •   Several software projects on the internet:
          –   Relax and recover
          –   m...
Relax and Recover – ReaR

         http://rear.sourceforge.net
     •   GPL Software – Developers in Germany and Belgium
 ...
ReaR – Features

     •   Focus on disaster recovery and not backup
     •   Tight integration with common backup software...
ReaR – Backup Software

     •   Supported solutions include:
          –   CommVault Galaxy
          –   IBM Tivoli Stor...
ReaR – Network Integration

     •   Disaster recovery as part of network infrastructure
          –   Backup software – f...
ReaR – Status

     •   Stable software
          –   i386 and x86_64 well tested
          –   ia64 and ppc experimental
...
ReaR - Development

     •   Open Source development model:
          –   Submit patches and feedback – “field testing”
  ...
ReaR – Configuration

     •   Shell-script style configuration file
     •   Usually: Set backup software and boot media
...
ReaR – Operation

     rear [Options] <command> [command options ...]
     Relax & Recover Version 1.7.23.2 / 2010-03-19
 ...
ReaR – Operation (continued)

     List of commands:
     dump             Dump configuration and system information
     ...
ReaR – Example Configuration

     # cat /etc/rear/local.conf

     OUTPUT=ISO

     #BACKUP=TSM|NBU|DP|GALAXY|EXTERNAL|.....
ReaR – Example Execution
     # rear mkbackup
     Relax & Recover Version 1.7.23.2 / 2010-03-19
     The preparation phas...
ReaR – Disk Layout
     # df -h
     Filesystem                   Size Used Avail Use% Mounted on
     /dev/mapper/system-...
ReaR – Disk Layout

     # pvs
       PV      VG Fmt Attr PSize PFree
      /dev/sda3 system lvm2 a- 3,21G 0
      /dev/sd...
ReaR – Recovery Example

     # rear recover
     Relax & Recover Version 1.7.23.2 / 2010-03-19
     Backup archive size i...
ReaR – Recovery Example (continued)

     Restoring the bootloader (SuSE style)
     Creating swap files and partitions OK...
ReaR – Vision

     •   Do more than just disaster recovery
          –   System cloning and provisioning
          –   Sy...
Secure Disaster Recovery
 Enterprise Environments
Enterprise DR – Requirements

       Standardization
       Scalability
       Automation
       Integration in existing s...
Enterprise DR – Relax and Recover

     •   Standardization through global configuration:
          –   /etc/rear/site.con...
Enterprise DR – Relax and Recover

     •   Security considerations
          –   No “secret” data in rescue media
       ...
Security Aspects – Disaster Recovery

      Backup server                                                  DR boot server
...
Enterprise Linux Disaster Recovery

     •   Linux – Simple Disaster Recovery
     •   Integration: Disaster recovery – ba...
SUSE Linux Enterprise High Availability
     ®



     Extension 11 Service Pack 11 –
        ReaR Availability and Support
SUSE Linux Enterprise
                     ®




     Modular Portfolio

                                           SUSE L...
SUSE Linux Enterprise High Availability Extension 11
                    ®




     Key Features
     •   Flexible, policy...
SUSE Linux Enterprise High Availability Extension 11
                    ®




     Differentiators
     •   Affordable
  ...
SUSE Linux Enterprise High Availability Extension 11
                    ®




     New Features/Enhancements SP1
     Rea...
SUSE Linux Enterprise High Availability Extension 11
                    ®




     More Information - SP1
     For more i...
Live Demo/Use Cases
Relax and Recover – Live Demo

     Demo (~10 min):
     •   SUSE Linux      ®



         Enterprise High
         Availa...
Questions and Answers
Unpublished Work of Novell, Inc. All Rights Reserved.
This work is an unpublished work and contains confidential, propriet...
Linux Disaster Recovery Made Easy
Upcoming SlideShare
Loading in …5
×

Linux Disaster Recovery Made Easy

7,976 views

Published on

Relax and Recover (ReaR) is an open source bare metal disaster recovery solution for Linux (http://rear.sf.net). This session will introduce you to advanced Linux disaster recovery concepts and will feature a live demonstration on how to automatically recover a failed system with ReaR. Finally, this session will cover common best practice usage scenarios of ReaR and introduce you to basic setup and configuration for ReaR.

0 Comments
5 Likes
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
7,976
On SlideShare
0
From Embeds
0
Number of Embeds
33
Actions
Shares
0
Downloads
290
Comments
0
Likes
5
Embeds 0
No embeds

No notes for slide

Linux Disaster Recovery Made Easy

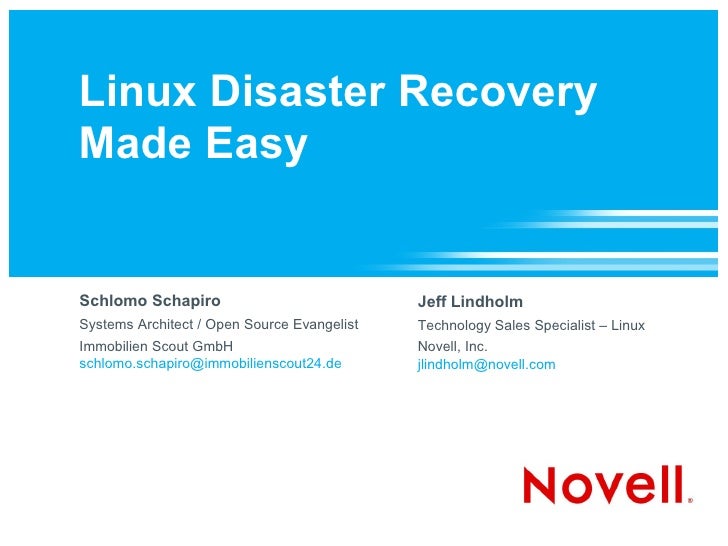

  1. 1. Linux Disaster Recovery Made Easy Schlomo Schapiro Jeff Lindholm Systems Architect / Open Source Evangelist Technology Sales Specialist – Linux Immobilien Scout GmbH Novell, Inc. schlomo.schapiro@immobilienscout24.de jlindholm@novell.com
