Distributed Firewall (DFW)
Mike Svoboda
Sr. Staff Engineer, Production Infrastructure Engineering
LinkedIn: https://www.li...
Agenda for today’s discussion
Slides
5-8
Problem 1: Moving machines around in the datacenter
to create a DMZ
Slides
11-29
...

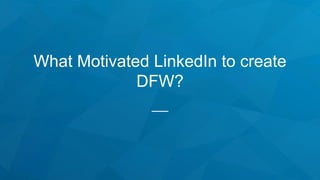

What Motivated LinkedIn to create
DFW?
Problem 1:
Moving machines around in the
datacenter to create DMZ
Script Kiddie Hacking: Easy network attack vectors
• Port Scanning – What is the remote device responding to?
• Enumeratio...

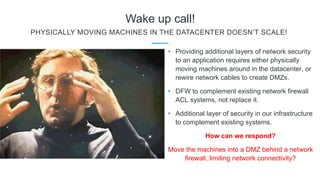

Wake up call!
PHYSICALLY MOVING MACHINES IN THE DATACENTER DOESN’T SCALE!
• Providing additional layers of network securit...
Production Network Security
TREAT THE PRODUCTION NETWORK AS IF IT’S THE PUBLIC INTERNET.

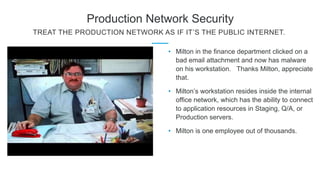

• Milton in the finance departmen...
Production Network Security
TREAT THE PRODUCTION NETWORK AS IF IT’S THE PUBLIC INTERNET.

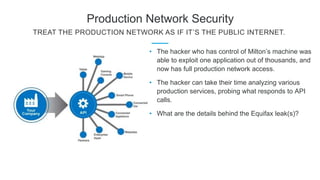

• The hacker who has control of M...
Problem 2:
Horizontal vs. Vertical Network Design

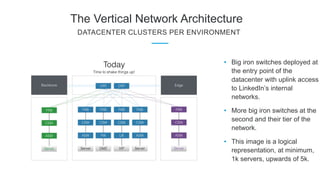

The Vertical Network Architecture
• Big iron switches deployed at
the entry point of the
datacenter with uplink access
to ...
The Vertical Network Architecture
• Each packet between environments has to flow through
thousands of rules before hitting...

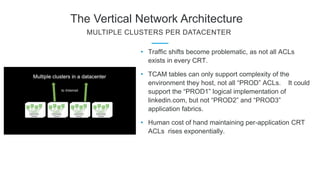

The Vertical Network Architecture
• Traffic shifts become problematic, as not all ACLs
exists in every CRT.
• TCAM tables ...
The Horizontal Network Architecture

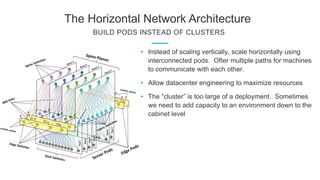

• Instead of scaling vertically, scale horizontally using
interconnected pods. Ofter m...
1

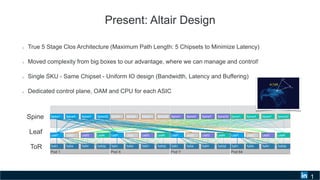

Present: Altair Design
Pod 1
ToRX ToR32ToRYToR1
Pod X
ToRX ToR32ToRYToR1
Pod Y
ToRX ToR32ToRYToR1
Pod 64
ToRX ToR32ToRYT...

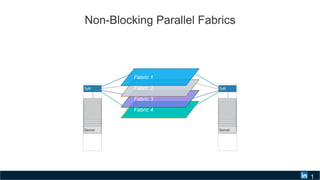

Non-Blocking Parallel Fabrics
1
Fabric 4
Fabric 3
Fabric 2
Fabric 1
ToR
ServerServerServerServerServerServerServerServerSe...
1

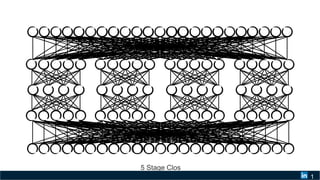

5 Stage Clos
1
ToR
1
ToR

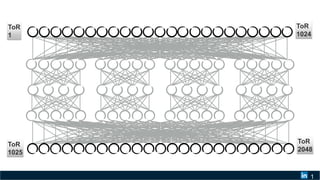

1025
ToR
1024
ToR
2048
1
Leaf
1
Leaf
256
Leaf
128
Leaf
129

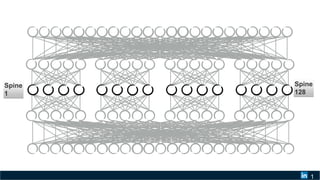

1
Spine
1
Spine
128

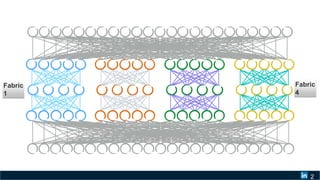

2
Fabric
1
Fabric
4
2
Fabric
1
Fabric
4
2
ToR
1
ToR
1025
ToR
1024
ToR
2048
Leaf
1
Leaf
256
Leaf
128
Leaf
129
Fabric
1
Fabric
4

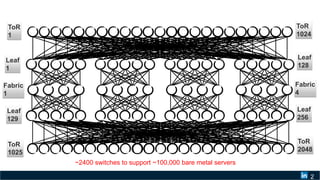

~2400 switches to support ~100,000 ...

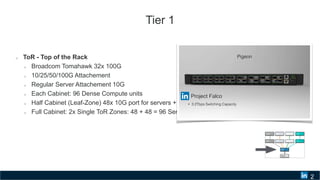

Tier 1
ToR - Top of the Rack
Broadcom Tomahawk 32x 100G
10/25/50/100G Attachement
Regular Server Attachement 10G
Each Cabi...

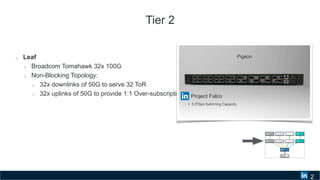

Tier 2
Leaf
Broadcom Tomahawk 32x 100G
Non-Blocking Topology:
32x downlinks of 50G to serve 32 ToR
32x uplinks of 50G to p...

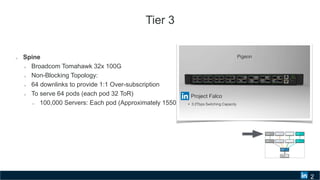

Tier 3
Spine
Broadcom Tomahawk 32x 100G
Non-Blocking Topology:
64 downlinks to provide 1:1 Over-subscription
To serve 64 p...
2

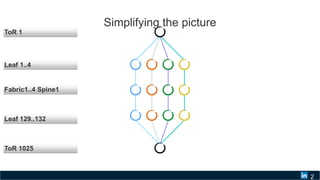

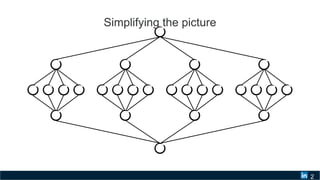

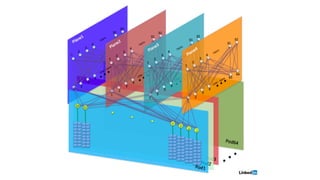

Simplifying the picture
2
Simplifying the picture
Fabric1..4 Spine1
Leaf 129..132
ToR 1025
Leaf 1..4
ToR 1
Where do we put the Firewall in this architecture?

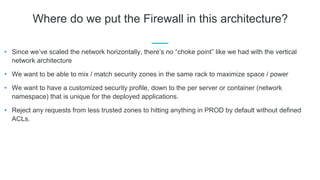

• Since we’ve scaled the network horizontally, there’s no “choke point”...
What is Distributed Firewall (DFW)?
What is DFW?
• Software Defined Networking (SDN)
• The applications deployed to the machine / container create a unique se...

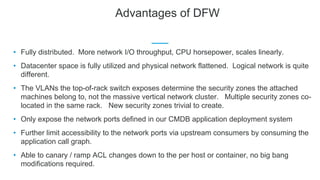

Advantages of DFW
• Fully distributed. More network I/O throughput, CPU horsepower, scales linearly.
• Datacenter space is...
Advantages of DFW

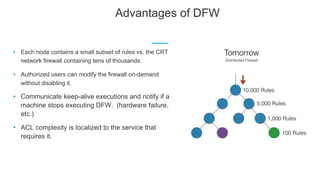

• Each node contains a small subset of rules vs. the CRT
network firewall containing tens of thousands.
...

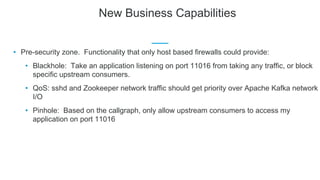

New Business Capabilities
• Pre-security zone. Functionality that only host based firewalls could provide:
• Blackhole: Ta...

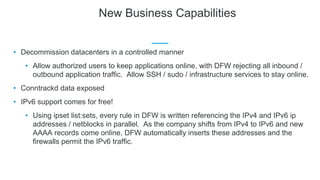

New Business Capabilities
• Decommission datacenters in a controlled manner
• Allow authorized users to keep applications ...
ACLDB
• Centralized database that feeds sources
of truth by scraping CMDB and delivers
JSON data containers to each machin...
High Level Architecture

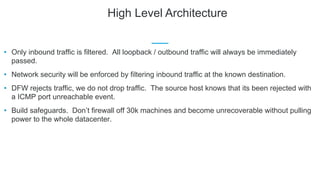

• Only inbound traffic is filtered. All loopback / outbound traffic will always be immediately
pas...
High Level Architecture
• Pre-security zone: Functionalities referenced on “new business capabilities slide”
• Security zo...
DFW is stateless. Precompute the ruleset, every execution
• Every execution of DFW builds the iptables / ipset configurati...

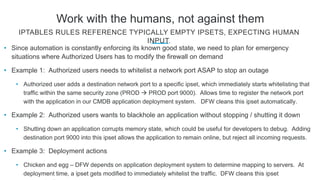

Work with the humans, not against them
• Since automation is constantly enforcing its known good state, we need to plan fo...
References:
• Altair Network Design: https://www.slideshare.net/shawnzandi/linkedin-openfabric-project-
interop-2017
• Eng...

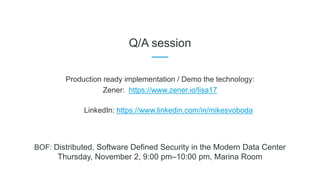

Q/A session
