Gerrit User Summit 2019 Softagram dependency visualization

Gerrit User Summit 2019 Softagram dependency visualization

Download to read offline

Slides from my presentation at the Gerrit User Summit 2019 in Gothenburg, Sweden, where I showed how Softagram's automated patch set analysis can make code review easier and more enjoyable by visualizing dependency relations, pointing out impact areas, and more.

Slides from my presentation at the Gerrit User Summit 2019 in Gothenburg, Sweden, where I showed how Softagram's automated patch set analysis can make code review easier and more enjoyable by visualizing dependency relations, pointing out impact areas, and more.

More Related Content

Related Books

Free with a 30 day trial from Scribd

See all

Related Audiobooks

Free with a 30 day trial from Scribd

See all

Gerrit User Summit 2019 Softagram dependency visualization

  1. 1. Gerrit User Summit 2019 29-30 August Gothenburg, Sweden

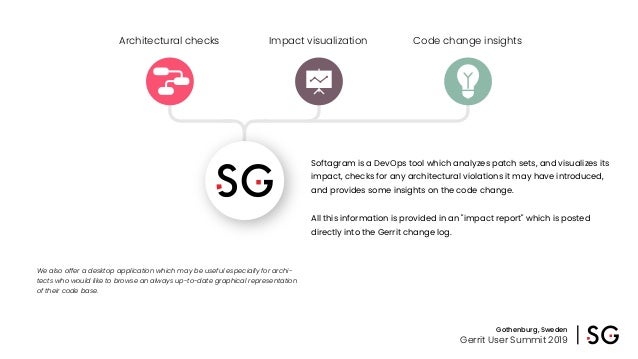

  2. 2. Impact visualizationArchitectural checks Code change insights Gerrit User Summit 2019 Gothenburg, Sweden Softagram is a DevOps tool which analyzes patch sets, and visualizes its impact, checks for any architectural violations it may have introduced, and provides some insights on the code change. We also offer a desktop application which may be useful especially for archi- tects who would like to browse an always up-to-date graphical representation of their code base. All this information is provided in an "impact report" which is posted directly into the Gerrit change log.
  3. 3. Gerrit User Summit 2019 Gothenburg, Sweden code review events each day Roughly 100 Million pull request created yearly based on GitHub/Bitbucket One of our core values at Softagram is maintaining a good balance between work and personal life. As developers it's easy to see how fragile this balance can be - and how can it not be fragile, when there are over 1 million code review events worldwide each day?

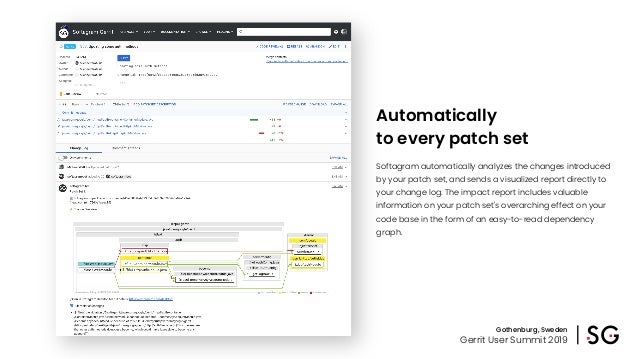

  4. 4. Gerrit User Summit 2019 Gothenburg, Sweden Automatically to every patch set Softagram automatically analyzes the changes introduced by your patch set, and sends a visualized report directly to your change log. The impact report includes valuable information on your patch set's overarching effect on your code base in the form of an easy-to-read dependency graph.

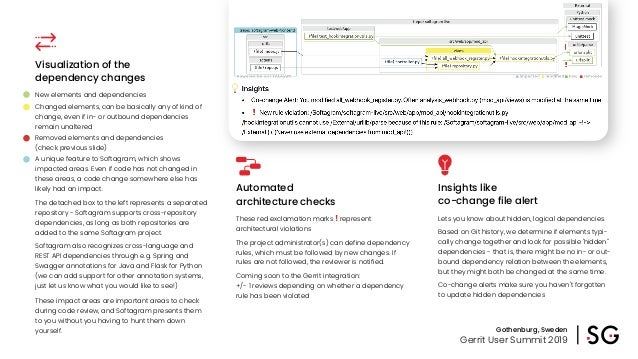

  5. 5. Gerrit User Summit 2019 Gothenburg, Sweden Automated architecture checks These red exclamation marks ! represent architectural violations The project administrator(s) can define dependency rules, which must be followed by new changes. If rules are not followed, the reviewer is notified. Insights like co-change file alert Based on Git history, we determine if elements typi- cally change together and look for possible 'hidden" dependencies - that is, there might be no in- or out- bound dependency relation between the elements, but they might both be changed at the same time. Co-change alerts make sure you haven't forgotten to update hidden dependencies Lets you know about hidden, logical dependencies. Coming soon to the Gerrit integration: +/- 1 reviews depending on whether a dependency rule has been violated Visualization of the dependency changes New elements and dependencies Changed elements, can be basically any of kind of change, even if in- or outbound dependencies remain unaltered A unique feature to Softagram, which shows impacted areas. Even if code has not changed in these areas, a code change somewhere else has likely had an impact. The detached box to the left represents a separated repository - Softagram supports cross-repository dependencies, as long as both repositories are added to the same Softagram project. Softagram also recognizes cross-language and REST API dependencies through e.g. Spring and Swagger annotations for Java and Flask for Python (we can add support for other annotation systems, just let us know what you would like to see!) These impact areas are important areas to check during code review, and Softagram presents them to you without you having to hunt them down yourself. Removed elements and dependencies (check previous slide)
  6. 6. Gerrit User Summit 2019 Gothenburg, Sweden What this could mean for your organization? Maybe you're at a company with 100 developers could easily have 1000-2000 code review events each month. Or maybe you're part of a smaller team with only a few developers, but everyone needs to do some code review for each other, without anyone being able to dedicate large portions of time to review. Either way, Softagram allows your team to put more focus on development and maintaining your release cycle, without having to compromise on your product's quality or on their personal lives, which keeps your developers happy. "Great milk comes from happy cows, and great code comes from happy developers"
  7. 7. Michael Watkins michael.watkins@softagram.com Softagram Open Source As a friend of the open-source community, we are proud to offer free automated impact reports for open-source projects at no charge. There is currently no open registration for our open-source ser- vice, but if you would like to enable impact reports for your project, contact us at support@softagram.com and we will help you get started. Softagram Cloud & Entreprise Try out Softagram Cloud for free at softagram.com. If you would like to trial our on-premises enterprise solution, please contact us at support@softagram.com.

×
