VoIP based project presentation - IICT University of Sindh Jamshoro Pakistan

  1. 1. Welcome to IICT University of Sindh 1
  2. 2. A prototype of Digital IP phone system (IICT Talk) 2

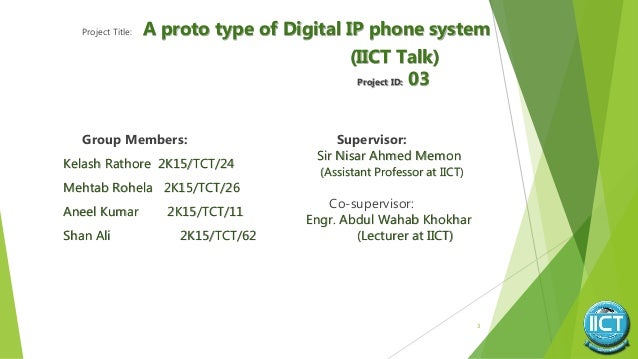

  3. 3. Project Title: A proto type of Digital IP phone system (IICT Talk) Project ID: 03 Group Members: Kelash Rathore 2K15/TCT/24 Mehtab Rohela 2K15/TCT/26 Aneel Kumar 2K15/TCT/11 Shan Ali 2K15/TCT/62 Supervisor: Sir Nisar Ahmed Memon (Assistant Professor at IICT) Co-supervisor: Engr. Abdul Wahab Khokhar (Lecturer at IICT) 3

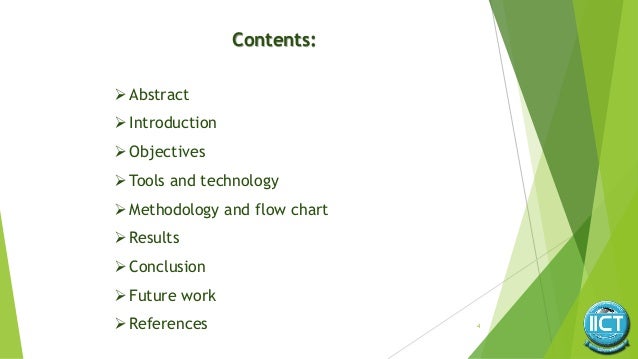

  4. 4. Contents: Abstract Introduction Objectives Tools and technology Methodology and flow chart Results Conclusion Future work References 4
  5. 5. • The main motive of our project is to provide facility to an organizations or institutions of a better free of cost and voice QoS communication through VoIP Digital system and user authentication system method. • It have been popularity in enterprise and organization levels As replacement of existing PBX. Abstract: 5

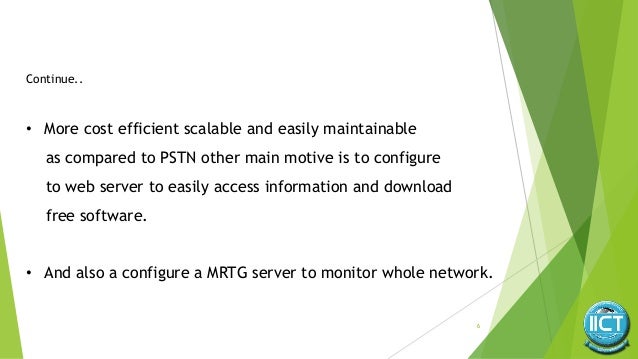

  6. 6. • More cost efficient scalable and easily maintainable as compared to PSTN other main motive is to configure to web server to easily access information and download free software. • And also a configure a MRTG server to monitor whole network. Continue.. 6

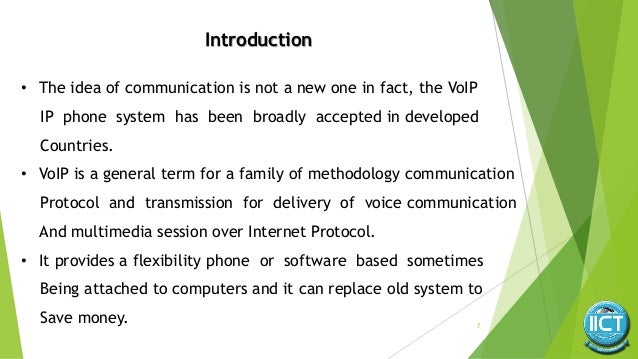

  7. 7. 7 Introduction • The idea of communication is not a new one in fact, the VoIP IP phone system has been broadly accepted in developed Countries. • VoIP is a general term for a family of methodology communication Protocol and transmission for delivery of voice communication And multimedia session over Internet Protocol. • It provides a flexibility phone or software based sometimes Being attached to computers and it can replace old system to Save money.

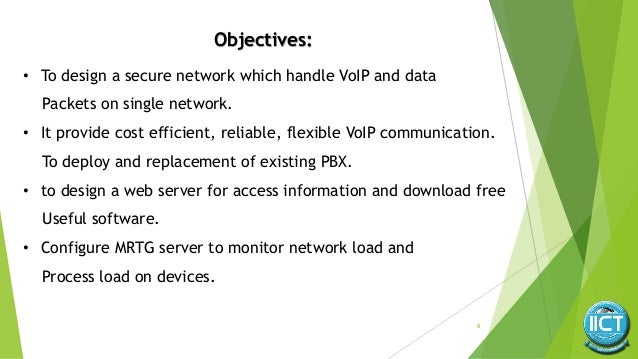

  8. 8. • To design a secure network which handle VoIP and data Packets on single network. • It provide cost efficient, reliable, flexible VoIP communication. To deploy and replacement of existing PBX. • to design a web server for access information and download free Useful software. • Configure MRTG server to monitor network load and Process load on devices. Objectives: 8

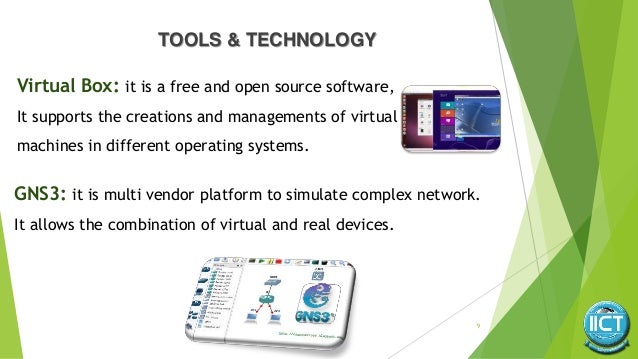

  9. 9. TOOLS & TECHNOLOGY 9 Virtual Box: it is a free and open source software, It supports the creations and managements of virtual machines in different operating systems. GNS3: it is multi vendor platform to simulate complex network. It allows the combination of virtual and real devices.

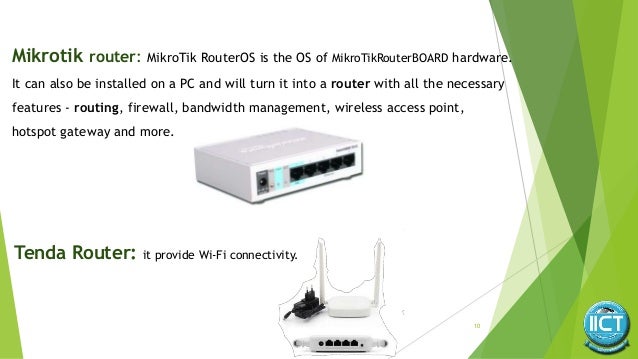

  10. 10. 10 Mikrotik router: MikroTik RouterOS is the OS of MikroTikRouterBOARD hardware. It can also be installed on a PC and will turn it into a router with all the necessary features - routing, firewall, bandwidth management, wireless access point, hotspot gateway and more. Tenda Router: it provide Wi-Fi connectivity.
  11. 11. 11 Continue.. VoIP server: The VoIP Server/PBX, (the latest type) is also known as IP PBX. Web Server:

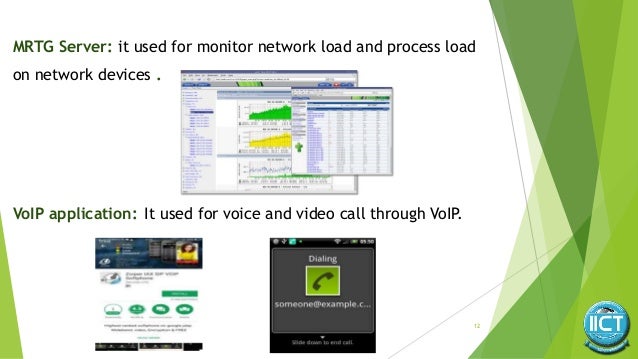

  12. 12. 12 MRTG Server: it used for monitor network load and process load on network devices . VoIP application: It used for voice and video call through VoIP.

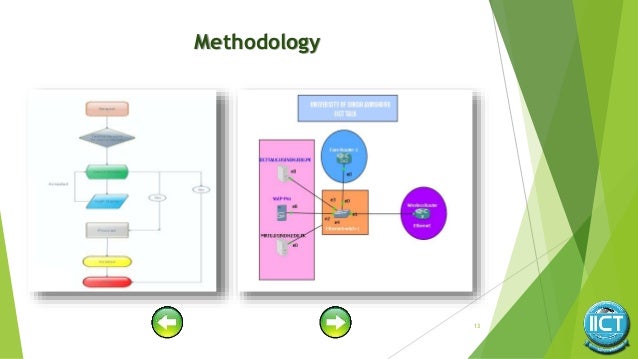

  13. 13. Methodology 13
  14. 14. 14 Result: • First of all we have to install any SIP supported VoIP application, And here we used Zoiper VoIP application for testing purpose. • For access the network, User must have to put user id and password which is saved in VoIP server • After authentication user can call With registered user.

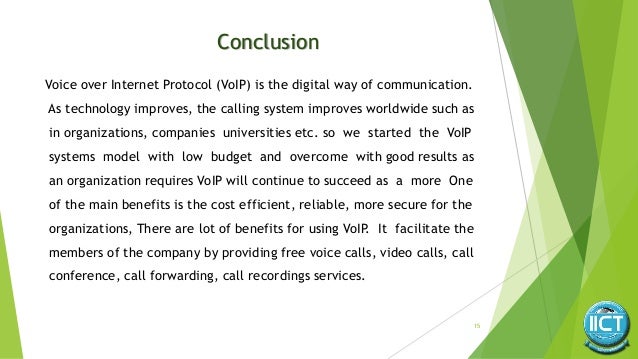

  15. 15. 15 Voice over Internet Protocol (VoIP) is the digital way of communication. As technology improves, the calling system improves worldwide such as in organizations, companies universities etc. so we started the VoIP systems model with low budget and overcome with good results as an organization requires VoIP will continue to succeed as a more One of the main benefits is the cost efficient, reliable, more secure for the organizations, There are lot of benefits for using VoIP. It facilitate the members of the company by providing free voice calls, video calls, call conference, call forwarding, call recordings services. Conclusion

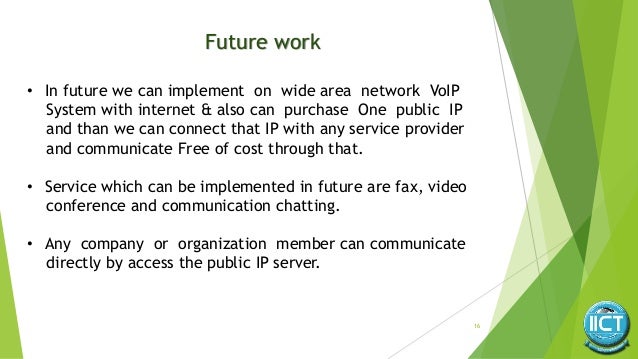

  16. 16. 16 Future work • In future we can implement on wide area network VoIP System with internet & also can purchase One public IP and than we can connect that IP with any service provider and communicate Free of cost through that. • Service which can be implemented in future are fax, video conference and communication chatting. • Any company or organization member can communicate directly by access the public IP server.

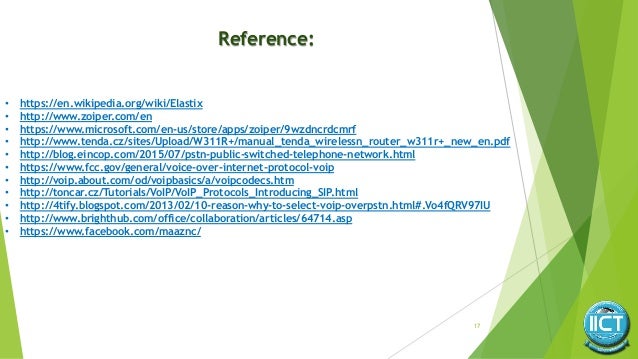

  17. 17. 17 Reference: • https://en.wikipedia.org/wiki/Elastix • http://www.zoiper.com/en • https://www.microsoft.com/en-us/store/apps/zoiper/9wzdncrdcmrf • http://www.tenda.cz/sites/Upload/W311R+/manual_tenda_wirelessn_router_w311r+_new_en.pdf • http://blog.eincop.com/2015/07/pstn-public-switched-telephone-network.html • https://www.fcc.gov/general/voice-over-internet-protocol-voip • http://voip.about.com/od/voipbasics/a/voipcodecs.htm • http://toncar.cz/Tutorials/VoIP/VoIP_Protocols_Introducing_SIP.html • http://4tify.blogspot.com/2013/02/10-reason-why-to-select-voip-overpstn.html#.Vo4fQRV97IU • http://www.brighthub.com/office/collaboration/articles/64714.asp • https://www.facebook.com/maaznc/

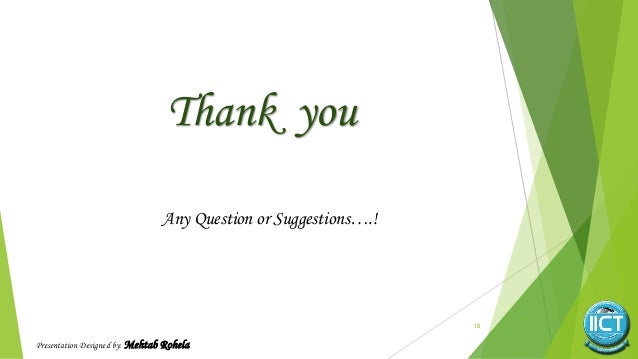

  18. 18. 18 Thank you Any Question or Suggestions….! Presentation Designed by: Mehtab Rohela

×
