Traffic volume of Panthpath-Russell Square Intersection

  1. 1. Traffic Volume Study CE-452 Transportation Engineering Sessional- ǀǀǀ Presented By: Group-6 Section-A Course Teacher: Mr. Mudasser Seraj Lecturer Ahsanullah University of Science & Technology
  2. 2. Group-6 IMTIAZ AHMED 10.01.03.048 ABU RAIHAN 10.01.03.049 RASHEDUL KABIR 10.01.03.051 YEASIR MASUD 10.01.03.052 LAMIA SULTANA 10.01.03.054 KAMRUL ISLAM 10.01.03.056 FARHAN HOSSAIN 09.01.03.095 MARUF UDDIN 08.02.03.054 AHNAF DIPON 08.02.03.013
  3. 3. Hosted By FARHAN RAIHAN RASHEDUL SAZZAD

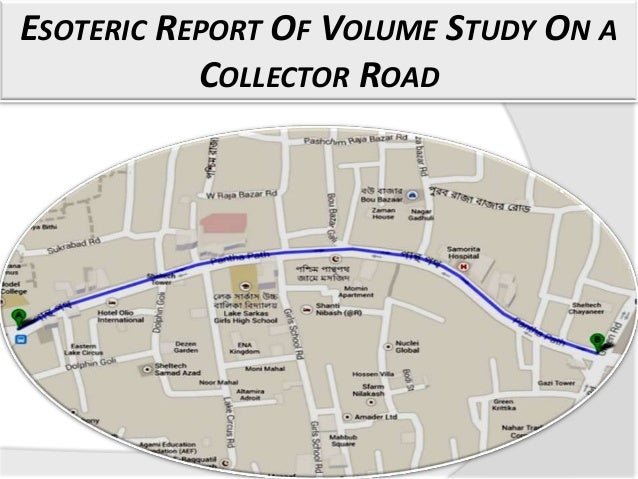

  4. 4. ESOTERIC REPORT OF VOLUME STUDY ON A COLLECTOR ROAD

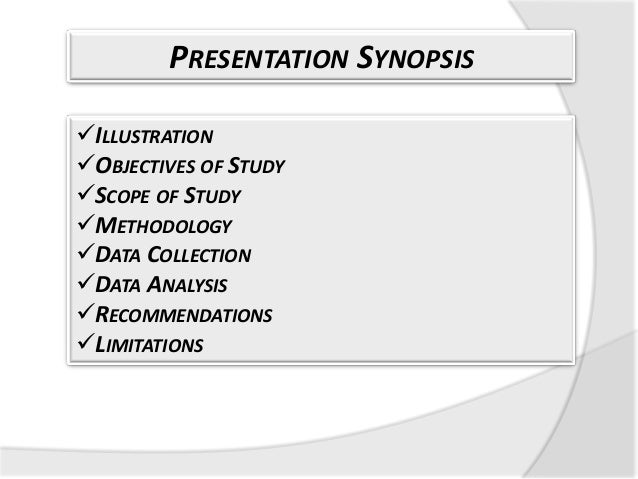

  5. 5. PRESENTATION SYNOPSIS ILLUSTRATION OBJECTIVES OF STUDY SCOPE OF STUDY METHODOLOGY DATA COLLECTION DATA ANALYSIS RECOMMENDATIONS LIMITATIONS

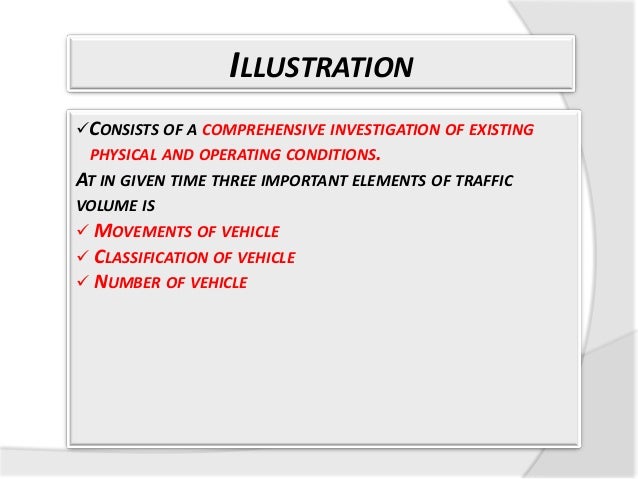

  6. 6. ILLUSTRATION CONSISTS OF A COMPREHENSIVE INVESTIGATION OF EXISTING PHYSICAL AND OPERATING CONDITIONS. AT IN GIVEN TIME THREE IMPORTANT ELEMENTS OF TRAFFIC VOLUME IS  MOVEMENTS OF VEHICLE  CLASSIFICATION OF VEHICLE  NUMBER OF VEHICLE

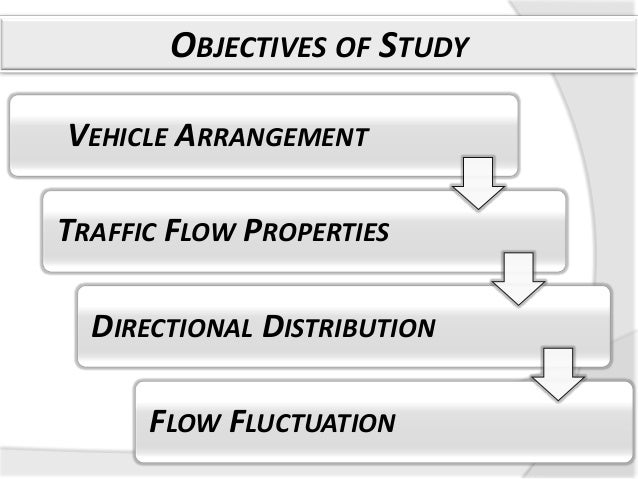

  7. 7. OBJECTIVES OF STUDY VEHICLE ARRANGEMENT TRAFFIC FLOW PROPERTIES DIRECTIONAL DISTRIBUTION FLOW FLUCTUATION
  8. 8. GENERAL OBJECTIVES PLANNING PURPOSES IMPROVEMEN T PURPOSES DESIGN PURPOSE DYNAMIC TRAFFIC MANAGEME NT PURPOSE

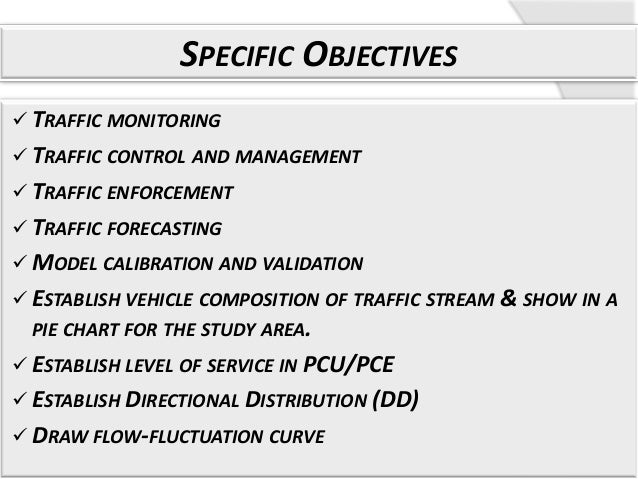

  9. 9. SPECIFIC OBJECTIVES  TRAFFIC MONITORING  TRAFFIC CONTROL AND MANAGEMENT  TRAFFIC ENFORCEMENT  TRAFFIC FORECASTING  MODEL CALIBRATION AND VALIDATION  ESTABLISH VEHICLE COMPOSITION OF TRAFFIC STREAM & SHOW IN A PIE CHART FOR THE STUDY AREA.  ESTABLISH LEVEL OF SERVICE IN PCU/PCE  ESTABLISH DIRECTIONAL DISTRIBUTION (DD)  DRAW FLOW-FLUCTUATION CURVE

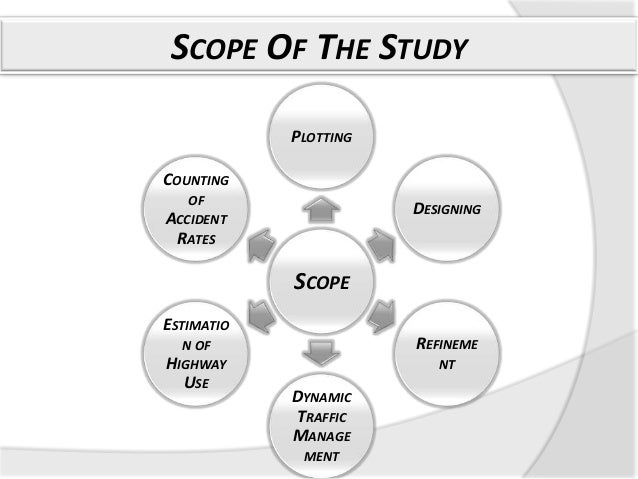

  10. 10. SCOPE OF THE STUDY PLOTTING COUNTING OF ACCIDENT RATES DESIGNING SCOPE ESTIMATIO N OF HIGHWAY USE REFINEME NT DYNAMIC TRAFFIC MANAGE MENT

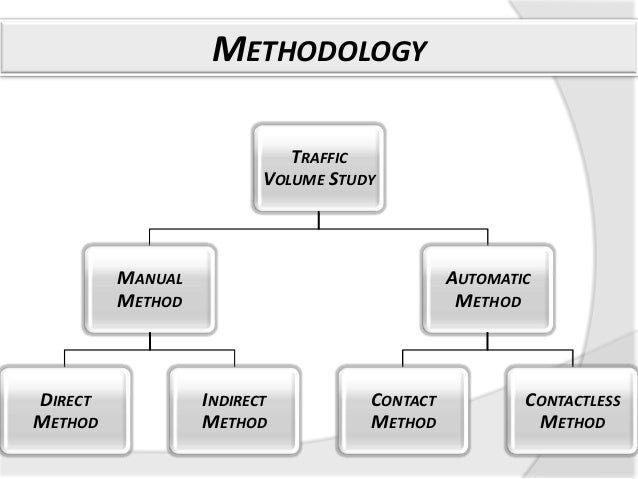

  11. 11. METHODOLOGY TRAFFIC VOLUME STUDY MANUAL METHOD DIRECT METHOD AUTOMATIC METHOD INDIRECT METHOD CONTACT METHOD CONTACTLESS METHOD
  12. 12. Manual Method: Direct USING HAND TALLY AND MANUAL COUNTERS IMMEDIATELY USED BUT NOT PRACTICABLE FOR LONG DURATION ERROR PRONE SPECIALLY WHEN HIGH VOLUME Fig: Typical Manual Method

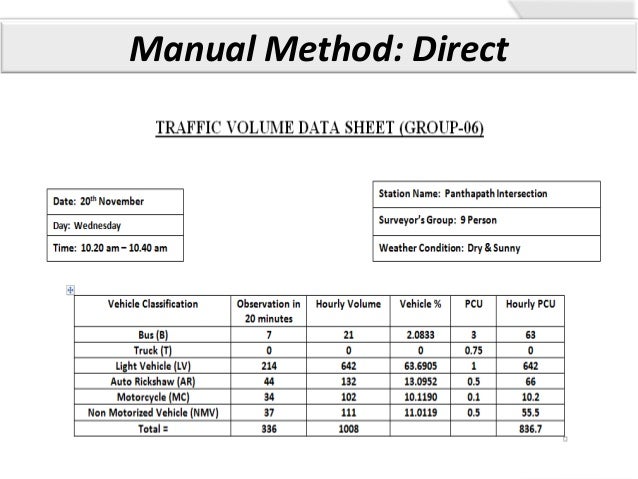

  13. 13. Manual Method: Direct
  14. 14. Manual Method: Direct FIG: MECHANICAL COUNTING BOARD

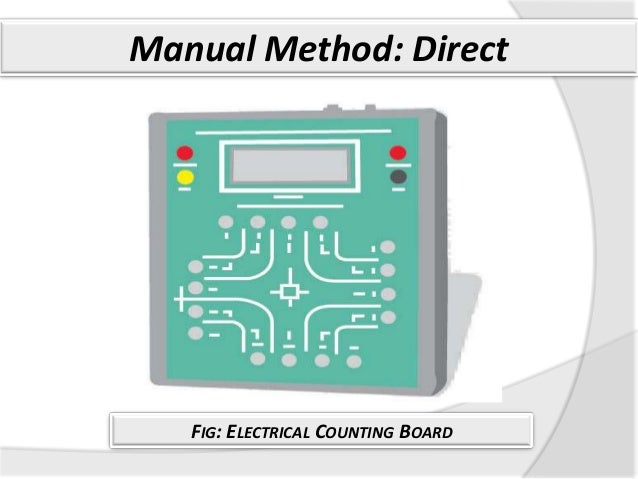

  15. 15. Manual Method: Direct FIG: ELECTRICAL COUNTING BOARD

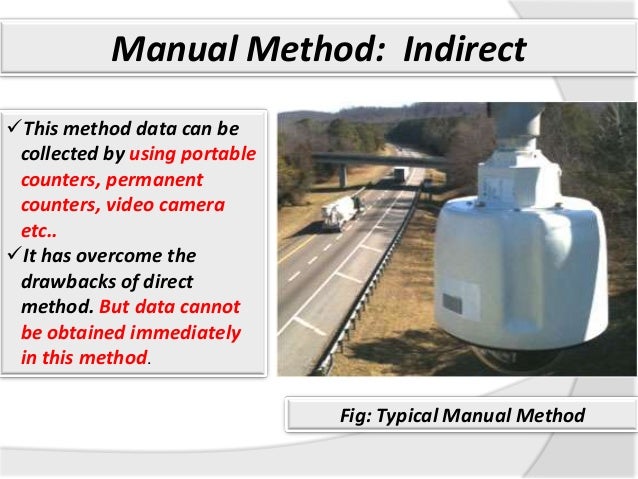

  16. 16. Manual Method: Indirect This method data can be collected by using portable counters, permanent counters, video camera etc.. It has overcome the drawbacks of direct method. But data cannot be obtained immediately in this method. Fig: Typical Manual Method

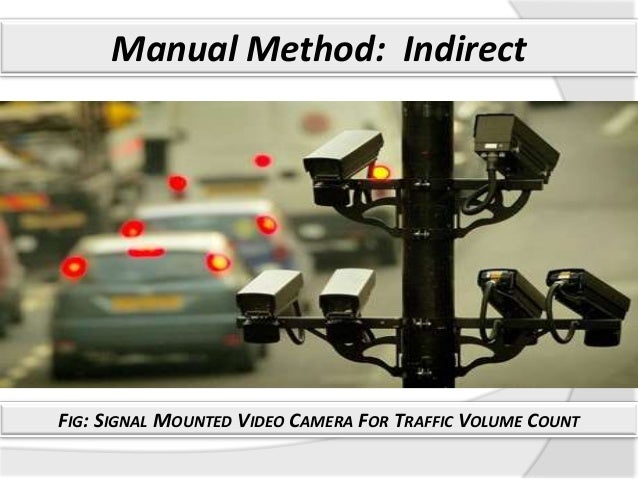

  17. 17. Manual Method: Indirect FIG: SIGNAL MOUNTED VIDEO CAMERA FOR TRAFFIC VOLUME COUNT

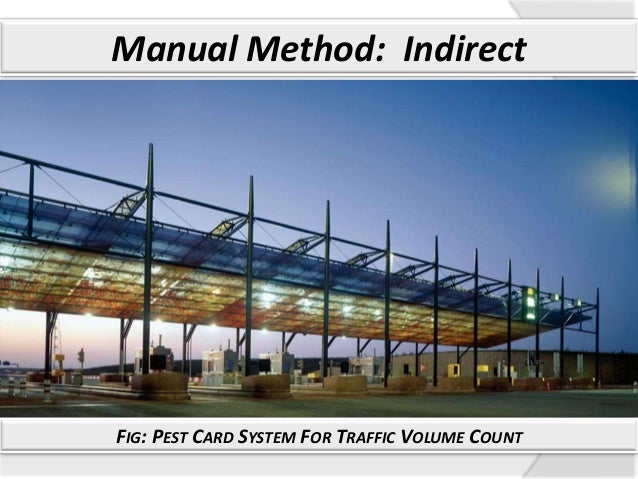

  18. 18. Manual Method: Indirect FIG: PEST CARD SYSTEM FOR TRAFFIC VOLUME COUNT

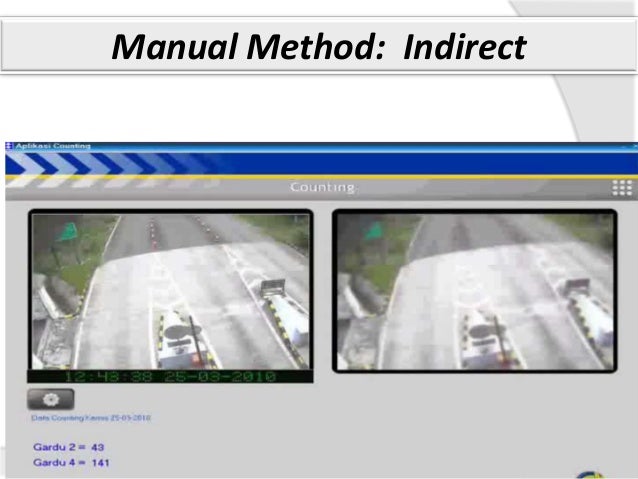

  19. 19. Manual Method: Indirect

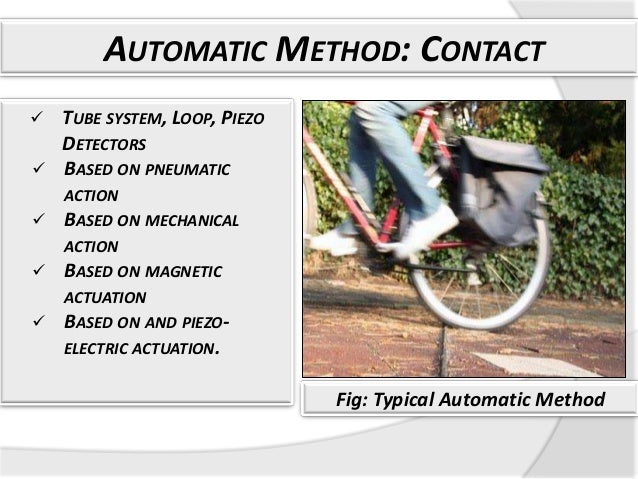

  20. 20. AUTOMATIC METHOD: CONTACT TUBE SYSTEM, LOOP, PIEZO DETECTORS  BASED ON PNEUMATIC   ACTION BASED ON MECHANICAL ACTION  BASED ON MAGNETIC  ACTUATION BASED ON AND PIEZOELECTRIC ACTUATION. Fig: Typical Automatic Method
  21. 21. AUTOMATIC METHOD: CONTACT

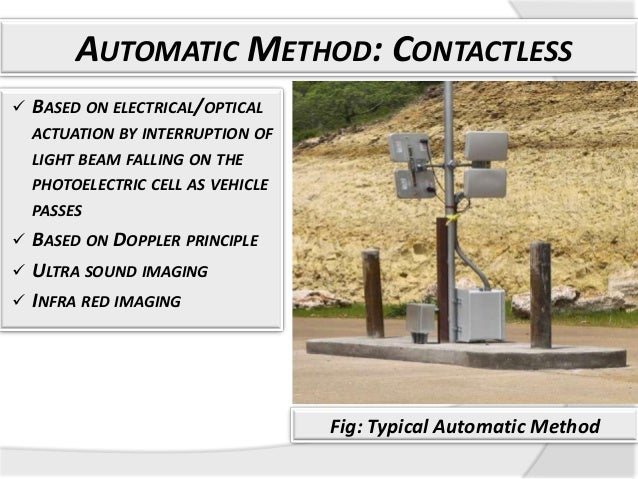

  22. 22. AUTOMATIC METHOD: CONTACTLESS  BASED ON ELECTRICAL/OPTICAL ACTUATION BY INTERRUPTION OF LIGHT BEAM FALLING ON THE PHOTOELECTRIC CELL AS VEHICLE PASSES    BASED ON DOPPLER PRINCIPLE ULTRA SOUND IMAGING INFRA RED IMAGING Fig: Typical Automatic Method

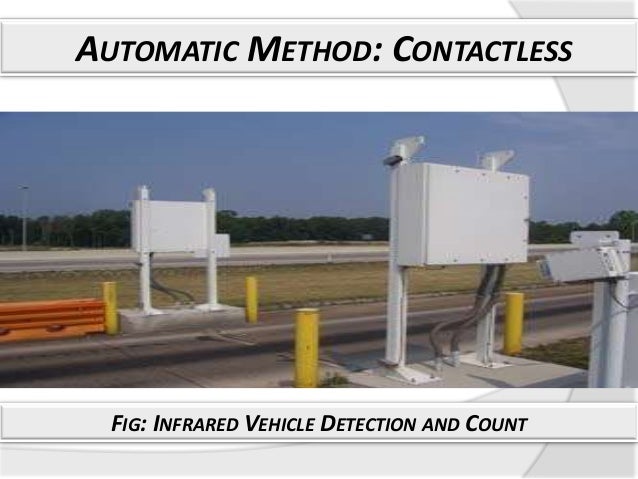

  23. 23. AUTOMATIC METHOD: CONTACTLESS FIG: INFRARED VEHICLE DETECTION AND COUNT

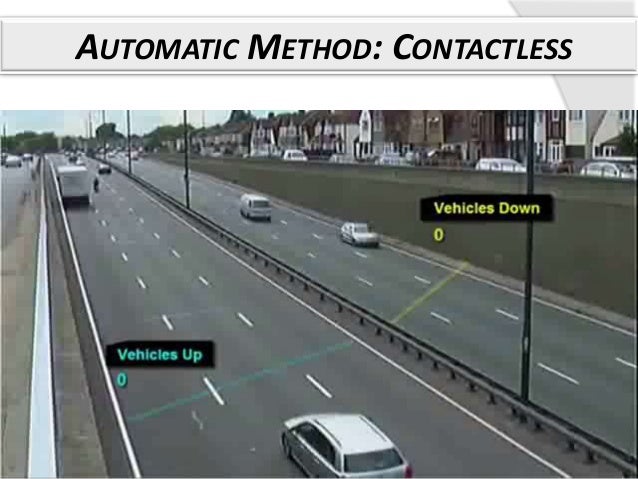

  24. 24. AUTOMATIC METHOD: CONTACTLESS

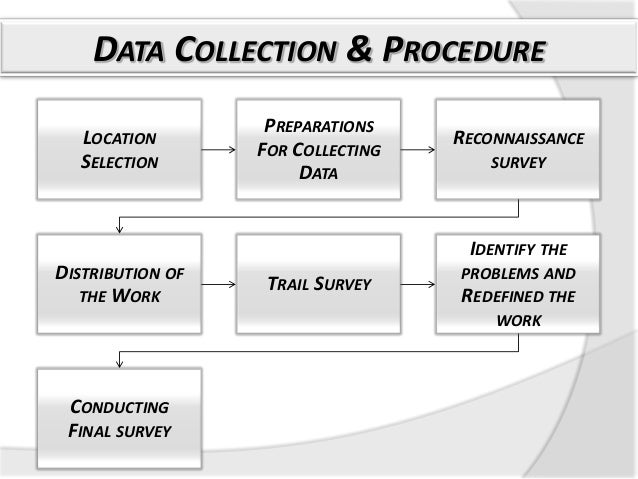

  25. 25. DATA COLLECTION & PROCEDURE LOCATION SELECTION PREPARATIONS FOR COLLECTING DATA RECONNAISSANCE SURVEY IDENTIFY THE DISTRIBUTION OF THE WORK CONDUCTING FINAL SURVEY TRAIL SURVEY PROBLEMS AND REDEFINED THE WORK

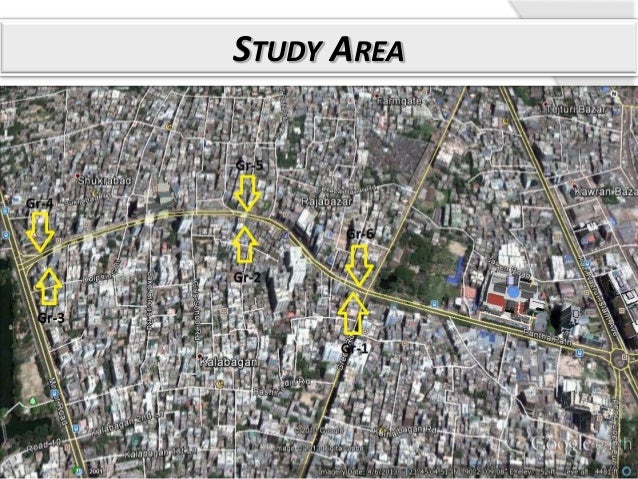

  26. 26. STUDY AREA

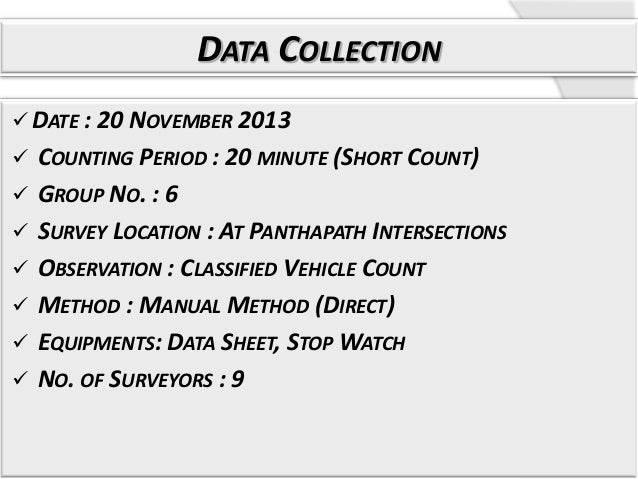

  27. 27. DATA COLLECTION  DATE : 20 NOVEMBER 2013        COUNTING PERIOD : 20 MINUTE (SHORT COUNT) GROUP NO. : 6 SURVEY LOCATION : AT PANTHAPATH INTERSECTIONS OBSERVATION : CLASSIFIED VEHICLE COUNT METHOD : MANUAL METHOD (DIRECT) EQUIPMENTS: DATA SHEET, STOP WATCH NO. OF SURVEYORS : 9
  28. 28. DATA COLLECTION
  29. 29. DATA ANALYSIS VARIATION IN VOLUME  VEHICLE COMPOSITION  SERVICE FLOW RATE  LEVEL OF SERVICE  DIRECTIONAL DISTRIBUTION  FLOW FLUCTUATION

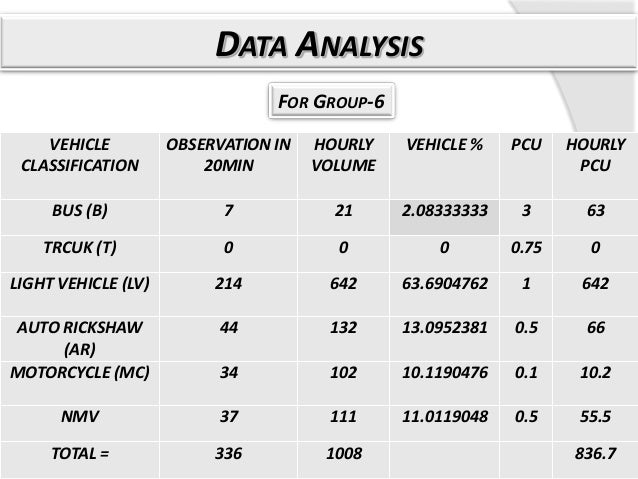

  30. 30. DATA ANALYSIS FOR GROUP-6 VEHICLE CLASSIFICATION OBSERVATION IN 20MIN HOURLY VOLUME VEHICLE % PCU HOURLY PCU BUS (B) 7 21 2.08333333 3 63 TRCUK (T) 0 0 0 0.75 0 LIGHT VEHICLE (LV) 214 642 63.6904762 1 642 AUTO RICKSHAW (AR) MOTORCYCLE (MC) 44 132 13.0952381 0.5 66 34 102 10.1190476 0.1 10.2 NMV 37 111 11.0119048 0.5 55.5 TOTAL = 336 1008 836.7

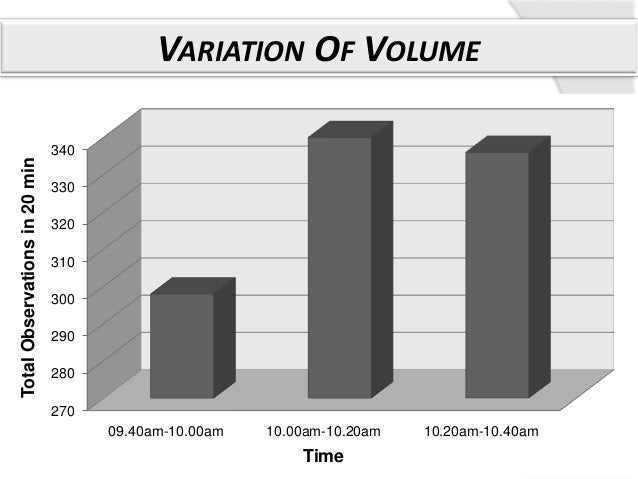

  31. 31. Total Observations in 20 min VARIATION OF VOLUME 340 330 320 310 300 290 280 270 09.40am-10.00am 10.00am-10.20am Time 10.20am-10.40am

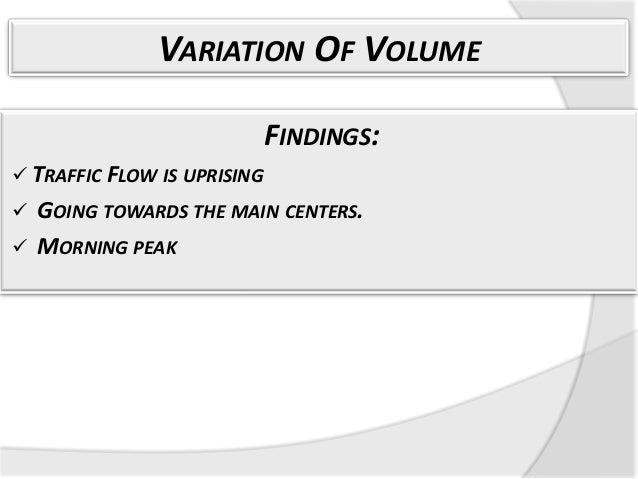

  32. 32. VARIATION OF VOLUME FINDINGS:  TRAFFIC FLOW IS UPRISING GOING TOWARDS THE MAIN CENTERS.  MORNING PEAK 

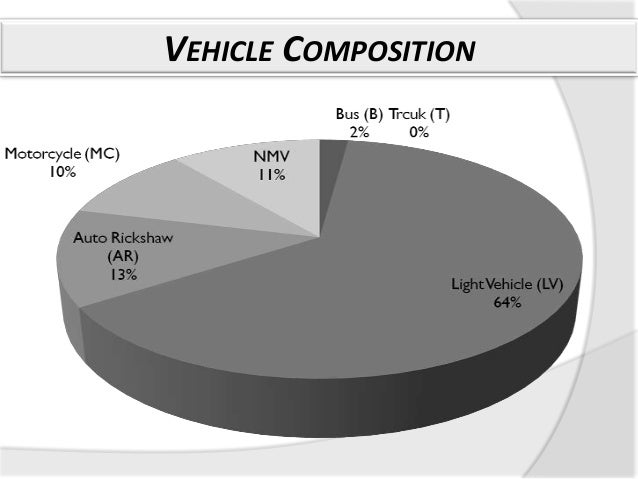

  33. 33. VEHICLE COMPOSITION

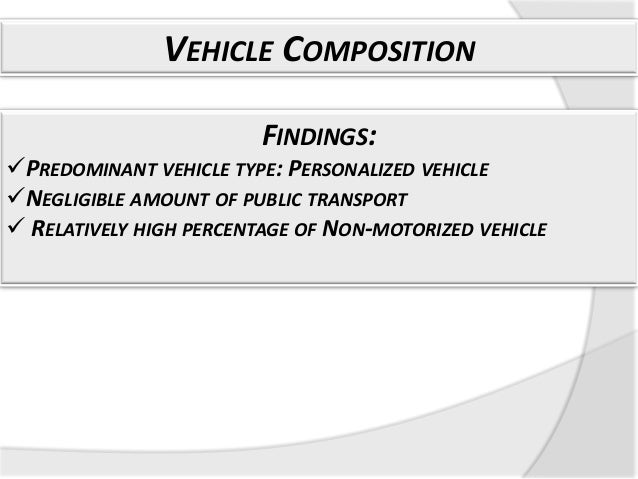

  34. 34. VEHICLE COMPOSITION FINDINGS: PREDOMINANT VEHICLE TYPE: PERSONALIZED VEHICLE NEGLIGIBLE AMOUNT OF PUBLIC TRANSPORT  RELATIVELY HIGH PERCENTAGE OF NON-MOTORIZED VEHICLE

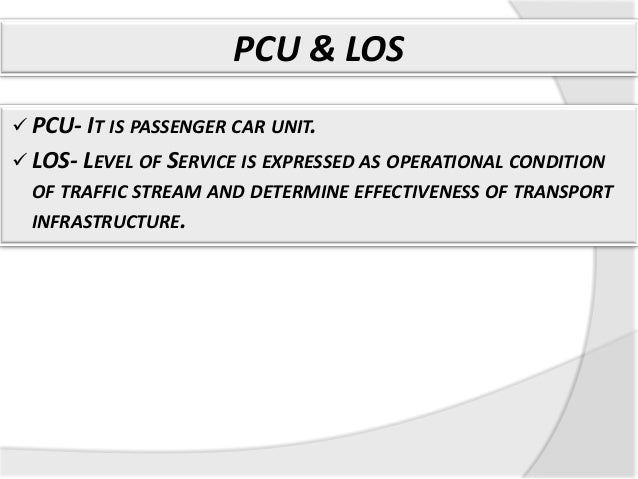

  35. 35. PCU & LOS  PCU- IT IS PASSENGER CAR UNIT.  LOS- LEVEL OF SERVICE IS EXPRESSED AS OPERATIONAL CONDITION OF TRAFFIC STREAM AND DETERMINE EFFECTIVENESS OF TRANSPORT INFRASTRUCTURE.

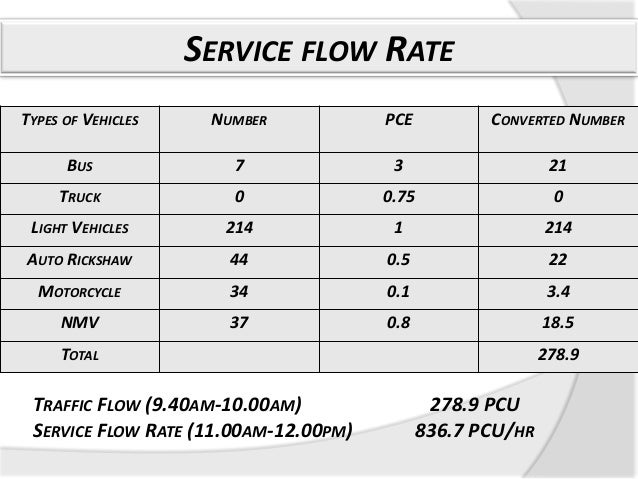

  36. 36. SERVICE FLOW RATE TYPES OF VEHICLES NUMBER PCE CONVERTED NUMBER BUS 7 3 21 TRUCK 0 0.75 0 LIGHT VEHICLES 214 1 214 AUTO RICKSHAW 44 0.5 22 MOTORCYCLE 34 0.1 3.4 NMV 37 0.8 18.5 TOTAL TRAFFIC FLOW (9.40AM-10.00AM) SERVICE FLOW RATE (11.00AM-12.00PM) 278.9 278.9 PCU 836.7 PCU/HR

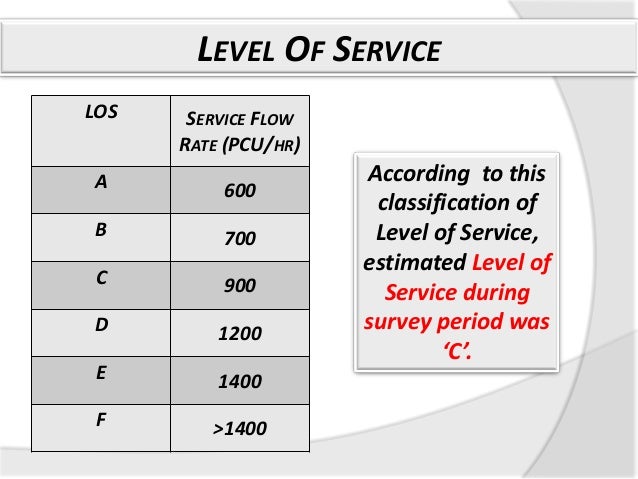

  37. 37. LEVEL OF SERVICE LOS SERVICE FLOW RATE (PCU/HR) A 600 B 700 C 900 D 1200 E 1400 F >1400 According to this classification of Level of Service, estimated Level of Service during survey period was ‘C’.

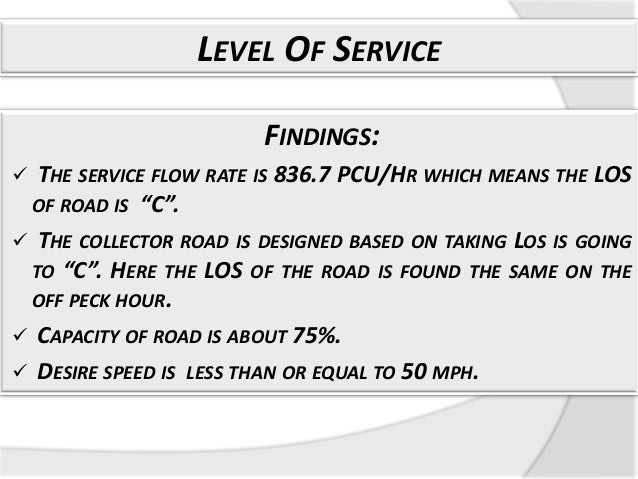

  38. 38. LEVEL OF SERVICE FINDINGS: THE SERVICE FLOW RATE IS 836.7 PCU/HR WHICH MEANS THE LOS OF ROAD IS “C”.  THE COLLECTOR ROAD IS DESIGNED BASED ON TAKING LOS IS GOING TO “C”. HERE THE LOS OF THE ROAD IS FOUND THE SAME ON THE OFF PECK HOUR.  CAPACITY OF ROAD IS ABOUT 75%.  DESIRE SPEED IS LESS THAN OR EQUAL TO 50 MPH. 
  39. 39. DIRECTIONAL DISTRIBUTION DIRECTION FROM PANTHAPATH TO RUSSELL SQUARE FROM RUSSELL SQUARE TO PANTHAPATH TIME PCU/HR 9:00AM10:00AM 10:00AM11:00AM 11:00AM12:00AM 9:00AM10:00AM 10:00AM11:00AM 859.5 10:00AM12:00PM AVG. PCU/HR DIRECTIONAL DISTRIBUTION 961.3 55 795.4 45 898.8 1125.6 726.6 822.9 836.7

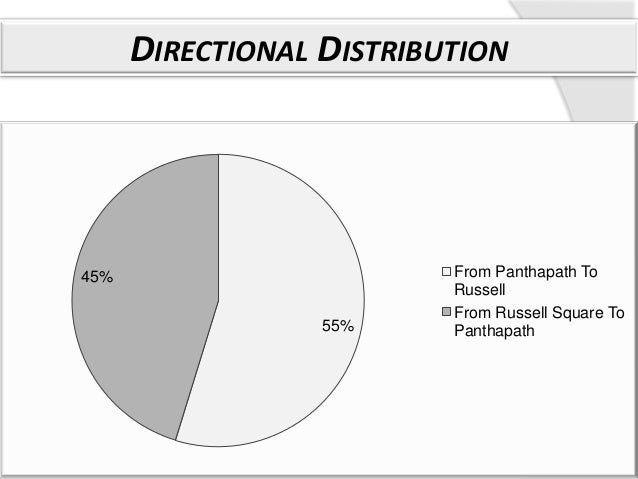

  40. 40. DIRECTIONAL DISTRIBUTION 45% 55% From Panthapath To Russell From Russell Square To Panthapath
  41. 41. DIRECTIONAL DISTRIBUTION FINDINGS:  DIRECTIONAL DISTRIBUTION OF PANPTHAPATH TO RUSSELL SQUARE IS 55% AND RUSSELL SQUARE TO PANTHAPATH IS 45%  THE DIRECTIONAL DISTRIBUTION IS MORE OVER UNIFORM.  SOME PART OF THE ROAD TIDAL FLOW IS SEEN.

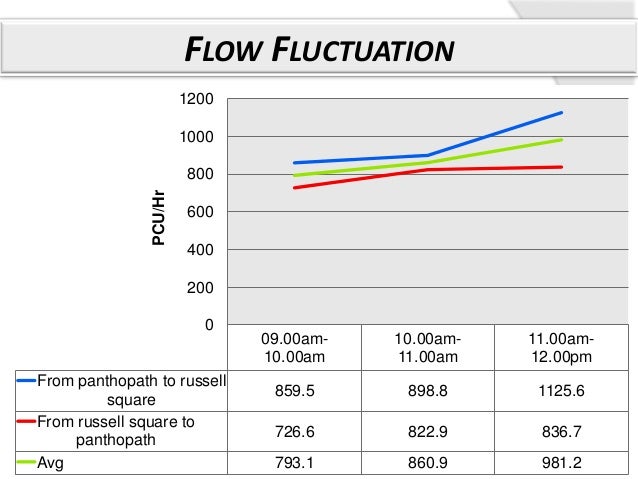

  42. 42. FLOW FLUCTUATION 1200 1000 PCU/Hr 800 600 400 200 0 From panthopath to russell square From russell square to panthopath Avg 09.00am10.00am 10.00am11.00am 11.00am12.00pm 859.5 898.8 1125.6 726.6 822.9 836.7 793.1 860.9 981.2
  43. 43. FLOW FLUCTUATION Findings:  FROM THE RESULTS FLOW FLUCTUATION CURVE IS INCREASING WITH RESPECT OF TIME.  AT 11.00AM TO 12.00PM THE BOTH SIDE TRAFFIC FLOW IS GOING TO TOP MOUNTAIN.

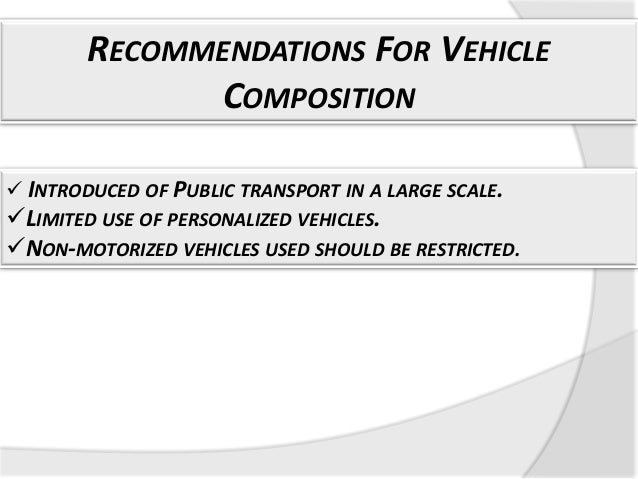

  44. 44. RECOMMENDATIONS FOR VEHICLE COMPOSITION  INTRODUCED OF PUBLIC TRANSPORT IN A LARGE SCALE. LIMITED USE OF PERSONALIZED VEHICLES. NON-MOTORIZED VEHICLES USED SHOULD BE RESTRICTED.
  45. 45. RECOMMENDATIONS FOR LEVEL OF SERVICE  FOR BETTER LEVEL OF SERVICE RESTRICTIVE AND CONTROLLING MEASURES IS NEEDED  CROSS-SECTIONS ELEMENTS, PARKING AREA, SHOULDER ETC SHOULD BE TAKEN IN PROPER MEASURES.

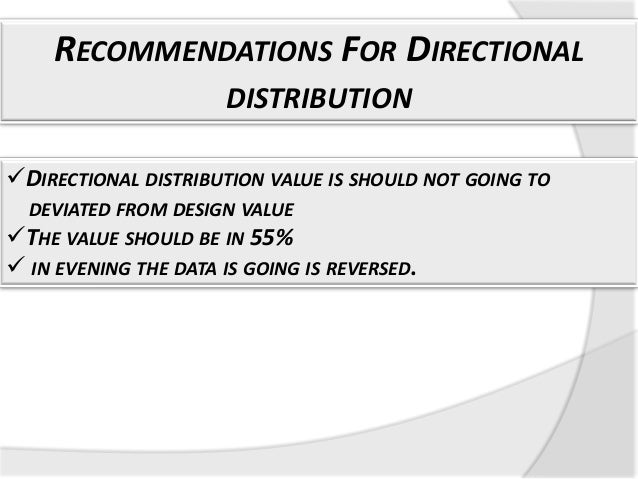

  46. 46. RECOMMENDATIONS FOR DIRECTIONAL DISTRIBUTION DIRECTIONAL DISTRIBUTION VALUE IS SHOULD NOT GOING TO DEVIATED FROM DESIGN VALUE THE VALUE SHOULD BE IN 55%  IN EVENING THE DATA IS GOING IS REVERSED.
  47. 47. RECOMMENDATIONS FOR FLOW FLUCTUATION FOR GETTING AN ACCURATE FLOW FLUCTUATION CURVE THE WHOLE DAY’S DATA IS NEEDED.  FOR GETTING AN ACCURATE FLOW FLUCTUATION CURVE, %ADT IS GOING TO NEEDED TO ACHIEVE A BETTER RESULT.

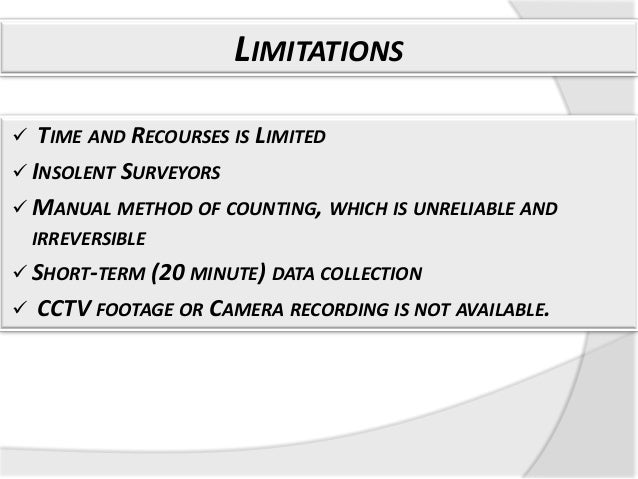

  48. 48. LIMITATIONS TIME AND RECOURSES IS LIMITED  INSOLENT SURVEYORS  MANUAL METHOD OF COUNTING, WHICH IS UNRELIABLE AND  IRREVERSIBLE  SHORT-TERM (20 MINUTE) DATA COLLECTION  CCTV FOOTAGE OR CAMERA RECORDING IS NOT AVAILABLE.
  49. 49. THANK YOU
  50. 50. Any Questions ????

×
