EXAMINATION OF CHILD WITH CEREBRAL PALSY
BY DR. MAULIK PATEL
RESIDENT DEPT. OF ORTHOPEADIC
D.Y.P.H
CLINICAL EVALUATION
• To prepare treatment plans and accurately assess outcome of
treatment of child with cerebral palsy, a balanced
combination of
1) Medical history
2) Physical examination
3) Functional assessment
4) Observational gait analysis & computerized gait analysis
5) Imaging
6) Assessment of patient & family goals must be interpreted.

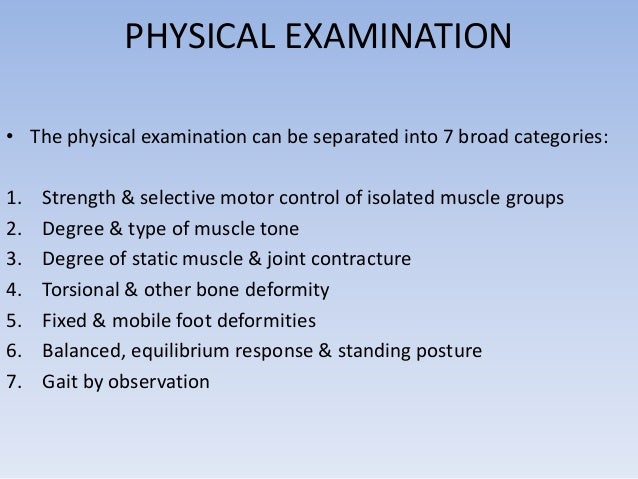

PHYSICAL EXAMINATION
• The physical examination can be separated into 7 broad categories:
1. Strength & selective motor control of isolated muscle groups
2. Degree & type of muscle tone
3. Degree of static muscle & joint contracture
4. Torsional & other bone deformity
5. Fixed & mobile foot deformities
6. Balanced, equilibrium response & standing posture
7. Gait by observation

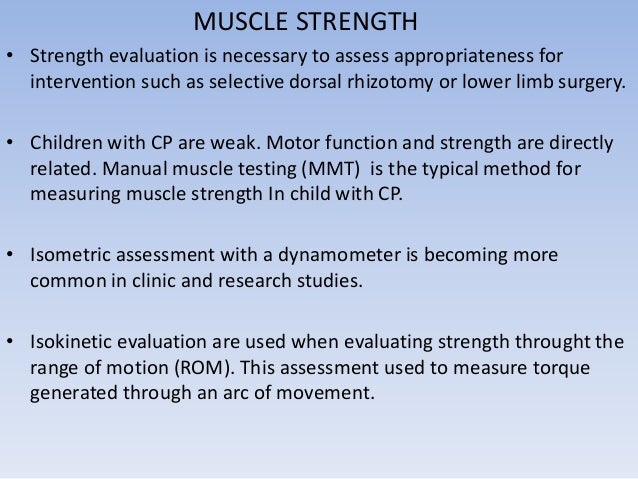

MUSCLE STRENGTH
• Strength evaluation is necessary to assess appropriateness for
intervention such as selective dorsal rhizotomy or lower limb surgery.
• Children with CP are weak. Motor function and strength are directly
related. Manual muscle testing (MMT) is the typical method for
measuring muscle strength In child with CP.
• Isometric assessment with a dynamometer is becoming more
common in clinic and research studies.
• Isokinetic evaluation are used when evaluating strength throught the
range of motion (ROM). This assessment used to measure torque
generated through an arc of movement.

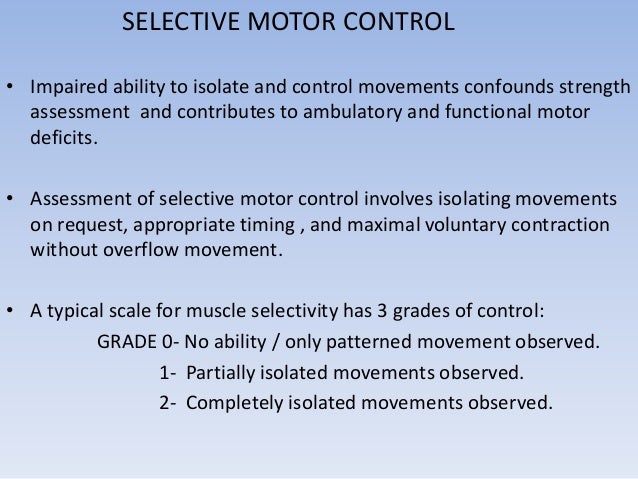

SELECTIVE MOTOR CONTROL
• Impaired ability to isolate and control movements confounds strength
assessment and contributes to ambulatory and functional motor
deficits.
• Assessment of selective motor control involves isolating movements
on request, appropriate timing , and maximal voluntary contraction
without overflow movement.
• A typical scale for muscle selectivity has 3 grades of control:
GRADE 0- No ability / only patterned movement observed.
1- Partially isolated movements observed.
2- Completely isolated movements observed.

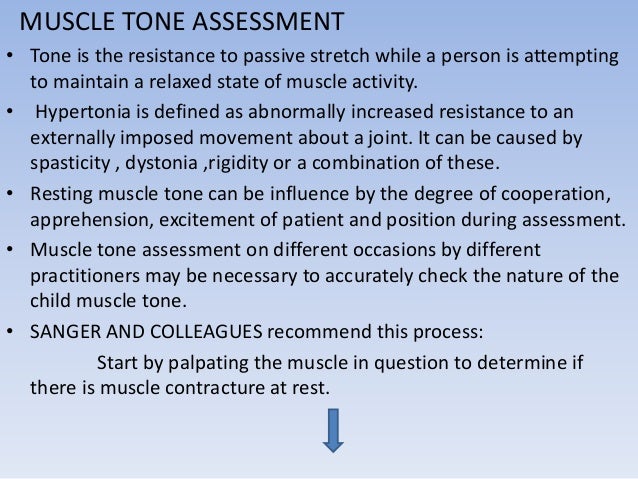

MUSCLE TONE ASSESSMENT
• Tone is the resistance to passive stretch while a person is attempting
to maintain a relaxed state of muscle activity.
• Hypertonia is defined as abnormally increased resistance to an
externally imposed movement about a joint. It can be caused by
spasticity , dystonia ,rigidity or a combination of these.
• Resting muscle tone can be influence by the degree of cooperation,
apprehension, excitement of patient and position during assessment.
• Muscle tone assessment on different occasions by different
practitioners may be necessary to accurately check the nature of the
child muscle tone.
• SANGER AND COLLEAGUES recommend this process:
Start by palpating the muscle in question to determine if
there is muscle contracture at rest.

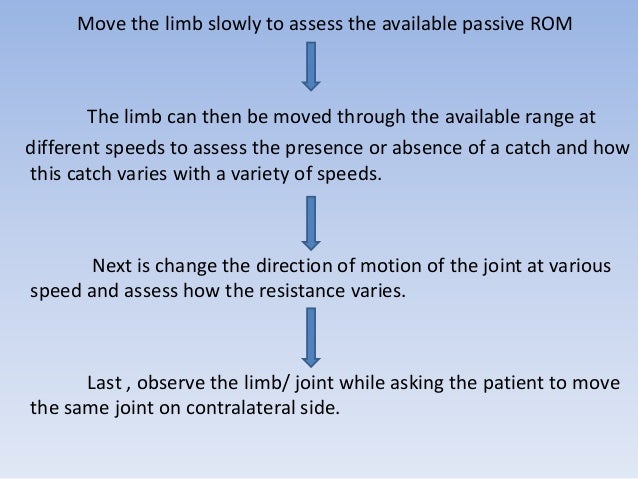

Move the limb slowly to assess the available passive ROM
The limb can then be moved through the available range at
different speeds to assess the presence or absence of a catch and how
this catch varies with a variety of speeds.
Next is change the direction of motion of the joint at various
speed and assess how the resistance varies.
Last , observe the limb/ joint while asking the patient to move
the same joint on contralateral side.

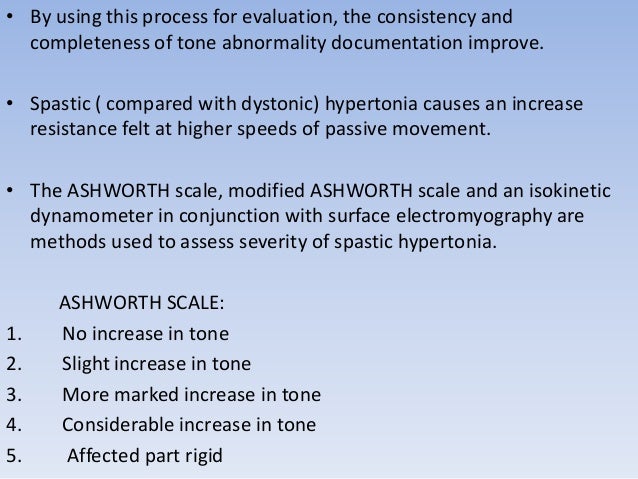

• By using this process for evaluation, the consistency and
completeness of tone abnormality documentation improve.
• Spastic ( compared with dystonic) hypertonia causes an increase
resistance felt at higher speeds of passive movement.
• The ASHWORTH scale, modified ASHWORTH scale and an isokinetic
dynamometer in conjunction with surface electromyography are
methods used to assess severity of spastic hypertonia.
ASHWORTH SCALE:
1. No increase in tone
2. Slight increase in tone
3. More marked increase in tone
4. Considerable increase in tone
5. Affected part rigid
MODIFIED ASHWORTH SCALE
• GRADE 0 – No increase in muscle tone
1 – Slight increase in muscle tone manifested by catch and
release or by minimal resistance at the end of ROM when
affected part is moved in flexion or extension.
1+ – Slight increase in the muscle tone manifest by a catch
followed by minimal resistance through out reminder of
the ROM
2 – More marked increase in muscle tone through most of the
ROM but affected part easily moved.
3 – Considerable increase in muscle tone, passive movement
difficult.
4 – Affected part rigid in flexion or extension.

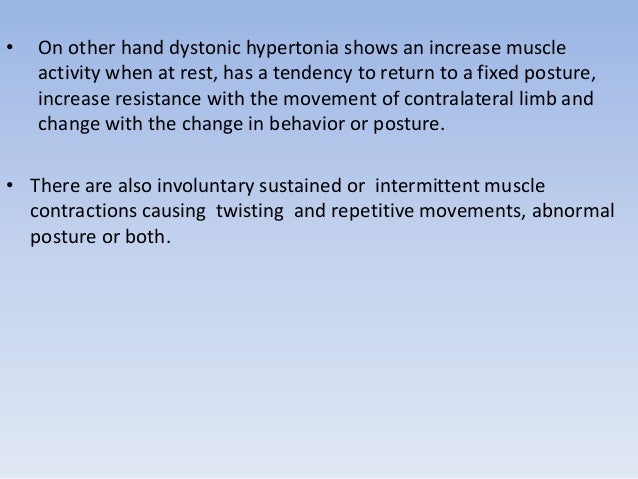

• On other hand dystonic hypertonia shows an increase muscle
activity when at rest, has a tendency to return to a fixed posture,
increase resistance with the movement of contralateral limb and
change with the change in behavior or posture.
• There are also involuntary sustained or intermittent muscle
contractions causing twisting and repetitive movements, abnormal
posture or both.

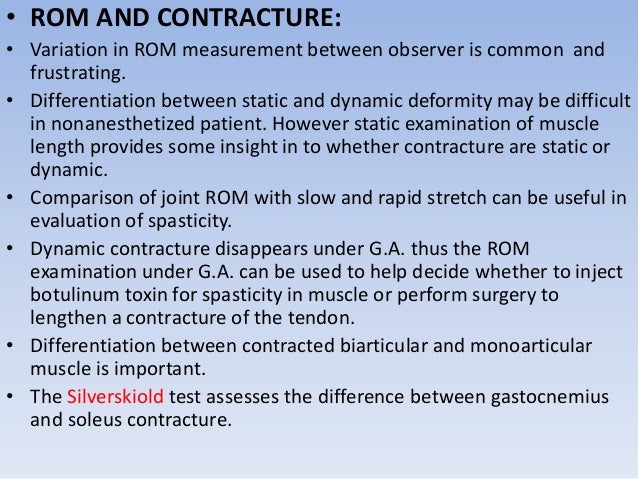

• ROM AND CONTRACTURE:
• Variation in ROM measurement between observer is common and
frustrating.
• Differentiation between static and dynamic deformity may be difficult
in nonanesthetized patient. However static examination of muscle
length provides some insight in to whether contracture are static or
dynamic.
• Comparison of joint ROM with slow and rapid stretch can be useful in
evaluation of spasticity.
• Dynamic contracture disappears under G.A. thus the ROM
examination under G.A. can be used to help decide whether to inject
botulinum toxin for spasticity in muscle or perform surgery to
lengthen a contracture of the tendon.
• Differentiation between contracted biarticular and monoarticular
muscle is important.
• The Silverskiold test assesses the difference between gastocnemius
and soleus contracture.
The Silverskiold test: a) this test differentiates tightness of
gastrocnemius and soleus. In this test the knee is flexed to 90, hind
foot is positioned in varus, and maximally dorsiflexed. B) As the knee
extented , if ankle moves towards plantarflexion, contracture of
gastrocnemius present.

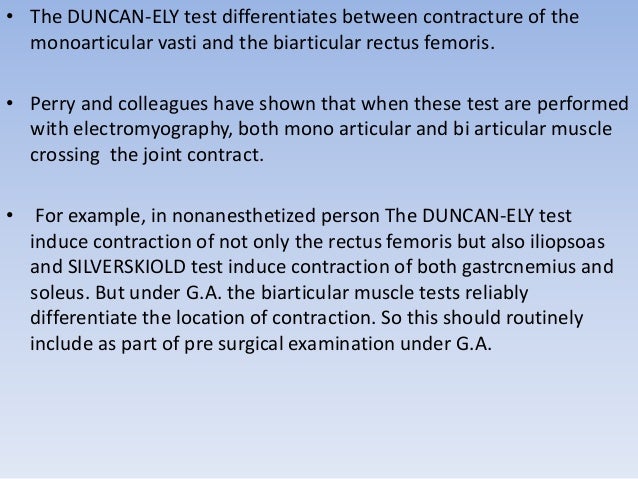

• The DUNCAN-ELY test differentiates between contracture of the
monoarticular vasti and the biarticular rectus femoris.
• Perry and colleagues have shown that when these test are performed
with electromyography, both mono articular and bi articular muscle
crossing the joint contract.
• For example, in nonanesthetized person The DUNCAN-ELY test
induce contraction of not only the rectus femoris but also iliopsoas
and SILVERSKIOLD test induce contraction of both gastrcnemius and
soleus. But under G.A. the biarticular muscle tests reliably
differentiate the location of contraction. So this should routinely
include as part of pre surgical examination under G.A.
• The Duncan-ely test: patient is positioned prone. As the knee
is flexed, a contracture of the rectus femoris causes the hip to
flex because rectus femoris is a hip flexor and knee extensor.

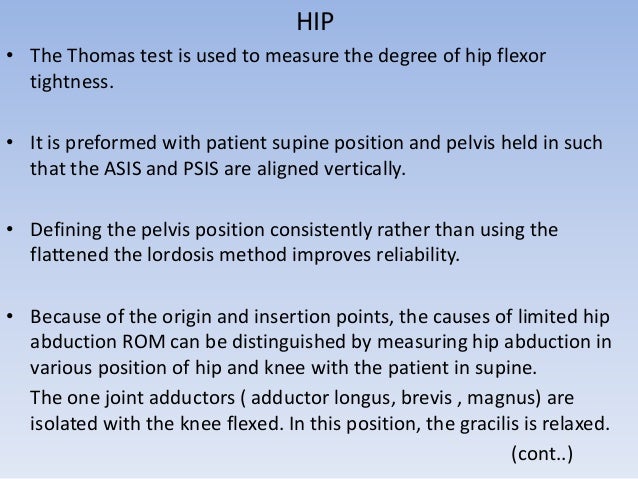

HIP
• The Thomas test is used to measure the degree of hip flexor
tightness.
• It is preformed with patient supine position and pelvis held in such
that the ASIS and PSIS are aligned vertically.
• Defining the pelvis position consistently rather than using the
flattened the lordosis method improves reliability.
• Because of the origin and insertion points, the causes of limited hip
abduction ROM can be distinguished by measuring hip abduction in
various position of hip and knee with the patient in supine.
The one joint adductors ( adductor longus, brevis , magnus) are
isolated with the knee flexed. In this position, the gracilis is relaxed.
(cont..)

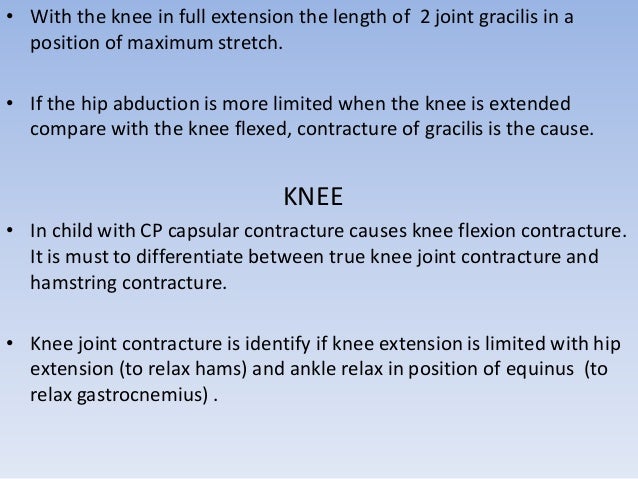

• With the knee in full extension the length of 2 joint gracilis in a
position of maximum stretch.
• If the hip abduction is more limited when the knee is extended
compare with the knee flexed, contracture of gracilis is the cause.
KNEE
• In child with CP capsular contracture causes knee flexion contracture.
It is must to differentiate between true knee joint contracture and
hamstring contracture.
• Knee joint contracture is identify if knee extension is limited with hip
extension (to relax hams) and ankle relax in position of equinus (to
relax gastrocnemius) .

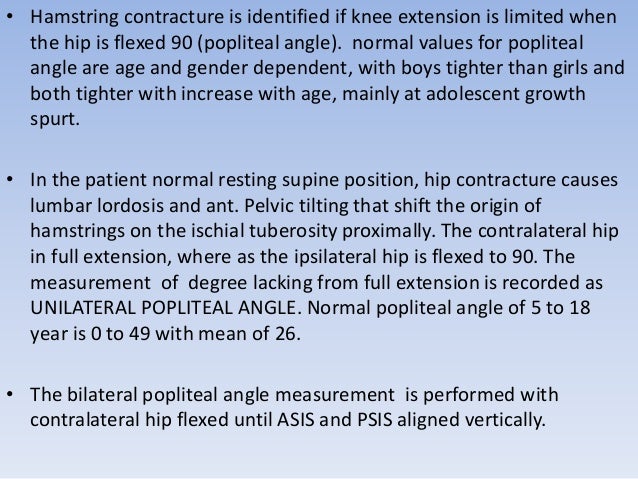

• Hamstring contracture is identified if knee extension is limited when
the hip is flexed 90 (popliteal angle). normal values for popliteal
angle are age and gender dependent, with boys tighter than girls and
both tighter with increase with age, mainly at adolescent growth
spurt.
• In the patient normal resting supine position, hip contracture causes
lumbar lordosis and ant. Pelvic tilting that shift the origin of
hamstrings on the ischial tuberosity proximally. The contralateral hip
in full extension, where as the ipsilateral hip is flexed to 90. The
measurement of degree lacking from full extension is recorded as
UNILATERAL POPLITEAL ANGLE. Normal popliteal angle of 5 to 18
year is 0 to 49 with mean of 26.
• The bilateral popliteal angle measurement is performed with
contralateral hip flexed until ASIS and PSIS aligned vertically.
• Unilateral and bilateral popliteal angle are measured to calculate
the hamstring shift. A)The unilateral popliteal angle measured with
typical lordosis, contralateral hip extended and ipsilateral hip flex to
90. the number recorded is the degree missing from full extension
at the point of first resistance. B) Bilateral popliteal angle measured
with the pelvic position corrected. The contralateral hip is flexed
until the ASIS and PSIS are vertical.

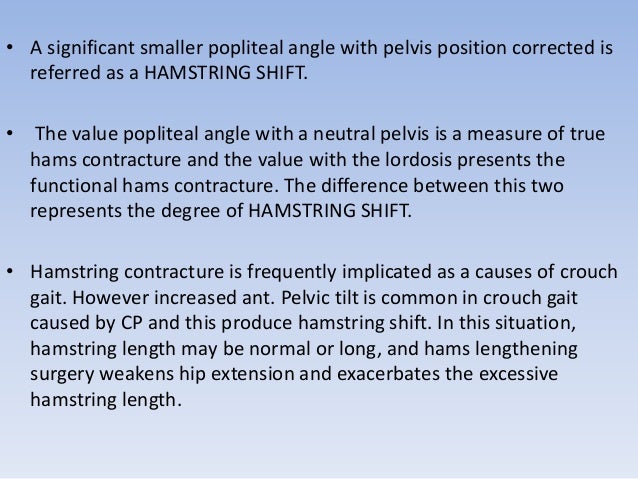

• A significant smaller popliteal angle with pelvis position corrected is
referred as a HAMSTRING SHIFT.
• The value popliteal angle with a neutral pelvis is a measure of true
hams contracture and the value with the lordosis presents the
functional hams contracture. The difference between this two
represents the degree of HAMSTRING SHIFT.
• Hamstring contracture is frequently implicated as a causes of crouch
gait. However increased ant. Pelvic tilt is common in crouch gait
caused by CP and this produce hamstring shift. In this situation,
hamstring length may be normal or long, and hams lengthening
surgery weakens hip extension and exacerbates the excessive
hamstring length.

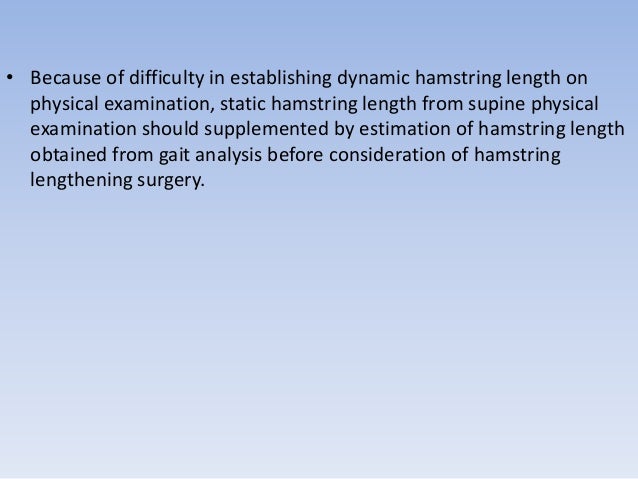

• Because of difficulty in establishing dynamic hamstring length on
physical examination, static hamstring length from supine physical
examination should supplemented by estimation of hamstring length
obtained from gait analysis before consideration of hamstring
lengthening surgery.
BONE DEFORMITY
• FEMORAL ANTEVERSION:
• Femoral anteversion means the relationship between the axis of
femoral neck and femoral condyles in transverse plane.
• Femoral anteversion reported as the difference between the tibia
and the vertical. Average normal value for adult men is 10 and for
female is 15.
• Femoral anteversion at birth is 45. If growth and development are
typical, most infantile anteversion remodels b/n 1 to 4 year of age
reaching normal value by 8 year.

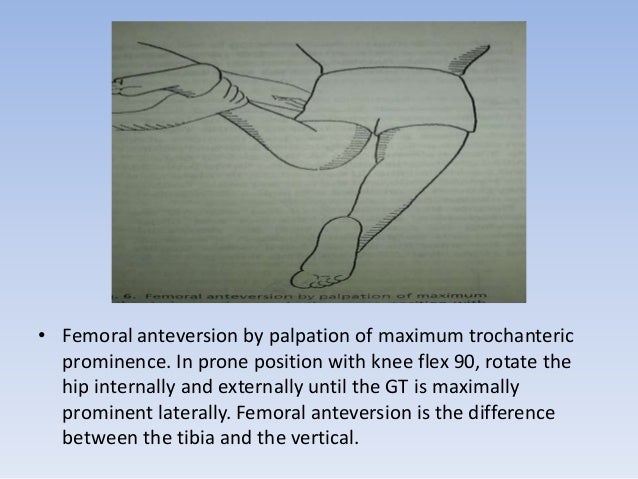

• Femoral anteversion by palpation of maximum trochanteric
prominence. In prone position with knee flex 90, rotate the
hip internally and externally until the GT is maximally
prominent laterally. Femoral anteversion is the difference
between the tibia and the vertical.

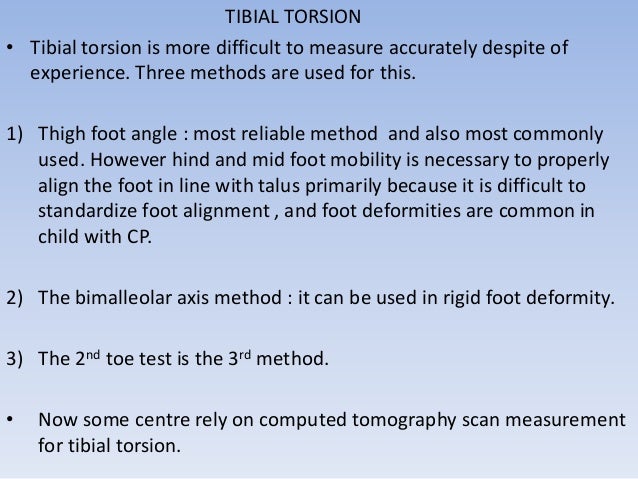

TIBIAL TORSION
• Tibial torsion is more difficult to measure accurately despite of
experience. Three methods are used for this.
1) Thigh foot angle : most reliable method and also most commonly
used. However hind and mid foot mobility is necessary to properly
align the foot in line with talus primarily because it is difficult to
standardize foot alignment , and foot deformities are common in
child with CP.
2) The bimalleolar axis method : it can be used in rigid foot deformity.
3) The 2nd toe test is the 3rd method.
• Now some centre rely on computed tomography scan measurement
for tibial torsion.
• The thigh foot angle: The patient is positioned prone. Flex the knee to
90, position the hind foot vertically and dorsiflex the ankle to 90 with
foot in subtalar neutral position. place the proximal arm of
goniometer along posterior axis of femur and distal arm along the
bisector of the hindfoot and the point between 2nd and 3rd
metatarsal heads.

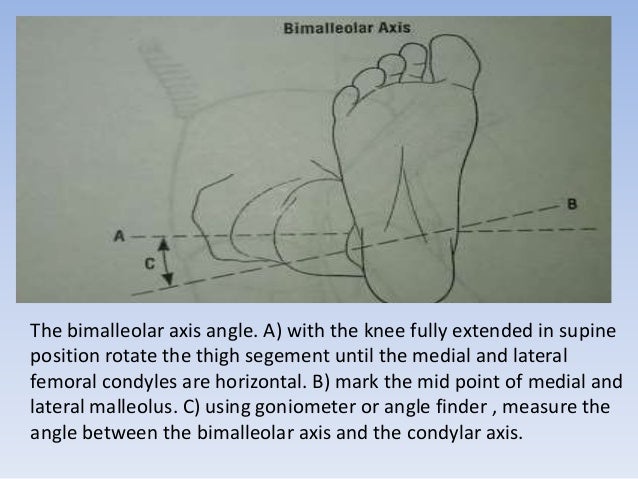

The bimalleolar axis angle. A) with the knee fully extended in supine
position rotate the thigh segement until the medial and lateral
femoral condyles are horizontal. B) mark the mid point of medial and
lateral malleolus. C) using goniometer or angle finder , measure the
angle between the bimalleolar axis and the condylar axis.

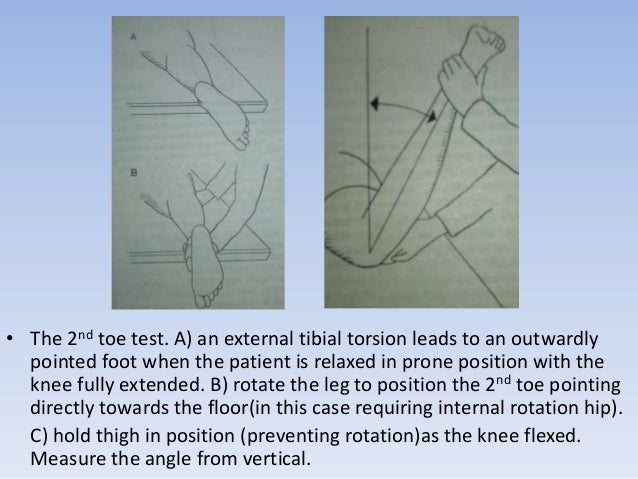

• The 2nd toe test. A) an external tibial torsion leads to an outwardly
pointed foot when the patient is relaxed in prone position with the
knee fully extended. B) rotate the leg to position the 2nd toe pointing
directly towards the floor(in this case requiring internal rotation hip).
C) hold thigh in position (preventing rotation)as the knee flexed.
Measure the angle from vertical.

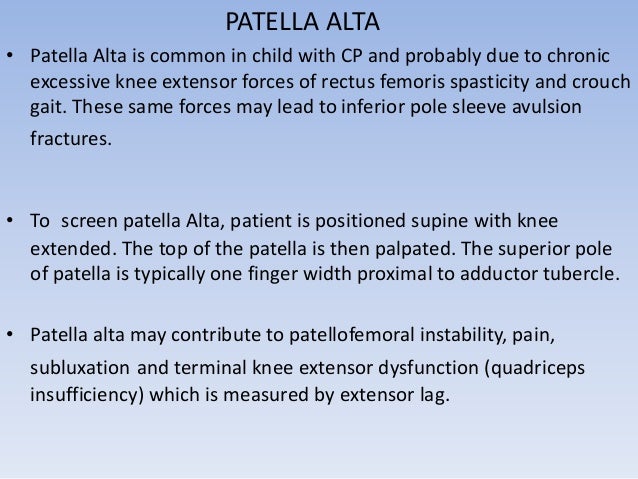

PATELLA ALTA
• Patella Alta is common in child with CP and probably due to chronic
excessive knee extensor forces of rectus femoris spasticity and crouch
gait. These same forces may lead to inferior pole sleeve avulsion
fractures.
• To screen patella Alta, patient is positioned supine with knee
extended. The top of the patella is then palpated. The superior pole
of patella is typically one finger width proximal to adductor tubercle.
• Patella alta may contribute to patellofemoral instability, pain,
subluxation and terminal knee extensor dysfunction (quadriceps
insufficiency) which is measured by extensor lag.

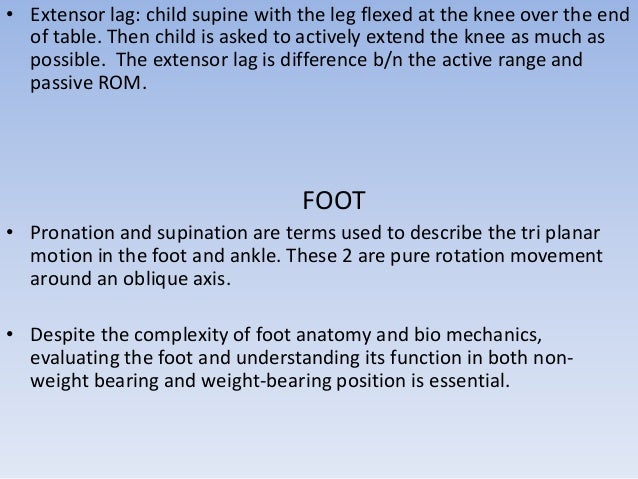

• Extensor lag: child supine with the leg flexed at the knee over the end
of table. Then child is asked to actively extend the knee as much as
possible. The extensor lag is difference b/n the active range and
passive ROM.
FOOT
• Pronation and supination are terms used to describe the tri planar
motion in the foot and ankle. These 2 are pure rotation movement
around an oblique axis.
• Despite the complexity of foot anatomy and bio mechanics,
evaluating the foot and understanding its function in both non-
weight bearing and weight-bearing position is essential.

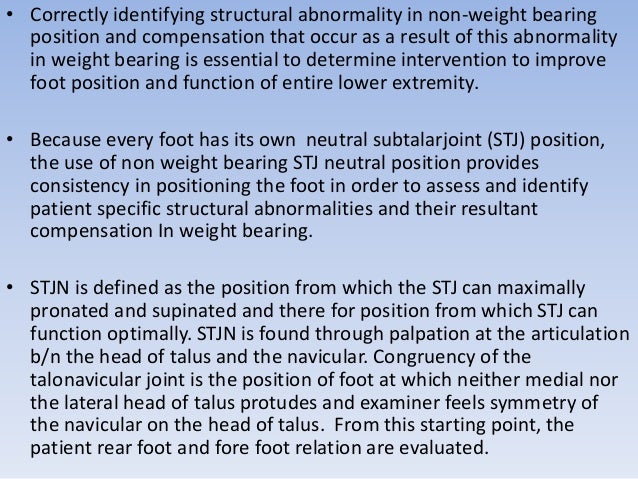

• Correctly identifying structural abnormality in non-weight bearing
position and compensation that occur as a result of this abnormality
in weight bearing is essential to determine intervention to improve
foot position and function of entire lower extremity.
• Because every foot has its own neutral subtalarjoint (STJ) position,
the use of non weight bearing STJ neutral position provides
consistency in positioning the foot in order to assess and identify
patient specific structural abnormalities and their resultant
compensation In weight bearing.
• STJN is defined as the position from which the STJ can maximally
pronated and supinated and there for position from which STJ can
function optimally. STJN is found through palpation at the articulation
b/n the head of talus and the navicular. Congruency of the
talonavicular joint is the position of foot at which neither medial nor
the lateral head of talus protudes and examiner feels symmetry of
the navicular on the head of talus. From this starting point, the
patient rear foot and fore foot relation are evaluated.
EVALUATION OF REAR FOOT POSITION IN STJN
• Once the foot is placed in STJN position, rear foot position in relation
to lower one third of leg is assessed.
• If the relationship is linear, the rear foot position is said to be vertical.
If orientation of rear foot with respect to lower one third of leg is
inverted, this position is known as VARUS of rear foot.
• If the line bisecting the calcaneus is everted in relation to lower one
third of leg, it is known as VALGUS position of rear foot.

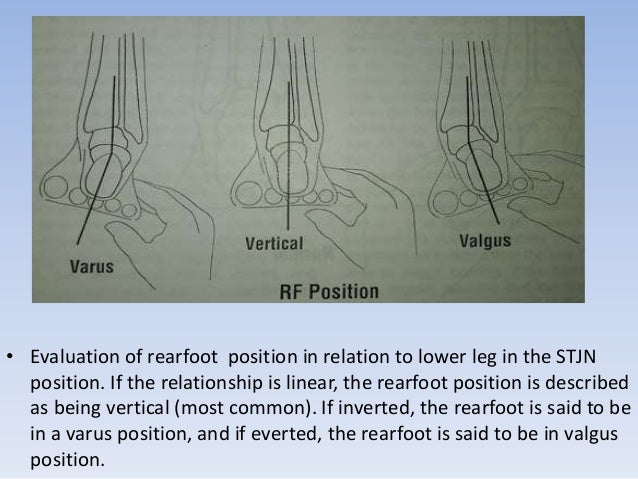

• Evaluation of rearfoot position in relation to lower leg in the STJN
position. If the relationship is linear, the rearfoot position is described
as being vertical (most common). If inverted, the rearfoot is said to be
in a varus position, and if everted, the rearfoot is said to be in valgus
position.

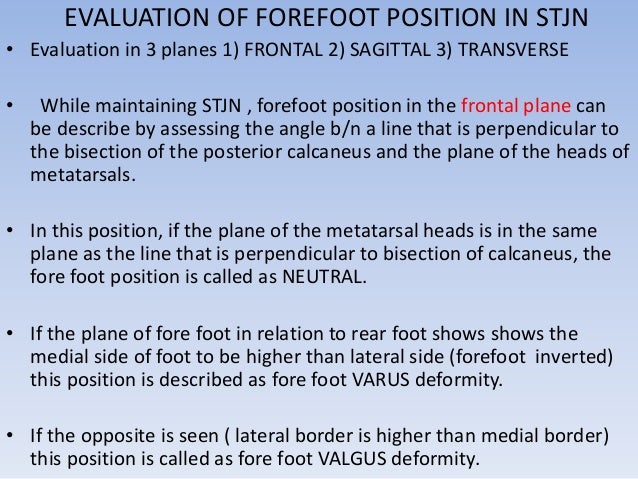

EVALUATION OF FOREFOOT POSITION IN STJN
• Evaluation in 3 planes 1) FRONTAL 2) SAGITTAL 3) TRANSVERSE
• While maintaining STJN , forefoot position in the frontal plane can
be describe by assessing the angle b/n a line that is perpendicular to
the bisection of the posterior calcaneus and the plane of the heads of
metatarsals.
• In this position, if the plane of the metatarsal heads is in the same
plane as the line that is perpendicular to bisection of calcaneus, the
fore foot position is called as NEUTRAL.
• If the plane of fore foot in relation to rear foot shows shows the
medial side of foot to be higher than lateral side (forefoot inverted)
this position is described as fore foot VARUS deformity.
• If the opposite is seen ( lateral border is higher than medial border)
this position is called as fore foot VALGUS deformity.

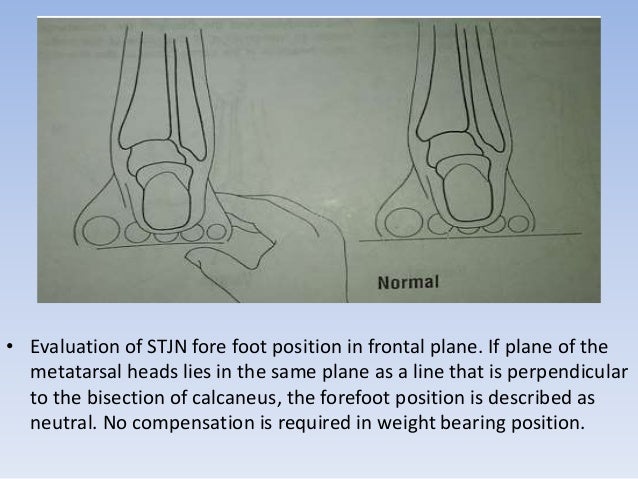

• Evaluation of STJN fore foot position in frontal plane. If plane of the
metatarsal heads lies in the same plane as a line that is perpendicular
to the bisection of calcaneus, the forefoot position is described as
neutral. No compensation is required in weight bearing position.

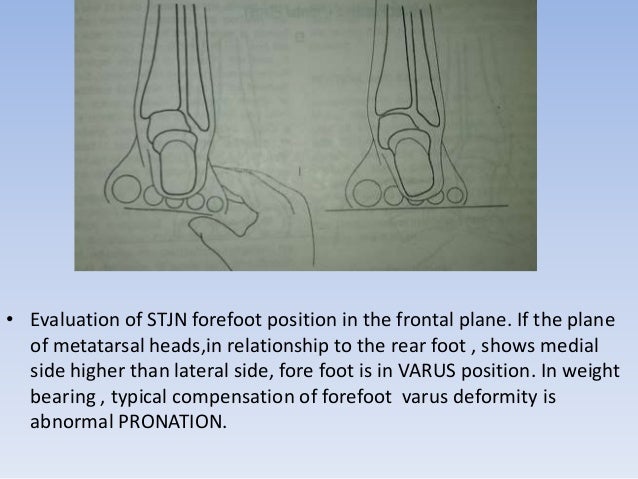

• Evaluation of STJN forefoot position in the frontal plane. If the plane
of metatarsal heads,in relationship to the rear foot , shows medial
side higher than lateral side, fore foot is in VARUS position. In weight
bearing , typical compensation of forefoot varus deformity is
abnormal PRONATION.

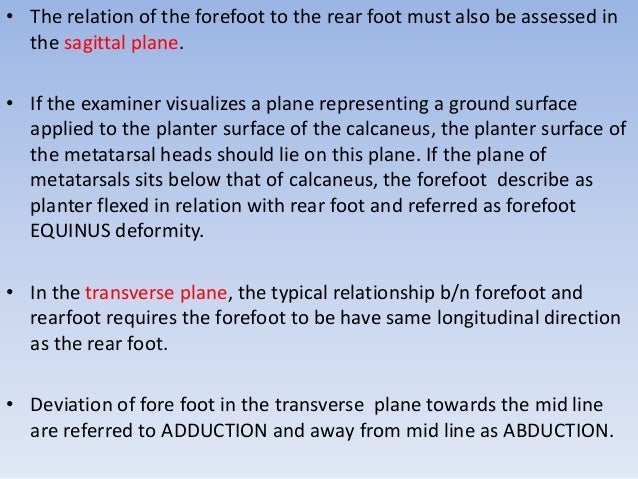

• The relation of the forefoot to the rear foot must also be assessed in
the sagittal plane.
• If the examiner visualizes a plane representing a ground surface
applied to the planter surface of the calcaneus, the planter surface of
the metatarsal heads should lie on this plane. If the plane of
metatarsals sits below that of calcaneus, the forefoot describe as
planter flexed in relation with rear foot and referred as forefoot
EQUINUS deformity.
• In the transverse plane, the typical relationship b/n forefoot and
rearfoot requires the forefoot to be have same longitudinal direction
as the rear foot.
• Deviation of fore foot in the transverse plane towards the mid line
are referred to ADDUCTION and away from mid line as ABDUCTION.

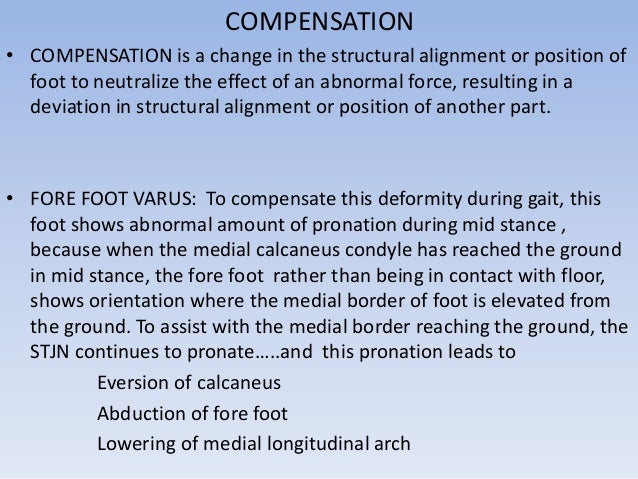

COMPENSATION
• COMPENSATION is a change in the structural alignment or position of
foot to neutralize the effect of an abnormal force, resulting in a
deviation in structural alignment or position of another part.
• FORE FOOT VARUS: To compensate this deformity during gait, this
foot shows abnormal amount of pronation during mid stance ,
because when the medial calcaneus condyle has reached the ground
in mid stance, the fore foot rather than being in contact with floor,
shows orientation where the medial border of foot is elevated from
the ground. To assist with the medial border reaching the ground, the
STJN continues to pronate…..and this pronation leads to
Eversion of calcaneus
Abduction of fore foot
Lowering of medial longitudinal arch

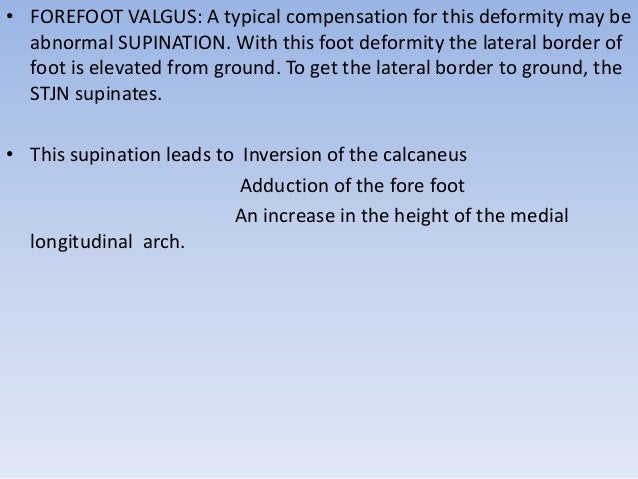

• FOREFOOT VALGUS: A typical compensation for this deformity may be
abnormal SUPINATION. With this foot deformity the lateral border of
foot is elevated from ground. To get the lateral border to ground, the
STJN supinates.
• This supination leads to Inversion of the calcaneus
Adduction of the fore foot
An increase in the height of the medial
longitudinal arch.

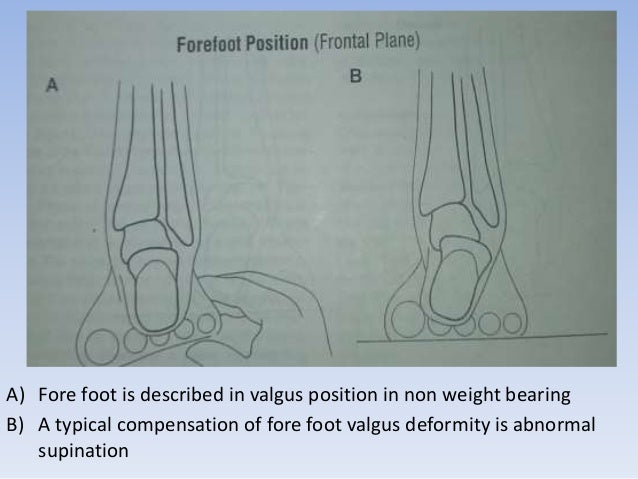

A) Fore foot is described in valgus position in non weight bearing
B) A typical compensation of fore foot valgus deformity is abnormal
supination

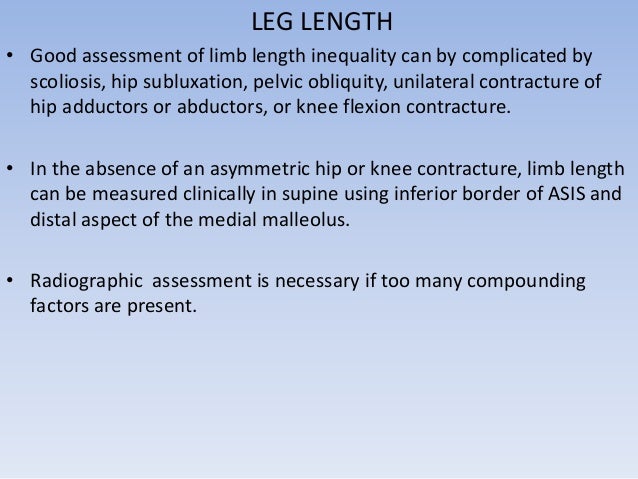

LEG LENGTH
• Good assessment of limb length inequality can by complicated by
scoliosis, hip subluxation, pelvic obliquity, unilateral contracture of
hip adductors or abductors, or knee flexion contracture.
• In the absence of an asymmetric hip or knee contracture, limb length
can be measured clinically in supine using inferior border of ASIS and
distal aspect of the medial malleolus.
• Radiographic assessment is necessary if too many compounding
factors are present.
POSTURE AND BALANCE
• Assessment of posterior, anterior, medial and lateral equilibrium
responses should not be neglected when planning treatment.
• Many children with CP have delayed or deficient post equilibrium
responses.
• Assessment of posture including trunk, pelvis and lower extremity
posture in static standing and during walking often gives insight to
areas of weakness and poor motor control.
GAIT ANALYSIS
• Gait analysis consist of observing the patient with or without use of
formal gait analysis equipment. Now a days computerized gait
analysis is very much in use.
• It is still an essential component for diagnosis. Clinical observation is
done by repeatedly watching the child walk from sides, back and
front. Attention should be paid at pelvis, hip, knee, ankle and foot.
• Beginning with the feet , here several thing to be noted:
1) Is the foot neutral or is it in varus or valgus position?
2) Is the ankle in neutral position or in equinus?
3) what portion of foot contacts the floor first?
4) Is the arch maintain?
5) At which point in the cycle does any deviation in the foot
occur?
• At the knee following should be noted:
1) what is the position of knee at initial contact?
2) does knee hyper extended or extension controlled?
3) does the knee comes in full extension at any point of stance?
4) what is the maximum knee flexion in swing?
5) is there varus or valgus motion during loading?
• Following thing consider in general:
1) is the pelvic position normal or it is ant. Or post.?
2) is pelvic mal rotation or obliquity present?
3) are the abnormal motions present?
4) how are the arm moving during gait? Are they moving
symmetrically and reciprocally or are they postured?
5) does the child elevates his arms to assist with balance?
Examination of the child with        cerebral palsy
Examination of the child with        cerebral palsy
Examination of the child with        cerebral palsy
Examination of the child with        cerebral palsy
Examination of the child with        cerebral palsy
Examination of the child with        cerebral palsy
Examination of the child with        cerebral palsy

More Related Content

What's hot

What's hot (20)

Plantar fascitis final
Plantar fascitis finalPlantar fascitis final
Plantar fascitis final

Tb hip
Tb hipTb hip
Tb hip

Cervical spondylosis; Physiotherapy approach
Cervical spondylosis; Physiotherapy approachCervical spondylosis; Physiotherapy approach
Cervical spondylosis; Physiotherapy approach

Pes cavus
Pes cavusPes cavus
Pes cavus

Patellofemoral pain syndrome (pfps)
Patellofemoral pain syndrome (pfps)Patellofemoral pain syndrome (pfps)
Patellofemoral pain syndrome (pfps)

Rotator cuff injuries
Rotator cuff injuriesRotator cuff injuries
Rotator cuff injuries

Periarthritis shoulder
Periarthritis shoulderPeriarthritis shoulder
Periarthritis shoulder

Spondylolisthesis
Spondylolisthesis Spondylolisthesis
Spondylolisthesis

Arthrodesis
ArthrodesisArthrodesis
Arthrodesis

Genu varum, Genu valgum, Genu recurvatum
Genu varum, Genu valgum, Genu recurvatumGenu varum, Genu valgum, Genu recurvatum
Genu varum, Genu valgum, Genu recurvatum

Perthes ’ disease
Perthes ’ diseasePerthes ’ disease
Perthes ’ disease

Lower limb orthoses
Lower limb orthosesLower limb orthoses
Lower limb orthoses

Hip osteoarthritis
Hip osteoarthritisHip osteoarthritis
Hip osteoarthritis

chondromalacia patellae
chondromalacia patellae chondromalacia patellae
chondromalacia patellae

Cubitus varus and valgus
Cubitus varus and valgusCubitus varus and valgus
Cubitus varus and valgus

Scoliosis
ScoliosisScoliosis
Scoliosis

Hand deformity in rheumatoid arthritis
Hand deformity in rheumatoid arthritisHand deformity in rheumatoid arthritis
Hand deformity in rheumatoid arthritis

Recurrent Dislocation of patella -PAWAN
Recurrent Dislocation of patella -PAWANRecurrent Dislocation of patella -PAWAN
Recurrent Dislocation of patella -PAWAN

Congenital talipes equinovarus (club foot/ctev) ppt by Dr Pratik
Congenital talipes equinovarus (club foot/ctev) ppt by Dr PratikCongenital talipes equinovarus (club foot/ctev) ppt by Dr Pratik
Congenital talipes equinovarus (club foot/ctev) ppt by Dr Pratik

Tb spine
Tb spineTb spine
Tb spine


Similar to Examination of the child with cerebral palsy

Goniometry of upper limb
Goniometry  of upper limb Goniometry  of upper limb
Goniometry of upper limb Priyal17

EVALUATION METHODS.presentation for evaluation
EVALUATION METHODS.presentation for evaluationEVALUATION METHODS.presentation for evaluation
EVALUATION METHODS.presentation for evaluationPranavTrehan2

Jose Austine- Orthopaedic evaluation of cerebral palsy
Jose Austine- Orthopaedic evaluation of cerebral palsyJose Austine- Orthopaedic evaluation of cerebral palsy
Jose Austine- Orthopaedic evaluation of cerebral palsyJose Austine

The knee in cerebral palsy
The knee in cerebral palsy The knee in cerebral palsy
The knee in cerebral palsy Libin Thomas

Kinesiology
KinesiologyKinesiology
KinesiologyKeppen

neural control of locomotion.pptx
neural control of locomotion.pptxneural control of locomotion.pptx
neural control of locomotion.pptxDr.Hetshree Bhavsar

Transfemoral protheses
Transfemoral prothesesTransfemoral protheses
Transfemoral prothesesSoundar Rajan

Motor Examination motor assessment .....
Motor Examination motor assessment .....Motor Examination motor assessment .....
Motor Examination motor assessment .....manashvimakwana11

Rotator cuff injuries.pptx
Rotator cuff injuries.pptxRotator cuff injuries.pptx
Rotator cuff injuries.pptxNilofarRasheed1

Brunnstrom approach
Brunnstrom approachBrunnstrom approach
Brunnstrom approachFizio

Goniometer (range of motion )
Goniometer (range of motion )Goniometer (range of motion )
Goniometer (range of motion )Ajay Agarawal

SLAP PRODROME -PHYSIOTHERAPEUTICS
 SLAP PRODROME  -PHYSIOTHERAPEUTICS SLAP PRODROME  -PHYSIOTHERAPEUTICS
SLAP PRODROME -PHYSIOTHERAPEUTICSDr.Kannabiran Bhojan

gait analysis.pdf
gait analysis.pdfgait analysis.pdf
gait analysis.pdfzaiqar1

Gait analysis and.ppt by ramachandra
Gait analysis and.ppt by ramachandraGait analysis and.ppt by ramachandra
Gait analysis and.ppt by ramachandraramachandra reddy


Similar to Examination of the child with cerebral palsy (20)

Neurodynamics
Neurodynamics Neurodynamics
Neurodynamics

Msk assessment level 6
Msk assessment level 6Msk assessment level 6
Msk assessment level 6

Posture copy
Posture   copyPosture   copy
Posture copy

Goniometry of upper limb
Goniometry  of upper limb Goniometry  of upper limb
Goniometry of upper limb

EVALUATION METHODS.presentation for evaluation
EVALUATION METHODS.presentation for evaluationEVALUATION METHODS.presentation for evaluation
EVALUATION METHODS.presentation for evaluation

Jose Austine- Orthopaedic evaluation of cerebral palsy
Jose Austine- Orthopaedic evaluation of cerebral palsyJose Austine- Orthopaedic evaluation of cerebral palsy
Jose Austine- Orthopaedic evaluation of cerebral palsy

The knee in cerebral palsy
The knee in cerebral palsy The knee in cerebral palsy
The knee in cerebral palsy

Kinesiology
KinesiologyKinesiology
Kinesiology

neural control of locomotion.pptx
neural control of locomotion.pptxneural control of locomotion.pptx
neural control of locomotion.pptx

Chondromalacia Patellar.pptx
Chondromalacia Patellar.pptxChondromalacia Patellar.pptx
Chondromalacia Patellar.pptx

Transfemoral protheses
Transfemoral prothesesTransfemoral protheses
Transfemoral protheses

Motor Examination motor assessment .....
Motor Examination motor assessment .....Motor Examination motor assessment .....
Motor Examination motor assessment .....

Rotator cuff injuries.pptx
Rotator cuff injuries.pptxRotator cuff injuries.pptx
Rotator cuff injuries.pptx

Brunnstrom approach
Brunnstrom approachBrunnstrom approach
Brunnstrom approach

Goniometer (range of motion )
Goniometer (range of motion )Goniometer (range of motion )
Goniometer (range of motion )

Carrying Angle
Carrying AngleCarrying Angle
Carrying Angle

SLAP PRODROME -PHYSIOTHERAPEUTICS
 SLAP PRODROME  -PHYSIOTHERAPEUTICS SLAP PRODROME  -PHYSIOTHERAPEUTICS
SLAP PRODROME -PHYSIOTHERAPEUTICS

POSTURE.pptx
POSTURE.pptxPOSTURE.pptx
POSTURE.pptx

gait analysis.pdf
gait analysis.pdfgait analysis.pdf
gait analysis.pdf

Gait analysis and.ppt by ramachandra
Gait analysis and.ppt by ramachandraGait analysis and.ppt by ramachandra
Gait analysis and.ppt by ramachandra


Recently uploaded

Call Girls Viman Nagar 7001305949 All Area Service COD available Any Time
Call Girls Viman Nagar 7001305949 All Area Service COD available Any TimeCall Girls Viman Nagar 7001305949 All Area Service COD available Any Time
Call Girls Viman Nagar 7001305949 All Area Service COD available Any Timevijaych2041

Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...rajnisinghkjn

QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)
QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)
QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)Hasnat Tariq

Glomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptxGlomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptxDr.Nusrat Tariq

call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️saminamagar

Presentation on General Anesthetics pdf.
Presentation on General Anesthetics pdf.Presentation on General Anesthetics pdf.
Presentation on General Anesthetics pdf.Prerana Jadhav

Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...rajnisinghkjn

Call Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment Booking
Call Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment BookingCall Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment Booking
Call Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment BookingNehru place Escorts

Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...
Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...
Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...Wessex Health Partners

Apiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.pptApiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.pptkedirjemalharun

Primary headache and facial pain. (2024)
Primary headache and facial pain. (2024)Primary headache and facial pain. (2024)
Primary headache and facial pain. (2024)Mohamed Rizk Khodair

PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptxPERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptxdrashraf369

Glomerular Filtration and determinants of glomerular filtration .pptx
Glomerular Filtration and  determinants of glomerular filtration .pptxGlomerular Filtration and  determinants of glomerular filtration .pptx
Glomerular Filtration and determinants of glomerular filtration .pptxDr.Nusrat Tariq

Radiation Dosimetry Parameters and Isodose Curves.pptx
Radiation Dosimetry Parameters and Isodose Curves.pptxRadiation Dosimetry Parameters and Isodose Curves.pptx
Radiation Dosimetry Parameters and Isodose Curves.pptxDr. Dheeraj Kumar

Hematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes FunctionsHematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes FunctionsMedicoseAcademics

Informed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptxInformed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptxSasikiranMarri

PULMONARY EDEMA AND ITS MANAGEMENT.pdf
PULMONARY EDEMA AND  ITS  MANAGEMENT.pdfPULMONARY EDEMA AND  ITS  MANAGEMENT.pdf
PULMONARY EDEMA AND ITS MANAGEMENT.pdfDolisha Warbi

epilepsy and status epilepticus for undergraduate.pptx
epilepsy and status epilepticus  for undergraduate.pptxepilepsy and status epilepticus  for undergraduate.pptx
epilepsy and status epilepticus for undergraduate.pptxMohamed Rizk Khodair

COVID-19 (NOVEL CORONA VIRUS DISEASE PANDEMIC ).pptx
COVID-19  (NOVEL CORONA  VIRUS DISEASE PANDEMIC ).pptxCOVID-19  (NOVEL CORONA  VIRUS DISEASE PANDEMIC ).pptx
COVID-19 (NOVEL CORONA VIRUS DISEASE PANDEMIC ).pptxBibekananda shah

April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATROApril 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATROKanhu Charan


Recently uploaded (20)

Call Girls Viman Nagar 7001305949 All Area Service COD available Any Time
Call Girls Viman Nagar 7001305949 All Area Service COD available Any TimeCall Girls Viman Nagar 7001305949 All Area Service COD available Any Time
Call Girls Viman Nagar 7001305949 All Area Service COD available Any Time

Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...
Dwarka Sector 2 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few Cl...

QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)
QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)
QUALITY CONTROL OF SOLID DOSAGE FORMS (TABLETS , CAPSULES & POWDERS)

Glomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptxGlomerular Filtration rate and its determinants.pptx
Glomerular Filtration rate and its determinants.pptx

call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️
call girls in paharganj DELHI 🔝 >༒9540349809 🔝 genuine Escort Service 🔝✔️✔️

Presentation on General Anesthetics pdf.
Presentation on General Anesthetics pdf.Presentation on General Anesthetics pdf.
Presentation on General Anesthetics pdf.

Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...
Noida Sector 135 Call Girls ( 9873940964 ) Book Hot And Sexy Girls In A Few C...

Call Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment Booking
Call Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment BookingCall Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment Booking
Call Girls Service Nandiambakkam | 7001305949 At Low Cost Cash Payment Booking

Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...
Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...
Wessex Health Partners Wessex Integrated Care, Population Health, Research & ...

Apiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.pptApiculture Chapter 1. Introduction 2.ppt
Apiculture Chapter 1. Introduction 2.ppt

Primary headache and facial pain. (2024)
Primary headache and facial pain. (2024)Primary headache and facial pain. (2024)
Primary headache and facial pain. (2024)

PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptxPERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx
PERFECT BUT PAINFUL TKR -ROLE OF SYNOVECTOMY.pptx

Glomerular Filtration and determinants of glomerular filtration .pptx
Glomerular Filtration and  determinants of glomerular filtration .pptxGlomerular Filtration and  determinants of glomerular filtration .pptx
Glomerular Filtration and determinants of glomerular filtration .pptx

Radiation Dosimetry Parameters and Isodose Curves.pptx
Radiation Dosimetry Parameters and Isodose Curves.pptxRadiation Dosimetry Parameters and Isodose Curves.pptx
Radiation Dosimetry Parameters and Isodose Curves.pptx

Hematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes FunctionsHematology and Immunology - Leukocytes Functions
Hematology and Immunology - Leukocytes Functions

Informed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptxInformed Consent Empowering Healthcare Decision-Making.pptx
Informed Consent Empowering Healthcare Decision-Making.pptx

PULMONARY EDEMA AND ITS MANAGEMENT.pdf
PULMONARY EDEMA AND  ITS  MANAGEMENT.pdfPULMONARY EDEMA AND  ITS  MANAGEMENT.pdf
PULMONARY EDEMA AND ITS MANAGEMENT.pdf

epilepsy and status epilepticus for undergraduate.pptx
epilepsy and status epilepticus  for undergraduate.pptxepilepsy and status epilepticus  for undergraduate.pptx
epilepsy and status epilepticus for undergraduate.pptx

COVID-19 (NOVEL CORONA VIRUS DISEASE PANDEMIC ).pptx
COVID-19  (NOVEL CORONA  VIRUS DISEASE PANDEMIC ).pptxCOVID-19  (NOVEL CORONA  VIRUS DISEASE PANDEMIC ).pptx
COVID-19 (NOVEL CORONA VIRUS DISEASE PANDEMIC ).pptx

April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATROApril 2024 ONCOLOGY CARTOON by  DR KANHU CHARAN PATRO
April 2024 ONCOLOGY CARTOON by DR KANHU CHARAN PATRO


Examination of the child with cerebral palsy

  • 1. EXAMINATION OF CHILD WITH CEREBRAL PALSY BY DR. MAULIK PATEL RESIDENT DEPT. OF ORTHOPEADIC D.Y.P.H
  • 2. CLINICAL EVALUATION • To prepare treatment plans and accurately assess outcome of treatment of child with cerebral palsy, a balanced combination of 1) Medical history 2) Physical examination 3) Functional assessment 4) Observational gait analysis & computerized gait analysis 5) Imaging 6) Assessment of patient & family goals must be interpreted.
  • 3. PHYSICAL EXAMINATION • The physical examination can be separated into 7 broad categories: 1. Strength & selective motor control of isolated muscle groups 2. Degree & type of muscle tone 3. Degree of static muscle & joint contracture 4. Torsional & other bone deformity 5. Fixed & mobile foot deformities 6. Balanced, equilibrium response & standing posture 7. Gait by observation
  • 4. MUSCLE STRENGTH • Strength evaluation is necessary to assess appropriateness for intervention such as selective dorsal rhizotomy or lower limb surgery. • Children with CP are weak. Motor function and strength are directly related. Manual muscle testing (MMT) is the typical method for measuring muscle strength In child with CP. • Isometric assessment with a dynamometer is becoming more common in clinic and research studies. • Isokinetic evaluation are used when evaluating strength throught the range of motion (ROM). This assessment used to measure torque generated through an arc of movement.
  • 5. SELECTIVE MOTOR CONTROL • Impaired ability to isolate and control movements confounds strength assessment and contributes to ambulatory and functional motor deficits. • Assessment of selective motor control involves isolating movements on request, appropriate timing , and maximal voluntary contraction without overflow movement. • A typical scale for muscle selectivity has 3 grades of control: GRADE 0- No ability / only patterned movement observed. 1- Partially isolated movements observed. 2- Completely isolated movements observed.
  • 6. MUSCLE TONE ASSESSMENT • Tone is the resistance to passive stretch while a person is attempting to maintain a relaxed state of muscle activity. • Hypertonia is defined as abnormally increased resistance to an externally imposed movement about a joint. It can be caused by spasticity , dystonia ,rigidity or a combination of these. • Resting muscle tone can be influence by the degree of cooperation, apprehension, excitement of patient and position during assessment. • Muscle tone assessment on different occasions by different practitioners may be necessary to accurately check the nature of the child muscle tone. • SANGER AND COLLEAGUES recommend this process: Start by palpating the muscle in question to determine if there is muscle contracture at rest.
  • 7. Move the limb slowly to assess the available passive ROM The limb can then be moved through the available range at different speeds to assess the presence or absence of a catch and how this catch varies with a variety of speeds. Next is change the direction of motion of the joint at various speed and assess how the resistance varies. Last , observe the limb/ joint while asking the patient to move the same joint on contralateral side.
  • 8. • By using this process for evaluation, the consistency and completeness of tone abnormality documentation improve. • Spastic ( compared with dystonic) hypertonia causes an increase resistance felt at higher speeds of passive movement. • The ASHWORTH scale, modified ASHWORTH scale and an isokinetic dynamometer in conjunction with surface electromyography are methods used to assess severity of spastic hypertonia. ASHWORTH SCALE: 1. No increase in tone 2. Slight increase in tone 3. More marked increase in tone 4. Considerable increase in tone 5. Affected part rigid
  • 9. MODIFIED ASHWORTH SCALE • GRADE 0 – No increase in muscle tone 1 – Slight increase in muscle tone manifested by catch and release or by minimal resistance at the end of ROM when affected part is moved in flexion or extension. 1+ – Slight increase in the muscle tone manifest by a catch followed by minimal resistance through out reminder of the ROM 2 – More marked increase in muscle tone through most of the ROM but affected part easily moved. 3 – Considerable increase in muscle tone, passive movement difficult. 4 – Affected part rigid in flexion or extension.
  • 10. • On other hand dystonic hypertonia shows an increase muscle activity when at rest, has a tendency to return to a fixed posture, increase resistance with the movement of contralateral limb and change with the change in behavior or posture. • There are also involuntary sustained or intermittent muscle contractions causing twisting and repetitive movements, abnormal posture or both.
  • 11. • ROM AND CONTRACTURE: • Variation in ROM measurement between observer is common and frustrating. • Differentiation between static and dynamic deformity may be difficult in nonanesthetized patient. However static examination of muscle length provides some insight in to whether contracture are static or dynamic. • Comparison of joint ROM with slow and rapid stretch can be useful in evaluation of spasticity. • Dynamic contracture disappears under G.A. thus the ROM examination under G.A. can be used to help decide whether to inject botulinum toxin for spasticity in muscle or perform surgery to lengthen a contracture of the tendon. • Differentiation between contracted biarticular and monoarticular muscle is important. • The Silverskiold test assesses the difference between gastocnemius and soleus contracture.
  • 12. The Silverskiold test: a) this test differentiates tightness of gastrocnemius and soleus. In this test the knee is flexed to 90, hind foot is positioned in varus, and maximally dorsiflexed. B) As the knee extented , if ankle moves towards plantarflexion, contracture of gastrocnemius present.
  • 13.
  • 14. • The DUNCAN-ELY test differentiates between contracture of the monoarticular vasti and the biarticular rectus femoris. • Perry and colleagues have shown that when these test are performed with electromyography, both mono articular and bi articular muscle crossing the joint contract. • For example, in nonanesthetized person The DUNCAN-ELY test induce contraction of not only the rectus femoris but also iliopsoas and SILVERSKIOLD test induce contraction of both gastrcnemius and soleus. But under G.A. the biarticular muscle tests reliably differentiate the location of contraction. So this should routinely include as part of pre surgical examination under G.A.
  • 15. • The Duncan-ely test: patient is positioned prone. As the knee is flexed, a contracture of the rectus femoris causes the hip to flex because rectus femoris is a hip flexor and knee extensor.
  • 16.
  • 17. HIP • The Thomas test is used to measure the degree of hip flexor tightness. • It is preformed with patient supine position and pelvis held in such that the ASIS and PSIS are aligned vertically. • Defining the pelvis position consistently rather than using the flattened the lordosis method improves reliability. • Because of the origin and insertion points, the causes of limited hip abduction ROM can be distinguished by measuring hip abduction in various position of hip and knee with the patient in supine. The one joint adductors ( adductor longus, brevis , magnus) are isolated with the knee flexed. In this position, the gracilis is relaxed. (cont..)
  • 18. • With the knee in full extension the length of 2 joint gracilis in a position of maximum stretch. • If the hip abduction is more limited when the knee is extended compare with the knee flexed, contracture of gracilis is the cause. KNEE • In child with CP capsular contracture causes knee flexion contracture. It is must to differentiate between true knee joint contracture and hamstring contracture. • Knee joint contracture is identify if knee extension is limited with hip extension (to relax hams) and ankle relax in position of equinus (to relax gastrocnemius) .
  • 19. • Hamstring contracture is identified if knee extension is limited when the hip is flexed 90 (popliteal angle). normal values for popliteal angle are age and gender dependent, with boys tighter than girls and both tighter with increase with age, mainly at adolescent growth spurt. • In the patient normal resting supine position, hip contracture causes lumbar lordosis and ant. Pelvic tilting that shift the origin of hamstrings on the ischial tuberosity proximally. The contralateral hip in full extension, where as the ipsilateral hip is flexed to 90. The measurement of degree lacking from full extension is recorded as UNILATERAL POPLITEAL ANGLE. Normal popliteal angle of 5 to 18 year is 0 to 49 with mean of 26. • The bilateral popliteal angle measurement is performed with contralateral hip flexed until ASIS and PSIS aligned vertically.
  • 20. • Unilateral and bilateral popliteal angle are measured to calculate the hamstring shift. A)The unilateral popliteal angle measured with typical lordosis, contralateral hip extended and ipsilateral hip flex to 90. the number recorded is the degree missing from full extension at the point of first resistance. B) Bilateral popliteal angle measured with the pelvic position corrected. The contralateral hip is flexed until the ASIS and PSIS are vertical.
  • 21.
  • 22. • A significant smaller popliteal angle with pelvis position corrected is referred as a HAMSTRING SHIFT. • The value popliteal angle with a neutral pelvis is a measure of true hams contracture and the value with the lordosis presents the functional hams contracture. The difference between this two represents the degree of HAMSTRING SHIFT. • Hamstring contracture is frequently implicated as a causes of crouch gait. However increased ant. Pelvic tilt is common in crouch gait caused by CP and this produce hamstring shift. In this situation, hamstring length may be normal or long, and hams lengthening surgery weakens hip extension and exacerbates the excessive hamstring length.
  • 23. • Because of difficulty in establishing dynamic hamstring length on physical examination, static hamstring length from supine physical examination should supplemented by estimation of hamstring length obtained from gait analysis before consideration of hamstring lengthening surgery.
  • 24. BONE DEFORMITY • FEMORAL ANTEVERSION: • Femoral anteversion means the relationship between the axis of femoral neck and femoral condyles in transverse plane. • Femoral anteversion reported as the difference between the tibia and the vertical. Average normal value for adult men is 10 and for female is 15. • Femoral anteversion at birth is 45. If growth and development are typical, most infantile anteversion remodels b/n 1 to 4 year of age reaching normal value by 8 year.
  • 25. • Femoral anteversion by palpation of maximum trochanteric prominence. In prone position with knee flex 90, rotate the hip internally and externally until the GT is maximally prominent laterally. Femoral anteversion is the difference between the tibia and the vertical.
  • 26. TIBIAL TORSION • Tibial torsion is more difficult to measure accurately despite of experience. Three methods are used for this. 1) Thigh foot angle : most reliable method and also most commonly used. However hind and mid foot mobility is necessary to properly align the foot in line with talus primarily because it is difficult to standardize foot alignment , and foot deformities are common in child with CP. 2) The bimalleolar axis method : it can be used in rigid foot deformity. 3) The 2nd toe test is the 3rd method. • Now some centre rely on computed tomography scan measurement for tibial torsion.
  • 27. • The thigh foot angle: The patient is positioned prone. Flex the knee to 90, position the hind foot vertically and dorsiflex the ankle to 90 with foot in subtalar neutral position. place the proximal arm of goniometer along posterior axis of femur and distal arm along the bisector of the hindfoot and the point between 2nd and 3rd metatarsal heads.
  • 28. The bimalleolar axis angle. A) with the knee fully extended in supine position rotate the thigh segement until the medial and lateral femoral condyles are horizontal. B) mark the mid point of medial and lateral malleolus. C) using goniometer or angle finder , measure the angle between the bimalleolar axis and the condylar axis.
  • 29. • The 2nd toe test. A) an external tibial torsion leads to an outwardly pointed foot when the patient is relaxed in prone position with the knee fully extended. B) rotate the leg to position the 2nd toe pointing directly towards the floor(in this case requiring internal rotation hip). C) hold thigh in position (preventing rotation)as the knee flexed. Measure the angle from vertical.
  • 30. PATELLA ALTA • Patella Alta is common in child with CP and probably due to chronic excessive knee extensor forces of rectus femoris spasticity and crouch gait. These same forces may lead to inferior pole sleeve avulsion fractures. • To screen patella Alta, patient is positioned supine with knee extended. The top of the patella is then palpated. The superior pole of patella is typically one finger width proximal to adductor tubercle. • Patella alta may contribute to patellofemoral instability, pain, subluxation and terminal knee extensor dysfunction (quadriceps insufficiency) which is measured by extensor lag.
  • 31. • Extensor lag: child supine with the leg flexed at the knee over the end of table. Then child is asked to actively extend the knee as much as possible. The extensor lag is difference b/n the active range and passive ROM. FOOT • Pronation and supination are terms used to describe the tri planar motion in the foot and ankle. These 2 are pure rotation movement around an oblique axis. • Despite the complexity of foot anatomy and bio mechanics, evaluating the foot and understanding its function in both non- weight bearing and weight-bearing position is essential.
  • 32. • Correctly identifying structural abnormality in non-weight bearing position and compensation that occur as a result of this abnormality in weight bearing is essential to determine intervention to improve foot position and function of entire lower extremity. • Because every foot has its own neutral subtalarjoint (STJ) position, the use of non weight bearing STJ neutral position provides consistency in positioning the foot in order to assess and identify patient specific structural abnormalities and their resultant compensation In weight bearing. • STJN is defined as the position from which the STJ can maximally pronated and supinated and there for position from which STJ can function optimally. STJN is found through palpation at the articulation b/n the head of talus and the navicular. Congruency of the talonavicular joint is the position of foot at which neither medial nor the lateral head of talus protudes and examiner feels symmetry of the navicular on the head of talus. From this starting point, the patient rear foot and fore foot relation are evaluated.
  • 33. EVALUATION OF REAR FOOT POSITION IN STJN • Once the foot is placed in STJN position, rear foot position in relation to lower one third of leg is assessed. • If the relationship is linear, the rear foot position is said to be vertical. If orientation of rear foot with respect to lower one third of leg is inverted, this position is known as VARUS of rear foot. • If the line bisecting the calcaneus is everted in relation to lower one third of leg, it is known as VALGUS position of rear foot.
  • 34. • Evaluation of rearfoot position in relation to lower leg in the STJN position. If the relationship is linear, the rearfoot position is described as being vertical (most common). If inverted, the rearfoot is said to be in a varus position, and if everted, the rearfoot is said to be in valgus position.
  • 35. EVALUATION OF FOREFOOT POSITION IN STJN • Evaluation in 3 planes 1) FRONTAL 2) SAGITTAL 3) TRANSVERSE • While maintaining STJN , forefoot position in the frontal plane can be describe by assessing the angle b/n a line that is perpendicular to the bisection of the posterior calcaneus and the plane of the heads of metatarsals. • In this position, if the plane of the metatarsal heads is in the same plane as the line that is perpendicular to bisection of calcaneus, the fore foot position is called as NEUTRAL. • If the plane of fore foot in relation to rear foot shows shows the medial side of foot to be higher than lateral side (forefoot inverted) this position is described as fore foot VARUS deformity. • If the opposite is seen ( lateral border is higher than medial border) this position is called as fore foot VALGUS deformity.
  • 36. • Evaluation of STJN fore foot position in frontal plane. If plane of the metatarsal heads lies in the same plane as a line that is perpendicular to the bisection of calcaneus, the forefoot position is described as neutral. No compensation is required in weight bearing position.
  • 37. • Evaluation of STJN forefoot position in the frontal plane. If the plane of metatarsal heads,in relationship to the rear foot , shows medial side higher than lateral side, fore foot is in VARUS position. In weight bearing , typical compensation of forefoot varus deformity is abnormal PRONATION.
  • 38. • The relation of the forefoot to the rear foot must also be assessed in the sagittal plane. • If the examiner visualizes a plane representing a ground surface applied to the planter surface of the calcaneus, the planter surface of the metatarsal heads should lie on this plane. If the plane of metatarsals sits below that of calcaneus, the forefoot describe as planter flexed in relation with rear foot and referred as forefoot EQUINUS deformity. • In the transverse plane, the typical relationship b/n forefoot and rearfoot requires the forefoot to be have same longitudinal direction as the rear foot. • Deviation of fore foot in the transverse plane towards the mid line are referred to ADDUCTION and away from mid line as ABDUCTION.
  • 39. COMPENSATION • COMPENSATION is a change in the structural alignment or position of foot to neutralize the effect of an abnormal force, resulting in a deviation in structural alignment or position of another part. • FORE FOOT VARUS: To compensate this deformity during gait, this foot shows abnormal amount of pronation during mid stance , because when the medial calcaneus condyle has reached the ground in mid stance, the fore foot rather than being in contact with floor, shows orientation where the medial border of foot is elevated from the ground. To assist with the medial border reaching the ground, the STJN continues to pronate…..and this pronation leads to Eversion of calcaneus Abduction of fore foot Lowering of medial longitudinal arch
  • 40. • FOREFOOT VALGUS: A typical compensation for this deformity may be abnormal SUPINATION. With this foot deformity the lateral border of foot is elevated from ground. To get the lateral border to ground, the STJN supinates. • This supination leads to Inversion of the calcaneus Adduction of the fore foot An increase in the height of the medial longitudinal arch.
  • 41. A) Fore foot is described in valgus position in non weight bearing B) A typical compensation of fore foot valgus deformity is abnormal supination
  • 42. LEG LENGTH • Good assessment of limb length inequality can by complicated by scoliosis, hip subluxation, pelvic obliquity, unilateral contracture of hip adductors or abductors, or knee flexion contracture. • In the absence of an asymmetric hip or knee contracture, limb length can be measured clinically in supine using inferior border of ASIS and distal aspect of the medial malleolus. • Radiographic assessment is necessary if too many compounding factors are present.
  • 43. POSTURE AND BALANCE • Assessment of posterior, anterior, medial and lateral equilibrium responses should not be neglected when planning treatment. • Many children with CP have delayed or deficient post equilibrium responses. • Assessment of posture including trunk, pelvis and lower extremity posture in static standing and during walking often gives insight to areas of weakness and poor motor control.
  • 44. GAIT ANALYSIS • Gait analysis consist of observing the patient with or without use of formal gait analysis equipment. Now a days computerized gait analysis is very much in use. • It is still an essential component for diagnosis. Clinical observation is done by repeatedly watching the child walk from sides, back and front. Attention should be paid at pelvis, hip, knee, ankle and foot. • Beginning with the feet , here several thing to be noted: 1) Is the foot neutral or is it in varus or valgus position? 2) Is the ankle in neutral position or in equinus? 3) what portion of foot contacts the floor first? 4) Is the arch maintain? 5) At which point in the cycle does any deviation in the foot occur?
  • 45. • At the knee following should be noted: 1) what is the position of knee at initial contact? 2) does knee hyper extended or extension controlled? 3) does the knee comes in full extension at any point of stance? 4) what is the maximum knee flexion in swing? 5) is there varus or valgus motion during loading? • Following thing consider in general: 1) is the pelvic position normal or it is ant. Or post.? 2) is pelvic mal rotation or obliquity present? 3) are the abnormal motions present? 4) how are the arm moving during gait? Are they moving symmetrically and reciprocally or are they postured? 5) does the child elevates his arms to assist with balance?

Editor's Notes

  1. (
