1.
1
KSQL – Streaming SQL
for Apache Kafka
Matthias J. Sax | Software Engineer
matthias@confluent.io
@MatthiasJSax

2.
2
1.0 Enterprise
Ready
A Brief History of Kafka and Confluent
0.11 Exactly-once
semantics
0.10 Data processing
(Streams API)
0.9 Data integration
(Connect API)
Intra-cluster
replication
0.8
2012 2014
Cluster mirroring0.7
2015 2016 20172013 2018
CP 4.1
KSQL GA

3.
3

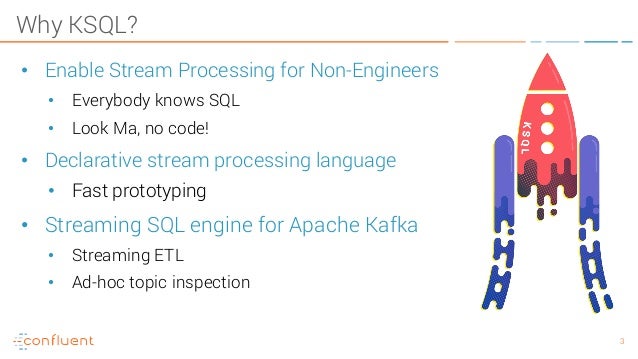

Why KSQL?
• Enable Stream Processing for Non-Engineers
• Everybody knows SQL
• Look Ma, no code!
• Declarative stream processing language
• Fast prototyping
• Streaming SQL engine for Apache Kafka
• Streaming ETL
• Ad-hoc topic inspection

4.
4
Trade-Offs
• subscribe()
• poll()
• send()
• flush()
Consumer,
Producer
• filter()
• join()
• aggregate()
Kafka Streams
• Select…from…
• Join…where…
• Group by..
KSQL
Flexibility Simplicity

5.
5
Core Concepts KSQL

6.
6

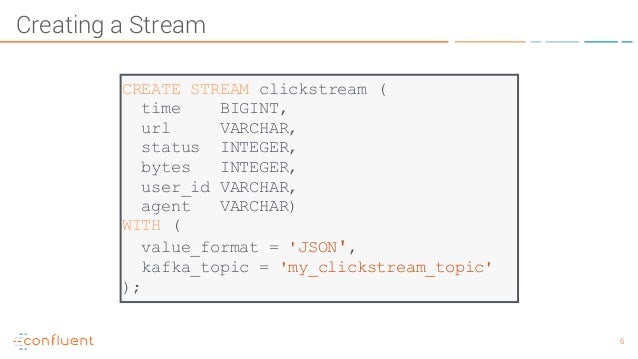

CREATE STREAM clickstream (
time BIGINT,
url VARCHAR,
status INTEGER,
bytes INTEGER,
user_id VARCHAR,
agent VARCHAR)
WITH (
value_format = 'JSON',
kafka_topic = 'my_clickstream_topic'
);
Creating a Stream

7.
7

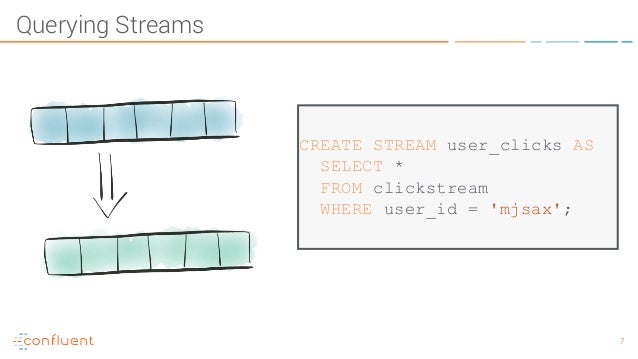

Querying Streams
CREATE STREAM user_clicks AS
SELECT *
FROM clickstream
WHERE user_id = 'mjsax';

8.

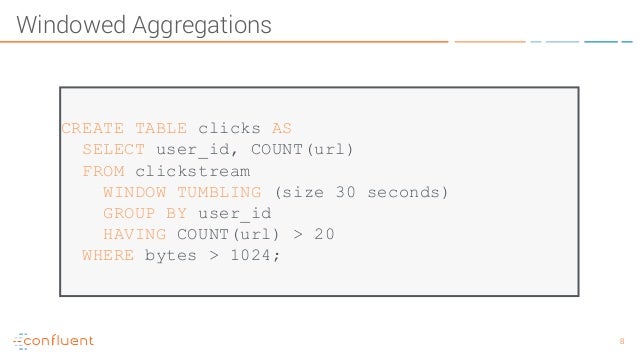

8
CREATE TABLE clicks AS
SELECT user_id, COUNT(url)
FROM clickstream
WINDOW TUMBLING (size 30 seconds)
GROUP BY user_id
HAVING COUNT(url) > 20
WHERE bytes > 1024;
Windowed Aggregations

9.
9
Windowed Aggregations

10.
10

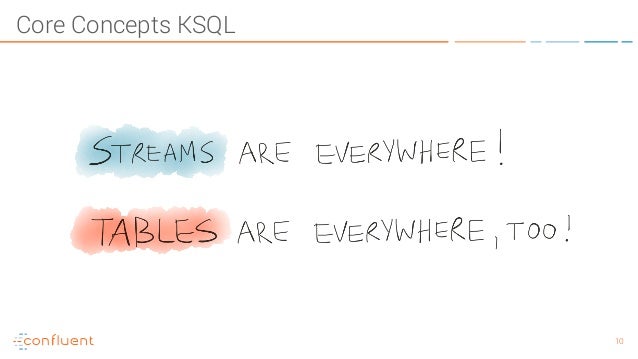

Core Concepts KSQL

11.
Do you think that’s a table you are querying ?

12.
12
CREATE TABLE users (
user_id INTEGER,
registered_at LONG,
username VARCHAR,
name VARCHAR,
city VARCHAR,
level VARCHAR)
WITH (
key = 'user_id',
kafka_topic = 'clickstream_users',
value_format = 'AVRO');
Creating a Table

13.
13

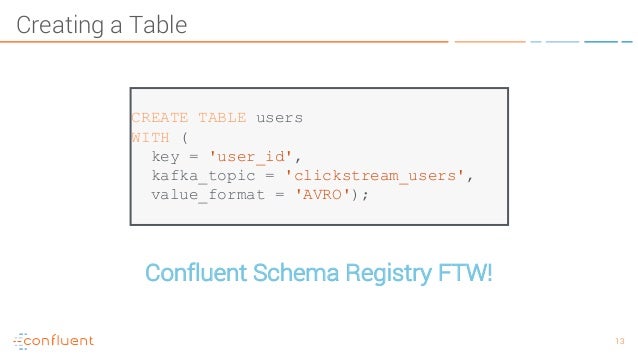

Confluent Schema Registry FTW!
CREATE TABLE users
WITH (
key = 'user_id',
kafka_topic = 'clickstream_users',
value_format = 'AVRO');
Creating a Table

14.
14

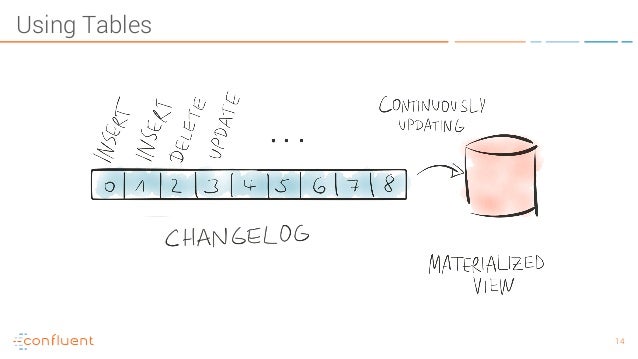

Using Tables

15.
15

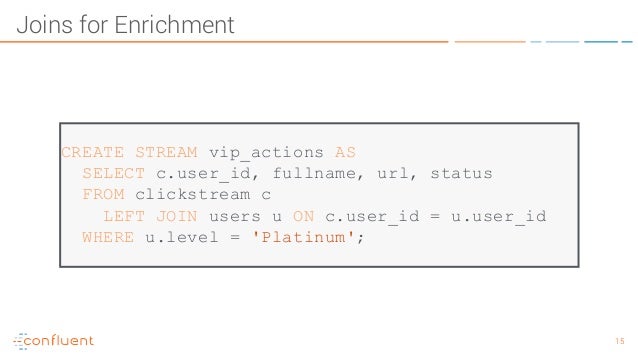

CREATE STREAM vip_actions AS
SELECT c.user_id, fullname, url, status
FROM clickstream c
LEFT JOIN users u ON c.user_id = u.user_id
WHERE u.level = 'Platinum';
Joins for Enrichment

16.
16

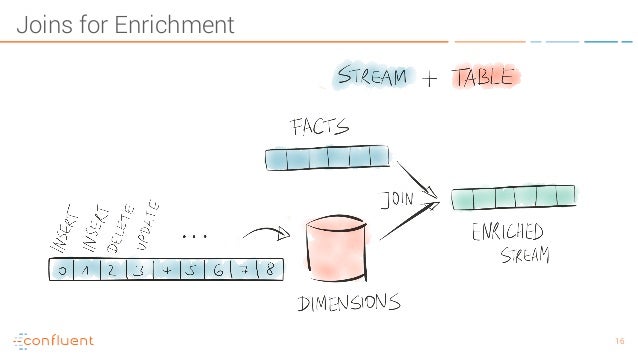

Joins for Enrichment

17.
17

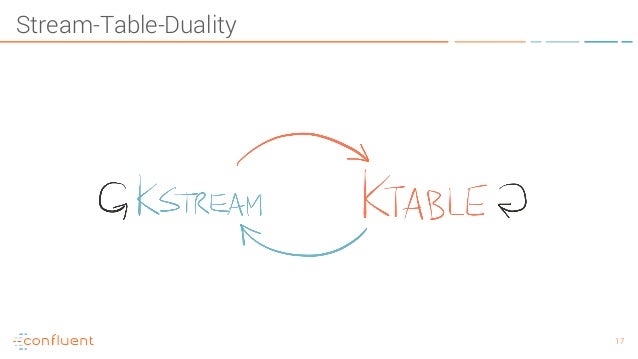

Stream-Table-Duality

18.
18
How to deploy and use KSQL

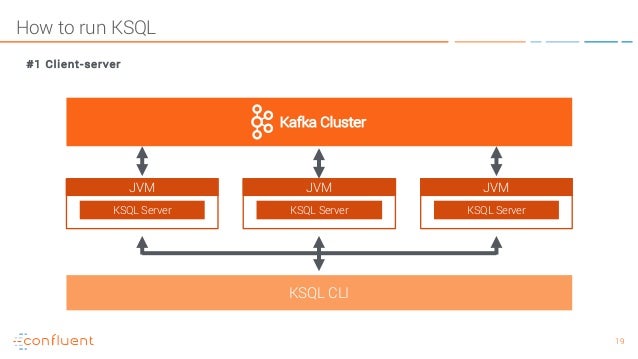

19.
19
How to run KSQL
JVM
KSQL Server
KSQL CLI
JVM
KSQL Server
JVM
KSQL Server
Kafka Cluster
#1 Client-server

20.
20

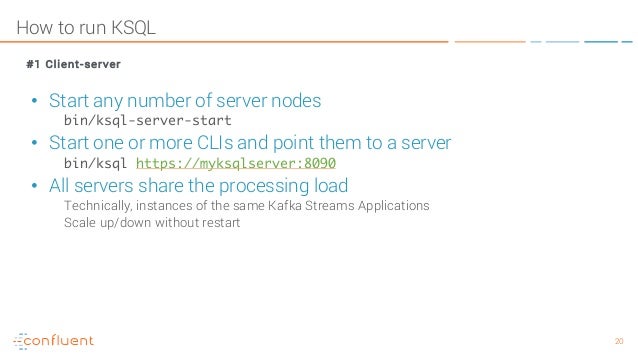

How to run KSQL
#1 Client-server
• Start any number of server nodes
bin/ksql-server-start
• Start one or more CLIs and point them to a server
bin/ksql https://myksqlserver:8090
• All servers share the processing load
Technically, instances of the same Kafka Streams Applications
Scale up/down without restart

21.
21

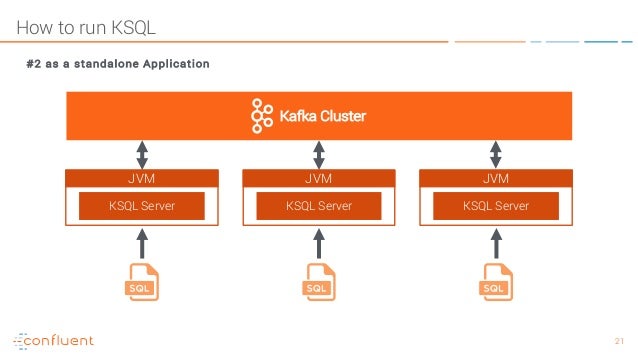

How to run KSQL
JVM
KSQL Server
JVM
KSQL Server
JVM
KSQL Server
#2 as a standalone Application
Kafka Cluster

22.
22
How to run KSQL
#2 as a standalone Application
• Start any number of server nodes
Pass a file of KSQL statement to execute
bin/ksql-node query-file=foo/bar.sql
• Ideal for streaming ETL application deployment
Version-control your queries and transformations as code
• All running engines share the processing load
Technically, instances of the same Kafka Streams Applications
Scale up/down without restart

23.
23

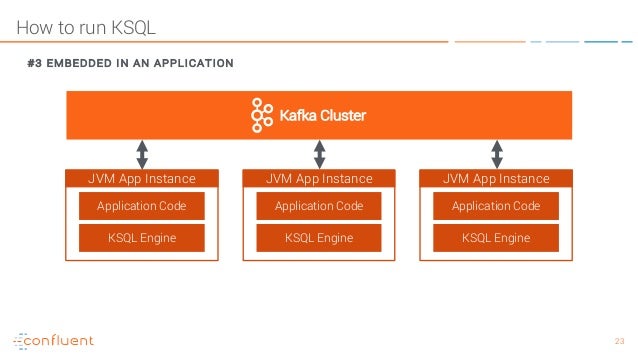

How to run KSQL
#3 EMBEDDED IN AN APPLICATION
JVM App Instance
KSQL Engine
Application Code
JVM App Instance
KSQL Engine
Application Code
JVM App Instance
KSQL Engine
Application Code
Kafka Cluster

24.
24

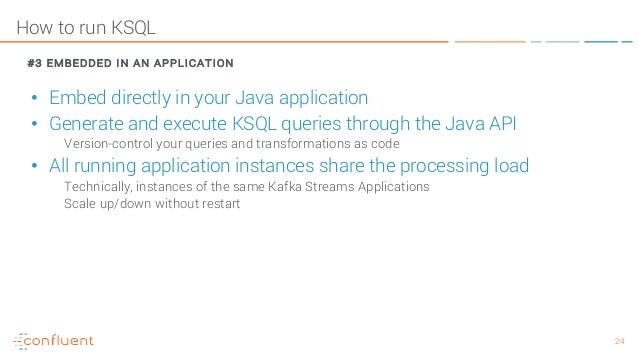

How to run KSQL
#3 EMBEDDED IN AN APPLICATION
• Embed directly in your Java application
• Generate and execute KSQL queries through the Java API
Version-control your queries and transformations as code
• All running application instances share the processing load
Technically, instances of the same Kafka Streams Applications
Scale up/down without restart

25.
25
Internals

26.
26
Internals
Read input from Kafka
Operator DAG:
• filter/map/aggregation/joins
• Operators can be stateful
Write result back to Kafka

27.
27
Internals

28.
28

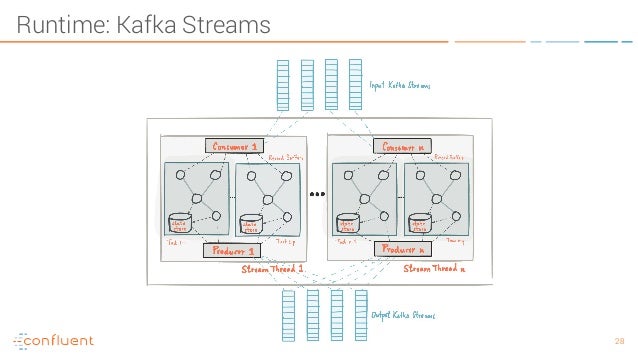

Runtime: Kafka Streams

29.
29

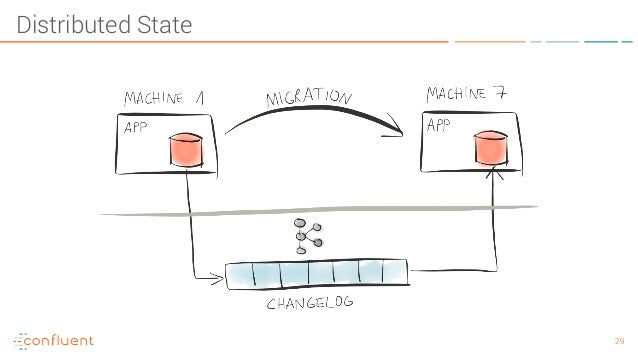

Distributed State

30.
30

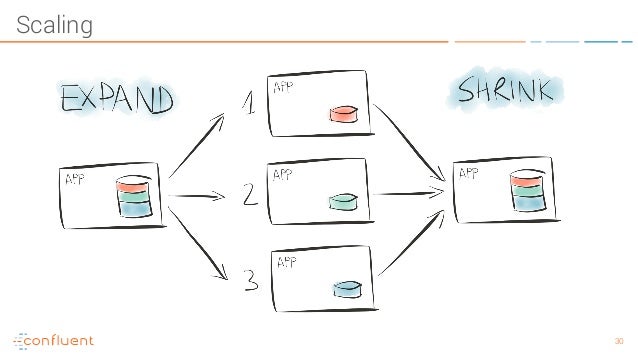

Scaling

31.
31
Take home
• Streaming SQL engine for Apache Kafka
• Leverages Kafka Streams
• Open Source: Apache 2.0
• https://github.com/confluentinc/ksql/
• Included in Confluent Platform 4.1
• https://www.confluent.io/product/ksql/
• https://docs.confluent.io/current/ksql/docs/index.html

32.
32
Thank You
We are hiring!
