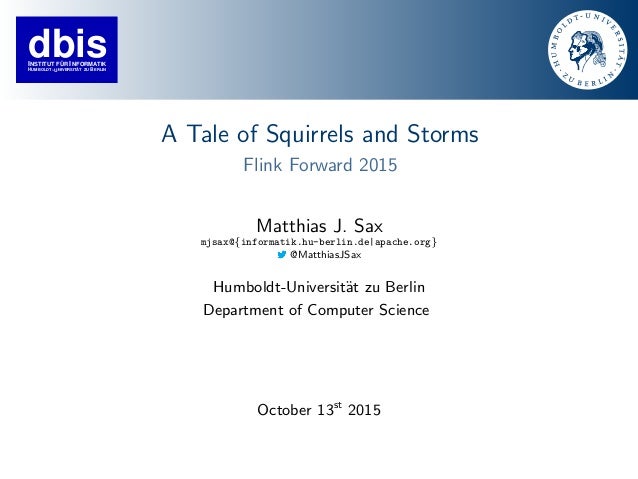

1. dbisINSTITUT FÜR INFORMATIK HUMBOLDT−UNIVERSITÄT ZU ERLINB A Tale of Squirrels and Storms Flink Forward 2015 Matthias J. Sax mjsax@{informatik.hu-berlin.de|apache.org} @MatthiasJSax Humboldt-Universit¨at zu Berlin Department of Computer Science October 13st 2015

2. –MatthiasJ.Sax–SquirrelsandStorms 1/22 About Me Ph. D. student in CS, DBIS Group, HU Berlin involved in Stratosphere research project working on data stream processing and optimization Aeolus: build on top of Apache Storm (https://github.com/mjsax/aeolus) Committer at Apache Flink

3. Flink and Storm vs.

4. Flink and Storm Flinkvs.Storm

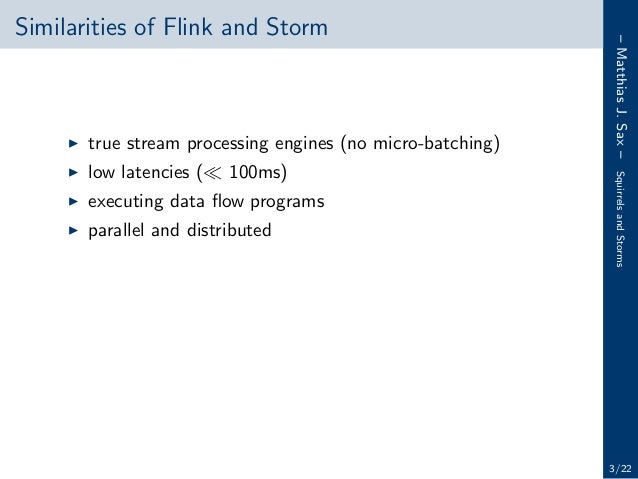

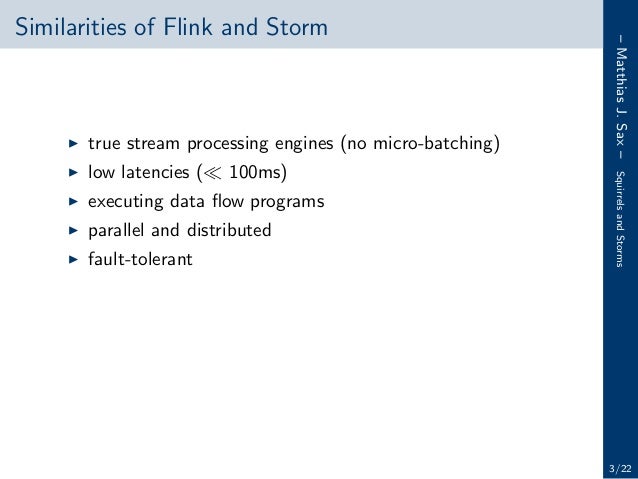

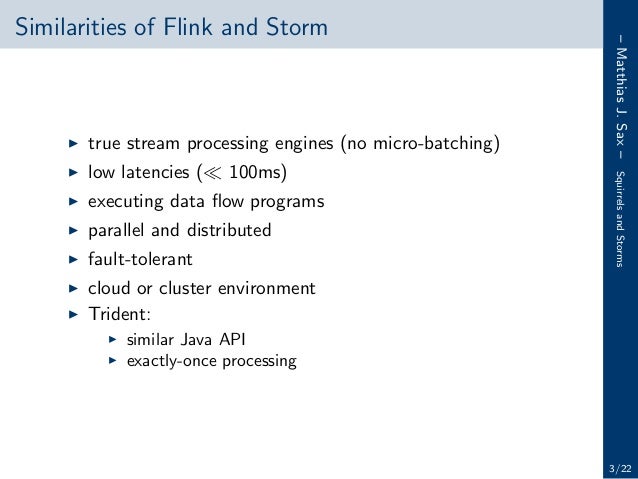

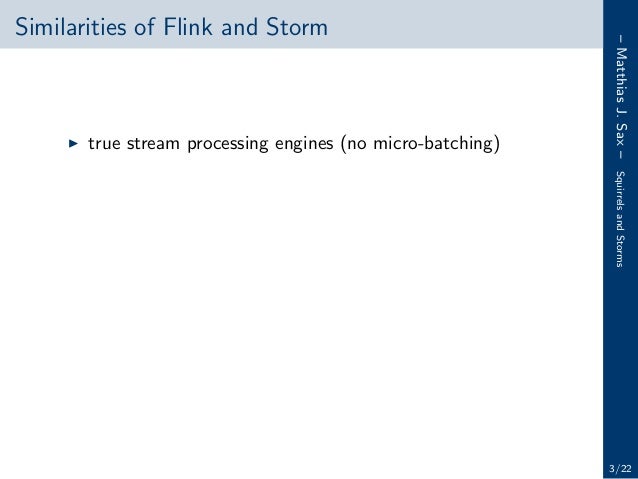

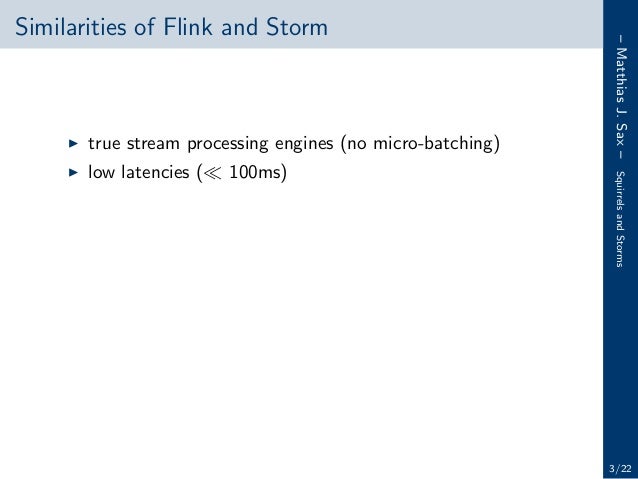

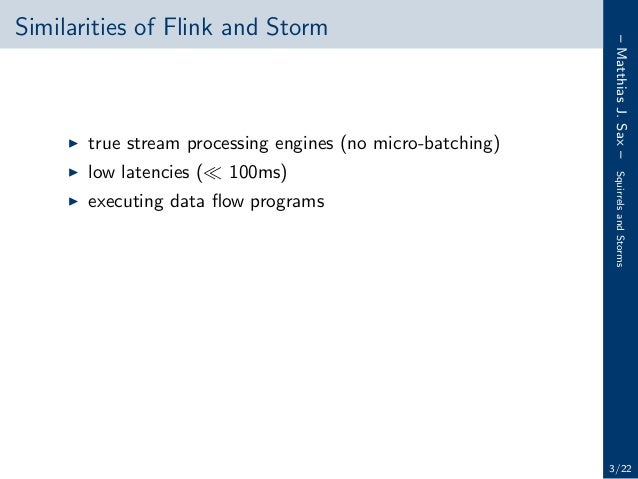

5. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm

6. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching)

7. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching) low latencies ( 100ms)

8. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching) low latencies ( 100ms) executing data ﬂow programs

9. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching) low latencies ( 100ms) executing data ﬂow programs parallel and distributed

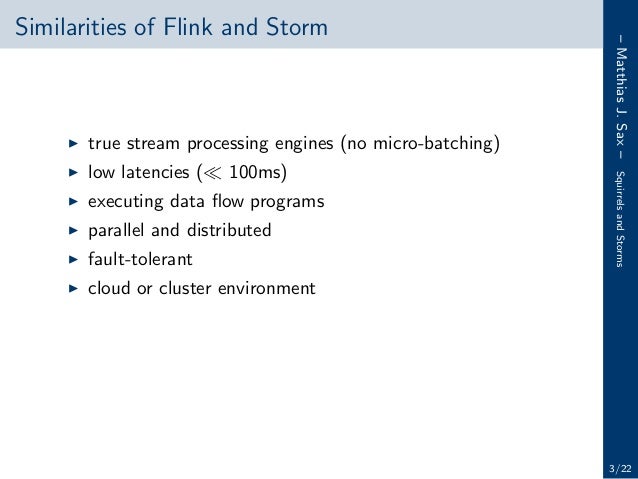

10. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching) low latencies ( 100ms) executing data ﬂow programs parallel and distributed fault-tolerant

11. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching) low latencies ( 100ms) executing data ﬂow programs parallel and distributed fault-tolerant cloud or cluster environment

12. –MatthiasJ.Sax–SquirrelsandStorms 3/22 Similarities of Flink and Storm true stream processing engines (no micro-batching) low latencies ( 100ms) executing data ﬂow programs parallel and distributed fault-tolerant cloud or cluster environment Trident: similar Java API exactly-once processing

13. –MatthiasJ.Sax–SquirrelsandStorms 4/22 Flink vs. Storm Advantages of Storm: super low latency (< 10ms) very robust: stateless JVM for easy restart on failure Zookeeper manages cluster state isolation of topology dynamic scaling (to some extent) multi-language protocol (for experts only) distributed RPC

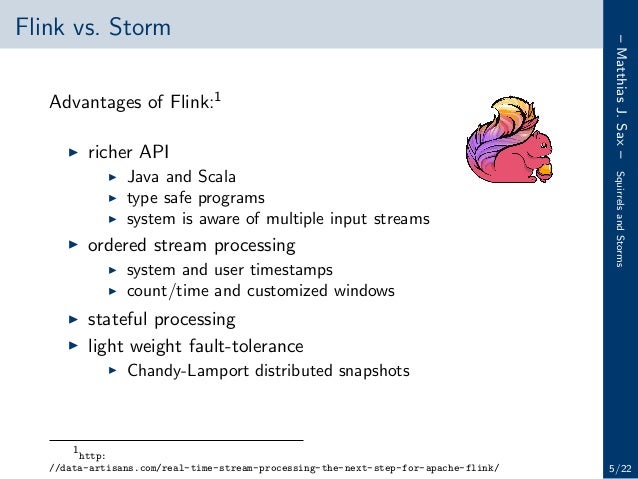

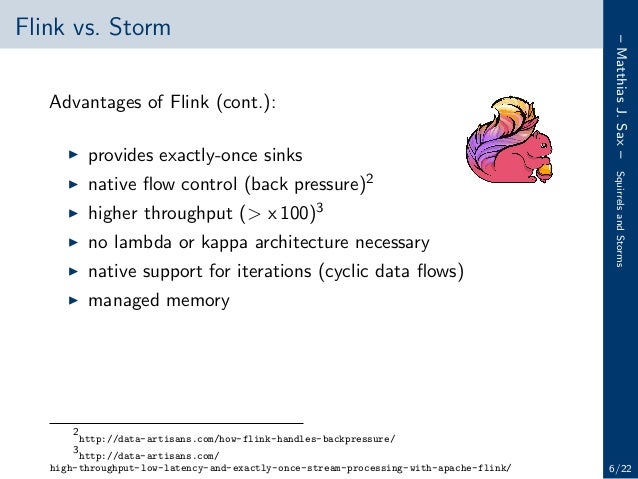

14. –MatthiasJ.Sax–SquirrelsandStorms 5/22 Flink vs. Storm Advantages of Flink:1 richer API Java and Scala type safe programs system is aware of multiple input streams ordered stream processing system and user timestamps count/time and customized windows stateful processing light weight fault-tolerance Chandy-Lamport distributed snapshots 1 http: //data-artisans.com/real-time-stream-processing-the-next-step-for-apache-flink/

15. –MatthiasJ.Sax–SquirrelsandStorms 6/22 Flink vs. Storm Advantages of Flink (cont.): provides exactly-once sinks native ﬂow control (back pressure)2 higher throughput (> x 100)3 no lambda or kappa architecture necessary native support for iterations (cyclic data ﬂows) managed memory 2 http://data-artisans.com/how-flink-handles-backpressure/ 3 http://data-artisans.com/ high-throughput-low-latency-and-exactly-once-stream-processing-with-apache-flink/

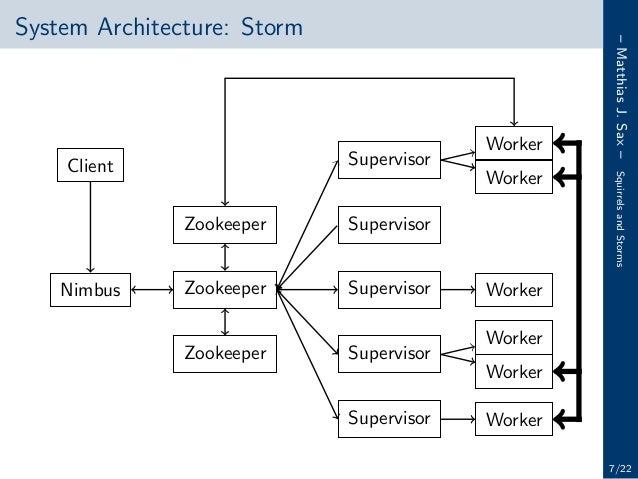

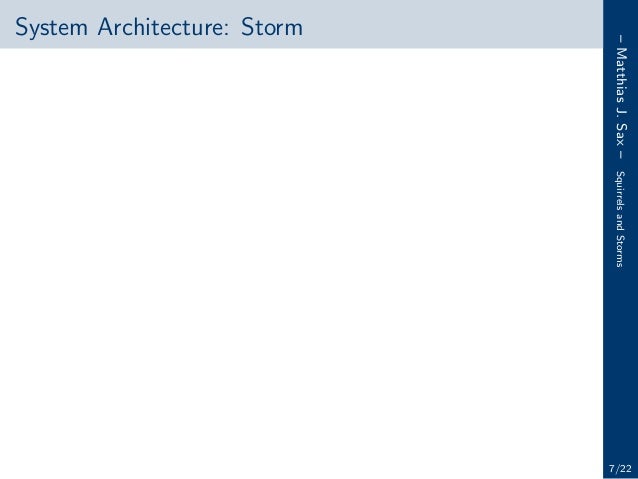

16. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm

17. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm Nimbus

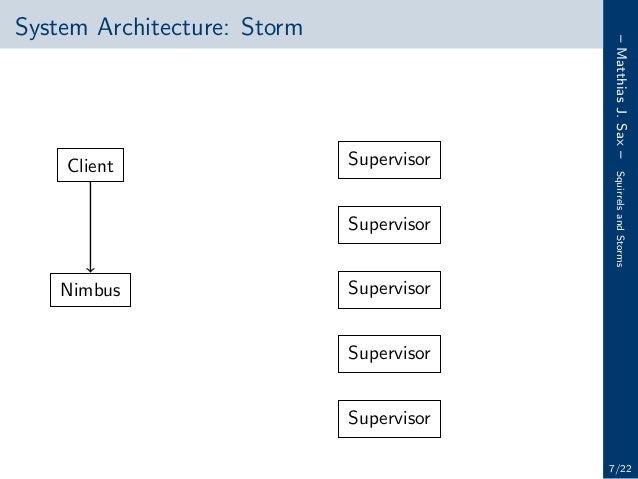

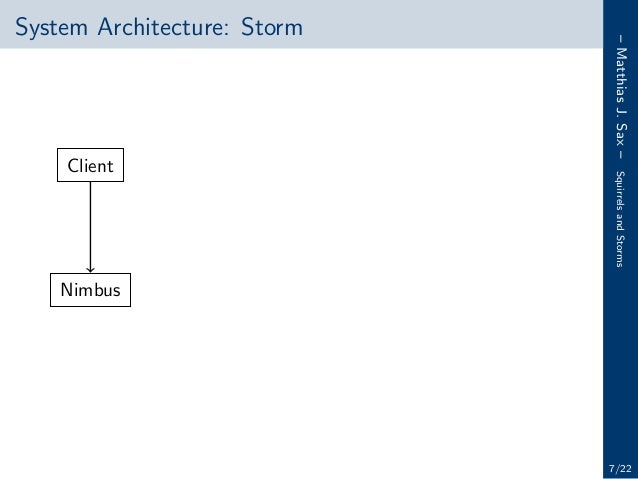

18. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm Nimbus Client

19. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm Nimbus Client Supervisor Supervisor Supervisor Supervisor Supervisor

20. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm Nimbus Client Supervisor Supervisor Supervisor Supervisor Supervisor Zookeeper Zookeeper Zookeeper

21. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm Nimbus Client Supervisor Supervisor Supervisor Supervisor Supervisor Zookeeper Zookeeper Zookeeper

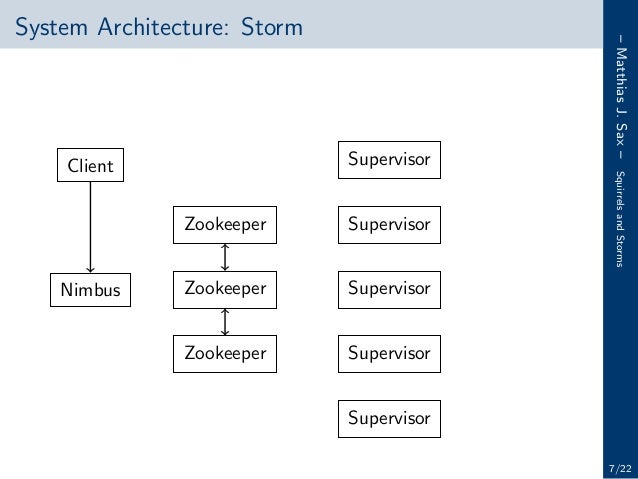

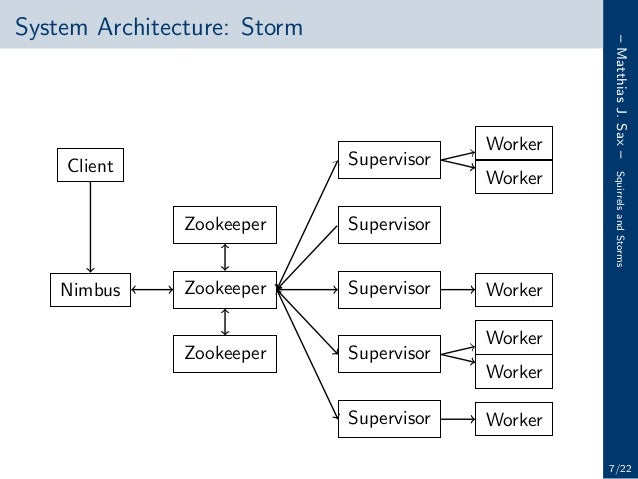

22. –MatthiasJ.Sax–SquirrelsandStorms 7/22 System Architecture: Storm Nimbus Client Supervisor Supervisor Supervisor Supervisor Supervisor Zookeeper Zookeeper Zookeeper Worker Worker Worker Worker Worker Worker

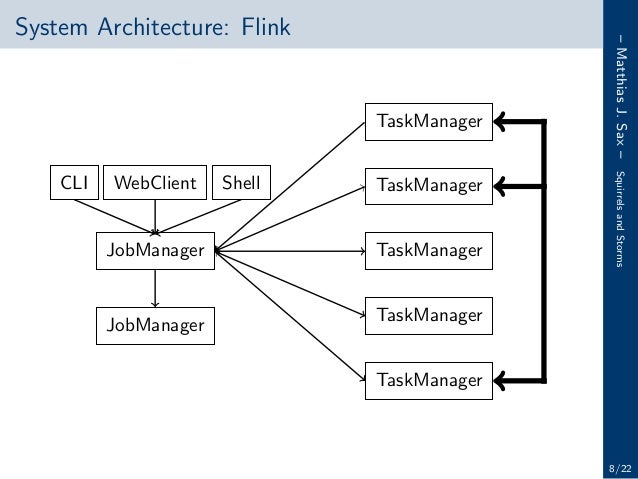

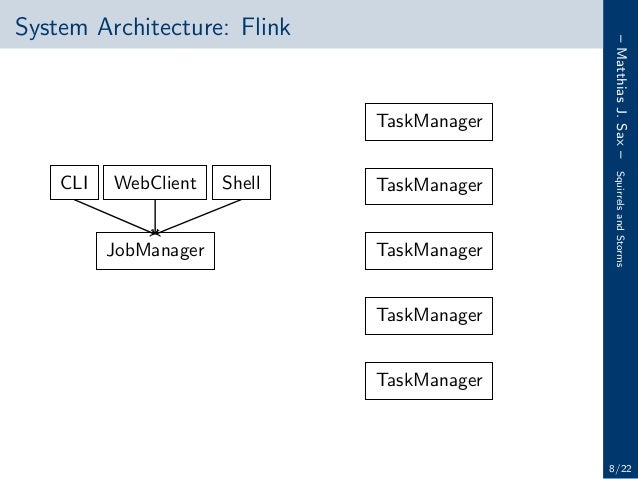

25. –MatthiasJ.Sax–SquirrelsandStorms 8/22 System Architecture: Flink

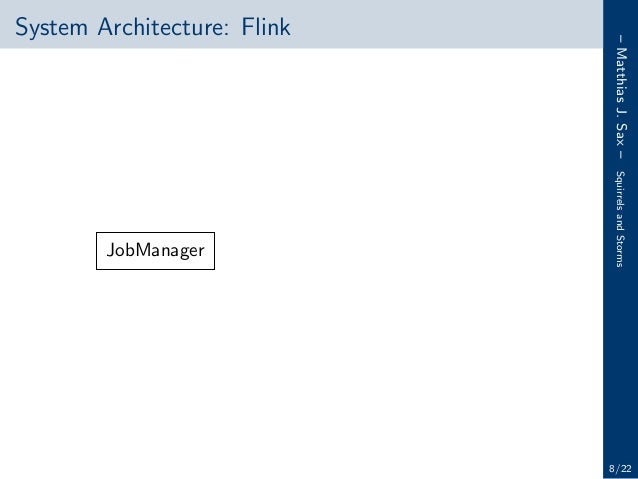

26. –MatthiasJ.Sax–SquirrelsandStorms 8/22 System Architecture: Flink JobManager

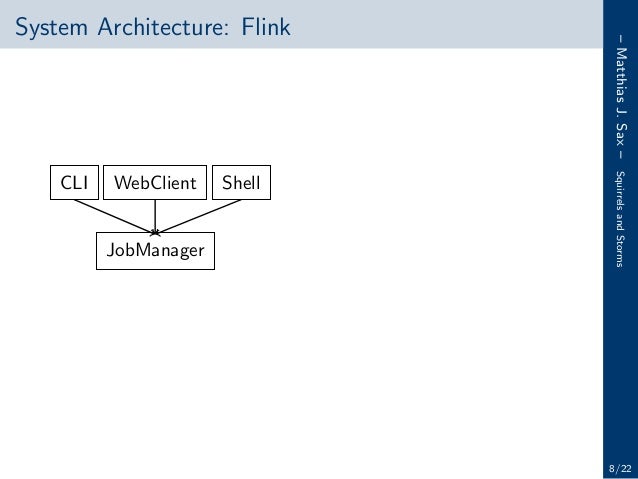

27. –MatthiasJ.Sax–SquirrelsandStorms 8/22 System Architecture: Flink JobManager WebClientCLI Shell

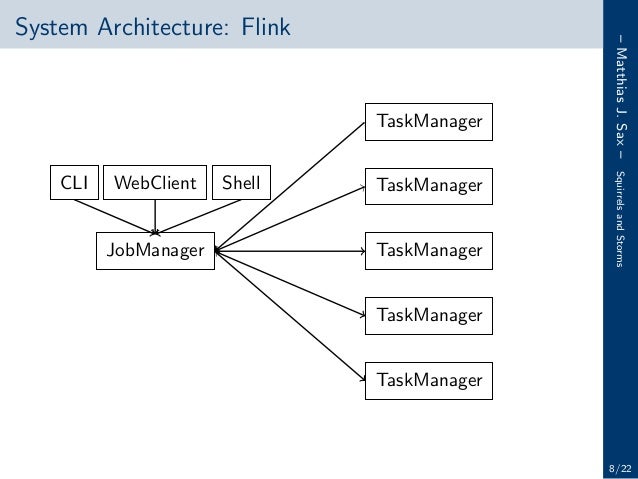

28. –MatthiasJ.Sax–SquirrelsandStorms 8/22 System Architecture: Flink JobManager WebClientCLI Shell TaskManager TaskManager TaskManager TaskManager TaskManager

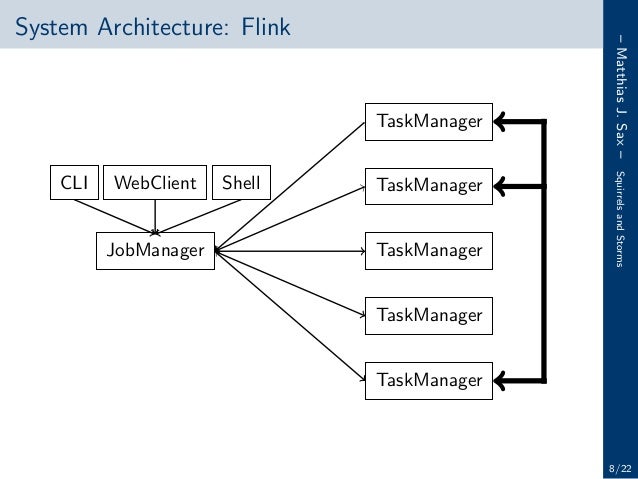

31. –MatthiasJ.Sax–SquirrelsandStorms 8/22 System Architecture: Flink JobManager WebClientCLI Shell TaskManager TaskManager TaskManager TaskManager TaskManager JobManager

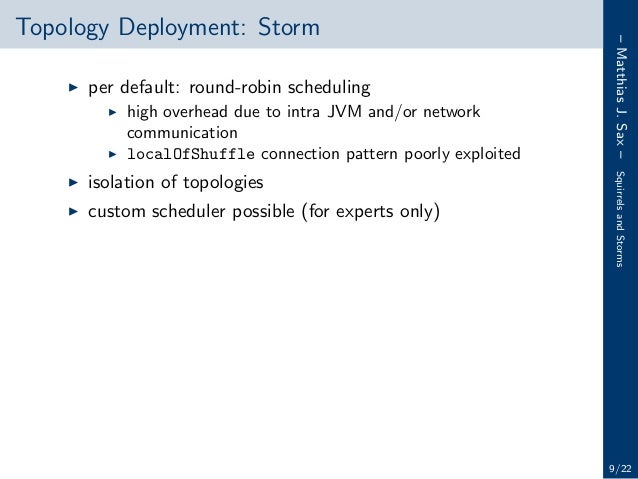

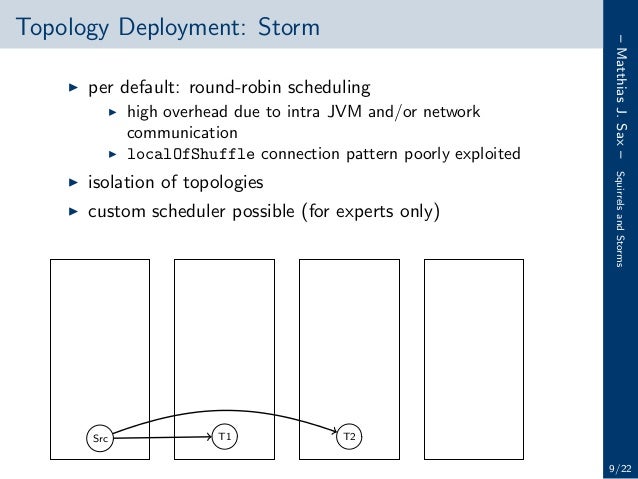

32. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only)

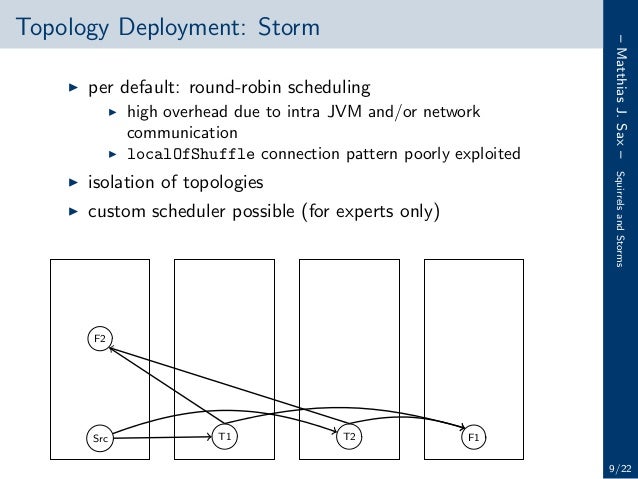

33. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only)

34. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only) Src

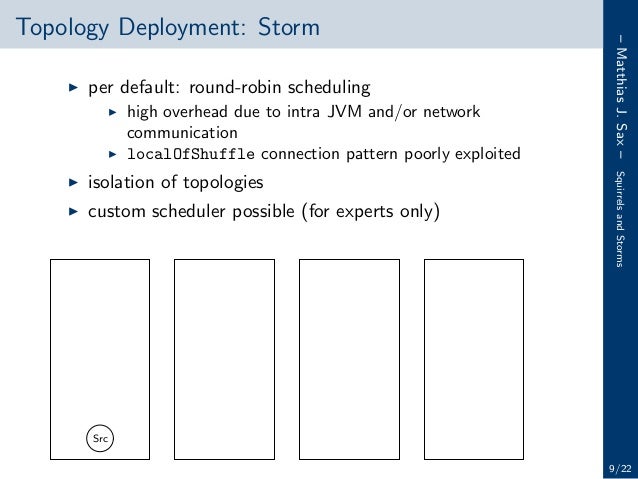

35. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only) Src T1 T2

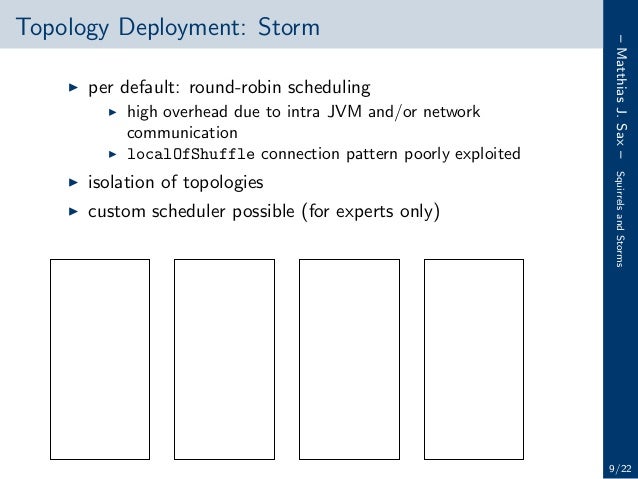

36. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only) Src T1 T2 F1 F2

37. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only) Src T1 T2 F1 F2 C1 C2

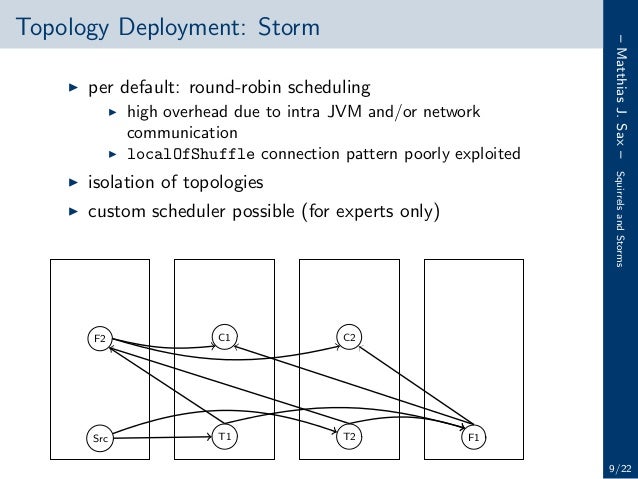

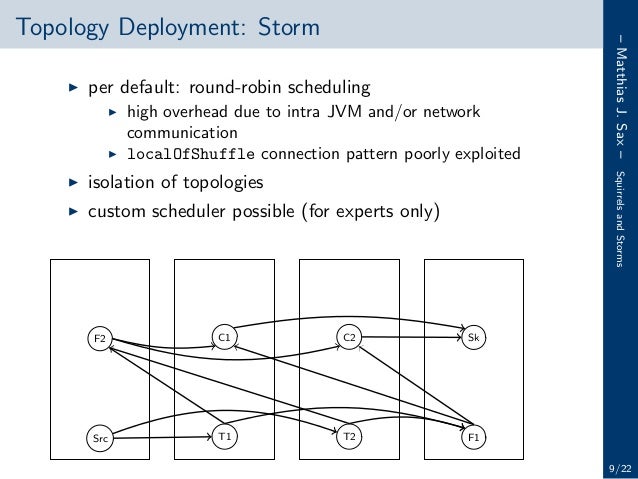

38. –MatthiasJ.Sax–SquirrelsandStorms 9/22 Topology Deployment: Storm per default: round-robin scheduling high overhead due to intra JVM and/or network communication localOfShuffle connection pattern poorly exploited isolation of topologies custom scheduler possible (for experts only) Src T1 T2 F1 F2 C1 C2 Sk

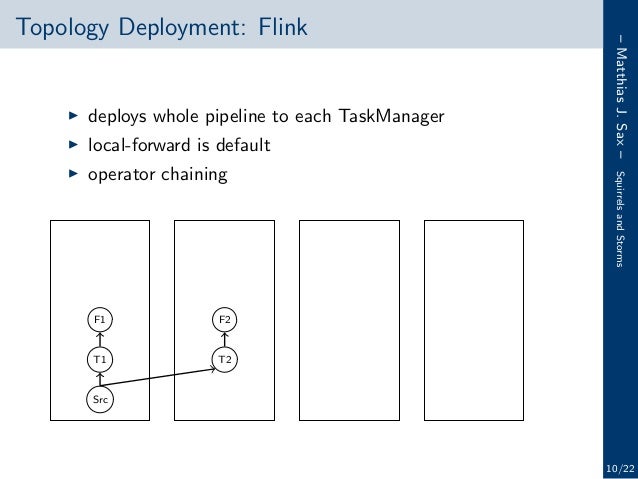

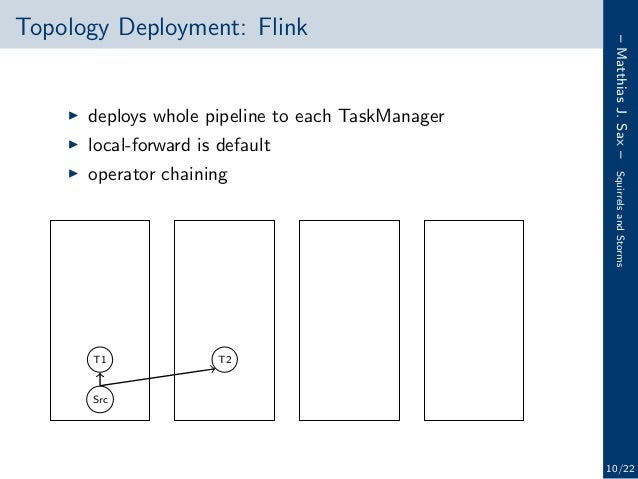

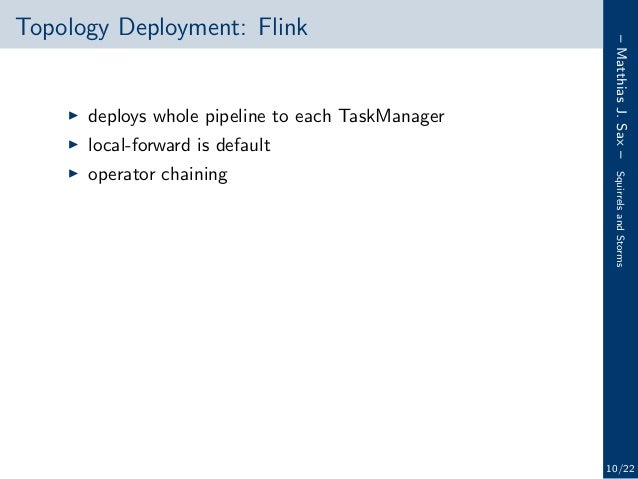

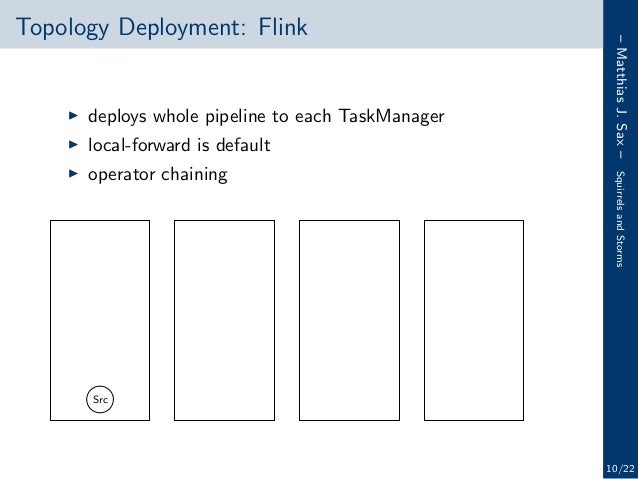

39. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining

40. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining

41. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining Src

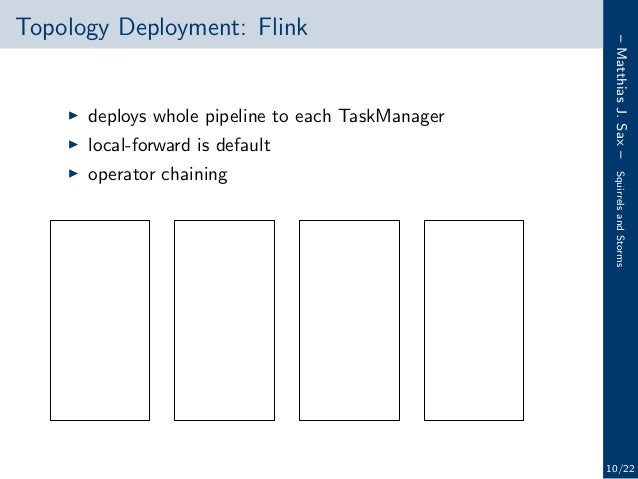

42. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining Src T1 T2

43. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining Src T1 T2 F1 F2

44. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining Src T1 T2 F1 F2 C1 C2

45. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining Src T1 T2 F1 F2 C1 C2 Sk

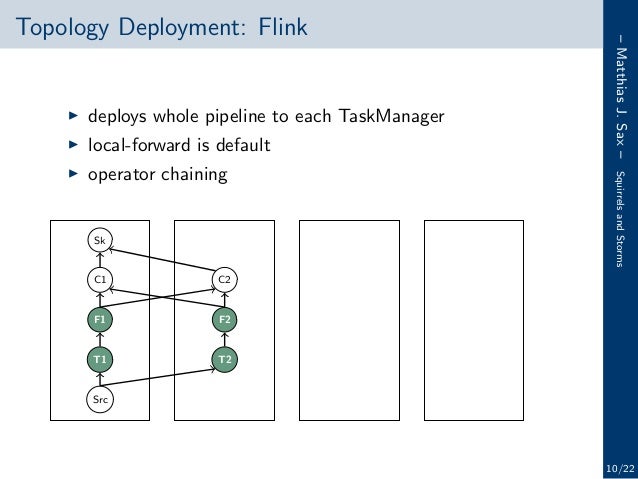

46. –MatthiasJ.Sax–SquirrelsandStorms 10/22 Topology Deployment: Flink deploys whole pipeline to each TaskManager local-forward is default operator chaining Src T1 T2 F1 F2 C1 C2 Sk

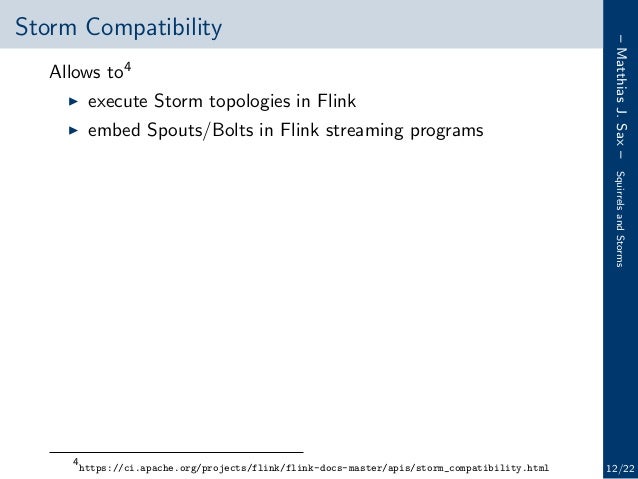

47. Storm Compatibility

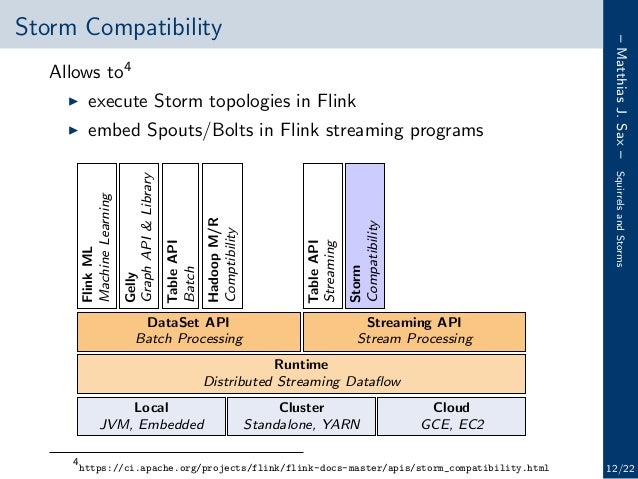

48. –MatthiasJ.Sax–SquirrelsandStorms 12/22 Storm Compatibility Allows to4 execute Storm topologies in Flink embed Spouts/Bolts in Flink streaming programs 4 https://ci.apache.org/projects/flink/flink-docs-master/apis/storm_compatibility.html

49. –MatthiasJ.Sax–SquirrelsandStorms 12/22 Storm Compatibility Allows to4 execute Storm topologies in Flink embed Spouts/Bolts in Flink streaming programs Runtime Distributed Streaming Dataﬂow DataSet API Batch Processing Streaming API Stream Processing Local JVM, Embedded Cluster Standalone, YARN Cloud GCE, EC2 FlinkML MachineLearning Gelly GraphAPI&Library TableAPI Batch HadoopM/R Comptibility TableAPI Streaming Storm Compatibility 4 https://ci.apache.org/projects/flink/flink-docs-master/apis/storm_compatibility.html

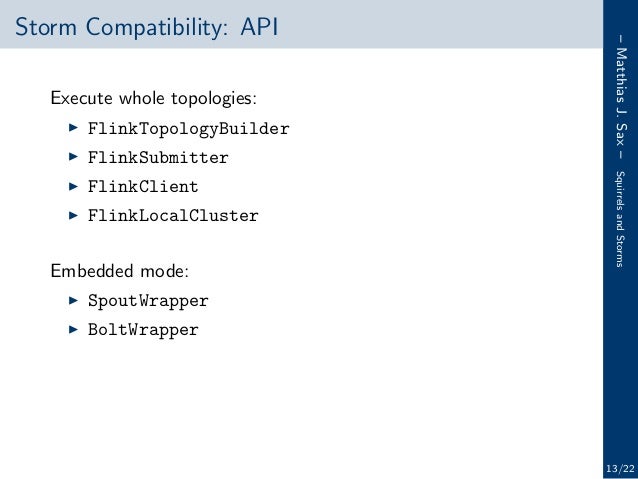

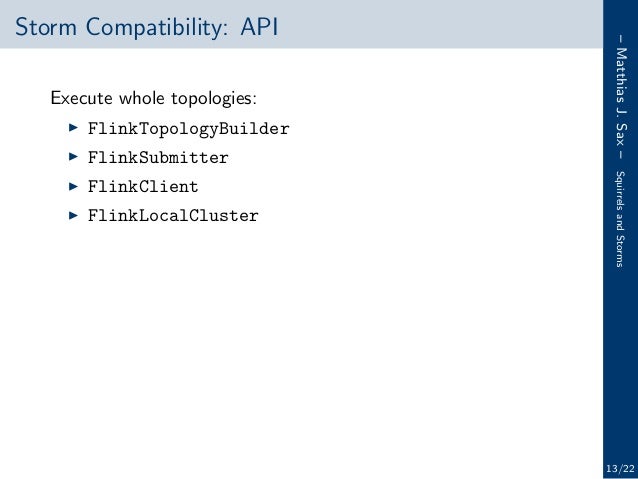

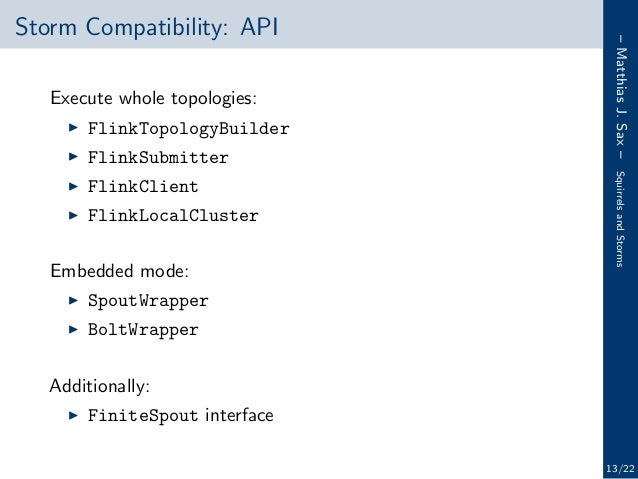

50. –MatthiasJ.Sax–SquirrelsandStorms 13/22 Storm Compatibility: API Execute whole topologies: FlinkTopologyBuilder FlinkSubmitter FlinkClient FlinkLocalCluster

51. –MatthiasJ.Sax–SquirrelsandStorms 13/22 Storm Compatibility: API Execute whole topologies: FlinkTopologyBuilder FlinkSubmitter FlinkClient FlinkLocalCluster Embedded mode: SpoutWrapper BoltWrapper

52. –MatthiasJ.Sax–SquirrelsandStorms 13/22 Storm Compatibility: API Execute whole topologies: FlinkTopologyBuilder FlinkSubmitter FlinkClient FlinkLocalCluster Embedded mode: SpoutWrapper BoltWrapper Additionally: FiniteSpout interface

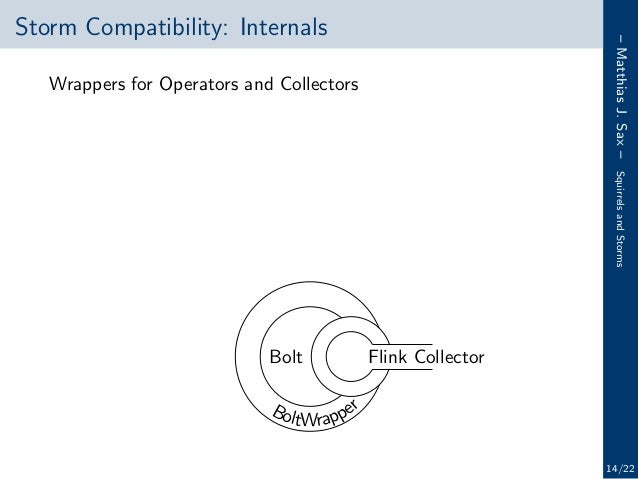

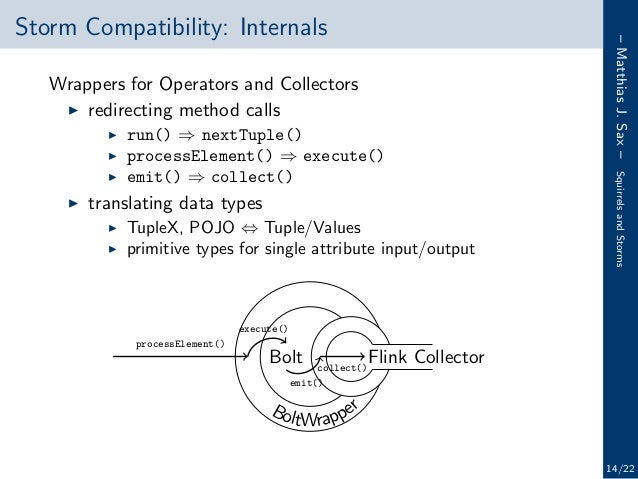

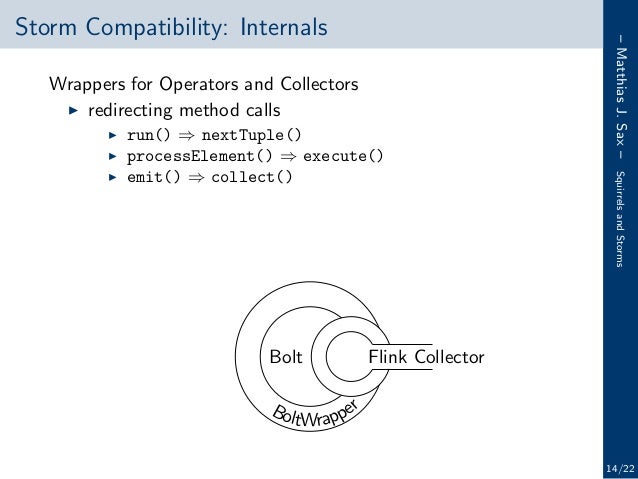

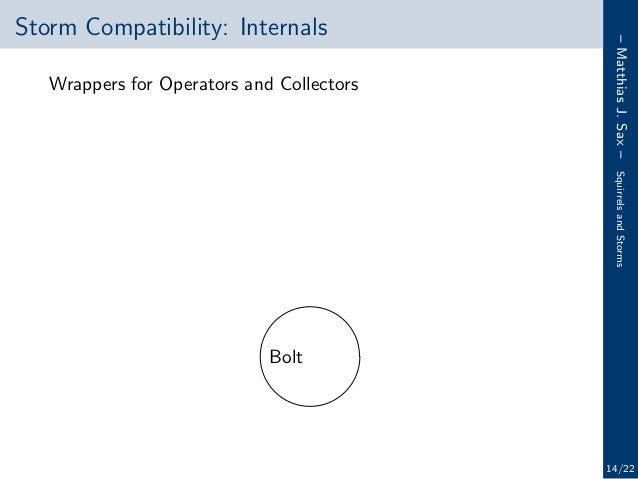

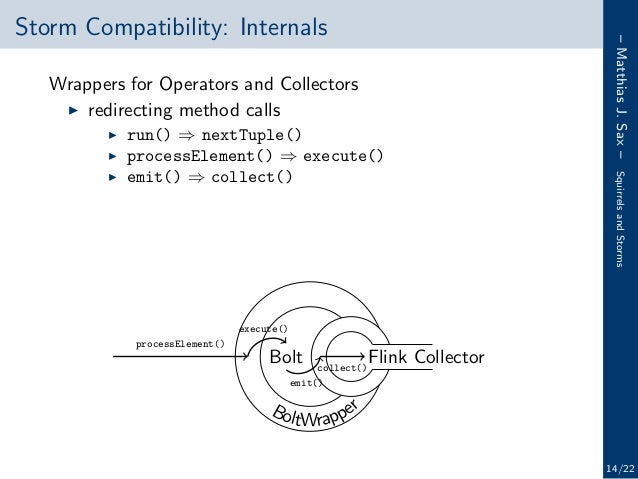

53. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors

54. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors Bolt

55. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors Bolt BoltWrapper

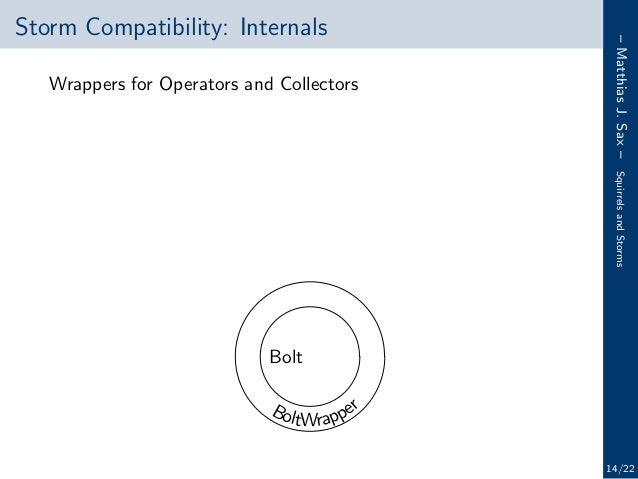

56. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors Bolt BoltWrapper Flink Collector

57. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors redirecting method calls run() ⇒ nextTuple() processElement() ⇒ execute() emit() ⇒ collect() Bolt BoltWrapper Flink Collector

58. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors redirecting method calls run() ⇒ nextTuple() processElement() ⇒ execute() emit() ⇒ collect() Bolt BoltWrapper Flink Collector execute() processElement() emit() collect()

59. –MatthiasJ.Sax–SquirrelsandStorms 14/22 Storm Compatibility: Internals Wrappers for Operators and Collectors redirecting method calls run() ⇒ nextTuple() processElement() ⇒ execute() emit() ⇒ collect() translating data types TupleX, POJO ⇔ Tuple/Values primitive types for single attribute input/output Bolt BoltWrapper Flink Collector execute() processElement() emit() collect()

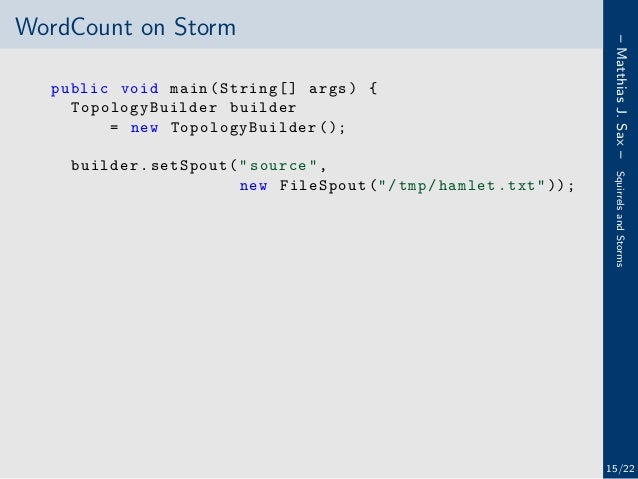

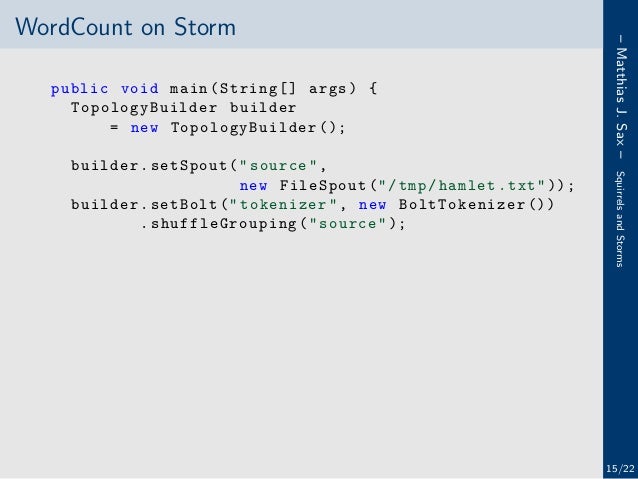

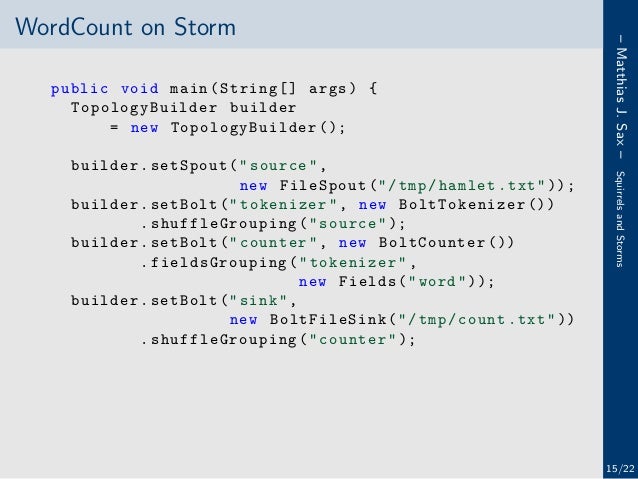

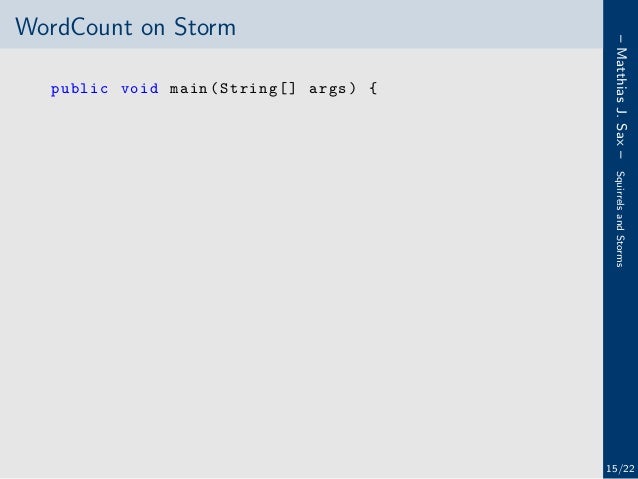

60. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) {

61. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) { TopologyBuilder builder = new TopologyBuilder ();

62. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) { TopologyBuilder builder = new TopologyBuilder (); builder.setSpout("source", new FileSpout("/tmp/hamlet.txt"));

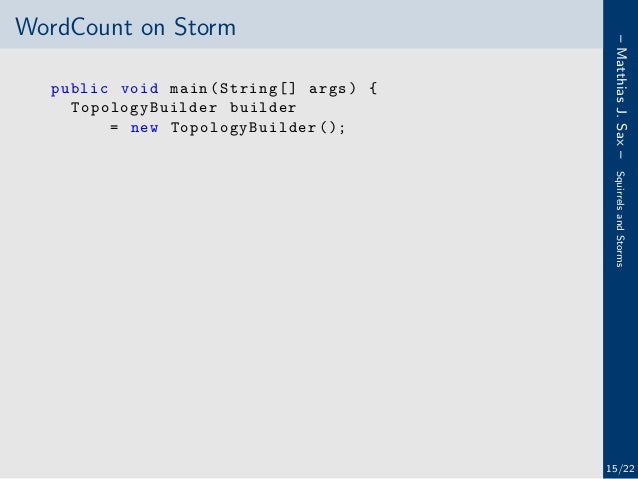

63. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) { TopologyBuilder builder = new TopologyBuilder (); builder.setSpout("source", new FileSpout("/tmp/hamlet.txt")); builder.setBolt("tokenizer", new BoltTokenizer ()) . shuffleGrouping ("source");

64. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) { TopologyBuilder builder = new TopologyBuilder (); builder.setSpout("source", new FileSpout("/tmp/hamlet.txt")); builder.setBolt("tokenizer", new BoltTokenizer ()) . shuffleGrouping ("source"); builder.setBolt("counter", new BoltCounter ()) . fieldsGrouping("tokenizer", new Fields("word"));

65. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) { TopologyBuilder builder = new TopologyBuilder (); builder.setSpout("source", new FileSpout("/tmp/hamlet.txt")); builder.setBolt("tokenizer", new BoltTokenizer ()) . shuffleGrouping ("source"); builder.setBolt("counter", new BoltCounter ()) . fieldsGrouping("tokenizer", new Fields("word")); builder.setBolt("sink", new BoltFileSink("/tmp/count.txt")) . shuffleGrouping ("counter");

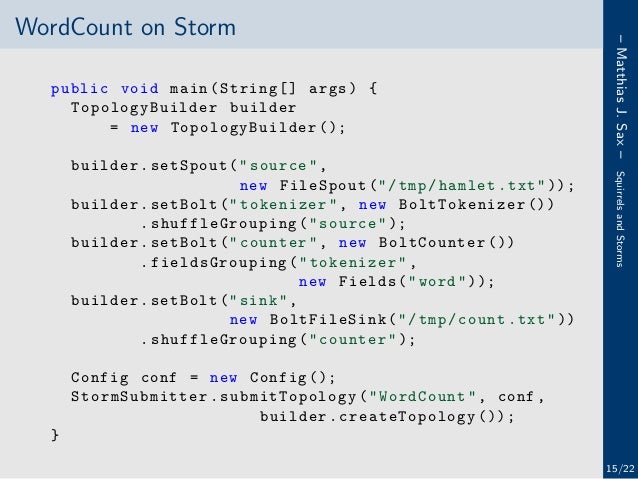

66. –MatthiasJ.Sax–SquirrelsandStorms 15/22 WordCount on Storm public void main(String [] args) { TopologyBuilder builder = new TopologyBuilder (); builder.setSpout("source", new FileSpout("/tmp/hamlet.txt")); builder.setBolt("tokenizer", new BoltTokenizer ()) . shuffleGrouping ("source"); builder.setBolt("counter", new BoltCounter ()) . fieldsGrouping("tokenizer", new Fields("word")); builder.setBolt("sink", new BoltFileSink("/tmp/count.txt")) . shuffleGrouping ("counter"); Config conf = new Config (); StormSubmitter. submitTopology("WordCount", conf , builder.createTopology ()); }

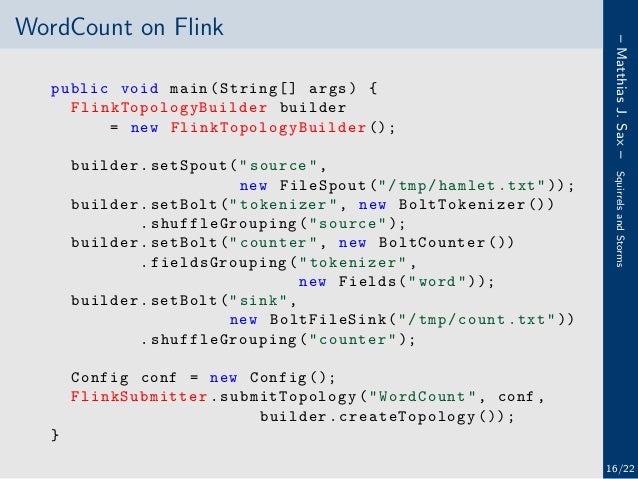

67. –MatthiasJ.Sax–SquirrelsandStorms 16/22 WordCount on Flink public void main(String [] args) { FlinkTopologyBuilder builder = new FlinkTopologyBuilder (); builder.setSpout("source", new FileSpout("/tmp/hamlet.txt")); builder.setBolt("tokenizer", new BoltTokenizer ()) . shuffleGrouping ("source"); builder.setBolt("counter", new BoltCounter ()) . fieldsGrouping("tokenizer", new Fields("word")); builder.setBolt("sink", new BoltFileSink("/tmp/count.txt")) . shuffleGrouping ("counter"); Config conf = new Config (); FlinkSubmitter. submitTopology("WordCount", conf , builder.createTopology ()); }

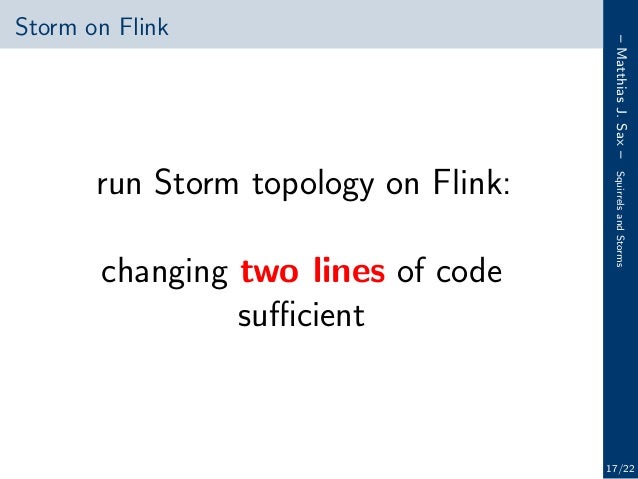

68. –MatthiasJ.Sax–SquirrelsandStorms 17/22 Storm on Flink run Storm topology on Flink: changing two lines of code suﬃcient

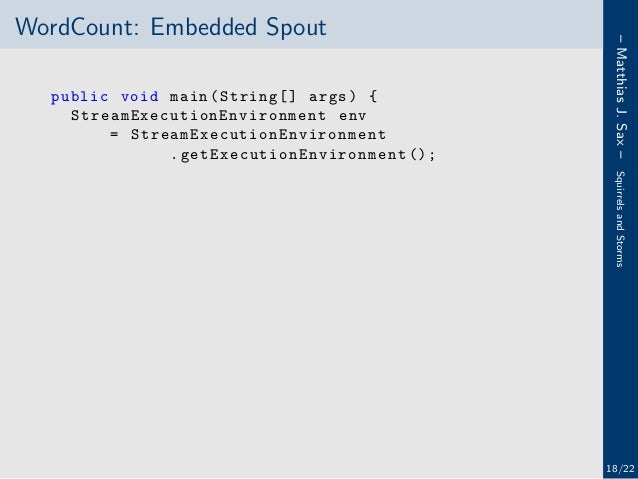

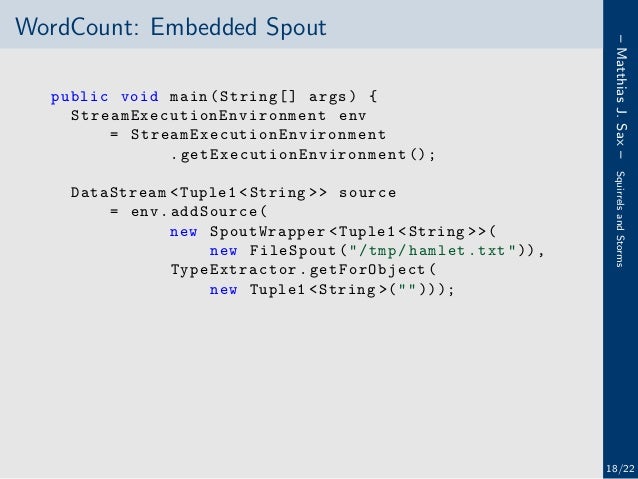

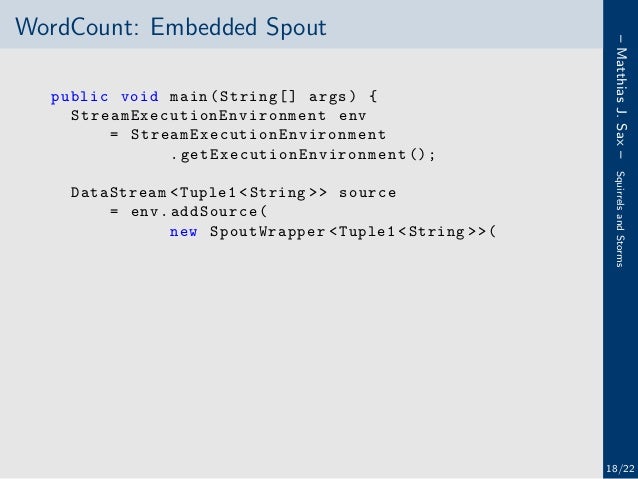

69. –MatthiasJ.Sax–SquirrelsandStorms 18/22 WordCount: Embedded Spout public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment ();

70. –MatthiasJ.Sax–SquirrelsandStorms 18/22 WordCount: Embedded Spout public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <Tuple1 <String >> source = env.addSource(

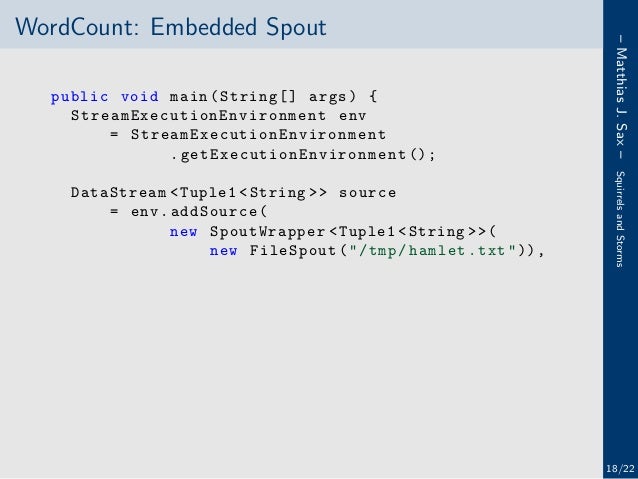

71. –MatthiasJ.Sax–SquirrelsandStorms 18/22 WordCount: Embedded Spout public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <Tuple1 <String >> source = env.addSource( new SpoutWrapper <Tuple1 <String >>(

72. –MatthiasJ.Sax–SquirrelsandStorms 18/22 WordCount: Embedded Spout public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <Tuple1 <String >> source = env.addSource( new SpoutWrapper <Tuple1 <String >>( new FileSpout("/tmp/hamlet.txt")),

73. –MatthiasJ.Sax–SquirrelsandStorms 18/22 WordCount: Embedded Spout public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <Tuple1 <String >> source = env.addSource( new SpoutWrapper <Tuple1 <String >>( new FileSpout("/tmp/hamlet.txt")), TypeExtractor.getForObject( new Tuple1 <String >("")));

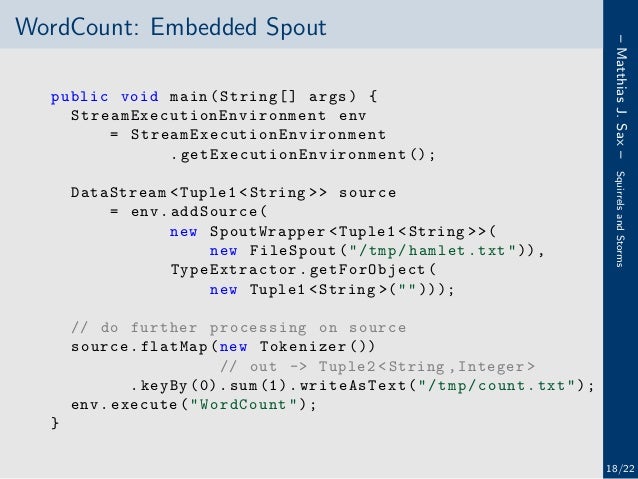

74. –MatthiasJ.Sax–SquirrelsandStorms 18/22 WordCount: Embedded Spout public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <Tuple1 <String >> source = env.addSource( new SpoutWrapper <Tuple1 <String >>( new FileSpout("/tmp/hamlet.txt")), TypeExtractor.getForObject( new Tuple1 <String >(""))); // do further processing on source source.flatMap(new Tokenizer ()) // out -> Tuple2 <String ,Integer > .keyBy (0). sum (1). writeAsText("/tmp/count.txt"); env.execute("WordCount"); }

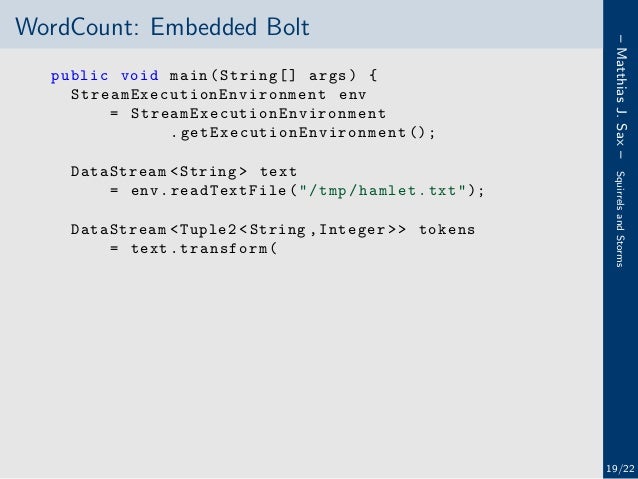

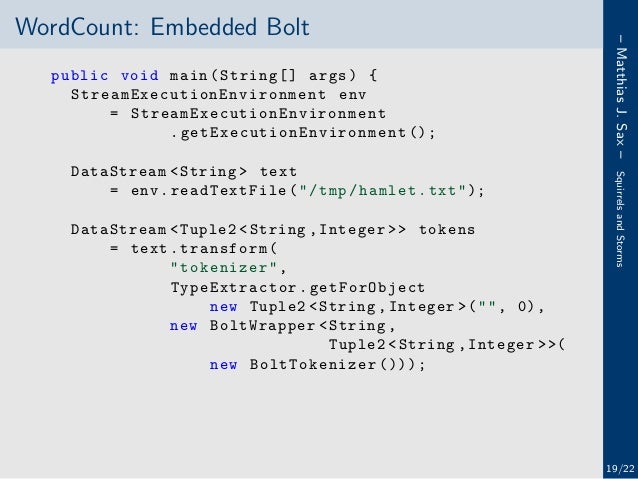

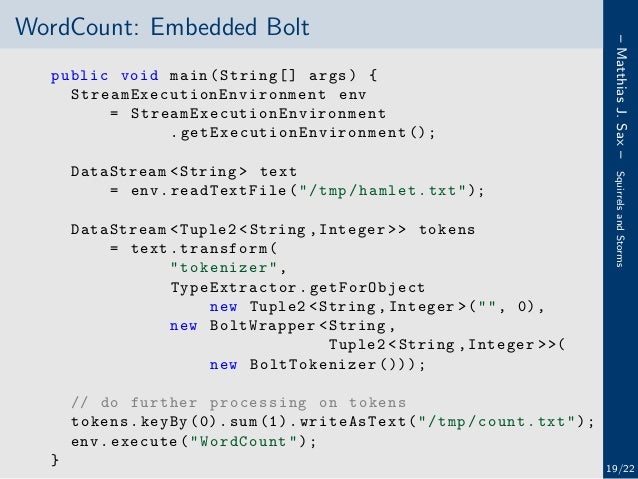

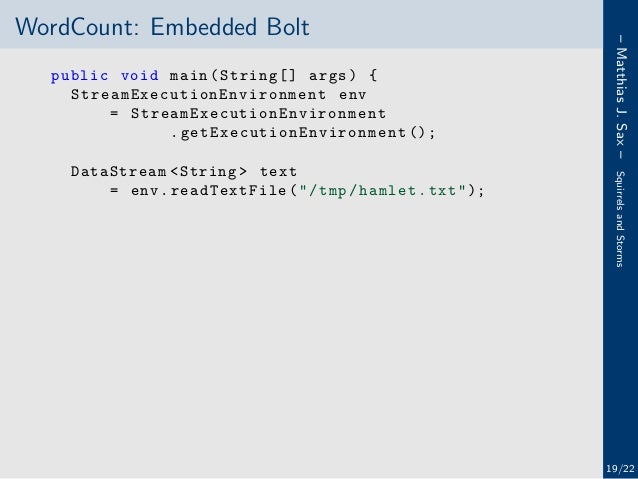

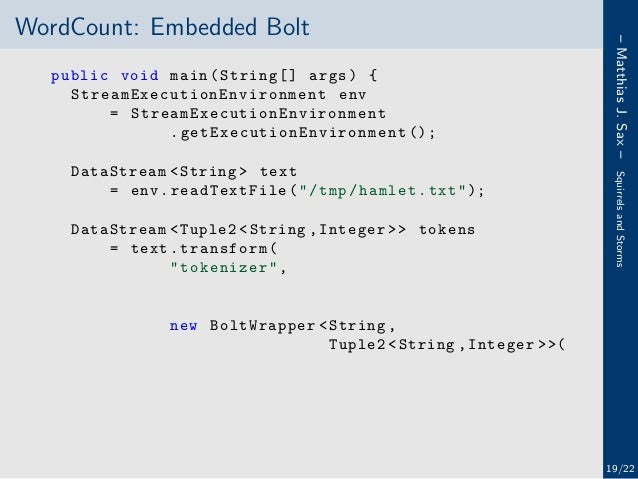

75. –MatthiasJ.Sax–SquirrelsandStorms 19/22 WordCount: Embedded Bolt public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <String > text = env.readTextFile("/tmp/hamlet.txt");

76. –MatthiasJ.Sax–SquirrelsandStorms 19/22 WordCount: Embedded Bolt public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <String > text = env.readTextFile("/tmp/hamlet.txt"); DataStream <Tuple2 <String ,Integer >> tokens = text.transform(

77. –MatthiasJ.Sax–SquirrelsandStorms 19/22 WordCount: Embedded Bolt public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <String > text = env.readTextFile("/tmp/hamlet.txt"); DataStream <Tuple2 <String ,Integer >> tokens = text.transform( "tokenizer", new BoltWrapper <String , Tuple2 <String ,Integer >>(

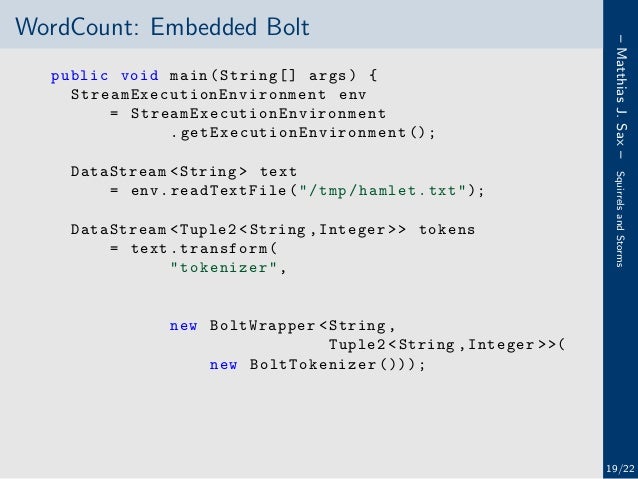

78. –MatthiasJ.Sax–SquirrelsandStorms 19/22 WordCount: Embedded Bolt public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <String > text = env.readTextFile("/tmp/hamlet.txt"); DataStream <Tuple2 <String ,Integer >> tokens = text.transform( "tokenizer", new BoltWrapper <String , Tuple2 <String ,Integer >>( new BoltTokenizer ()));

79. –MatthiasJ.Sax–SquirrelsandStorms 19/22 WordCount: Embedded Bolt public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <String > text = env.readTextFile("/tmp/hamlet.txt"); DataStream <Tuple2 <String ,Integer >> tokens = text.transform( "tokenizer", TypeExtractor.getForObject new Tuple2 <String ,Integer >("", 0), new BoltWrapper <String , Tuple2 <String ,Integer >>( new BoltTokenizer ()));

80. –MatthiasJ.Sax–SquirrelsandStorms 19/22 WordCount: Embedded Bolt public void main(String [] args) { StreamExecutionEnvironment env = StreamExecutionEnvironment . getExecutionEnvironment (); DataStream <String > text = env.readTextFile("/tmp/hamlet.txt"); DataStream <Tuple2 <String ,Integer >> tokens = text.transform( "tokenizer", TypeExtractor.getForObject new Tuple2 <String ,Integer >("", 0), new BoltWrapper <String , Tuple2 <String ,Integer >>( new BoltTokenizer ())); // do further processing on tokens tokens.keyBy (0). sum (1). writeAsText("/tmp/count.txt"); env.execute("WordCount"); }

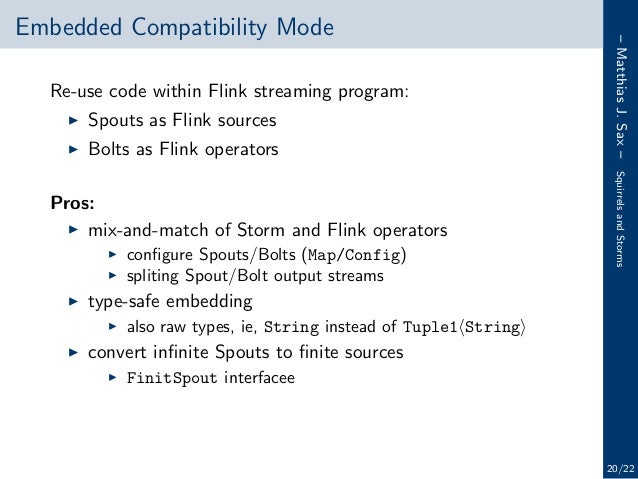

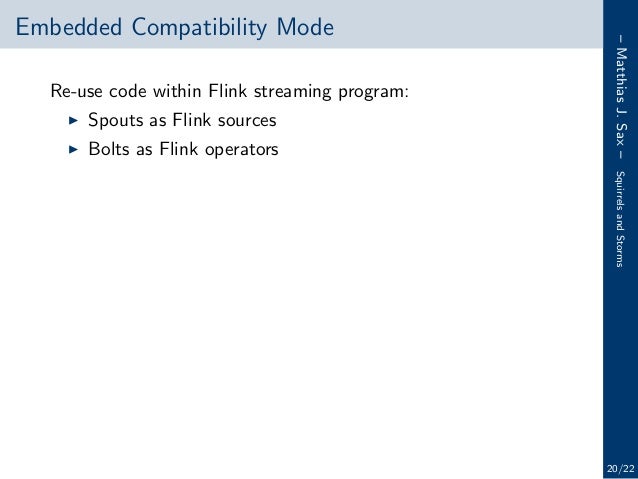

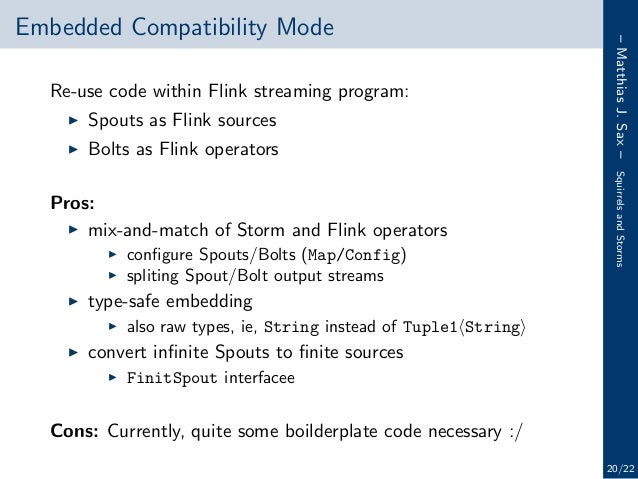

81. –MatthiasJ.Sax–SquirrelsandStorms 20/22 Embedded Compatibility Mode Re-use code within Flink streaming program: Spouts as Flink sources Bolts as Flink operators

82. –MatthiasJ.Sax–SquirrelsandStorms 20/22 Embedded Compatibility Mode Re-use code within Flink streaming program: Spouts as Flink sources Bolts as Flink operators Pros: mix-and-match of Storm and Flink operators configure Spouts/Bolts (Map/Config) spliting Spout/Bolt output streams type-safe embedding also raw types, ie, String instead of Tuple1 String convert infinite Spouts to finite sources FinitSpout interfacee

83. –MatthiasJ.Sax–SquirrelsandStorms 20/22 Embedded Compatibility Mode Re-use code within Flink streaming program: Spouts as Flink sources Bolts as Flink operators Pros: mix-and-match of Storm and Flink operators configure Spouts/Bolts (Map/Config) spliting Spout/Bolt output streams type-safe embedding also raw types, ie, String instead of Tuple1 String convert infinite Spouts to finite sources FinitSpout interfacee Cons: Currently, quite some boilderplate code necessary :/

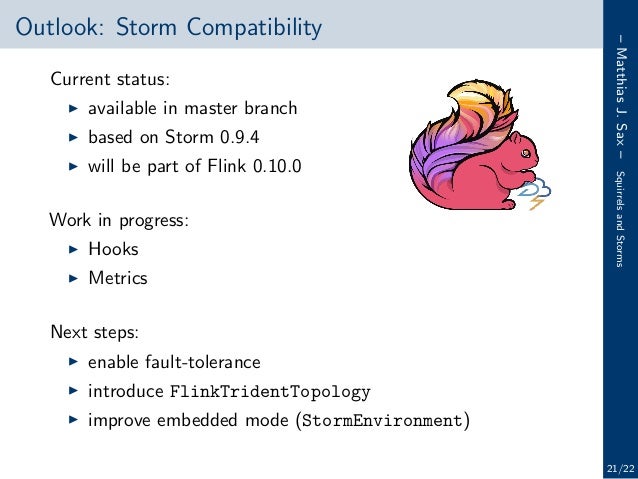

84. –MatthiasJ.Sax–SquirrelsandStorms 21/22 Outlook: Storm Compatibility Current status: available in master branch based on Storm 0.9.4 will be part of Flink 0.10.0

85. –MatthiasJ.Sax–SquirrelsandStorms 21/22 Outlook: Storm Compatibility Current status: available in master branch based on Storm 0.9.4 will be part of Flink 0.10.0 Work in progress: Hooks Metrics

86. –MatthiasJ.Sax–SquirrelsandStorms 21/22 Outlook: Storm Compatibility Current status: available in master branch based on Storm 0.9.4 will be part of Flink 0.10.0 Work in progress: Hooks Metrics Next steps: enable fault-tolerance introduce FlinkTridentTopology improve embedded mode (StormEnvironment)

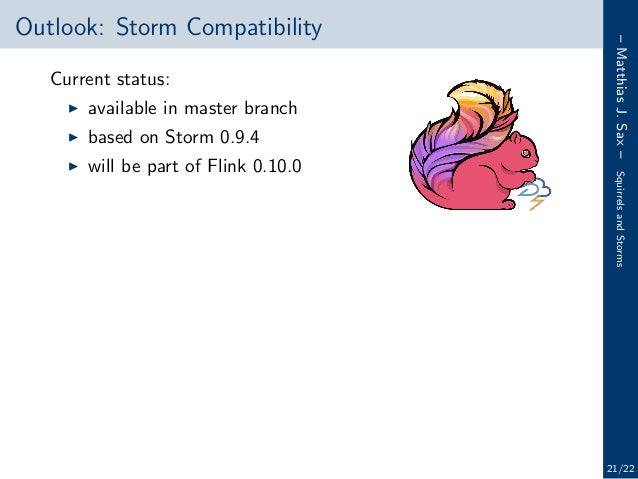

87. dbisINSTITUT FÜR INFORMATIK HUMBOLDT−UNIVERSITÄT ZU ERLINB A Tale of Squirrels and Storms Flink Forward 2015 Thanks!
