1. Access Control
Models: Controlling
Resource
Authorization

2. Access Control Models:
Controlling Resource
Authorization
Mark Niebergall
@mbniebergall

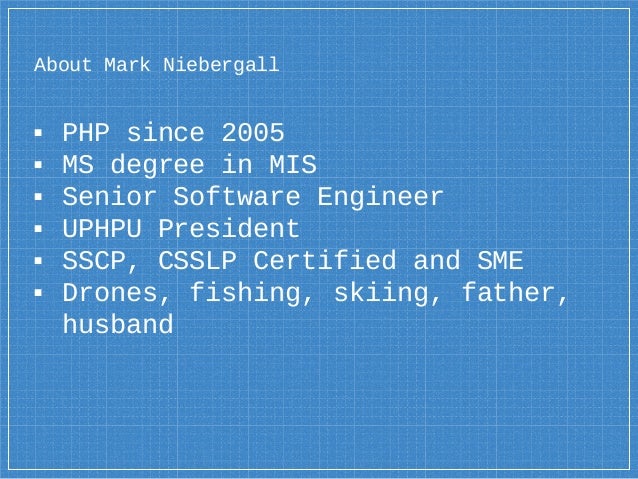

3. About Mark Niebergall
▪ PHP since 2005
▪ MS degree in MIS
▪ Senior Software Engineer
▪ UPHPU President
▪ SSCP, CSSLP Certified and SME
▪ Drones, fishing, skiing, father,
husband

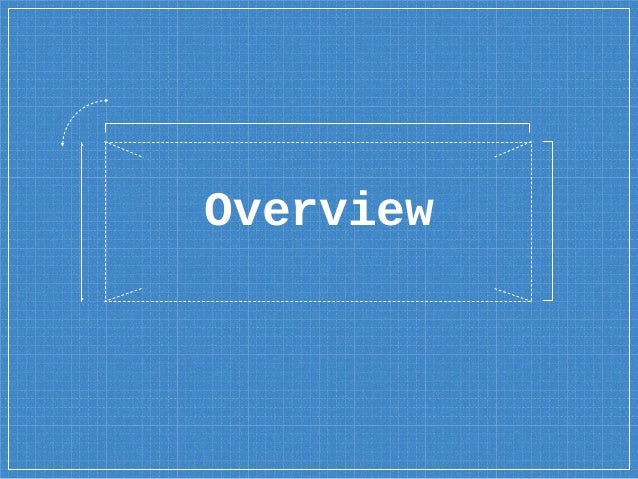

4. Overview

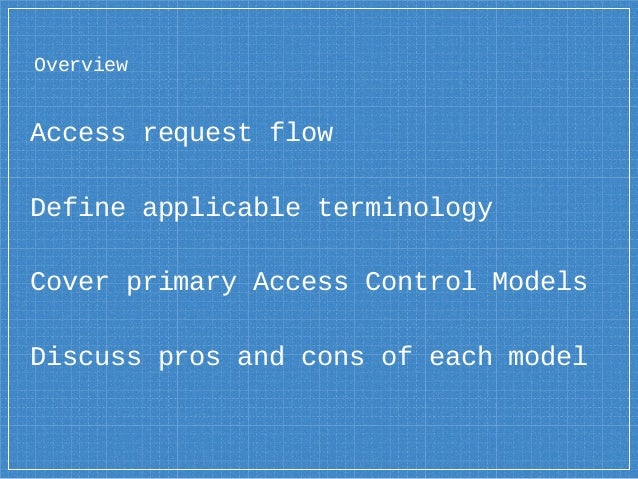

5. Overview
Access request flow
Define applicable terminology
Cover primary Access Control Models
Discuss pros and cons of each model

6. Access Request
Flow

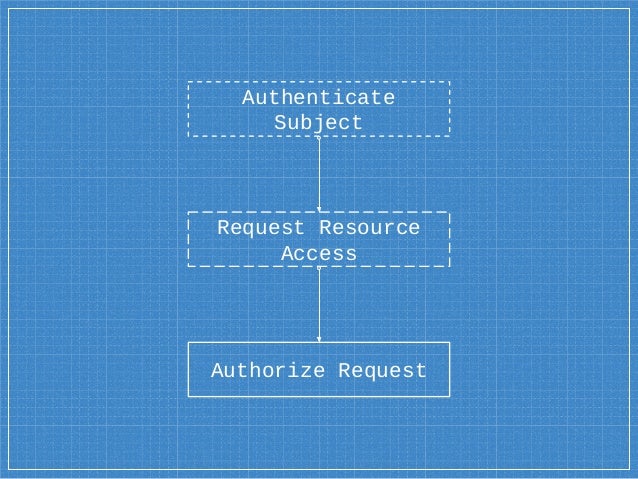

7. Request Resource
Access
Authorize Request
Authenticate
Subject

8. Request Resource
Access
Authorize Request
Authenticate
Subject

9. Authentication

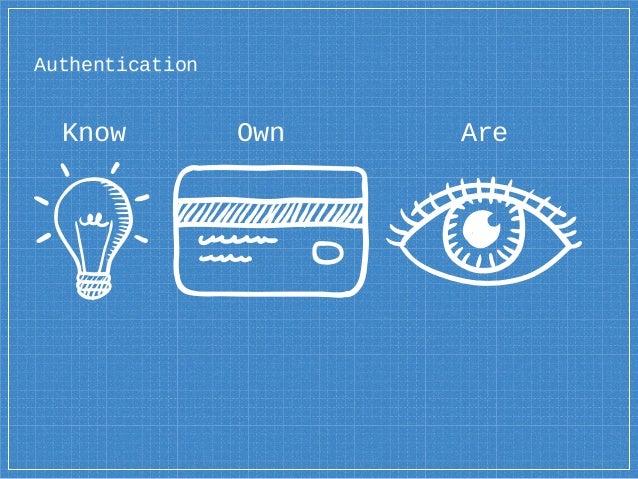

10. Authentication
Know Own Are

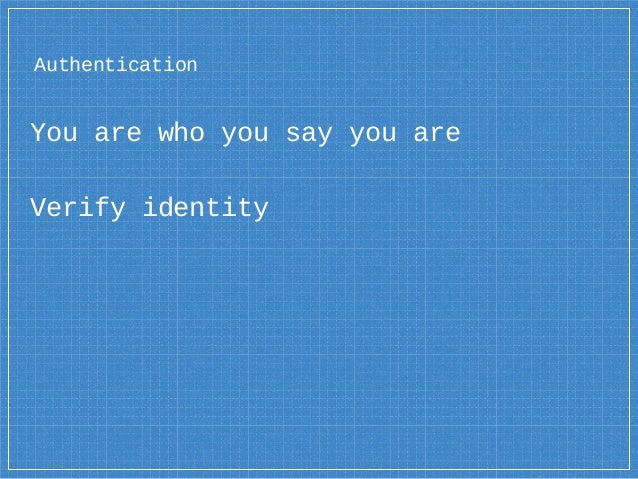

11. Authentication
You are who you say you are
Verify identity

12. Subject

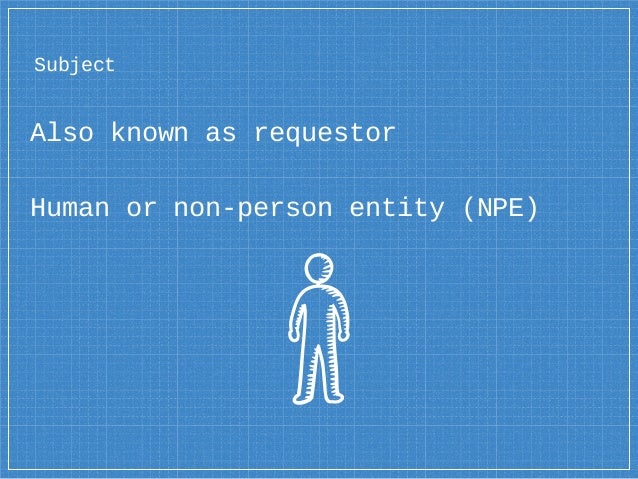

13. Subject
Also known as requestor
Human or non-person entity (NPE)

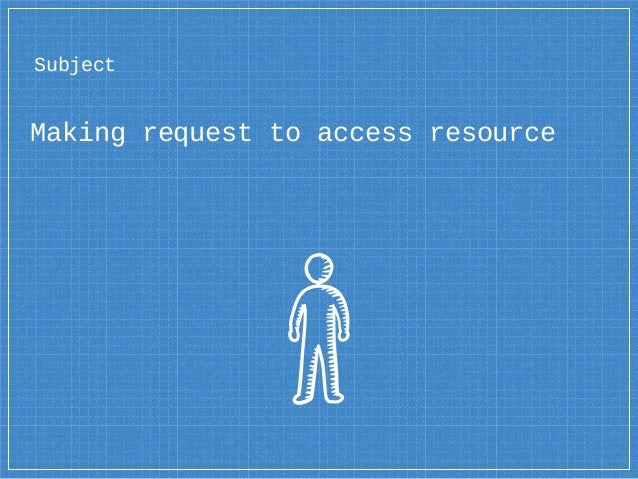

14. Subject
Making request to access resource

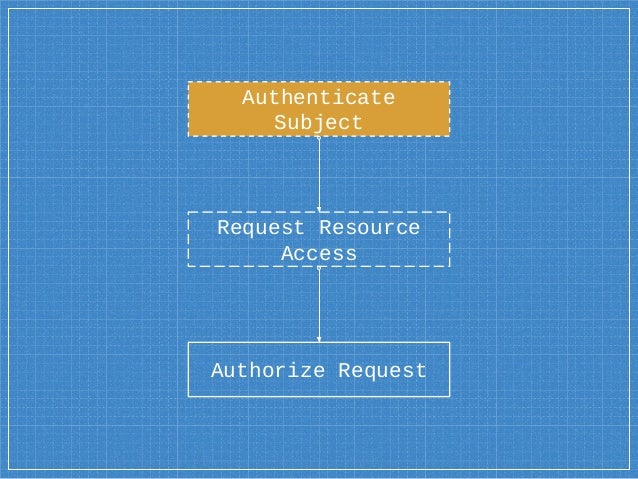

15. Request Resource
Access
Authorize Request
Authenticate
Subject

16. Request Resource
Access
Authorize Request
Authenticate
Subject

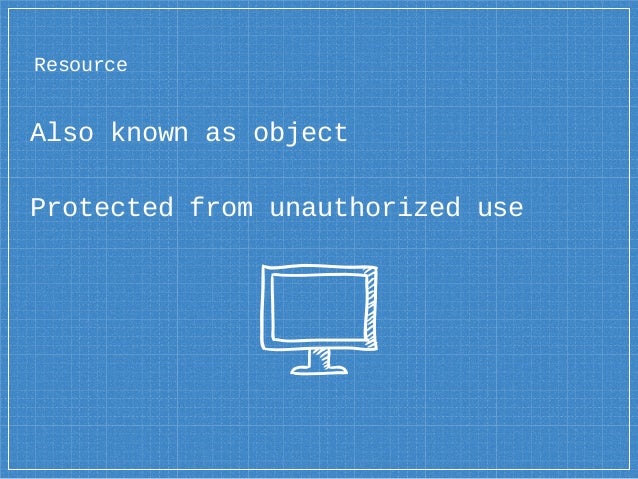

17. Resource

18. Resource
Also known as object
Protected from unauthorized use

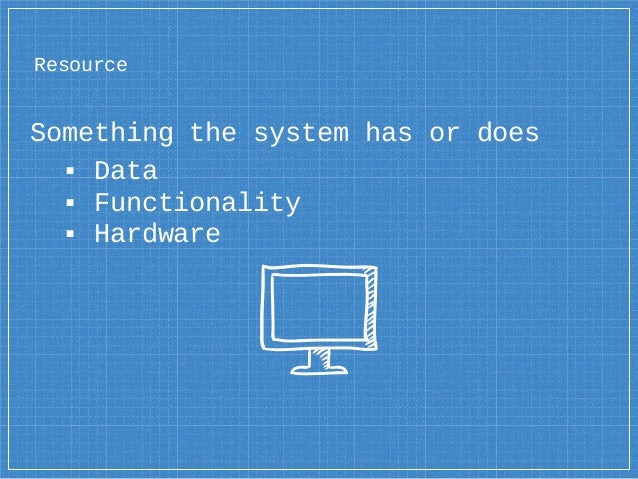

19. Resource
Something the system has or does
▪ Data
▪ Functionality
▪ Hardware

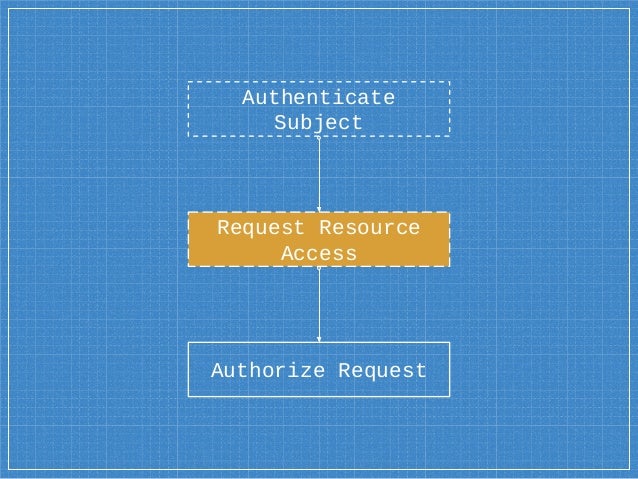

20. Request Resource
Access
Authorize Request
Authenticate
Subject

21. Request Resource
Access
Authorize Request
Authenticate
Subject

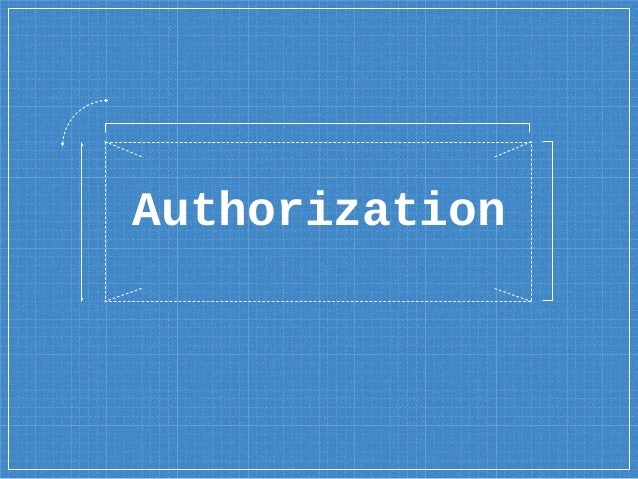

22. Authorization

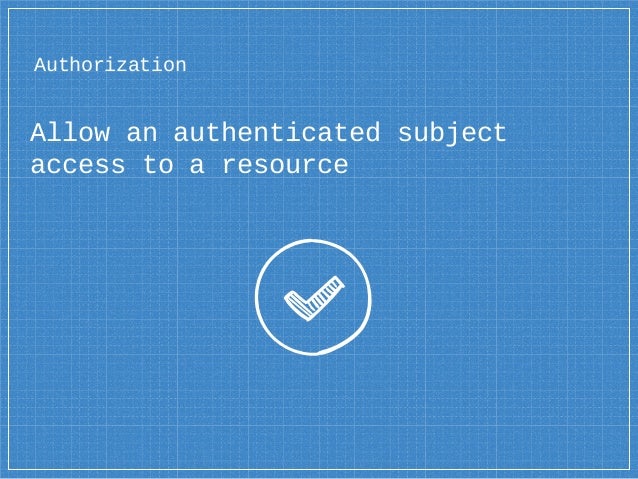

23. Authorization
Allow an authenticated subject
access to a resource

24. Authorization
Allow or deny
Subject action on object (CRUD)

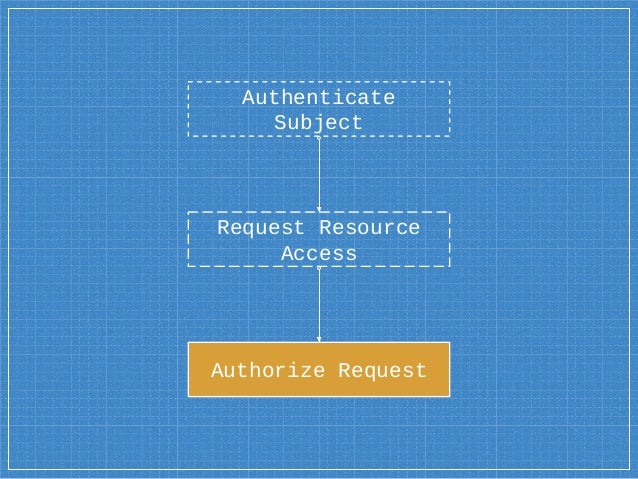

25. Request Resource
Access
Authorize Request
Authenticate
Subject

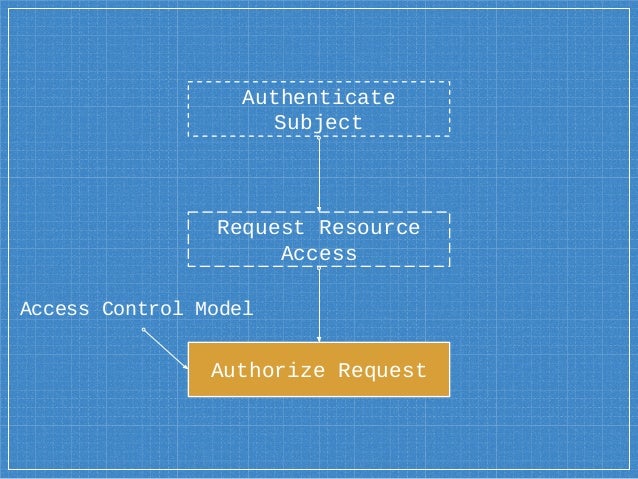

26. Request Resource
Access
Authorize Request
Authenticate
Subject
Access Control Model

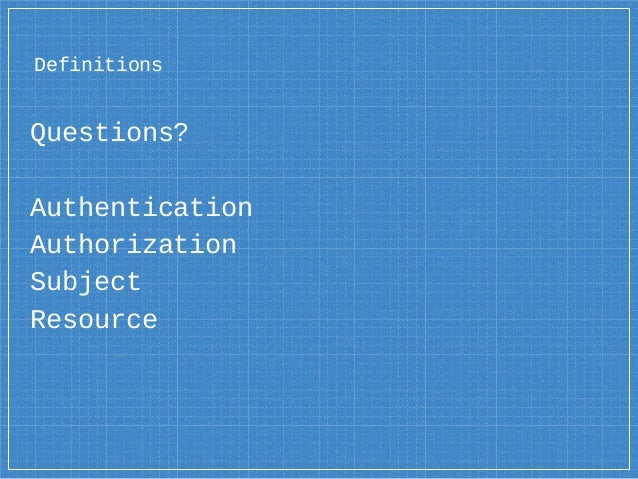

27. Definitions
Questions?
Authentication
Authorization
Subject
Resource

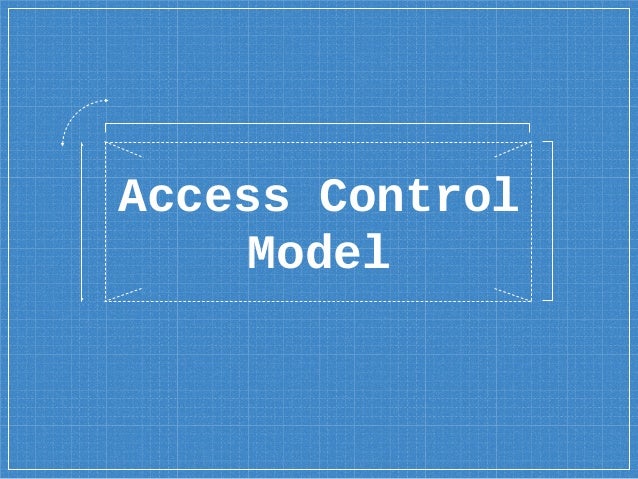

28. Access Control
Model

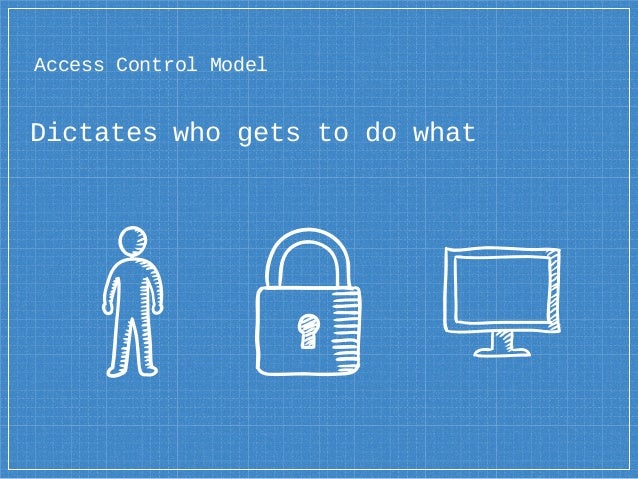

29. Access Control Model
Dictates who gets to do what

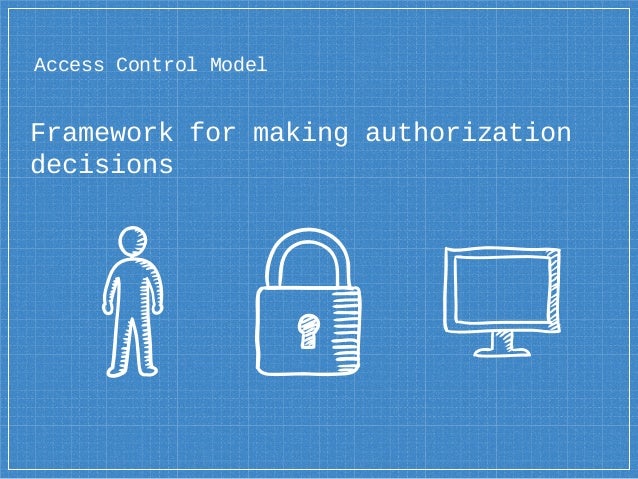

30. Access Control Model
Framework for making authorization
decisions

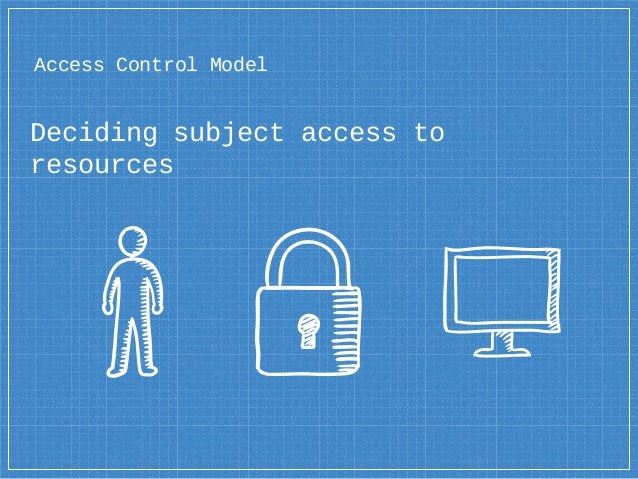

31. Access Control Model
Deciding subject access to
resources

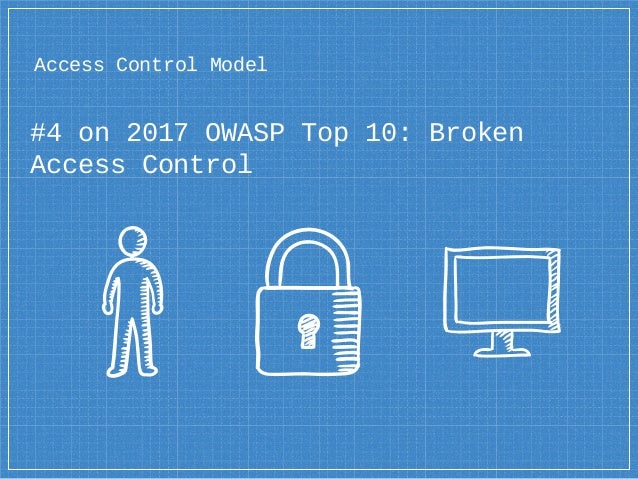

32. Access Control Model
#4 on 2017 OWASP Top 10: Broken
Access Control

33. Access Control Model
Primary Access Control Models
▪ DAC: Discretionary
▪ MAC: Mandatory
▪ RBAC: Role Based
▪ ABAC: Attribute Based

34. 1
Discretionary (DAC)

35. DAC
House keys

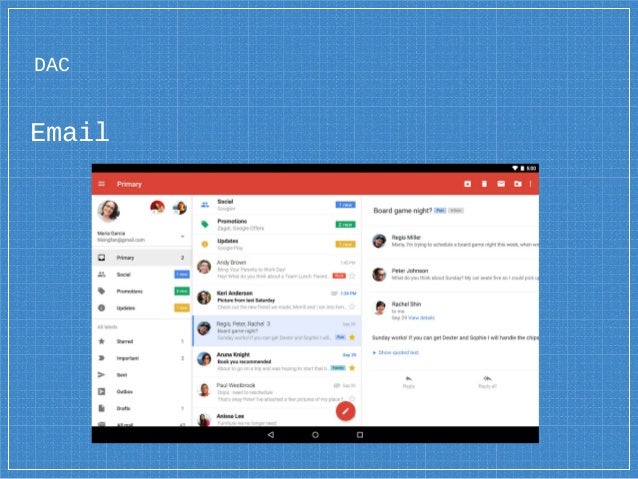

36. Email
DAC

37. DAC
Files on system

38. DAC
Clans in gaming

39. DAC
Subject Resource

40. DAC
Object owner grants permission
based on subject identity
Access Control List (ACL)
Deny by default

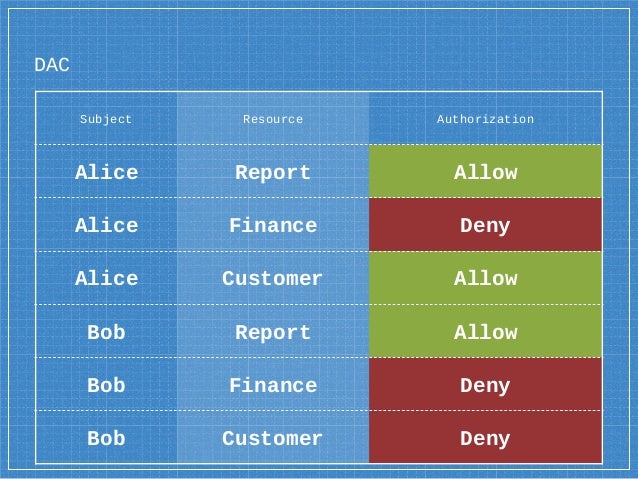

41. DAC
Subject Resource Authorization
Alice Report Allow
Alice Finance Deny
Alice Customer Allow
Bob Report Allow
Bob Finance Deny
Bob Customer Deny

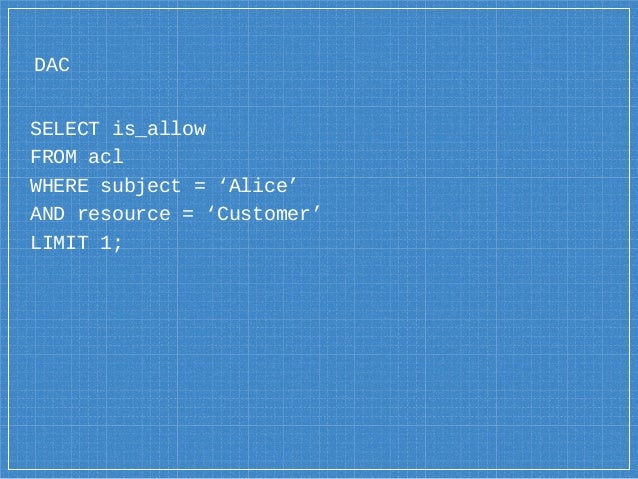

42. DAC
SELECT is_allow
FROM acl
WHERE subject = ‘Alice’
AND resource = ‘Customer’
LIMIT 1;

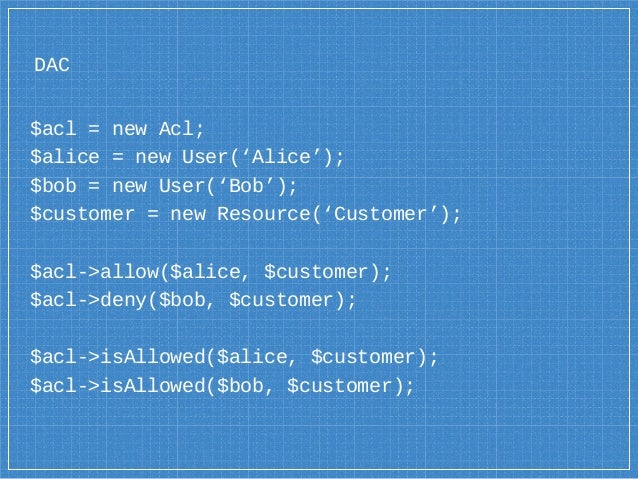

43. DAC
$acl = new Acl;
$alice = new User(‘Alice’);
$bob = new User(‘Bob’);
$customer = new Resource(‘Customer’);
$acl->allow($alice, $customer);
$acl->deny($bob, $customer);
$acl->isAllowed($alice, $customer);
$acl->isAllowed($bob, $customer);

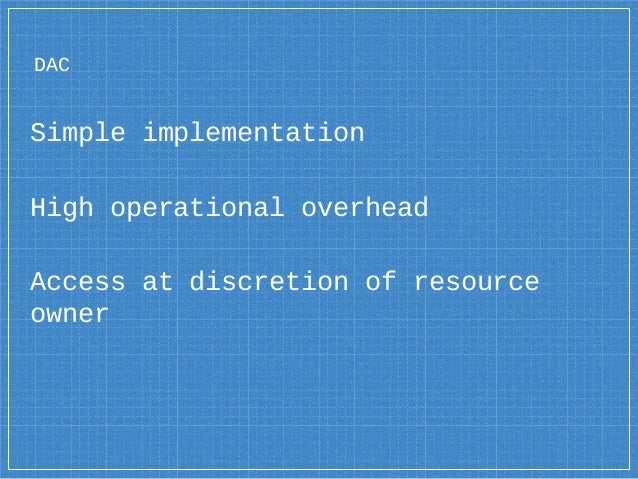

44. DAC
Simple implementation
High operational overhead
Access at discretion of resource
owner

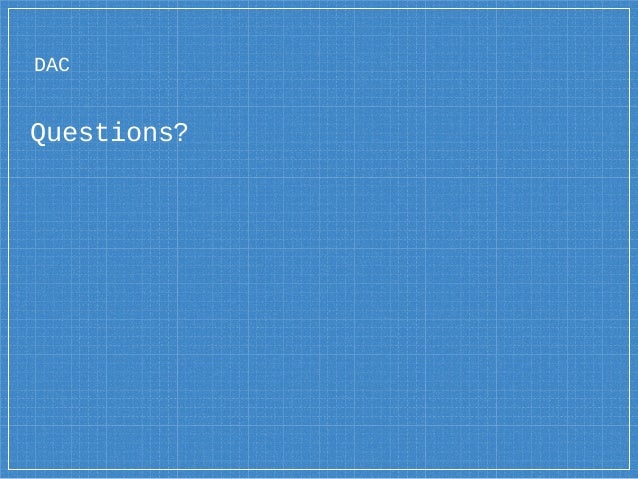

45. DAC
Questions?

46. 2
Mandatory (MAC)

47. MAC
Classified documents

48. MAC
Military intelligence

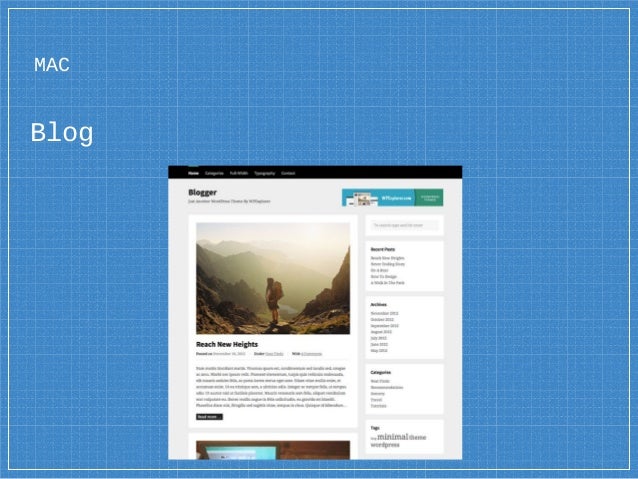

49. MAC
Blog

50. MAC
Leveled-up character in game

51. MAC
Search engine rules

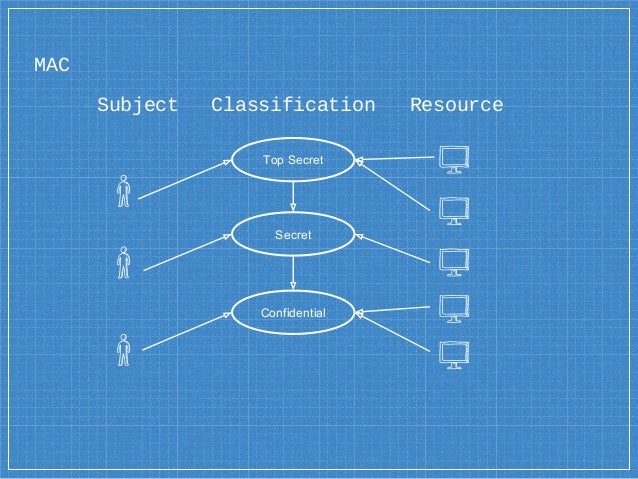

52. MAC
Top Secret
Secret
Confidential
Subject Classification Resource

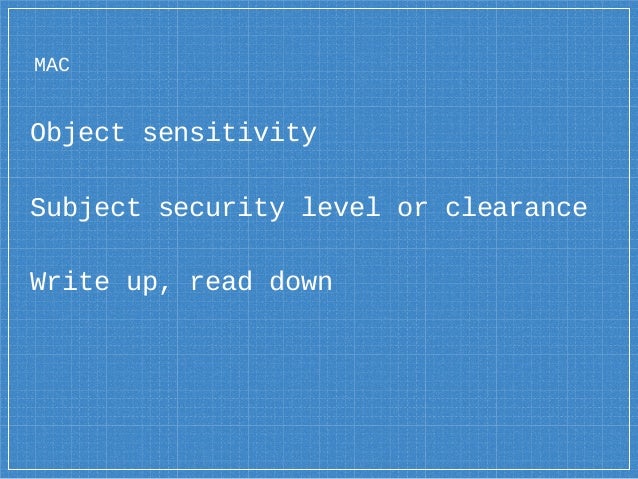

53. MAC
Object sensitivity
Subject security level or clearance
Write up, read down

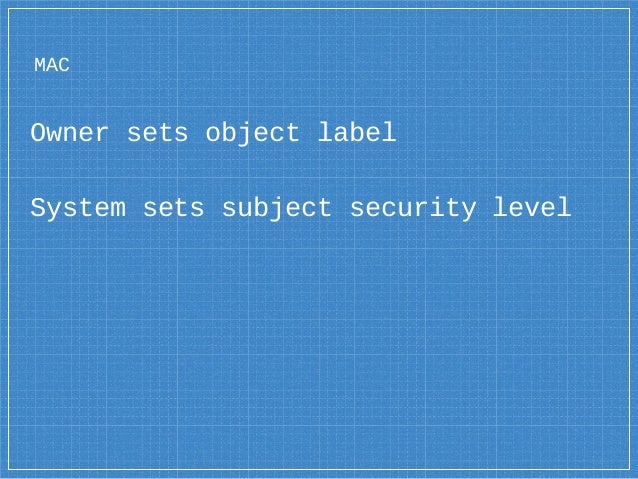

54. MAC
Owner sets object label
System sets subject security level

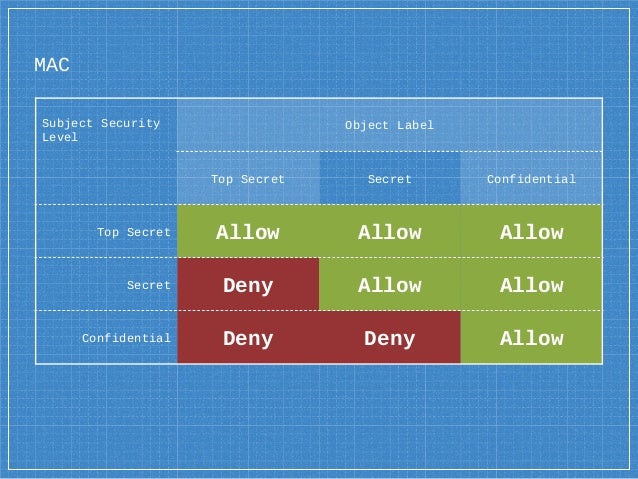

55. MAC
Subject Security
Level
Object Label
Top Secret Secret Confidential
Top Secret Allow Allow Allow
Secret Deny Allow Allow
Confidential Deny Deny Allow

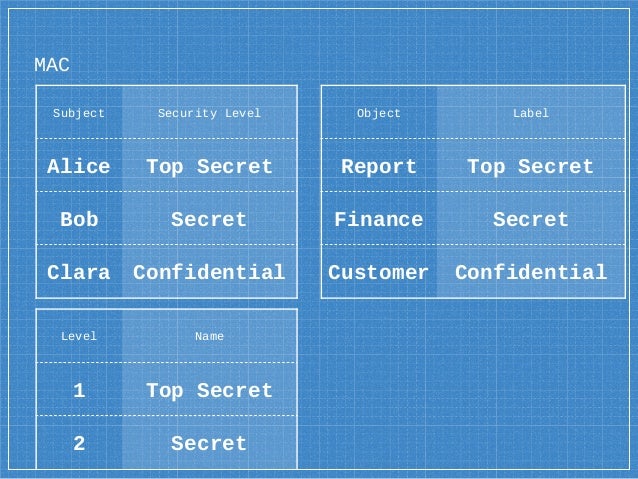

56. Subject Security Level
Alice Top Secret
Bob Secret
Clara Confidential
Object Label
Report Top Secret
Finance Secret
Customer Confidential
MAC
Level Name
1 Top Secret
2 Secret

57. MAC
Subject: Security
Level
Object: Label
Report: Top
Secret
Finance: Secret
Customer:
Confidential
Alice: Top Secret Allow Allow Allow
Bob: Secret Deny Allow Allow
Clara: Confidential Deny Deny Allow

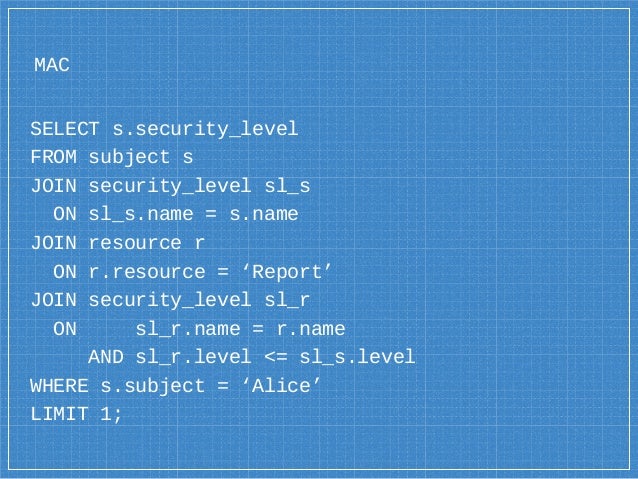

58. MAC
SELECT s.security_level
FROM subject s
JOIN security_level sl_s
ON sl_s.name = s.name
JOIN resource r
ON r.resource = ‘Report’
JOIN security_level sl_r
ON sl_r.name = r.name
AND sl_r.level <= sl_s.level
WHERE s.subject = ‘Alice’
LIMIT 1;

59. MAC
$accessControl = new Mac;
$topSecret = new Level(‘Top Secret’);
$secret = new Level(‘Secret’);
$alice = new User(‘Alice’);
$bob = new User(‘Bob’);
$finances = new Resource(‘Finances’);
$accessControl->addLevel($topSecret, 1)
->addLevel($secret, 2);
$accessControl->addUser($alice, $topSecret)
->addUser($bob, $secret);
$accessControl->addResource($finances, $secret);
$accessControl->isAllowed($alice, $finances);

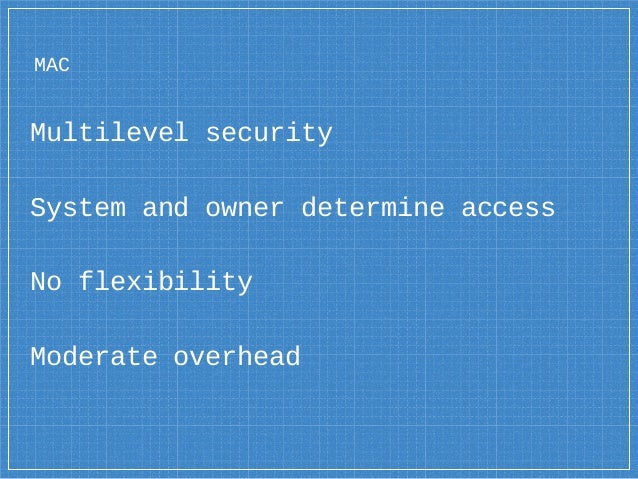

60. MAC
Multilevel security
System and owner determine access
No flexibility
Moderate overhead

61. MAC
Questions?

62. 3
Role Based (RBAC)

63. RBAC
Amazon Prime

64. RBAC
User roles on a computer

65. RBAC
Medical care staff

66. RBAC
LARPing

67. RBAC
Multiplayer Games

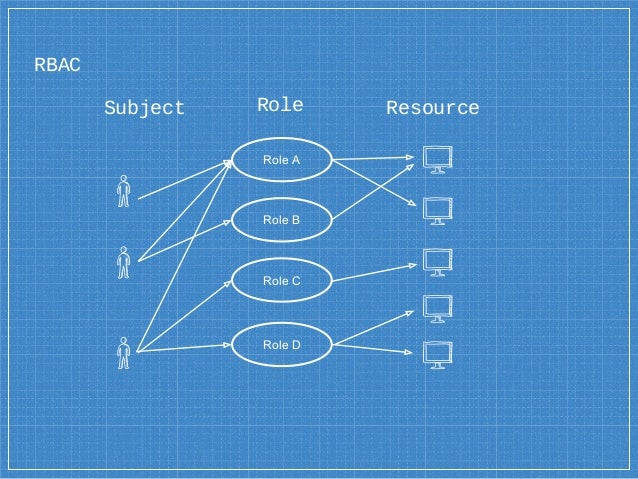

68. RBAC
Role A
Role B
Role C
Role D
Subject Role Resource

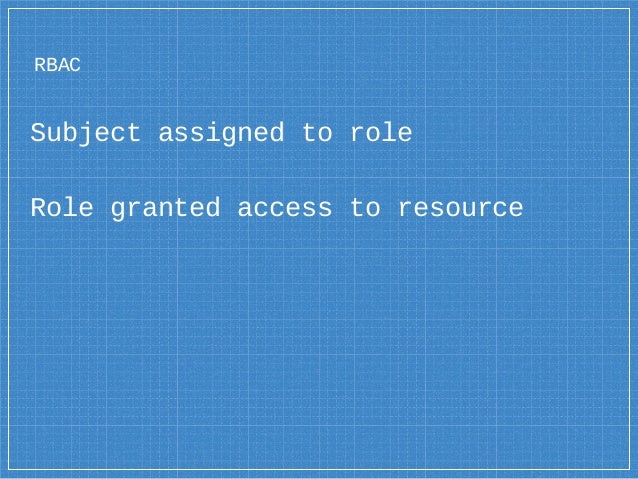

69. RBAC
Subject assigned to role
Role granted access to resource

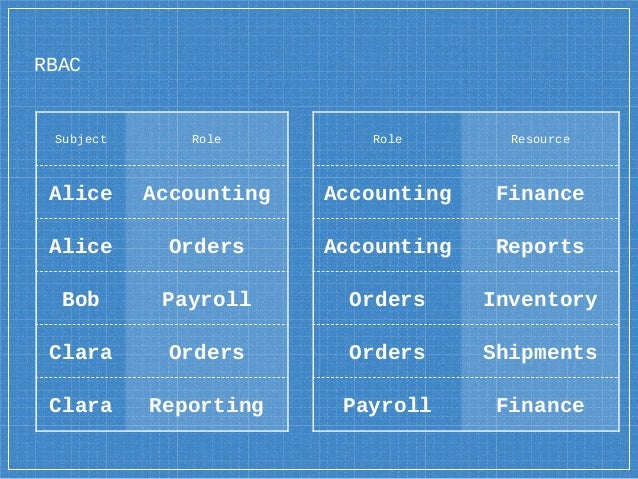

70. RBAC
Subject Role
Alice Accounting
Alice Orders
Bob Payroll
Clara Orders
Clara Reporting
Role Resource
Accounting Finance
Accounting Reports
Orders Inventory
Orders Shipments
Payroll Finance

71. RBAC
SELECT sr.subject, rr.resource
FROM subject_role sr
JOIN role_resource rr
ON rr.subject = sr.subject
AND rr.role = sr.role
WHERE sr.subject = ‘Alice’
AND rr.resource = ‘Report’
LIMIT 1;

72. RBAC
$accessControl = new Rbac;
$accounting = new Role(‘Accounting’);
$ordering = new Role(‘Ordering’);
$alice = new User(‘Alice’);
$bob = new User(‘Bob’);
$inventory = new Resource(‘Inventory’);
$accessControl->addRole($accounting)
->addRole($ordering);
$accessControl->addUser($alice)
->addUser($bob);
$accessControl->addResource($inventory);
$accessControl->addUserToRole($alice, $accounting);
$accessControl->addResourceToRole($inventory, $ordering);
$accessControl->isAllowed($alice, $ordering);
$accessControl->isAllowed($bob, $inventory);

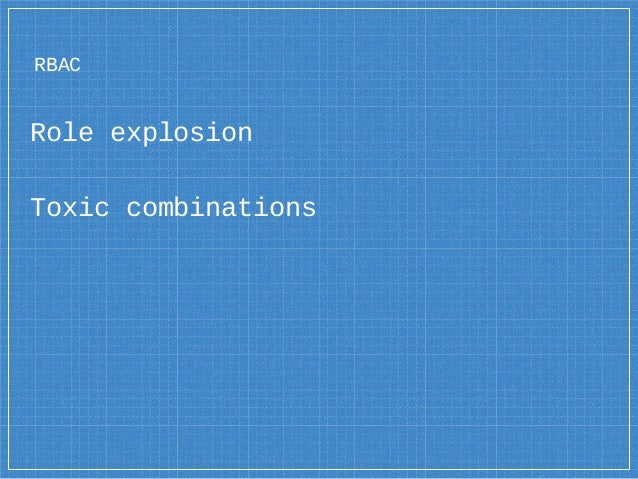

73. RBAC
Role explosion
Toxic combinations

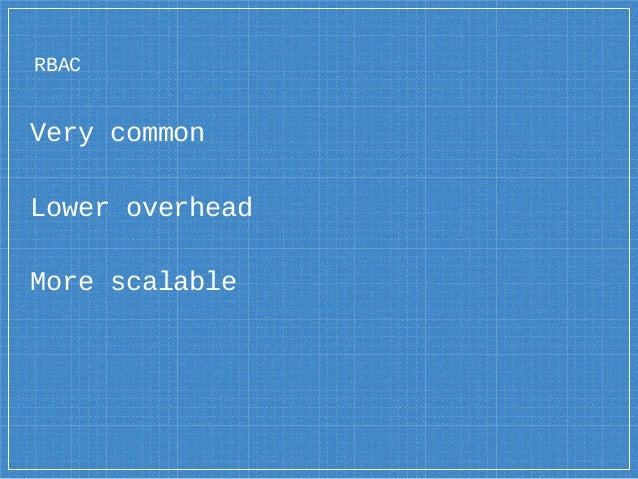

74. RBAC
Very common
Lower overhead
More scalable

75. RBAC
Questions?

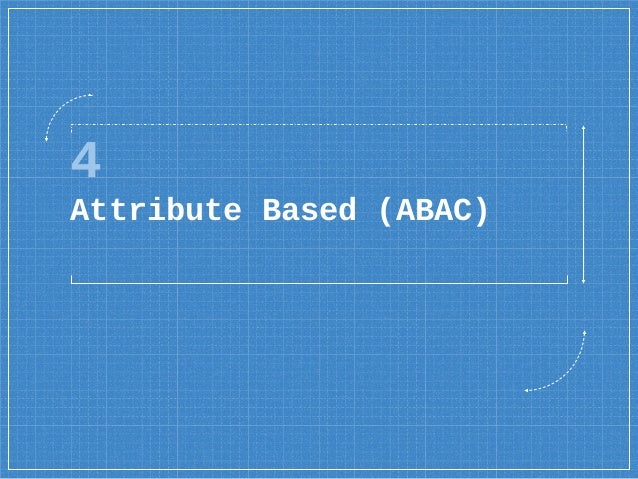

76. 4
Attribute Based (ABAC)

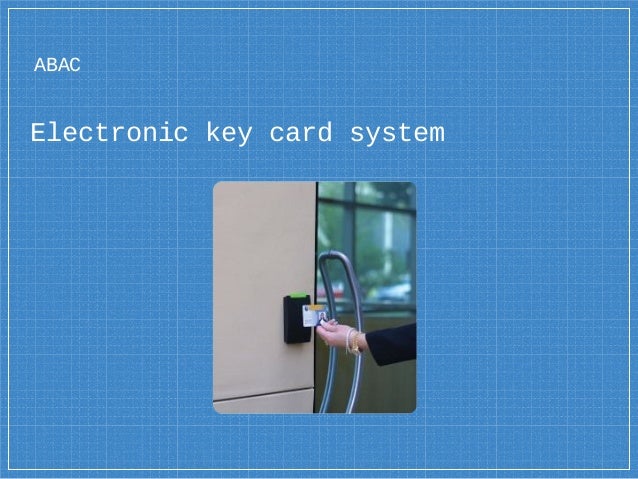

77. ABAC
Electronic key card system

78. ABAC
Credit card with monitoring

79. ABAC
Airport security check

80. ABAC
Gaming activities

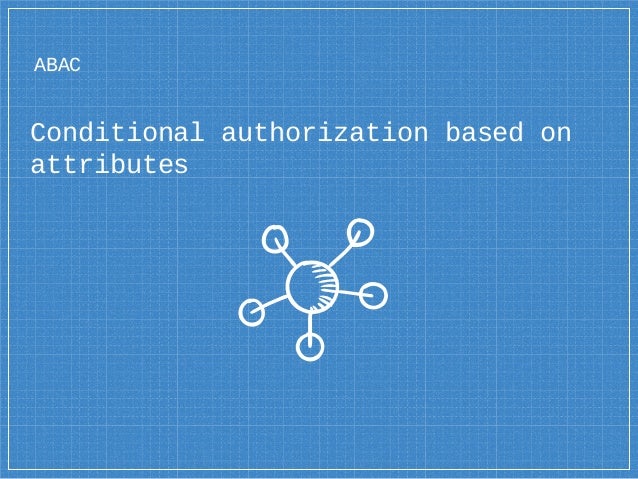

81. ABAC
Conditional authorization based on
attributes

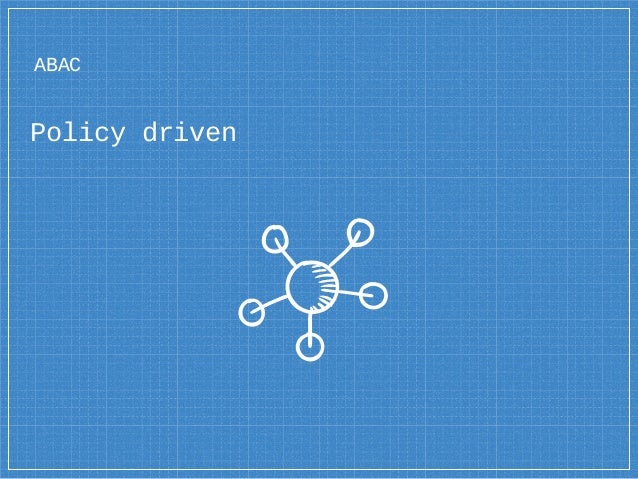

82. ABAC
Policy driven

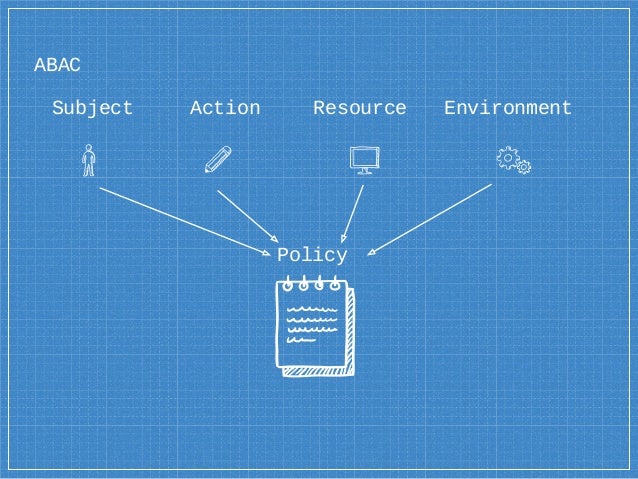

83. ABAC
Subject Action Resource Environment
Policy

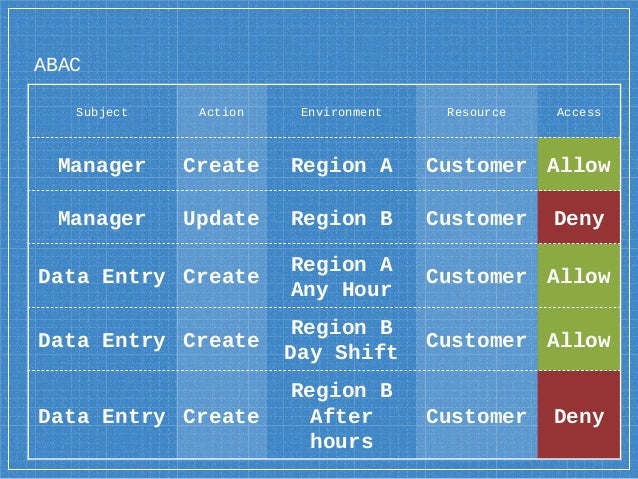

84. ABAC
Subject Action Environment Resource Access
Manager Create Region A Customer Allow
Manager Update Region B Customer Deny
Data Entry Create
Region A
Any Hour
Customer Allow
Data Entry Create
Region B
Day Shift
Customer Allow
Data Entry Create
Region B
After
hours
Customer Deny

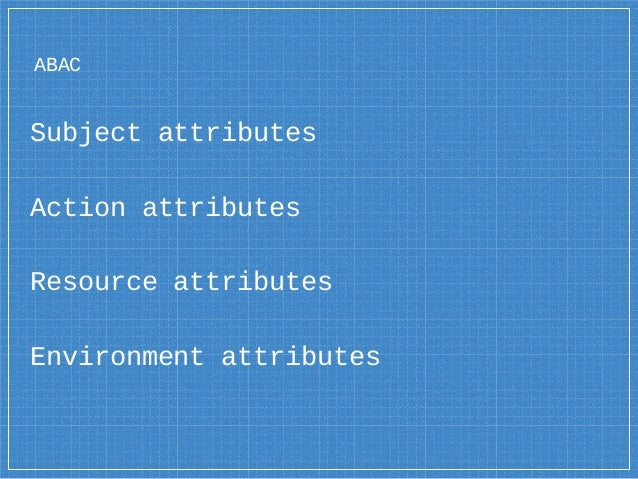

85. ABAC
Subject attributes
Action attributes
Resource attributes
Environment attributes

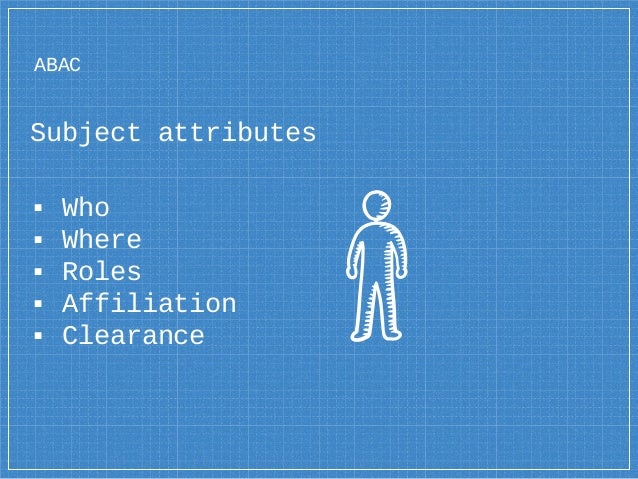

86. ABAC
Subject attributes
▪ Who
▪ Where
▪ Roles
▪ Affiliation
▪ Clearance

87. ABAC
Action attributes
▪ Create, POST
▪ Read, GET
▪ Update, PUT
▪ Delete, DELETE
▪ Execute

88. ABAC
Resource attributes
▪ Type
▪ Owner
▪ Classification

89. ABAC

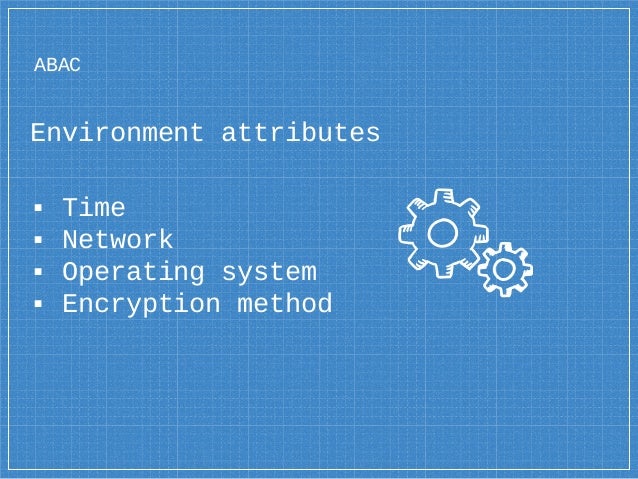

Environment attributes
▪ Time
▪ Network
▪ Operating system
▪ Encryption method

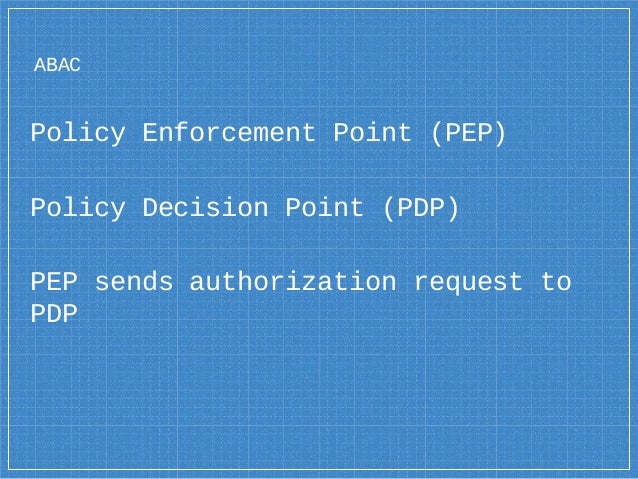

90. ABAC
Policy Enforcement Point (PEP)
Policy Decision Point (PDP)
PEP sends authorization request to
PDP

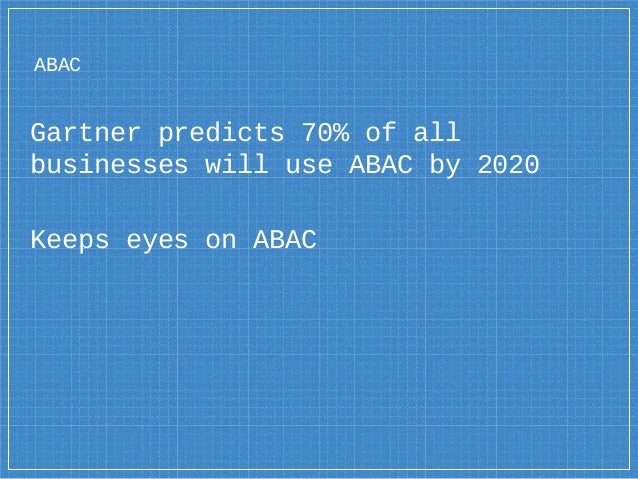

91. ABAC
Gartner predicts 70% of all
businesses will use ABAC by 2020
Keeps eyes on ABAC

92. ABAC
Attempt to standardize ABAC
policies into XML format is mostly
dead, eXtensible Access Control
Markup Language (XACML)

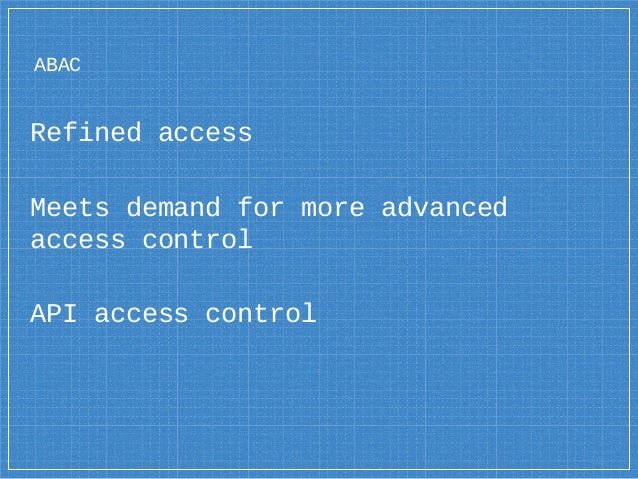

93. ABAC
Refined access
Meets demand for more advanced
access control
API access control

94. ABAC
Typically start with RBAC
implementation and then build onto
it with policies
Custom implementation so no example

95. ABAC
Questions?

96. Implementation
Considerations

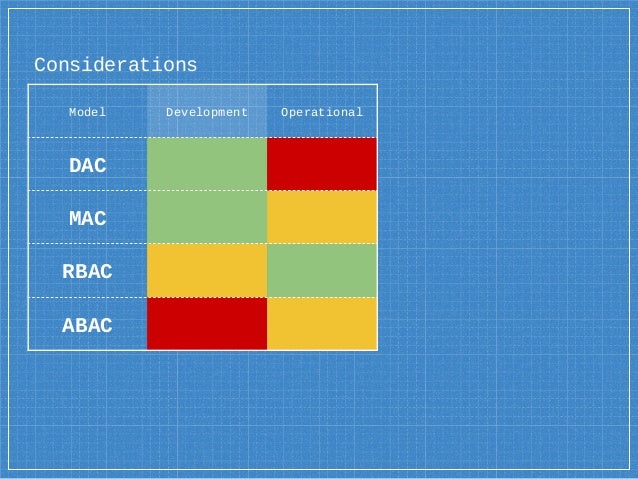

97. Considerations
Model Development Operational
DAC
MAC
RBAC
ABAC

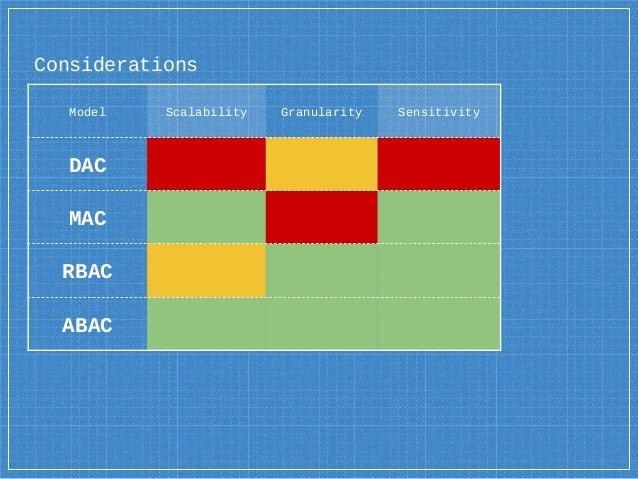

98. Considerations
Model Scalability Granularity Sensitivity
DAC
MAC
RBAC
ABAC

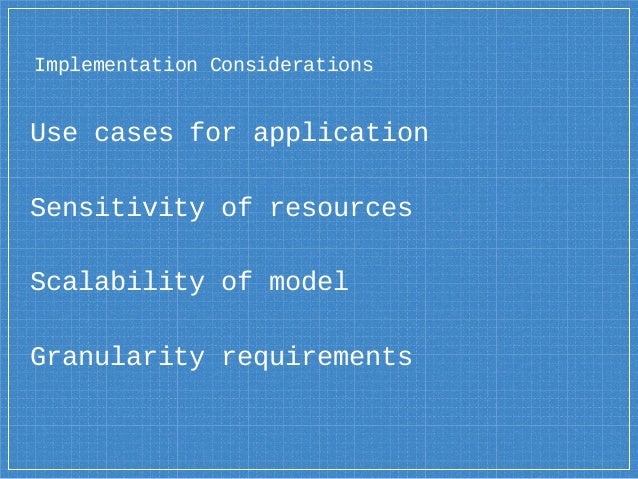

99. Implementation Considerations
Use cases for application
Sensitivity of resources
Scalability of model
Granularity requirements

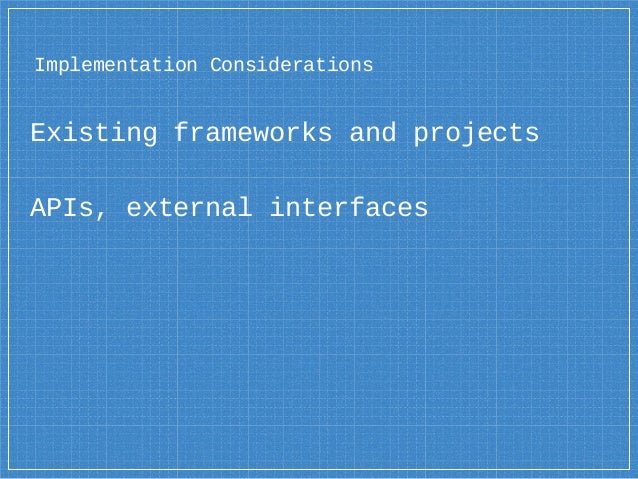

100. Implementation Considerations
Existing frameworks and projects
APIs, external interfaces

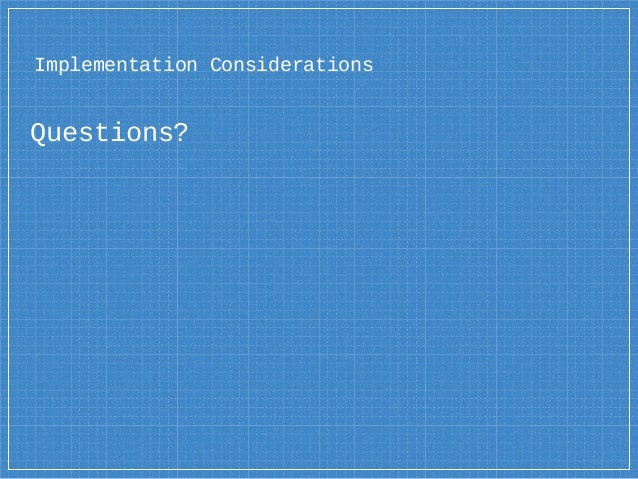

101. Implementation Considerations
Questions?

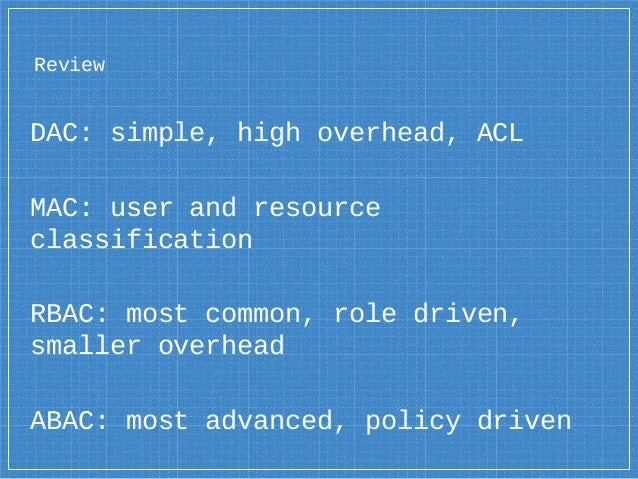

102. Review

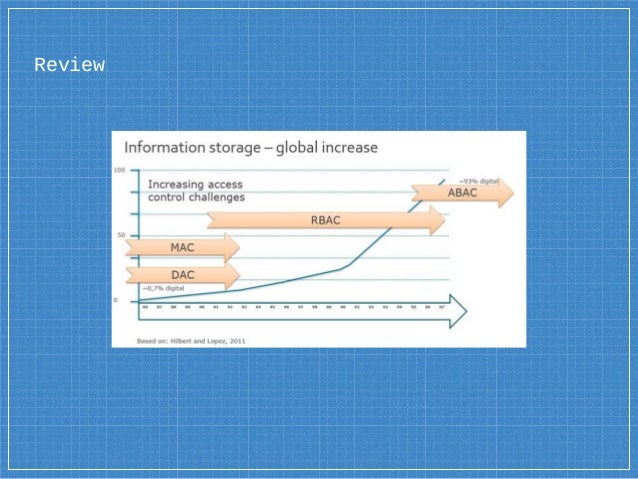

103. Review

104. Review
DAC: simple, high overhead, ACL
MAC: user and resource
classification
RBAC: most common, role driven,
smaller overhead
ABAC: most advanced, policy driven

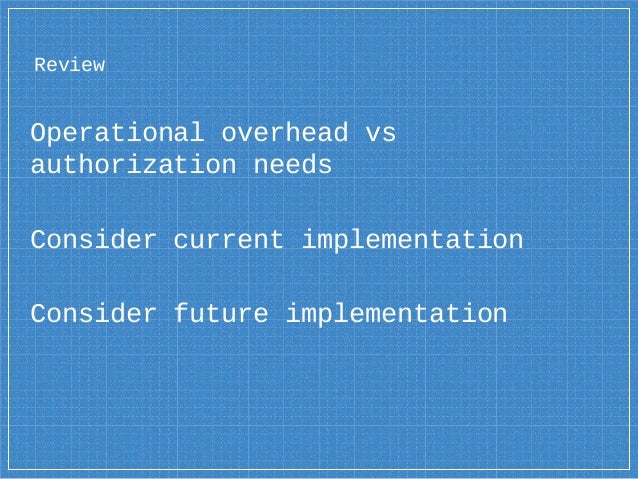

105. Review
Operational overhead vs
authorization needs
Consider current implementation
Consider future implementation

106. Credits

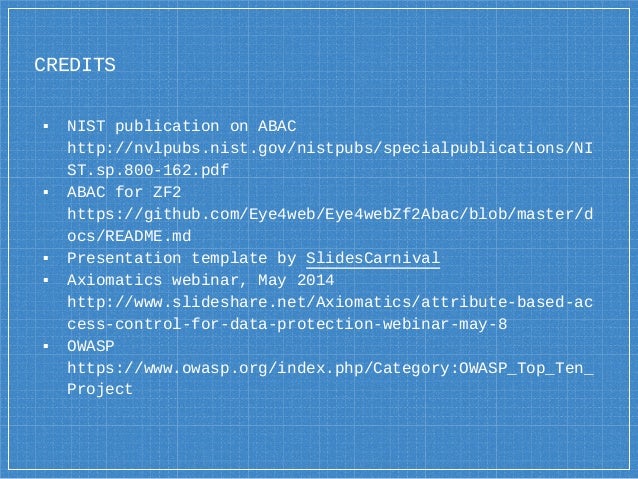

107. CREDITS
▪ NIST publication on ABAC
http://nvlpubs.nist.gov/nistpubs/specialpublications/NI
ST.sp.800-162.pdf
▪ ABAC for ZF2
https://github.com/Eye4web/Eye4webZf2Abac/blob/master/d
ocs/README.md
▪ Presentation template by SlidesCarnival
▪ Axiomatics webinar, May 2014
http://www.slideshare.net/Axiomatics/attribute-based-ac
cess-control-for-data-protection-webinar-may-8
▪ OWASP
https://www.owasp.org/index.php/Category:OWASP_Top_Ten_
Project

108. Thanks!
Questions?
Mark Niebergall
@mbniebergall
