State Machines A big look at them from all angles! John Hardy Product Manager Fall 2014

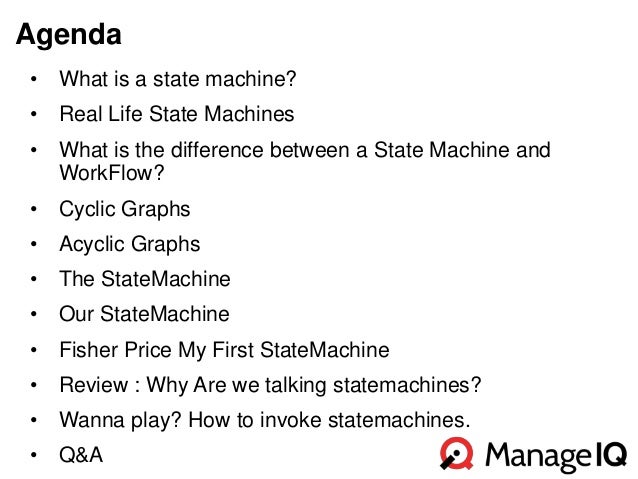

Agenda • What is a state machine? • Real Life State Machines • What is the difference between a State Machine and Work...

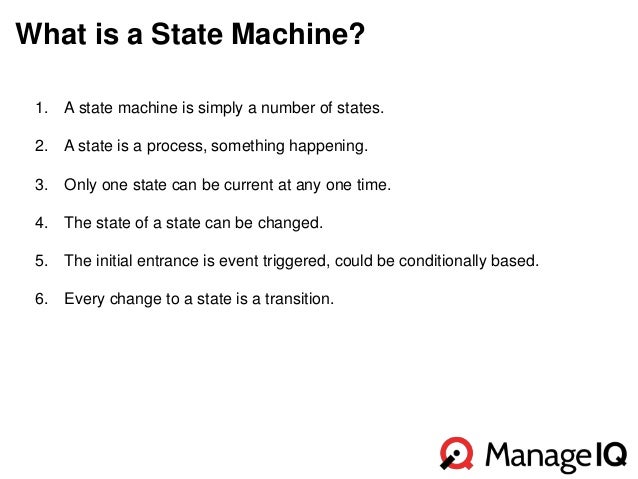

What is a State Machine? 1. A state machine is simply a number of states. 2. A state is a process, something happening. ...

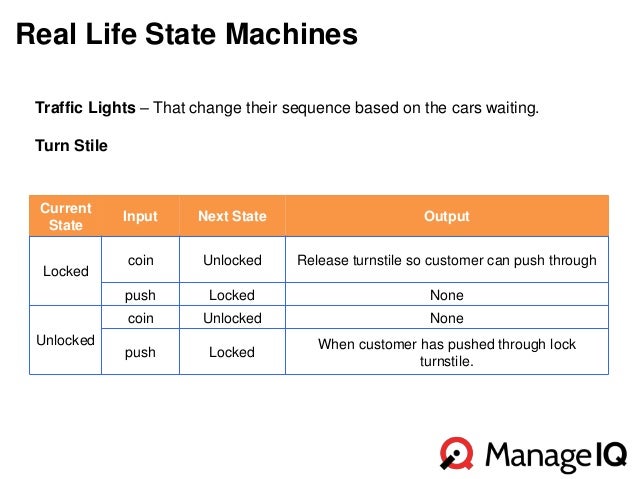

Real Life State Machines Traffic Lights – That change their sequence based on the cars waiting. Turn Stile Current Sta...

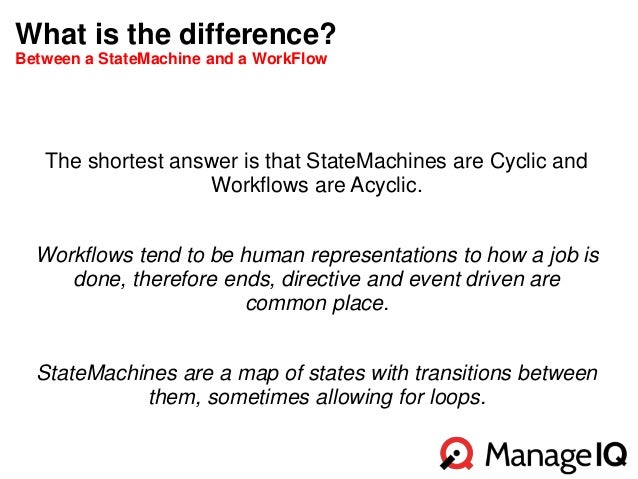

What is the difference? Between a StateMachine and a WorkFlow The shortest answer is that StateMachines are Cyclic and ...

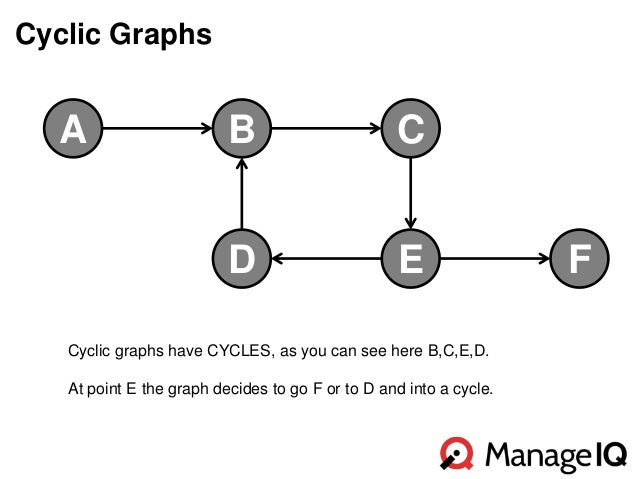

Cyclic Graphs A B C D E F Cyclic graphs have CYCLES, as you can see here B,C,E,D. At point E the graph decides to go F...

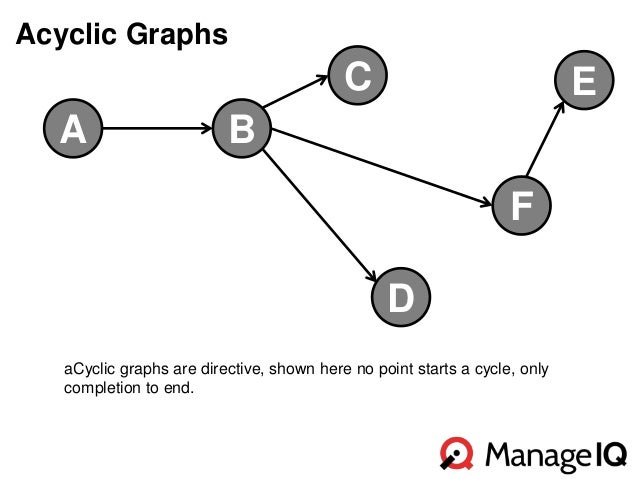

Acyclic Graphs A B C E D F aCyclic graphs are directive, shown here no point starts a cycle, only completion to end.

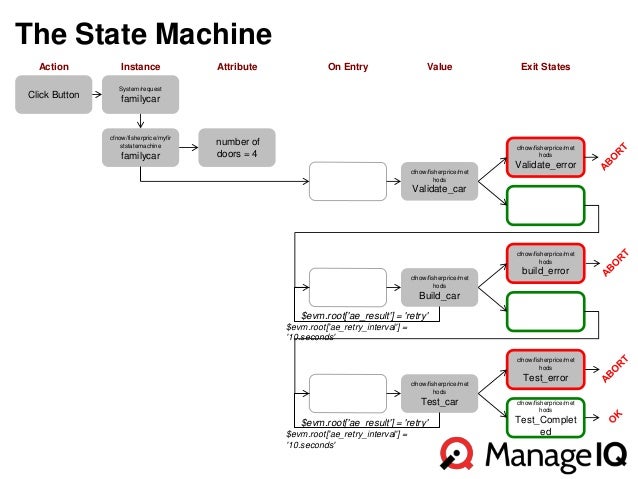

Action Instance System/request Click Button familycar cfnow/fisherprice/myfir ststatemachine familycar Attribute n...

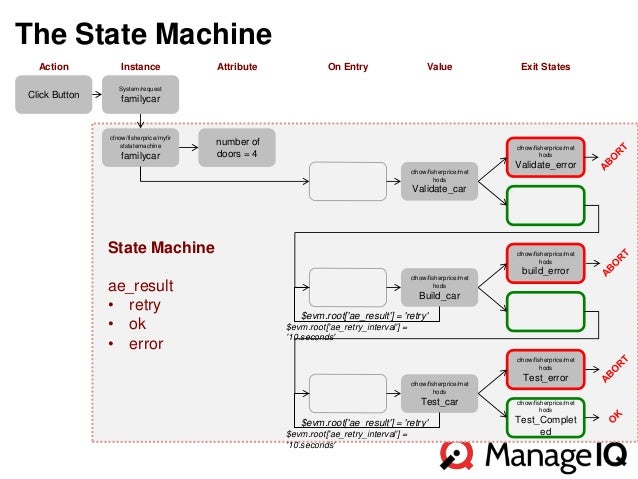

Action Instance System/request Click Button familycar cfnow/fisherprice/myfir ststatemachine familycar Attribute n...

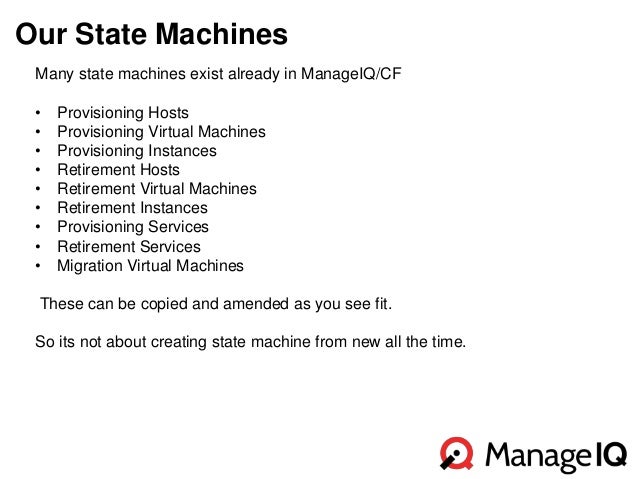

Our State Machines Many state machines exist already in ManageIQ/CF • Provisioning Hosts • Provisioning Virtual Machine...

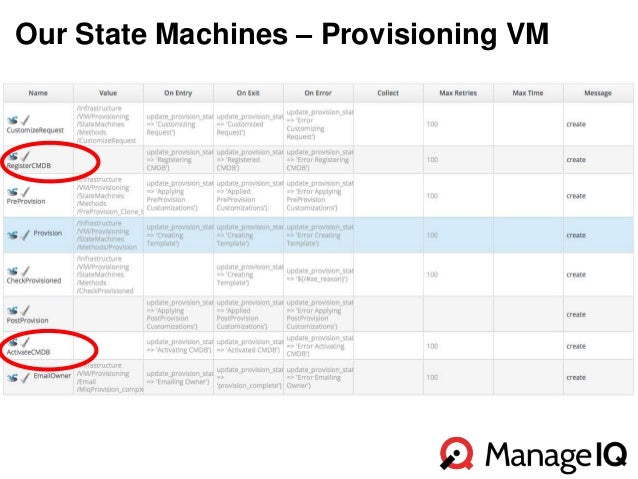

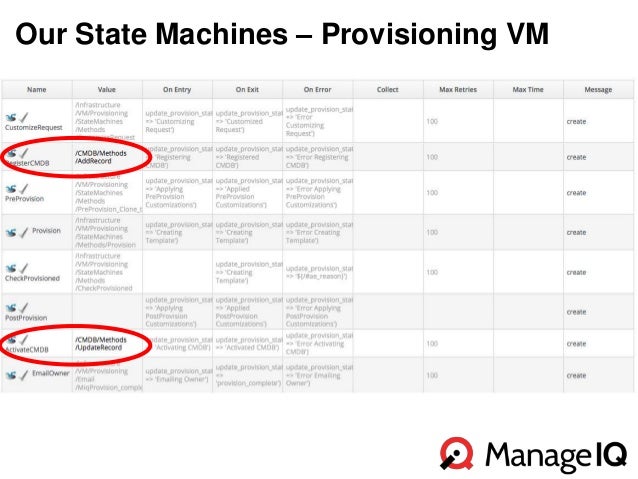

Our State Machines – Provisioning VM
Our State Machines – Provisioning VM
Starting with the basics My First State Machine

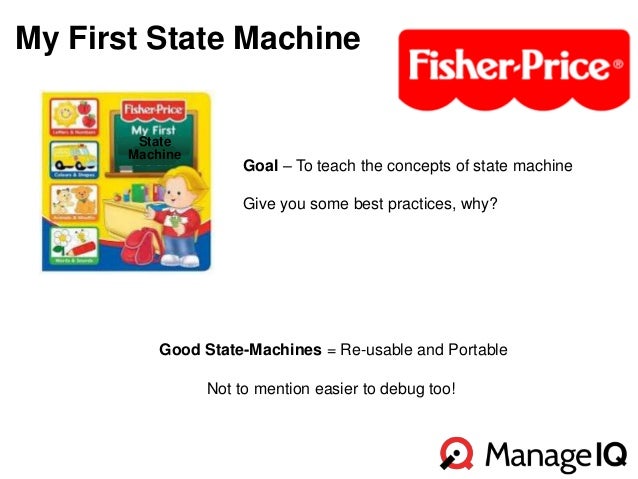

My First State Machine State Machine Goal – To teach the concepts of state machine Give you some best practices, why? ...

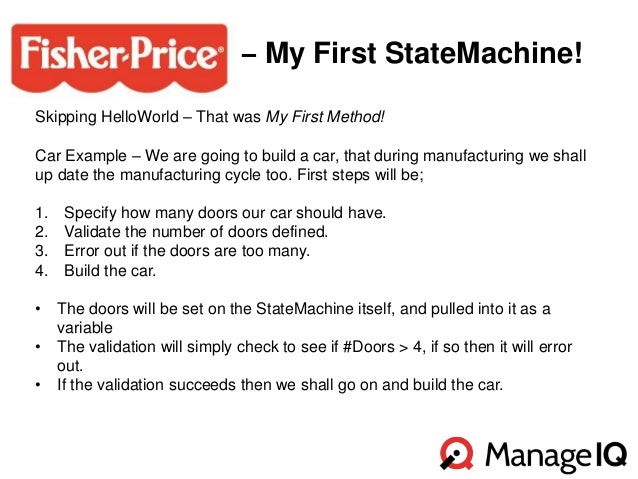

– My First StateMachine! Skipping HelloWorld – That was My First Method! Car Example – We are going to build a car, that...

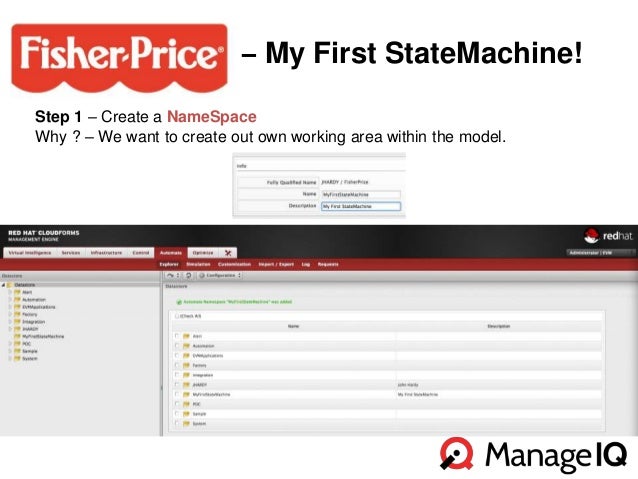

– My First StateMachine! Step 1 – Create a NameSpace Why ? – We want to create out own working area within the model.

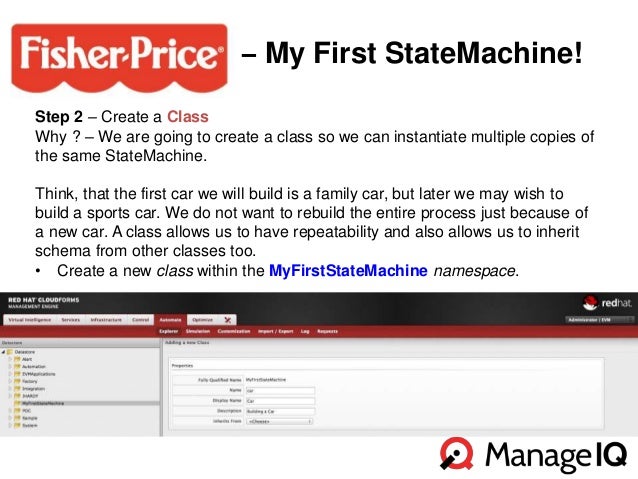

– My First StateMachine! Step 2 – Create a Class Why ? – We are going to create a class so we can instantiate multiple c...

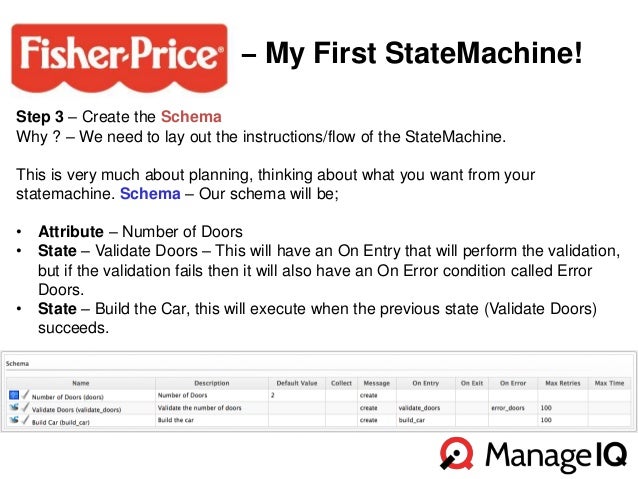

– My First StateMachine! Step 3 – Create the Schema Why ? – We need to lay out the instructions/flow of the StateMachine...

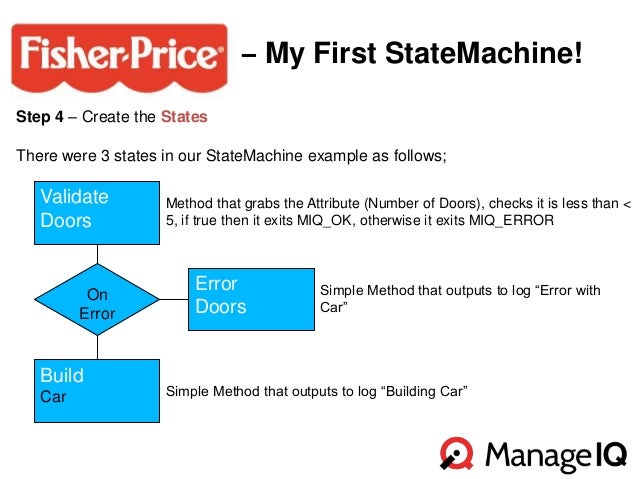

– My First StateMachine! Step 4 – Create the States There were 3 states in our StateMachine example as follows; Validat...

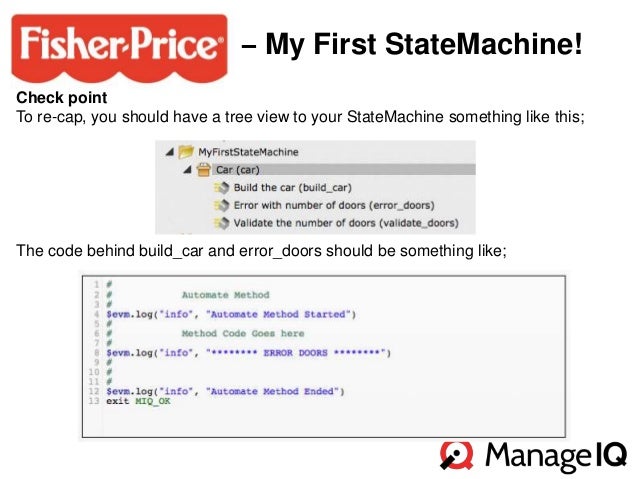

– My First StateMachine! Check point To re-cap, you should have a tree view to your StateMachine something like this; T...

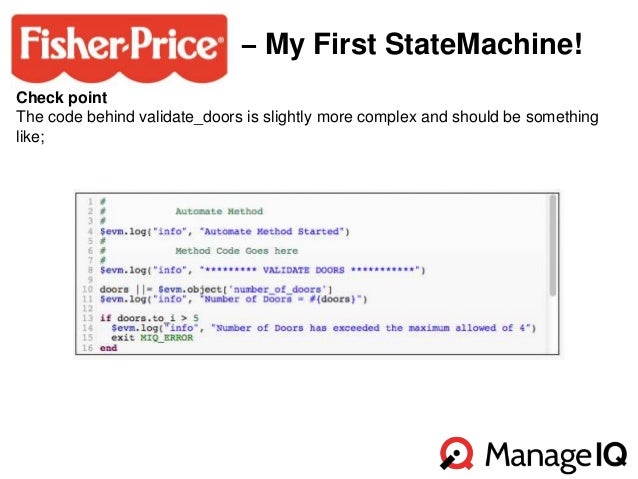

– My First StateMachine! Check point The code behind validate_doors is slightly more complex and should be something li...

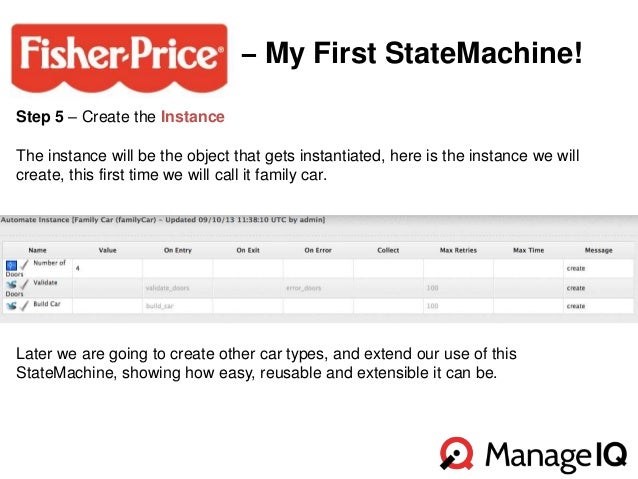

– My First StateMachine! Step 5 – Create the Instance The instance will be the object that gets instantiated, here is th...
– My First StateMachine! Running the StateMachine Executing the StateMachine can be done in numerous ways; Policies – R...

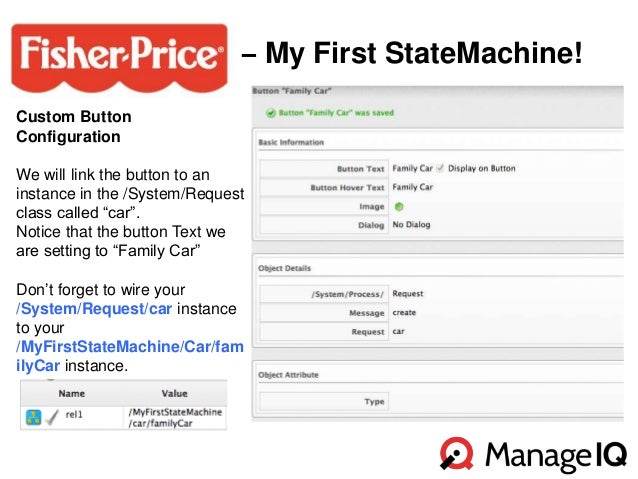

– My First StateMachine! Custom Button Configuration We will link the button to an instance in the /System/Request cl...

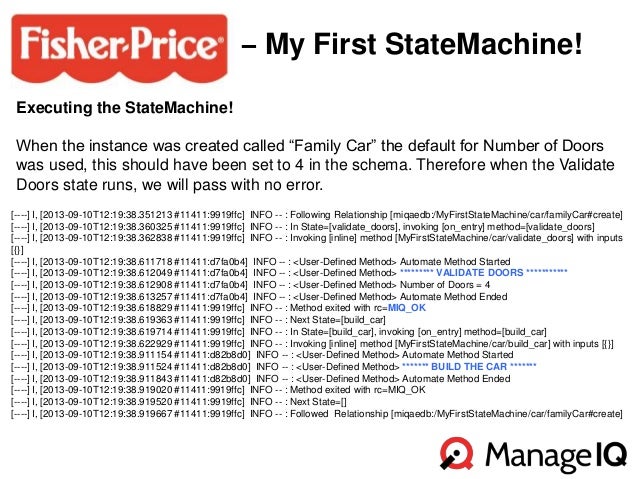

– My First StateMachine! Executing the StateMachine! When the instance was created called “Family Car” the default for N...

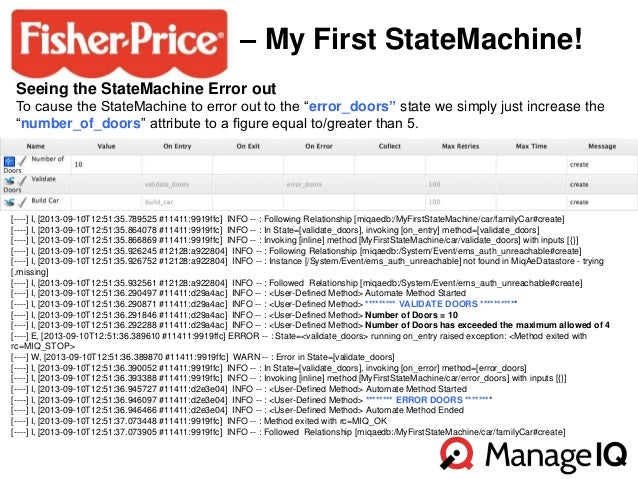

– My First StateMachine! Seeing the StateMachine Error out To cause the StateMachine to error out to the “error_doors” s...

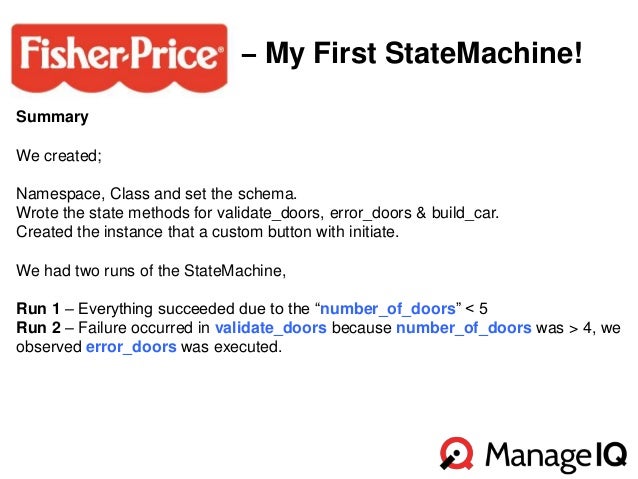

– My First StateMachine! Summary We created; Namespace, Class and set the schema. Wrote the state methods for validate...

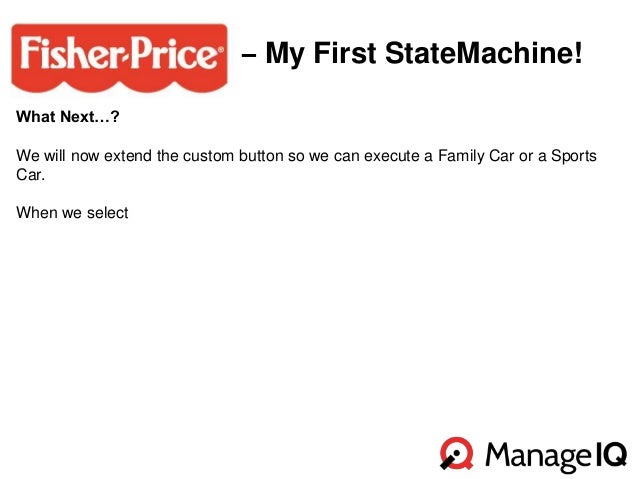

– My First StateMachine! What Next…? We will now extend the custom button so we can execute a Family Car or a Sports Ca...

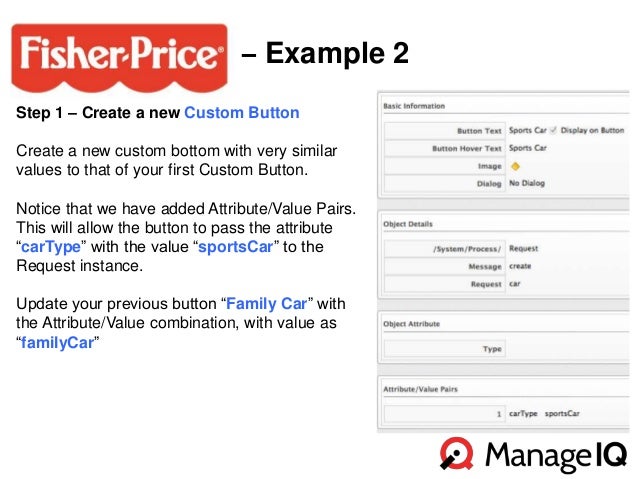

– Example 2 Step 1 – Create a new Custom Button Create a new custom bottom with very similar values to that of your fir...

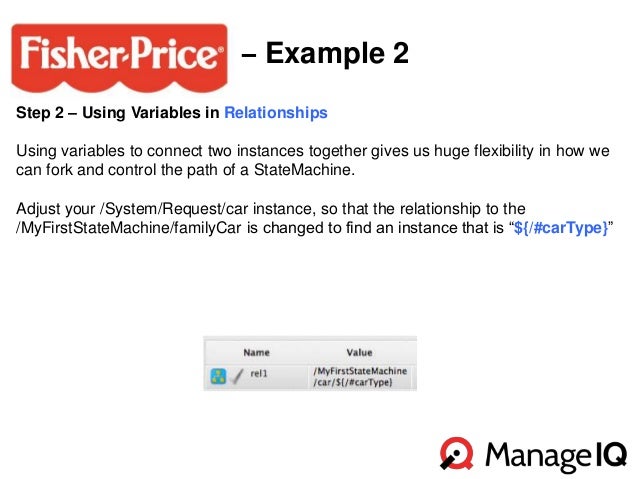

– Example 2 Step 2 – Using Variables in Relationships Using variables to connect two instances together gives us huge fl...

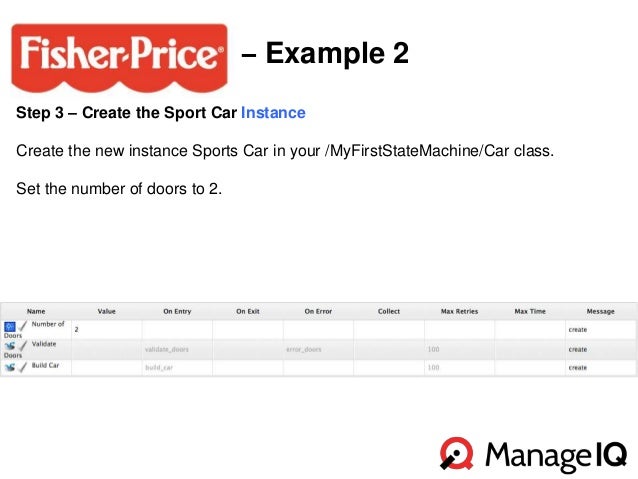

– Example 2 Step 3 – Create the Sport Car Instance Create the new instance Sports Car in your /MyFirstStateMachine/Car c...

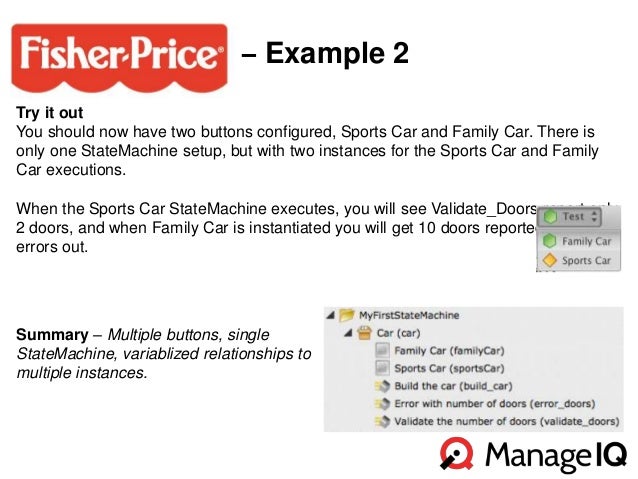

– Example 2 Try it out You should now have two buttons configured, Sports Car and Family Car. There is only one StateMa...

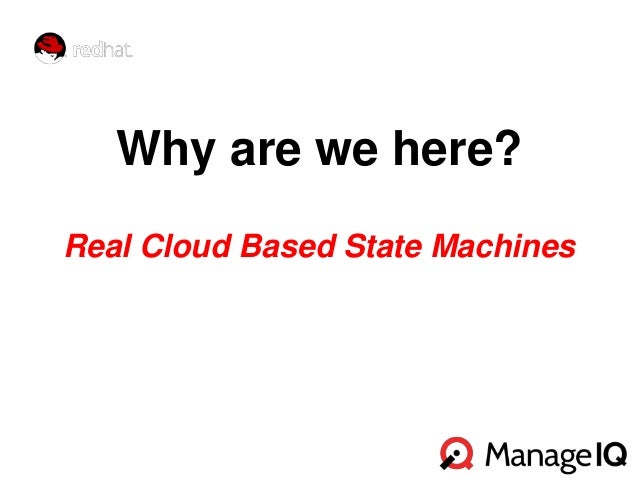

Why are we here? Real Cloud Based State Machines

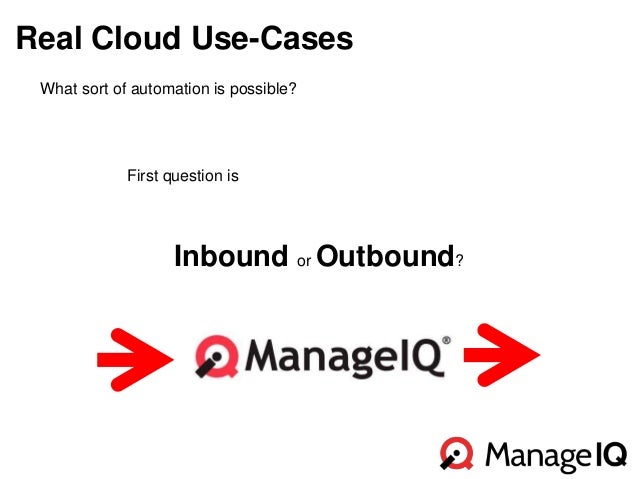

Real Cloud Use-Cases What sort of automation is possible? First question is Inbound or Outbound?

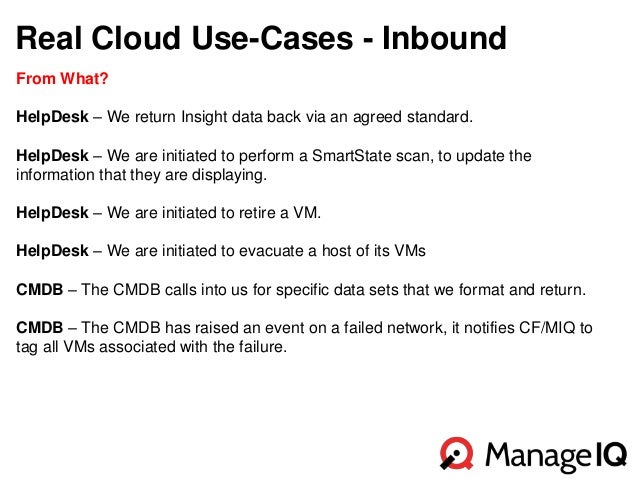

Real Cloud Use-Cases - Inbound From What? HelpDesk – We return Insight data back via an agreed standard. HelpDesk – We ...

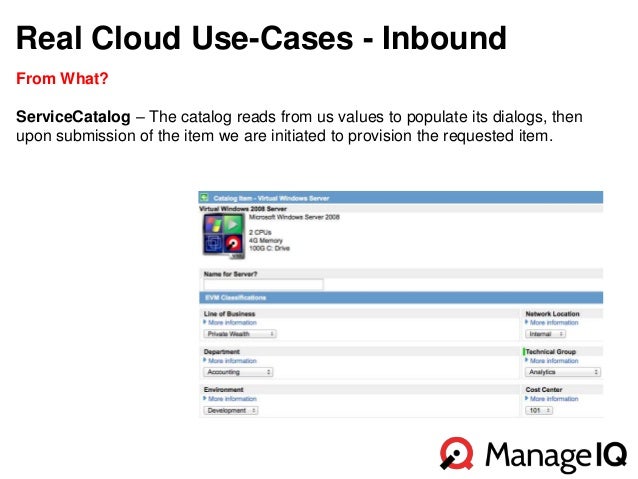

Real Cloud Use-Cases - Inbound From What? ServiceCatalog – The catalog reads from us values to populate its dialogs, the...
Real Cloud Use-Cases - Outbound To What? CMDB– We the CMP deliver inventory data that we are collecting to the webservic...

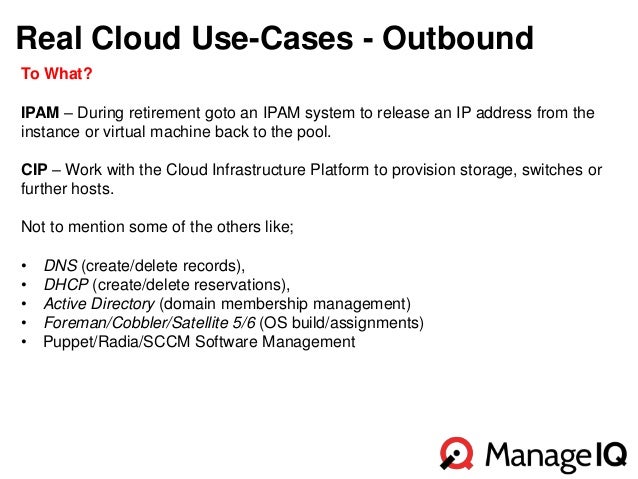

Real Cloud Use-Cases - Outbound To What? IPAM – During retirement goto an IPAM system to release an IP address from the ...

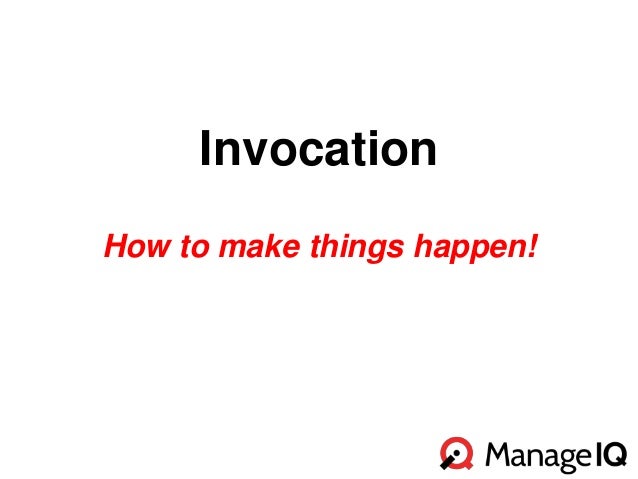

Invocation How to make things happen!

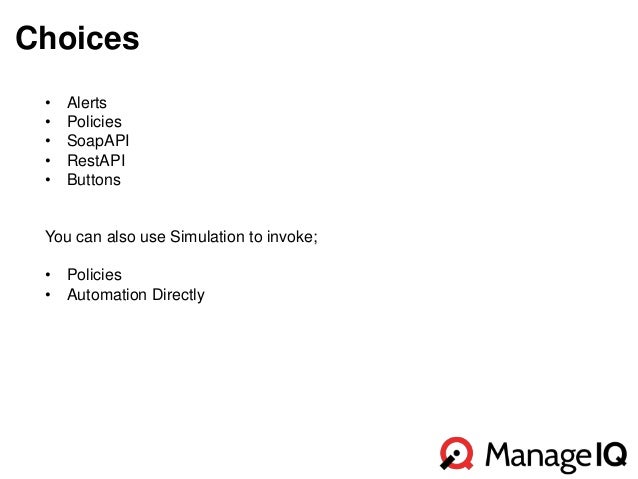

Choices • Alerts • Policies • SoapAPI • RestAPI • Buttons You can also use Simulation to invoke; • Policies • Auto...

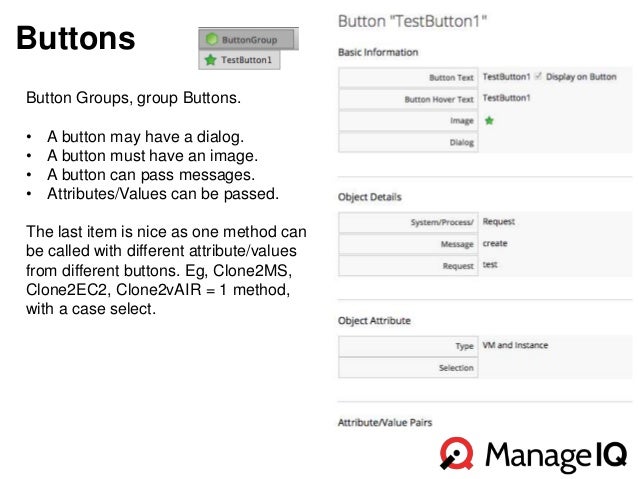

Buttons Button Groups, group Buttons. • A button may have a dialog. • A button must have an image. • A button can pass...
Policies Policies can call automation in two different ways. 1. Invoke a Custom Automation 2. Raise Automation Event

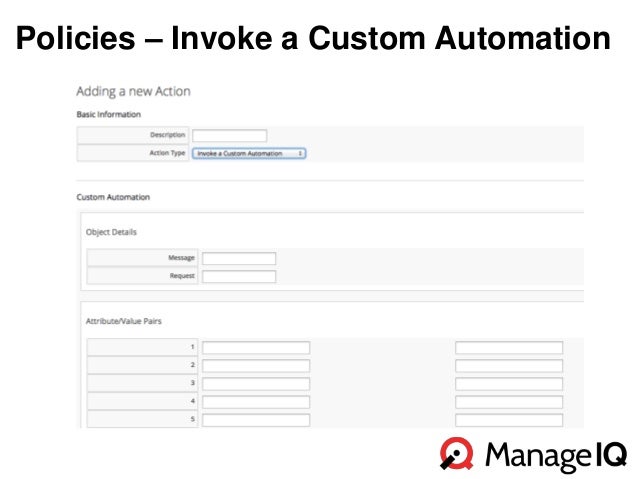

Policies – Invoke a Custom Automation

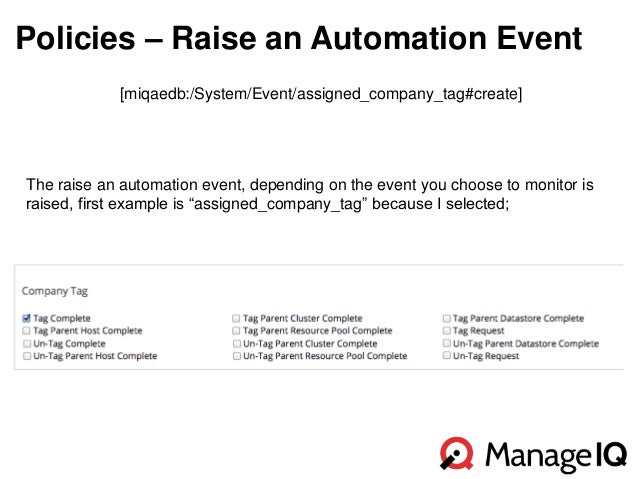

Policies – Raise an Automation Event [miqaedb:/System/Event/assigned_company_tag#create] The raise an automation event, ...

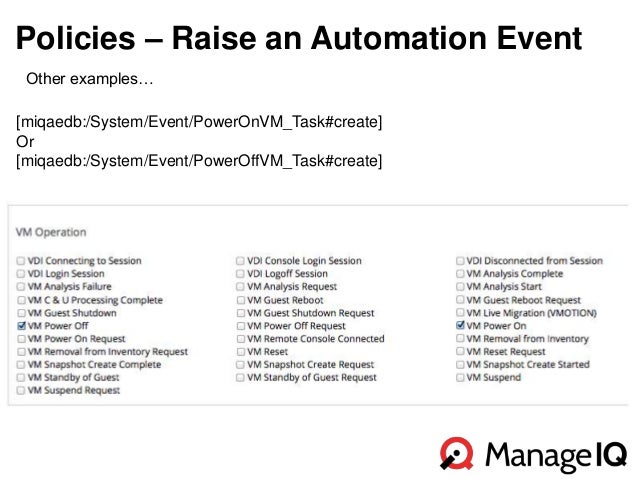

Policies – Raise an Automation Event Other examples… [miqaedb:/System/Event/PowerOnVM_Task#create] Or [miqaedb:/System...

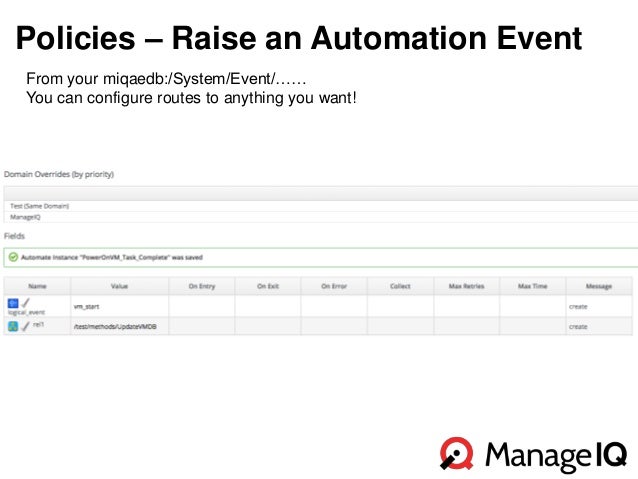

Policies – Raise an Automation Event From your miqaedb:/System/Event/…… You can configure routes to anything you want!

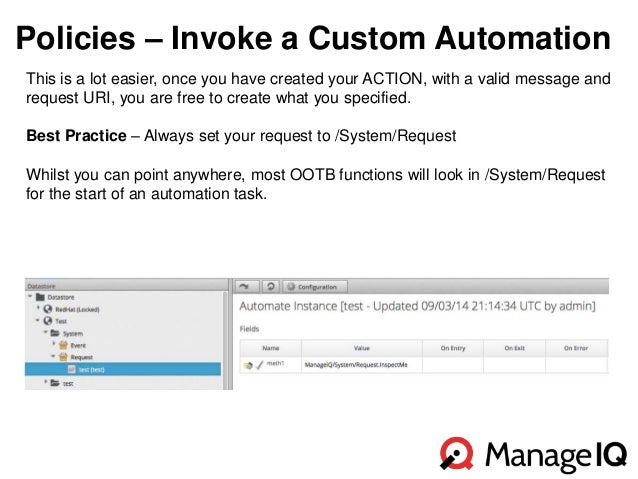

Policies – Invoke a Custom Automation This is a lot easier, once you have created your ACTION, with a valid message and ...

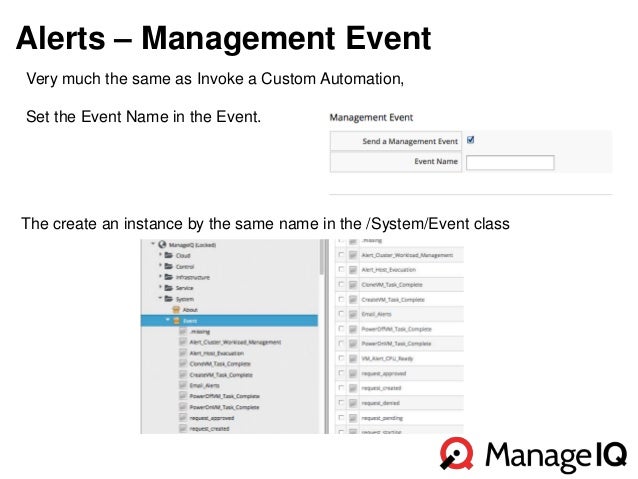

Alerts – Management Event Very much the same as Invoke a Custom Automation, Set the Event Name in the Event. The create...

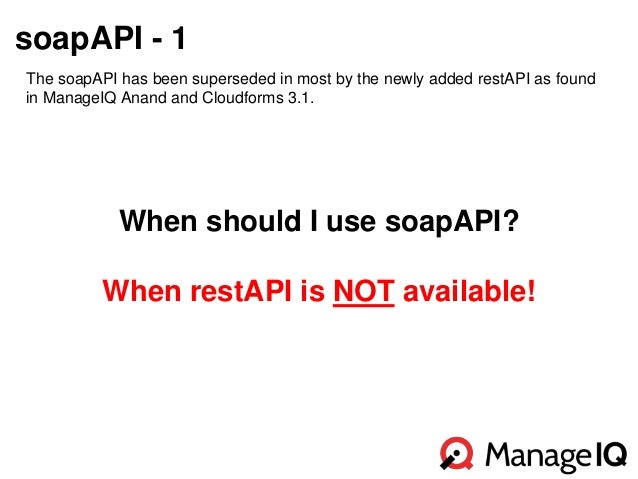

soapAPI - 1 The soapAPI has been superseded in most by the newly added restAPI as found in ManageIQ Anand and Cloudforms...

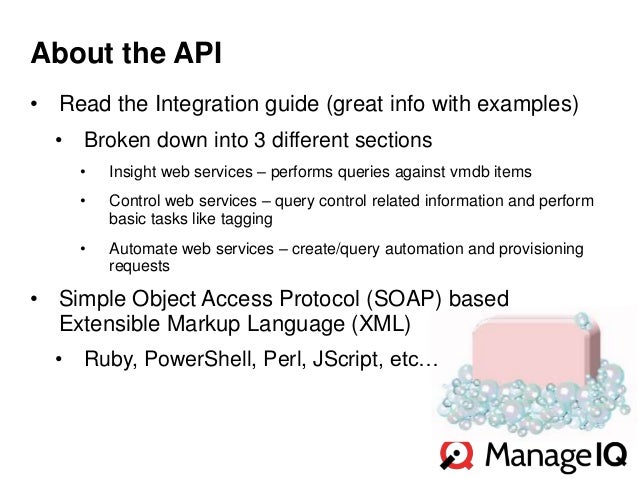

About the API • Read the Integration guide (great info with examples) • Broken down into 3 different sections • Insight...

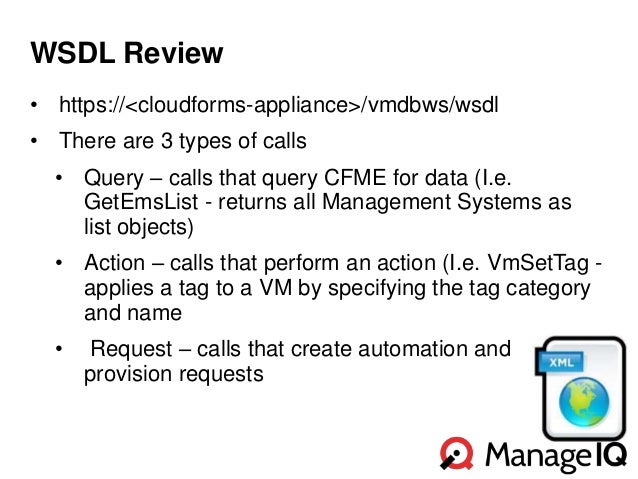

WSDL Review • https://<cloudforms-appliance>/vmdbws/wsdl • There are 3 types of calls • Query – calls that query CFME f...

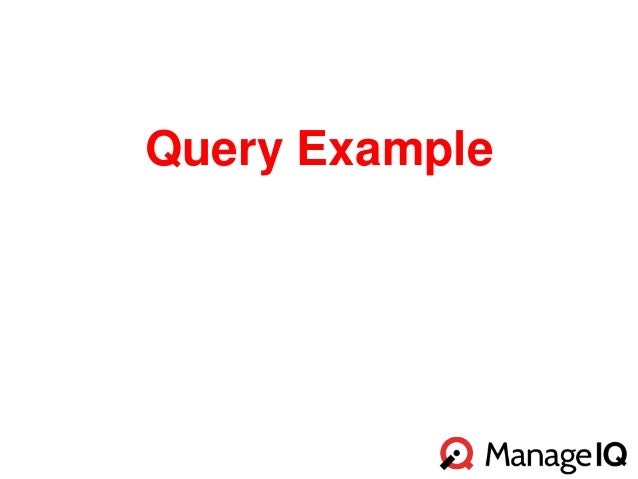

Query Example

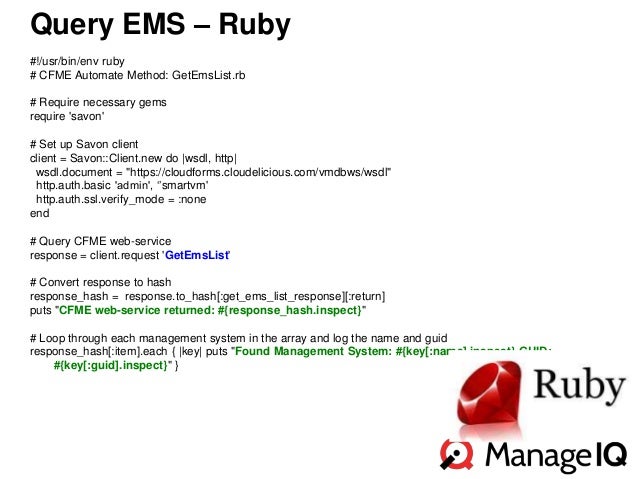

Query EMS – Ruby #!/usr/bin/env ruby # CFME Automate Method: GetEmsList.rb # Require necessary gems require 'savon' #...

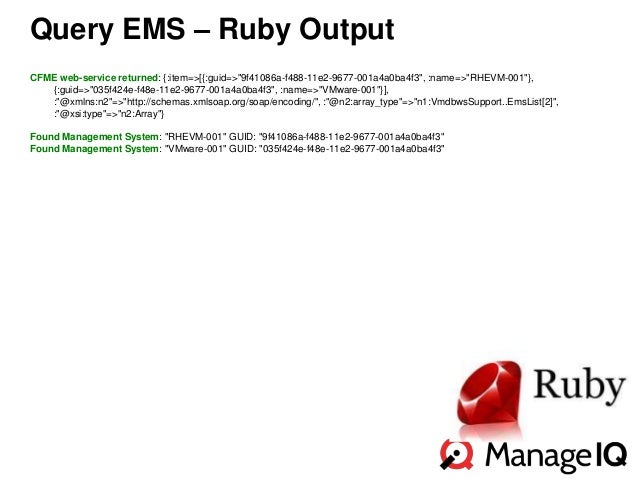

Query EMS – Ruby Output CFME web-service returned: {:item=>[{:guid=>"9f41086a-f488-11e2-9677-001a4a0ba4f3", :name=>"RHEVM...

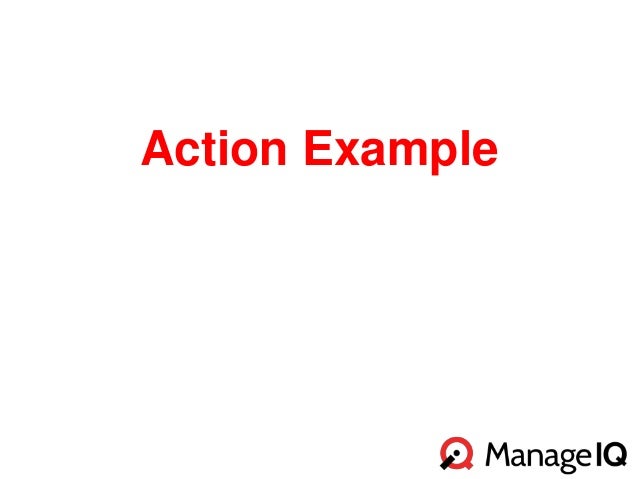

Action Example

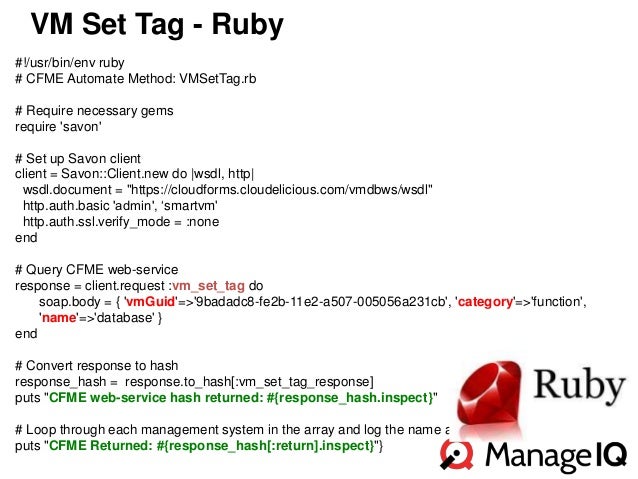

VM Set Tag - Ruby #!/usr/bin/env ruby # CFME Automate Method: VMSetTag.rb # Require necessary gems require 'savon' # ...

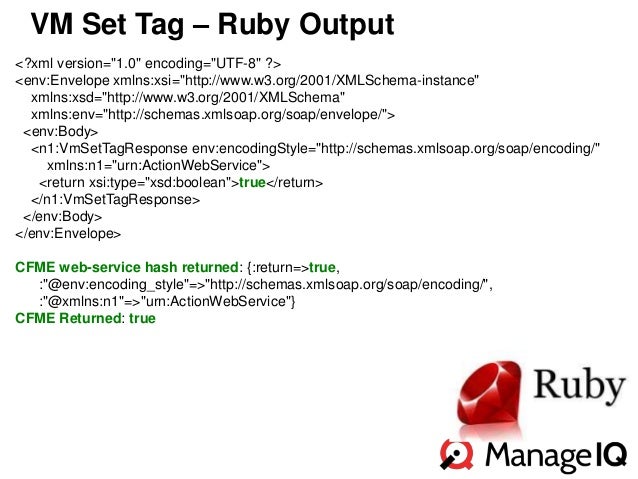

VM Set Tag – Ruby Output <?xml version="1.0" encoding="UTF-8" ?> <env:Envelope xmlns:xsi="http://www.w3.org/2001/XMLSche...
Request Example - Automation

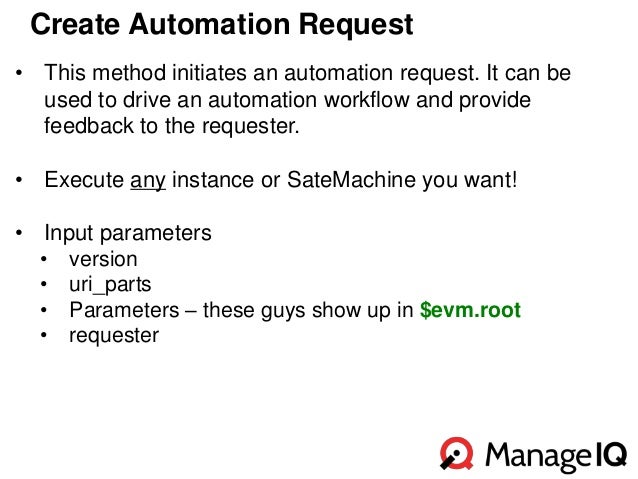

Create Automation Request • This method initiates an automation request. It can be used to drive an automation workflow ...

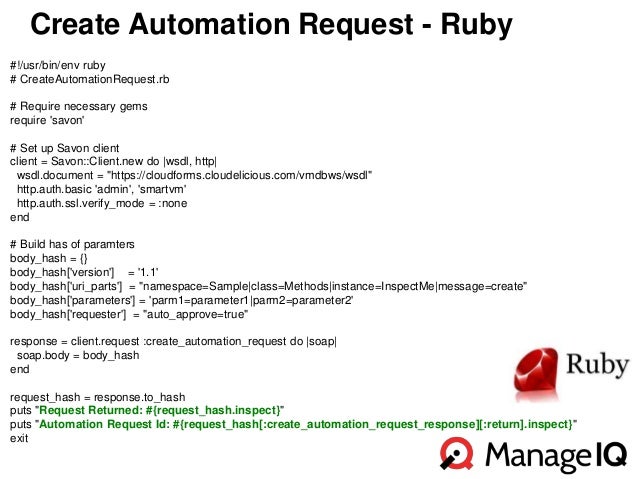

Create Automation Request - Ruby #!/usr/bin/env ruby # CreateAutomationRequest.rb # Require necessary gems require 'sa...

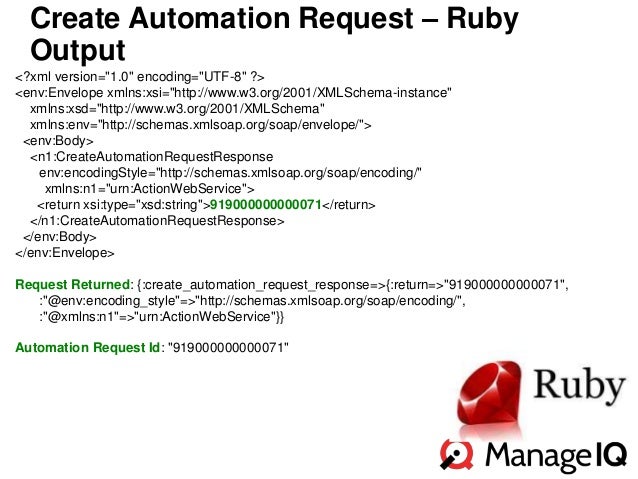

Create Automation Request – Ruby Output <?xml version="1.0" encoding="UTF-8" ?> <env:Envelope xmlns:xsi="http://www.w3....

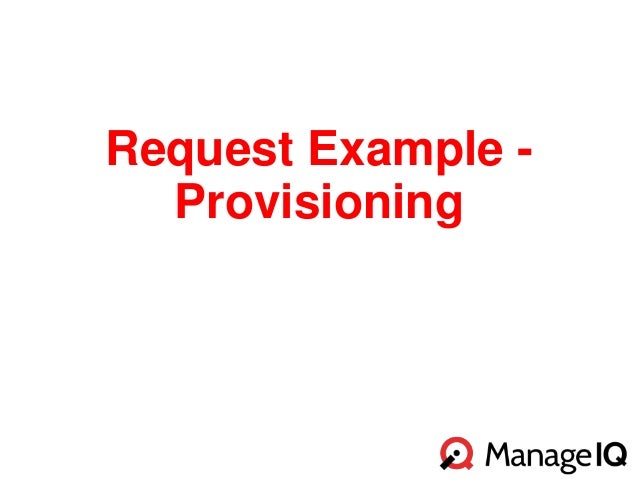

Request Example - Provisioning

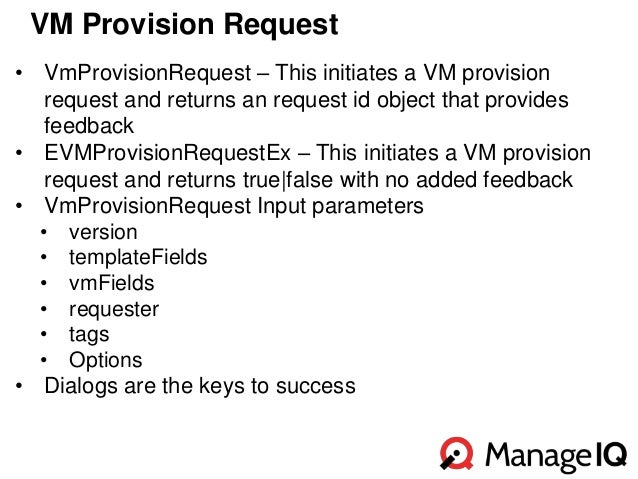

VM Provision Request • VmProvisionRequest – This initiates a VM provision request and returns an request id object that ...

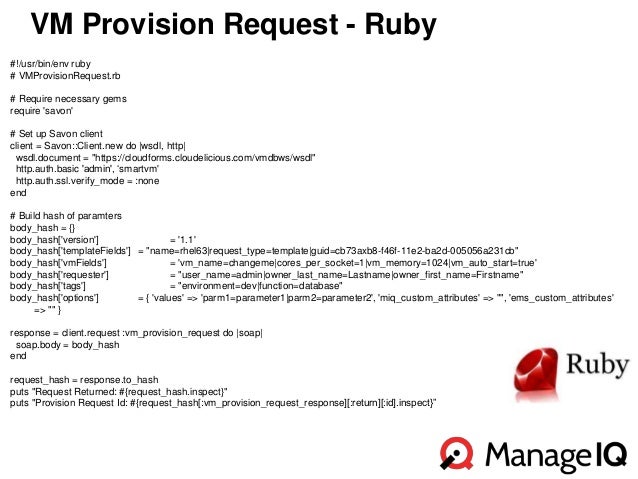

VM Provision Request - Ruby #!/usr/bin/env ruby # VMProvisionRequest.rb # Require necessary gems require 'savon' # Se...

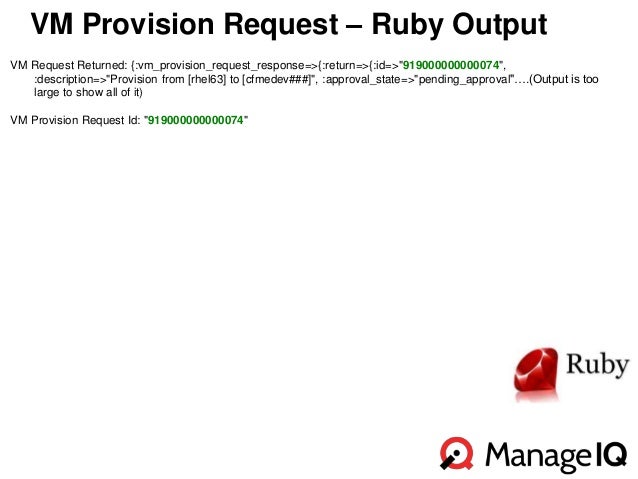

VM Provision Request – Ruby Output VM Request Returned: {:vm_provision_request_response=>{:return=>{:id=>"919000000000074...
Q & A
