SVF Flow Control M-Seat Metal Seated Ball Valves

512 views

Published on

Severe service metal-seated ball valves are applicable for high temperature, abrasive and erosive fluid applications. Metal seats can withstand conditions of temperature and abrasion that would quickly deteriorate soft seats.

Published in: Engineering
  • Be the first to comment

  • Be the first to like this

SVF Flow Control M-Seat Metal Seated Ball Valves

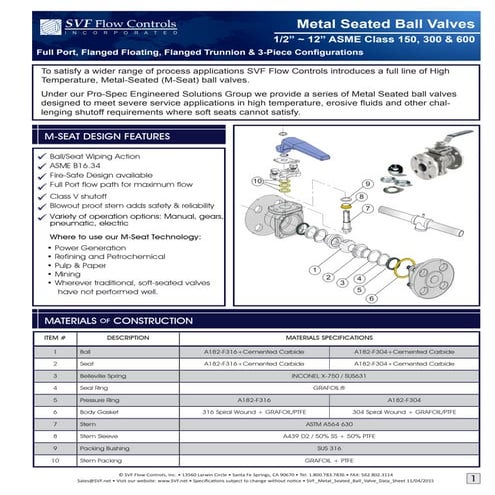

  1. 1. © SVF Flow Controls, Inc. • 13560 Larwin Circle • Santa Fe Springs, CA 90670 • Tel: 1.800.783.7836 • FAX: 562.802.3114 Sales@SVF.net • Visit our website: www.SVF.net • Specifications subject to change without notice • SVF_Metal_Seated_Ball_Valve_Data_Sheet 11/04/2015 Full Port, Flanged Floating, Flanged Trunnion & 3-Piece Configurations Metal Seated Ball Valves I N C O R P O R A T E D SVF Flow Controls 1/2” ~ 12” ASME Class 150, 300 & 600 To satisfy a wider range of process applications SVF Flow Controls introduces a full line of High Temperature, Metal-Seated (M-Seat) ball valves. Under our Pro-Spec Engineered Solutions Group we provide a series of Metal Seated ball valves designed to meet severe service applications in high temperature, erosive fluids and other chal- lenging shutoff requirements where soft seats cannot satisfy. 2 1 6 5 4 3 7 9 8 10 M-SEAT DESIGN FEATURES MATERIALS OF CONSTRUCTION Ball/Seat Wiping Action ASME B16.34 Fire-Safe Design available Full Port flow path for maximum flow Class V shutoff Blowout proof stem adds safety & reliability Variety of operation options: Manual, gears, pneumatic, electric Where to use our M-Seat Technology: ITEM # DESCRIPTION MATERIALS SPECIFICATIONS 1 Ball A182-F316+Cemented Carbide A182-F304+Cemented Carbide 2 Seat A182-F316+Cemented Carbide A182-F304+Cemented Carbide 3 Belleville Spring INCONEL X-750 / SUS631 4 Seal Ring GRAFOIL® 5 Pressure Ring A182-F316 A182-F304 6 Body Gasket 316 Spiral Wound + GRAFOIL/PTFE 304 Spiral Wound + GRAFOIL/PTFE 7 Stem ASTM A564 630 8 Stem Sleeve A439 D2 / 50% SS + 50% PTFE 9 Packing Bushing SUS 316 10 Stem Packing GRAFOIL + PTFE • Power Generation • Refining and Petrochemical • Pulp & Paper • Mining • Wherever traditional, soft-seated valves have not performed well. 1

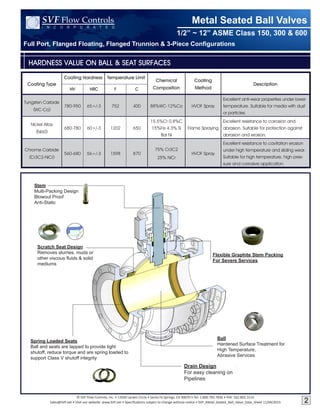

  2. 2. © SVF Flow Controls, Inc. • 13560 Larwin Circle • Santa Fe Springs, CA 90670 • Tel: 1.800.783.7836 • FAX: 562.802.3114 Sales@SVF.net • Visit our website: www.SVF.net • Specifications subject to change without notice • SVF_Metal_Seated_Ball_Valve_Data_Sheet 11/04/2015 Full Port, Flanged Floating, Flanged Trunnion & 3-Piece Configurations Metal Seated Ball Valves I N C O R P O R A T E D SVF Flow Controls 1/2” ~ 12” ASME Class 150, 300 & 600 Stem Multi-Packing Design Blowout Proof Anti-Static Ball Hardened Surface Treatment for High Temperature, Abrasive Services Drain Design For easy cleaning on Pipelines Scratch Seat Design Removes slurries, muds or other viscous fluids & solid mediums Flexible Graphite Stem Packing For Severe Services Spring Loaded Seats Ball and seats are lapped to provide tight shutoff, reduce torque and are spring loaded to support Class V shutoff integrity Coating Type Coating Hardness Temperature Limit Chemical Composition Coating Method Description HV HRC F C Tungsten Carbide (WC-Co) 780-950 65+/-3 752 400 88%WC-12%Co HVOF Spray Excellent anti-wear properties under lower temperature. Suitable for media with dust or particles. Nickel Alloy (Ni60) 680-780 60+/-3 1202 650 15.5%Cr 0.8%C 15%Fe 4.3% Si Bal Ni Flame Spraying Excellent resistance to corrosion and abrasion. Suitable for protection against abrasion and erosion. Chrome Carbide (Cr3C2-NiCr) 560-680 56+/-3 1598 870 75% Cr3C2 25% NiCr HVOF Spray Excellent resistance to cavitation erosion under high temperature and sliding wear. Suitable for high temperature, high pres- sure and corrosive application. HARDNESS VALUE ON BALL & SEAT SURFACES 2

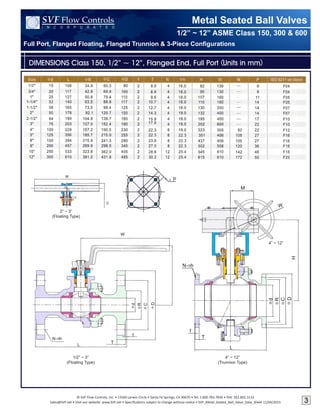

  3. 3. © SVF Flow Controls, Inc. • 13560 Larwin Circle • Santa Fe Springs, CA 90670 • Tel: 1.800.783.7836 • FAX: 562.802.3114 Sales@SVF.net • Visit our website: www.SVF.net • Specifications subject to change without notice • SVF_Metal_Seated_Ball_Valve_Data_Sheet 11/04/2015 Full Port, Flanged Floating, Flanged Trunnion & 3-Piece Configurations Metal Seated Ball Valves I N C O R P O R A T E D SVF Flow Controls 1/2” ~ 12” ASME Class 150, 300 & 600 DIMENSIONS Class 150, 1/2” ~ 12”, Flanged End, Full Port (Units in mm) 2” ~ 3” (Floating Type) 1/2” ~ 3” (Floating Type) 4” ~ 12” (Trunnion Type) 4” ~ 12” 3
  4. 4. © SVF Flow Controls, Inc. • 13560 Larwin Circle • Santa Fe Springs, CA 90670 • Tel: 1.800.783.7836 • FAX: 562.802.3114 Sales@SVF.net • Visit our website: www.SVF.net • Specifications subject to change without notice • SVF_Metal_Seated_Ball_Valve_Data_Sheet 11/04/2015 Full Port, Flanged Floating, Flanged Trunnion & 3-Piece Configurations Metal Seated Ball Valves I N C O R P O R A T E D SVF Flow Controls 1/2” ~ 12” ASME Class 150, 300 & 600 DIMENSIONS Class 300, 1/2” ~ 12”, Flanged End, Full Port (Units in mm) 2” ~ 3” (Floating Type) 1/2” ~ 3” (Floating Type) 4” ~ 12” (Trunnion Type) 4” ~ 12” 4
  5. 5. © SVF Flow Controls, Inc. • 13560 Larwin Circle • Santa Fe Springs, CA 90670 • Tel: 1.800.783.7836 • FAX: 562.802.3114 Sales@SVF.net • Visit our website: www.SVF.net • Specifications subject to change without notice • SVF_Metal_Seated_Ball_Valve_Data_Sheet 11/04/2015 Full Port, Flanged Floating, Flanged Trunnion & 3-Piece Configurations Metal Seated Ball Valves I N C O R P O R A T E D SVF Flow Controls 1/2” ~ 12” ASME Class 150, 300 & 600 DIMENSIONS Class 600, 1/2” ~ 12”, Flanged End, Forged Body, Full Port (Units in mm) 1/2” ~ 1-1/2” (Floating Type) 2” ~ 12” (Trunnion Type) 1-1/2” ~ 3” 5

×
