Industrial Wireless Explosion Proof Antenna for Hazardous Area GPS/GLONASS/Iridium Satellites

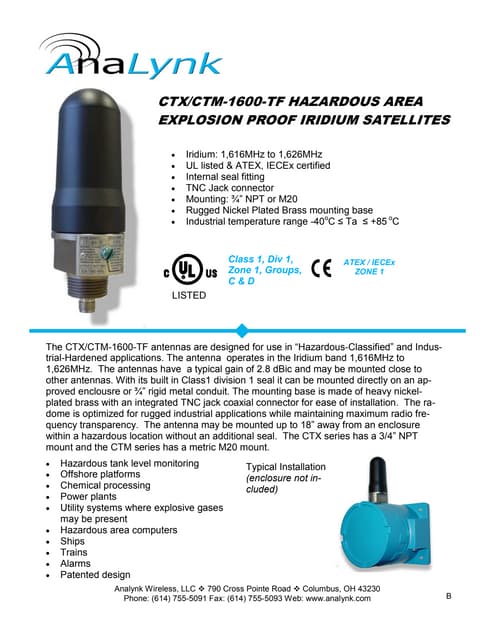

  1. 1. Analynk Wireless, LLC 790 Cross Pointe Road Columbus, OH 43230 Phone: (614) 755-5091 Fax: (614) 755-5093 Web: www.analynk.com CTX/CTM-1600-TF HAZARDOUS AREA EXPLOSION PROOF ANTENNA FOR GPS/ GLONASS/IRIDIUM SATELLITES • GPS L1: 1,575.42MHz • Iridium: 1,616MHz to 1,626.5MHz • GLONASS L1: 1,598 to 1,610MHz • UL listed & ATEX, IECEx certified • Internal seal fitting • TNC Jack connector • Mounting: ¾” NPT or M20 • Rugged Nickel Plated Brass mounting base • Industrial temperature range -40o C ≤ Ta ≤ +85 o C ATEX ZONE 1 The CTX/CTM-1600-TF series of antennas are designed for use in “Hazardous-Classified” and Industrial-Hardened applications. The antenna will operate in all three bands, GPS L1, GLONASS L1 and Iridium. The antennas are omni-directional with 1dBic gain and designed for flexible mounting on a variety of explosion proof housings or on ¾” rigid metal conduit with a ¾” NPT pipe thread. The mounting base is made of heavy nickel-plated brass with an integrated TNC jack coaxial connector for ease of installation. The radome is optimized for rugged industrial applications while maintaining maximum radio frequency transmission and reception efficiency. The antenna may be mounted up to 18” away from an enclosure within a hazardous location without an additional seal. The CTX series has a 3/4” NPT mount and the CTM series has a metric M20 mount. • Hazardous tank level monitoring • Offshore platforms • Chemical processing • Power plants • Utility systems where explosive gases may be present • Hazardous area computers • Patented design • Ships • Trains • Alarms Typical Installation (enclosure not in- cluded) LISTED Class 1, Div 1, Zone1 Groups, C & D A IECEx
  2. 2. Analynk Wireless, LLC 790 Cross Pointe Road Columbus, OH 43230 Phone: (614) 755-5091 Fax: (614) 755-5093 Web: www.analynk.com RUGGED INDUSTRIAL RADOME INTEGRAL FLAMEPROOF SEAL 3/4” NPT THREAD CTX or OPTIONAL M20 Specifications Impedance: 50 Ω Gain: 1.0 dBic typical, 0.5dBic minimum VSWR: 2:1 max Polarization: RHCP DC Grounded: DC Shunt, Input Azimuth FOV: Omnidirectional Elevation FOV: +20o to 90o Zenith Axial ratio: 1dB maximum at Zenith Maximum power: 2 Watts Certifications UL listed for the following locations: Class I Div 1, Groups C, D -40o C ≤ Ta ≤ +85 o C, Class I Zone 1 AEx d IIb T5, Ex d IIB T5 -40o C ≤ Ta ≤ +85 o C. CE 0539 II2G Ex d IIB T5, DEMKO 08 ATEX 0727941X, IECEx (see documents 35105 and 35106 for safe installation) Ordering Information (other frequencies available, contact factory for details) Part Number Frequency Mounting Base CTX-1600-TF 1,575.42 through 1,626MHz 3/4” NPT Thread CTM-1600-TF 1,575.42 through 1,626MHz M20 Thread TNC JACK CONNECTOR 5.45” 138mm CTX/CTM-1600 SERIES PRELIMINARY

×
