Flexim Americas - Non-Intrusive Liquid Flow Measurement

355 views

Published on

FLUXUS® measures flow non-intrusively using ultrasonic technology. The ultrasonic transducers are simply clamped on to the outside of the pipe and are never in contact with the liquid – pipe work is not necessary.
Clamp-on technology provides for maximum flexibility and the sophisticated electronics of FLUXUS® ensure the highest
possible accuracy and reliability. The measuring system, consisting of the transmitter, the transducers and the VARIOFIX mounting fixture, can be configured to meet individual requirements.
The FLUXUS® flowmeter series includes a variety of transmitters
and transducers: from basic models for standard applications up to robust measurement solutions for offshore use or for hazardous areas.

Published in: Engineering
  • Be the first to comment

  • Be the first to like this

Flexim Americas - Non-Intrusive Liquid Flow Measurement

  1. 1. 1 FLUXUS® ADM ______ Non-Intrusive Liquid Flow Measurement Chemical Petrochemical Oil Exploration & Production Pharmaceutical Semiconductor Food and Beverage Water and Wastewater Power Generation District Energy _____________ External Measurement of Internal Flow
  2. 2. 2 FLUXUS® measures flow non-intrusively using ultrasonic technology. The ultrasonic transducers are simply clamped on to the outside of the pipe and are never in contact with the liquid – pipe work is not necessary. Our non-intrusive clamp-on technology provides for maximum flexibility and the sophisticated electronics of FLUXUS® ensure the highest possible accuracy and reliability. The measuring system, consisting of the transmitter, the transducers and the VARIOFIX mounting fixture, can optimally be configured to meet your individual requirements. TheFLUXUS® flowmeterseriescomprisesabroadvarietyoftransmitters and transducers: from basic models for standard applications up to robust measurement solutions for offshore use or for hazardous area metering locations. Our Tradition is Innovation Ever since its inception, FLEXIM has been among the pioneers in the field of ultrasonic flow measurement. Each FLUXUS® embodies the wealth of ex- pertise and application experience of our engineers. FLEXIM rises to meet the challenges where others have already failed. Put FLEXIM’s experience and expertise to work for you. Submit your application to us and we will find the ideal solution! Intelligent Signal Processing FLUXUS® instruments feature an ex- ceptionally robust dual-μP technology core together with the latest digital signal processing. They produce sta- ble and reliable results even under the most difficult application conditions. The FLUXUS® measurement algo- rithms automatically adapt to the varying application conditions. Its very high measurement rate of up to 1000 measurements per second allows for a real time statistical analysis. All this makes the FLUXUS® unsurpassed in performance and one of the most ca- pable ultrasonic flow meters available on the market today. FLUXUS® is ... ______
  3. 3. 3 From 6 mm tubing to 6.5 m penstocks FLEXIM’s non-intrusive ultrasonic technologysuitsanunmatchedrangeof applications. FLUXUS® offers accurate and reliable measurements from the smallest pipes (e.g. 6 mm tubing in paint finishing systems) up to very large pen-stocks (e.g. flow measure- ments in hydroelectric plants). For nearly every liquid and pipe material Measurement is possible on just about every liquid medium and pipe material, regardless of the conductivity. Steel, iron or plastic pipes; sludge, sand, acids or tar: FLUXUS® is up to the task! Up to 400°Candbeyond Standard transducers may be used for media temperatures up to 130 °C, the temperature range of the high temp. versions extends this up to 200 °C. The patented WaveInjector® system further extends the measurement ran- ge of FLEXIM’s standard transducers from cryogenic temperatures as low as -190 °C up to 400°Candbeyond. ... even in hazardous area locations Transducersandtransmittersareavail- able in ATEX, IECEx and FM certified versions. Flexible. ______

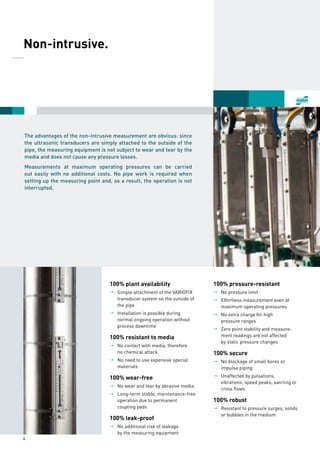

  4. 4. 4 The advantages of the non-intrusive measurement are obvious: since the ultrasonic transducers are simply attached to the outside of the pipe, the measuring equipment is not subject to wear and tear by the media and does not cause any pressure losses. Measurements at maximum operating pressures can be carried out easily with no additional costs. No pipe work is required when setting up the measuring point and, as a result, the operation is not interrupted. 100% plant availability pp Simple attachment of the VARIOFIX transducer system on the outside of the pipe pp Installation is possible during normal ongoing operation without process downtime 100% resistant to media pp No contact with media, therefore no chemical attack pp No need to use expensive special materials 100% wear-free pp No wear and tear by abrasive media pp Long-term stable, maintenance-free operation due to permanent coupling pads 100% leak-proof pp No additional risk of leakage by the measuring equipment 100% pressure-resistant  pp No pressure limit  pp Effortless measurement even at  maximum operating pressures  pp No extra charge for high pressure ranges  pp Zero point stability and measure- ment readings are not affected by static pressure changes  100% secure  pp No blockage of small bores or  impulse piping  pp Unaffected by pulsations, vibrations, speed peaks, swirling or cross flows  100% robust  pp Resistant to pressure surges, solids or bubbles in the medium Non-intrusive. ______
  5. 5. 5 100% economical  pp No pressure loss, thus low    operating costs  pp Cost-effective installation  pp Installation without welding or other   mechanical work on the pipe  pp No extra charge for large   pipe diameters  100% progressive  pp Precise, hysteresis-free,  bi-directional flow measurement  with large dynamic range (turndown)  pp Long-term stable, drift-free measurement results  pp High measuring rate  pp Quick response time  pp Measurement of even minute flows  pp High sensitivity to low flows

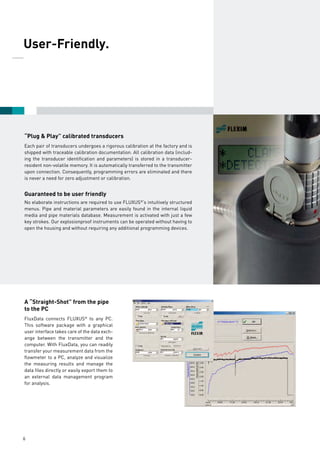

  6. 6. 6 “Plug & Play” calibrated transducers Each pair of transducers undergoes a rigorous calibration at the factory and is shipped with traceable calibration documentation. All calibration data (includ- ing the transducer identification and parameters) is stored in a transducer- resident non-volatile memory. It is automatically transferred to the transmitter upon connection. Consequently, programming errors are eliminated and there is never a need for zero adjustment or calibration. Guaranteed to be user friendly No elaborate instructions are required to use FLUXUS® ‘s intuitively structured menus. Pipe and material parameters are easily found in the internal liquid media and pipe materials database. Measurement is activated with just a few key strokes. Our explosionproof instruments can be operated without having to open the housing and without requiring any additional programming devices. A “Straight-Shot” from the pipe to the PC FluxData connects FLUXUS® to any PC. This software package with a graphical user interface takes care of the data exch- ange between the transmitter and the computer. With FluxData, you can readily transfer your measurement data from the flowmeter to a PC, analyze and visualize the measuring results and manage the data files directly or easily export them to an external data management program for analysis. User-Friendly. ______
  7. 7. 7 * for measurement acc. to transit time difference principle, under reference conditions and at v > 0.15 m/s ** reference uncertainty < 0.2 % General Technical Data Measuring principle: Transit time difference correlation principle Quantities of measurement: Volume flow, mass flow, flow velocity, thermal energy flow (when temperature inputs are installed) Flow velocity: 0.01 to 25 m/s Resolution: 0.25 mm/s Repeatability: 0.15% of reading ± 0.01 m/s Accuracy*: - with standard calibration: - with extended calibration (option): - with field calibration**: ± 1.6 % of reading ± 0.01 m/s ± 1.2 % of reading ± 0.01 m/s ± 0.5 % of reading ± 0.01 m/s Gaseous and solid content: < 10 % Measuring principle The Transit Time Difference Correlation Principle makes use of the fact that the time-of-flight of an ultrasonic signal is affected by the flow velocity of the carrier medium. Like a swimmer working his way across a flowing river, an ul- trasonic signal travels slower upstream than downstream. Our instruments work according to this transit-time prin- ciple: an ultrasonic pulse is sent downstream through the medium, another pulse is sent upstream. By measuring the transit time difference, the average flow velocity can be determined. The volume flow can then be calculated out of the flow velocity and the pipe’s dimensional parameters. The acoustic measuring method works without inertia and is independent of the flow direction. As a result, FLUXUS® measures the flow bidirectionally with excellent measurement rangeability.
  8. 8. 8 The Transducer System “Fit for the Purpose“ Construction All FLEXIM clamp-on transducers are watertight and suitable for use in harsh industrial environments. The robust stainless steel construction and the rugged integrated cables guarantee reliable measurement results over long periods of extensive use. Almost all transducer types are available in explosion-protected and IP68 submersible versions. Robust transducer mounting fixtures Be it for quick and easy mounting of a short-term measurement solution or for a permanent installation, for large pipes or for small tubes: FLEXIM offers transducer mounting fixtures for every application. The VARIOFIX mounting fixture pro- vides for a strong hold. Even in the event of strong temperature fluctuations, a continuous, stable contact pressure between the transducers and the pipe is ensured, allowing for the optimal irradiation of measuring signals into the medium. The VARIOFIX transducer mounting fix- ture exists in two versions: VARIOFIX L and VARIOFIX C. Both are constructed of stainless steel, being completely corrosion resistant and very durable. The transducer dis- tance can be set easily and precisely. Maintenance requirements are reduced considerably due to the permanent pipe wall contact with coupling pads. VARIOFIX L is the standard transducer mounting fixture and VARIOFIX C provides for optimum protection even in the harshest conditions: beneath the stainless steel cover, the measu- ring point is permanently protected against external influences, wind and weather as well as mechanical damage. Industry Hardened. ______
  9. 9. 9 General Technical Data of the Transducers Operating temperature, standard transducers: -40°C to +130°C Operating temperature, high temperature transducers: -30°C to +200°C Operating temperature with WaveInjector® : from -190 °C up to 400°Candbeyond Protection degree: IP65, IP67 or IP68 depending on type (EN 60529) Material: Stainless steel or PEEK with stainless steel protective cap (stainless steel SS316 optional) Hazardous area classification: FM Class I, Div. 1 / 2 and ATEX (IECEx) Zone 1 & 2 types available (FMUS and FMC and GOST)
  10. 10. 10 Unmatched in performance, this flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters. The wide pipe diameter range of each transducer type is one of its greatest assets: two pairs of transducers are sufficient to cover the most common pipe diame- ter ranges. In addition, its optional thermal energy measure- ment capability makes it possible to carry out a com- plete analysis of thermal energy usage in any fa- cility. The collected data can be used to perform a complete energy balance assessment or to assist dur- ing process monitoring and optimization tasks. Refrigeration and air conditioning systems  pp Measurement of inlet and outlet  flow for service work  and maintenance  pp Pump preventative maintenance  and checks  pp Optimization of energy efficiency  pp Detection of fouling processes in heat exchangers Power supply pp Short-term replacement of insert energy meters in case of failures Facility management pp Optimization of heating and air conditioning systems in large building complexes pp Pump control Applications Portable, quick and reliable. ______ FLUXUS® F601andF608 SUPPLY SUPPLY RETURN RETURN Flow measurement Temperature measurement Temperature measurement Supply Return General pp Service and maintenance pp Replacement of defective devices pp Support of commissioning process and installation pp Performance and efficiency measurement - Evaluation and assessments - Capacity measurement of pumps - Monitoring of regulating valves pp Energy efficiency audits Mechanical engineering and plant engineering pp Leak detection on hydraulic systems pp Measurement of cooling lubricant pp Monitoring of heating and cooling circuits
  11. 11. 11 Food and beverage industry pp CIP and SIP optimization pp Consumption optimization Chemical industry pp Portable flow controls at start-up and/or inspection of facilities pp Helpful tool for facility optimization pp Flow measurement of heat transfer media Water supply and wastewater services pp Leakage control pp Treatment dosage control pp Flow control in water supply networks Pharmaceutical and semiconductor industry pp Non-invasive measurement of ultra pure fluids, even in PVC, PFA and glass pipes F601 / F608: The Portable All-Round Meters Operating temperature: -10°C to +60°C Flow channels: 2 Protection degree: Electronic unit: IP65 acc. to EN 60529 Transport case: IP67 acc. to EN 60529 Hazardous Area Classification (F608): ATEX (IECEx) Zone 2, FM Class I, Div. 2 (Transducers: ATEX (IECEx) Zone 1 and 2, FM Class I, Div. 2) Battery: Li-Ion, 7.2 V/4.5 Ah, >14 hours operating time Inputs and outputs: Standard: Outputs: 2 x current, 2 x binary Energy: Inputs: 2 x Pt 100/1000; Outputs: 2 x current, 2 x binary Double Energy (only F601): Inputs: 4 x Pt 100/1000; Outputs: 2 x current, 2 x binary Multifunctional (only F601): Inputs: 2 x Pt 100/1000, 2 x current; Outputs: 4 x current, 2 x binary Certifiedfortheusageinhazar- dous areas, the highly rugged FLUXUS® F608 avoids the need for a „Hot work permit“ and is thus the system of choice for temporary measurement tasks within the: pp Chemical Industry pp Petrochemical Industry pp Refineries pp Oil & Gas Exploration pp as well as in Power plants
  12. 12. 12 The FLUXUS® ADM 7X07 and F705 are designed for permanent installation. With one or two flow channels and versatile electrical inputs and outputs, they can optimally be configured for your measuring application. A variety of process parameters, including thermal energy (BTU) and mass flow rates, can be measured and handled. Further, with its stainless steel (316L / 1.4404) housing, IP66 protection degree and ATEX (IECEx) Zone 2 / FM Class I, Div. 2 certification, the F705 is the ideal measuring solution for corrosive and harsh industrial environments including Offshore. Applications Chemical industry pp Measurement of corrosive or toxic media, for example in the chlorine chemistry pp Measurement of non-conductive media pp Measurement of highly viscous media pp Measurement of media containing fibers or solid particles pp Measurement of long-chained polymers pp Measurement of highly concentrated sulfuric acid pp Measurement of heat transfer media such as water/glycol (250°C) and thermal oils pp Measurement on PVC or FRP pipes and tubes Petrochemical industry pp Measurement of basic materials as well as intermediate and final products pp Measurement at high temperatures, for example tar, bitumen, quench liquids Power plants pp Measurements of cooling water, boiler feed water, condensate and heat circuits Oil and Gas pp Measurement of all hydrocarbon liquids pp Measurement on high pressure systems pp Measurement of bitumen pp Measurement of injection media and additives Pharmaceutical and semiconductor industry pp Non-invasive measurement of ultra pure fluids, even in PVC, PFA and glass pipes Permanently installed, freely configurable. ______ FLUXUS® ADM7X07andF705
  13. 13. 13 Food and beverage industry pp Hygienic contact-free measurement of liquids pp Thermal energy measurement in the energy supply of central boilers and sanitizing machines Water and waste water industry pp Flow measurement on large diameter pipes (influent, effluent, sludges) pp Consumption and distribution measurements pp Measurement in underground or underwater pipes pp Chemical flows (small pipe and low flows) Mechanical engineering and plant engineering pp Leak detection on hydraulic systems pp Measurement of cooling lubricant pp Monitoring of heating and cooling circuits ADM 7X07 / F705: The Multi-Functional Meters Operating temperature: -20°C (-40 °C for F705) to +60°C Flow channels: 1 or 2 Protection degree: ADM 7407 / F705: IP65 / IP66 (EN 60529) ADM 7907: IP20 (EN 60529) Hazardous Area Classification: ADM 7407 / F705: ATEX (IECEx) Zone 2, FM Class I, Div. 2 Outputs: A variety of combinations are available from the following: current (0/4 mA ... 20 mA), voltage, frequency, pulse, alarm Inputs: Maximum 4. Available are: Temperature (Pt 100/1000 4-wire), current, voltage Interfaces: HART, Modbus (RS485), BACnet
  14. 14. 14 The FLUXUS® ADM 8027 is ATEX certified for stationary use in ex- plosion hazardous areas. Its connection and electronics compartment are hermetically sealed. It can be operated without having to open the enclosure and without any additional devices. The all-stainless-steel and seawater-resistant FLUXUS® ADM 8127 is also ATEX-certified and thus ideally suited for offshore applications. Applications Petrochemical industry pp Measurement of basic materials as well as intermediate and final products pp Measurement of crude oil during sampling for quality analysis pp Measurement at high temperatures, e.g. - Sump measurement - Overflash measurement pp Measurement of heavy gasoil (HGO)/heavy vacuum gasoil (HVGO) pp Measurement at cracker feeders pp Monitoring the flow of heat transfer oil Chemical industry pp Flow measurement in explosion hazardous areas pp Measurement of inorganic and organic media Experts for Hazardous Areas. ______ FLUXUS® ADM8X27
  15. 15. 15 Oil extraction pp Flow measurement of injection media, for example methanol pp Flow measurement of injected water pp Measurement of the feeding process into sand separators for process management pp Flow measurement of condensate pp Measurement on high pressure systems Natural gas extraction and processing pp Measurement of injection media (monoethylamine, triethylene glycol, etc...) pp Measurement of reservoir water ADM 8027 / ADM 8127: The Explosion-Proof Experts Operating temperature: ADM 8027: -20°C to +60°C; ADM 8127: -20°C to +50°C Flow channels: 1 or 2 Protection degree: Electronic unit: IP65 acc. to EN 60529 Transport case: IP67 acc. to EN 60529 Hazardous Area Classification: ATEX zone 1 and 2; ATEX mining certification optional Outputs: 240V (AC) / 24V (DC) current supply version: 2 current outputs and 4 binary outputs (OC) or 2 current outputs, 2 binary outputs (OC) and 2 binary outputs (relay) or 1 frequency output and 1 binary output (OC) 24V (DC) current supply version (intrinsically safe): 1 current supply and 1 binary output (OC) Interfaces: HART, ModBus (RS485)
  16. 16. FLEXIM ______ In partnership with you FLEXIM is an active leader in many areas of process instrumentation. As a worldwide pioneer in the non- intrusive flow measurement of liquids and gases, FLEXIM has been leading the way in ultrasonic clamp-on flow metering for more than 20 years. In addition to non-intrusive flow mea- surement, FLEXIM specialises in inno- vative online process analysers using ultrasonic technology and refractometry. Sustainable and progressive measurement technology Year after year, the Berlin based company continues its substantial investment in research and develop- ment in order to maintain and further improve its position as an industry lead- er. In keeping with its core principles, FLEXIM takes customer feedback very seriously. Every generation of FLEXIM products is directly driven by customer and industry needs. The FLEXIM commitment to customer service FLEXIM considers itself not only a manufacturer of measuring instru- ments, but also a provider of technical and consulting services. These ser- vices include instrument rentals, on- site measurements, laboratory anal- ysis, project handling, training, com- missioning and consulting services. The company’s focus and dedication is directed towards providing the highest quality equipment with the best support and service possible. FLEXIM GmbH Berlin, Germany Phone: +49 30 93 66 76 60 Fax: +49 30 93 66 76 80 info@flexim.de FLEXIM Instruments Benelux B.V. Berkel en Rodenrijs, Netherlands Phone: +31 10 24 92 333 Fax: +31 10 24 92 339 benelux@flexim.com FLEXIM France SARL Strasbourg, France Phone: +33 388 27 78 02 Fax: +33 388 27 78 45 info@flexim.fr FLEXIM Instruments UK Ltd. Northwich, Cheshire United Kingdom Phone: +44 1606 781 420 Fax: +44 1606 784 544 sales@flexim.co.uk FLEXIM Instruments Asia Pte Ltd. Singapore Phone: +65 67 94 53 25 Fax: +65 68 62 28 36 salessg@flexim.com Shanghai, China Phone: +86 21 64 95 75 20 shanghai@flexim.com www.flexim.com BULIQUIDV8-2EN01/2014Subjecttochangewithoutnotification

×
