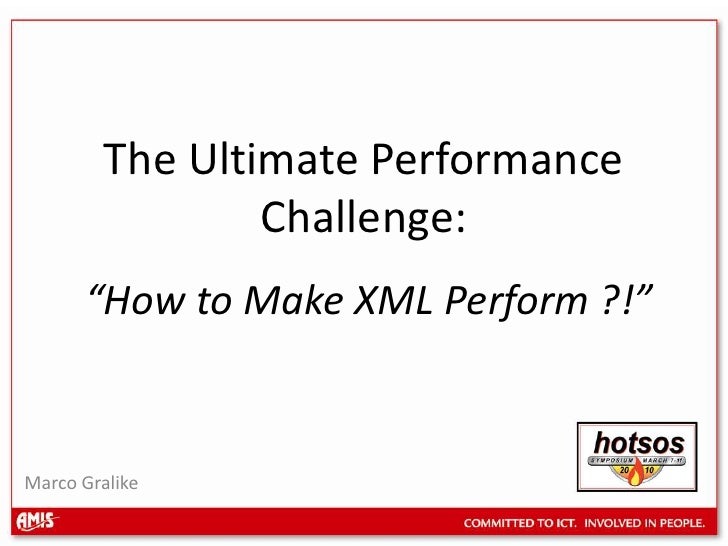

The Ultimate Performance Challenge:“How to Make XML Perform ?!”<br />Marco Gralike<br />
Agenda<br />
Agenda<br />
“XML is not a ‘fast’ thing, there is a ton of parsing involved. Sorry, I never saw the point in huge XML files – they are ...
“The foundation is there; So why not use it?”<br />…referring to the Relational Model…<br />Chris Date- Hotsos keynote, 20...
Relational…<br />
XML…?<br />
Evolution…<br />
If you’re a performance nerd, <br />	this is actually cool…<br />No one figured out XML yet…<br />Solving the customer pro...
Agenda<br />
Free Format…”XML is cool”… <br />(aka no design effort)<br />Have to uphold the “Coding Granny Argument” (among others mea...
Different data models<br />XPath models an XML document as <br />	a tree while most general purpose <br />	programming lan...
Effects, Costs<br />Unnecessary CPU and Memory <br />Overhead <br />A lot of expensive type and <br />	encoding conversion...
Agenda<br />
Containerization<br />
The “Dimensions” in 1 XML doc.<br />1<br />3<br />4<br />5<br />2<br />X<br />Y<br />6<br />Z<br />nx<br />rows <br />Elem...
Multi Dimensional Issues…<br />Its a database…<br />Its Row based<br />Its Column based<br />Its multiple databases…<br />...
Complexities of a database<br />“Relations”<br />“Redundancy”<br />“Nullology”<br />Design, etc…<br />It can contain a dat...
Checked on<br />XML Well-Formedness<br />One root element<br />Begin & End tags<br />If XML Schema reference<br />XOB meth...
What you want in access…<br />Fast DDL<br />Selects<br />Inserts, Deletes, Updates<br />Specific / Smart<br />Small XML Fr...
Agenda<br />
Document contra Data Driven<br />
Structured / Semi-Structured<br />Structured<br />Semi<br />Structured<br />
Common XML Parsers<br />Often DOM or Infoset based<br />CPU intensive<br />Memory intensive<br />Serializing, parsing, tre...
In Memory: Common XML Parsers<br />Often handle XML tree traversals only via <br />ONEmethod<br />It is not structured, se...
XMLType Physical Storage<br />CLOB<br />LOB<br />LOB index<br />Object Relational<br />Varray, Types, Nested Tables<br />I...
Choosing a Storage Model<br />
Hybrid<br />CLOB<br />Mixed<br />complex[n]<br />un/structured<br />XSD [y]<br />B-Tree, IOT<br />Document<br />na<br />un...
Partition XML data<br />EMPLOYEES_PROJ_TAB<br />PROJ_DETAILS_TAB<br />EMP_PROJ_P11<br />“employees”.”employee”<br />refere...
XML Partitioning<br />Object Relational Partitioning<br />Equi-Partitioning since version Oracle 11.1.0.7.0<br />Binary XM...
Agenda<br />
Index Quick Sheet<br />
Unstructured XMLIndex (UXI)<br />PathTable<br />UsePath Subsetting<br />FullBlown XMLIndex canbe BIG <br />Token Tables (X...
PathTable<br />INDEXED COLUMNS<br />PATH INDEX<br /><ul><li>(PATHID, RID), BTREE</li></ul>ORDER INDEX<br /><ul><li>(RID, O...
FUNCTION BASED</li></ul>NotIndexed: LOCATOR column, pointer to  XML fragments (XDB.X$...)<br />SECONDARY INDEXES<br />Unst...
Structured XMLIndex (SXI)<br />Content Table(s)<br />BasedonXMLTABLE syntax<br />XMLTable construct canbe<br />nestedbut:<...
Content Table(s)<br />INDEXED COLUMNS<br />KEY INDEX<br /><ul><li>(KEY), Unique BTREE</li></ul>RID INDEX<br /><ul><li>(RID...
Driving access on CONTENT<br />BTree Index<br />bookstore<br />Secondary Oracle Text Index<br />Function based Index (XPat...
There can be only one XMLIndex…<br />
Agenda<br />
Design<br />
XML Schema will be parsed only once<br />If registered in the XDB Repository<br />XML Schema will be cached in memory (SGA...
XML Document structure is known, therefore<br />No parsing is needed when loaded from disk into memory<br />XML OBject (XO...
XDB Annotations<br />Hybrid: CLOB withinOR<br />
XDB Annotations (OR/Binary XML)<br />Levels<br />Root, Simpletype, Complextype<br />xmlns:xdb="http://xmlns.oracle.com/xdb...
Mixing Logical and Physical Design<br />
XML Schema - Query Rewrite<br />String<br />CHAR<br />String<br />Float<br />bookstore<br />CLOB<br />VARCHAR2<br />(20)<b...
XML Design<br />Avoid Cyclic References in XML Schemata<br />For ease of Maintenance: xdb:annotations<br />Is DOM validati...
Be aware of what you are doing !<br />Avoid unneeded (full) XML Schema validation<br />During Storage (Inserts), Generatin...
Agenda<br />
Keep XML small<br />Do not use / enforce Pretty Print if not needed<br />Avoid namespace reference “Overkill”<br />Most us...
Keep XML small (OR specific)<br />Don’t use “meaning full element names”<br />64Kb DDL “create table” buffer<br />ORA 0179...
Holistic Approach (Recap)<br />
Customer Use Case<br />Memory<br />/ DOM<br />Memory<br />/ DOM<br />CLOB<br /> Oracle <br />Advanced Queue<br />XMLType<b...
Duration (1000 Cases)<br />
New XML Approach<br />Rewrite on Disk <br />/ XOB <br />(Relational)<br />CLOB<br /> Oracle <br />Advanced Queue<br />BLOB...
Using the CBO as an XML Parser…<br />ORA-31186<br />ORA-31186<br />ORA-31186<br />ORA-31186: 	Document contains too many n...
Using the (XML) Relational Mindset<br />Design XSD as you would with E(E)R<br />Design for proper physical access, perform...
So in short: Balanced Design<br />Inserts, Updates & Deletes<br />XML Future Changes <br />Index Maintenance<br />Selects<...
Reward<br />Optimal performance<br />Out performing XML <br />Proper design will give<br />	you 10, 100 fold <br />	perfor...
