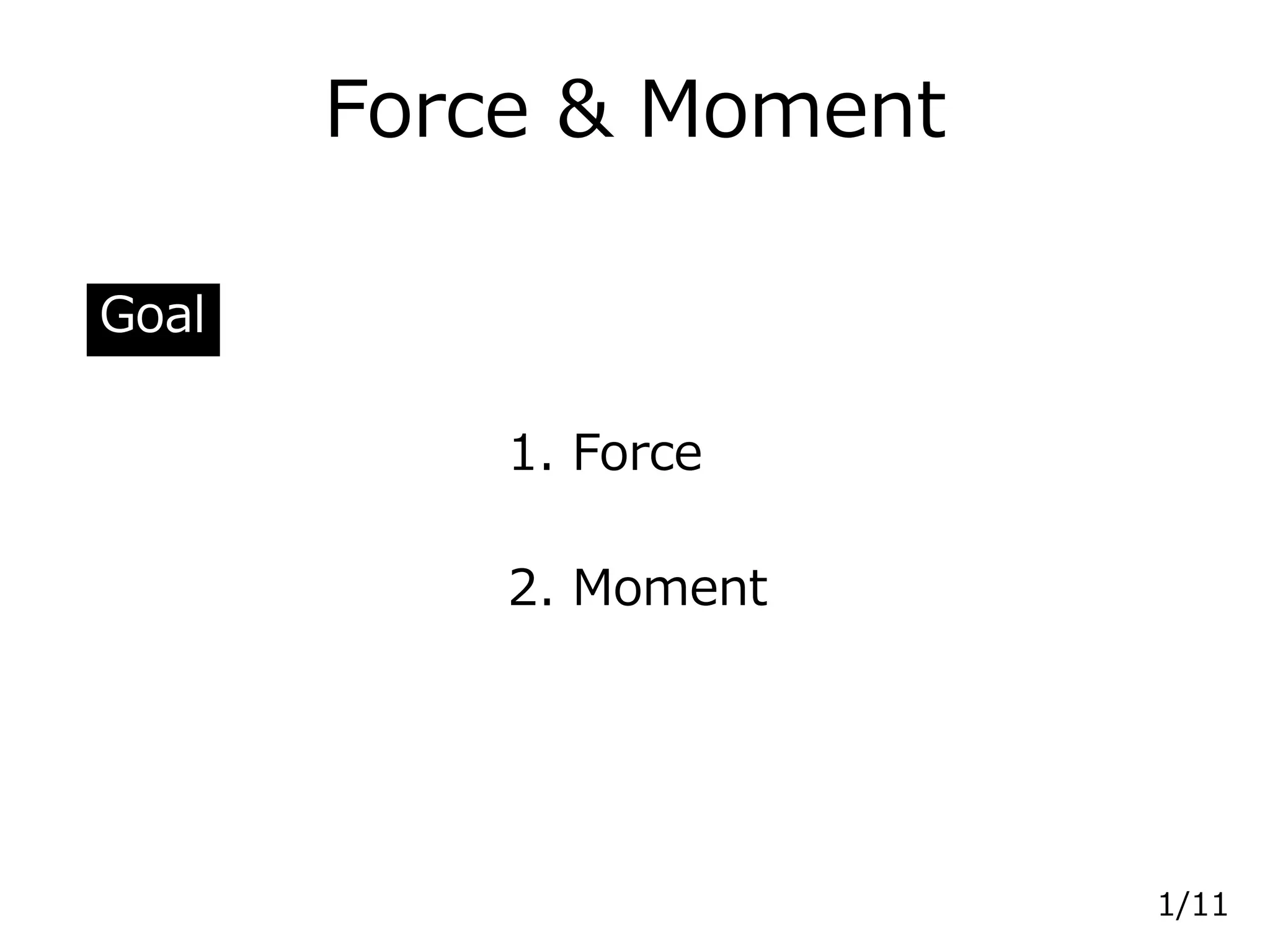

1. Force & Moment
1. Force
Goal
2. Moment
1/11

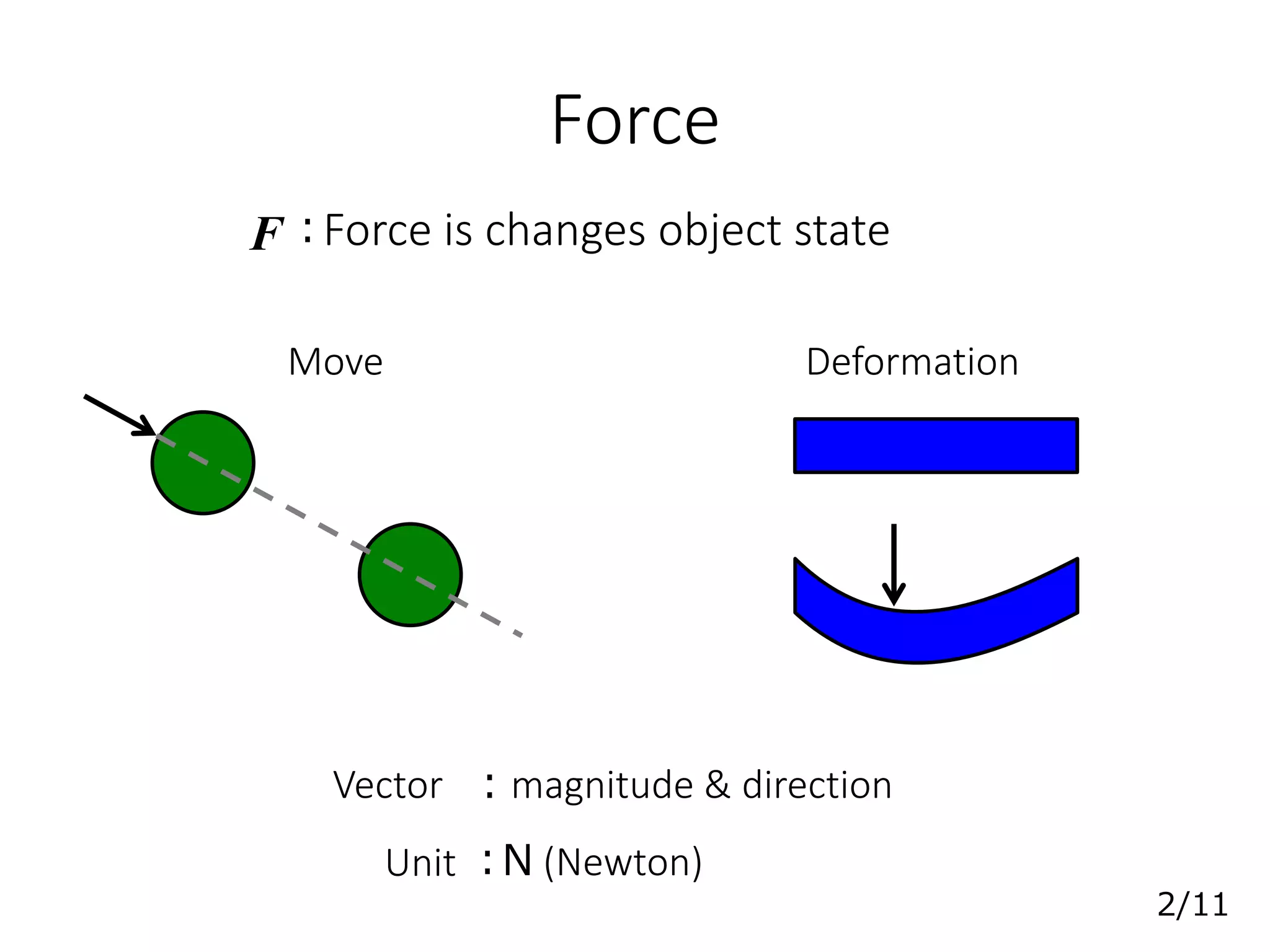

2. Force
Force is changes object state
Move Deformation
Unit ：N (Newton)
F：
Vector magnitude & direction：
2/11

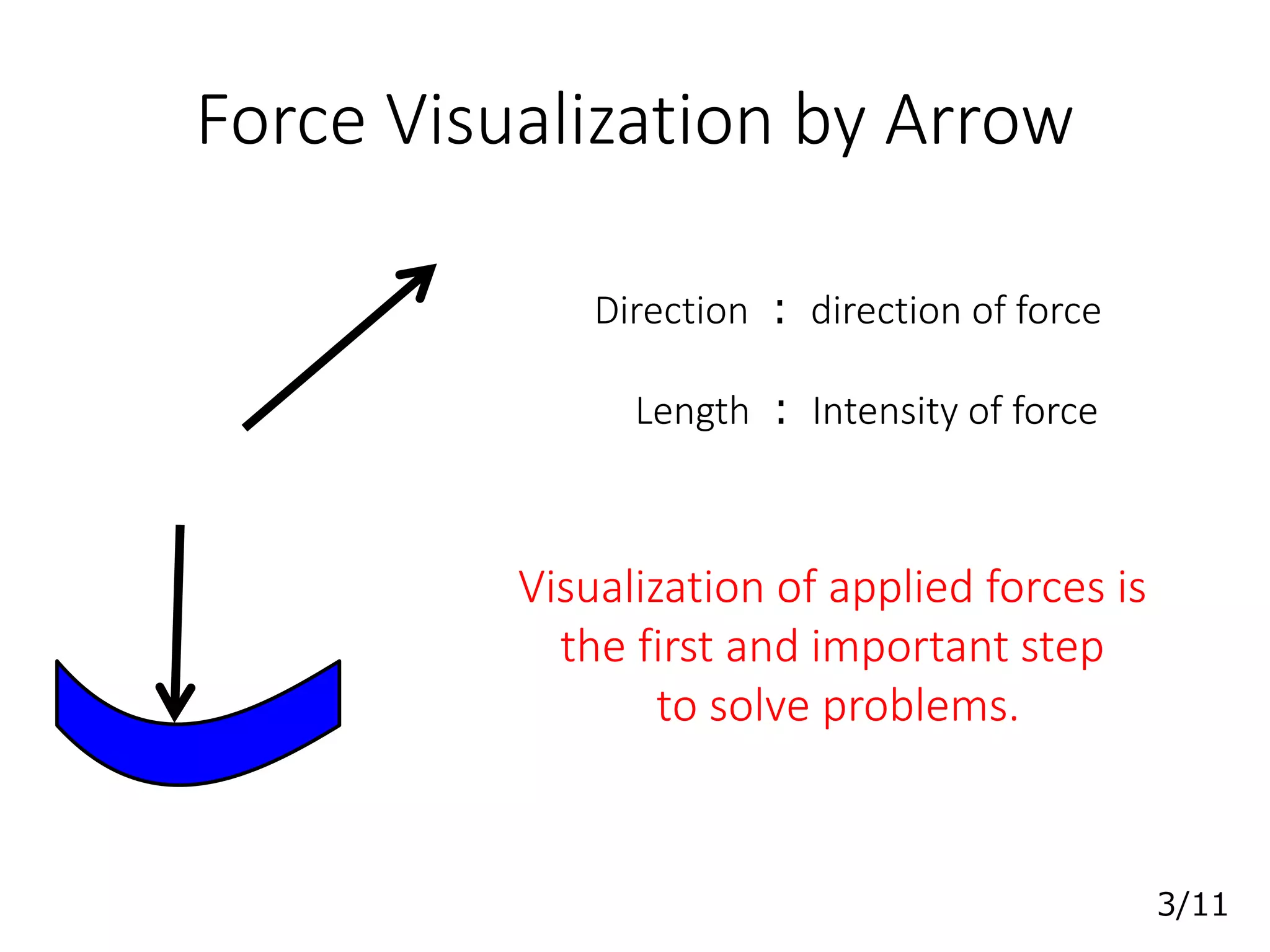

3. Force Visualization by Arrow
Direction ： direction of force
Length ： Intensity of force
Visualization of applied forces is
the first and important step
to solve problems.
3/11

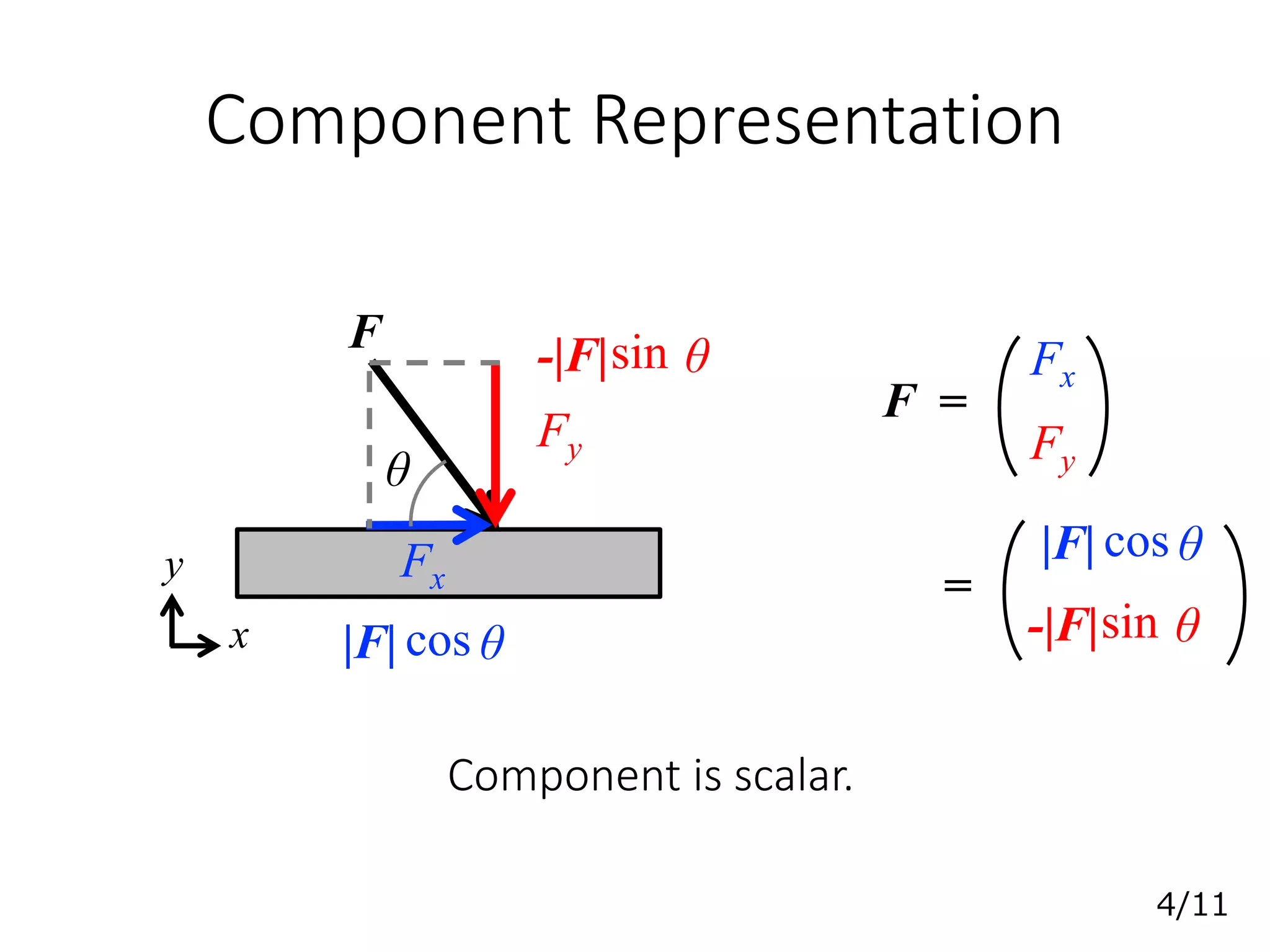

4. Component Representation
x
y
F =
Fx
Fy
F
Fy
Fx
Component is scalar.
|F| cos θ
θ
-|F|sin θ
=
|F| cos θ
-|F|sin θ
4/11

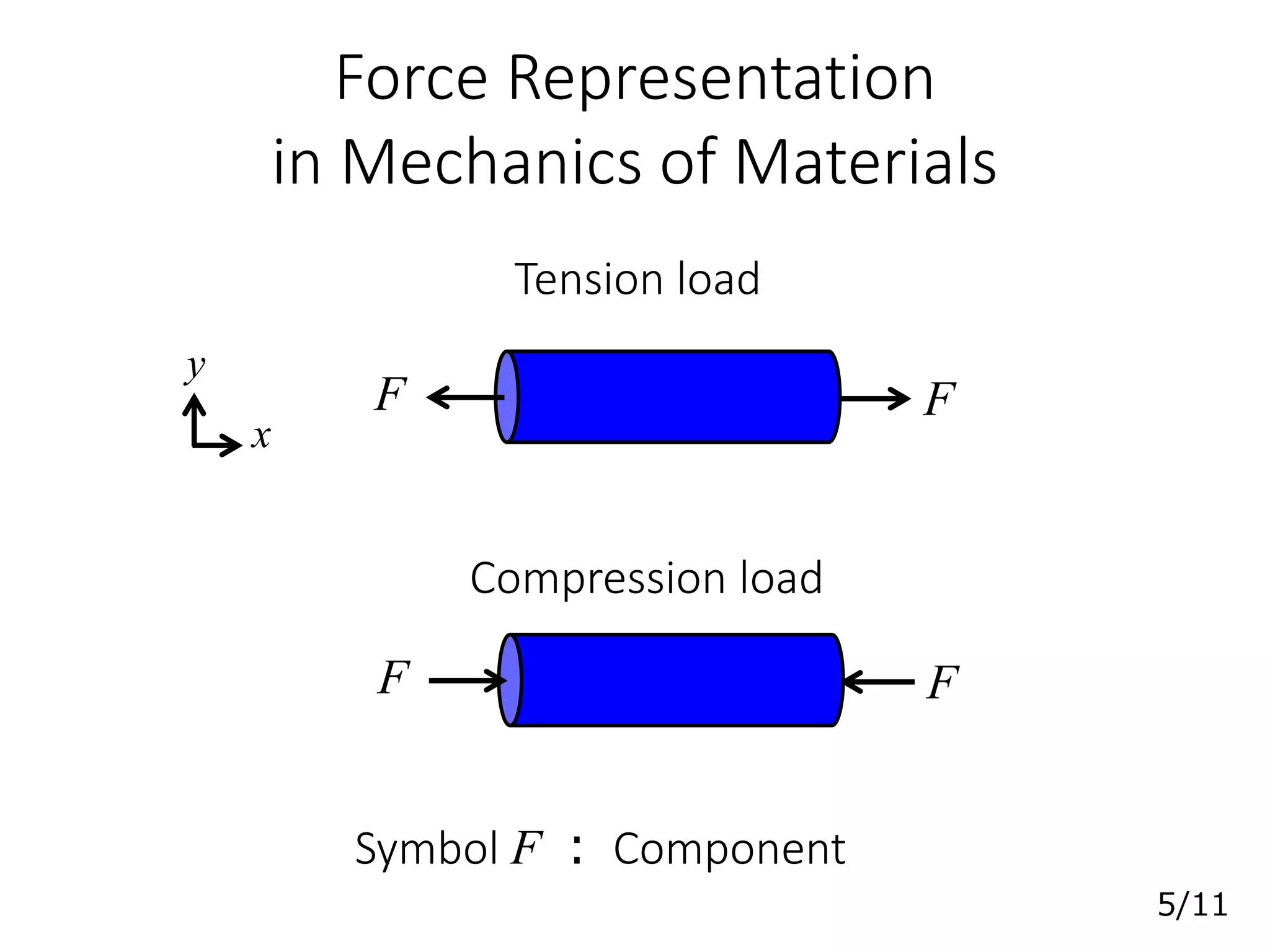

5. Force Representation
in Mechanics of Materials
F F
Symbol F ： Component
Tension load
F F
Compression load
x
y
5/11

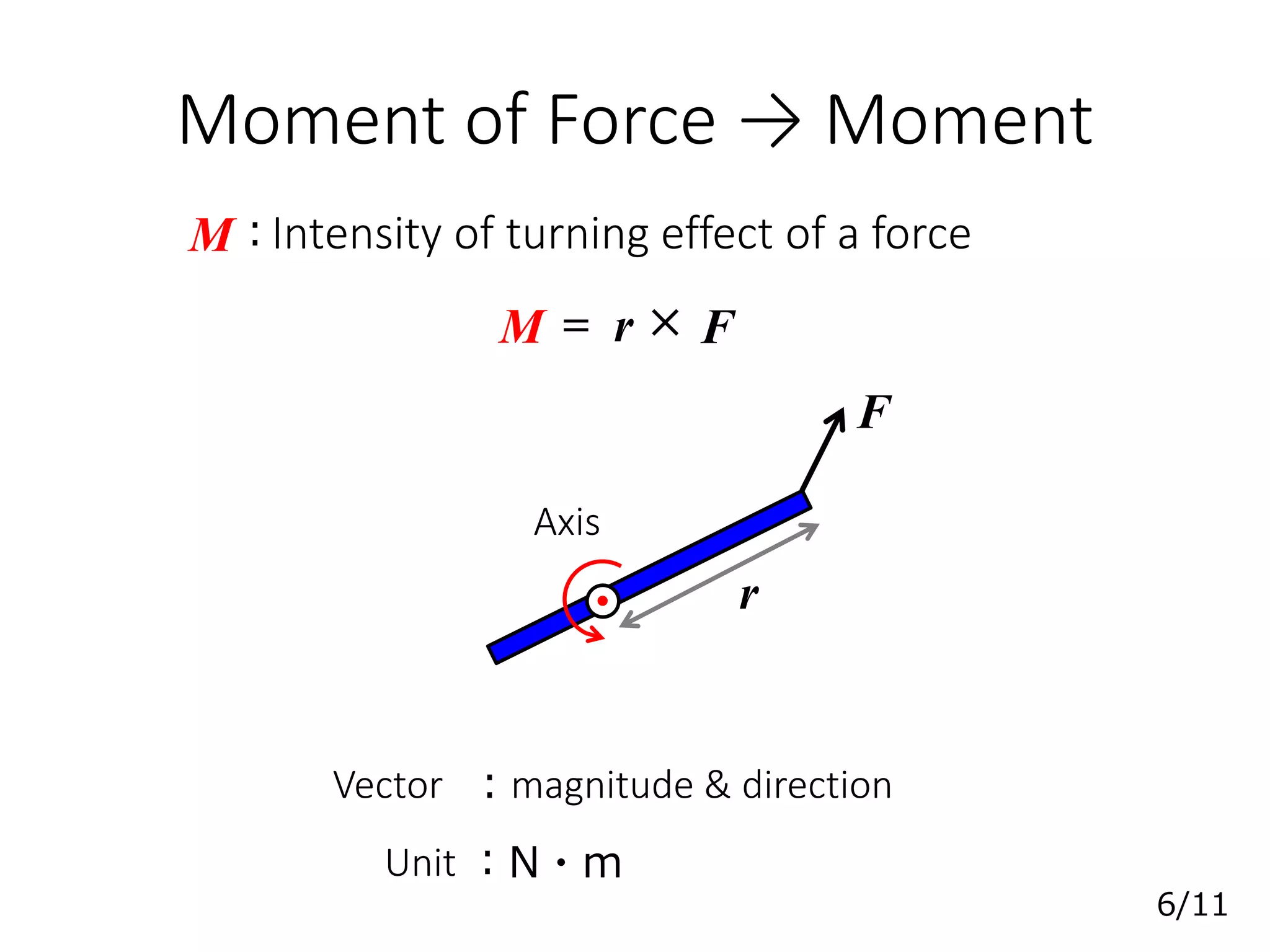

6. Moment of Force → Moment
Intensity of turning effect of a forceM：
M ＝ r × F
Axis
F
r
Unit ：N・m
Vector magnitude & direction：
6/11

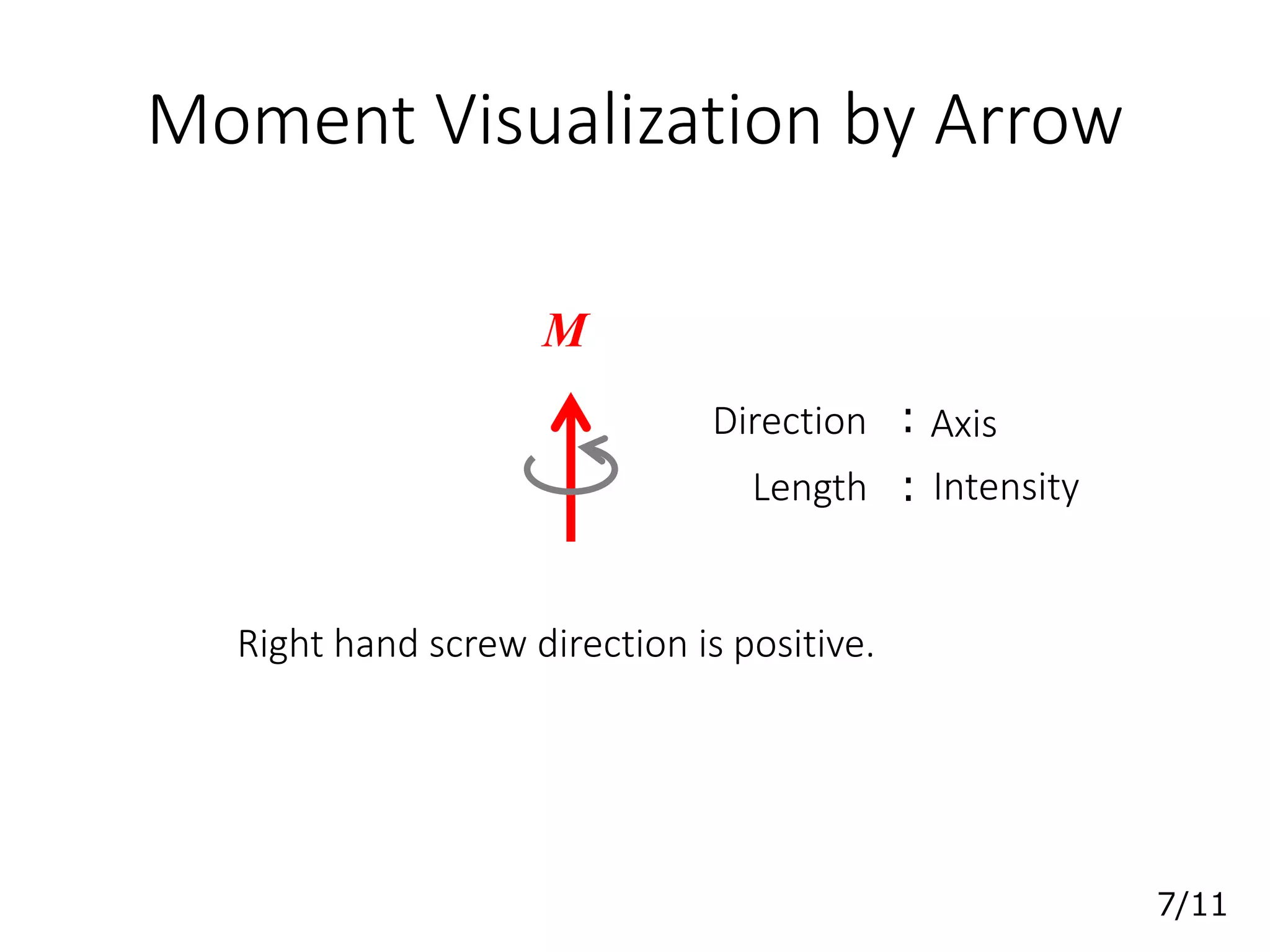

7. Moment Visualization by Arrow
Direction
Length
：
：
Axis
Intensity
M
Right hand screw direction is positive.
7/11

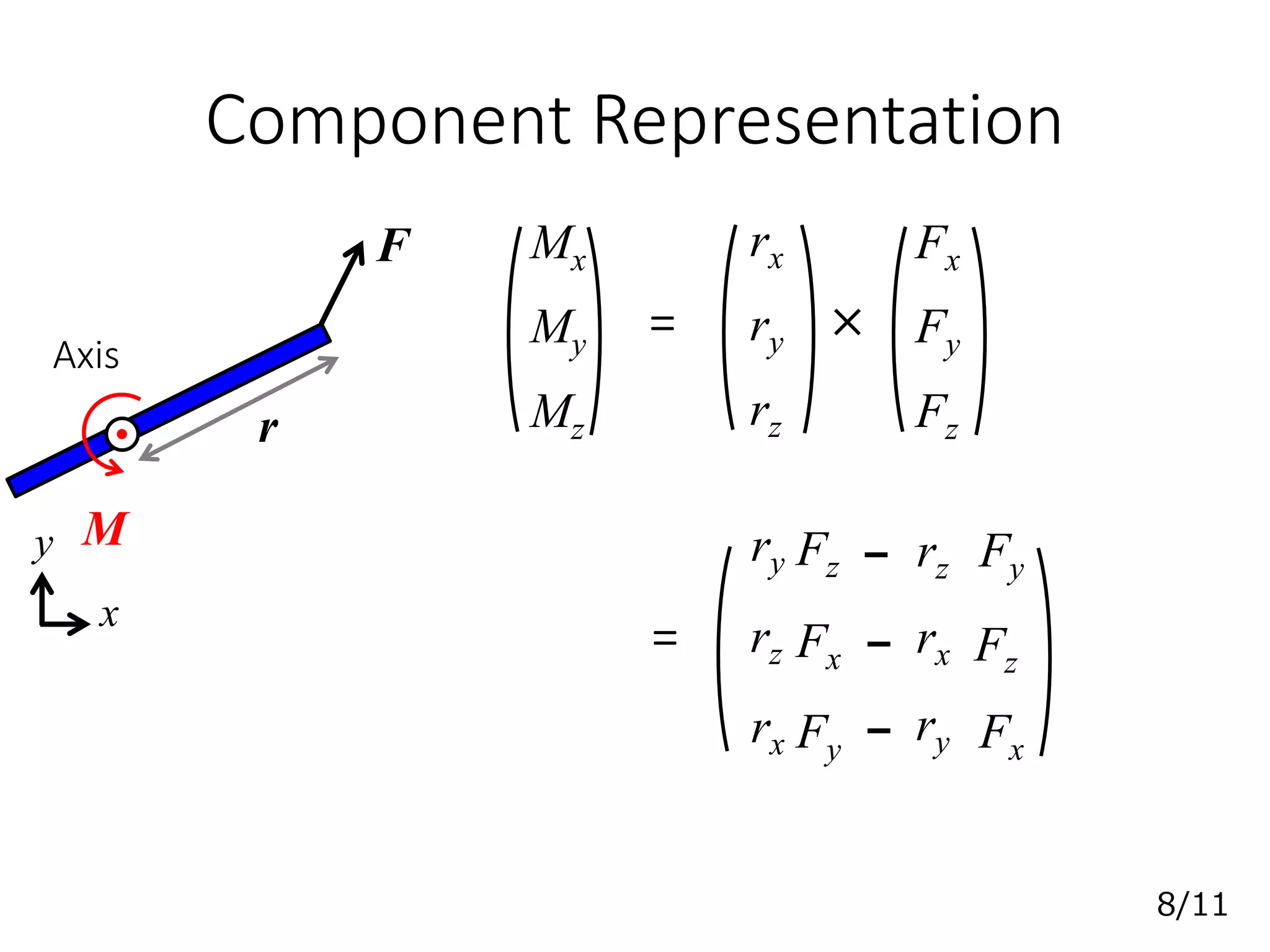

8. Component Representation
M
Fx
Fy
Fz
x
y
×
rx
ry
rz
Mx
My
Mz
=
ry Fz rz Fy
rz Fx rx Fz
rx Fy
ry Fx
=
Axis
F
r
8/11

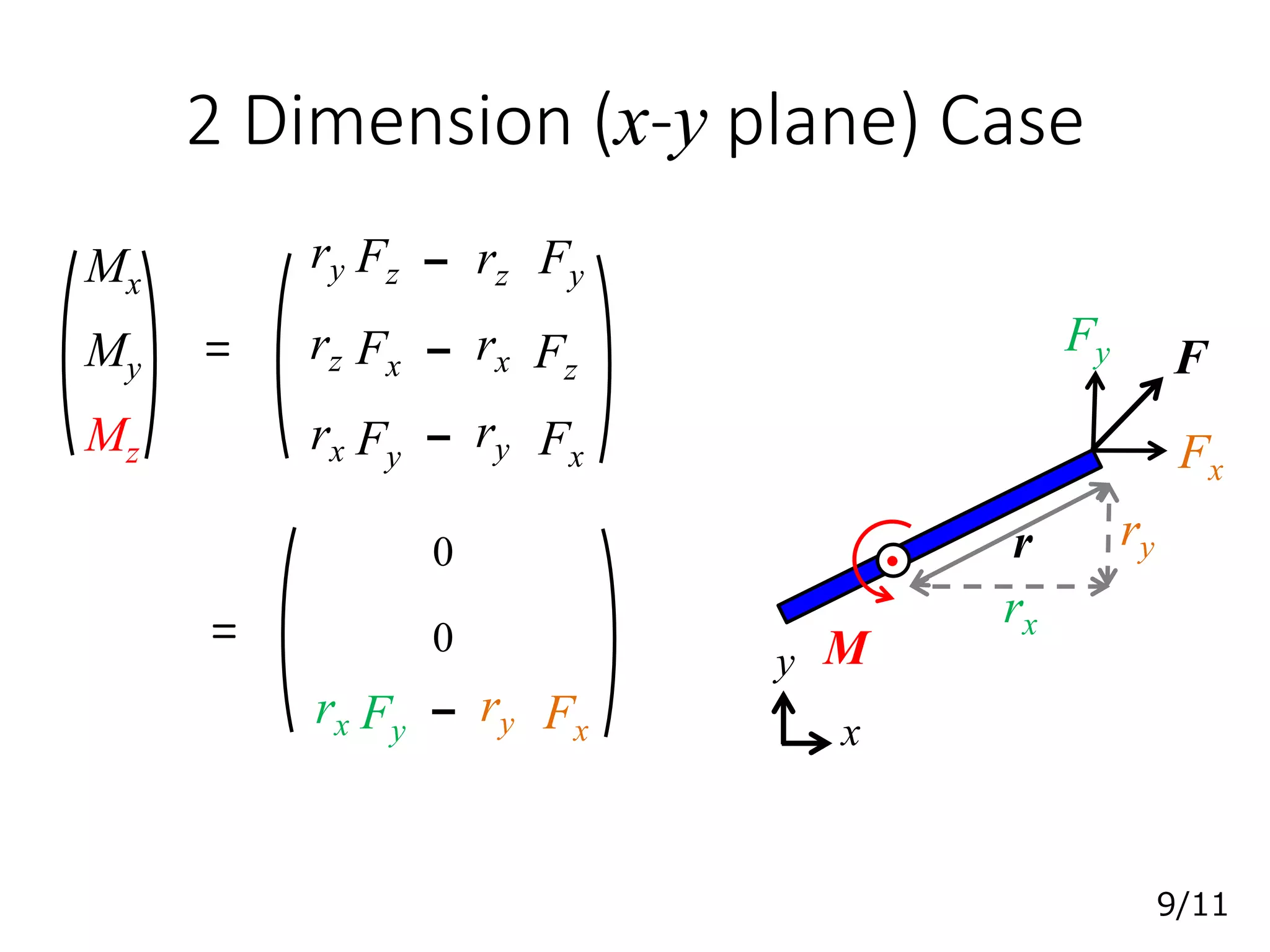

9. 2 Dimension (x-y plane) Case
0
rx Fy
ry Fx
0=
Mx
My
Mz
ry Fz rz Fy
rz Fx rx Fz
rx Fy
ry Fx
= F
r
M
x
y
rx
ry
Fy
Fx
9/11

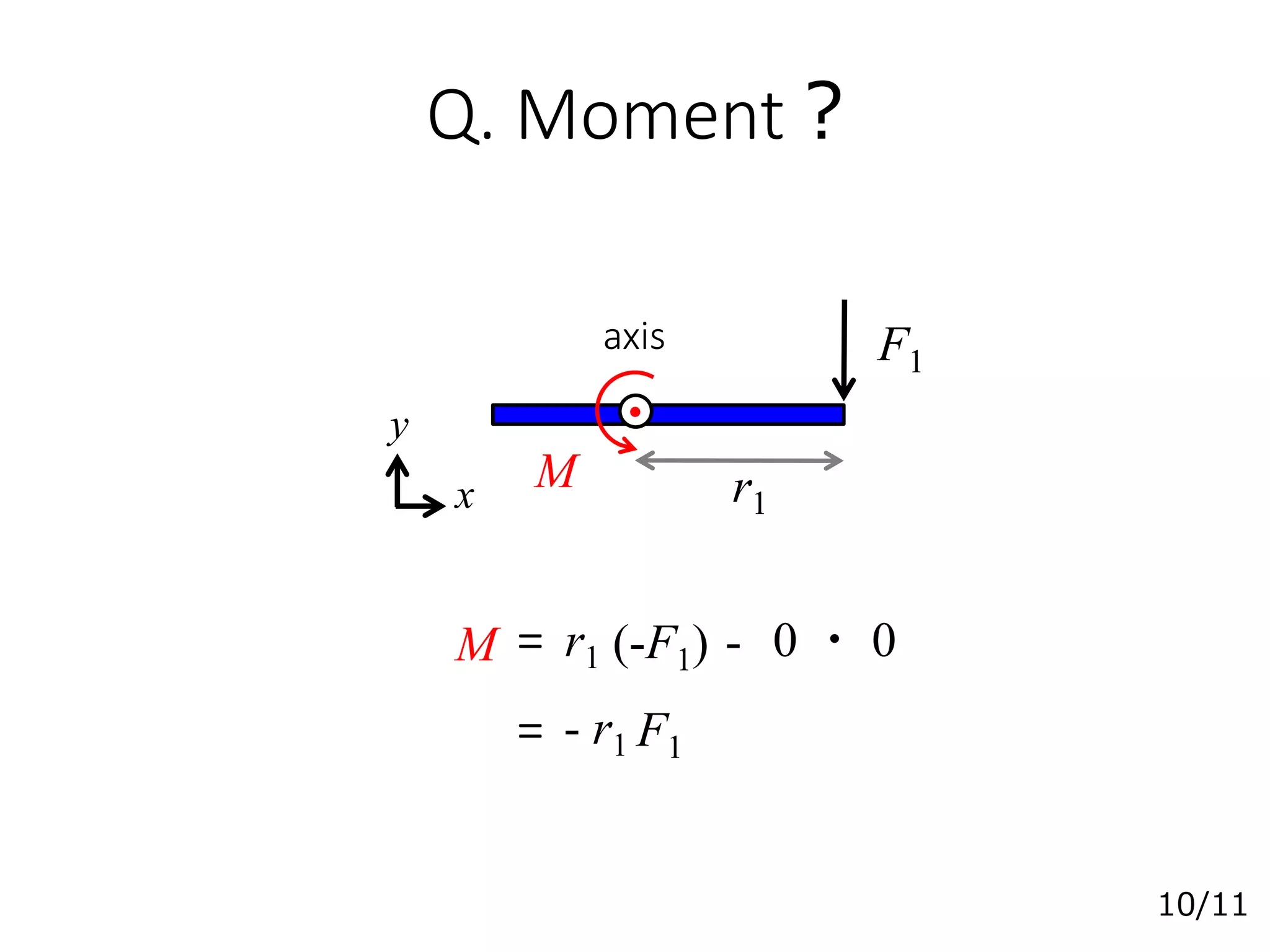

10. Q. Moment ?
axis F1
r1
Mx
y
r1 (-F1) - 0 ・ 0M =
= - r1 F1
10/11

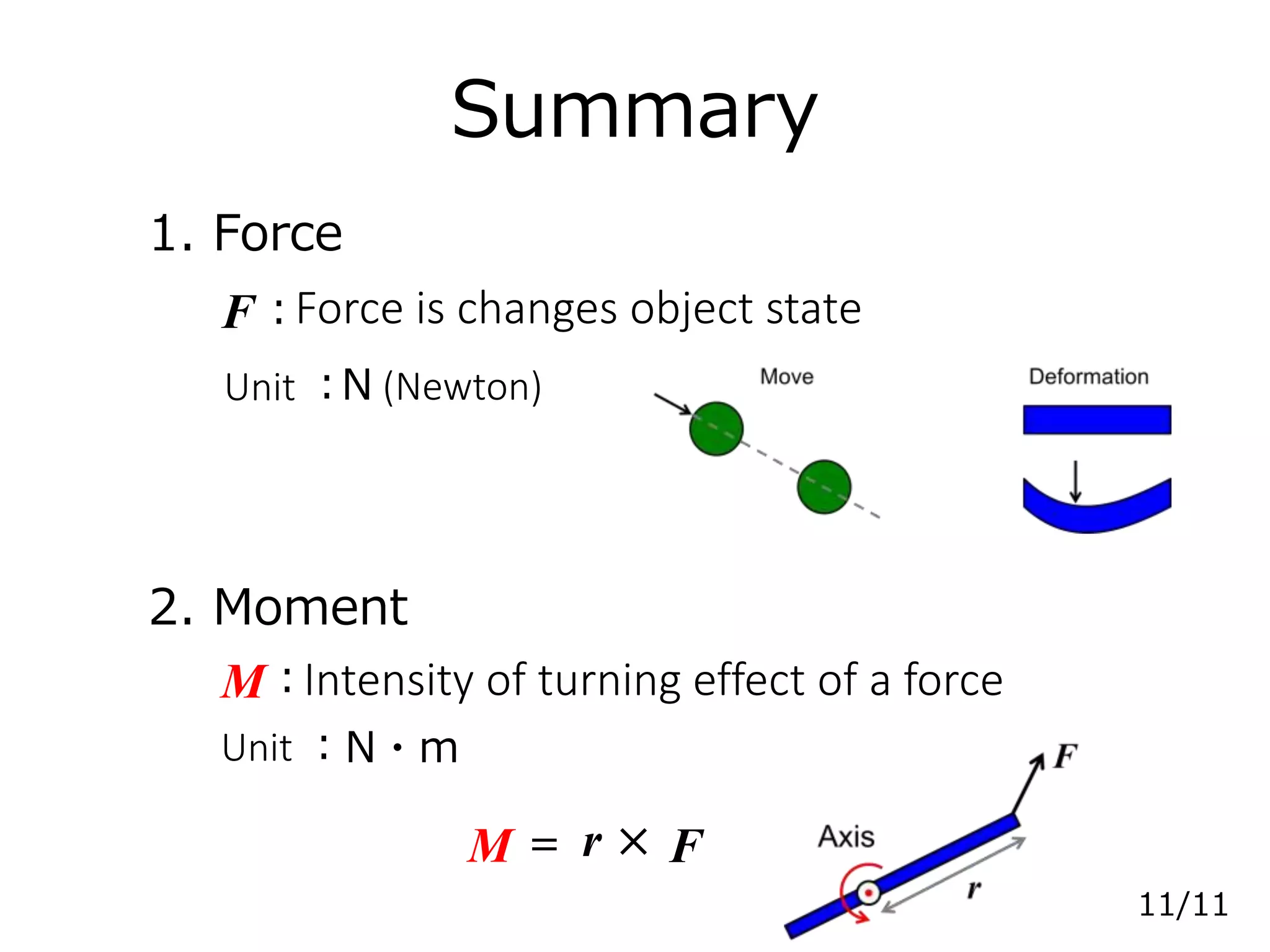

11. Summary
1. Force
2. Moment
Force is changes object state
Unit ：N (Newton)
F：
Intensity of turning effect of a forceM：
M ＝ r × F
Unit ：N・m
11/11
