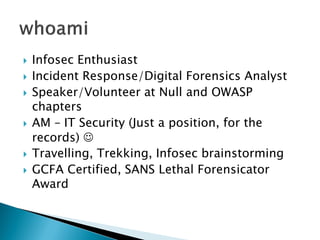

@Rathaur_Kamal

 Infosec Enthusiast
 Incident Response/Digital Forensics Analyst
 Speaker/Volunteer at Null and OWASP
chapters
 AM – IT Security (Just a position, for the
records) 
 Travelling, Trekking, Infosec brainstorming
 GCFA Certified, SANS Lethal Forensicator
Award

 A series of packets on a network that have common attributes
 Just metadata – No contents
 Much like a phone bill – You know, who called who but not
what was said
 Is not a replacement for full packet capture

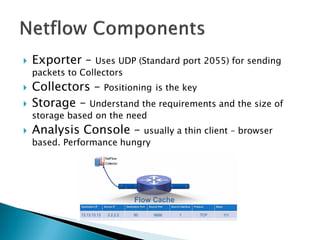

 Exporter – Uses UDP (Standard port 2055) for sending
packets to Collectors
 Collectors – Positioning is the key
 Storage – Understand the requirements and the size of
storage based on the need
 Analysis Console – usually a thin client – browser
based. Performance hungry

 Identify the critical data
 Understand the network diagram
 Identify choke and critical nodes
 Identify critical datacenters
 Plan Netflow exporters and packet capture
points
 Confirm legal and regulatory compliance
 Security teams may prefer to use their own
Netflow server and storage solution

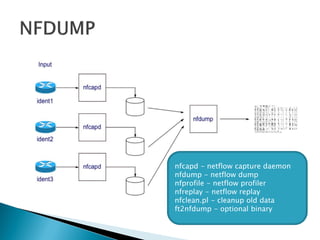

nfcapd - netflow capture daemon
nfdump - netflow dump
nfprofile - netflow profiler
nfreplay - netflow replay
nfclean.pl - cleanup old data
ft2nfdump - optional binary

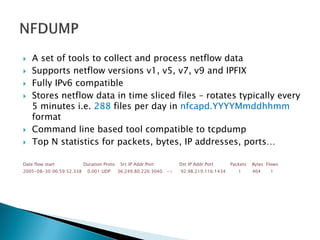

 A set of tools to collect and process netflow data
 Supports netflow versions v1, v5, v7, v9 and IPFIX
 Fully IPv6 compatible
 Stores netflow data in time sliced files – rotates typically every
5 minutes i.e. 288 files per day in nfcapd.YYYYMmddhhmm
format
 Command line based tool compatible to tcpdump
 Top N statistics for packets, bytes, IP addresses, ports…
Date flow start Duration Proto Src IP Addr:Port Dst IP Addr:Port Packets Bytes Flows
2005-08-30 06:59:52.338 0.001 UDP 36.249.80.226:3040 -> 92.98.219.116:1434 1 404 1

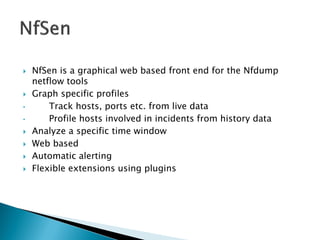

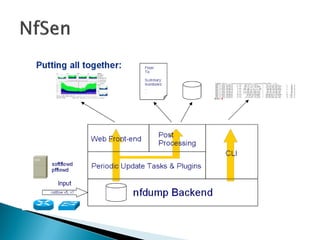

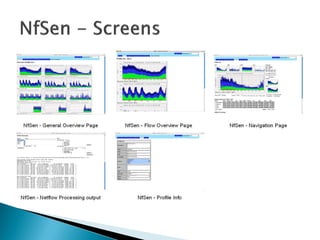

 NfSen is a graphical web based front end for the Nfdump
netflow tools
 Graph specific profiles
• Track hosts, ports etc. from live data
• Profile hosts involved in incidents from history data
 Analyze a specific time window
 Web based
 Automatic alerting
 Flexible extensions using plugins

Demo Time

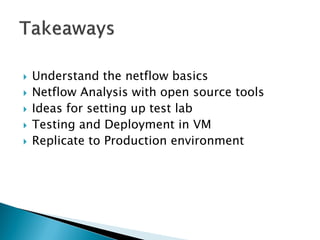

 Understand the netflow basics
 Netflow Analysis with open source tools
 Ideas for setting up test lab
 Testing and Deployment in VM
 Replicate to Production environment

Thank You!
