Reverse Engineer Web Applications
How to

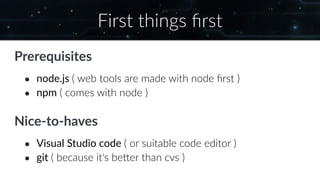

First things first
Prerequisites
• node.js ( web tools are made with node first )
• npm ( comes with node )
Nice-to-haves
• ...

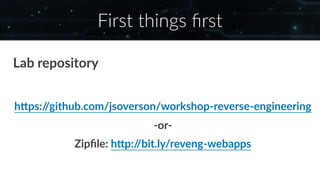

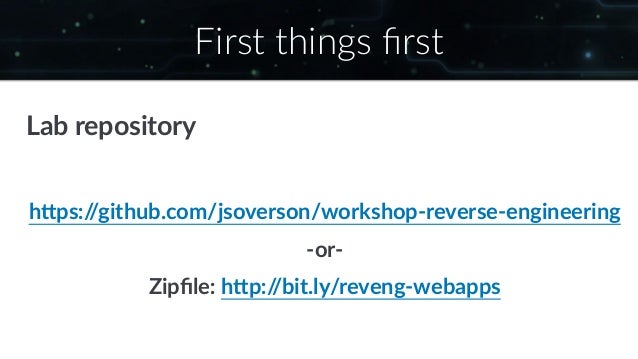

First things first
Lab repository
h5ps://github.com/jsoverson/workshop-reverse-engineering
-or-
Zipfile: h5p://bit.ly/reveng...
Reverse Engineer Web Applications
How to
Challenge #1
1. Web applica,ons have grown extremely complex.
https://github.com/jsoverson/workshop-reverse-engineering

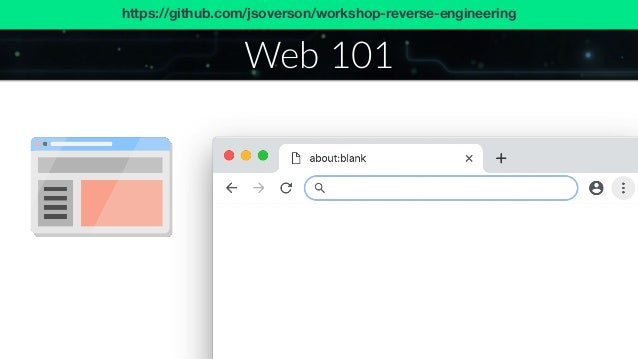

Web 101
https://github.com/jsoverson/workshop-reverse-engineering

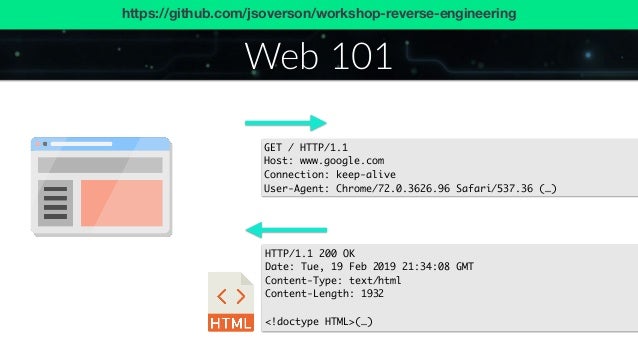

Web 101
GET / HTTP/1.1
Host: www.google.com
Connection: keep-alive
User-Agent: Chrome/72.0.3626.96 Safari/537.36 (…)
HTTP/...

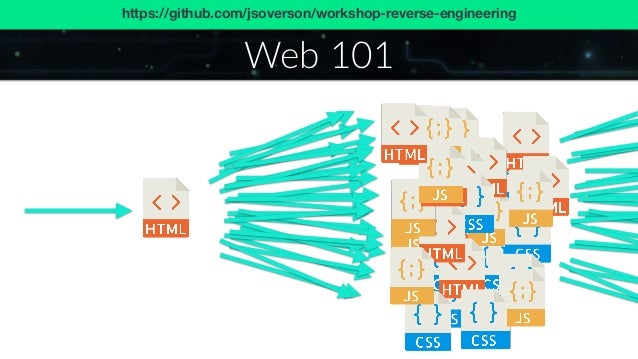

Web 101
https://github.com/jsoverson/workshop-reverse-engineering

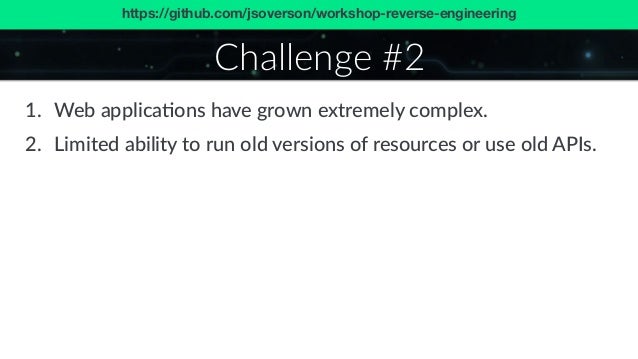

Challenge #2
1. Web applica,ons have grown extremely complex.
2. Limited ability to run old versions of resources or use o...

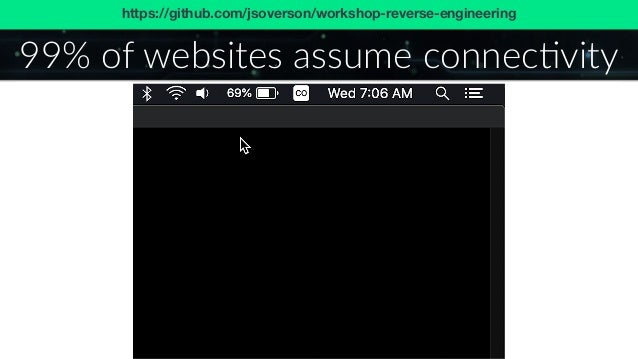

99% of websites assume connecHvity
https://github.com/jsoverson/workshop-reverse-engineering

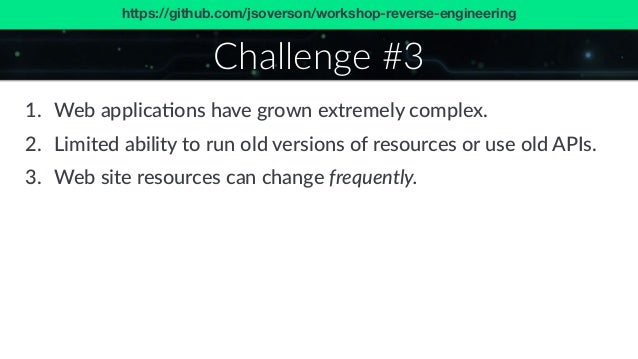

Challenge #3
1. Web applica,ons have grown extremely complex.
2. Limited ability to run old versions of resources or use o...
https://github.com/jsoverson/workshop-reverse-engineering
https://github.com/jsoverson/workshop-reverse-engineering

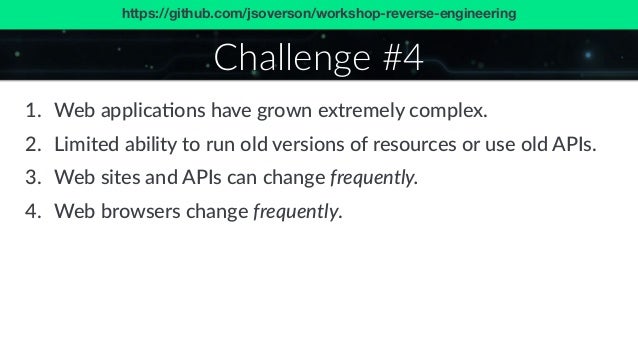

Challenge #4
1. Web applica,ons have grown extremely complex.
2. Limited ability to run old versions of resources or use o...

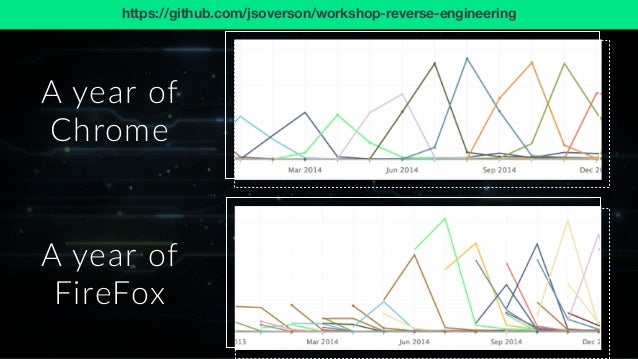

A year of
Chrome
A year of
FireFox
https://github.com/jsoverson/workshop-reverse-engineering
Challenge #5
1. Web applica,ons have grown extremely complex.
2. Limited ability to run old versions of resources or use o...

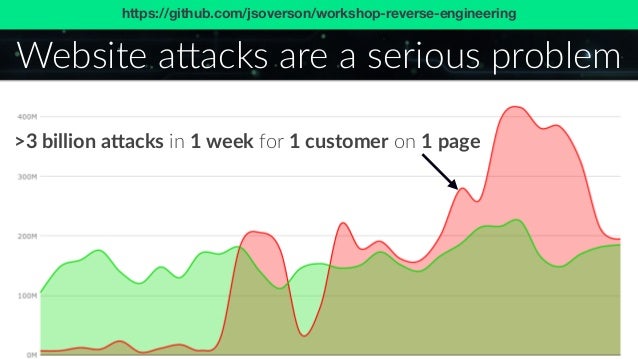

Website a?acks are a serious problem
>3 billion a5acks in 1 week for 1 customer on 1 page
https://github.com/jsoverson/wor...
And have an industry around protecHng them
https://github.com/jsoverson/workshop-reverse-engineering
And have an industry around protecHng them
That's Me!
https://github.com/jsoverson/workshop-reverse-engineering
So how do you hack web apps?

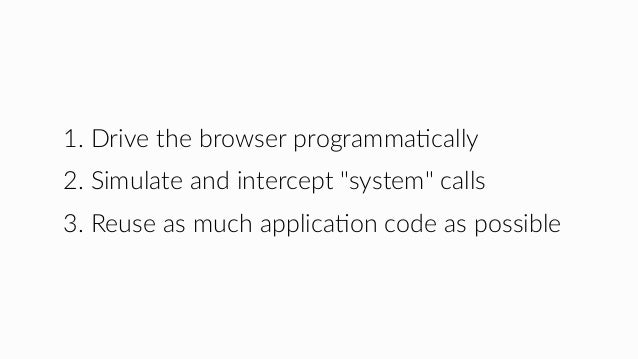

1. Drive the browser programmaHcally
2. Simulate and intercept "system" calls
3. Reuse as much applicaHon code as possible

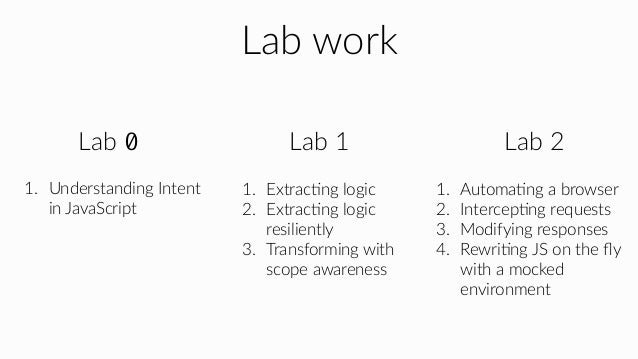

Lab work
Lab 0 Lab 1 Lab 2
1. ExtracHng logic
2. ExtracHng logic
resiliently
3. Transforming with
scope awareness
1. Autom...

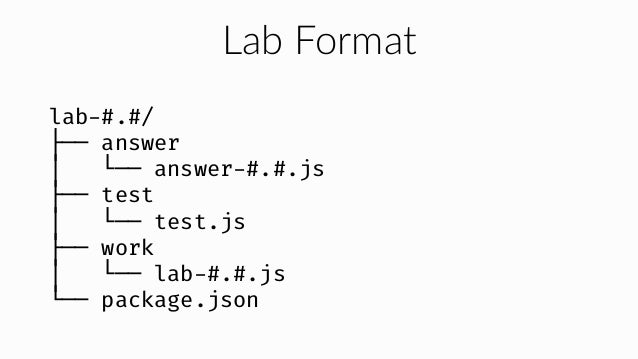

Lab Format
lab-#.#/
├── answer
│   └── answer-#.#.js
├── test
│   └── test.js
├── work
│   └── lab-#.#.js
└── package.json

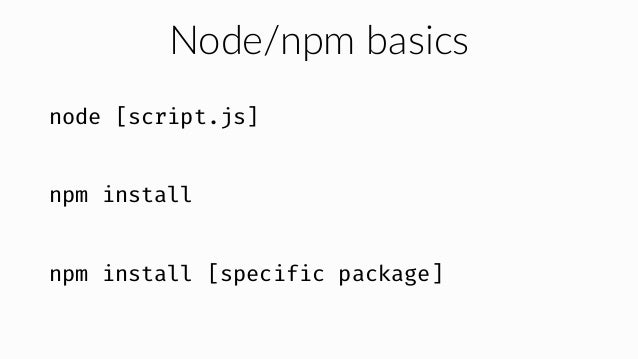

Node/npm basics
node [script.js]
npm install
npm install [specific package]

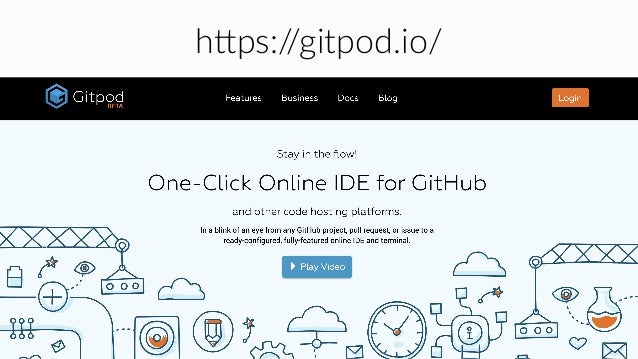

h?ps://gitpod.io/

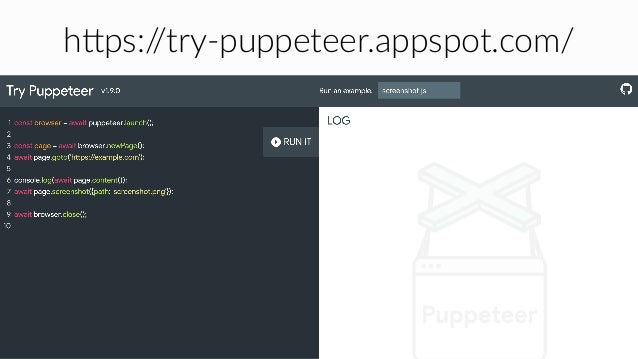

h?ps://try-puppeteer.appspot.com/

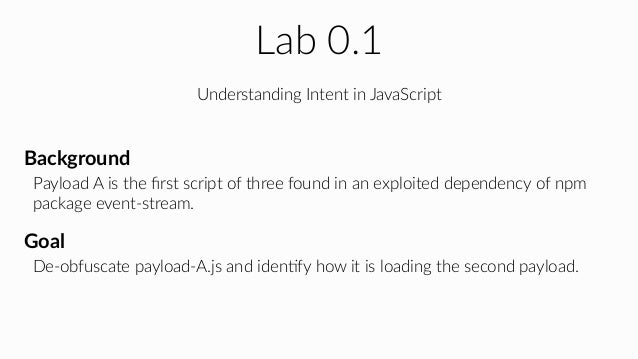

Lab 0.1
Understanding Intent in JavaScript
Payload A is the first script of three found in an exploited dependency of npm
p...

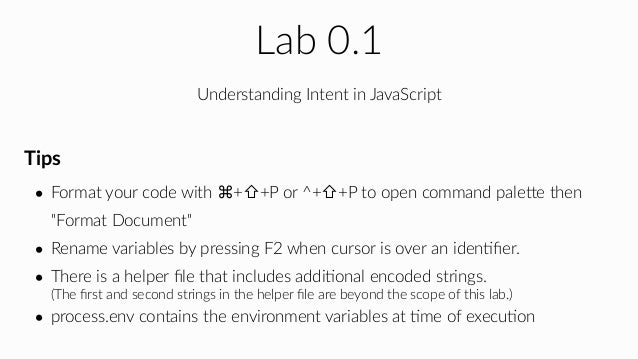

Lab 0.1
Understanding Intent in JavaScript
• Format your code with ⌘+⇧+P or ^+⇧+P to open command pale?e then
"Format Docu...
Lab Series 1
ProgrammaHcally manipulaHng JavaScript

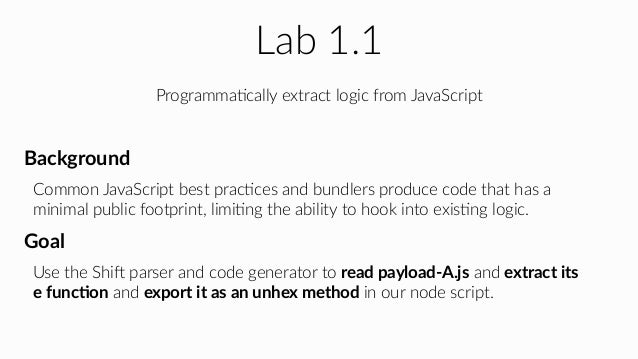

Lab 1.1
ProgrammaHcally extract logic from JavaScript
Common JavaScript best pracHces and bundlers produce code that has a...

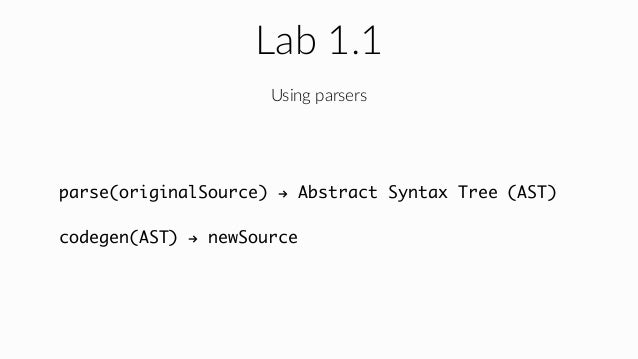

Lab 1.1
Using parsers
parse(originalSource) ! Abstract Syntax Tree (AST)
codegen(AST) ! newSource

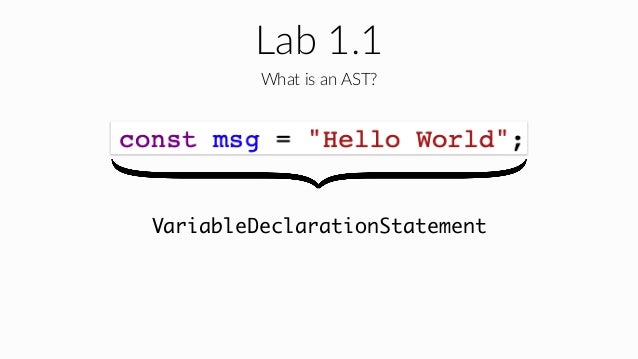

Lab 1.1
VariableDeclarationStatement
What is an AST?

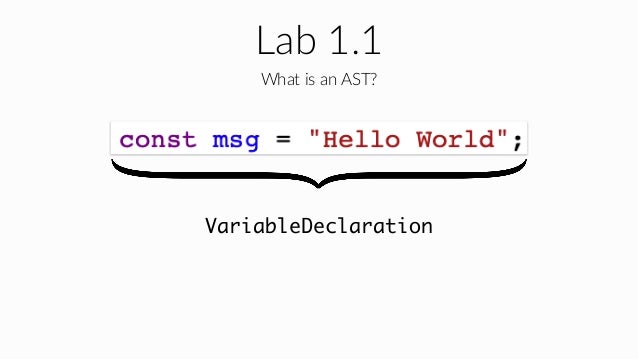

Lab 1.1
VariableDeclaration
What is an AST?

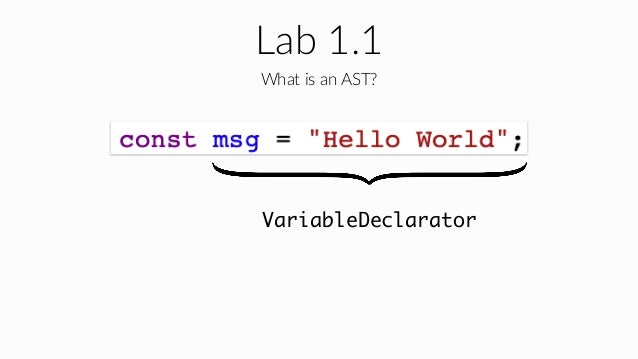

Lab 1.1
VariableDeclarator
What is an AST?

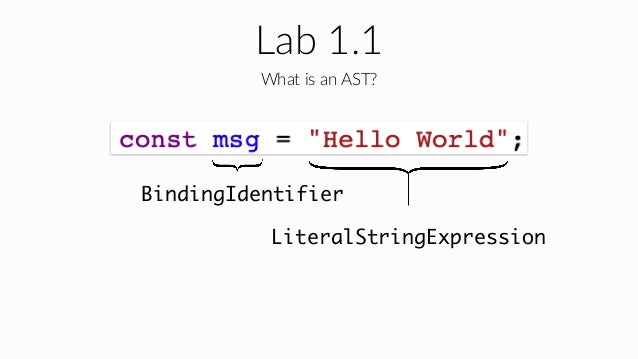

Lab 1.1
What is an AST?
BindingIdentifier
LiteralStringExpression
Lab 1.1
What is an AST?

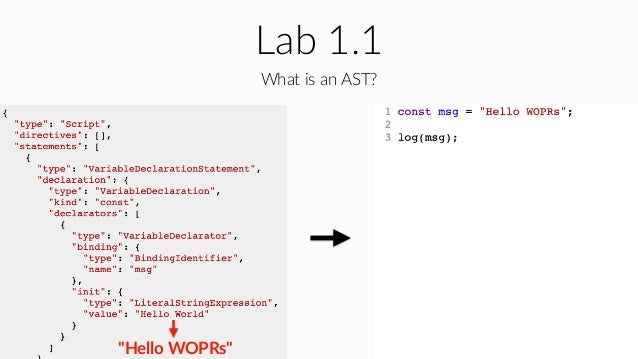

Lab 1.1
What is an AST?
"Hello WOPRs"
Lab 1.1
ProgrammaHcally extract logic from JavaScript
Common JavaScript best pracHces and bundlers produce code that has a...

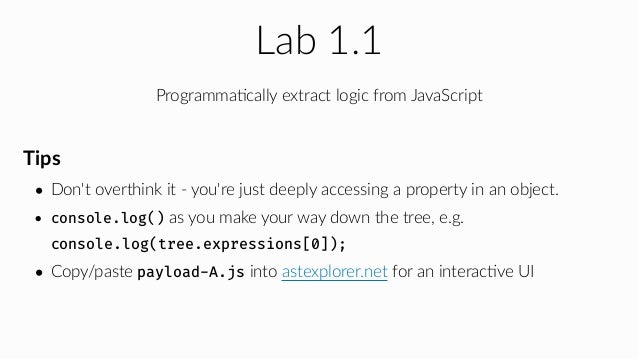

Lab 1.1
ProgrammaHcally extract logic from JavaScript
• Don't overthink it - you're just deeply accessing a property in an...

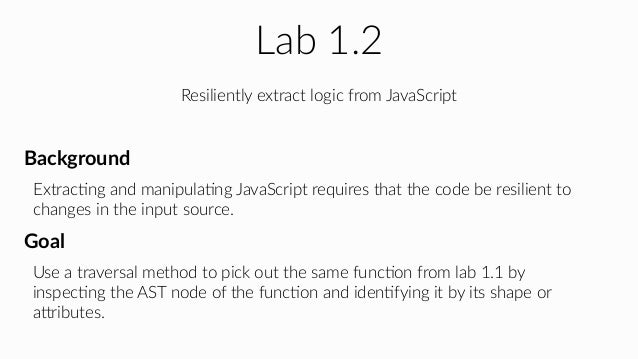

Lab 1.2
Resiliently extract logic from JavaScript
ExtracHng and manipulaHng JavaScript requires that the code be resilient...

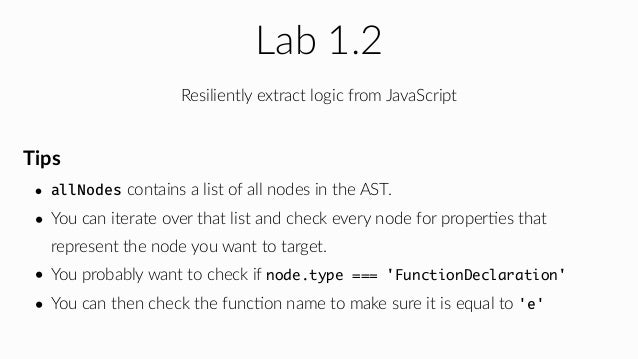

Lab 1.2
Resiliently extract logic from JavaScript
• allNodes contains a list of all nodes in the AST.
• You can iterate ov...
Lab 1.3
Rewrite JavaScript taking scope and context into account
RewriHng JavaScript requires tools that are aware of the ...

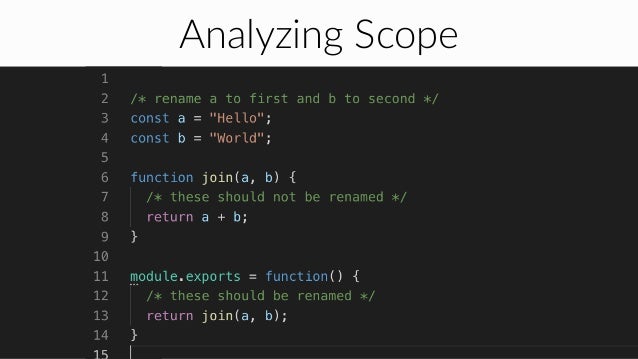

Analyzing Scope

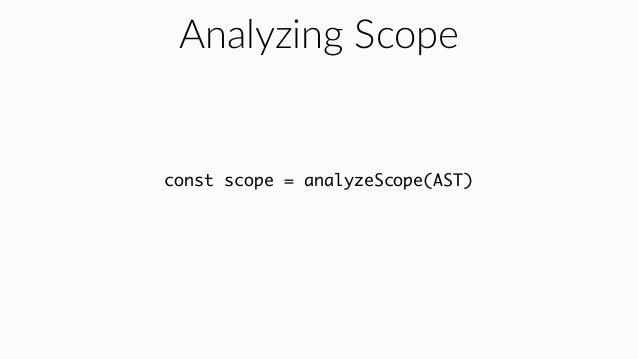

Analyzing Scope
const scope = analyzeScope(AST)

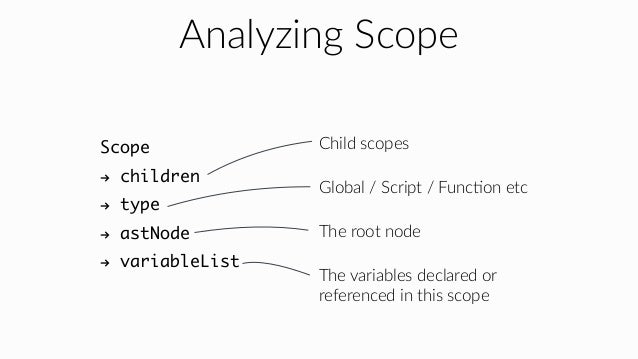

Analyzing Scope
Scope
! children
! type
! astNode
! variableList
Child scopes
Global / Script / FuncHon etc
The root node
...

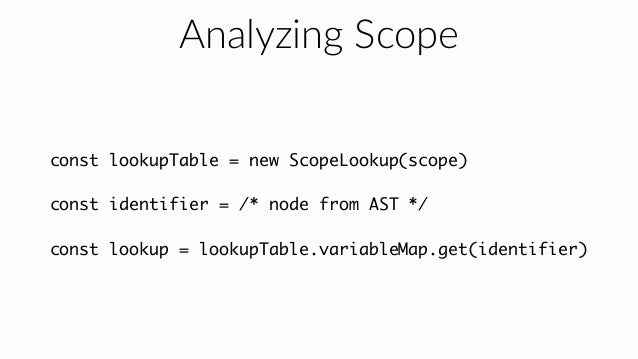

Analyzing Scope
const lookupTable = new ScopeLookup(scope)
const identifier = /* node from AST */
const lookup = lookupTab...

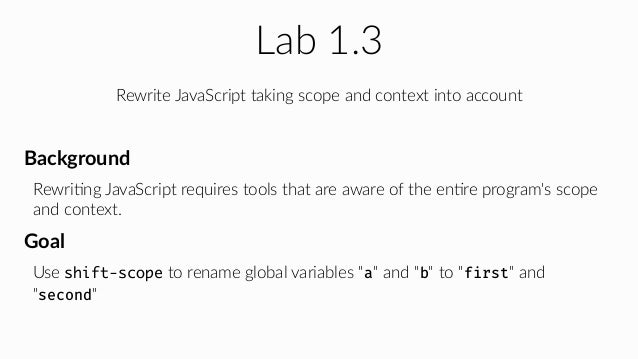

Lab 1.3
Rewrite JavaScript taking scope and context into account
RewriHng JavaScript requires tools that are aware of the ...

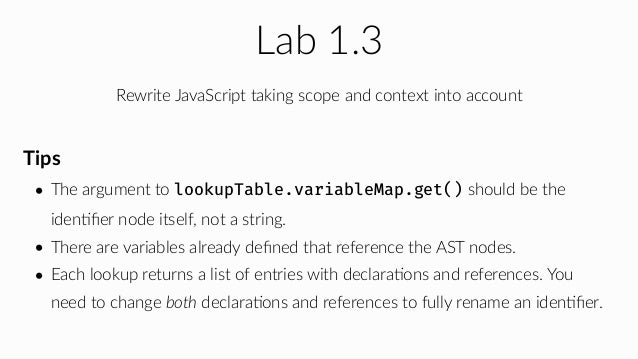

Lab 1.3
Rewrite JavaScript taking scope and context into account
• The argument to lookupTable.variableMap.get() should be...

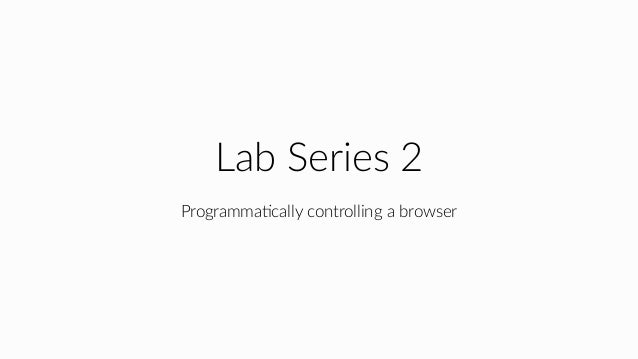

Lab Series 2
ProgrammaHcally controlling a browser

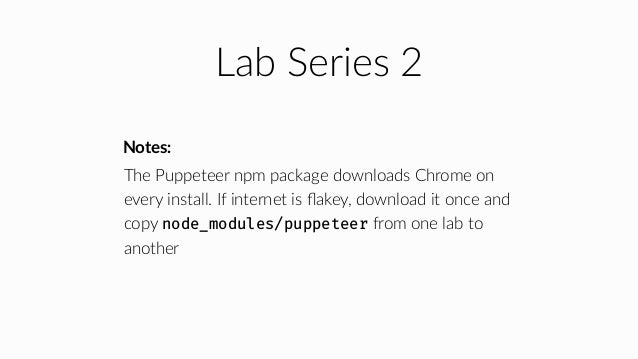

Lab Series 2
Notes:
The Puppeteer npm package downloads Chrome on
every install. If internet is flakey, download it once an...

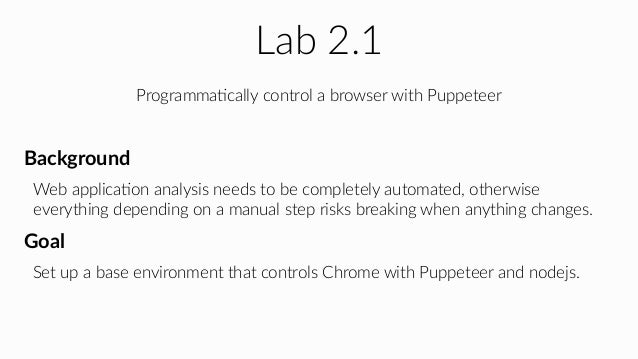

Lab 2.1
ProgrammaHcally control a browser with Puppeteer
Web applicaHon analysis needs to be completely automated, otherwi...

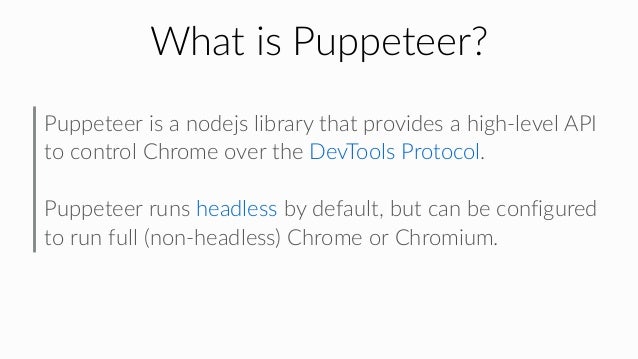

What is Puppeteer?
Puppeteer is a nodejs library that provides a high-level API
to control Chrome over the DevTools Protoc...

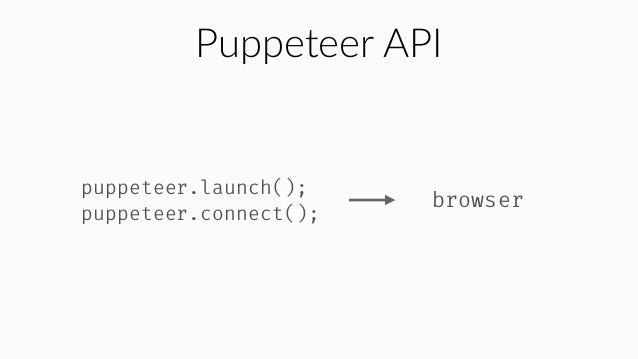

Puppeteer API
puppeteer.launch();
puppeteer.connect();
browser
Browser instance
browser.pages();
browser.newPage();
page
( Tab )

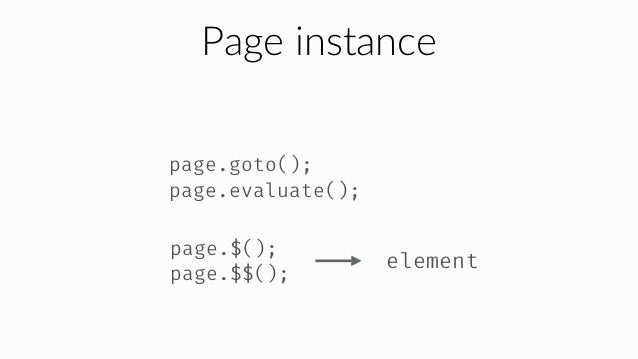

Page instance
page.goto();
page.evaluate();
element
page.$();
page.$$();

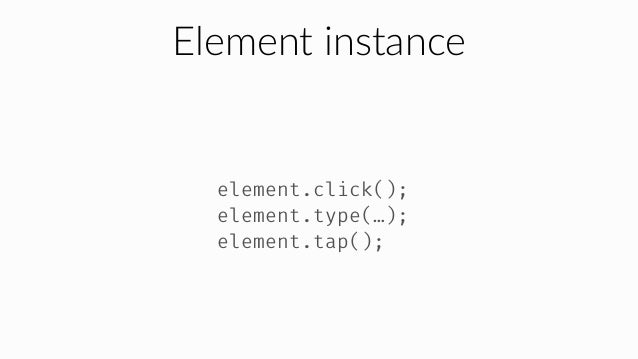

Element instance
element.click();
element.type(…);
element.tap();

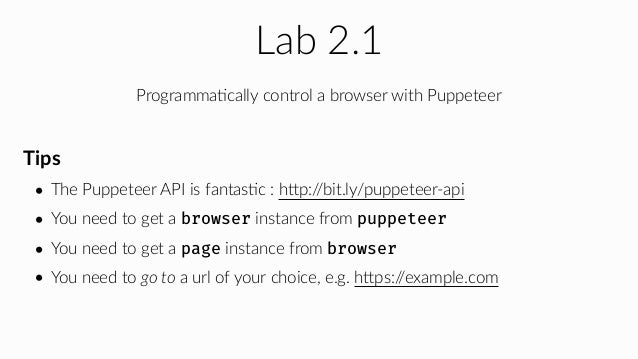

Lab 2.1
ProgrammaHcally control a browser with Puppeteer
• The Puppeteer API is fantasHc : h?p://bit.ly/puppeteer-api
• Yo...

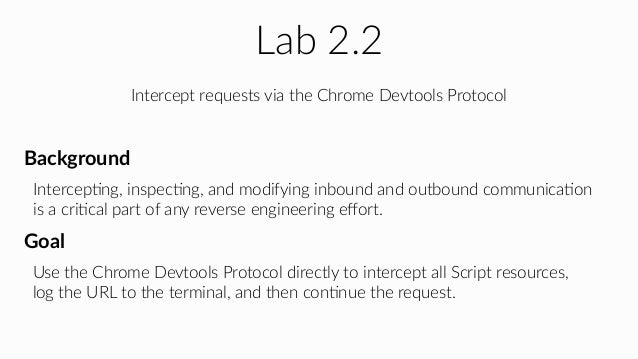

Lab 2.2
Intercept requests via the Chrome Devtools Protocol
IntercepHng, inspecHng, and modifying inbound and outbound com...

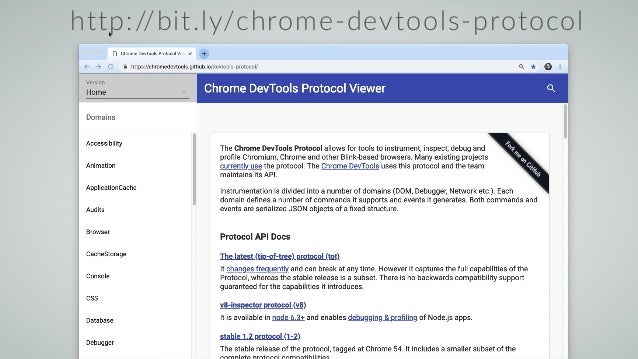

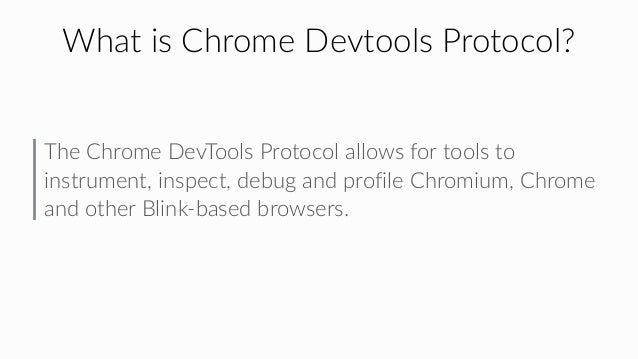

What is Chrome Devtools Protocol?
The Chrome DevTools Protocol allows for tools to
instrument, inspect, debug and profile ...
@jsoverson
http://bit.ly/chrome-devtools-protocol

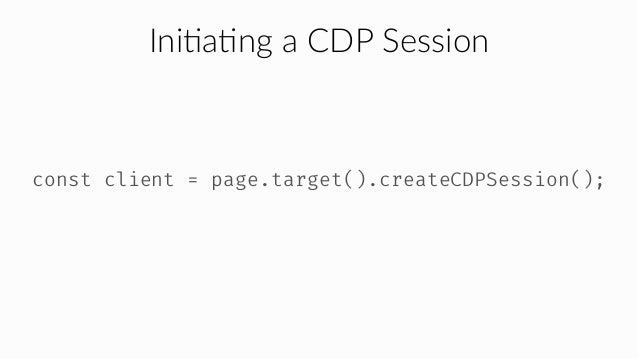

IniHaHng a CDP Session
const client = page.target().createCDPSession();

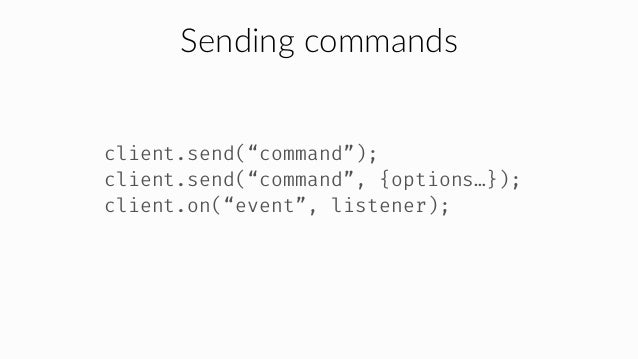

Sending commands
client.send(“command”);
client.send(“command”, {options…});
client.on(“event”, listener);

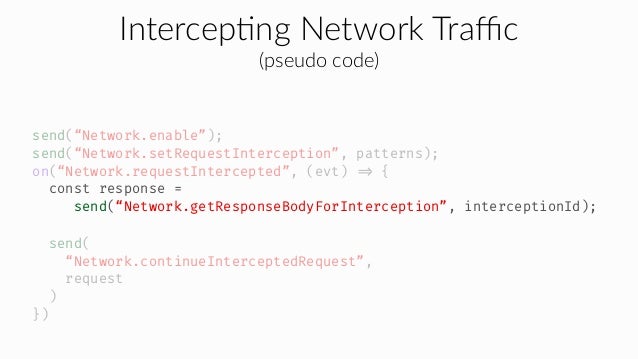

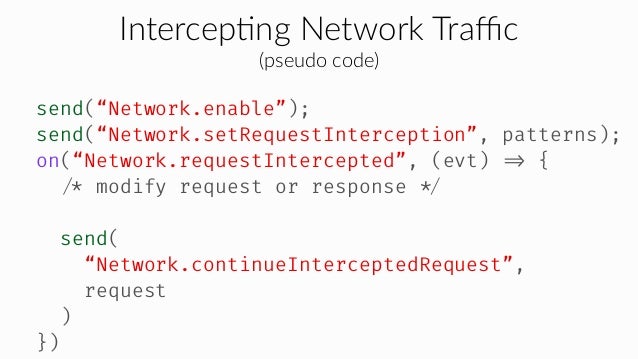

IntercepHng Network Traffic
(pseudo code)
send(“Network.enable”);
send(“Network.setRequestInterception”, patterns);
on(“Netw...
Lab 2.2
Intercept requests via the Chrome Devtools Protocol
IntercepHng, inspecHng, and modifying inbound and outbound com...

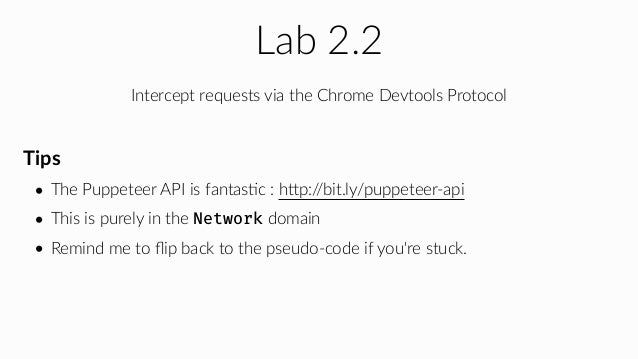

Lab 2.2
Intercept requests via the Chrome Devtools Protocol
• The Puppeteer API is fantasHc : h?p://bit.ly/puppeteer-api
•...

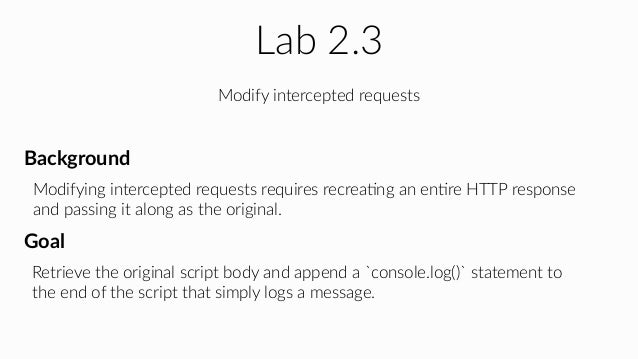

Lab 2.3
Modify intercepted requests
Modifying intercepted requests requires recreaHng an enHre HTTP response
and passing i...
IntercepHng Network Traffic
(pseudo code)
send(“Network.enable”);
send(“Network.setRequestInterception”, patterns);
on(“Netw...

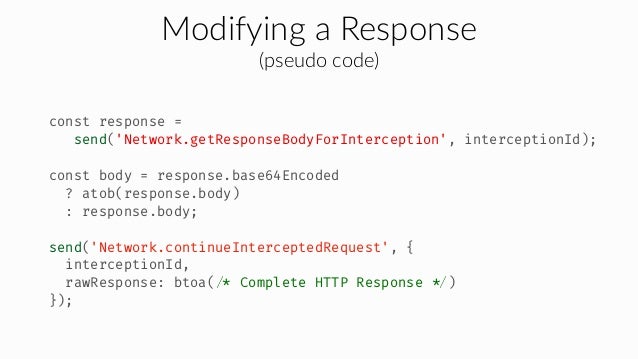

Modifying a Response
(pseudo code)
const response =
send('Network.getResponseBodyForInterception', interceptionId);
const ...

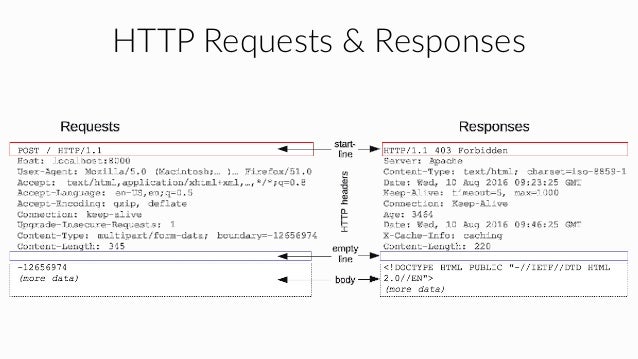

HTTP Requests & Responses
Lab 2.3
Modify intercepted requests
Modifying intercepted requests requires recreaHng an enHre HTTP response
and passing i...

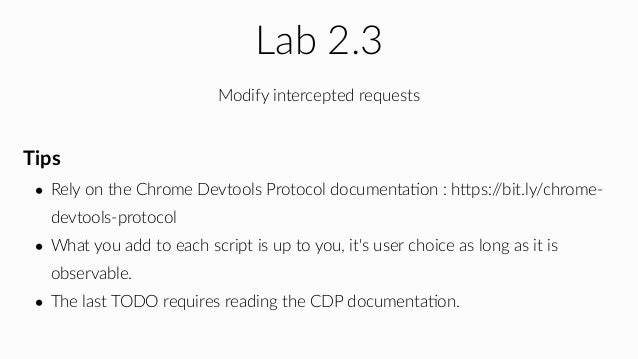

Lab 2.3
Modify intercepted requests
• Rely on the Chrome Devtools Protocol documentaHon : h?ps://bit.ly/chrome-
devtools-p...

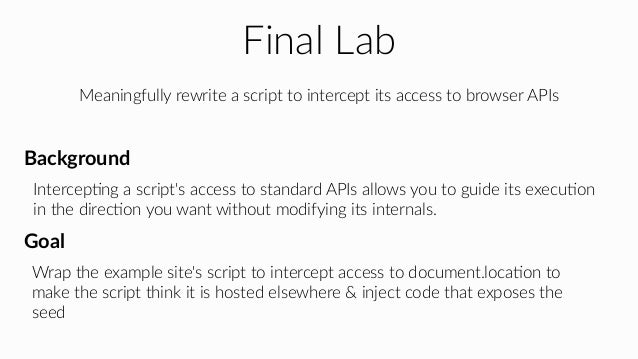

Final Lab
Meaningfully rewrite a script to intercept its access to browser APIs
IntercepHng a script's access to standard ...
