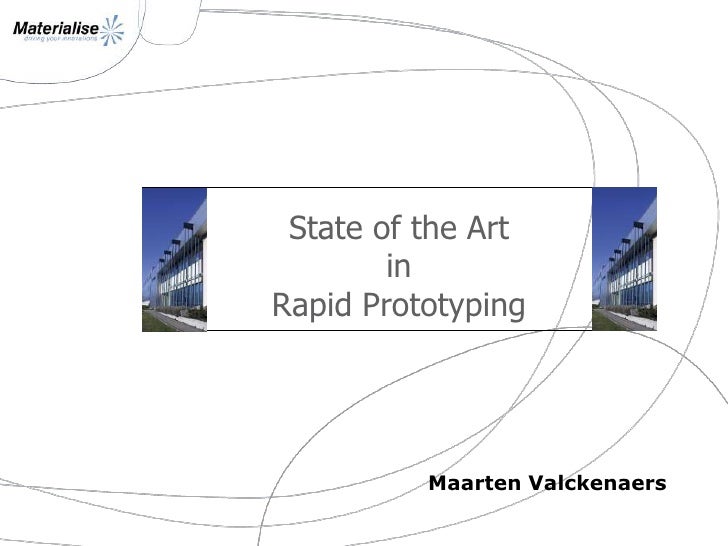

    1. 1. State of the ArtinRapidPrototyping<br />Maarten Valckenaers<br />
    2. 2. Agenda<br />Materialise…?<br />Use of prototype models<br />Examples<br />
    3. 3. What do they have in common?<br />
    4. 4. Stereolithography at Materialise<br />
    5. 5. What do they have in common?<br />
    6. 6. Materialise<br />Rapid prototyping Solutions<br />Mammoth Stereolithography<br />Vacuum Casting<br />
    7. 7. The Materialise Group:4 entities<br />Dental<br />Software<br />Industrial Services<br />.MGX<br />Each division has its own focus, but their unique combination provides Materialise its strength<br />
    8. 8. The Materialise Group:Diversity means strength<br />
    9. 9. The Materialise Group:A global presence<br />Sweden<br />Germany<br />United Kingdom<br />Czech Republic<br />Belgium<br />Ukraine<br />Austria<br />France<br />Turkey<br />Italy<br />USA<br />Japan<br />Spain<br />China<br />Taiwan<br />Hong Kong<br />India<br />Malaysia<br />Singapore<br />Australia<br /> Offices Distributors<br />
    10. 10. Agenda<br />Materialise…?<br />Use of prototype models<br />Examples<br />
    11. 11. 1.1. Why RP ?<br />Different reasons for production of prototypes<br />Limitation of risks<br />Reduction of costs<br />Time to market reduction<br />Sales & Marketing support<br />Communication<br />
    12. 12. 1.1.a. Limitation of risks<br />Does the model live up to the expectations?<br />Visual control<br />Features, ergonomics, ...<br />Does the concept “fit”<br />Acceptation customers<br />Assembly control <br />Joining of multiple components<br />Functional control<br />Mechanical, thermal, chemical, ...<br />Clickfingers, ...<br />Features, ...<br />Production control<br />Mould-ability, ...<br />
    13. 13. 1.1.a. Limitation of risks<br />The final step in production requires often large investments<br />eg. steel mold – high investment<br />One product gone wrong can mean the end for a company<br />Before making such an investment, you need to be sure that the design is correct and the market will accept it<br />In that way RP will help limit the risk <br />
    14. 14. 1.1.b. Reduction of costs<br />RP changes the design process<br />Innovative RP techniques are often cheaper than traditional model- or maquette building, and are more faithful to the real design<br />RP makes product- and process optimisation possible, with a view to cost savings<br />RP allows early detection and correction of errors<br />RP allows verification of usability of designs in an early stage<br />RP allows start-up of production lines when the series mould is not ready yet<br />
    15. 15. 1.1.c. TtM reduction<br />Prototypes allow testing of ideas while still in the concept phase<br />Different concepts in parallel<br />Immediate feeling of feasibility<br />eg. NextDay prototypes<br />Faster final “freeze” of design<br />You can enter the market with a prototype, without the final product being ready<br />Marketing<br />Initial feedback<br />
    16. 16. 1.1.d. Sales & Marketing<br />Prototypes can be used<br />To talk to customers about a new concept<br />eg. A real estate project, a new bumper concept<br />To allow customers a choice between several concepts<br />eg. P&G showing 10 new shampoo bottles to the general public<br />To start up marketing campagnes without the product being ready<br />eg. Visually perfect prototype can be used for photo shoots<br />Prototypes are the link between idea and tangible reality<br />
    17. 17. 1.1.e. Communication<br />A fysical model allows<br />Talking to customers about the concept<br />“Show & Tell”<br />Talking to suppliers about the requirements<br />Talking to colleagues with less technical knowledge<br />Determining milestones in a project, in order to give the entire team a common goal<br />
    18. 18. 1.2. Customers & trends<br />The main industries using prototypes are<br />Automotive<br />Consumer goods<br />Coffee machine, washing machine, …<br />Industrial goods<br />Instrumentation panels, printers, …<br />Design & Engineering bureaus<br />Designers of new products commissioned by other companies<br />Medical goods<br />Kidney dialyses, measuring equipment, …<br />
    19. 19. 1.2. Customers & trends<br />Rapid / Additive Manufacturing<br />Using prototyping techniques to make final series components<br />Advantages<br />Designs tailored to the customer<br />Free-form design without limitations of traditional production techniques like tooling<br />Smart design can lead to<br />Integrated functionality<br />Avoiding (expensive) assembly<br />
    20. 20. 1.2. Evolution and trends<br />Examples freeform functionality <br />
    21. 21. A few examples – .MGX Design Products<br />
    22. 22. A few examples - prototypes<br />
    23. 23. Agenda<br />Materialise…?<br />Use of prototype models<br />Examples<br />
    24. 24. Screwdriver<br />Customer did not want to wait for series components to …<br />Launch marketing already<br />Give demo parts to their sales team<br />Solution<br />Visual SLA models for marketing<br />Huge time gain<br />4. Examples<br />
    25. 25. Garbish bin<br />Customer did not want to wait for series components to …<br />Launch marketing already<br />Test compatibility of whole system<br />Solution<br />Mix of in-house technologies to have a functional and visual prototype in one.<br />Extra RIM component that whitstands high force to test the part for strength<br />Assembly of all parts with the wheels supplied by the customer<br />4. Examples<br />
    26. 26. Bumper<br />Customer wanted to introduce the concept integrating the head lights in the bumper instead of in the chassis<br />The customer needed the bumper skin to assemble everything together according to the new concept, to show this to their potential customers<br />Solution<br />Visual model for sales purposes<br />Bumper skin built in one piece on Mammoth stereolithography machine<br />Material similar to PP<br />Top quality lacqering similar to series components<br />4. Examples<br />
    27. 27. 4. Examples<br />Concept Cars: Pininfarina Sintesi<br />
    28. 28. 4. Examples<br />Hearing Aid<br />Trim plane<br />Assembly check<br />De-aeration channel<br />Shell generation<br />Point cloud<br />Battery door<br />
    29. 29. 4. Examples<br />More cases... Have a look at:<br />http://www.materialise.com/materialise/view/en/98176-Cases.html<br />MaterialiseOnsite:<br />http://www.materialiseonsite.com<br />

    ×
