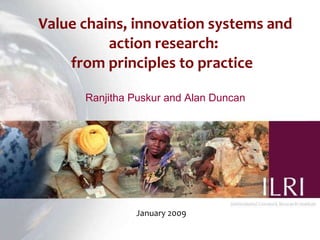

Value chains, innovation systems and action research:  from principles to practice  Ranjitha Puskur and Alan Duncan Januar...
Overview of the presentation <ul><li>Why a new approach for livestock development for poverty alleviation? </li></ul><ul><...
Historical approaches to livestock development  (and their shortcomings)

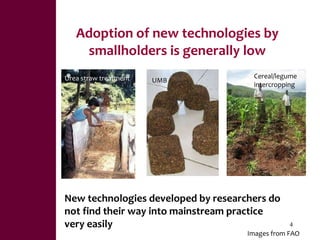

Adoption of new technologies by smallholders is generally low New technologies developed by researchers do not find their ...

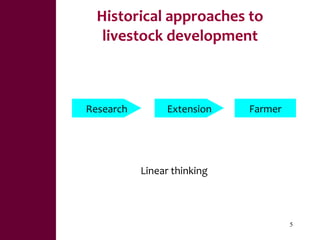

Historical approaches to livestock development Research Extension Farmer Linear thinking
Why not? <ul><li>Lack of economic assessment? </li></ul><ul><li>Not dealing with true constraints? </li></ul><ul><li>Too k...

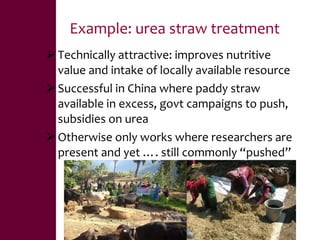

Example: urea straw treatment <ul><li>Technically attractive: improves nutritive value and intake of locally available res...

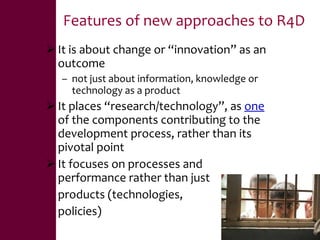

Features of new approaches to R4D  <ul><li>It is about change or “innovation” as an outcome </li></ul><ul><ul><li>not just...

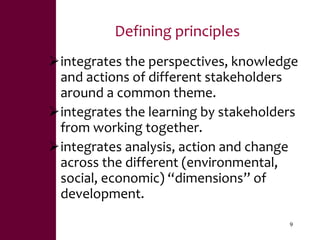

Defining principles <ul><li>integrates the perspectives, knowledge and actions of different stakeholders around a common t...

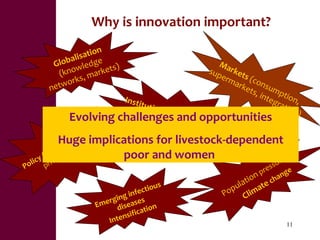

Why is innovation important?  Globalisation  (knowledge networks, markets) Institutions  (local, national, regional, globa...

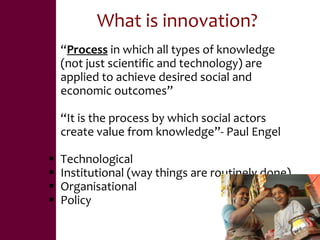

What is innovation? <ul><li>“ Process  in which all types of knowledge (not just scientific and technology) are applied to...

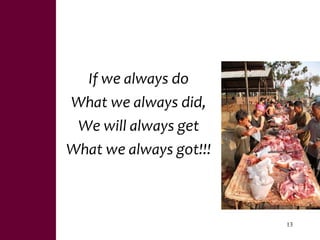

<ul><li>If we always do </li></ul><ul><li>What we always did, </li></ul><ul><li>We will always get </li></ul><ul><li>What ...

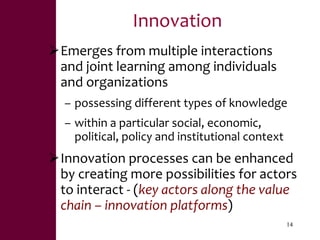

Innovation <ul><li>Emerges from multiple interactions and joint learning among individuals and organizations  </li></ul><u...

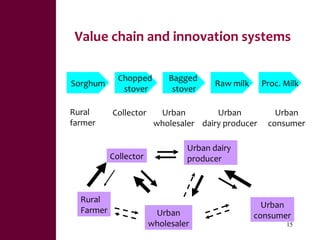

Value chain and innovation systems Urban wholesaler Rural  Farmer Collector Urban dairy producer Urban consumer Sorghum Ru...
Embedding research and extension in a wider system Research Extension
Small holder/ Dairy cattle Hub/ Local org. Milk  collection Milk processing/ marketing Breeding services Vaccinations Dewo...

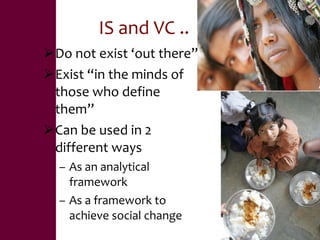

<ul><li>Do not exist ‘out there” </li></ul><ul><li>Exist “in the minds of those who define them” </li></ul><ul><li>Can be ...
Why do we need to pay attention to innovation as a process? Farmer adopting integrated system Research Technology Bulker G...

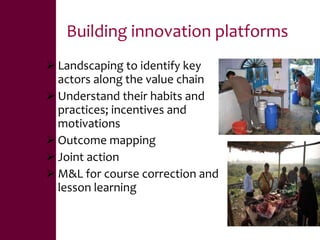

Building innovation platforms <ul><li>Landscaping to identify key actors along the value chain  </li></ul><ul><li>Understa...

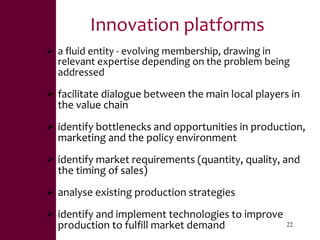

Innovation platforms <ul><li>a fluid entity - evolving membership, drawing in relevant expertise depending on the problem ...

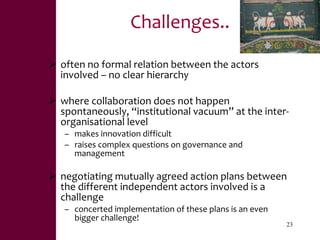

Challenges.. <ul><li>often no formal relation between the actors involved – no clear hierarchy </li></ul><ul><li>where col...

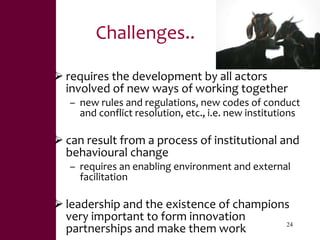

Challenges.. <ul><li>requires the development by all actors involved of new ways of working together </li></ul><ul><ul><li...

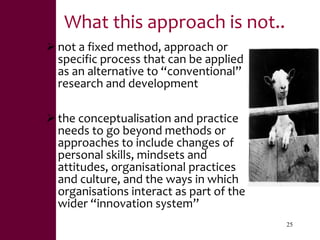

What this approach is not.. <ul><li>not a fixed method, approach or specific process that can be applied as an alternative...
Livestock system context -Biophysical -Technical -Social -Economic -Political - Institutional System diagnosis Drivers/Fac...
Pilot testing  of interventions <ul><li>Design of interventions </li></ul><ul><li>-Capacity building  of actors </li></ul>...
Case study – Ada’a woreda Ethiopia <ul><li>Currently teff/vegetables – potential for dairy </li></ul>

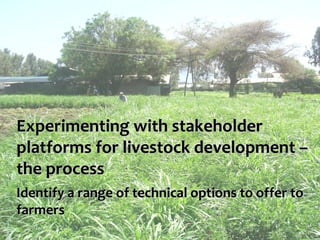

Identify a range of technical options to offer to farmers Experimenting with stakeholder platforms for livestock developme...
Conduct focus group meetings involving stakeholders and farmers to identify constraints to improved commodity production a...
Facilitate farmers to develop a strategy for testing new fodder options
Arrange supply of appropriate inputs e.g. seed or planting material

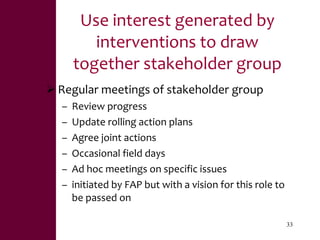

Use interest generated by interventions to draw together stakeholder group <ul><li>Regular meetings of stakeholder group <...

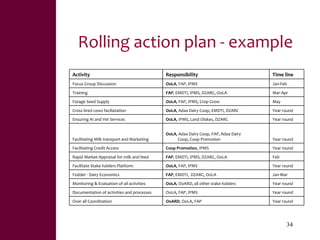

Rolling action plan - example Activity Responsibility Time line Focus Group Discussion OoLA , FAP, IPMS Jan-Feb Training F...

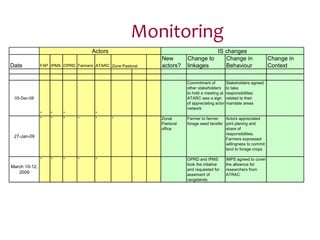

Monitoring
Innovation processes in Ada’a Ethiopia Seed sourced 44 farmers  plant on  own fields X-bred cows  sourced Farmers  purchas...
M&E for learning For whom? Actors involved in the system Who assesses? Actors, based on their different perceptions What k...

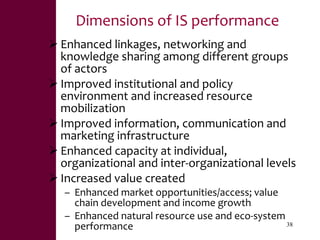

Dimensions of IS performance <ul><li>Enhanced linkages, networking and knowledge sharing among different groups of actors ...

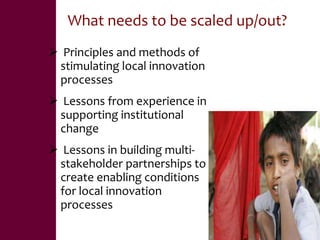

What needs to be scaled up/out? <ul><li>Principles and methods of stimulating local innovation processes </li></ul><ul><li...
Key questions to steps in scaling out process <ul><li>What factors can be identified as critical for making sustainable an...
Key questions to steps in scaling out process <ul><li>How  can different  actors  be  involved  in the innovation  process...
ILRI is creating and integrating knowledge to  enable diverse partners to find innovative solutions to make livestock a su...
