1.
DOSAGE FORM
HARISHANKAR SAHU
B.pharmacy 4th year
Shri Rawatpura Sarkar institute of pharmacy,Durg

2.
Drug:-(active pharmaceutical ingredient - API)
chemical compound intended for used in
diagnosis, treatment or prevention of
diseases.
Excipients:-
(inactive pharmaceutical ingredients)
Technological, biopharmaceutical and/or
stability reasons.
Diluents/fillers, binders, lubricants,
desintegrants, coatings, preservants and
stabilizers, colorants and flavourings
dosage form:-
Drug+excipients

3.
1.Unit solid:-
_tablets
_capsules
2.Bulk dosage form:-
_powder
_Dusting powder
1.Monophasic liquid:-
_syrup
_solution
2.Biphasic liquid:-
_emulsion
_suspension
_Inhaler
_aerosols
Cream
Paste
Gel
suppositories

4.
4

5.

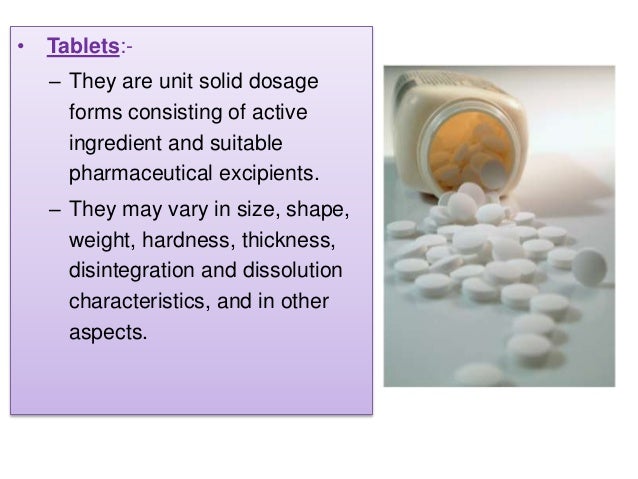

• Tablets:-
– They are unit solid dosage
forms consisting of active
ingredient and suitable
pharmaceutical excipients.
– They may vary in size, shape,
weight, hardness, thickness,
disintegration and dissolution
characteristics, and in other
aspects.

6.

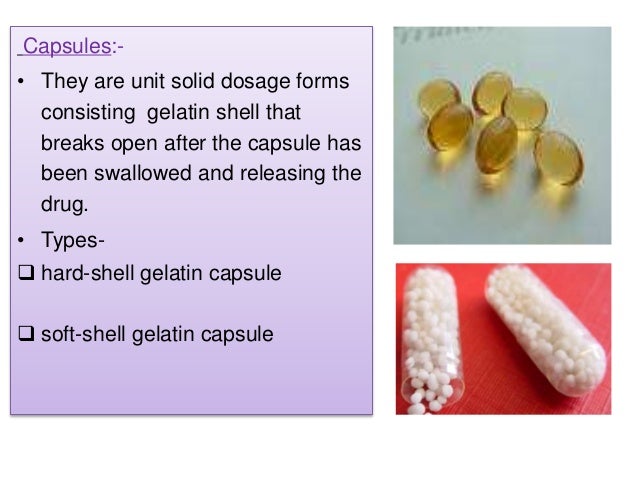

Capsules:-
• They are unit solid dosage forms
consisting gelatin shell that
breaks open after the capsule has
been swallowed and releasing the
drug.
• Types-
 hard-shell gelatin capsule
 soft-shell gelatin capsule

7.

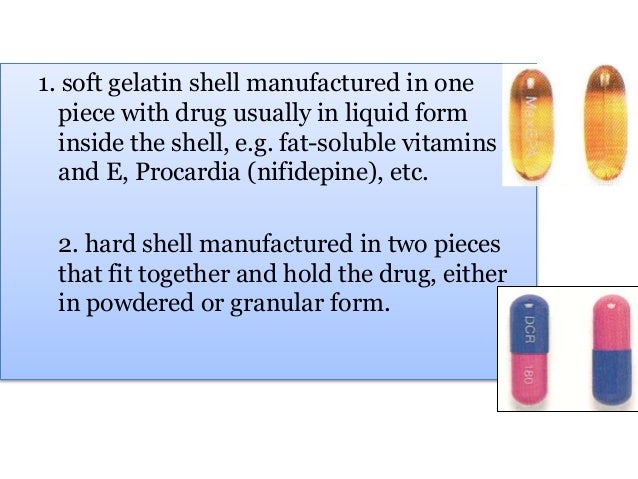

1. soft gelatin shell manufactured in one
piece with drug usually in liquid form
inside the shell, e.g. fat-soluble vitamins A
and E, Procardia (nifidepine), etc.
2. hard shell manufactured in two pieces
that fit together and hold the drug, either
in powdered or granular form.

8.
lozenges :-
tablets formed from hardened base or sugar and water
containing drug and other flavors.
They are designed to dissolve slowly
in the mouth and release the drug topically to the tissues
of mouth and throat; they are not to be swallowed.

9.

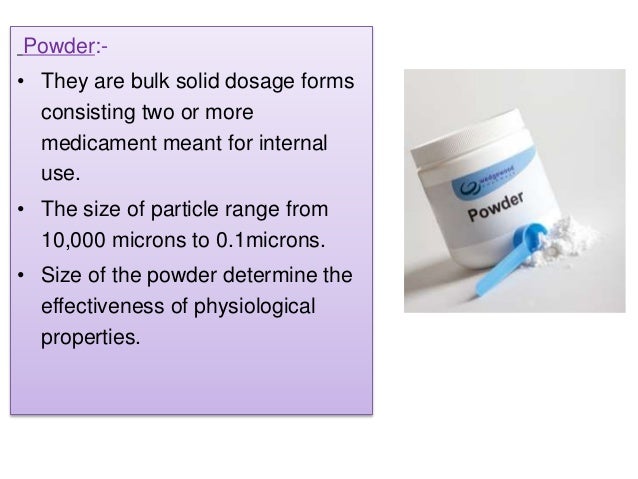

Powder:-
• They are bulk solid dosage forms
consisting two or more
medicament meant for internal
use.
• The size of particle range from
10,000 microns to 0.1microns.
• Size of the powder determine the
effectiveness of physiological
properties.

10.

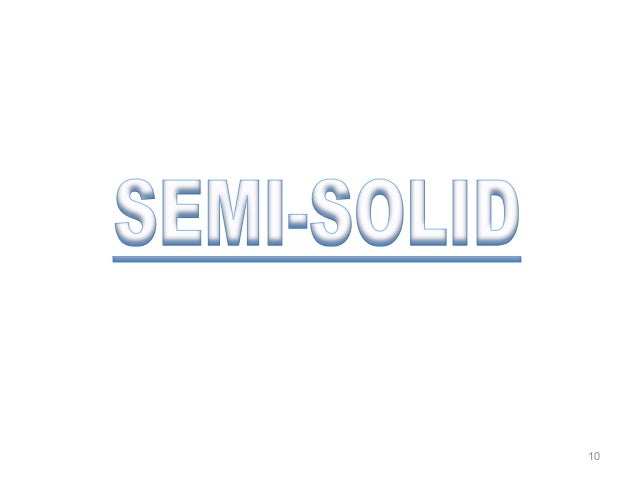

10

11.

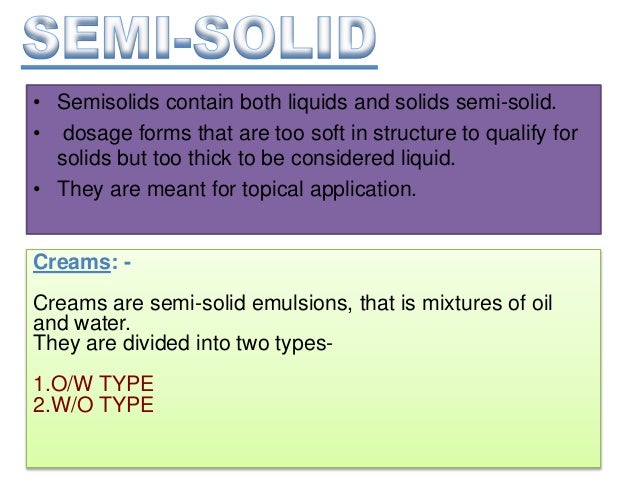

• Semisolids contain both liquids and solids semi-solid.
• dosage forms that are too soft in structure to qualify for
solids but too thick to be considered liquid.
• They are meant for topical application.
Creams: -
Creams are semi-solid emulsions, that is mixtures of oil
and water.
They are divided into two types-
1.O/W TYPE
2.W/O TYPE

12.

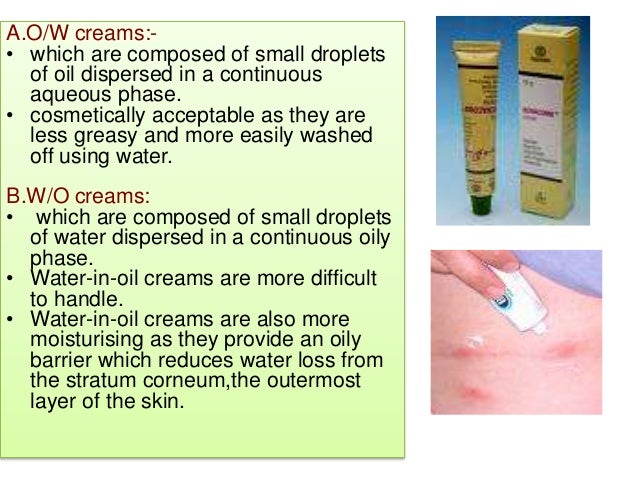

A.O/W creams:-
• which are composed of small droplets
of oil dispersed in a continuous
aqueous phase.
• cosmetically acceptable as they are
less greasy and more easily washed
off using water.
B.W/O creams:
• which are composed of small droplets
of water dispersed in a continuous oily
phase.
• Water-in-oil creams are more difficult
to handle.
• Water-in-oil creams are also more
moisturising as they provide an oily
barrier which reduces water loss from
the stratum corneum,the outermost
layer of the skin.

13.

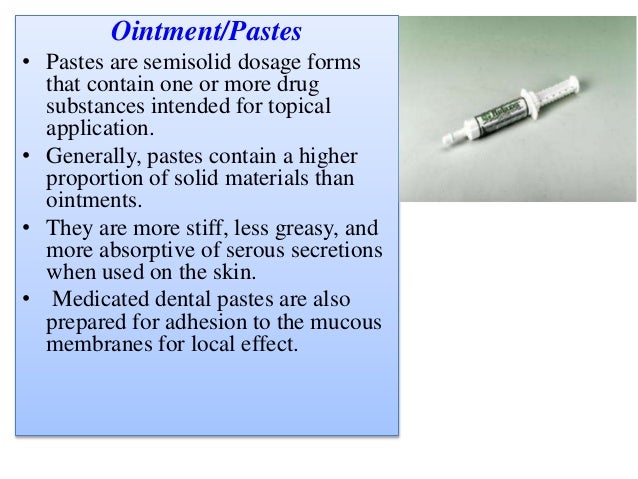

Ointment/Pastes
• Pastes are semisolid dosage forms
that contain one or more drug
substances intended for topical
application.
• Generally, pastes contain a higher
proportion of solid materials than
ointments.
• They are more stiff, less greasy, and
more absorptive of serous secretions
when used on the skin.
• Medicated dental pastes are also
prepared for adhesion to the mucous
membranes for local effect.

14.

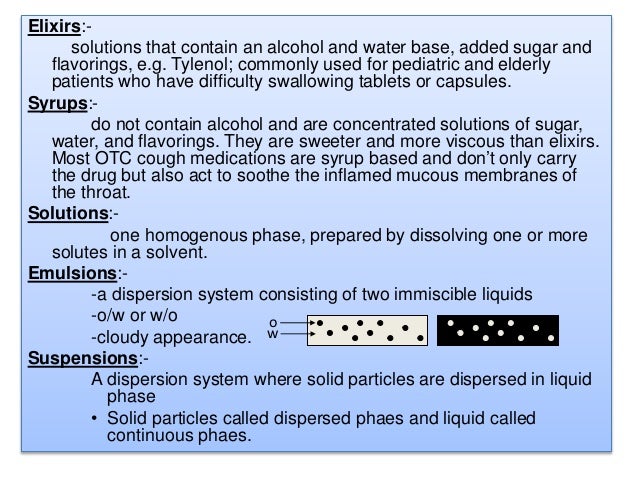

Elixirs:-
solutions that contain an alcohol and water base, added sugar and
flavorings, e.g. Tylenol; commonly used for pediatric and elderly
patients who have difficulty swallowing tablets or capsules.
Syrups:-
do not contain alcohol and are concentrated solutions of sugar,
water, and flavorings. They are sweeter and more viscous than elixirs.
Most OTC cough medications are syrup based and don’t only carry
the drug but also act to soothe the inflamed mucous membranes of
the throat.
Solutions:-
one homogenous phase, prepared by dissolving one or more
solutes in a solvent.
Emulsions:-
-a dispersion system consisting of two immiscible liquids
-o/w or w/o
-cloudy appearance.
Suspensions:-
A dispersion system where solid particles are dispersed in liquid
phase
• Solid particles called dispersed phaes and liquid called
continuous phaes.
o
w

15.

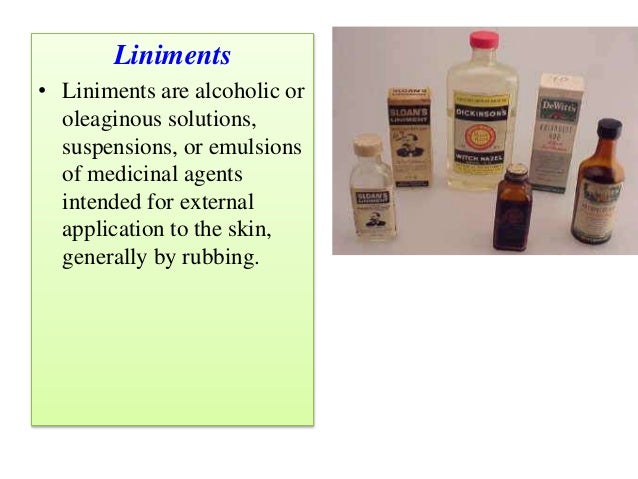

Liniments
• Liniments are alcoholic or
oleaginous solutions,
suspensions, or emulsions
of medicinal agents
intended for external
application to the skin,
generally by rubbing.

16.

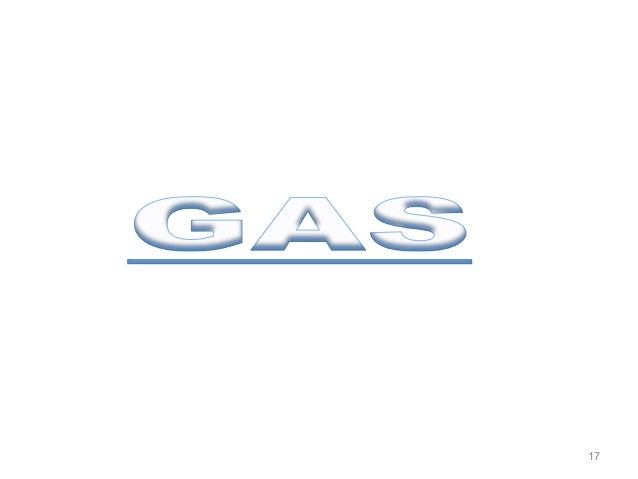

17

17.
Inhalations
• Inhalations are finely
powdered drug
substances, solutions, or
suspensions of drug sub-
stances administered by
the nasal or oral
respiratory route for local
or systemic effects.
• Special devices are used
to facilitate
administration.
Thanks to a new insulin inhaler, researchers say, the daily injections many
diabetics take may become relics of the past.

18.
aerosol sprays
- Several different types
of pharmaceutical
product may be
packaged in
pressurized
dispensers, known as
aerosols.
- used as surface
disinfectants, wound or
burn dressing, relieve
irritation of bites.

19.

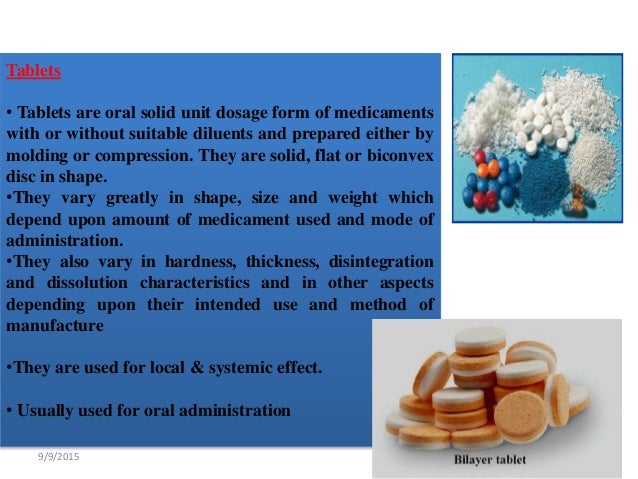

Tablets
• Tablets are oral solid unit dosage form of medicaments
with or without suitable diluents and prepared either by
molding or compression. They are solid, flat or biconvex
disc in shape.
•They vary greatly in shape, size and weight which
depend upon amount of medicament used and mode of
administration.
•They also vary in hardness, thickness, disintegration
and dissolution characteristics and in other aspects
depending upon their intended use and method of
manufacture
•They are used for local & systemic effect.
• Usually used for oral administration
9/9/2015 21

20.
Advantages
– Large scale production at
lowest cost
– Easiest and cheapest to
package and ship
– High stability
– Easy to handling
– Easy to administration
– Lightest and most compact
– Tablets are formulated as a
special release of products
such as enteric or delayed
release products.

21.
Disadvantages
• It’s not suitable for poorly
water-soluble or poorly
absorbable drugs, less
bioavailability.
• Drugs that are sensitive to
oxygen or may also require
special coating.
• Enhances local irritant effect
of some drugs or cause harm
to the gastrointestinal mucosa

22.
Types of tablets
• 1)compressed tablets
• 2)sugar coated tablets
• 3)film coated tablets
• 4)enteric coated tablets
• 5)effervescent tablets
• 6)chewable tablets
• 7)dispersible tablets
• 8)sustained release tablets
• 9)multilayer tablets
• 10)sublingual tablets
• 11)buccal tablets
• 12)vaginal tablets

23.

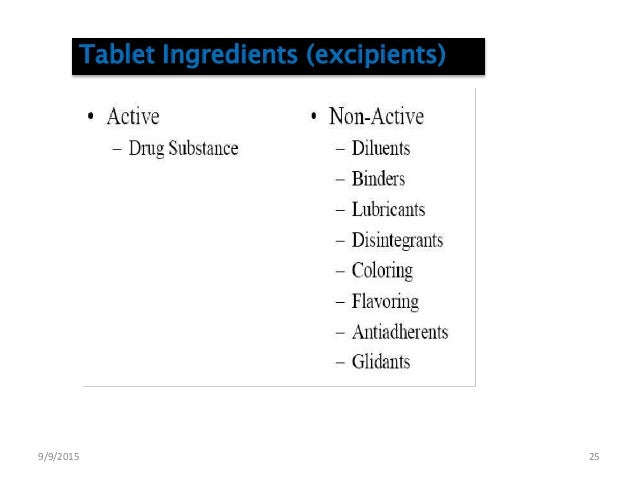

Tablet Ingredients (excipients)
9/9/2015 25

24.
9/9/2015 26
They use to make required bulk of the tablet .
to provide better tablet properties such as to improve cohesion,
to permit use of direct compression manufacturing
to improve flow
Ex:-
1. Lactose, sucrose, mannitol; frequently used, water soluble,
improves tablet disintegration.
2.Dicalcium phosphate dihydrate, insoluble in water,
disintegrating agent is a must.
3. Mannitol, dextrose, sucrose,
4. Lactose-anhydrous and spray dried lactose
5.Directly compressed starch-Sta Rx 1500
6. Hydrolyzed starch-Emdex and Celutab
7. Microcrystalline cellulose-Avicel (PH 101, 102)
Filler or diluent

25.
9/9/2015 27

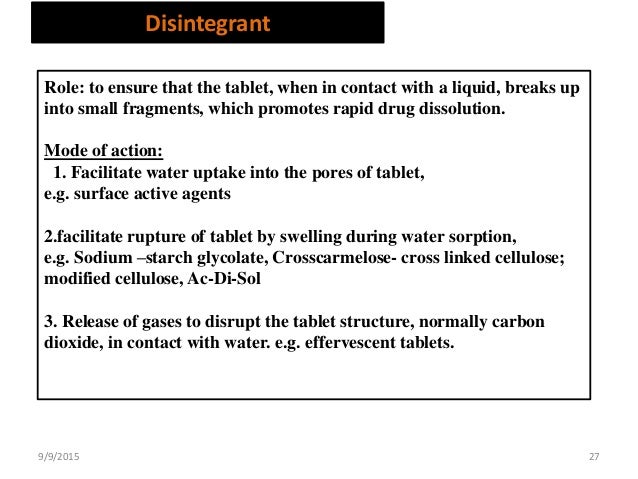

Role: to ensure that the tablet, when in contact with a liquid, breaks up
into small fragments, which promotes rapid drug dissolution.
Mode of action:
1. Facilitate water uptake into the pores of tablet,
e.g. surface active agents
2.facilitate rupture of tablet by swelling during water sorption,
e.g. Sodium –starch glycolate, Crosscarmelose- cross linked cellulose;
modified cellulose, Ac-Di-Sol
3. Release of gases to disrupt the tablet structure, normally carbon
dioxide, in contact with water. e.g. effervescent tablets.
Disintegrant

26.
9/9/2015 28

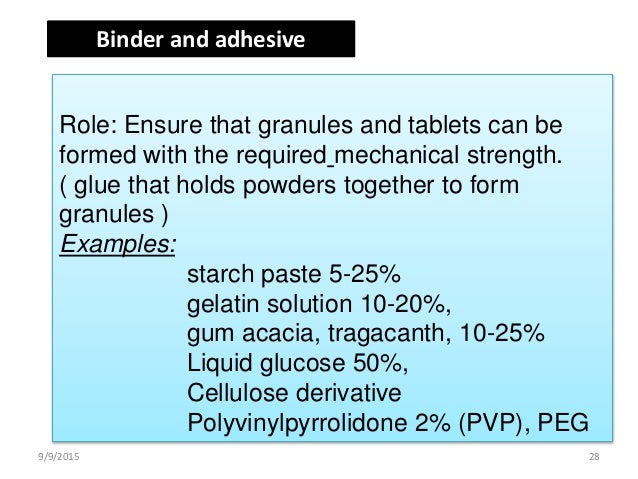

Role: Ensure that granules and tablets can be
formed with the required mechanical strength.
( glue that holds powders together to form
granules )
Examples:
starch paste 5-25%
gelatin solution 10-20%,
gum acacia, tragacanth, 10-25%
Liquid glucose 50%,
Cellulose derivative
Polyvinylpyrrolidone 2% (PVP), PEG
Binder and adhesive

27.
9/9/2015 29

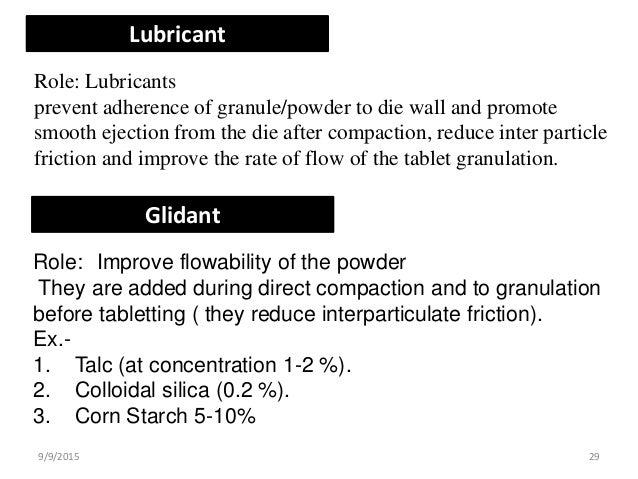

Role: Lubricants
prevent adherence of granule/powder to die wall and promote
smooth ejection from the die after compaction, reduce inter particle
friction and improve the rate of flow of the tablet granulation.
Lubricant
Glidant
Role: Improve flowability of the powder
They are added during direct compaction and to granulation
before tabletting ( they reduce interparticulate friction).
Ex.-
1. Talc (at concentration 1-2 %).
2. Colloidal silica (0.2 %).
3. Corn Starch 5-10%

28.

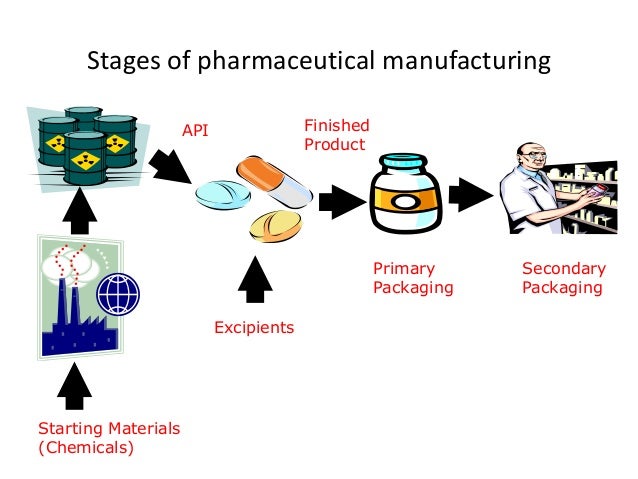

Stages of pharmaceutical manufacturing
API
Excipients
Primary
Packaging
Secondary
Packaging
API Finished
Product
Starting Materials
(Chemicals)

29.
Processing routes
Fill die
Coating, Packaging etc..
Compress Tablet
Direct Compression
Drug
Diluent
Glidant
Disintegrant
Lubricant Mixing
Mixing
Dry Granulation
Disintegrant
Glidant
Lubricant
Drug
Diluent
Lubricant
Mixing
Compression
Comminution
Screening
Mixing
Mixing
Wetting
Granulation
Drying
Screening
Mixing
Drug
Diluent
Binder
Solvent
Disintegrant
Glidant
Lubricant
Wet Granulation
Other Routes
Fluidized bed granulation
Extrusion / rotary granulation
Tablet
Compression

30.

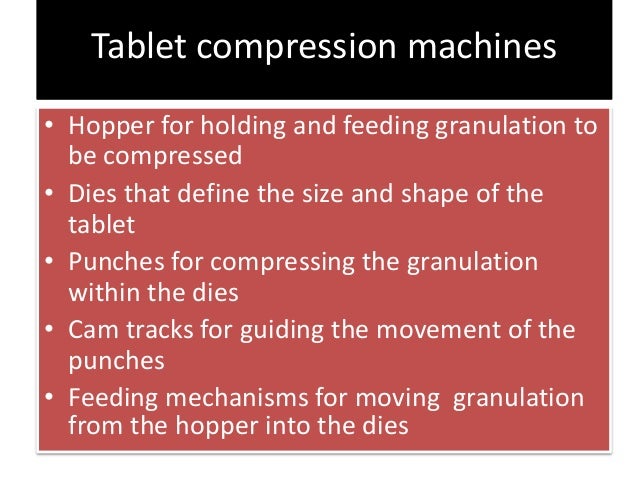

Tablet compression machines
• Hopper for holding and feeding granulation to
be compressed
• Dies that define the size and shape of the
tablet
• Punches for compressing the granulation
within the dies
• Cam tracks for guiding the movement of the
punches
• Feeding mechanisms for moving granulation
from the hopper into the dies

31.
Single punch machine
Multiple punch machine

32.
Upper and
Lower Collar
Collar locker
Single Punch Machine
(Tablets)

33.
Multi-station rotary presses
• The head of the tablet machine that holds the
upper punches, dies and lower punches in
place rotates
• As the head rotates, the punches are guided
up and down by fixed cam tracks, which
control the sequence of filling, compression
and ejection.
• The portions of the head that hold the upper
and lower punches are called the upper an
lower turrets

34.
