Windows Phone 7 - Real World Performance Challenges

2,791 views

Published on

The presentation focused on performance challenges I've come across when working on real-world WP7 applications using Silverlight. These challenges include optimizing startup time of applications, using ListBox with a large number of items, serialization / deserialization, working with images, accessing the network and realtime drawing on the screen.

  • Be the first to comment

Windows Phone 7 - Real World Performance Challenges

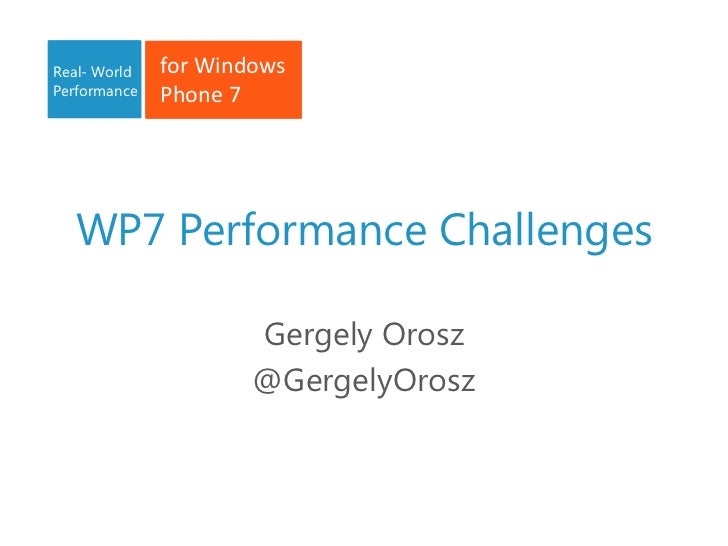

  1. 1. WP7 Performance Challenges<br />GergelyOrosz<br />@GergelyOrosz<br />
  2. 2. WP7 Performance Challenges<br />My Experience<br />Everyday performance challenges<br />Visually rich app performancechallenges<br />Computing intense performance challenges<br />
  3. 3. My Experience<br />
  4. 4. Cocktail Flow<br />
  5. 5. Cocktail Flow Challenges<br />Serialization / Deserilaization<br />Animations<br />Downloading packages: networking<br />Rich ListBoxes<br />Emulator vs physical device<br />
  6. 6. Visiblox Charts for WP7<br />
  7. 7. Visiblox Charts for WP7 Challenges<br />Avoiding overloading of the UI thread<br />Realtime drawing on the screen<br />How fast can you draw on the phone?<br />Memory Leaks<br />Data binding<br />DPs<br />
  8. 8. EverydayPerformance Challenges<br />
  9. 9. Networking & the UI<br />Question<br />
  10. 10. Networking & the UI<br />WebClient: simple, easy<br />… runs on the UI thread!<br />HttpWebRequest: complicated &performant<br />
  11. 11. Serialization & Deserialization<br />XmlSerializer<br />
  12. 12. Serialization & Deserialization<br />Binary Serialization<br />DataContractSerializer<br />Json.NET<br />sharpSerializer<br />Mike Talbot’s Silverlight Serializer<br />Sterling Isolated Storage DB<br />Ninja Database Pro<br />
  13. 13. Serialization & Deserialization<br />Load<br />Save<br />
  14. 14. ListBox<br />Cool in the beginning<br />Rusty when you start adding stuff<br />Awfully slow when you start tweaking visuals<br />Pain to make it half as fast as on the iPhone<br />
  15. 15. ListBox<br />Slow with > 50-200 elements<br />Virtualized, but….<br />Several workarounds<br />Windows Phone Team: ListBox best practices<br />3rd party Listbox (Telerik)<br />Implement paging<br />
  16. 16. Emulator vs Physical Device<br />Emulator usually 2-5x times faster<br />GPU intensive tasks: emulator can be slower<br />Test (frequently) on the device<br />
  17. 17. Small Things<br />ProgressBar<br />Splashscreen while loading<br /> PerformanceProgressBar<br />
  18. 18. Visually Rich App Performance Challenges<br />
  19. 19. Frame Rate Counters<br />FPS (render > 30, UI > 15)<br />Texture mem. usage<br />Fill Rate (<2.5)<br />Blog post explaining these<br />
  20. 20. BitmapCachevs No Caching<br />No caching  GUP calculates every time<br />BitmapCache  “screenshot” saved, no GPU needed<br />
  21. 21. BitmapCachevs no Caching<br />
  22. 22. Image Do’s and Don’t‘s<br />Fast (with BitmapCache):<br />Transforms: Scale, Rotate, Translate<br />Opacitiy change<br />Clipping region change<br />Slow<br />Changing image with / height<br />OpacityMask<br />Non-rectangular clipping areas<br />Jpegs are (somewhat) faster than pngs<br />
  23. 23. Computing Intensive Applications<br />
  24. 24. Avoid Overloading the UI Thread<br />Use BackgroundWorker<br />Throttle calls to UI while it’s busyvia the “render loop”:<br />E.g a chart is redrawn whenever the Zoom changes<br />A chart redraw takes 100ms<br />The Zoom is changed at 0ms, 40ms, 80ms, 120ms<br />The chart will still be drawing at 40ms & 80ms!<br />
  25. 25. Rendering Real-Time<br />Lightweight vs heavyweight elements<br />Shapes vs Controls vsUserControls<br />Drawing is more expensive than redrawing<br />Reuse existing elements<br />WriteableBitmap & WriteableBitmapEx<br />Working with large Paths: buggy, slow<br />
  26. 26. Extreme Optimalizations<br />Data Binding<br />Avoid when there are thousands of objects<br />Takes up memory & notifications may fire too often<br />DPs<br />Only use if needed<br />Slow to read  cache in CLR properties<br />
  27. 27. Summary<br />Networking & effect on UI thread<br />Serialization & deserialization<br />ListBox<br />BitmapCaching<br />
  28. 28. Closing Thoughts<br />Use the performance counters<br />Performance can be optimized<br />(or you can always cut features…)<br />Test, test, test - on a device!<br />MIX 2011 – performance tool?<br />

×
