Diesel Forum Presentation

  1. 1. Adam Gryglak, Lead Diesel Engineer<br />Ed Waszczenko, Engine Durability Engineer<br />Scott DeRaad, NVH Engineer <br />

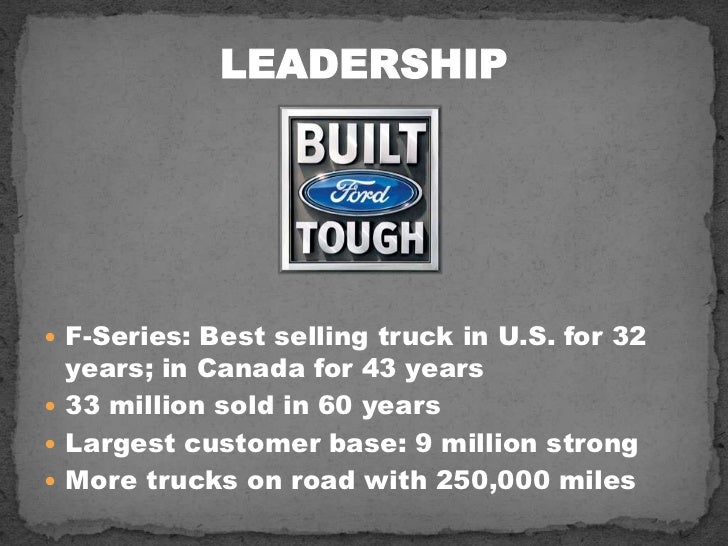

  2. 2. LEADERSHIP<br />F-Series: Best selling truck in U.S. for 32 years; in Canada for 43 years<br />33 million sold in 60 years<br />Largest customer base: 9 million strong<br />More trucks on road with 250,000 miles<br />
  3. 3. SUPER DUTY CUSTOMER<br /><ul><li>60% of commercial segment drives Super Duty
  4. 4. They build America’s infrastructure
  5. 5. Wyoming energy company tows 21,000 lbs to </li></ul> natural gas wells <br /><ul><li> Florida utility company tows “swamp</li></ul> buggies” and goes off-road<br /><ul><li> Texas construction firm hauls away thousands</li></ul> of pounds concrete <br /><ul><li> Chassis cab upfitted as fire trucks, dump trucks</li></ul> tow trucks, aerial trucks<br />
  6. 6. DIESEL TECHNOLOGY<br />Designed and built by Ford<br />New compacted graphite iron block v. cast iron <br />Aluminum cylinder heads v. <br /> cast iron<br />Innovative inboard exhaust and outboard intake architecture<br />Industry-first single-sequential turbo housed in the “V” of the engine block<br />30,000 psi high-pressure fuel system<br />Compatible with B20 Biodiesel<br />Tested to 250,000 miles <br />111 powertrain patents <br />

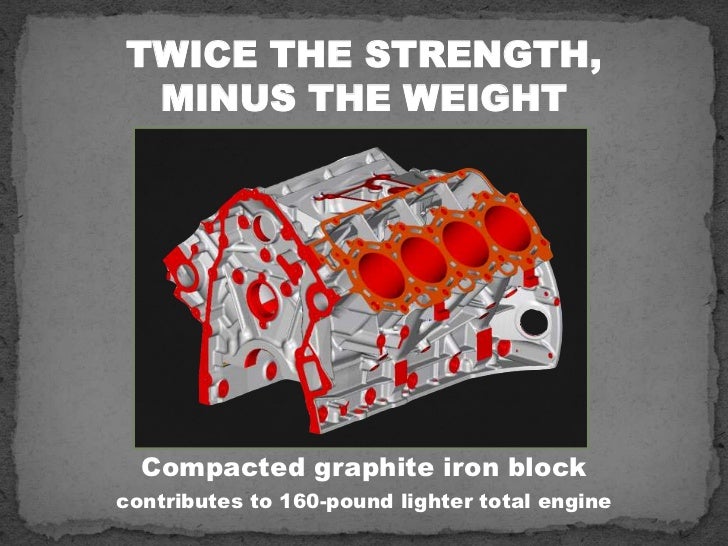

  7. 7. TWICE THE STRENGTH, <br />MINUS THE WEIGHT<br />Compacted graphite iron block<br />contributes to 160-pound lighter total engine<br />

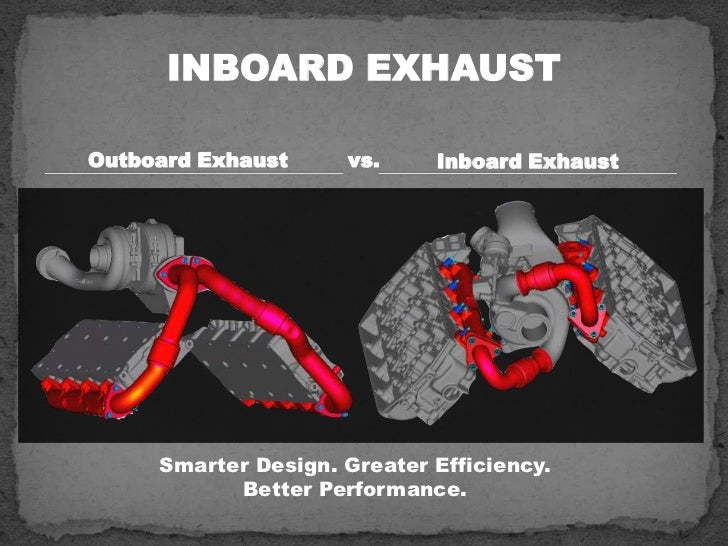

  8. 8. INBOARD EXHAUST<br />Outboard Exhaust<br />vs.<br />Inboard Exhaust<br />Smarter Design. Greater Efficiency. <br />Better Performance.<br />

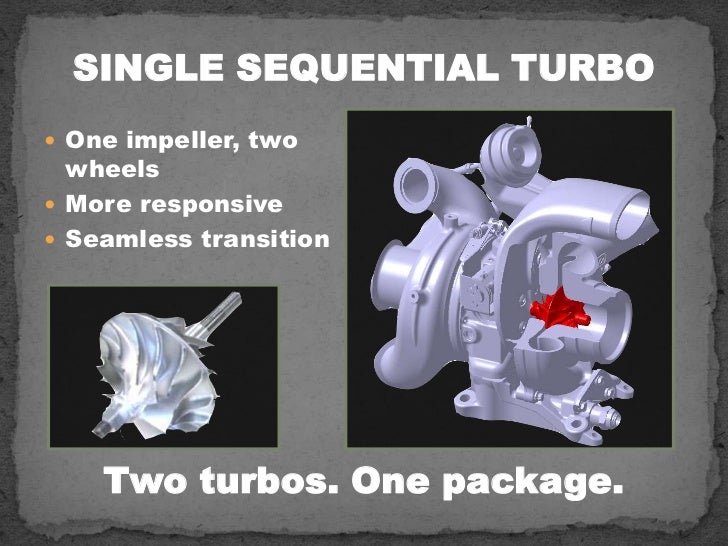

  9. 9. SINGLE SEQUENTIAL TURBO<br />One impeller, two wheels<br />More responsive<br />Seamless transition<br />Two turbos. One package. <br />
  10. 10. 30,000 PSI HIGH PRESSURE <br />FUEL SYSTEM<br />Common-rail System<br />Rigorous testing. Proven durability.<br />

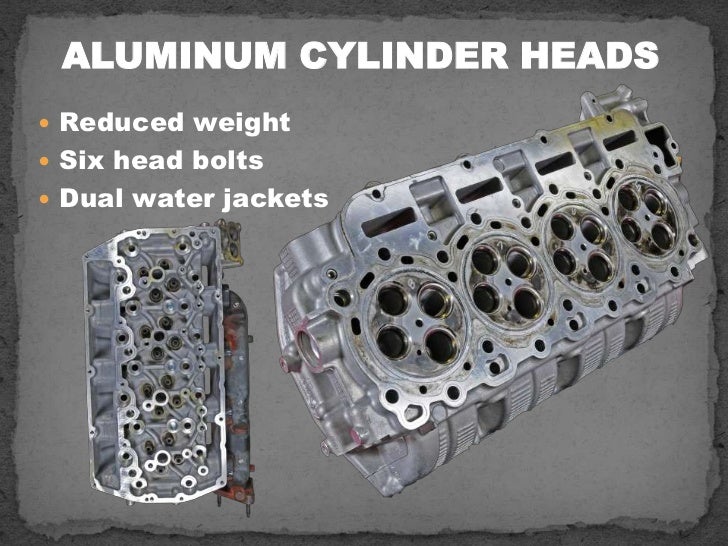

  11. 11. ALUMINUM CYLINDER HEADS<br />Reduced weight<br />Six head bolts<br />Dual water jackets<br />
  12. 12. NOISE VIBRATION HARSHNESS<br />Keeping it Quiet<br />Twin pilot combustion<br />Robust turbo mount <br />Tuned acoustic covers<br />Composite oil pan<br />Inboard exhaust –<br /> less radiated noise<br />

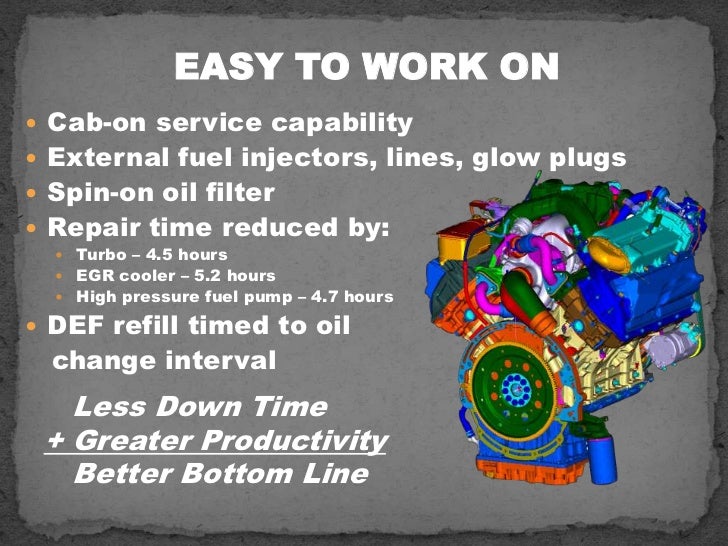

  13. 13. EASY TO WORK ON<br />Cab-on service capability <br />External fuel injectors, lines, glow plugs<br />Spin-on oil filter<br />Repair time reduced by:<br />Turbo – 4.5 hours<br />EGR cooler – 5.2 hours <br />High pressure fuel pump – 4.7 hours <br />DEF refill timed to oil <br /> change interval <br />Less Down Time <br />+ Greater Productivity<br /> Better Bottom Line <br />

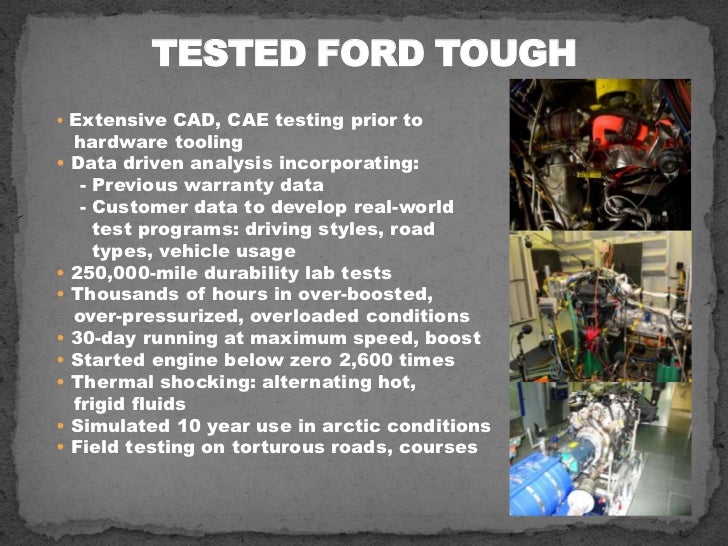

  14. 14. TESTED FORD TOUGH<br /><ul><li>Extensive CAD, CAE testing prior to </li></ul> hardware tooling<br /><ul><li> Data driven analysis incorporating: </li></ul> - Previous warranty data <br /> - Customer data to develop real-world<br /> test programs: driving styles, road <br /> types, vehicle usage<br /><ul><li> 250,000-mile durability lab tests
  15. 15. Thousands of hours in over-boosted, </li></ul> over-pressurized, overloaded conditions<br /><ul><li> 30-day running at maximum speed, boost
  16. 16. Started engine below zero 2,600 times
  17. 17. Thermal shocking: alternating hot, </li></ul> frigid fluids <br /><ul><li> Simulated 10 year use in arctic conditions

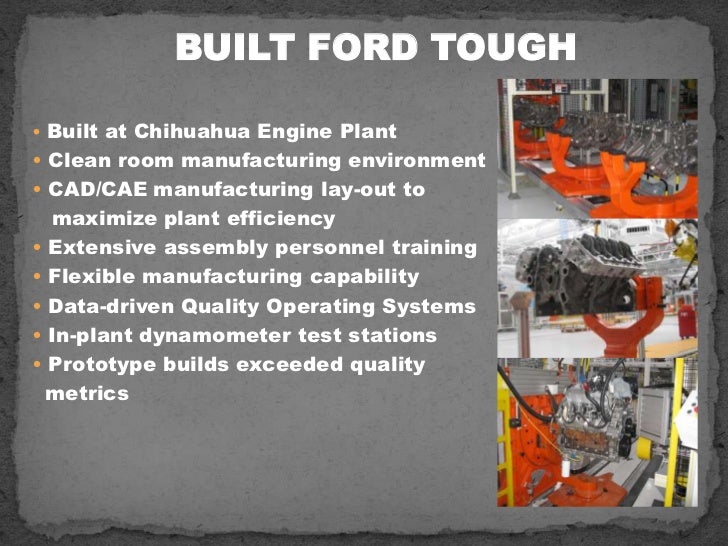

  18. 18. Field testing on torturous roads, courses </li></li></ul><li>BUILT FORD TOUGH<br /><ul><li>Built at Chihuahua Engine Plant
  19. 19. Clean room manufacturing environment
  20. 20. CAD/CAE manufacturing lay-out to </li></ul> maximize plant efficiency <br /><ul><li> Extensive assembly personnel training
  21. 21. Flexible manufacturing capability
  22. 22. Data-driven Quality Operating Systems
  23. 23. In-plant dynamometer test stations
  24. 24. Prototype builds exceeded quality </li></ul> metrics<br />

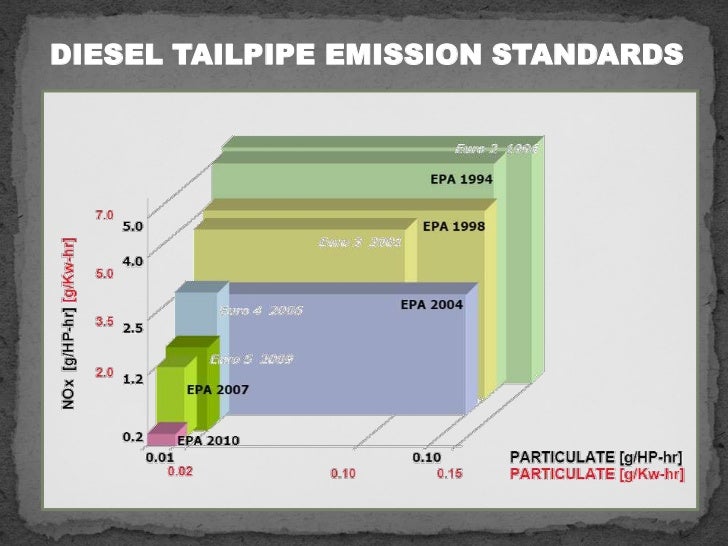

  25. 25. DIESEL TAILPIPE EMISSION STANDARDS<br />
  26. 26. SELECTIVE CATALYTIC REDUCTION<br />
  27. 27. THE WHOLE PACKAGE<br />

×
