1.
2017
Fernando Petre, Technical Manager, CAD/PLM Consultant
E: fernando.petre@ADInnovation.ro
M: +40 725 155 588
Shortcuts in 3DEXPERIENCE

2.
2017

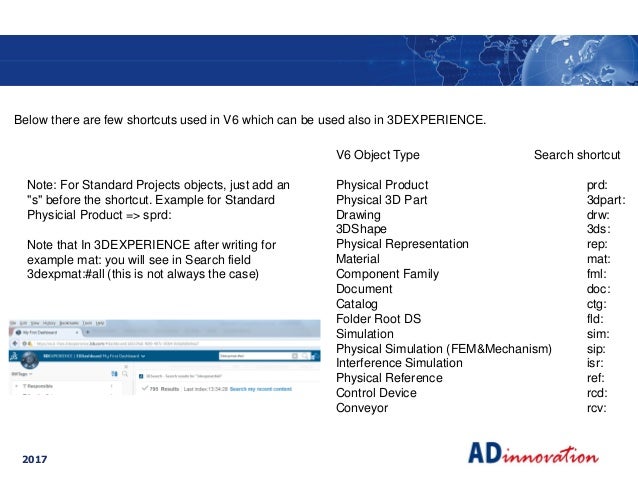

V6 Object Type Search shortcut
Physical Product prd:
Physical 3D Part 3dpart:
Drawing drw:
3DShape 3ds:
Physical Representation rep:
Material mat:
Component Family fml:
Document doc:
Catalog ctg:
Folder Root DS fld:
Simulation sim:
Physical Simulation (FEM&Mechanism) sip:
Interference Simulation isr:
Physical Reference ref:
Control Device rcd:
Conveyor rcv:
Note: For Standard Projects objects, just add an
"s" before the shortcut. Example for Standard
Physicial Product => sprd:
Note that In 3DEXPERIENCE after writing for
example mat: you will see in Search field
3dexpmat:#all (this is not always the case)
Below there are few shortcuts used in V6 which can be used also in 3DEXPERIENCE.

3.
2017
V6 Object Type Search shortcut
Fastener fst:
Inspect rin:
RuleSet kws:
Check kwc:
Rule kwr:
Validation val:
Template tpl:
Collaborative Design Workspace wks:
NC Machine ncm:
Machining Cell ncc:
PPR Context ppr:
Robot rrb:
Storage rst:
NC Tool nct:
Machining Process ncp:
NC Output nco:
ResourceSet ars:
Resource rsc:
Transport rtr:
User Defined rud:
Worker rwk:

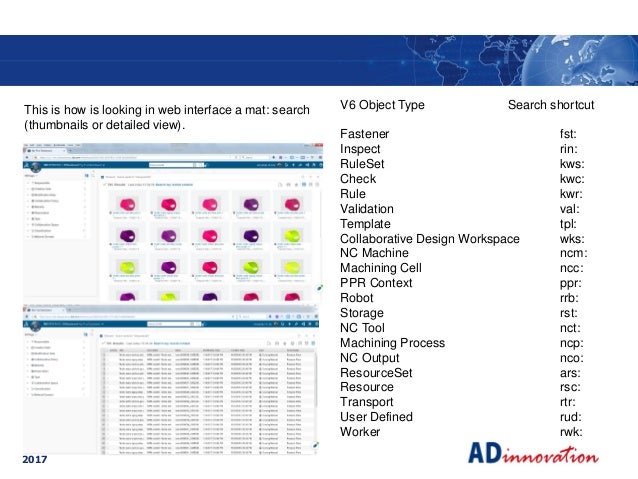

This is how is looking in web interface a mat: search
(thumbnails or detailed view).

4.
2017

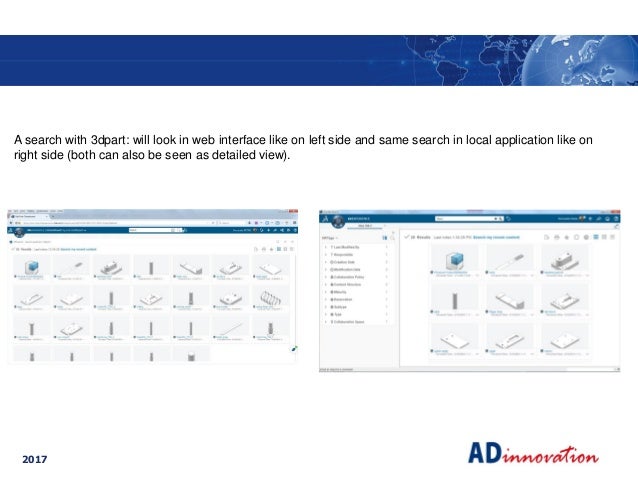

A search with 3dpart: will look in web interface like on left side and same search in local application like on
right side (both can also be seen as detailed view).

5.
2017

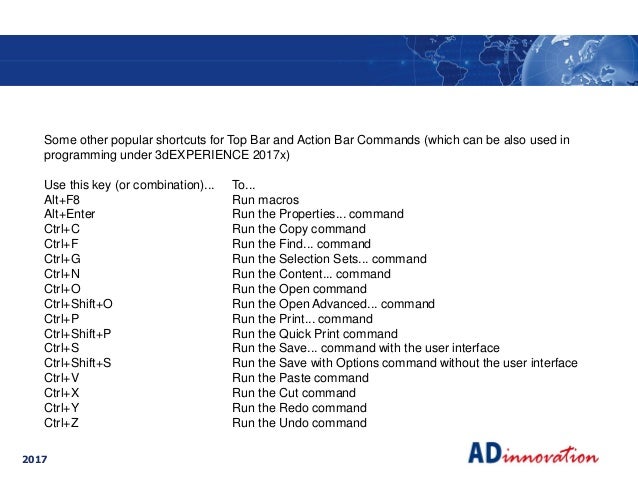

Some other popular shortcuts for Top Bar and Action Bar Commands (which can be also used in
programming under 3dEXPERIENCE 2017x)
Use this key (or combination)... To...
Alt+F8 Run macros
Alt+Enter Run the Properties... command
Ctrl+C Run the Copy command
Ctrl+F Run the Find... command
Ctrl+G Run the Selection Sets... command
Ctrl+N Run the Content... command
Ctrl+O Run the Open command
Ctrl+Shift+O Run the Open Advanced... command
Ctrl+P Run the Print... command
Ctrl+Shift+P Run the Quick Print command
Ctrl+S Run the Save... command with the user interface
Ctrl+Shift+S Run the Save with Options command without the user interface
Ctrl+V Run the Paste command
Ctrl+X Run the Cut command
Ctrl+Y Run the Redo command
Ctrl+Z Run the Undo command

6.
2017

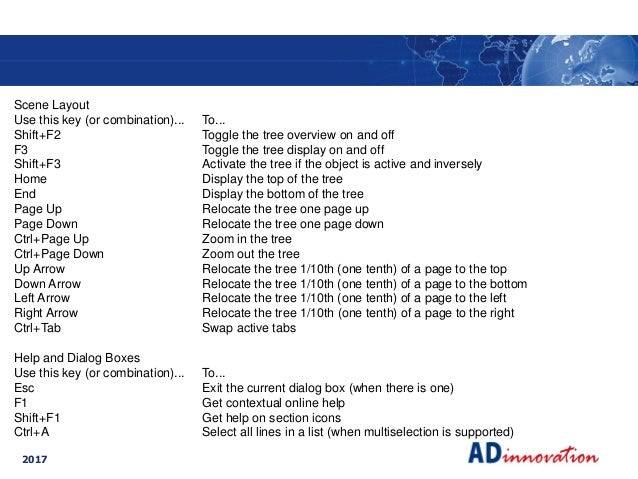

Scene Layout
Use this key (or combination)... To...
Shift+F2 Toggle the tree overview on and off
F3 Toggle the tree display on and off
Shift+F3 Activate the tree if the object is active and inversely
Home Display the top of the tree
End Display the bottom of the tree
Page Up Relocate the tree one page up
Page Down Relocate the tree one page down
Ctrl+Page Up Zoom in the tree
Ctrl+Page Down Zoom out the tree
Up Arrow Relocate the tree 1/10th (one tenth) of a page to the top
Down Arrow Relocate the tree 1/10th (one tenth) of a page to the bottom
Left Arrow Relocate the tree 1/10th (one tenth) of a page to the left
Right Arrow Relocate the tree 1/10th (one tenth) of a page to the right
Ctrl+Tab Swap active tabs
Help and Dialog Boxes
Use this key (or combination)... To...
Esc Exit the current dialog box (when there is one)
F1 Get contextual online help
Shift+F1 Get help on section icons
Ctrl+A Select all lines in a list (when multiselection is supported)

7.
2017
Thank you!
