1.
2017
Fernando Petre, Technical Manager, CAD/PLM Consultant
E: fernando.petre@ADInnovation.ro
M: +40 725 155 588
Save CATIA V5 CATDrawings to CADAM (CDD) files

2.
2017

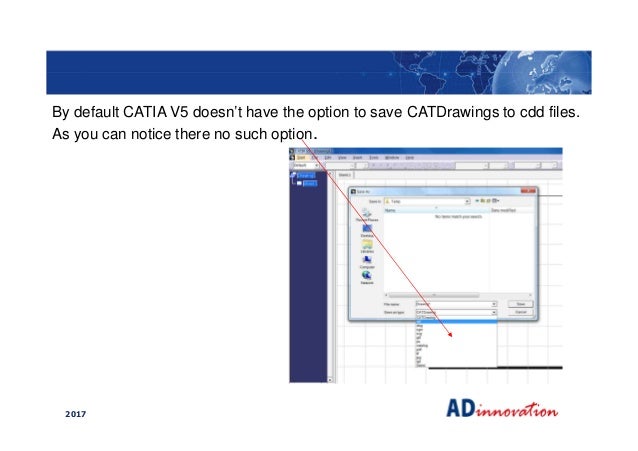

By default CATIA V5 doesn’t have the option to save CATDrawings to cdd files.
As you can notice there no such option.

3.
2017

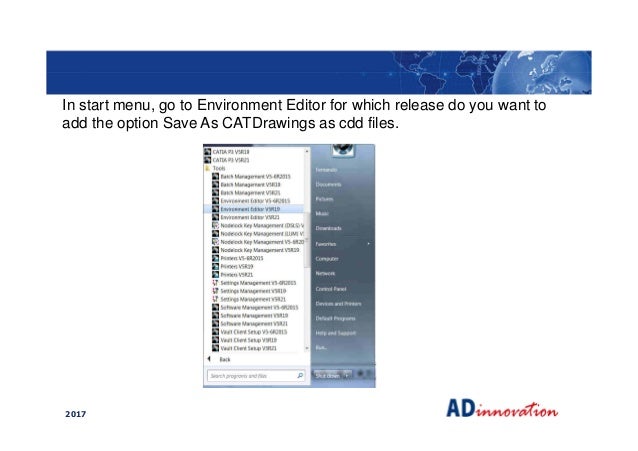

In start menu, go to Environment Editor for which release do you want to
add the option Save As CATDrawings as cdd files.

4.
2017
Select the desired environment and Edit this one.

5.
2017

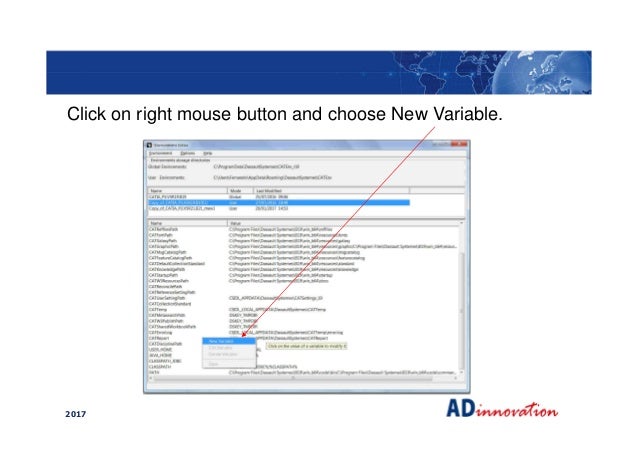

Click on right mouse button and choose New Variable.

6.
2017

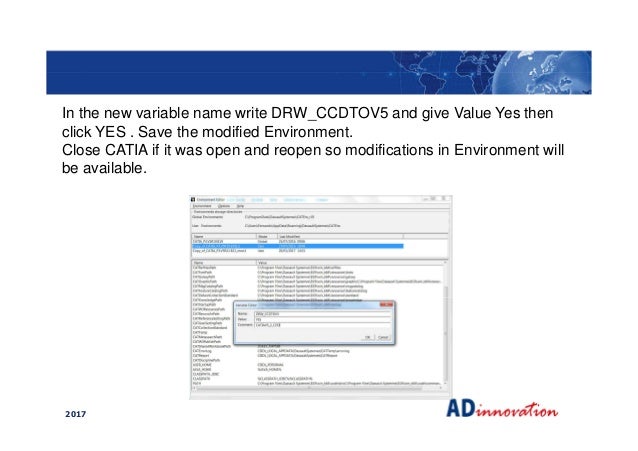

In the new variable name write DRW_CCDTOV5 and give Value Yes then
click YES . Save the modified Environment.
Close CATIA if it was open and reopen so modifications in Environment will
be available.

7.
2017

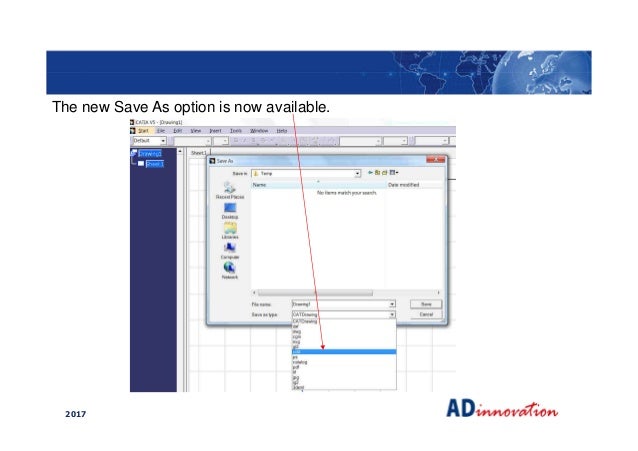

The new Save As option is now available.

8.
2017
Thank you!
