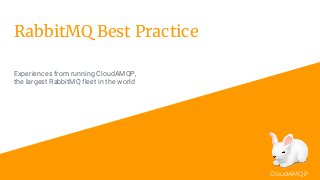

1. CloudAMQP
RabbitMQ Best Practice
Experiences from running CloudAMQP,
the largest RabbitMQ fleet in the world

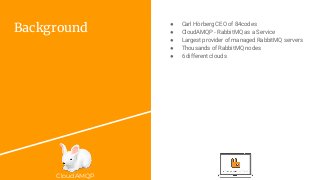

2. CloudAMQP
Background
● Carl Hörberg CEO of 84codes
● CloudAMQP - RabbitMQ as a Service
● Largest provider of managed RabbitMQ servers
● Thousands of RabbitMQ nodes
● 6 different clouds

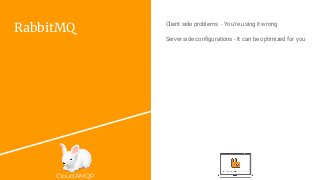

3. CloudAMQP
RabbitMQ
Client side problems - You’re using it wrong
Server side configurations - It can be optimized for you

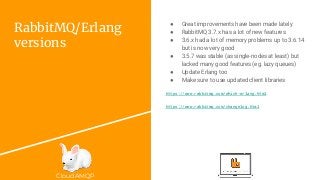

4. CloudAMQP
RabbitMQ/Erlang
versions
● Great improvements have been made lately
● RabbitMQ 3.7.x has a lot of new features
● 3.6.x had a lot of memory problems up to 3.6.14
but is now very good
● 3.5.7 was stable (as single-nodes at least) but
lacked many good features (eg. lazy queues)
● Update Erlang too
● Make sure to use updated client libraries
https://www.rabbitmq.com/which-erlang.html
https://www.rabbitmq.com/changelog.html

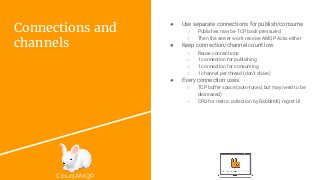

5. CloudAMQP
Connections and
channels
● Use separate connections for publish/consume
○ Publishes may be TCP back-pressured
○ Then the server won’t receive AMQP Acks either
● Keep connection/channel count low
○ Reuse connections
○ 1 connection for publishing
○ 1 connection for consuming
○ 1 channel per thread (don’t share)
● Every connection uses:
○ TCP buffer space (auto-tuned, but may need to be
decreased)
○ CPU for metric collection by RabbitMQ mgmt UI

6. CloudAMQP
Connections and
channels
● Don’t open and close connections or channels
repeatedly
○ TLS connection: 5 TCP packages
○ AMQP connections: 7 TCP packages
○ AMQP channel: 2 TCP packages
○ AMQP publish: 1 TCP package (more for larger
messages)
○ AMQP close channel: 2 TCP packages
○ AMQP close connection: 2 TCP packages
○ Total 14-19 packages (+ Acks)

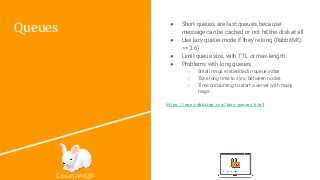

7. CloudAMQP
Queues
● Short queues are fast queues, because
message can be cached or not hit the disk at all
● Use lazy queue-mode if they’re long (RabbitMQ
>= 3.6)
● Limit queue size, with TTL or max-length
● Problems with long queues
○ Small msgs embedded in queue index
○ Take long time to sync between nodes
○ Time consuming to start a server with many
msgs
https://www.rabbitmq.com/lazy-queues.html

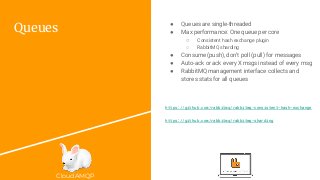

8. CloudAMQP
Queues
● Queues are single-threaded
● Max performance: One queue per core
○ Consistent hash exchange plugin
○ RabbitMQ sharding
● Consume (push), don’t poll (pull) for messages
● Auto-ack or ack every X msgs instead of every msg
● RabbitMQ management interface collects and
stores stats for all queues
https://github.com/rabbitmq/rabbitmq-consistent-hash-exchange
https://github.com/rabbitmq/rabbitmq-sharding

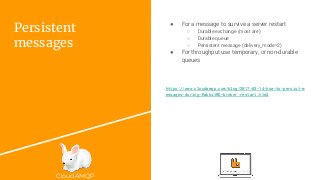

9. CloudAMQP
Persistent
messages
● For a message to survive a server restart
○ Durable exchange (most are)
○ Durable queue
○ Persistent message (delivery_mode=2)
● For throughput use temporary, or non-durable
queues
https://www.cloudamqp.com/blog/2017-03-14-how-to-persist-m
essages-during-RabbitMQ-broker-restart.html

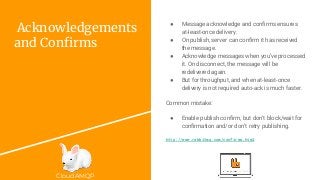

10. CloudAMQP
Acknowledgements
and Confirms
● Message acknowledge and confirms ensures
at-least-once delivery.
● On publish, server can confirm it has received
the message.
● Acknowledge messages when you’ve processed
it. On disconnect, the message will be
redelivered again.
● But for throughput, and when at-least-once
delivery is not required auto-ack is much faster.
Common mistake:
● Enable publish confirm, but don’t block/wait for
confirmation and/or don’t retry publishing.
http://www.rabbitmq.com/confirms.html

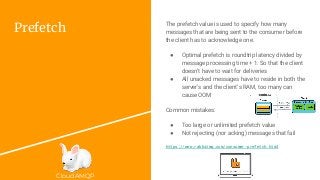

11. CloudAMQP
Prefetch
The prefetch value is used to specify how many
messages that are being sent to the consumer before
the client has to acknowledge one.
● Optimal prefetch is roundtrip latency divided by
message processing time + 1. So that the client
doesn’t have to wait for deliveries
● All unacked messages have to reside in both the
server’s and the client’s RAM, too many can
cause OOM
Common mistakes:
● Too large or unlimited prefetch value
● Not rejecting (nor acking) messages that fail
https://www.rabbitmq.com/consumer-prefetch.html

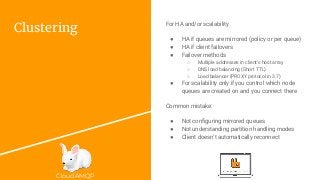

12. CloudAMQP
Clustering
For HA and/or scalability
● HA if queues are mirrored (policy or per queue)
● HA if client failovers
● Failover methods
○ Multiple addresses in client’s host array
○ DNS load balancing (Short TTL)
○ Load balancer (PROXY protocol in 3.7)
● For scalability only if you control which node
queues are created on and you connect there
Common mistake:
● Not configuring mirrored queues
● Not understanding partition handling modes
● Client doesn’t automatically reconnect

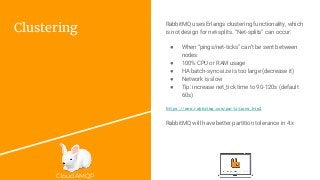

13. CloudAMQP
Clustering
RabbitMQ uses Erlangs clustering functionality, which
is not design for net-splits. “Net-splits” can occur:
● When “pings/net-ticks” can’t be sent between
nodes
● 100% CPU or RAM usage
● HA batch-sync-size is too large (decrease it)
● Network is slow
● Tip: increase net_tick time to 90-120s (default
60s)
https://www.rabbitmq.com/partitions.html
RabbitMQ will have better partition tolerance in 4.x

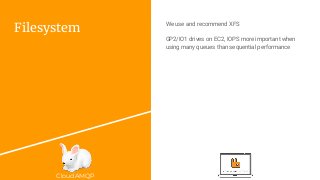

14. CloudAMQP
Filesystem
We use and recommend XFS
GP2/IO1 drives on EC2, IOPS more important when
using many queues than sequential performance

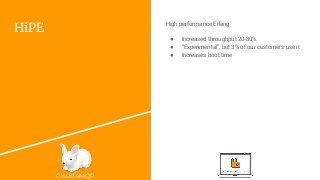

15. CloudAMQP
HiPE
High performance Erlang
● Increased throughput 20-80%
● “Experimental”, but 3% of our customers use it
● Increases boot time

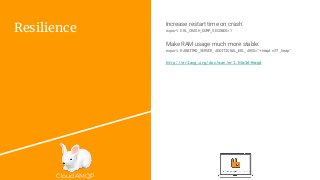

16. CloudAMQP
Resilience
Increase restart time on crash:
export ERL_CRASH_DUMP_SECONDS=1
Make RAM usage much more stable:
export RABBITMQ_SERVER_ADDITIONAL_ERL_ARGS="+hmqd off_heap"
http://erlang.org/doc/man/erl.html#+hmqd

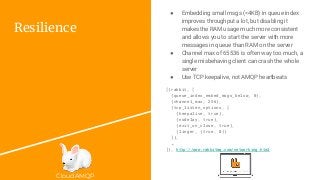

17. CloudAMQP
Resilience
[{rabbit, [
{queue_index_embed_msgs_below, 0},
{channel_max, 256},
{tcp_listen_options, [
{keepalive, true},
{nodelay, true},
{exit_on_close, true},
{linger, {true, 0}}
]},
…
]}, http://www.rabbitmq.com/networking.html
● Embedding small msgs (<4KB) in queue index
improves throughput a lot, but disabling it
makes the RAM usage much more consistent
and allows you to start the server with more
messages in queue than RAM on the server
● Channel max of 65536 is often way too much, a
single misbehaving client can crash the whole
server
● Use TCP keepalive, not AMQP heartbeats

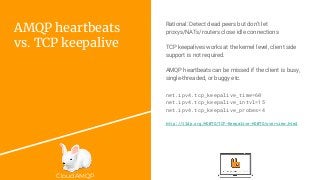

18. CloudAMQP
AMQP heartbeats
vs. TCP keepalive
net.ipv4.tcp_keepalive_time=60
net.ipv4.tcp_keepalive_intvl=15
net.ipv4.tcp_keepalive_probes=4
http://tldp.org/HOWTO/TCP-Keepalive-HOWTO/overview.html
Rational: Detect dead peers but don’t let
proxys/NATs/routers close idle connections
TCP keepalives works at the kernel level, client side
support is not required.
AMQP heartbeats can be missed if the client is busy,
single-threaded, or buggy etc.

19. CloudAMQP
TLS
{ssl_options, [
{cacertfile,"/etc/rabbitmq/ca.pem"},
{certfile,"/etc/rabbitmq/cert.pem"},
{keyfile, "/etc/rabbitmq/key.pem"},
{honor_cipher_order, true},
{ciphers, [
"ECDHE-RSA-AES128-GCM-SHA256",
"ECDHE-RSA-AES256-GCM-SHA384",
"ECDHE-RSA-AES128-SHA",
"ECDHE-RSA-AES256-SHA",
"ECDHE-RSA-AES128-SHA256",
"ECDHE-RSA-AES256-SHA384",
"DHE-RSA-AES128-GCM-SHA256",
"DHE-RSA-AES256-GCM-SHA384",
"DHE-RSA-AES128-SHA",
"DHE-RSA-AES256-SHA",
"DHE-RSA-AES128-SHA256",
"DHE-RSA-AES256-SHA256"
]},
http://www.rabbitmq.com/ssl.html
Disable RSA key exchanges and other insecure
ciphers

20. CloudAMQP
Many connections
optimization
{tcp_listen_options, [
...,
{sndbuf, 8192},
{recbuf, 8192}
]}
http://www.rabbitmq.com/networking.html
Default values are auto-tuned by the kernel but
decrease TCP buffers sizes if you need to make
tens/hundreds of thousands of connections.
Also set rates_mode in the mgmt interface to none

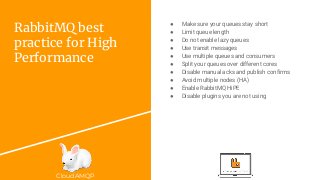

21. CloudAMQP
RabbitMQ best
practice for High
Performance
● Make sure your queues stay short
● Limit queue length
● Do not enable lazy queues
● Use transit messages
● Use multiple queues and consumers
● Split your queues over different cores
● Disable manual acks and publish confirms
● Avoid multiple nodes (HA)
● Enable RabbitMQ HiPE
● Disable plugins you are not using

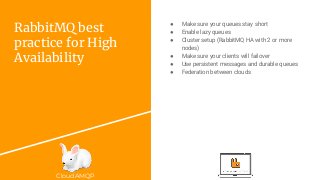

22. CloudAMQP
RabbitMQ best
practice for High
Availability
● Make sure your queues stay short
● Enable lazy queues
● Cluster setup (RabbitMQ HA with 2 or more
nodes)
● Make sure your clients will failover
● Use persistent messages and durable queues
● Federation between clouds

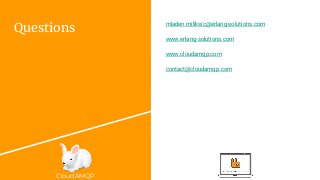

23. CloudAMQP
Questions
mladen.miliksic@erlang-solutions.com
www.erlang-solutions.com
www.cloudamqp.com
contact@cloudamqp.com
