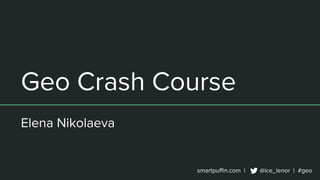

Geo Crash Course
Elena Nikolaeva
smartpuffin.com | @ice_lenor | #geo
Who am I?
● 10 years in Geo
● Started in 2GIS
● Built a distributed scalable
GIS-syste...
smartpuffin.com | @ice_lenor | #geo

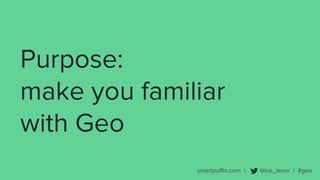

Purpose:
make you familiar
with Geo
smartpuffin.com | @ice_lenor | #geo
What is an integer?
● A whole number
● 4 bytes (nowadays, mostly)
● Unsigned or signed...
smartpuffin.com | @ice_lenor | #geo

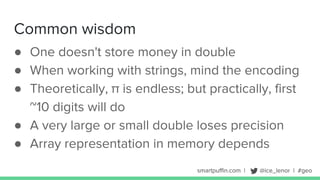

Common wisdom
● One doesn't store money in double
● When working with strings, mind th...
smartpuffin.com | @ice_lenor | #geo

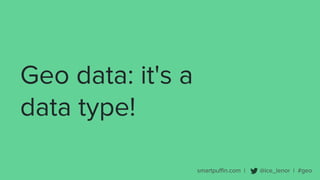

Geo data: it's a
data type!
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Geometry types
smartpuffin.com | @ice_lenor | #geo
Point
Point(25 10)
smartpuffin.com | @ice_lenor | #geo
MultiPoint
1
2
point1
point2
MultiPoint( (25 10), (32 9) )
smartpuffin.com | @ice_lenor | #geo
LineString
1
2
LineString(5 10, 22 15)
● Consists of ordered points
smartpuffin.com | @ice_lenor | #geo
MultiLineString
1
2
3
4
line1 line2
MultiLineString( (10 10, 20 20), (30 15, 40 12) )
smartpuffin.com | @ice_lenor | #geo
Polygon
1
3
2
4
Polygon((0 0, 2 5, 4 0, 0 0))
● Consists of ordered points; certain di...
smartpuffin.com | @ice_lenor | #geo
Polygon with holes
6
7
8
9
1
2
3
4
5
Polygon((0 0, 8 0, 8 5, 0 5, 0 0), (3 2, 4 5, 6 2...
smartpuffin.com | @ice_lenor | #geo
1
2
3
4
5
MultiPolygon
10
6
7 8
9
11
12 13
14
15
16
17 18
poly1
poly2
poly3
smartpuffin.com | @ice_lenor | #geo
GeometryCollection
GeometryCollection(
Polygon((...)),
LineString(...),
Point(...),
Po...
smartpuffin.com | @ice_lenor | #geo
● Name: Amsterdam
● Type: city
● Population: 821,752
● Country: The Netherlands
GeoObj...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Coordinates
smartpuffin.com | @ice_lenor | #geo
Who thinks that
Earth is flat?
smartpuffin.com | @ice_lenor | #geo
smartpuffin.com | @ice_lenor | #geo
SHOCK!
smartpuffin.com | @ice_lenor | #geo
(x, y)
Point (0 10)
LineString (0 0, 10 0)
Flat coordinates
smartpuffin.com | @ice_lenor | #geo
(lat, long)
Point (52.373160 4.891999)
52.3680° N, 4.9036° E
Geography coordinates
smartpuffin.com | @ice_lenor | #geo
Flat coordinates
● Computer games
● Building plans
● Large scale maps of small areas
○...
smartpuffin.com | @ice_lenor | #geo
Flat coordinates
(0, 0) 5 10 15 20 25
5
10
15
Ficus is at
(23, 8)
x
y
smartpuffin.com | @ice_lenor | #geo
Geographical coordinates
● Map of the whole planet
● Map of a large area of the planet...
smartpuffin.com | @ice_lenor | #geo
Small scale: when everything is small
smartpuffin.com | @ice_lenor | #geo
Large scale: when everything is LARGE
smartpuffin.com | @ice_lenor | #geo
Latitude
0°
90° North
-90° South
North Pole
South Pole
30th parallel North
30° N
30°
4...
smartpuffin.com | @ice_lenor | #geo
Longitude
0°
-180°
West
180°
East
40th meridian east
40° E
40°20th meridian west
40° W...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Datums and
Coordinate Systems
How round is Earth, e...
smartpuffin.com | @ice_lenor | #geo
Geoid
Earth's shape is a
smartpuffin.com | @ice_lenor | #geo
Spheroid
But we can simplify it to a
smartpuffin.com | @ice_lenor | #geo
WGS84
The latest revision is WGS 84 (also known as WGS
1984, EPSG:4326). The WGS 84 da...
smartpuffin.com | @ice_lenor | #geo
WGS84
radius
R = 6378 km
flattening
F = 1 / 298.25
● Earth is an ellipsoid
○ flattened...
smartpuffin.com | @ice_lenor | #geo
Datum describes Earth's
general shape
(Sphere? Ellipsoid? Spheroid?)
smartpuffin.com | @ice_lenor | #geo
Coordinate system describes
where coordinates start
where they end
and what’s the unit
smartpuffin.com | @ice_lenor | #geo
You must specify
the Coordinate System
to make your math correct!
smartpuffin.com | @ice_lenor | #geo
Formula for distance: flat
Point(0 0) to Point(1 1) = 1.414 (units)
● We all learned i...
smartpuffin.com | @ice_lenor | #geo
Formula for distance: haversine
● Uses radius
● Doesn’t use flattening
● => Calculates...
smartpuffin.com | @ice_lenor | #geo
Formula for distance: Vincenty
● Uses radius
● And flattening
● => Calculates on WGS84...
smartpuffin.com | @ice_lenor | #geo
SRID: Spatial Reference Id
● EPSG - European Petroleum Survey
Group
○ A registry of da...
smartpuffin.com | @ice_lenor | #geo
Why is a SRID like a toothbrush?
Because everyone has got one.
● British National Grid...
smartpuffin.com | @ice_lenor | #geo
Who still thinks
that
Earth is flat?
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Projections
smartpuffin.com | @ice_lenor | #geo
"How do we draw
a 3D-Earth
on paper?"
- Gerardus Mercator
smartpuffin.com | @ice_lenor | #geo
Projection
● A means to display a N-dimensional object
in a (N-1)-dimensional space
● ...
smartpuffin.com | @ice_lenor | #geo
We take a datum
and flatten it!
smartpuffin.com | @ice_lenor | #geo
smartpuffin.com | @ice_lenor | #geo
Projections
● A sphere can't be flattened without problems
○ You have to tug and stret...
smartpuffin.com | @ice_lenor | #geo
Specific way of flattening,
shrinking, stretching, fitting
is called
a projection
smartpuffin.com | @ice_lenor | #geo
Mercator Projection
● Preserves angles and shapes of
small objects
● => Good for navig...
smartpuffin.com | @ice_lenor | #geo
Orthographic
● "Like I'm looking at it from
space!"
● Directions from the central
poin...
smartpuffin.com | @ice_lenor | #geo
Plate Carrée
● longitude => y
● latitude => x
● Preserves angles
● Loses everything
el...
smartpuffin.com | @ice_lenor | #geo
Equal-area (i.e., Mollweide, Lambert, etc)
● Preserves
relative areas
● Distorts angle...
smartpuffin.com | @ice_lenor | #geo
Winkel Tripel: A Compromise?
● Tries to preserve all at once
● Minimises distortion of...
smartpuffin.com | @ice_lenor | #geo
Universal Transverse Mercator (UTM)
● Family of 60 projections ("zones")
○ Slice Earth...
smartpuffin.com | @ice_lenor | #geo
There is no single
"best projection"
smartpuffin.com | @ice_lenor | #geo
Each projection
is good
for a specific purpose
smartpuffin.com | @ice_lenor | #geo
Web Mercator: A Cursed Projection :)
● "Invented" by Google
○ They mix sphere and elli...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
OGC Standard
smartpuffin.com | @ice_lenor | #geo
OGC Standard
● Open Geospatial Consortium: 500+ companies
● De-facto defines the geo-i...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
What can I do with my geodata?
Geo Math:
Spatial Op...
smartpuffin.com | @ice_lenor | #geo
Distance
Point(0 0)
Point(4, 2)
Distance = 222.4 km
(calculated on WGS84)
Distance = 4...
smartpuffin.com | @ice_lenor | #geo
Inside
smartpuffin.com | @ice_lenor | #geo
Touches
smartpuffin.com | @ice_lenor | #geo
Overlaps
smartpuffin.com | @ice_lenor | #geo
Topological operations: Union
∪
poly1
poly2
poly1
smartpuffin.com | @ice_lenor | #geo
Topological operations: Intersection
∩
poly1
poly2
smartpuffin.com | @ice_lenor | #geo
Topological operations: Difference
poly1
poly2
smartpuffin.com | @ice_lenor | #geo
Bounding box
Geometry
Bounding box:
smallest enclosing
rectangle
smartpuffin.com | @ice_lenor | #geo
Buffer(5)
Buffer
5
5
smartpuffin.com | @ice_lenor | #geo
● Coordinates must be within SRID's limits
○ I.e., 95° North latitude is a no-no
● Lin...
smartpuffin.com | @ice_lenor | #geo
1
5
2
IsValid, MakeValid: Self-Intersection
3
4
● 8-shape polygon
● "Butterfly" geomet...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Storing spatial data
smartpuffin.com | @ice_lenor | #geo
Well-known geometry representation
● Defined in OGC standard
● Well-known text
○ "Poin...
smartpuffin.com | @ice_lenor | #geo
Spatial databases
● OGC-compliant
● Store and index spatial data
○ Fast and correct qu...
smartpuffin.com | @ice_lenor | #geo
Spatial databases
● SQL Server
● Postgres: PostGIS extension
● Oracle Spatial and Grap...
smartpuffin.com | @ice_lenor | #geo
Spatial Elasticsearch?
● Supports only geographical coordinates on
WGS84
● Index: GeoH...
smartpuffin.com | @ice_lenor | #geo
Spatial indexes
● Quickly answer questions:
○ "What is close to this place"
○ "What is...
smartpuffin.com | @ice_lenor | #geo
Spatial index: Quadtree
● Divides space into 4
squares recursively
● Adding new object...
smartpuffin.com | @ice_lenor | #geo
Spatial index: R-tree
● Divides space into
rectangles
● Efficient for reading
● Adding...
smartpuffin.com | @ice_lenor | #geo
Spatial index: Z-order Curve
● Efficient for reading
● And for writing
● Harder to com...
smartpuffin.com | @ice_lenor | #geo
File formats
● Download your geodata into a file (like .csv)
● Then upload it somewher...
smartpuffin.com | @ice_lenor | #geo
Libraries
● OGC defines the API
● Can load a geometry from spatial db
● Can operate on...
smartpuffin.com | @ice_lenor | #geo
GIS-systems
Geographic information
systems: apps for creating
and editing geodata.
● A...
smartpuffin.com | @ice_lenor | #geo
GIS-systems
● Users: geo-specialists (cartographers)
● Create layers (types of objects...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Common Problems in Geo
smartpuffin.com | @ice_lenor | #geo
new Point (lat, lon)
OR
new Point (lon, lat)
?
● Library-dependent
● Always check!
smartpuffin.com | @ice_lenor | #geo
Units: degrees
● Units of latitude and longitude: degrees
● You CAN'T measure distance...
smartpuffin.com | @ice_lenor | #geo
Units: degrees
● Two points on the equator:
● Point 1: latitude 0, longitude 0.
● Poin...
smartpuffin.com | @ice_lenor | #geo
Units: degrees
● Two points on Amsterdam's latitude (52° N):
● Point 1: latitude 52, l...
smartpuffin.com | @ice_lenor | #geo
The closer to the pole,
the less km's fit
in one degree longitude
smartpuffin.com | @ice_lenor | #geo
Degrees latitude
are always the same
in km's
smartpuffin.com | @ice_lenor | #geo
180th Meridian
smartpuffin.com | @ice_lenor | #geo
180th Meridian: Always Check With Fiji!
-16.760, -179.658
-16.712, 179.713
180th Merid...
smartpuffin.com | @ice_lenor | #geo
180th Meridian
smartpuffin.com | @ice_lenor | #geo
180th Meridian
● Fiji
● New Zealand
● Russia
● Kiribati
● United States
smartpuffin.com | @ice_lenor | #geo
Poles
● One latitude: 90° or -90°
● All longitudes meet there
=> It's all exactly the ...
smartpuffin.com | @ice_lenor | #geo
Poles
● Some projections don't support poles
● I.e., Mercator on WGS84:
○ "World betwe...
smartpuffin.com | @ice_lenor | #geo
Spatial operations around problem areas
● Math close to 180th meridian must work
corre...
smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo
Thank you
Your questions, please!
Upcoming SlideShare
Loading in …5
×

Geo crash course

1,506 views

Published on

In this workshop, I will:
- tell you that the Earth is not flat (SHOCK!) and why that's very inconvenient;
- define common terms (What's projection? There's also a coordinate system?.. OGC, OSM, WKT, WGS, ESPG?);
- teach you All Things You Need To Know (tm) to become a geo-developer and build things for geo or using geo;
- explain popular caveats - Dos and Don'ts - when working with geo;
- give you an overview of geo-technologies, databases, libraries;
- give you references for further reading.

Published in: Technology
  • Be the first to comment

  • Be the first to like this

Geo crash course

  1. 1. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Geo Crash Course Elena Nikolaeva
  2. 2. smartpuffin.com | @ice_lenor | #geo Who am I? ● 10 years in Geo ● Started in 2GIS ● Built a distributed scalable GIS-system called Fiji ○ Tailored to needs of 3000 cartographers ● Allowed the business to scale world-wide ● 3 years in Geo team in Booking ● Built GeoObject database ● Built process of data collection between Tech and Geo Content departments
  3. 3. smartpuffin.com | @ice_lenor | #geo Purpose: make you familiar with Geo
  4. 4. smartpuffin.com | @ice_lenor | #geo What is an integer? ● A whole number ● 4 bytes (nowadays, mostly) ● Unsigned or signed ○ Signed range: [-2,147,483,648 .. 2,147,483,647] ○ Unsigned range: [0, 4,294,967,295] ● If you divide 2 integers, you'll get an integer
  5. 5. smartpuffin.com | @ice_lenor | #geo Common wisdom ● One doesn't store money in double ● When working with strings, mind the encoding ● Theoretically, π is endless; but practically, first ~10 digits will do ● A very large or small double loses precision ● Array representation in memory depends
  6. 6. smartpuffin.com | @ice_lenor | #geo Geo data: it's a data type!
  7. 7. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Geometry types
  8. 8. smartpuffin.com | @ice_lenor | #geo Point Point(25 10)
  9. 9. smartpuffin.com | @ice_lenor | #geo MultiPoint 1 2 point1 point2 MultiPoint( (25 10), (32 9) )
  10. 10. smartpuffin.com | @ice_lenor | #geo LineString 1 2 LineString(5 10, 22 15) ● Consists of ordered points
  11. 11. smartpuffin.com | @ice_lenor | #geo MultiLineString 1 2 3 4 line1 line2 MultiLineString( (10 10, 20 20), (30 15, 40 12) )
  12. 12. smartpuffin.com | @ice_lenor | #geo Polygon 1 3 2 4 Polygon((0 0, 2 5, 4 0, 0 0)) ● Consists of ordered points; certain direction (i.e., counterclockwise) ● Is closed: Point 1 === Point 4 Depends on implementation
  13. 13. smartpuffin.com | @ice_lenor | #geo Polygon with holes 6 7 8 9 1 2 3 4 5 Polygon((0 0, 8 0, 8 5, 0 5, 0 0), (3 2, 4 5, 6 2, 3 2)) ● First set - "outer ring" (closed, counterclockwise) ● Other sets - "holes" (closed, clockwise)
  14. 14. smartpuffin.com | @ice_lenor | #geo 1 2 3 4 5 MultiPolygon 10 6 7 8 9 11 12 13 14 15 16 17 18 poly1 poly2 poly3
  15. 15. smartpuffin.com | @ice_lenor | #geo GeometryCollection GeometryCollection( Polygon((...)), LineString(...), Point(...), Polygon((...),(...)) )
  16. 16. smartpuffin.com | @ice_lenor | #geo ● Name: Amsterdam ● Type: city ● Population: 821,752 ● Country: The Netherlands GeoObject / Feature Geometry Attributes +
  17. 17. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Coordinates
  18. 18. smartpuffin.com | @ice_lenor | #geo Who thinks that Earth is flat?
  19. 19. smartpuffin.com | @ice_lenor | #geo
  20. 20. smartpuffin.com | @ice_lenor | #geo SHOCK!
  21. 21. smartpuffin.com | @ice_lenor | #geo (x, y) Point (0 10) LineString (0 0, 10 0) Flat coordinates
  22. 22. smartpuffin.com | @ice_lenor | #geo (lat, long) Point (52.373160 4.891999) 52.3680° N, 4.9036° E Geography coordinates
  23. 23. smartpuffin.com | @ice_lenor | #geo Flat coordinates ● Computer games ● Building plans ● Large scale maps of small areas ○ One city, one district
  24. 24. smartpuffin.com | @ice_lenor | #geo Flat coordinates (0, 0) 5 10 15 20 25 5 10 15 Ficus is at (23, 8) x y
  25. 25. smartpuffin.com | @ice_lenor | #geo Geographical coordinates ● Map of the whole planet ● Map of a large area of the planet ○ "Small scale"
  26. 26. smartpuffin.com | @ice_lenor | #geo Small scale: when everything is small
  27. 27. smartpuffin.com | @ice_lenor | #geo Large scale: when everything is LARGE
  28. 28. smartpuffin.com | @ice_lenor | #geo Latitude 0° 90° North -90° South North Pole South Pole 30th parallel North 30° N 30° 40th parallel South 40° S -40° Equator 0° N
  29. 29. smartpuffin.com | @ice_lenor | #geo Longitude 0° -180° West 180° East 40th meridian east 40° E 40°20th meridian west 40° W -40° Prime meridian 0°
  30. 30. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Datums and Coordinate Systems How round is Earth, exactly?
  31. 31. smartpuffin.com | @ice_lenor | #geo Geoid Earth's shape is a
  32. 32. smartpuffin.com | @ice_lenor | #geo Spheroid But we can simplify it to a
  33. 33. smartpuffin.com | @ice_lenor | #geo WGS84 The latest revision is WGS 84 (also known as WGS 1984, EPSG:4326). The WGS 84 datum surface is an oblate spheroid with equatorial radius a = 6378137 m at the equator and flattening f = 1/298.257223563. The polar semi-minor axis b then equals a × (1 − f) = 6356752.3142 m. Currently, WGS 84 uses the Earth Gravitational Model 1996 (EGM96) geoid, revised in 2004. This geoid defines the nominal sea level surface by means of a spherical harmonics series of degree 360 (which provides about 100 km latitudinal resolution near the Equator). The deviations of the EGM96 geoid from the WGS 84 reference ellipsoid range from about −105 m to about +85 m.[8] EGM96 differs from the original WGS 84 geoid, referred to as EGM84.
  34. 34. smartpuffin.com | @ice_lenor | #geo WGS84 radius R = 6378 km flattening F = 1 / 298.25 ● Earth is an ellipsoid ○ flattened from the poles ○ has a certain radius ● (0,0) is specified ● Latitude is [90..-90] ● Longitude is [180..-180] (0,0) is here
  35. 35. smartpuffin.com | @ice_lenor | #geo Datum describes Earth's general shape (Sphere? Ellipsoid? Spheroid?)
  36. 36. smartpuffin.com | @ice_lenor | #geo Coordinate system describes where coordinates start where they end and what’s the unit
  37. 37. smartpuffin.com | @ice_lenor | #geo You must specify the Coordinate System to make your math correct!
  38. 38. smartpuffin.com | @ice_lenor | #geo Formula for distance: flat Point(0 0) to Point(1 1) = 1.414 (units) ● We all learned it in school ● Derived from the Pythagorean theorem ● Doesn’t know about Earth ● Just plain old distance.
  39. 39. smartpuffin.com | @ice_lenor | #geo Formula for distance: haversine ● Uses radius ● Doesn’t use flattening ● => Calculates on sphere! Point(0 0) to Point(1 1) = 157.2 km
  40. 40. smartpuffin.com | @ice_lenor | #geo Formula for distance: Vincenty ● Uses radius ● And flattening ● => Calculates on WGS84! ○ Or any ellipsoid provided ● => Millimetre precision! Point(0 0) to Point(1 1) = 156.899568 km
  41. 41. smartpuffin.com | @ice_lenor | #geo SRID: Spatial Reference Id ● EPSG - European Petroleum Survey Group ○ A registry of datums and projections ● WGS84's SRID is EPSG:4326 ● There are other SRIDs ● You must specify SRID with your geometry for correct math ○ I.e., when storing geodata in a database ○ Or using a library or a formula
  42. 42. smartpuffin.com | @ice_lenor | #geo Why is a SRID like a toothbrush? Because everyone has got one. ● British National Grid ○ Ellipsoid: Airy 1830 ● Amersfoort / RD New -- Netherlands ○ Ellipsoid: Bessel 1841 ● Geoscience Australia Lambert ○ Ellipsoid: GRS 1980
  43. 43. smartpuffin.com | @ice_lenor | #geo Who still thinks that Earth is flat?
  44. 44. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Projections
  45. 45. smartpuffin.com | @ice_lenor | #geo "How do we draw a 3D-Earth on paper?" - Gerardus Mercator
  46. 46. smartpuffin.com | @ice_lenor | #geo Projection ● A means to display a N-dimensional object in a (N-1)-dimensional space ● For maps: ○ How do we display 3D Earth on a 2D paper? ○ Or a piece of parchment? ○ Or a tapestry? ○ Or a computer screen?
  47. 47. smartpuffin.com | @ice_lenor | #geo We take a datum and flatten it!
  48. 48. smartpuffin.com | @ice_lenor | #geo
  49. 49. smartpuffin.com | @ice_lenor | #geo Projections ● A sphere can't be flattened without problems ○ You have to tug and stretch and shrink ● No projections are "100% accurate depictions" ● One has to choose what traits to preserve ○ direction ○ shape ○ area ○ distance
  50. 50. smartpuffin.com | @ice_lenor | #geo Specific way of flattening, shrinking, stretching, fitting is called a projection
  51. 51. smartpuffin.com | @ice_lenor | #geo Mercator Projection ● Preserves angles and shapes of small objects ● => Good for navigation ● Loses sizes (Greenland larger than Africa) ● Mercator on WGS84 is popular (EPSG:3395) ● What does Google use? Read on.
  52. 52. smartpuffin.com | @ice_lenor | #geo Orthographic ● "Like I'm looking at it from space!" ● Directions from the central point are preserved ● The closer to the edge, the more objects are distorted
  53. 53. smartpuffin.com | @ice_lenor | #geo Plate Carrée ● longitude => y ● latitude => x ● Preserves angles ● Loses everything else :)
  54. 54. smartpuffin.com | @ice_lenor | #geo Equal-area (i.e., Mollweide, Lambert, etc) ● Preserves relative areas ● Distorts angles and shapes
  55. 55. smartpuffin.com | @ice_lenor | #geo Winkel Tripel: A Compromise? ● Tries to preserve all at once ● Minimises distortion of area, direction, and distance ● Cool name ● Used by
  56. 56. smartpuffin.com | @ice_lenor | #geo Universal Transverse Mercator (UTM) ● Family of 60 projections ("zones") ○ Slice Earth like an orange ○ Each slice has own coordinates ● => Flat coordinates! In meters! ● Coordinate system AND projection, in one ● Can't make map of whole planet, only one slice
  57. 57. smartpuffin.com | @ice_lenor | #geo There is no single "best projection"
  58. 58. smartpuffin.com | @ice_lenor | #geo Each projection is good for a specific purpose
  59. 59. smartpuffin.com | @ice_lenor | #geo Web Mercator: A Cursed Projection :) ● "Invented" by Google ○ They mix sphere and ellipsoid, boo! ○ "The underlying geographic coordinates are defined using WGS84 [ellipsoid] (as in 3857), but projected as if they were defined on a sphere (as in 3785)". ● Wasn't accepted for a long time ● Old unofficial code: EPSG:900913, official: EPSG:3857 ● Now - alas! - is used by many online maps
  60. 60. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo OGC Standard
  61. 61. smartpuffin.com | @ice_lenor | #geo OGC Standard ● Open Geospatial Consortium: 500+ companies ● De-facto defines the geo-industry ● A set of documents about how to: ○ Define geodata ○ Store geodata (in databases) ○ Index it ○ Manipulate it (in databases and in libraries) ● => Start reading with Simple Features
  62. 62. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo What can I do with my geodata? Geo Math: Spatial Operations
  63. 63. smartpuffin.com | @ice_lenor | #geo Distance Point(0 0) Point(4, 2) Distance = 222.4 km (calculated on WGS84) Distance = 4.472 (calculated on flat coords)
  64. 64. smartpuffin.com | @ice_lenor | #geo Inside
  65. 65. smartpuffin.com | @ice_lenor | #geo Touches
  66. 66. smartpuffin.com | @ice_lenor | #geo Overlaps
  67. 67. smartpuffin.com | @ice_lenor | #geo Topological operations: Union ∪ poly1 poly2 poly1
  68. 68. smartpuffin.com | @ice_lenor | #geo Topological operations: Intersection ∩ poly1 poly2
  69. 69. smartpuffin.com | @ice_lenor | #geo Topological operations: Difference poly1 poly2
  70. 70. smartpuffin.com | @ice_lenor | #geo Bounding box Geometry Bounding box: smallest enclosing rectangle
  71. 71. smartpuffin.com | @ice_lenor | #geo Buffer(5) Buffer 5 5
  72. 72. smartpuffin.com | @ice_lenor | #geo ● Coordinates must be within SRID's limits ○ I.e., 95° North latitude is a no-no ● Line: ○ Must have min 2 points ○ Length must be > 0 ● Polygon: ○ Must have min 4 points ○ Area must be > 0 ○ First and last points must be the same (closed ring) ○ Can't intersect itself ○ Holes must be inside IsValid
  73. 73. smartpuffin.com | @ice_lenor | #geo 1 5 2 IsValid, MakeValid: Self-Intersection 3 4 ● 8-shape polygon ● "Butterfly" geometry ● Is NOT valid! ● Must be stored as MultiPolygon of 2 polygons ○ MakeValid(geom) may fix problems
  74. 74. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Storing spatial data
  75. 75. smartpuffin.com | @ice_lenor | #geo Well-known geometry representation ● Defined in OGC standard ● Well-known text ○ "Point(0 0)" ○ "LineString(0 0, 1 0)" ○ "Polygon((0 0, 5 0, 5 5, 0 5, 0 0), (1 1, 1 4, 4 4, 4 1, 1 1))" ● Well-known binary ○ 0x0101000000000000000000f03f0000000000000040 A hole in the polygon
  76. 76. smartpuffin.com | @ice_lenor | #geo Spatial databases ● OGC-compliant ● Store and index spatial data ○ Fast and correct querying ○ Geometry validation ● Support spatial operations: Union, Buffer, etc ● Support different SRIDs ○ => Support flat coordinates and geography ○ Support all geo math correctly
  77. 77. smartpuffin.com | @ice_lenor | #geo Spatial databases ● SQL Server ● Postgres: PostGIS extension ● Oracle Spatial and Graph ● MySQL 8.0+ (perhaps, limited support) ● Column type: Geometry / Geography
  78. 78. smartpuffin.com | @ice_lenor | #geo Spatial Elasticsearch? ● Supports only geographical coordinates on WGS84 ● Index: GeoHash ● Imprecise operations (only uses index, doesn't do precise calculations) ● Slow to reindex ● Still, can be useful
  79. 79. smartpuffin.com | @ice_lenor | #geo Spatial indexes ● Quickly answer questions: ○ "What is close to this place" ○ "What is inside this area" ● Usually rough answer, needs precise calculation afterwards ● Usually already implemented in database or in library
  80. 80. smartpuffin.com | @ice_lenor | #geo Spatial index: Quadtree ● Divides space into 4 squares recursively ● Adding new objects is easy and cheap ● Good for constantly changing data
  81. 81. smartpuffin.com | @ice_lenor | #geo Spatial index: R-tree ● Divides space into rectangles ● Efficient for reading ● Adding new objects (reindexing) is expensive
  82. 82. smartpuffin.com | @ice_lenor | #geo Spatial index: Z-order Curve ● Efficient for reading ● And for writing ● Harder to comprehend ○ And implement ● Though looks cool :)
  83. 83. smartpuffin.com | @ice_lenor | #geo File formats ● Download your geodata into a file (like .csv) ● Then upload it somewhere else ● No indexing, no operations, simple plain file ● Standardised file formats: ○ .kml ○ .kmz - zipped kml ○ .geojson ○ shapefile
  84. 84. smartpuffin.com | @ice_lenor | #geo Libraries ● OGC defines the API ● Can load a geometry from spatial db ● Can operate on it in memory ● Supports all topological operations ○ Java: Java Topology Suite ○ C#: NetTopologySuite ○ Ports to many different languages
  85. 85. smartpuffin.com | @ice_lenor | #geo GIS-systems Geographic information systems: apps for creating and editing geodata. ● ArcGIS from ESRI ● OpenStreetMap editor ● QGIS ● ... many of them
  86. 86. smartpuffin.com | @ice_lenor | #geo GIS-systems ● Users: geo-specialists (cartographers) ● Create layers (types of objects: "Buildings", "Rivers", "Parks") ● Create geoobjects ○ Draw geometry ○ Add attributes (names, tags, etc) ○ Do spatial operations, data validations ("buildings should not intersect each other")
  87. 87. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Common Problems in Geo
  88. 88. smartpuffin.com | @ice_lenor | #geo new Point (lat, lon) OR new Point (lon, lat) ? ● Library-dependent ● Always check!
  89. 89. smartpuffin.com | @ice_lenor | #geo Units: degrees ● Units of latitude and longitude: degrees ● You CAN'T measure distance in them!
  90. 90. smartpuffin.com | @ice_lenor | #geo Units: degrees ● Two points on the equator: ● Point 1: latitude 0, longitude 0. ● Point 2: latitude 0, longitude 1. ● Distance between them, measured as if they were flat coordinates: 1. (Units: degrees.) ● Distance between them, measured as if they're on the planet Earth: 111.19 km.
  91. 91. smartpuffin.com | @ice_lenor | #geo Units: degrees ● Two points on Amsterdam's latitude (52° N): ● Point 1: latitude 52, longitude 0. ● Point 2: latitude 52, longitude 1. ● Distance between them, measured as if they were flat coordinates: still 1. (Units: degrees.) ● Distance between them, measured as if they're on the planet Earth: 68.46 km.
  92. 92. smartpuffin.com | @ice_lenor | #geo The closer to the pole, the less km's fit in one degree longitude
  93. 93. smartpuffin.com | @ice_lenor | #geo Degrees latitude are always the same in km's
  94. 94. smartpuffin.com | @ice_lenor | #geo 180th Meridian
  95. 95. smartpuffin.com | @ice_lenor | #geo 180th Meridian: Always Check With Fiji! -16.760, -179.658 -16.712, 179.713 180th Meridian
  96. 96. smartpuffin.com | @ice_lenor | #geo 180th Meridian
  97. 97. smartpuffin.com | @ice_lenor | #geo 180th Meridian ● Fiji ● New Zealand ● Russia ● Kiribati ● United States
  98. 98. smartpuffin.com | @ice_lenor | #geo Poles ● One latitude: 90° or -90° ● All longitudes meet there => It's all exactly the same point! ○ Point (lat=90, lon=0) ○ Point (lat=90, lon=100) ○ Point (lat=90, lon=-140)
  99. 99. smartpuffin.com | @ice_lenor | #geo Poles ● Some projections don't support poles ● I.e., Mercator on WGS84: ○ "World between 80°S and 84°N." ○ Otherwise, poles would be stretched into infinity ● => If you need poles, check if your projection and datum support them
  100. 100. smartpuffin.com | @ice_lenor | #geo Spatial operations around problem areas ● Math close to 180th meridian must work correctly! ● Same goes for poles!
  101. 101. smartpuffin.com | @ice_lenor | #geosmartpuffin.com | @ice_lenor | #geo Thank you Your questions, please!

×
