Rendering Techniques in Rise of the Tomb Raider

3,756 views

Published on

This cohesive overview of the advanced rendering techniques developed for Rise of the Tomb Raider presents a collection of diverse features, the challenges they presented, where current approaches succeed and fail, and solutions and implementation details.

Published in: Software

Rendering Techniques in Rise of the Tomb Raider

  1. 1. Labs R&D: The Rendering Techniques of Deus EX: Mankind Divided and Rise of the Tomb Raider SIGGRAPH 2015 www.eidosmontreal.com/www.square-enix-montreal.com

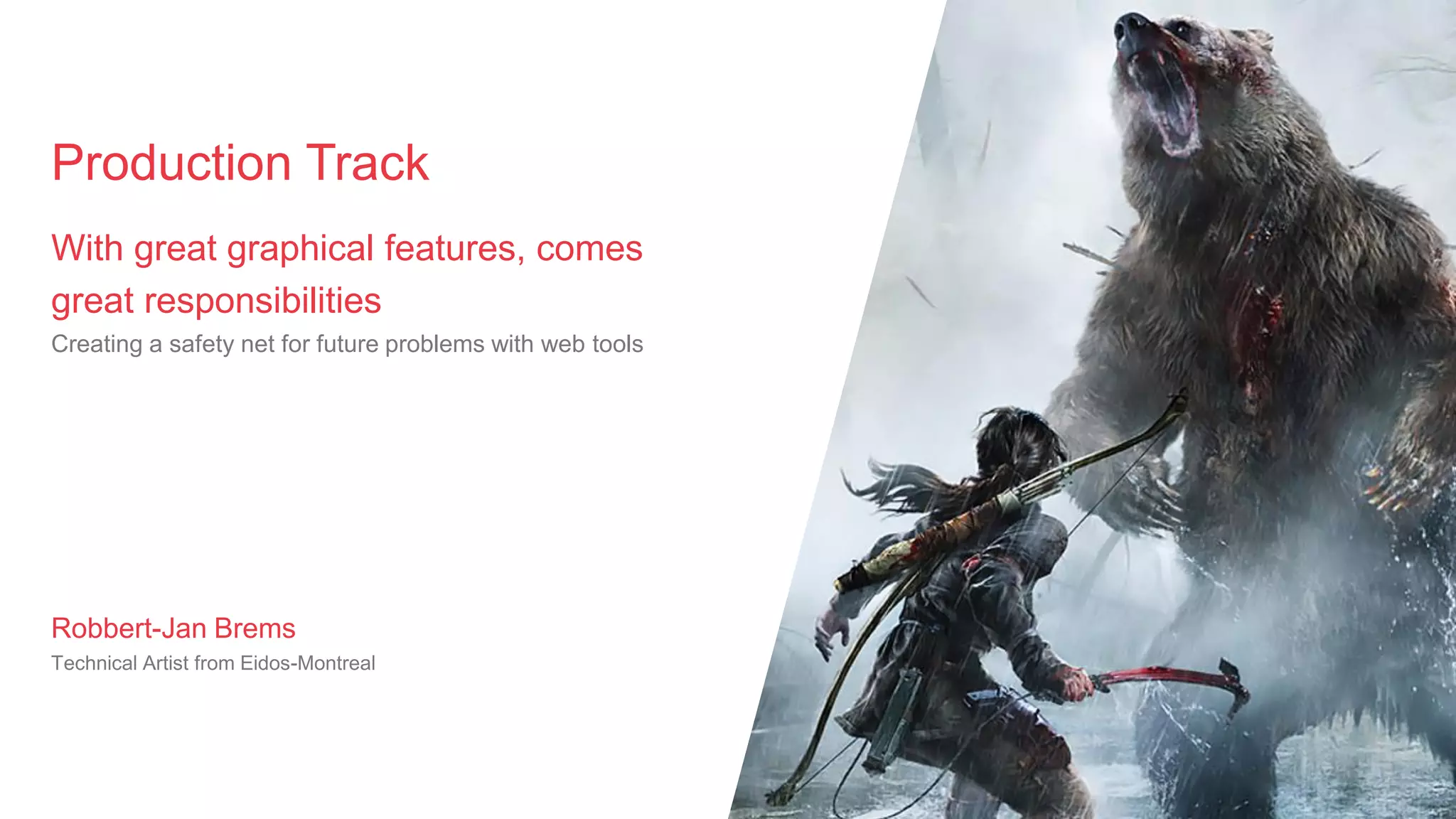

  2. 2. With great graphical features, comes great responsibilities Creating a safety net for future problems with web tools Production Track 2 Robbert-Jan Brems Technical Artist from Eidos-Montreal

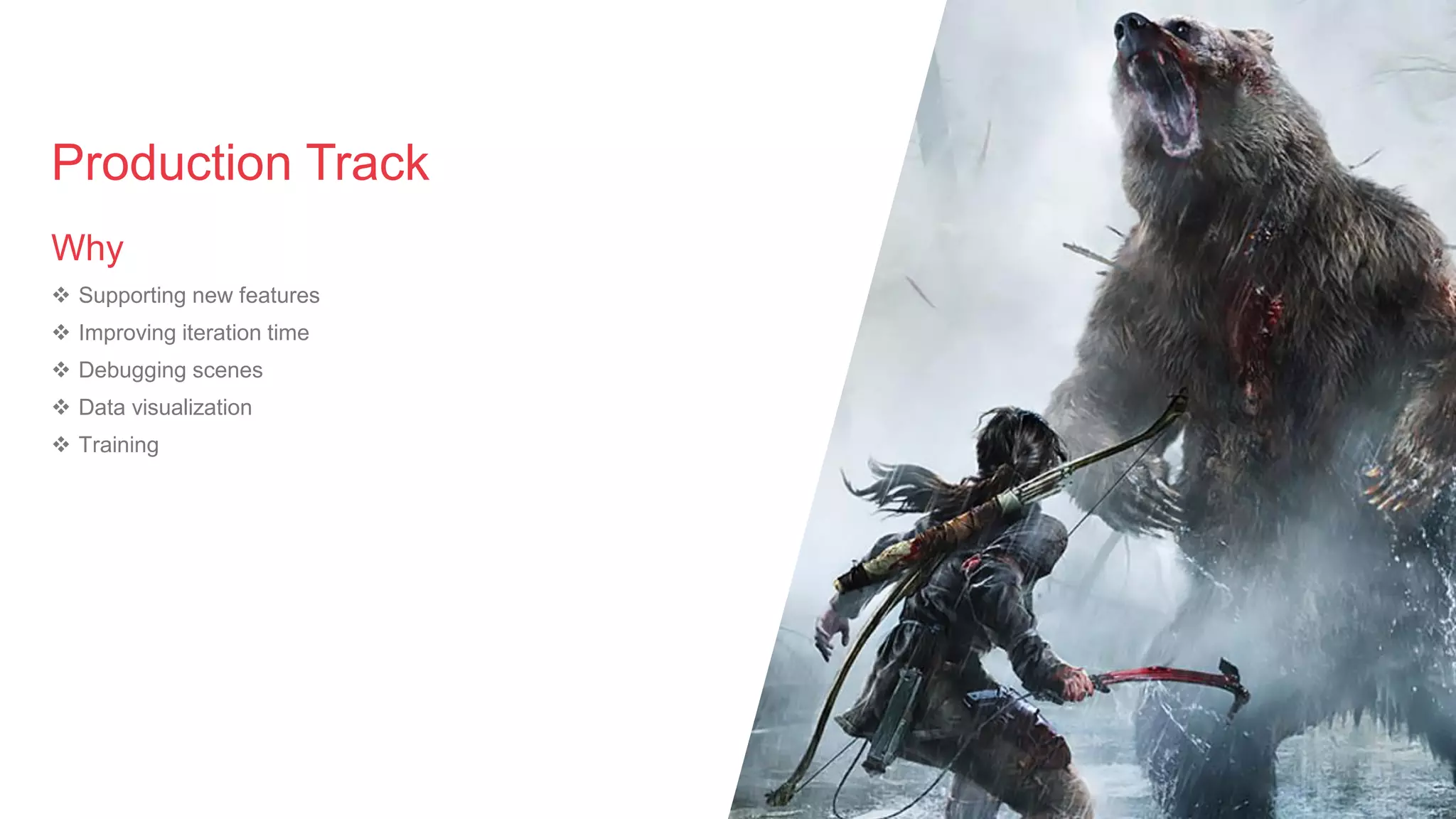

  3. 3. Why ❖ Supporting new features ❖ Improving iteration time ❖ Debugging scenes ❖ Data visualization ❖ Training Production Track 3

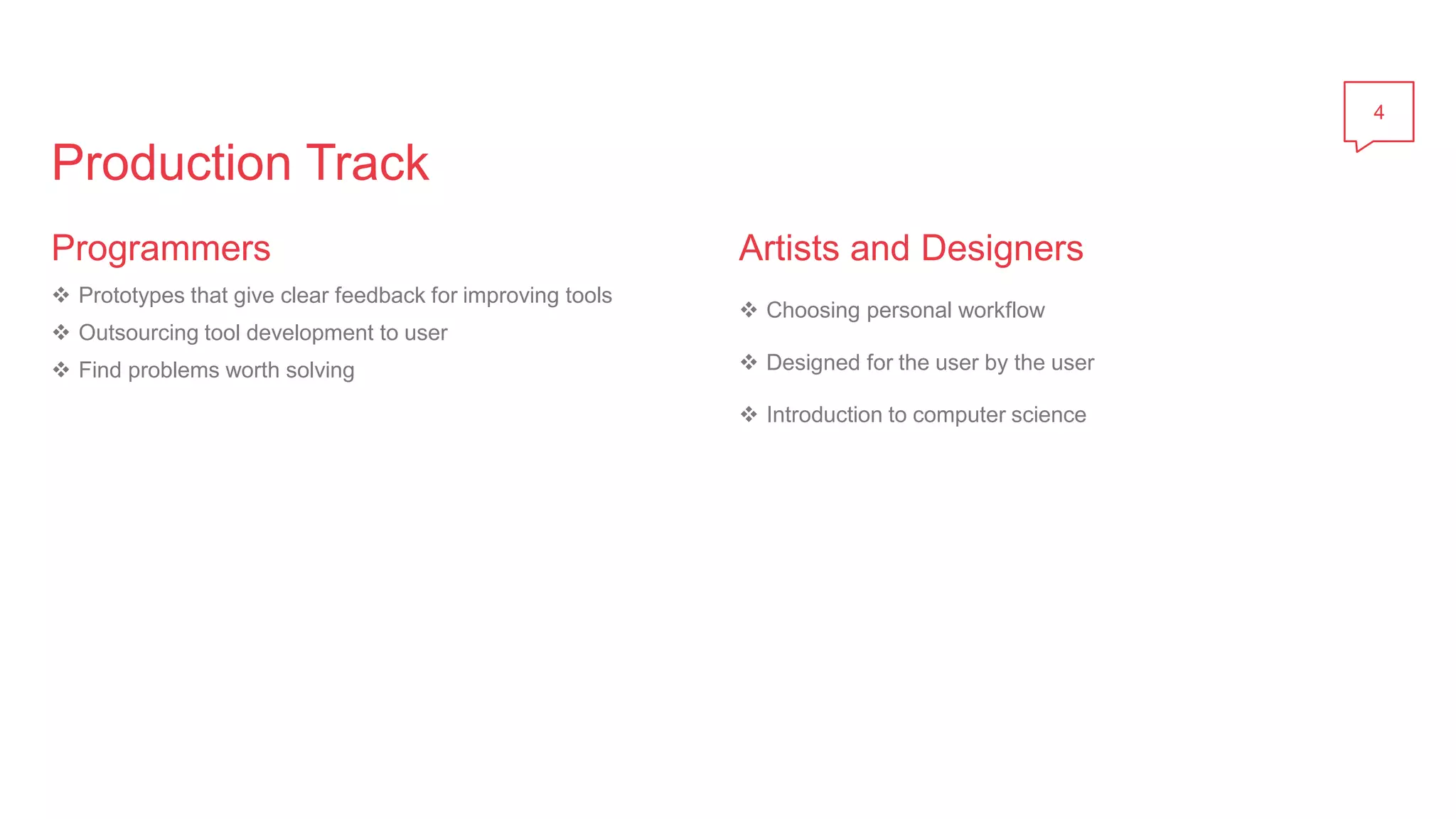

  4. 4. Programmers ❖ Prototypes that give clear feedback for improving tools ❖ Outsourcing tool development to user ❖ Find problems worth solving Production Track 4 Artists and Designers ❖ Choosing personal workflow ❖ Designed for the user by the user ❖ Introduction to computer science
  5. 5. Why web programming ❖ Reusable skill ❖ Plenty of resources ❖ Lower entry threshold level ❖ Clear difference between UI and functionality Production Track 5

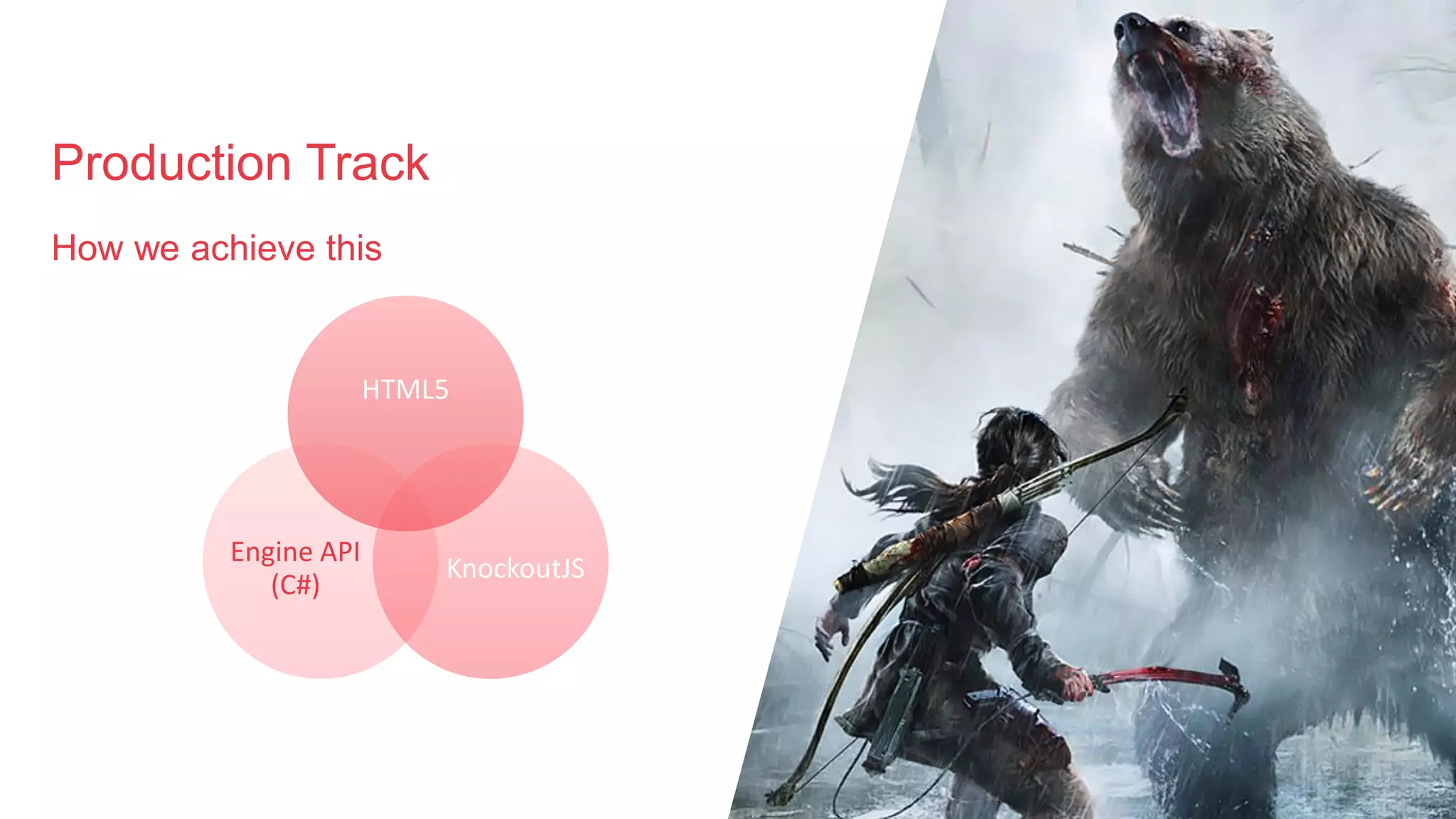

  6. 6. How we achieve this Production Track 6 HTML5 KnockoutJS Engine API (C#)
  7. 7. Web Tool Example: FeedbackNote Connect the people through the problems they share All Rights Reserved SquareEnix Eidos Montreal 2015

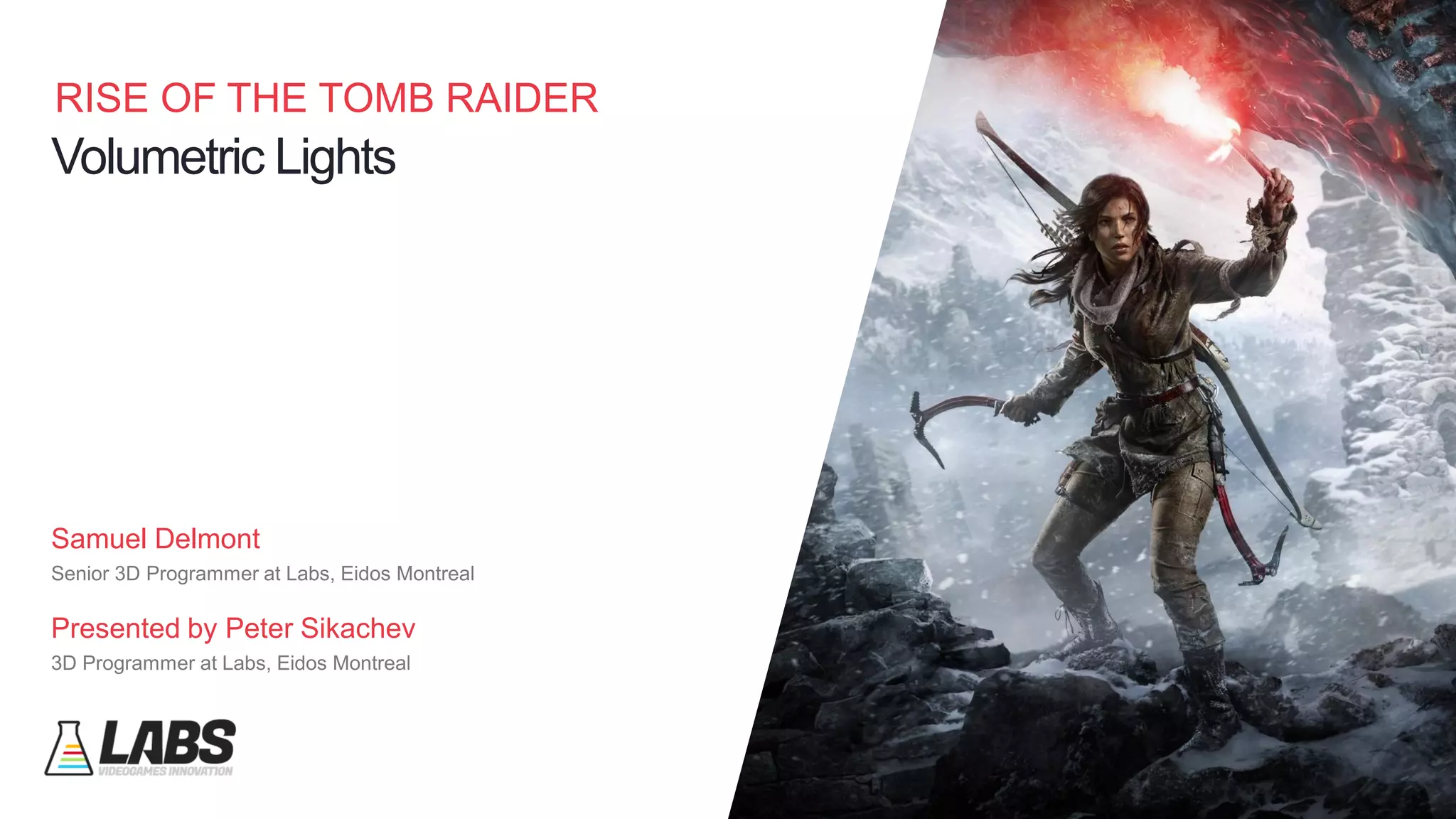

  8. 8. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Volumetric Lights 9 Presented by Peter Sikachev 3D Programmer at Labs, Eidos Montreal Samuel Delmont Senior 3D Programmer at Labs, Eidos Montreal

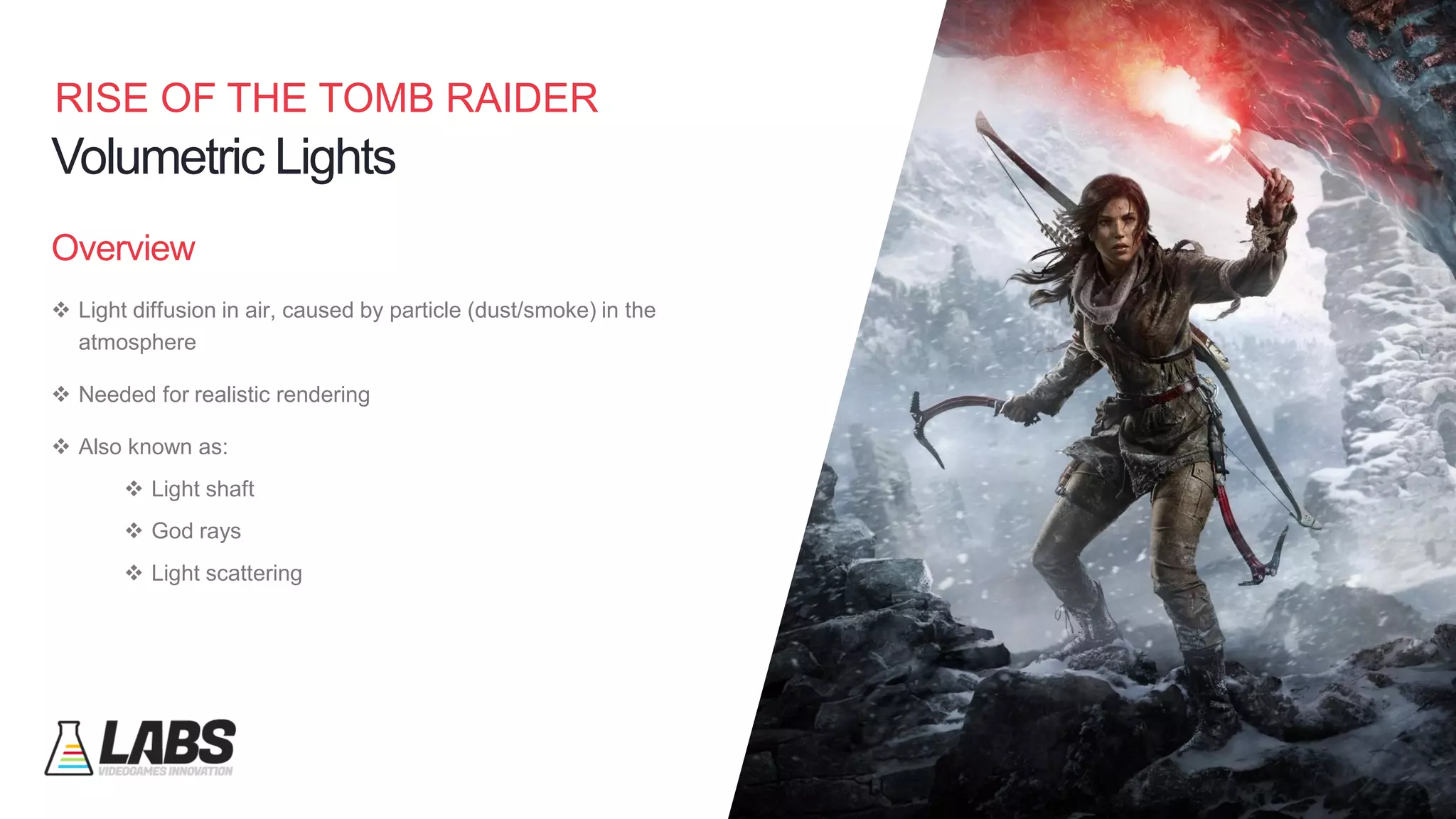

  9. 9. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Overview ❖ Light diffusion in air, caused by particle (dust/smoke) in the atmosphere ❖ Needed for realistic rendering ❖ Also known as: ❖ Light shaft ❖ God rays ❖ Light scattering 11 Volumetric Lights

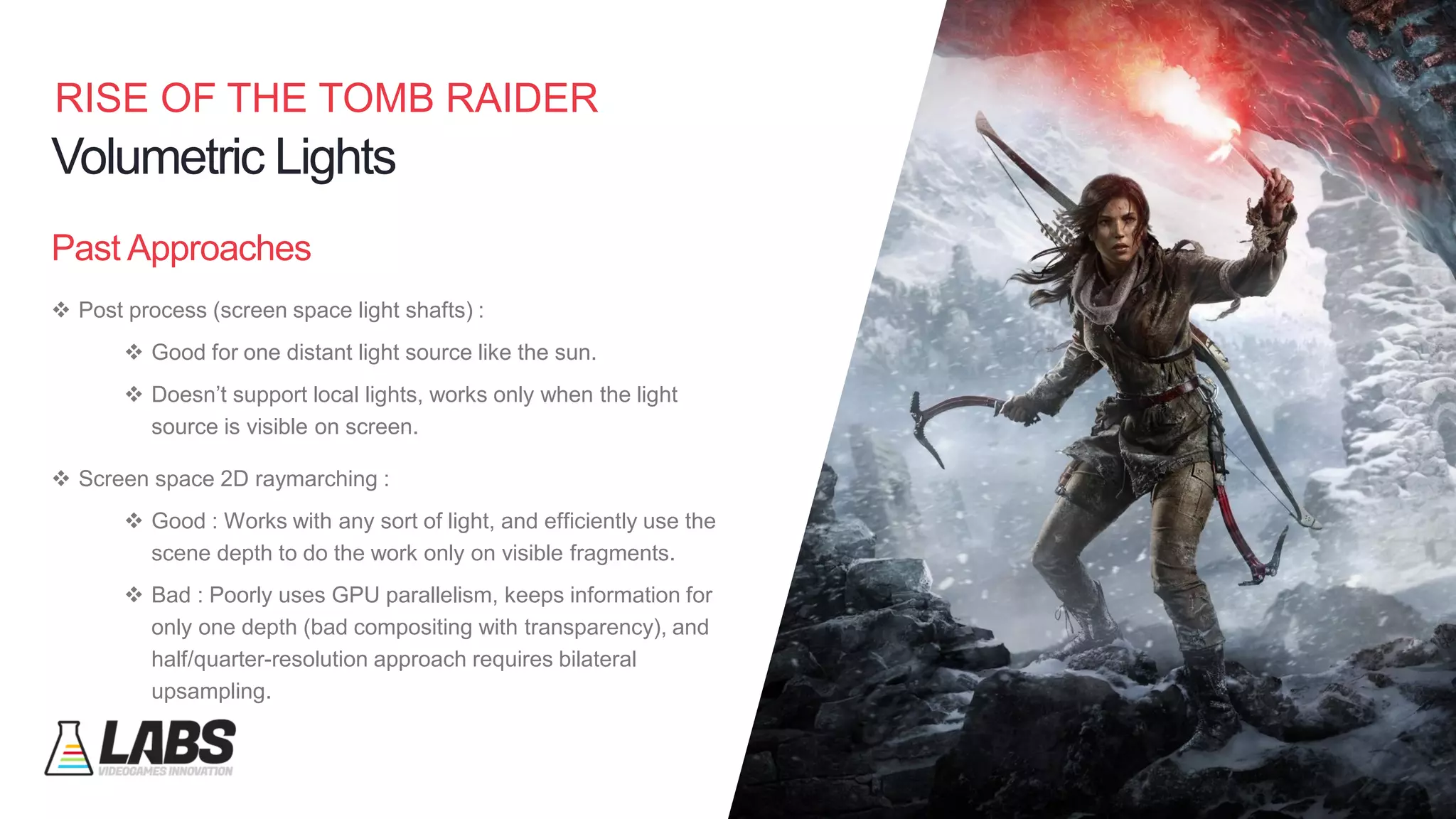

  10. 10. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Past Approaches ❖ Post process (screen space light shafts) : ❖ Good for one distant light source like the sun. ❖ Doesn’t support local lights, works only when the light source is visible on screen. ❖ Screen space 2D raymarching : ❖ Good : Works with any sort of light, and efficiently use the scene depth to do the work only on visible fragments. ❖ Bad : Poorly uses GPU parallelism, keeps information for only one depth (bad compositing with transparency), and half/quarter-resolution approach requires bilateral upsampling. 12 Volumetric Lights

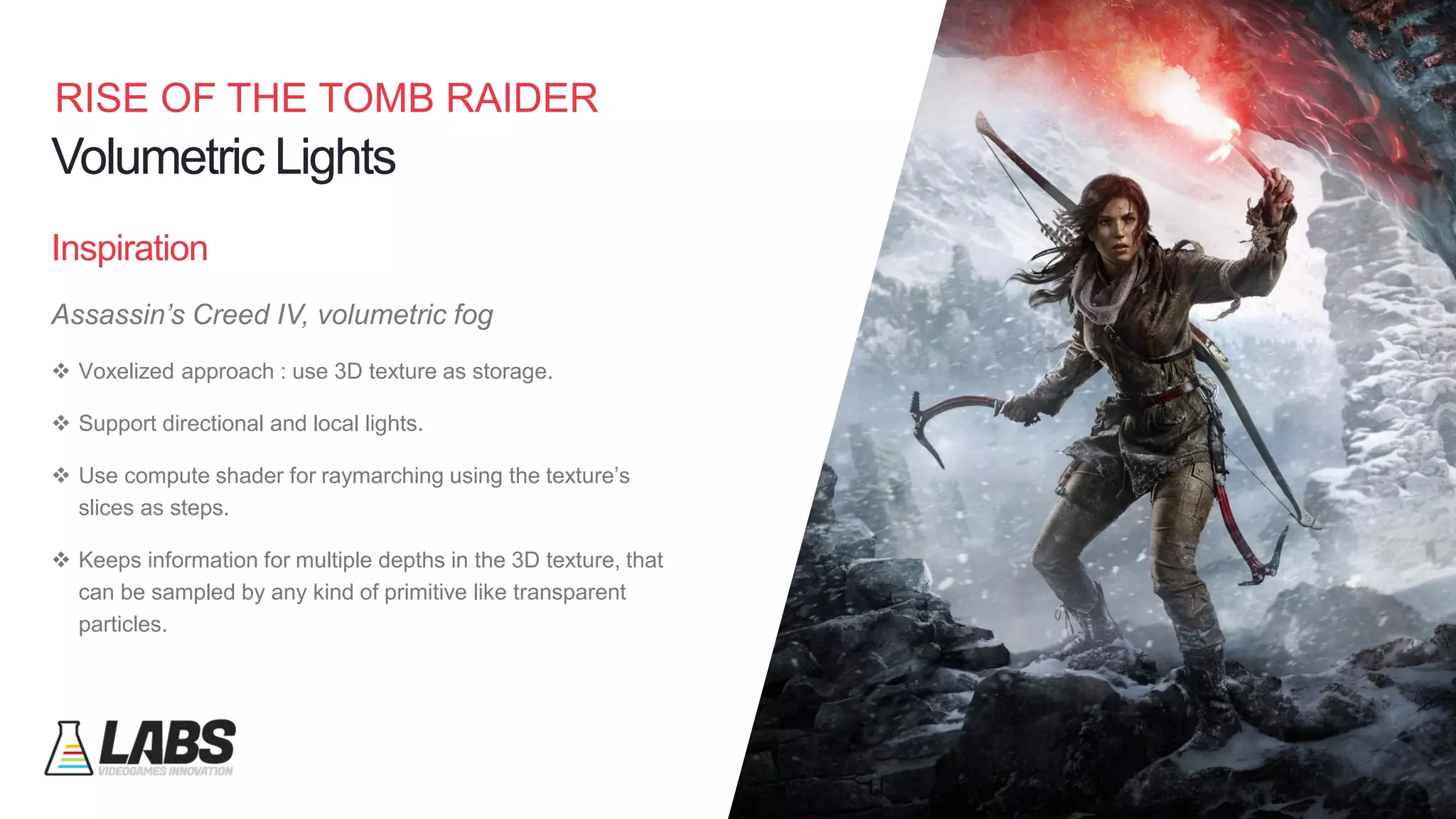

  11. 11. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Inspiration Assassin’s Creed IV, volumetric fog ❖ Voxelized approach : use 3D texture as storage. ❖ Support directional and local lights. ❖ Use compute shader for raymarching using the texture’s slices as steps. ❖ Keeps information for multiple depths in the 3D texture, that can be sampled by any kind of primitive like transparent particles. 13 Volumetric Lights

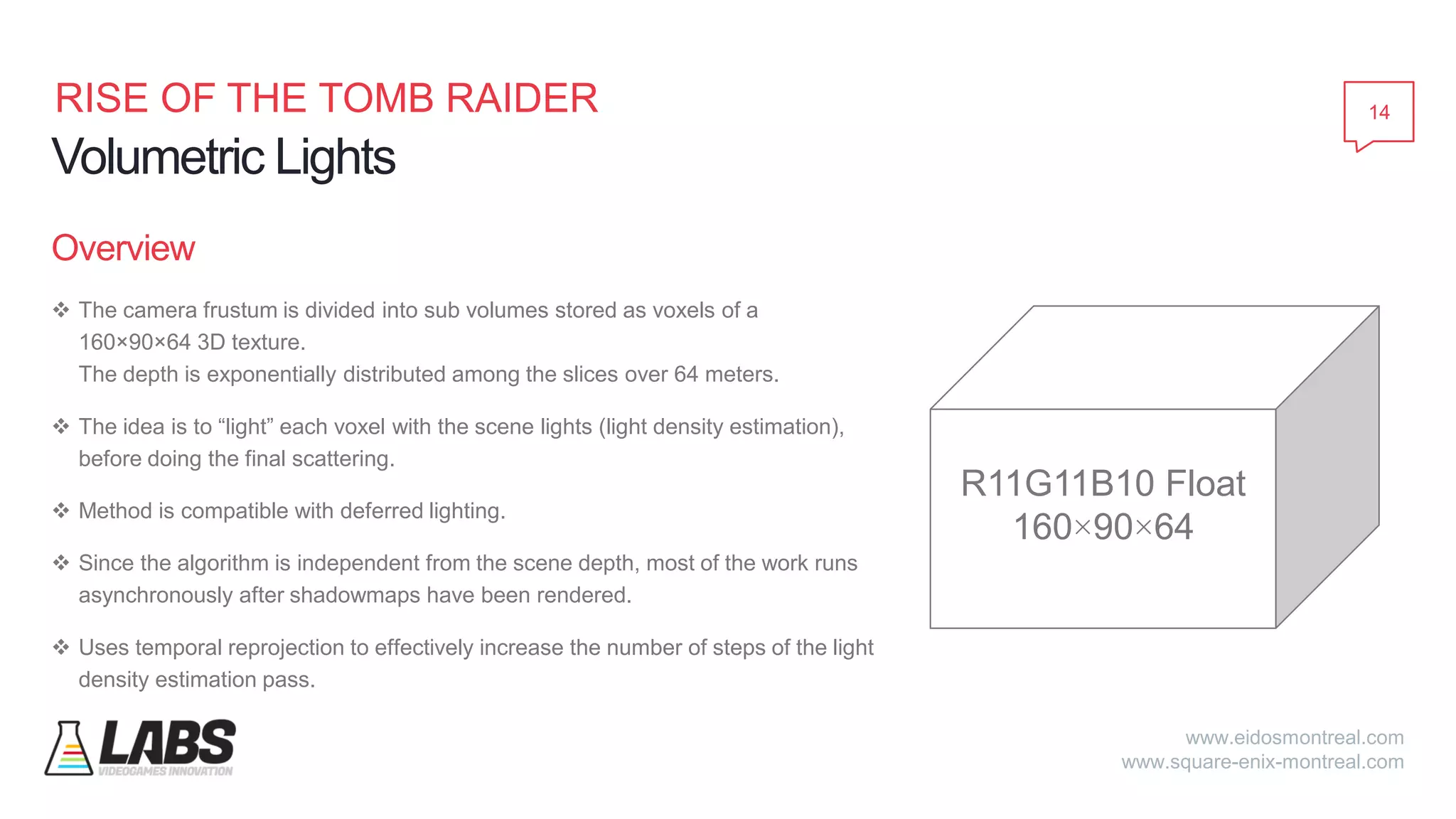

  12. 12. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Overview ❖ The camera frustum is divided into sub volumes stored as voxels of a 160×90×64 3D texture. The depth is exponentially distributed among the slices over 64 meters. ❖ The idea is to “light” each voxel with the scene lights (light density estimation), before doing the final scattering. ❖ Method is compatible with deferred lighting. ❖ Since the algorithm is independent from the scene depth, most of the work runs asynchronously after shadowmaps have been rendered. ❖ Uses temporal reprojection to effectively increase the number of steps of the light density estimation pass. 14 Volumetric Lights R11G11B10 Float 160×90×64

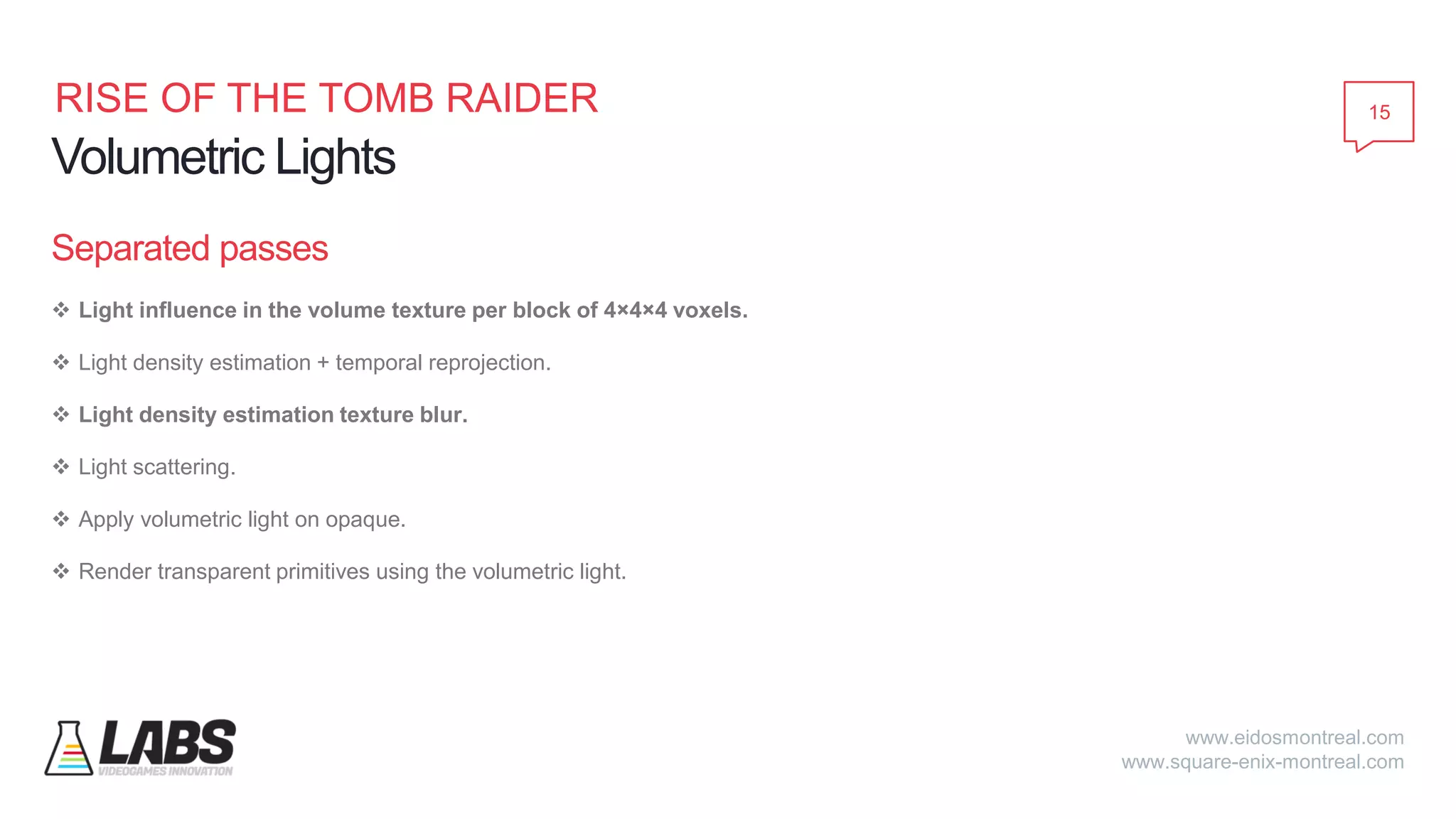

  13. 13. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Separated passes ❖ Light influence in the volume texture per block of 4×4×4 voxels. ❖ Light density estimation + temporal reprojection. ❖ Light density estimation texture blur. ❖ Light scattering. ❖ Apply volumetric light on opaque. ❖ Render transparent primitives using the volumetric light. 15 Volumetric Lights

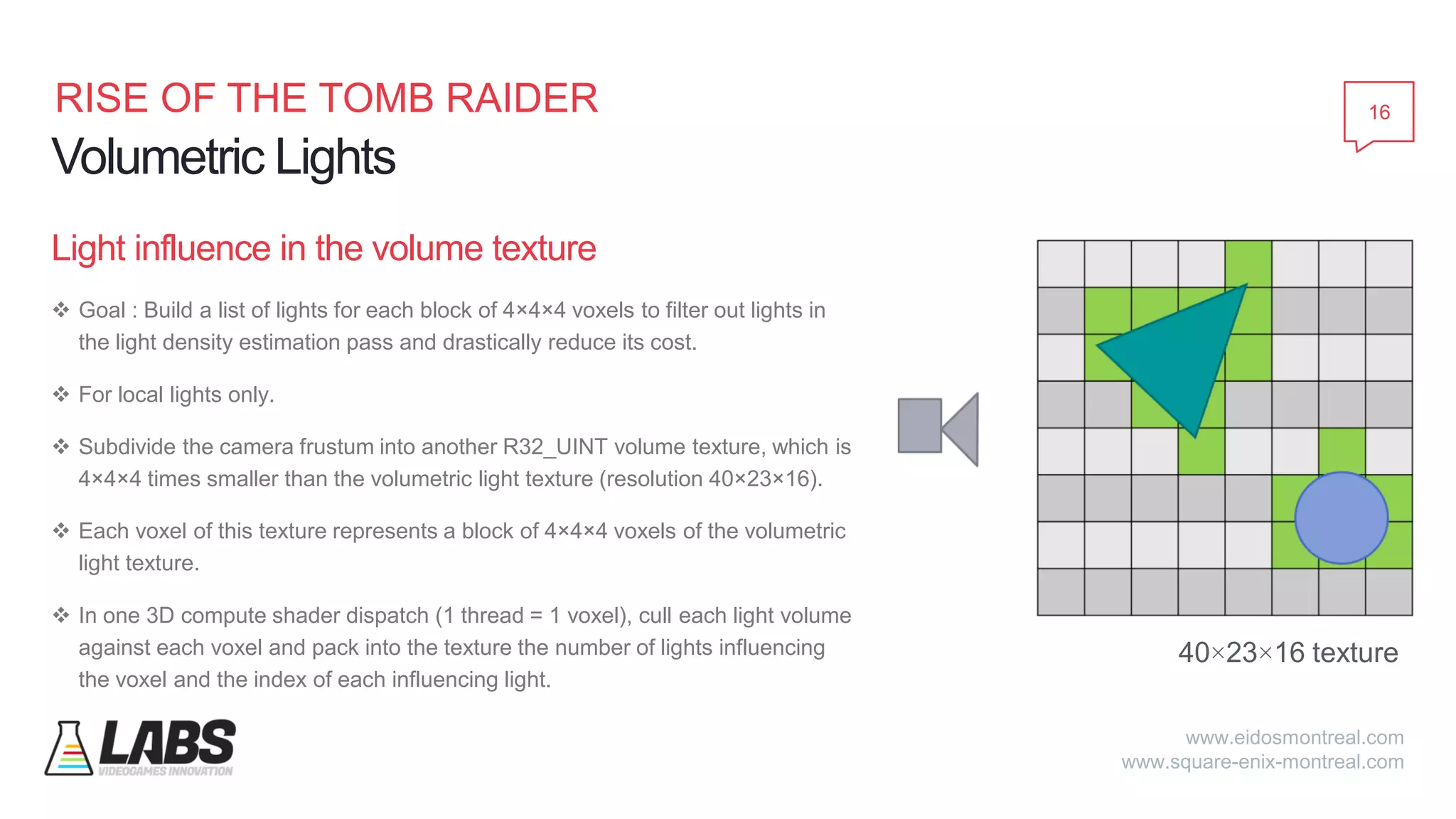

  14. 14. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Light influence in the volume texture ❖ Goal : Build a list of lights for each block of 4×4×4 voxels to filter out lights in the light density estimation pass and drastically reduce its cost. ❖ For local lights only. ❖ Subdivide the camera frustum into another R32_UINT volume texture, which is 4×4×4 times smaller than the volumetric light texture (resolution 40×23×16). ❖ Each voxel of this texture represents a block of 4×4×4 voxels of the volumetric light texture. ❖ In one 3D compute shader dispatch (1 thread = 1 voxel), cull each light volume against each voxel and pack into the texture the number of lights influencing the voxel and the index of each influencing light. 16 Volumetric Lights 40×23×16 texture

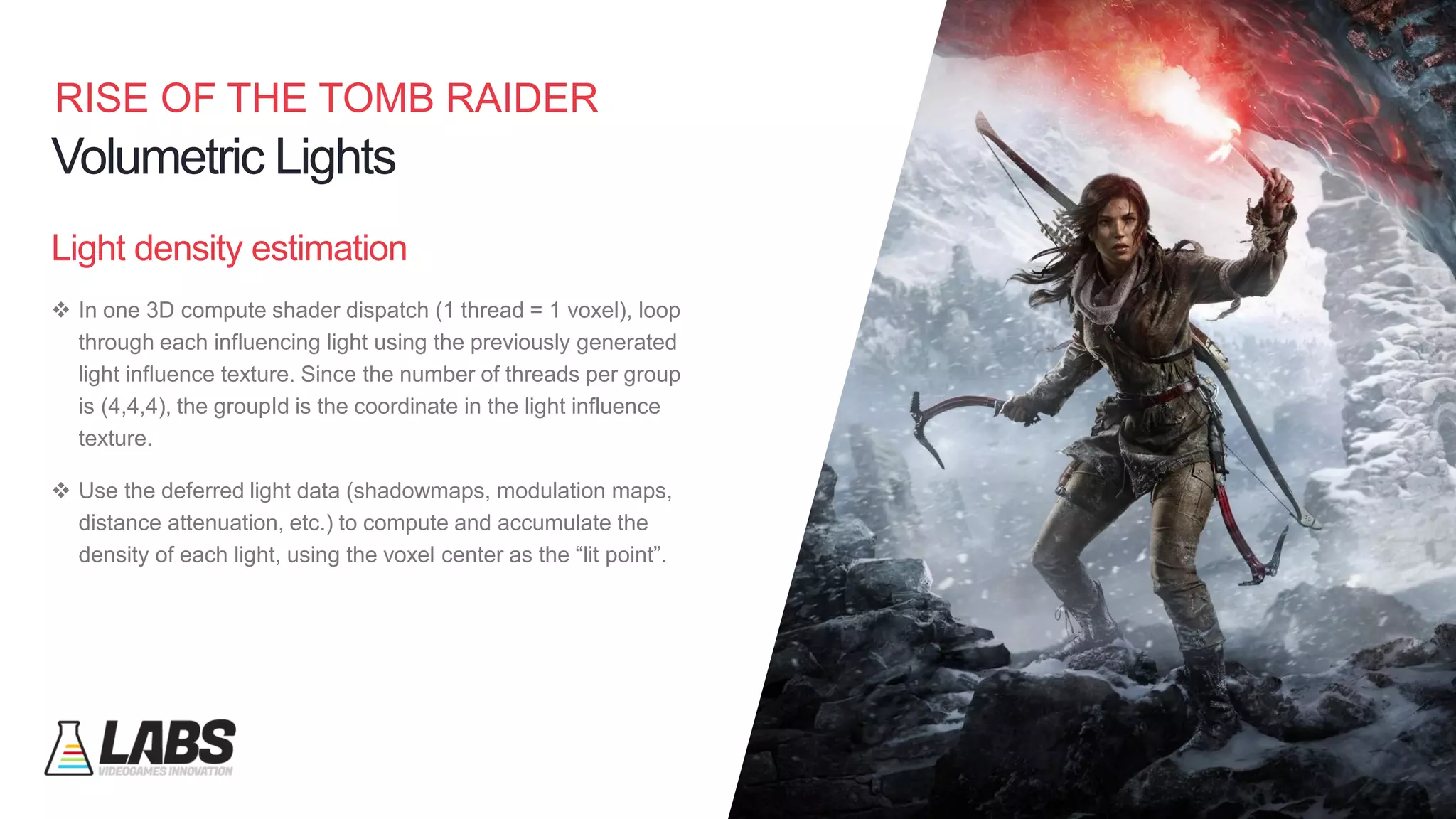

  15. 15. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Light density estimation ❖ In one 3D compute shader dispatch (1 thread = 1 voxel), loop through each influencing light using the previously generated light influence texture. Since the number of threads per group is (4,4,4), the groupId is the coordinate in the light influence texture. ❖ Use the deferred light data (shadowmaps, modulation maps, distance attenuation, etc.) to compute and accumulate the density of each light, using the voxel center as the “lit point”. 17 Volumetric Lights

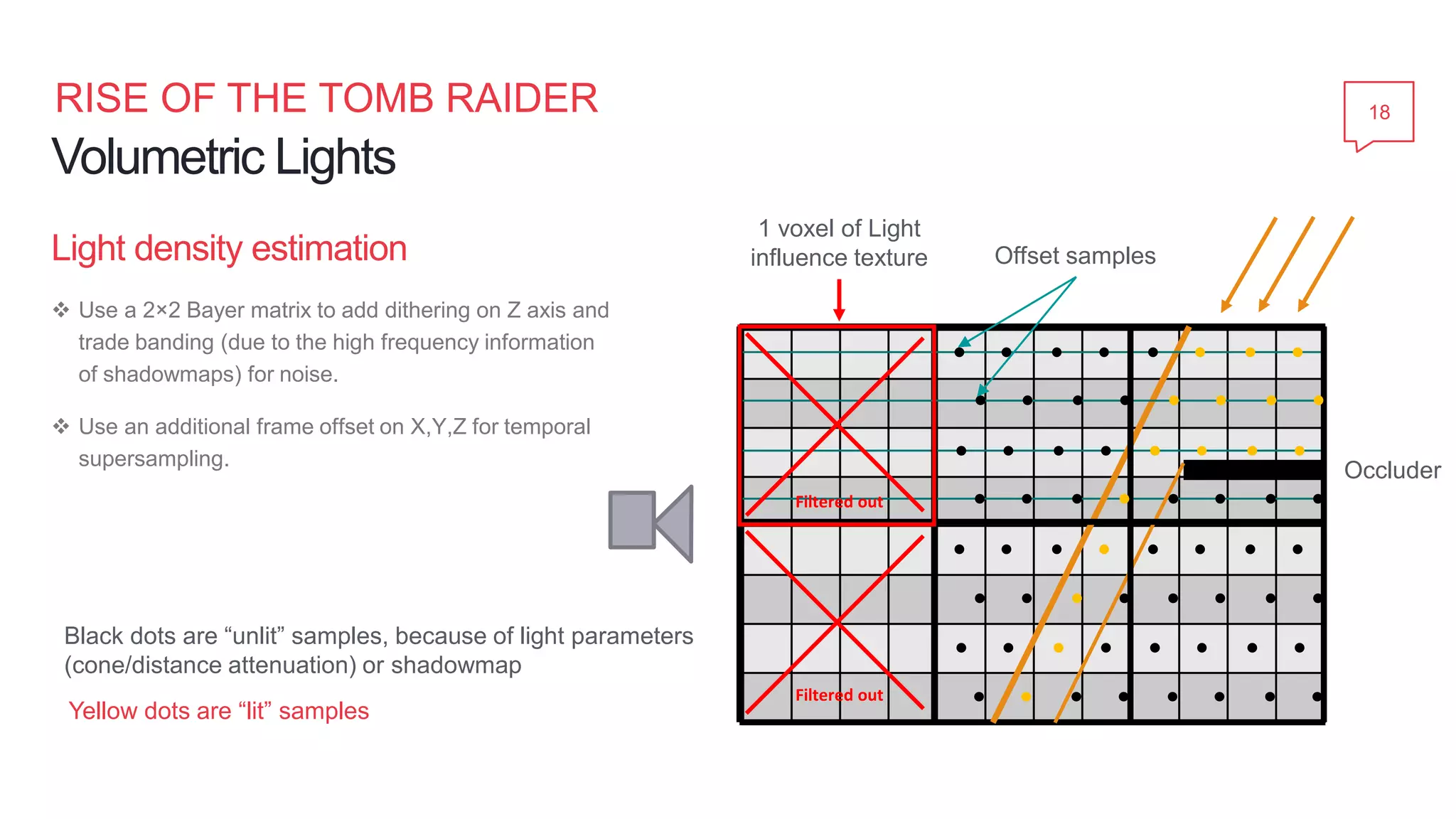

  16. 16. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Light density estimation ❖ Use a 2×2 Bayer matrix to add dithering on Z axis and trade banding (due to the high frequency information of shadowmaps) for noise. ❖ Use an additional frame offset on X,Y,Z for temporal supersampling. 18 Volumetric Lights Filtered out Filtered out Occluder Offset samples 1 voxel of Light influence texture Black dots are “unlit” samples, because of light parameters (cone/distance attenuation) or shadowmap Yellow dots are “lit” samples
  17. 17. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Light density estimation ❖ The light density is computed using Henyey-Greenstein phase function (𝑔 is the anisotropy factor, 𝜃 is the angle between the eye direction and the light direction). ❖ Apply the temporal reprojection at the end the of loop, using the previous frame’s Light density estimation texture (kept before the blur pass). 19 Volumetric Lights 𝑝 𝜃 = 1 4𝜋 1 − 𝑔2 1 + 𝑔2 − 2𝑔 cos 𝜃 Τ3 2
  18. 18. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Code 20 Volumetric Lights [numthreads(4, 4, 4)] void main(uint3 dispatchThreadID : SV_DispatchThreadID, uint3 groupId : SV_GroupID) { float3 lightDensity = 0.0f; PackedLightInfluence packedLightInfluence = InTextureLightInfluence[GroupID]; uint numberOfLights = UnpackLightNum(packedLightInfluence); for(uint light = 0; light < numberOfLights; ++light) { // Get actual light index in constant buffer light list uint lightIndex = UnpackLightIndex(packedLightInfluence, light); LightData lightData = g_LightsData[lightIndex]; // Compute view position from this voxel coordinate float3 viewPosition = ComputeViewPosition(dispatchThreadID); // Compute light density for this light, at this position, using shadowmap, attenuation, etc. lightDensity += ComputeLightDensity(lightData, viewPosition); } // Output to the light density estimation texture OutLightDensityEstimationUAV[dispatchThreadID] = lightDensity; }

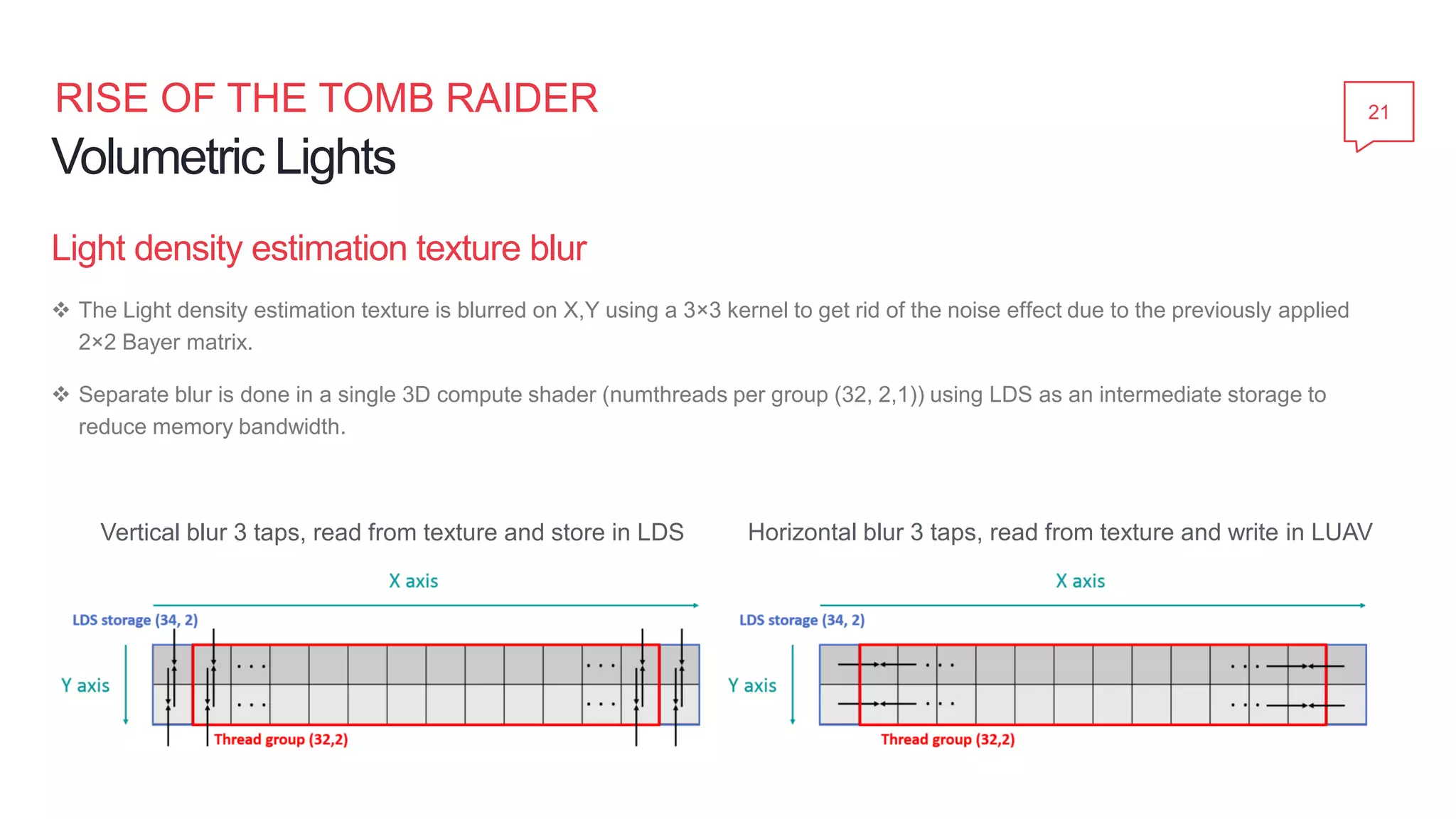

  19. 19. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Light density estimation texture blur ❖ The Light density estimation texture is blurred on X,Y using a 3×3 kernel to get rid of the noise effect due to the previously applied 2×2 Bayer matrix. ❖ Separate blur is done in a single 3D compute shader (numthreads per group (32, 2,1)) using LDS as an intermediate storage to reduce memory bandwidth. 21 Volumetric Lights Vertical blur 3 taps, read from texture and store in LDS Horizontal blur 3 taps, read from texture and write in LUAV

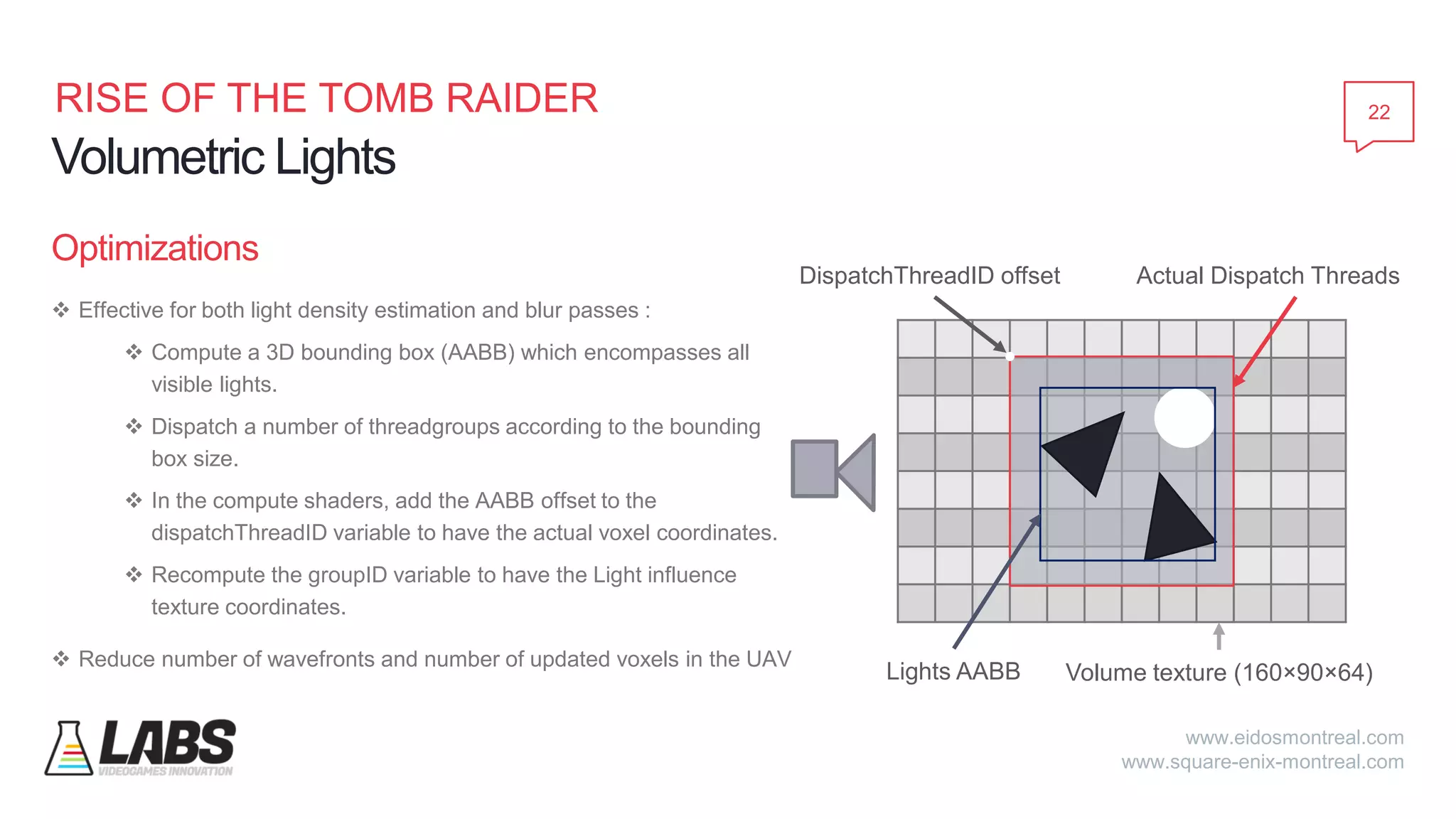

  20. 20. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Optimizations ❖ Effective for both light density estimation and blur passes : ❖ Compute a 3D bounding box (AABB) which encompasses all visible lights. ❖ Dispatch a number of threadgroups according to the bounding box size. ❖ In the compute shaders, add the AABB offset to the dispatchThreadID variable to have the actual voxel coordinates. ❖ Recompute the groupID variable to have the Light influence texture coordinates. ❖ Reduce number of wavefronts and number of updated voxels in the UAV 22 Volumetric Lights DispatchThreadID offset Actual Dispatch Threads Lights AABB Volume texture (160×90×64)
  21. 21. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Light scattering ❖ Dispatch a 2D compute shader (numthreads per group (8,8,1)) to solve the scattering (prefix sum). 1 thread outputs values for all 64 slices. ❖ March through slices and accumulate light density. 23 Volumetric Lights

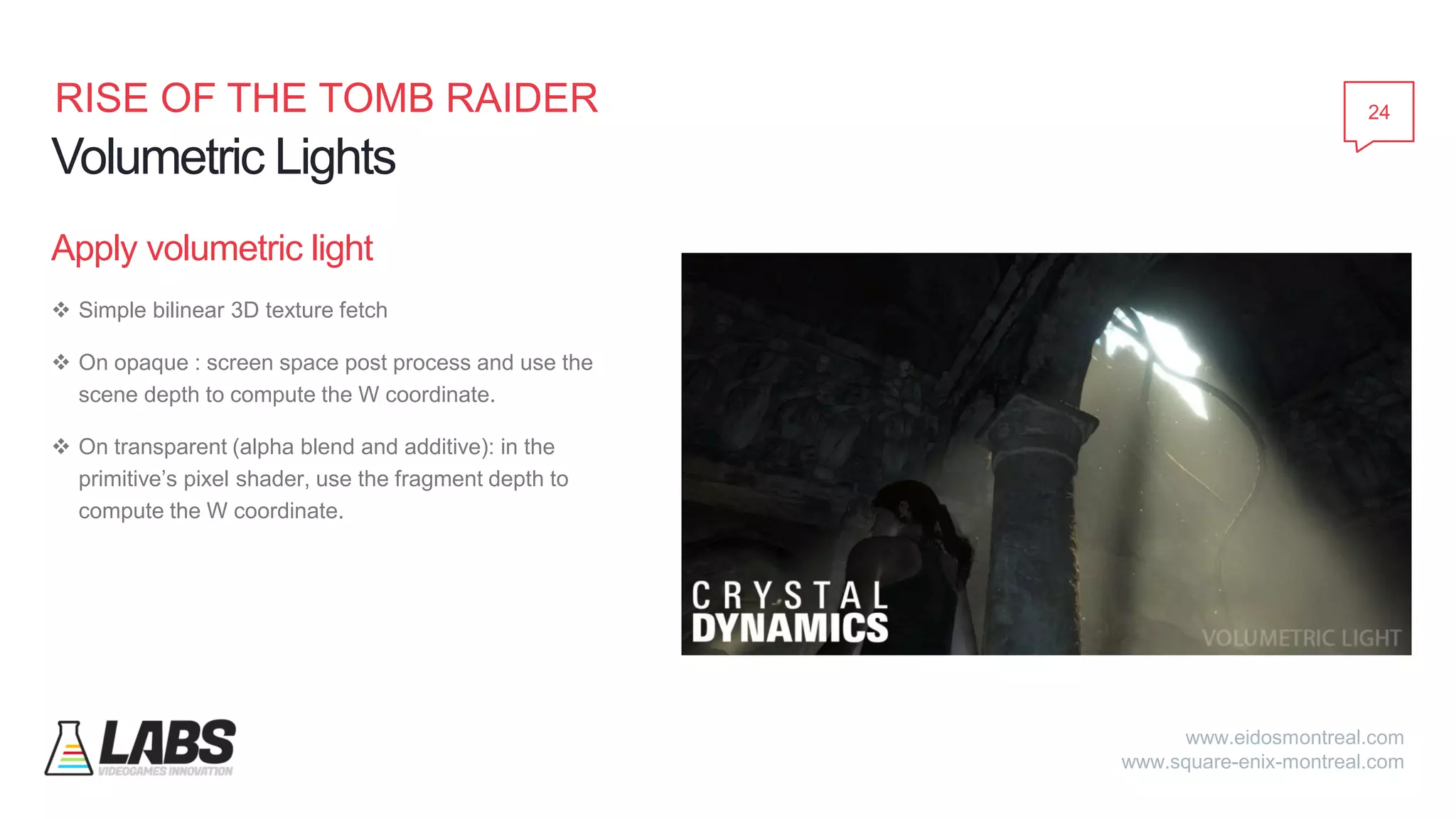

  22. 22. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Apply volumetric light ❖ Simple bilinear 3D texture fetch ❖ On opaque : screen space post process and use the scene depth to compute the W coordinate. ❖ On transparent (alpha blend and additive): in the primitive’s pixel shader, use the fragment depth to compute the W coordinate. 24 Volumetric Lights

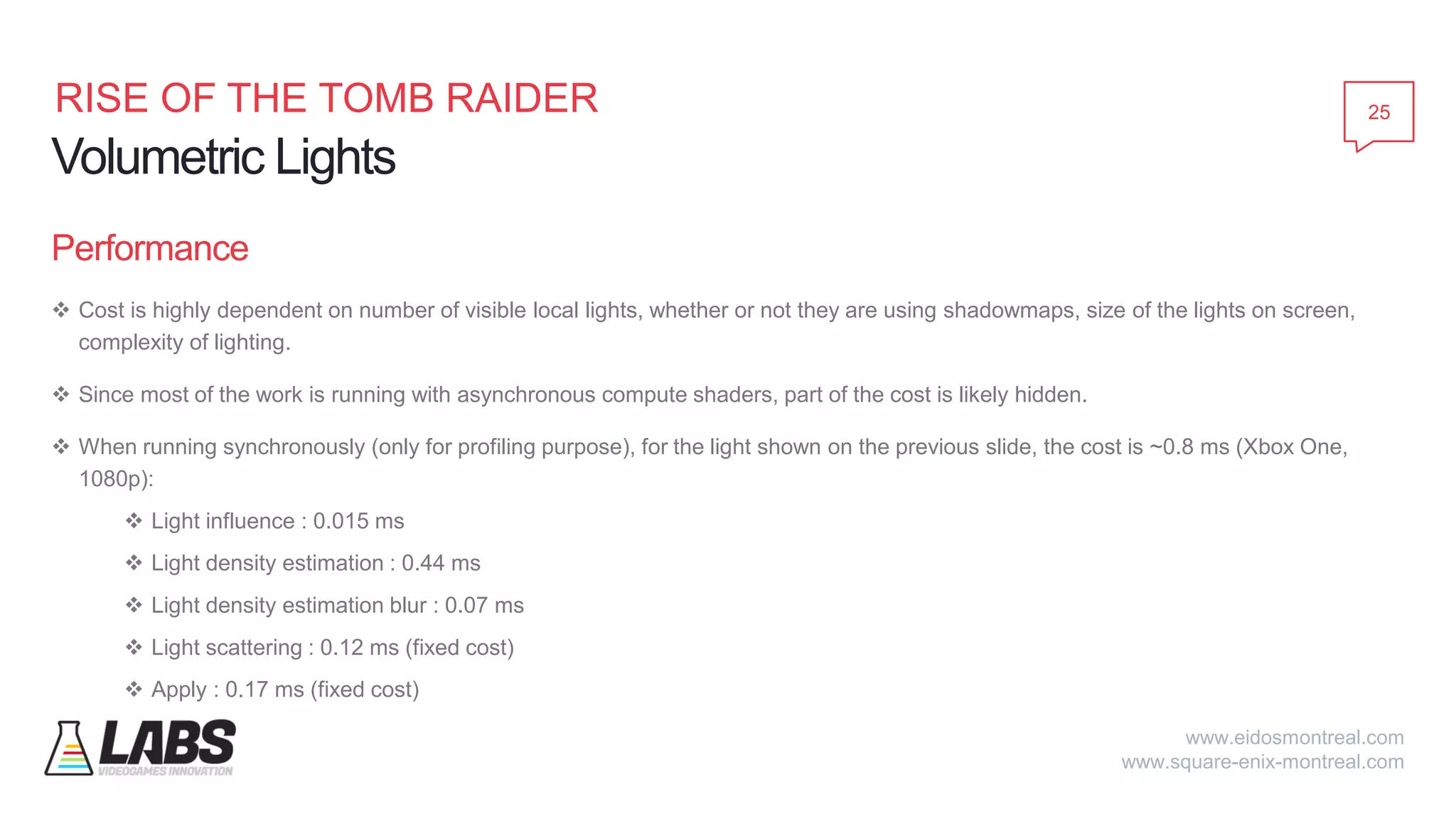

  23. 23. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Performance ❖ Cost is highly dependent on number of visible local lights, whether or not they are using shadowmaps, size of the lights on screen, complexity of lighting. ❖ Since most of the work is running with asynchronous compute shaders, part of the cost is likely hidden. ❖ When running synchronously (only for profiling purpose), for the light shown on the previous slide, the cost is ~0.8 ms (Xbox One, 1080p): ❖ Light influence : 0.015 ms ❖ Light density estimation : 0.44 ms ❖ Light density estimation blur : 0.07 ms ❖ Light scattering : 0.12 ms (fixed cost) ❖ Apply : 0.17 ms (fixed cost) 25 Volumetric Lights

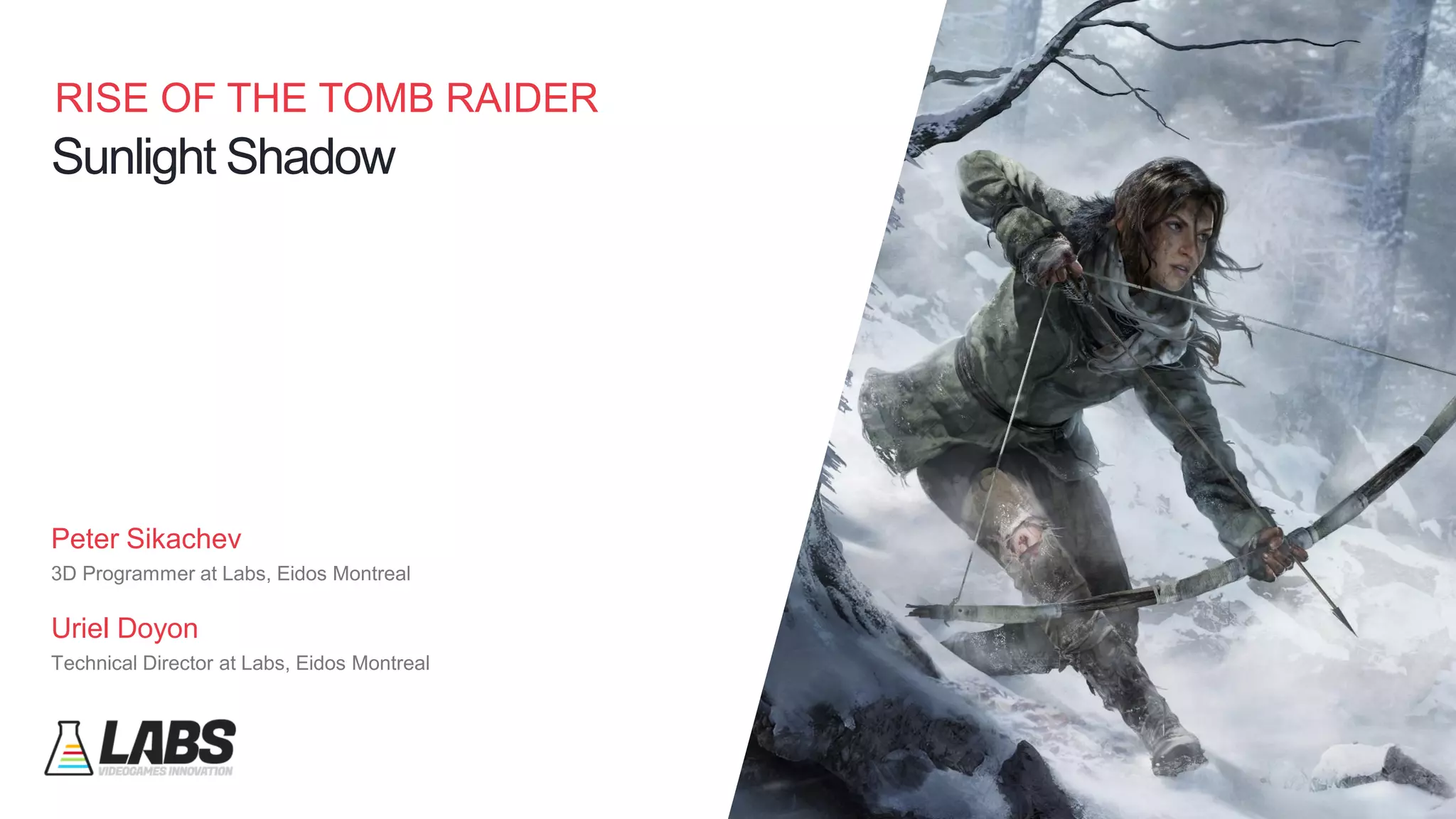

  24. 24. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Sunlight Shadow 26 Uriel Doyon Technical Director at Labs, Eidos Montreal Peter Sikachev 3D Programmer at Labs, Eidos Montreal
  25. 25. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com 27 Sunlight Shadow Cascade Shadow Maps (CSM) Refresher ❖ Use several shadow maps to model a light shadow ❖ Required because perspective projection changes the pixel/texel ratio ❖ Each shadow map uses texels of different world size Conventional Shadow Map: Light View Camera frustum

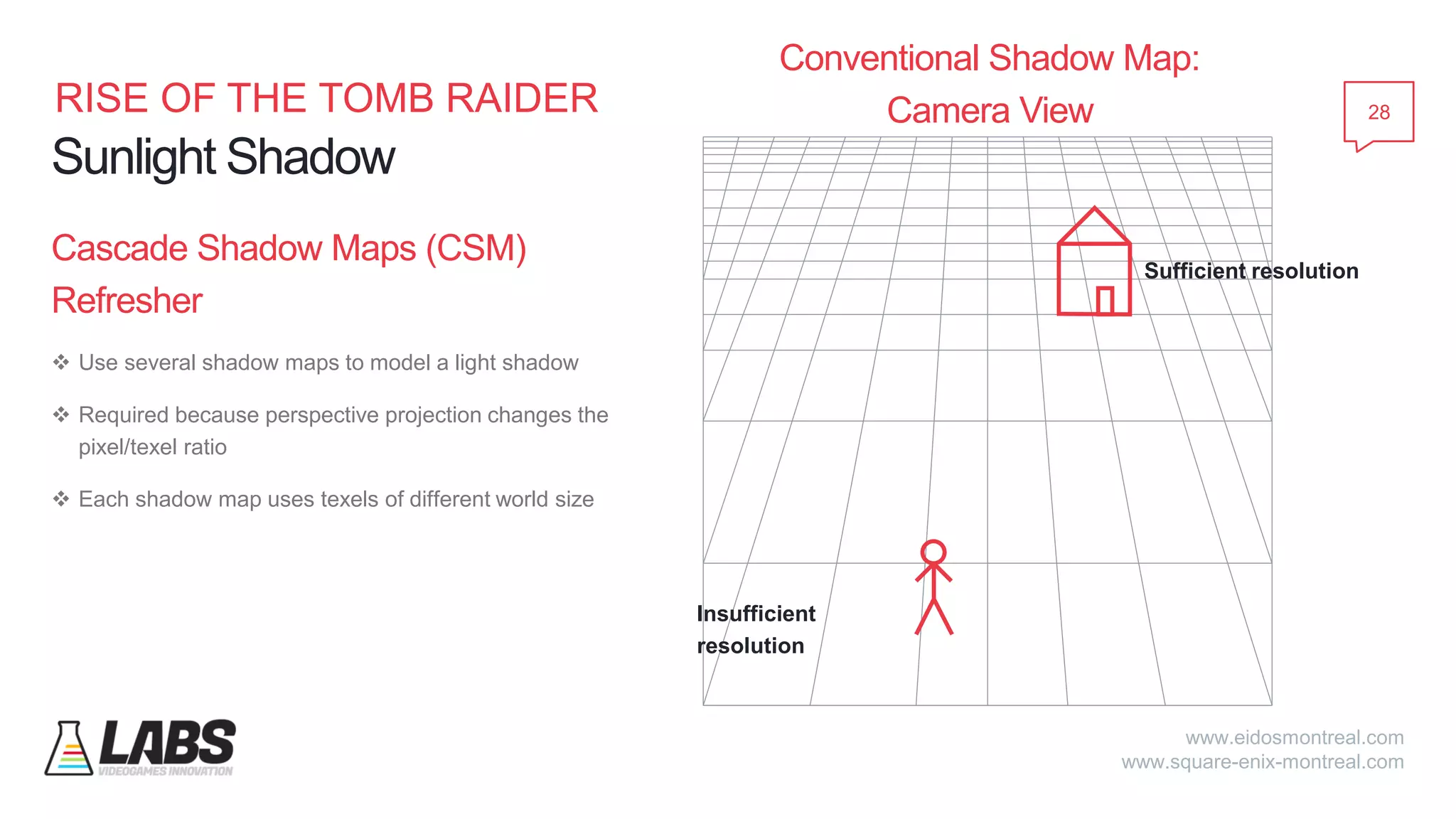

  26. 26. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com 28 Sunlight Shadow Cascade Shadow Maps (CSM) Refresher ❖ Use several shadow maps to model a light shadow ❖ Required because perspective projection changes the pixel/texel ratio ❖ Each shadow map uses texels of different world size Insufficient resolution Sufficient resolution Conventional Shadow Map: Camera View

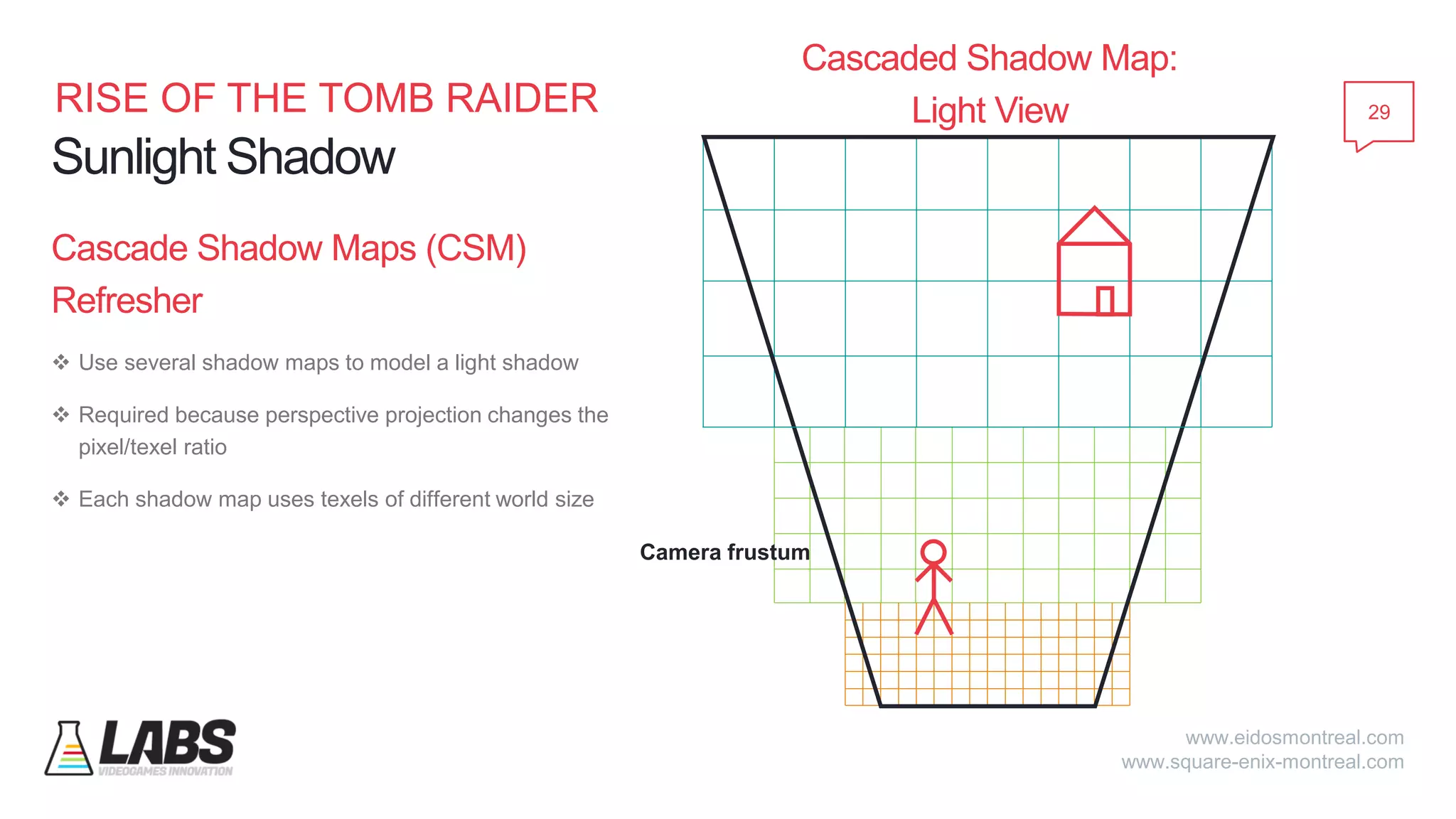

  27. 27. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com 29 Sunlight Shadow Cascade Shadow Maps (CSM) Refresher ❖ Use several shadow maps to model a light shadow ❖ Required because perspective projection changes the pixel/texel ratio ❖ Each shadow map uses texels of different world size Cascaded Shadow Map: Light View Camera frustum

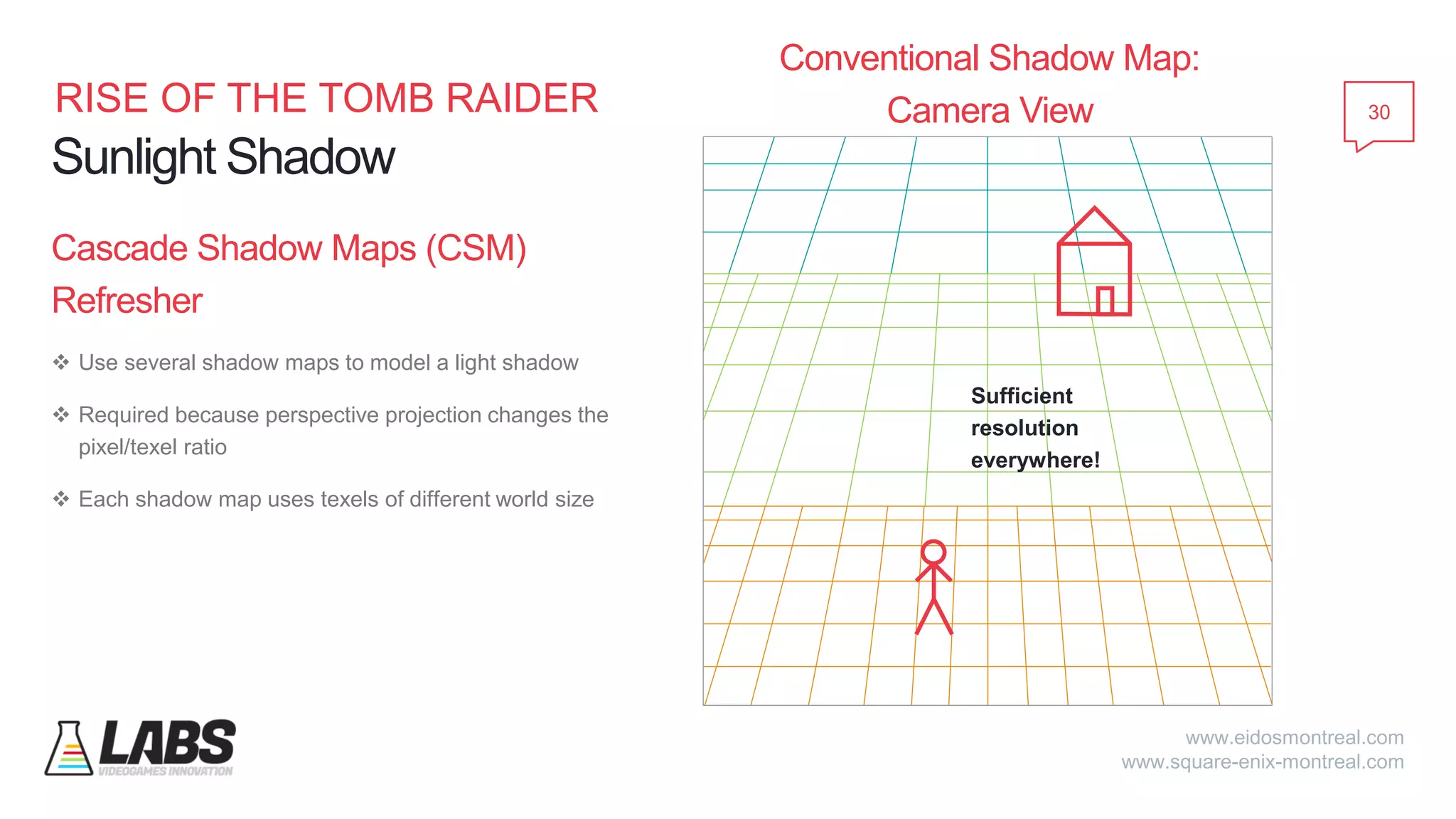

  28. 28. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com 30 Sunlight Shadow Cascade Shadow Maps (CSM) Refresher ❖ Use several shadow maps to model a light shadow ❖ Required because perspective projection changes the pixel/texel ratio ❖ Each shadow map uses texels of different world size Conventional Shadow Map: Camera View Sufficient resolution everywhere!

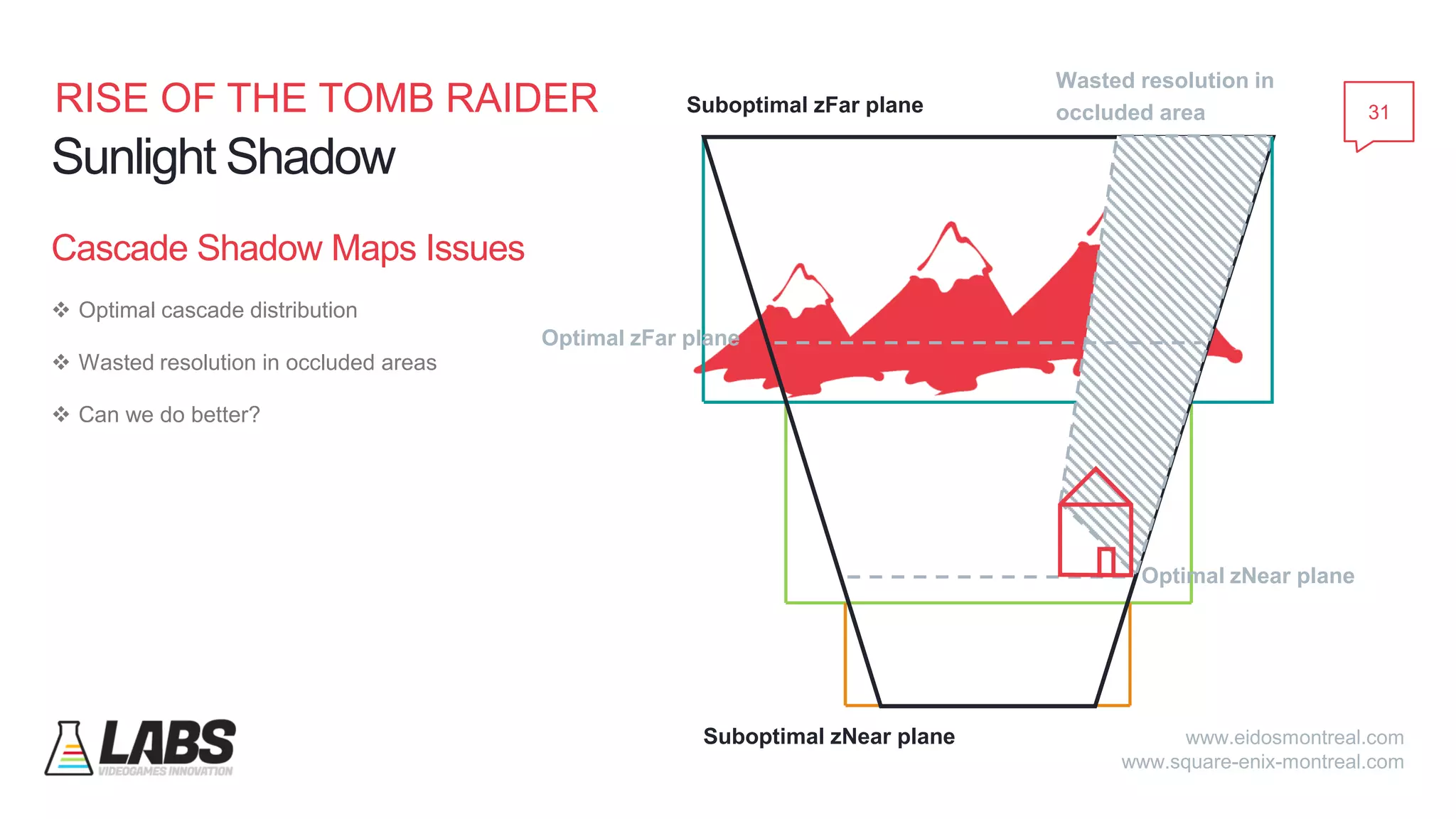

  29. 29. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Cascade Shadow Maps Issues ❖ Optimal cascade distribution ❖ Wasted resolution in occluded areas ❖ Can we do better? 31 Sunlight Shadow Optimal zFar plane Suboptimal zFar plane Optimal zNear plane Suboptimal zNear plane Wasted resolution in occluded area

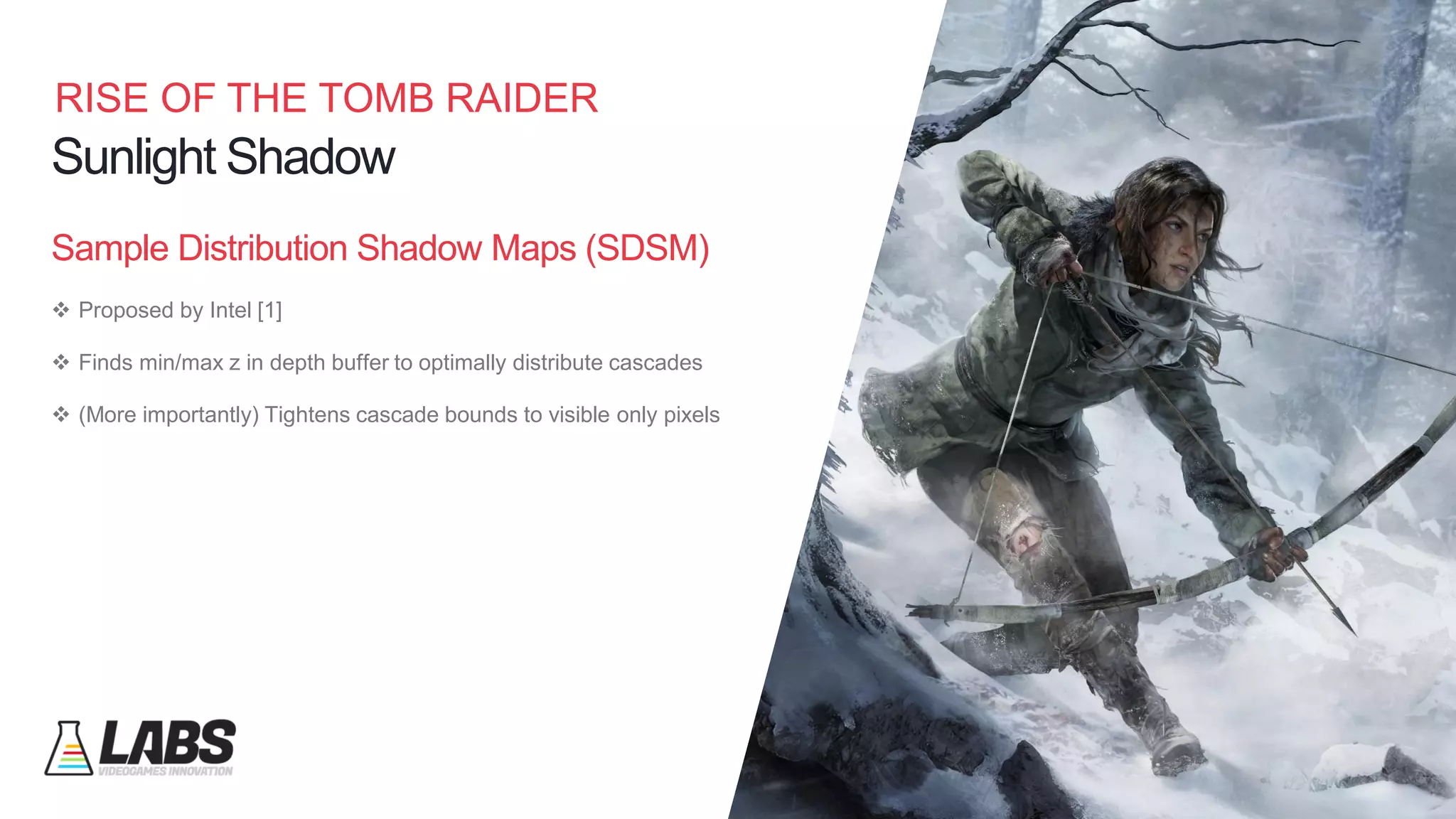

  30. 30. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Sample Distribution Shadow Maps (SDSM) ❖ Proposed by Intel [1] ❖ Finds min/max z in depth buffer to optimally distribute cascades ❖ (More importantly) Tightens cascade bounds to visible only pixels 32 Sunlight Shadow

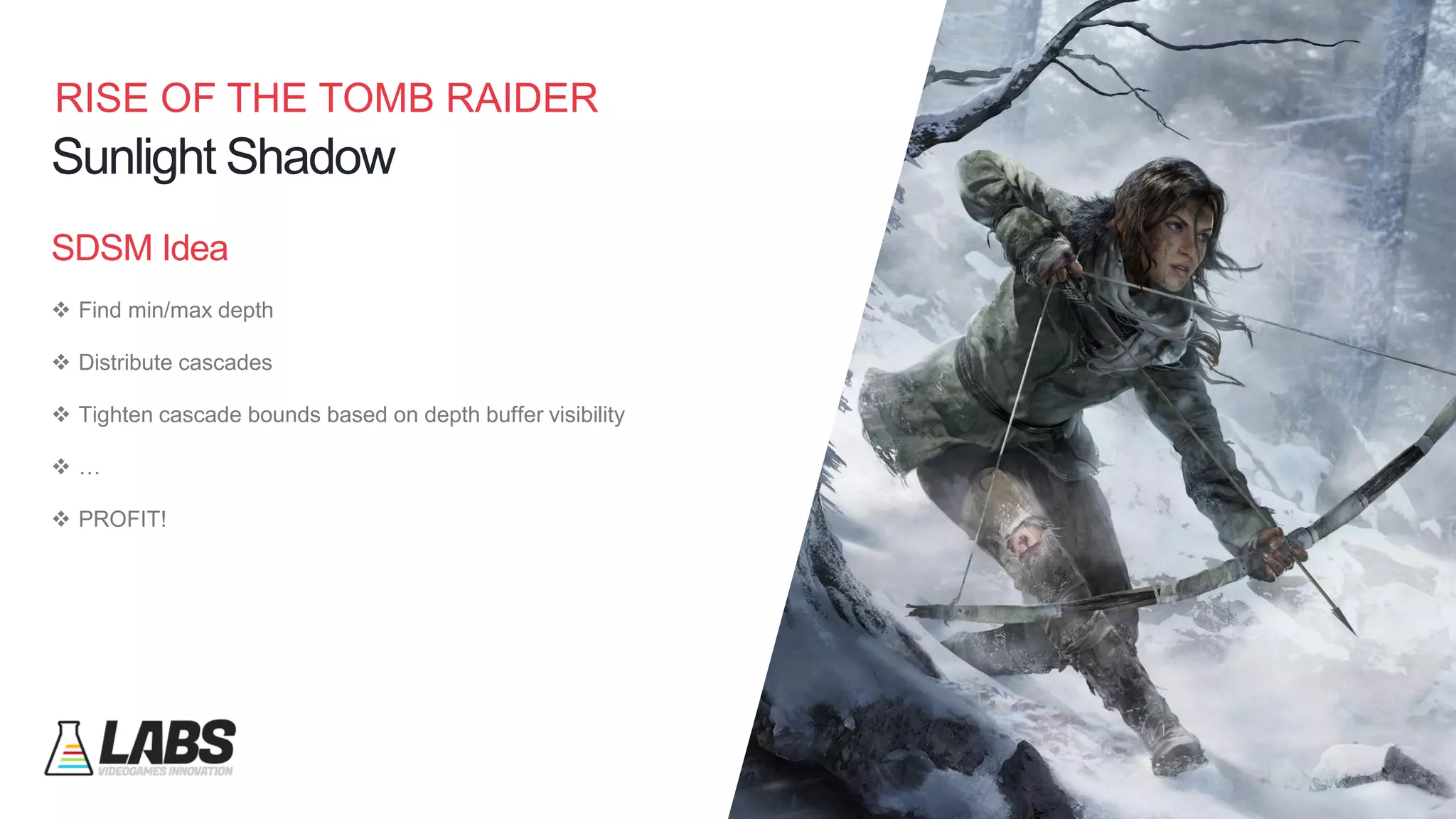

  31. 31. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com SDSM Idea ❖ Find min/max depth ❖ Distribute cascades ❖ Tighten cascade bounds based on depth buffer visibility ❖ … ❖ PROFIT! 33 Sunlight Shadow

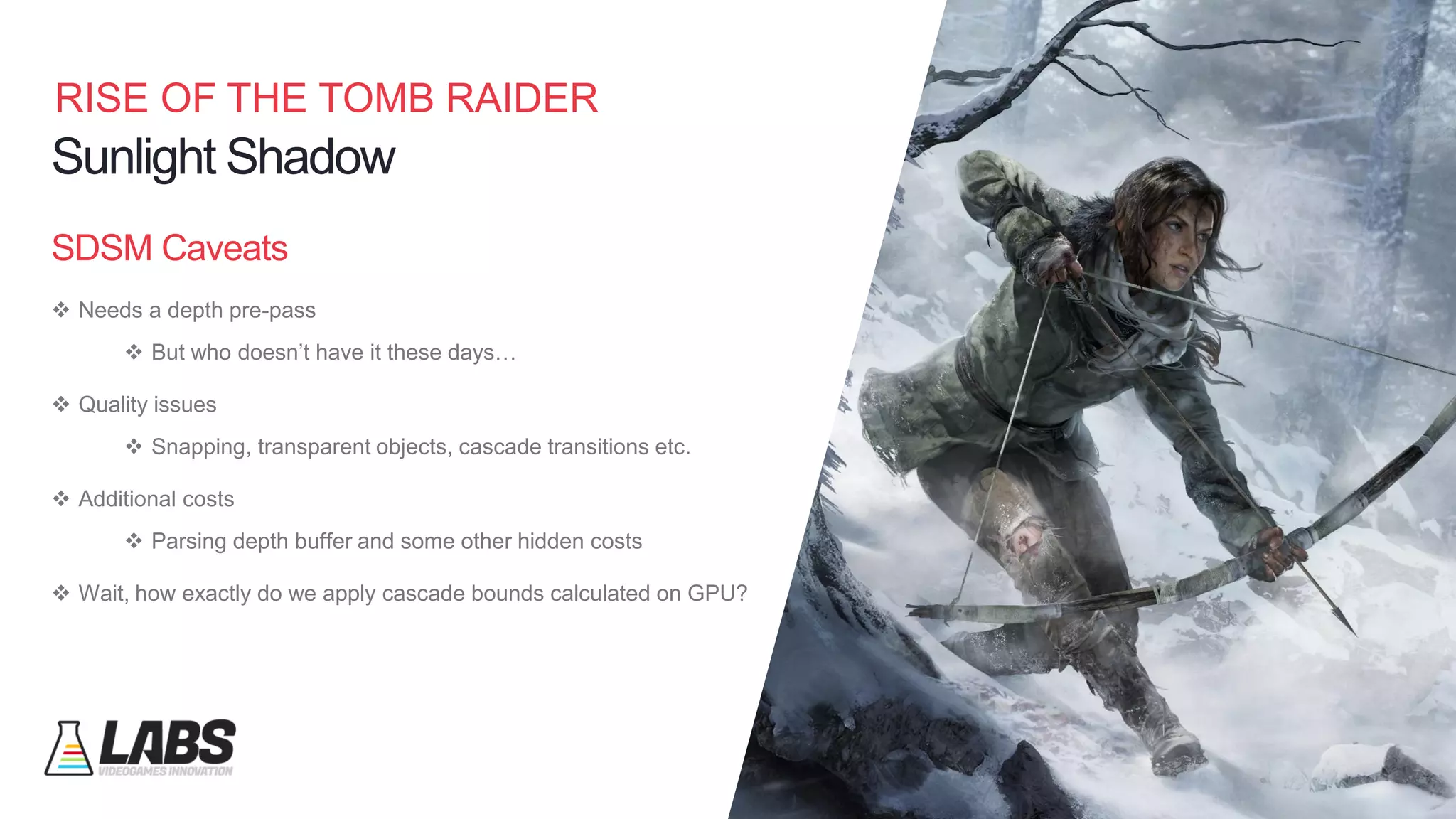

  32. 32. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com 34 Sunlight Shadow SDSM Caveats ❖ Needs a depth pre-pass ❖ But who doesn’t have it these days… ❖ Quality issues ❖ Snapping, transparent objects, cascade transitions etc. ❖ Additional costs ❖ Parsing depth buffer and some other hidden costs ❖ Wait, how exactly do we apply cascade bounds calculated on GPU?

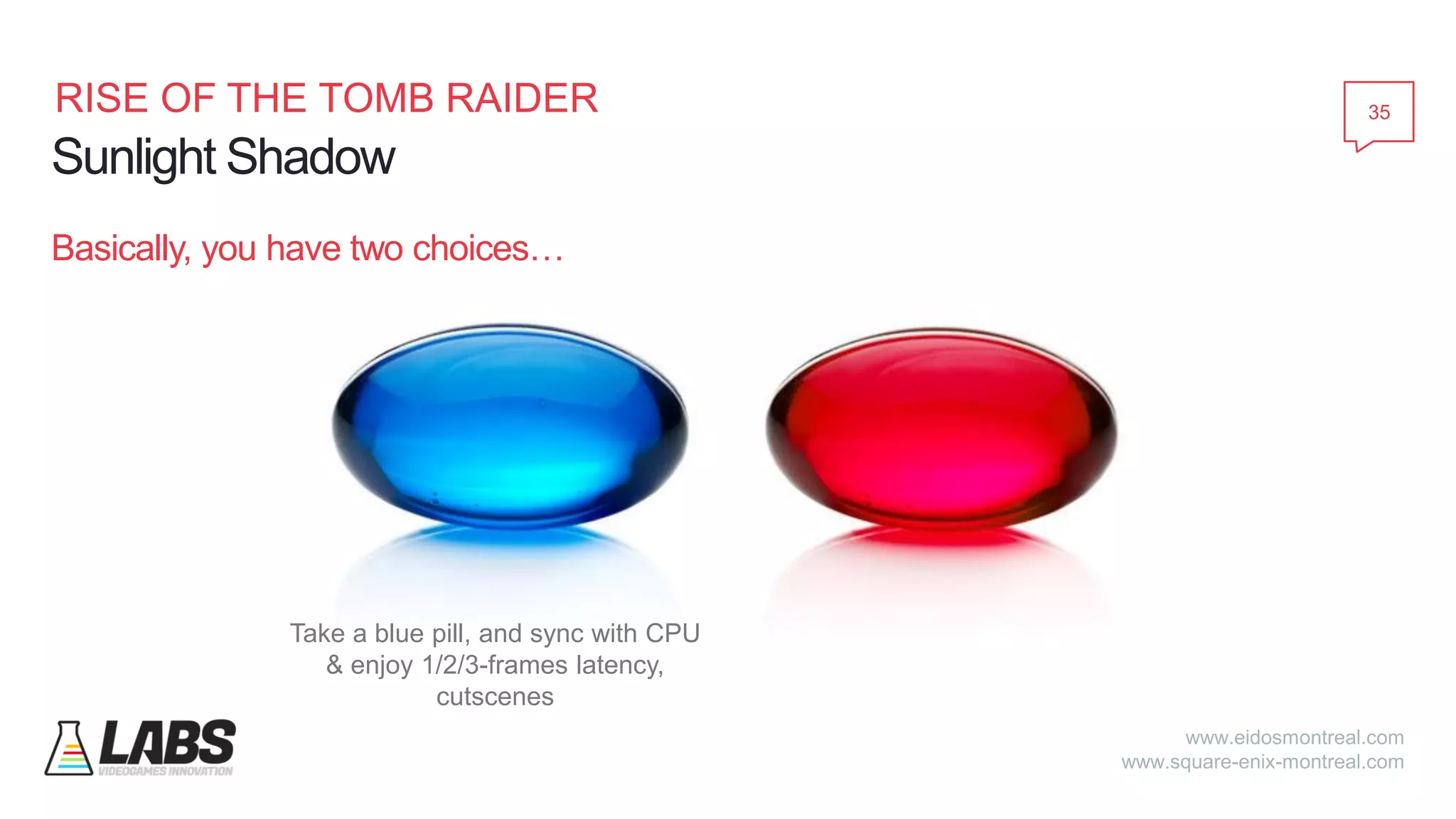

  33. 33. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Basically, you have two choices… 35 Sunlight Shadow Take a blue pill, and sync with CPU & enjoy 1/2/3-frames latency, cutscenes
  34. 34. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Basically, you have two choices… 36 Sunlight Shadow Take a blue pill, and sync with CPU & enjoy 1/2/3-frames latency, cutscenes Take a red pill, and learn how to do it without the nasty CPU sync

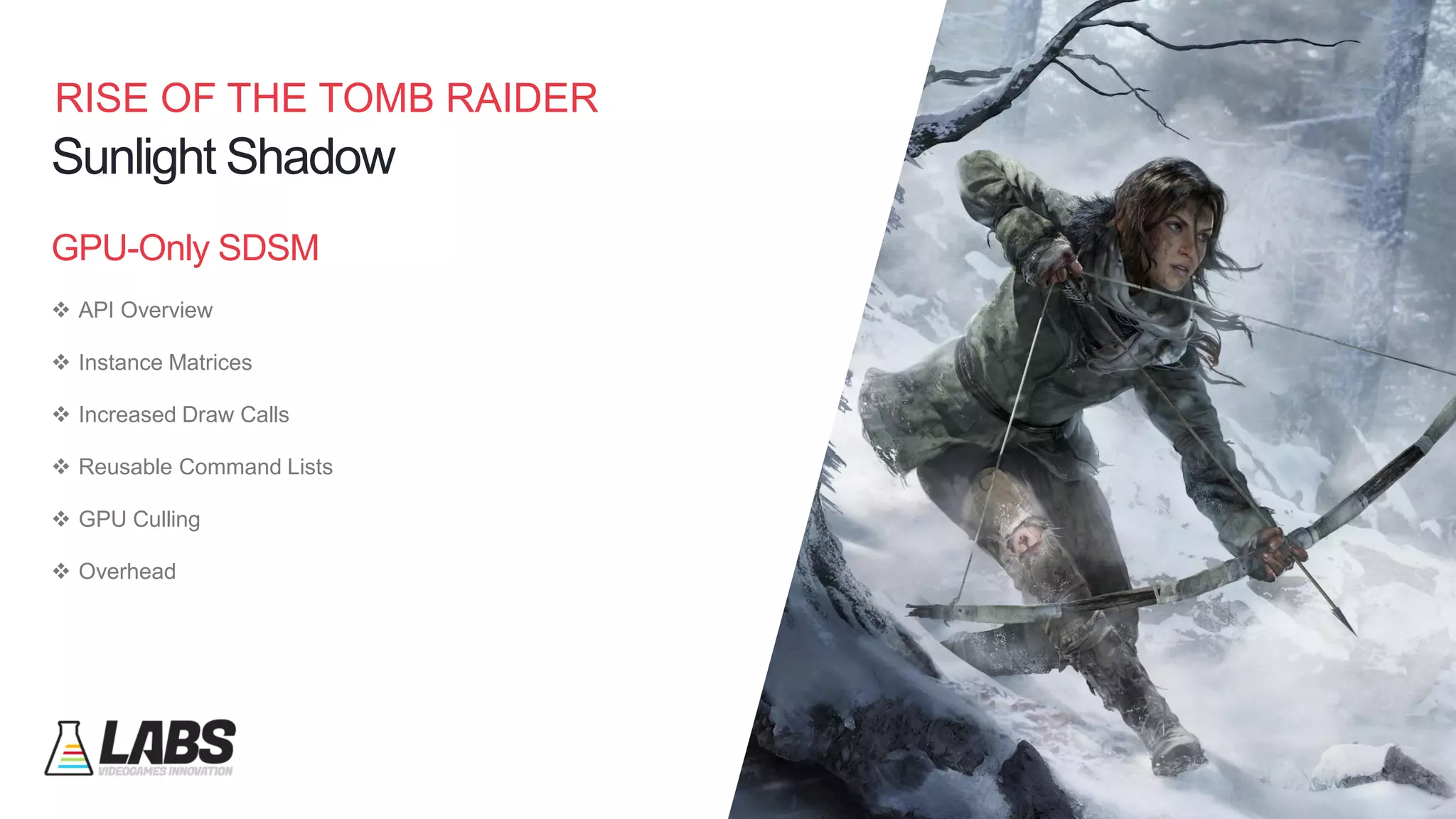

  35. 35. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com GPU-Only SDSM ❖ API Overview ❖ Instance Matrices ❖ Increased Draw Calls ❖ Reusable Command Lists ❖ GPU Culling ❖ Overhead 37 Sunlight Shadow
  36. 36. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com API Overview ❖ New calls in DirectX 11 API ❖ DrawInstancedIndirect ❖ DrawIndexedInstancedIndirect ❖ DispatchIndirect ❖ Pass a pointer to a buffer holding same parameters as a non-indirect call ❖ Using ID3D11Buffer descriptor 38 Sunlight Shadow
  37. 37. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Instance Matrices ❖ Update view/proj matrices after bounds update ❖ Move matrices from CB to UAVs ❖ Use static/dynamic branching to use the desired matrix ❖ Minimal codebase refactoring 39 Sunlight Shadow

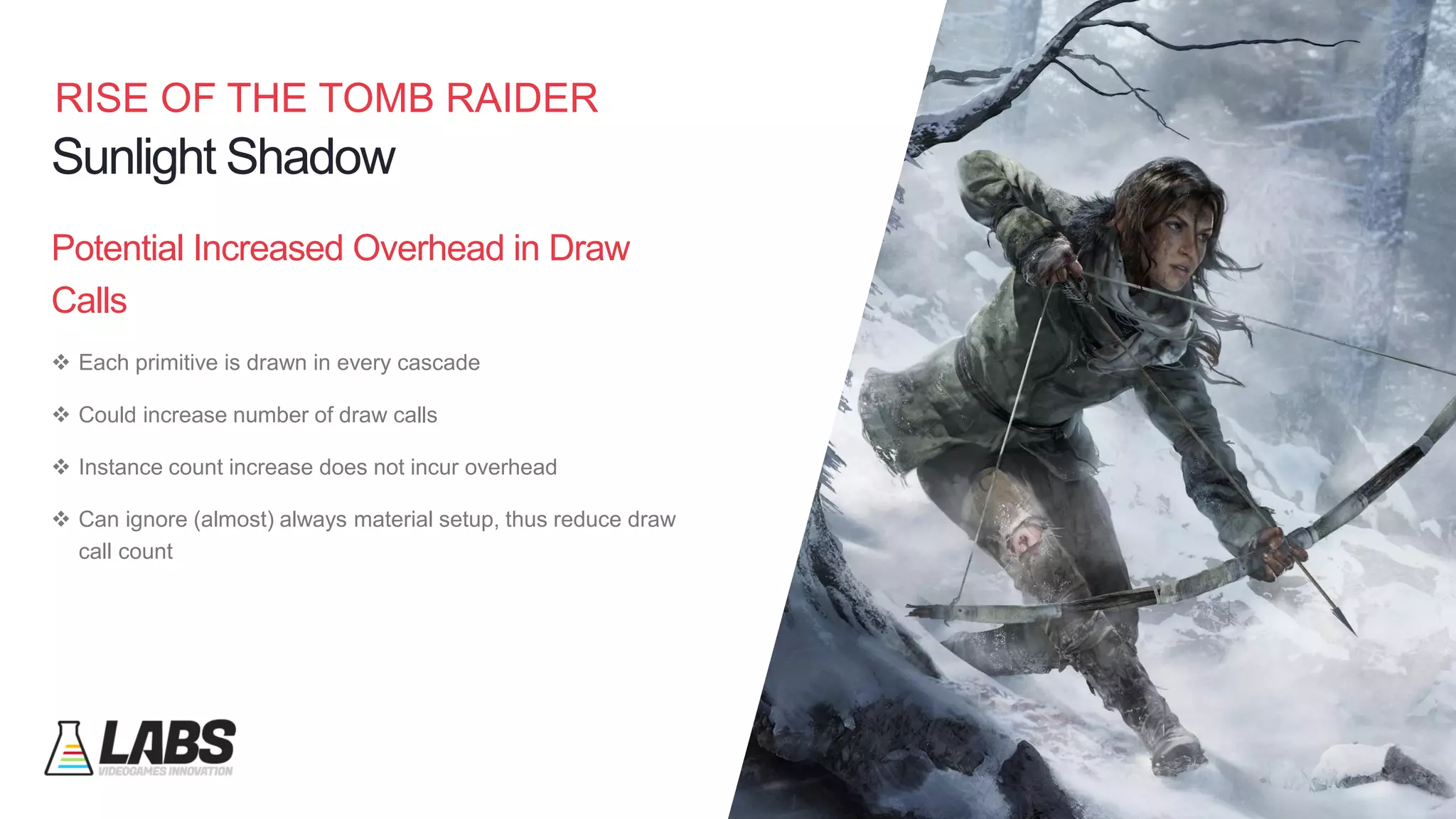

  38. 38. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Potential Increased Overhead in Draw Calls ❖ Each primitive is drawn in every cascade ❖ Could increase number of draw calls ❖ Instance count increase does not incur overhead ❖ Can ignore (almost) always material setup, thus reduce draw call count 40 Sunlight Shadow

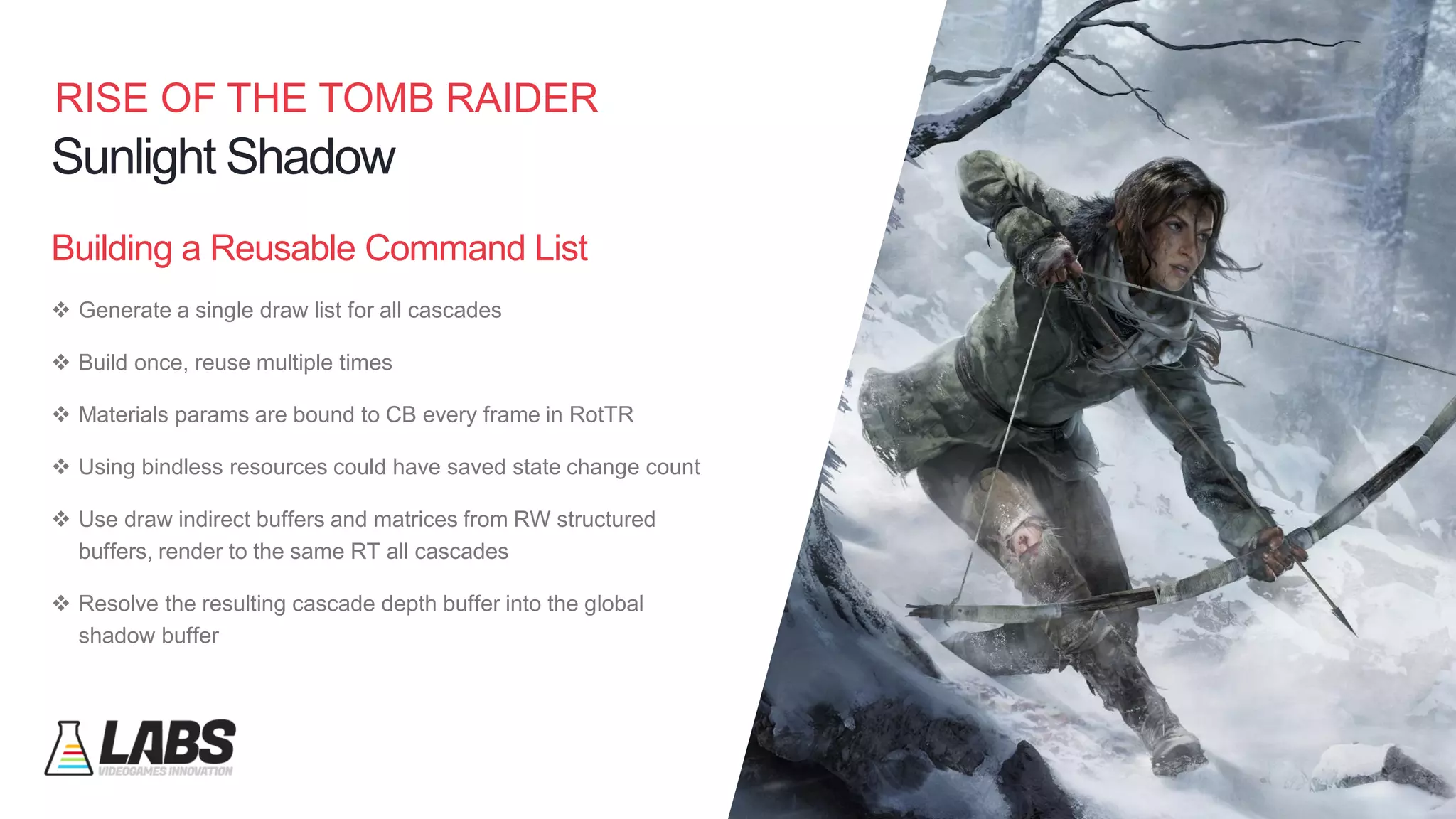

  39. 39. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Building a Reusable Command List ❖ Generate a single draw list for all cascades ❖ Build once, reuse multiple times ❖ Materials params are bound to CB every frame in RotTR ❖ Using bindless resources could have saved state change count ❖ Use draw indirect buffers and matrices from RW structured buffers, render to the same RT all cascades ❖ Resolve the resulting cascade depth buffer into the global shadow buffer 41 Sunlight Shadow
  40. 40. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com GPU Culling ❖ Changie instance count of each draw call to render only the primitives intersecting the shadow cascade frustum ❖ Use draw indirect buffers updated in a GPU culling compute task ❖ Build a list of instance indices to remap the HW instance value to the actual usable instance index. ❖ For instance set { 0, 1, 2, 3, 4, 5 }, if only { 1, 4, 5 } are intersecting a given frustum, we draw HW instance { 0, 1, 2 } and remap them to { 1, 4, 5 } 42 Sunlight Shadow

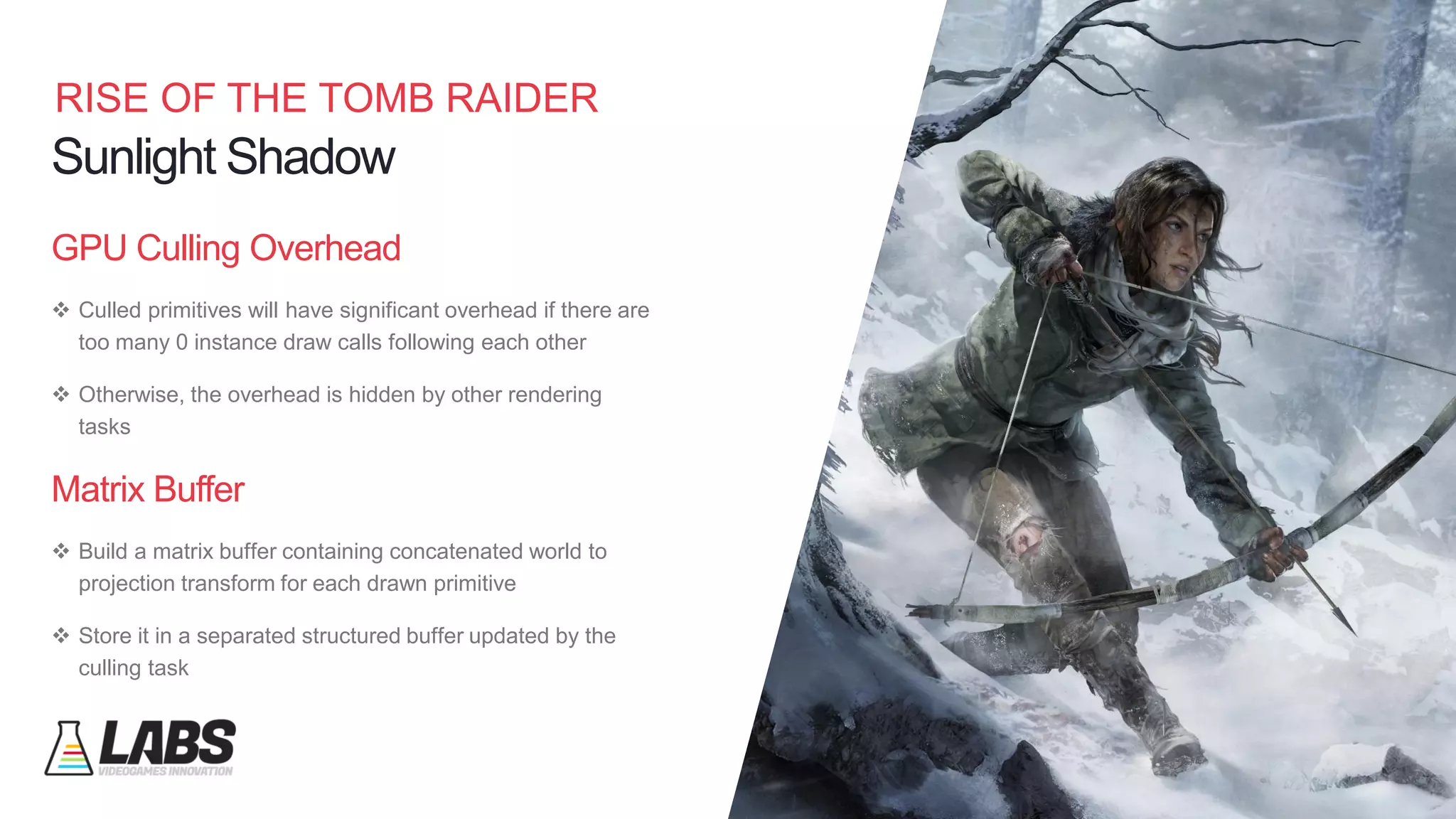

  41. 41. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com GPU Culling Overhead ❖ Culled primitives will have significant overhead if there are too many 0 instance draw calls following each other ❖ Otherwise, the overhead is hidden by other rendering tasks Matrix Buffer ❖ Build a matrix buffer containing concatenated world to projection transform for each drawn primitive ❖ Store it in a separated structured buffer updated by the culling task 43 Sunlight Shadow

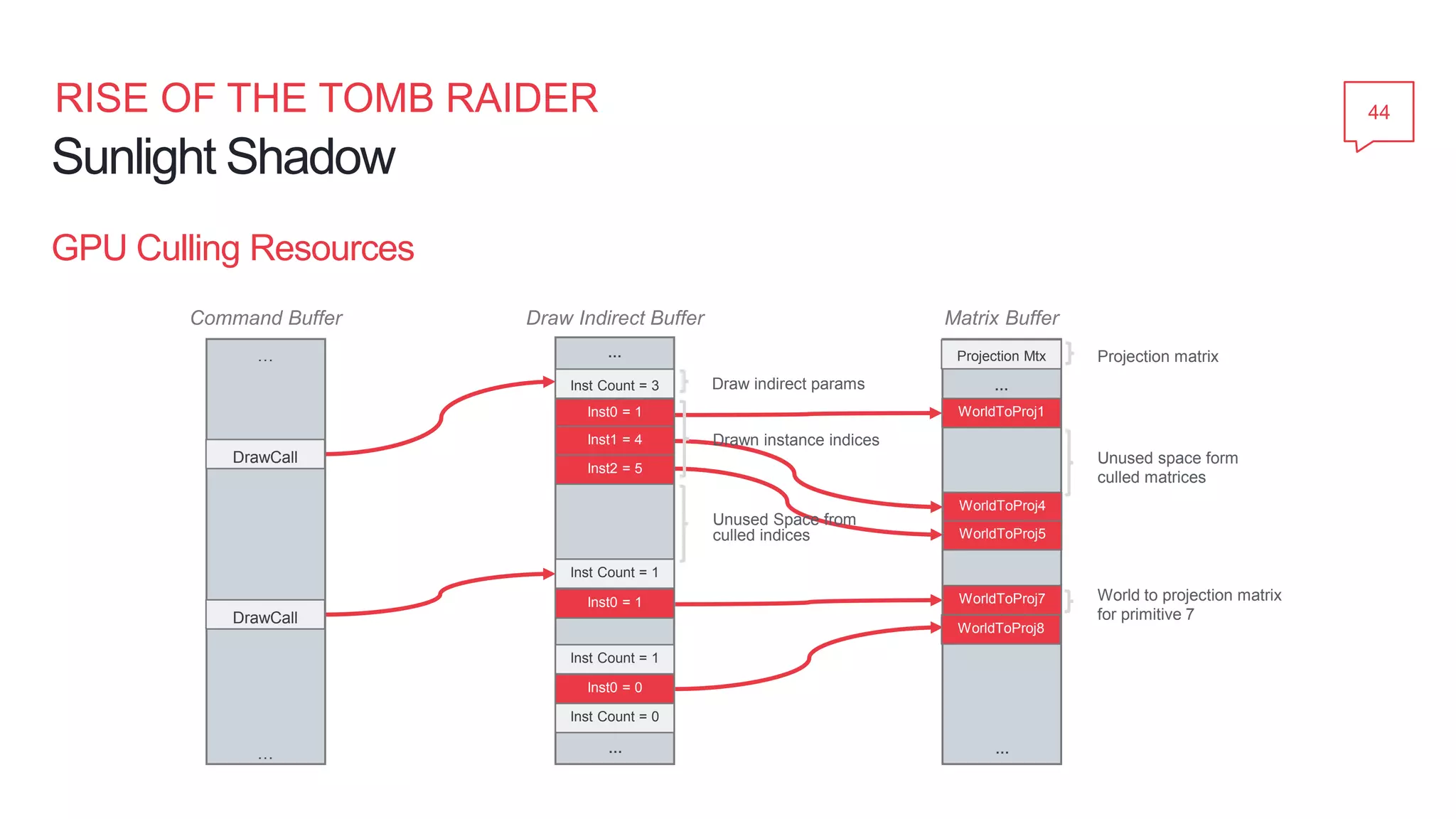

  42. 42. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com GPU Culling Resources 44 Sunlight Shadow Draw indirect params Drawn instance indices Unused Space from culled indices Inst Count = 3 Inst0 = 1 Inst1 = 4 Inst2 = 5 Inst Count = 1 Inst0 = 1 Inst Count = 1 Inst0 = 0 Inst Count = 0 … … Projection matrix World to projection matrix for primitive 7 Unused space form culled matrices Draw Indirect Buffer Matrix BufferCommand Buffer DrawCall DrawCall … … Projection Mtx WorldToProj1 WorldToProj4 WorldToProj7 … WorldToProj5 … WorldToProj8

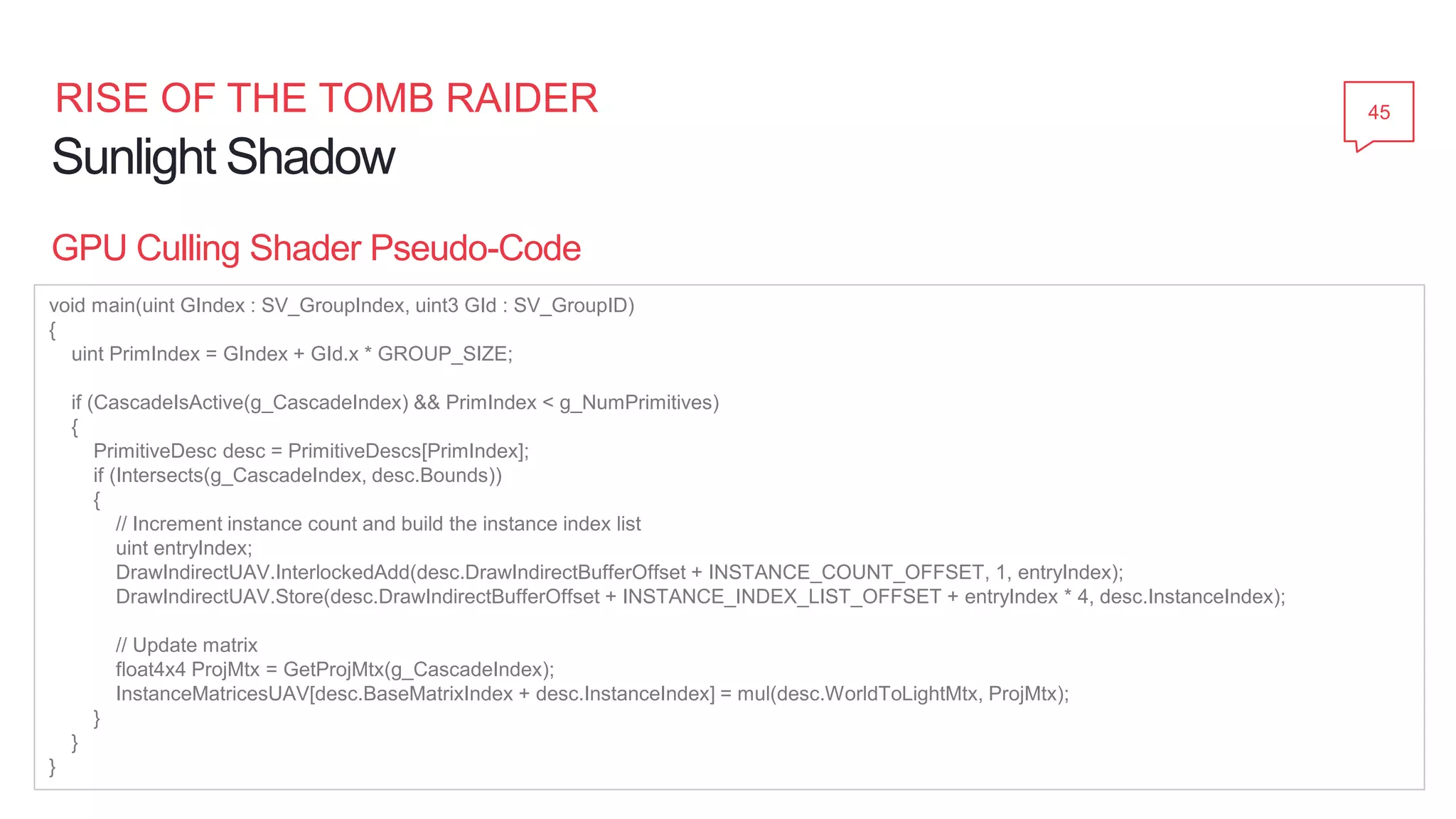

  43. 43. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com GPU Culling Shader Pseudo-Code 45 Sunlight Shadow void main(uint GIndex : SV_GroupIndex, uint3 GId : SV_GroupID) { uint PrimIndex = GIndex + GId.x * GROUP_SIZE; if (CascadeIsActive(g_CascadeIndex) && PrimIndex < g_NumPrimitives) { PrimitiveDesc desc = PrimitiveDescs[PrimIndex]; if (Intersects(g_CascadeIndex, desc.Bounds)) { // Increment instance count and build the instance index list uint entryIndex; DrawIndirectUAV.InterlockedAdd(desc.DrawIndirectBufferOffset + INSTANCE_COUNT_OFFSET, 1, entryIndex); DrawIndirectUAV.Store(desc.DrawIndirectBufferOffset + INSTANCE_INDEX_LIST_OFFSET + entryIndex * 4, desc.InstanceIndex); // Update matrix float4x4 ProjMtx = GetProjMtx(g_CascadeIndex); InstanceMatricesUAV[desc.BaseMatrixIndex + desc.InstanceIndex] = mul(desc.WorldToLightMtx, ProjMtx); } } }

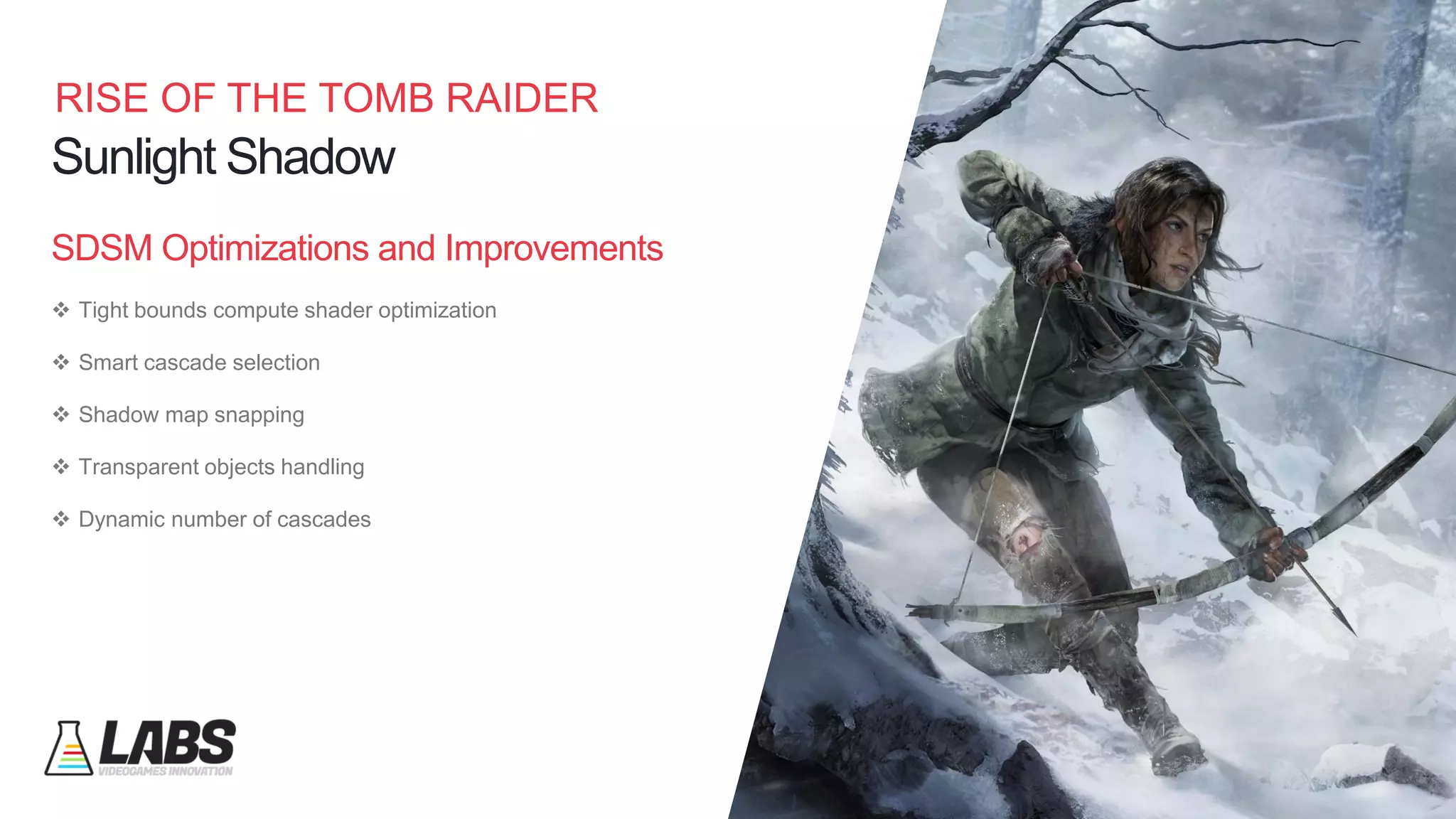

  44. 44. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com SDSM Optimizations and Improvements ❖ Tight bounds compute shader optimization ❖ Smart cascade selection ❖ Shadow map snapping ❖ Transparent objects handling ❖ Dynamic number of cascades 46 Sunlight Shadow

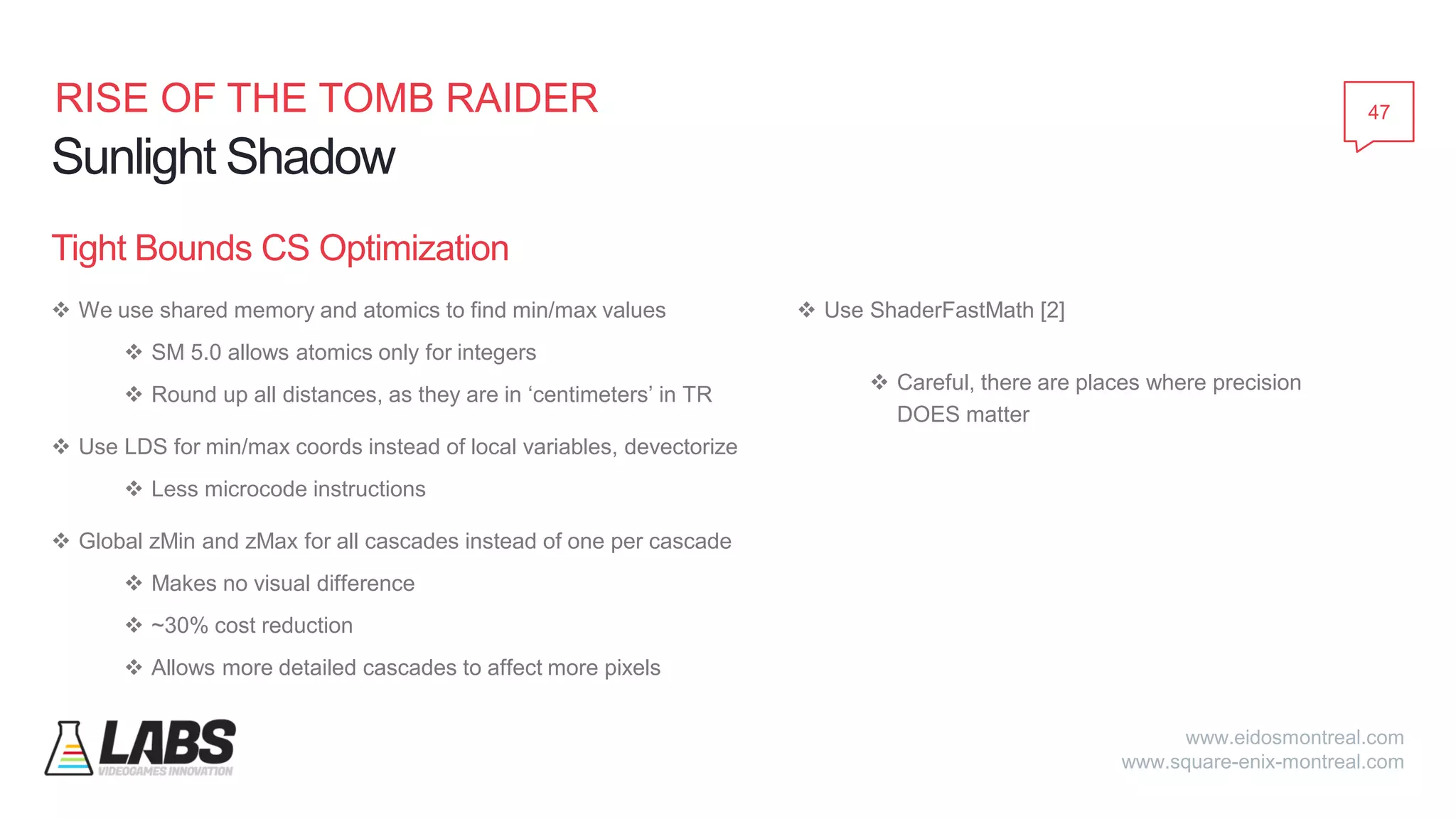

  45. 45. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Tight Bounds CS Optimization ❖ We use shared memory and atomics to find min/max values ❖ SM 5.0 allows atomics only for integers ❖ Round up all distances, as they are in ‘centimeters’ in TR ❖ Use LDS for min/max coords instead of local variables, devectorize ❖ Less microcode instructions ❖ Global zMin and zMax for all cascades instead of one per cascade ❖ Makes no visual difference ❖ ~30% cost reduction ❖ Allows more detailed cascades to affect more pixels 47 Sunlight Shadow ❖ Use ShaderFastMath [2] ❖ Careful, there are places where precision DOES matter
  46. 46. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Smart Cascade Selection ❖ For CSM we will just select a cascade based on the fragment’s depth ❖ For SDSM options are: ❖ Do the same ❖ Find the closest cascade containing the fragment ❖ A filter-size offset is needed if using shadow filtering 48 Sunlight Shadow Regular Cascade Selection

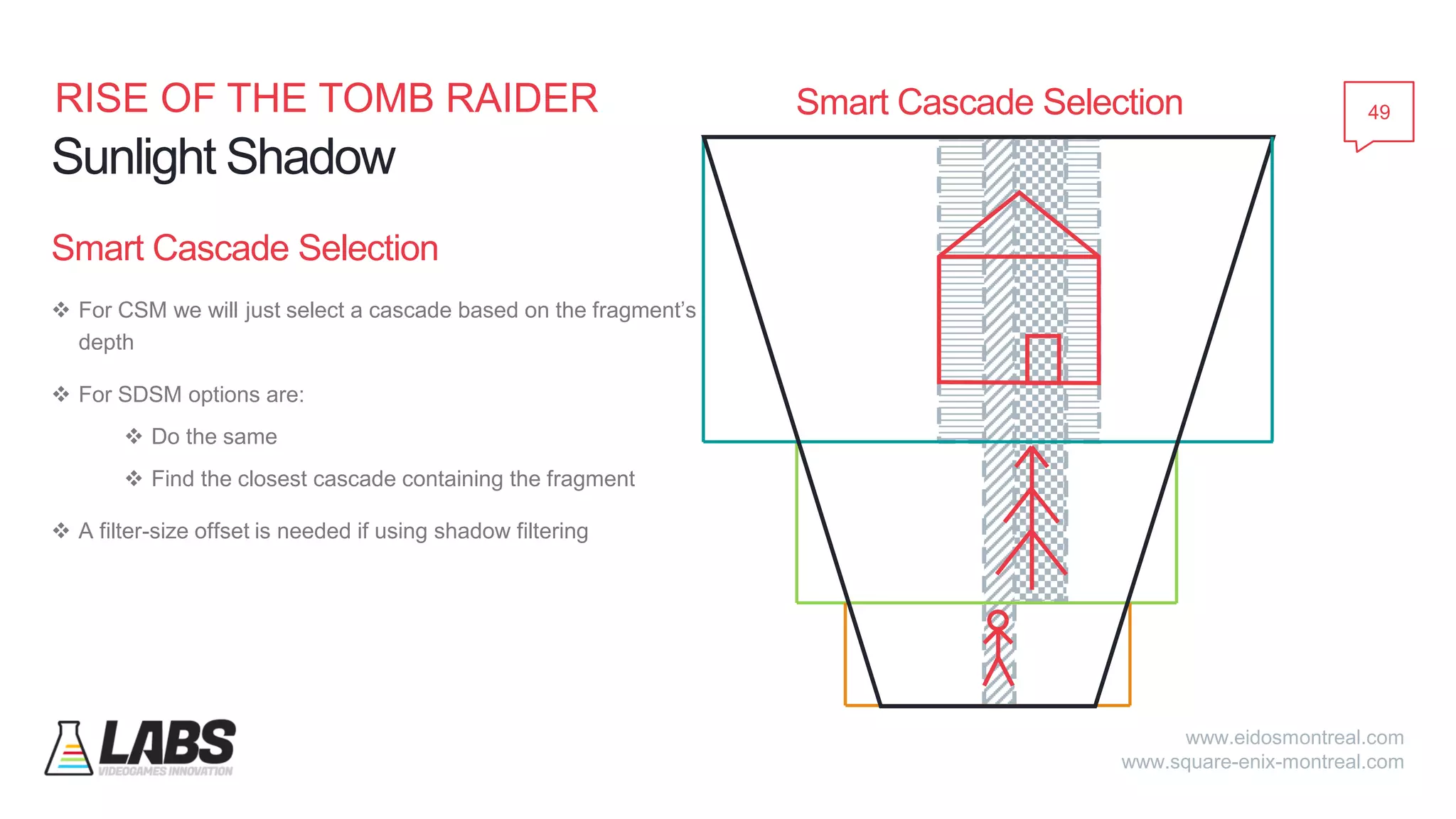

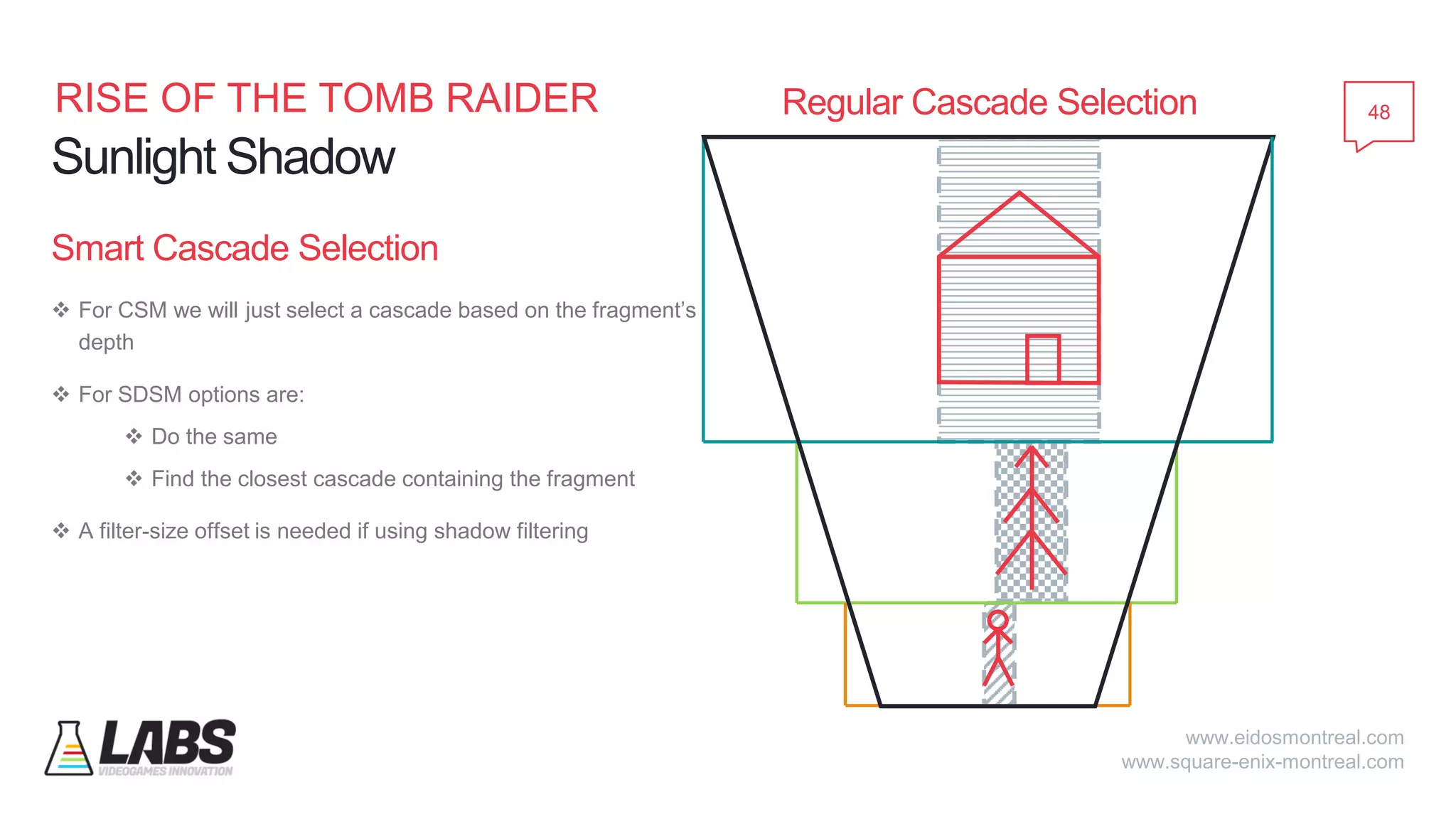

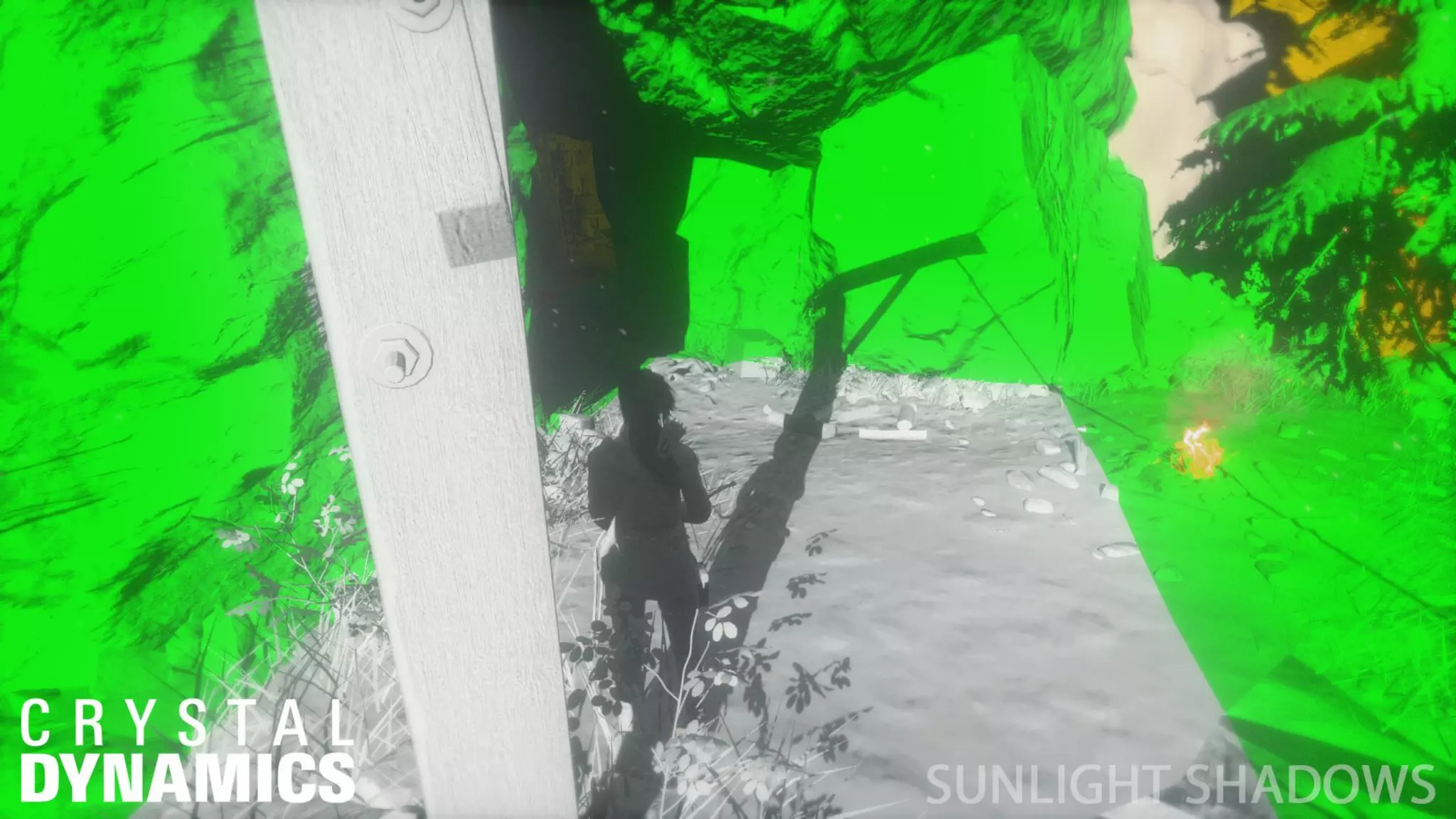

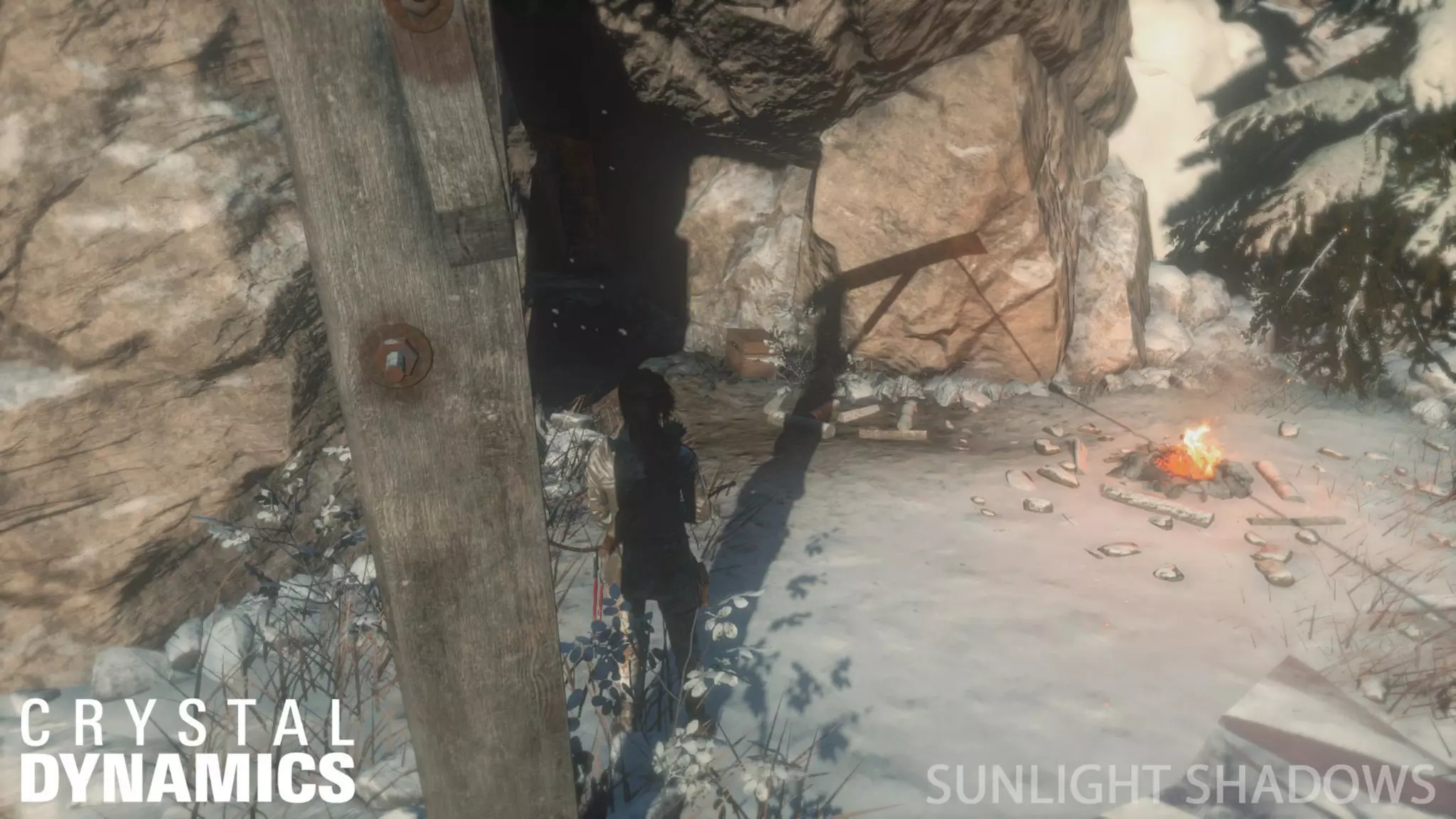

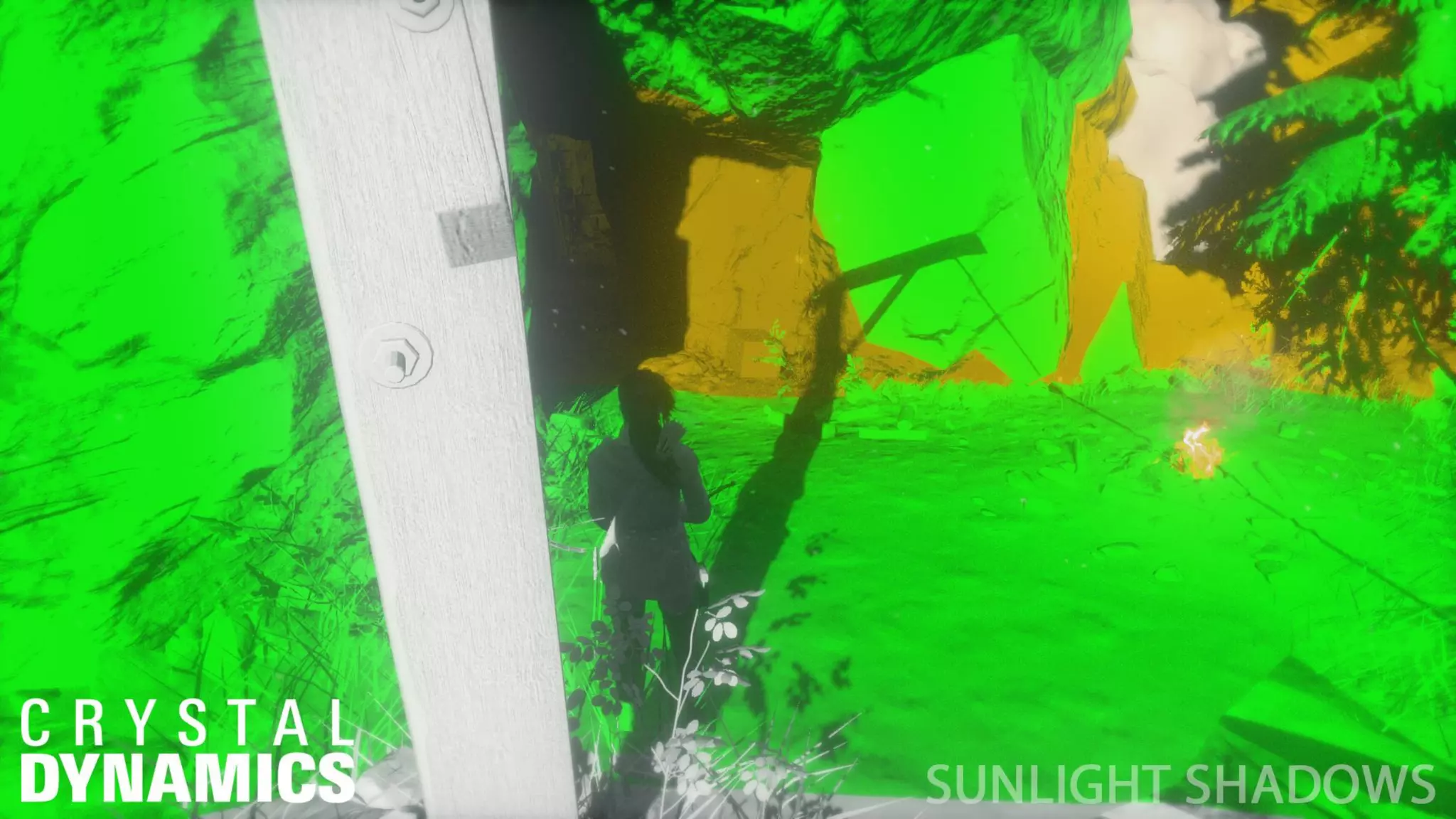

  47. 47. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Smart Cascade Selection ❖ For CSM we will just select a cascade based on the fragment’s depth ❖ For SDSM options are: ❖ Do the same ❖ Find the closest cascade containing the fragment ❖ A filter-size offset is needed if using shadow filtering 49 Sunlight Shadow Smart Cascade Selection

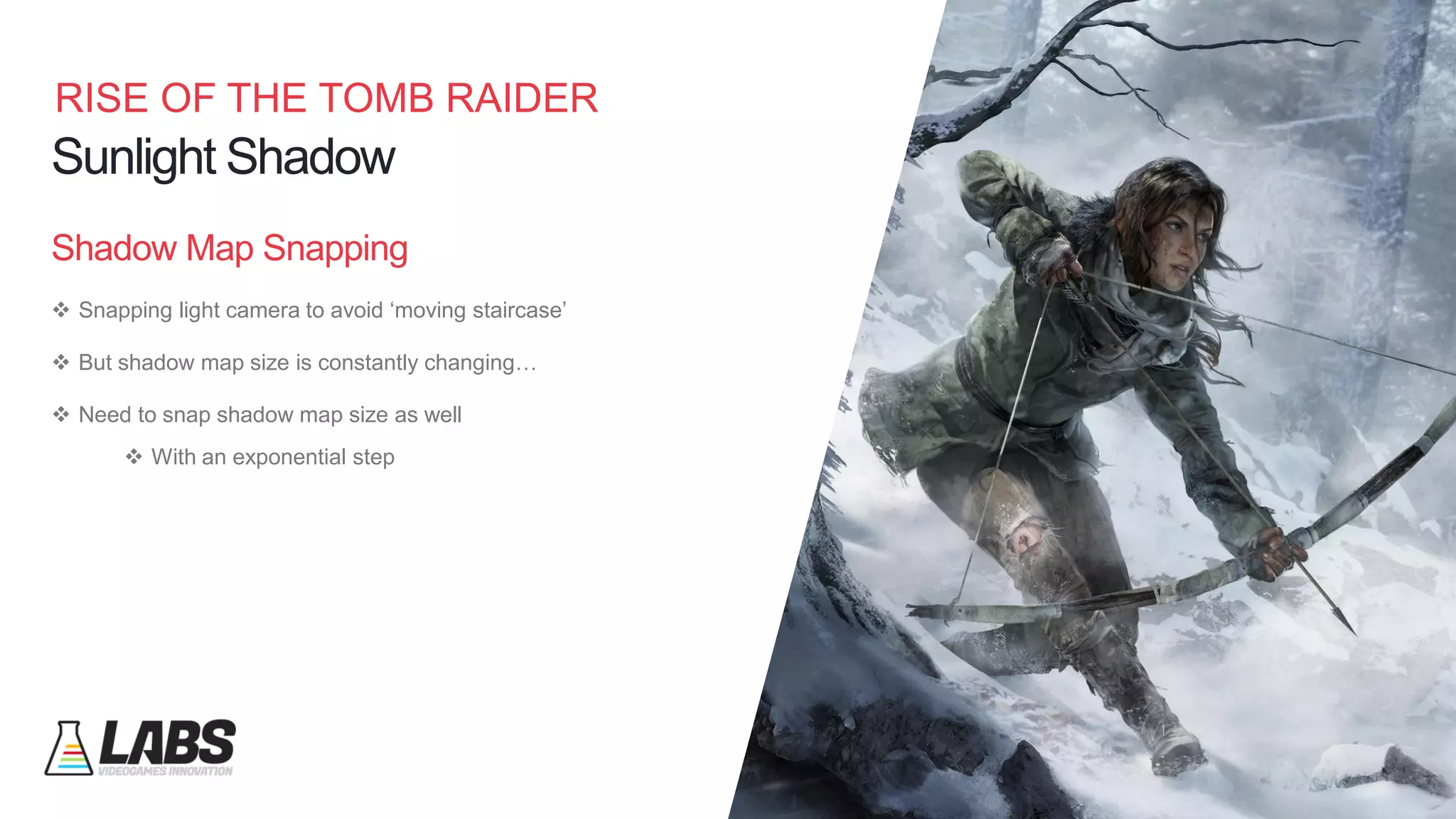

  48. 48. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Shadow Map Snapping ❖ Snapping light camera to avoid ‘moving staircase’ ❖ But shadow map size is constantly changing… ❖ Need to snap shadow map size as well ❖ With an exponential step 54 Sunlight Shadow
  49. 49. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Transparent Objects Handling ❖ Transparent objects might be left out as they don’t write into z ❖ Solution #1: pad cascades with transparent objects ❖ Need to cull occluded transparent objects ❖ In RotTR some fx have really big BBs, so… ❖ Solution #2: use static global shadow map ❖ Solution #3: pad last cascade to fit all possible transparent objects 55 Sunlight Shadow
  50. 50. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Rendering Objects to Multiple Cascades ❖ Big performance issue (foliage, characters) ❖ Reduce cascade count depending on MaxDepth threshold ❖ Merge cascades of similar size/overlapping ❖ Do not re-render objects fully in one cascade ❖ Still working on this issue 56 Sunlight Shadow
  51. 51. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com SDSM Surplus Cost (XBOX ONE, 1080p) ❖ Processing + GPU culling: 0.5 ms ❖ Rendering objects to multiple cascades: up to 1 ms overall 57 Sunlight Shadow

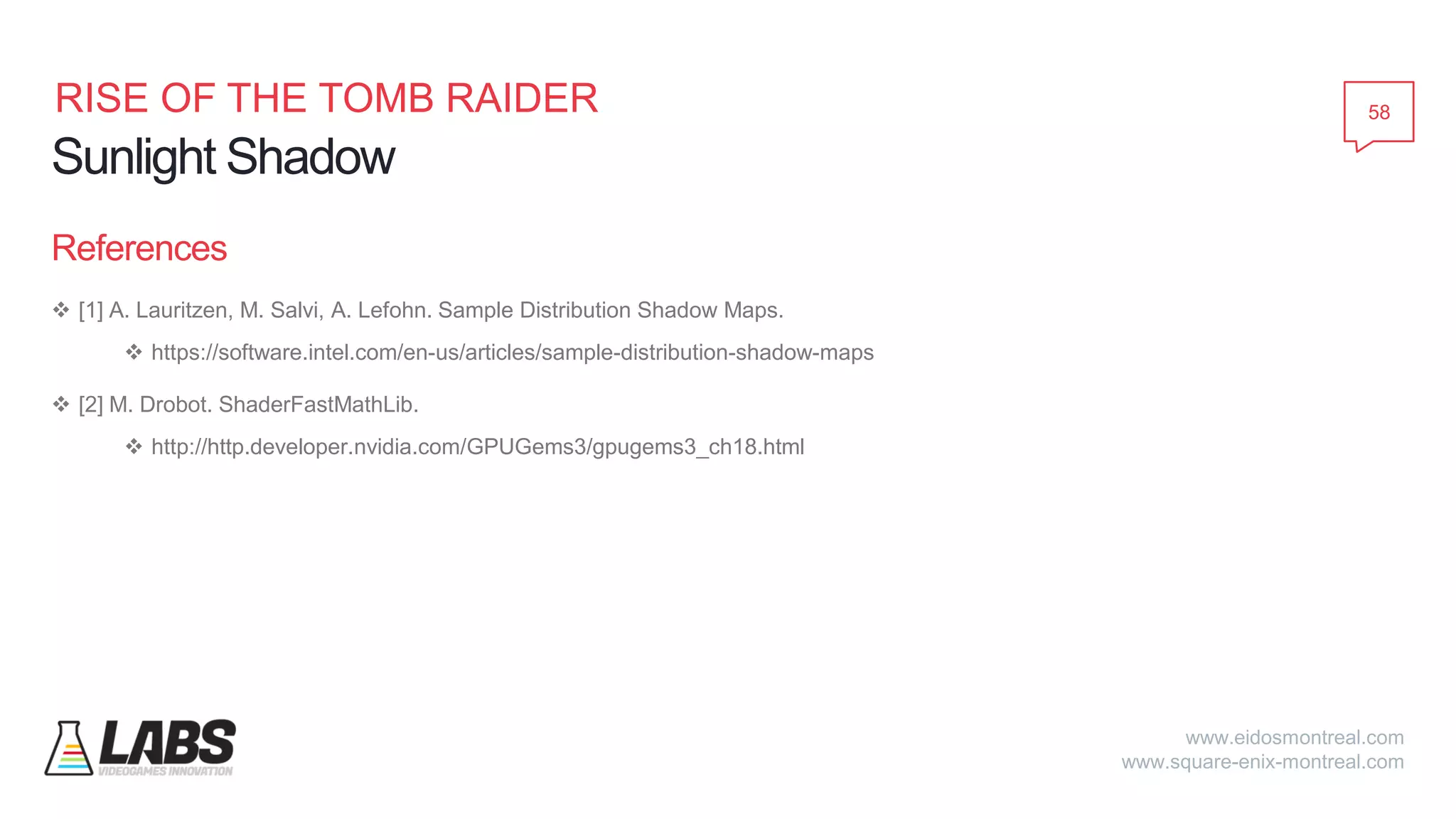

  52. 52. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com References ❖ [1] A. Lauritzen, M. Salvi, A. Lefohn. Sample Distribution Shadow Maps. ❖ https://software.intel.com/en-us/articles/sample-distribution-shadow-maps ❖ [2] M. Drobot. ShaderFastMathLib. ❖ http://http.developer.nvidia.com/GPUGems3/gpugems3_ch18.html 58 Sunlight Shadow

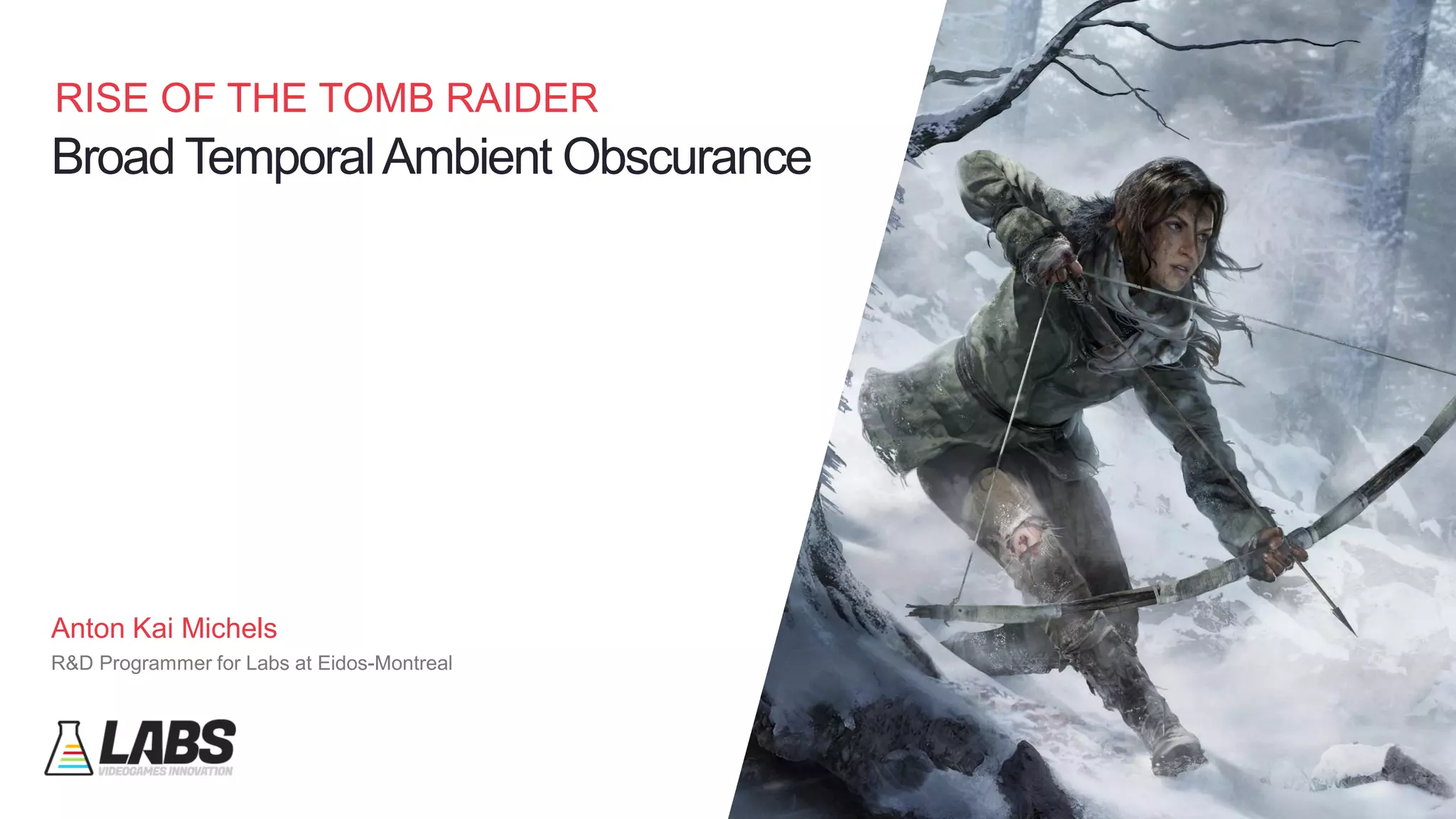

  53. 53. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com 59 Broad TemporalAmbient Obscurance Anton Kai Michels R&D Programmer for Labs at Eidos-Montreal

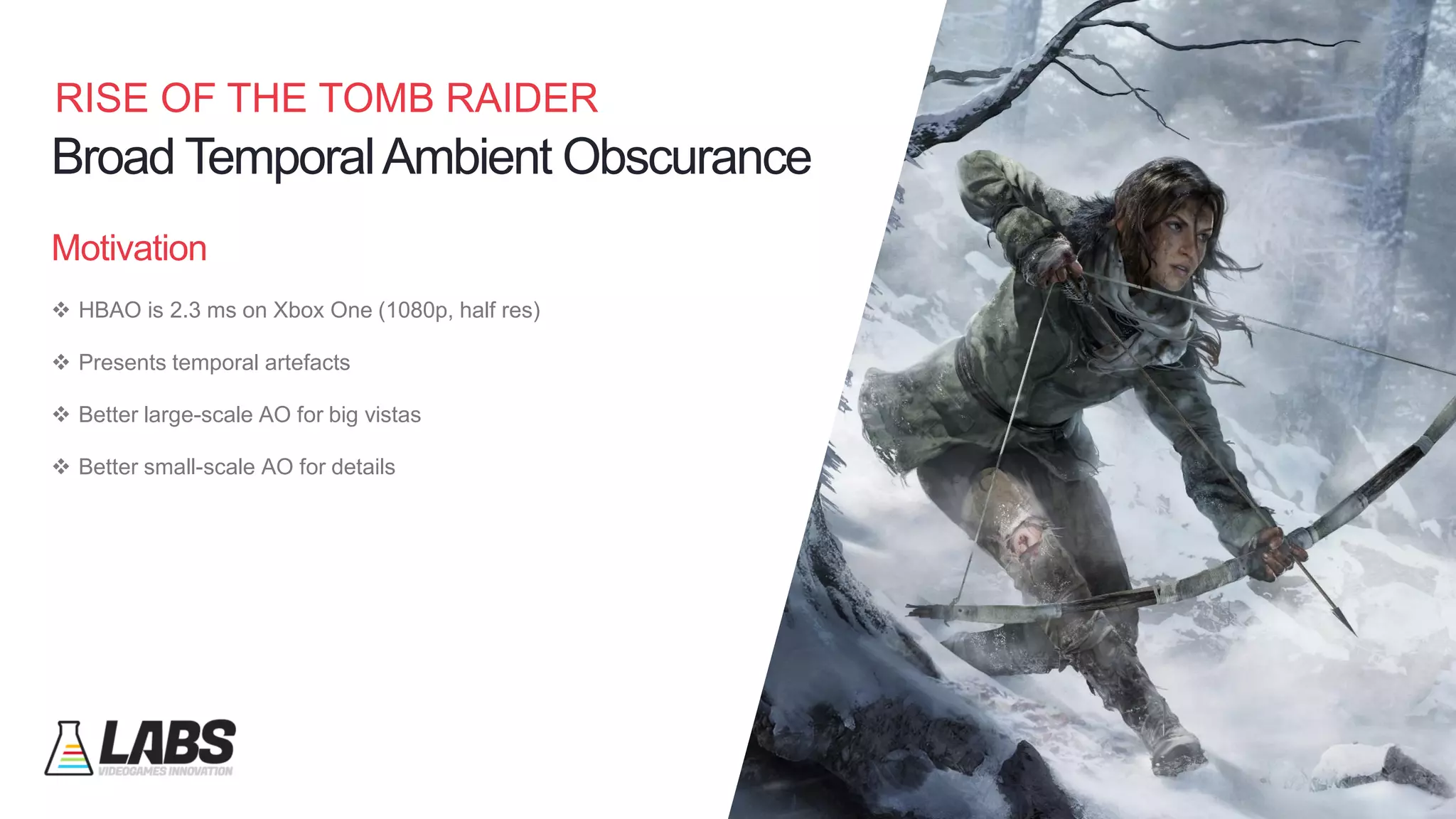

  54. 54. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Motivation ❖ HBAO is 2.3 ms on Xbox One (1080p, half res) ❖ Presents temporal artefacts ❖ Better large-scale AO for big vistas ❖ Better small-scale AO for details 60 Broad TemporalAmbient Obscurance

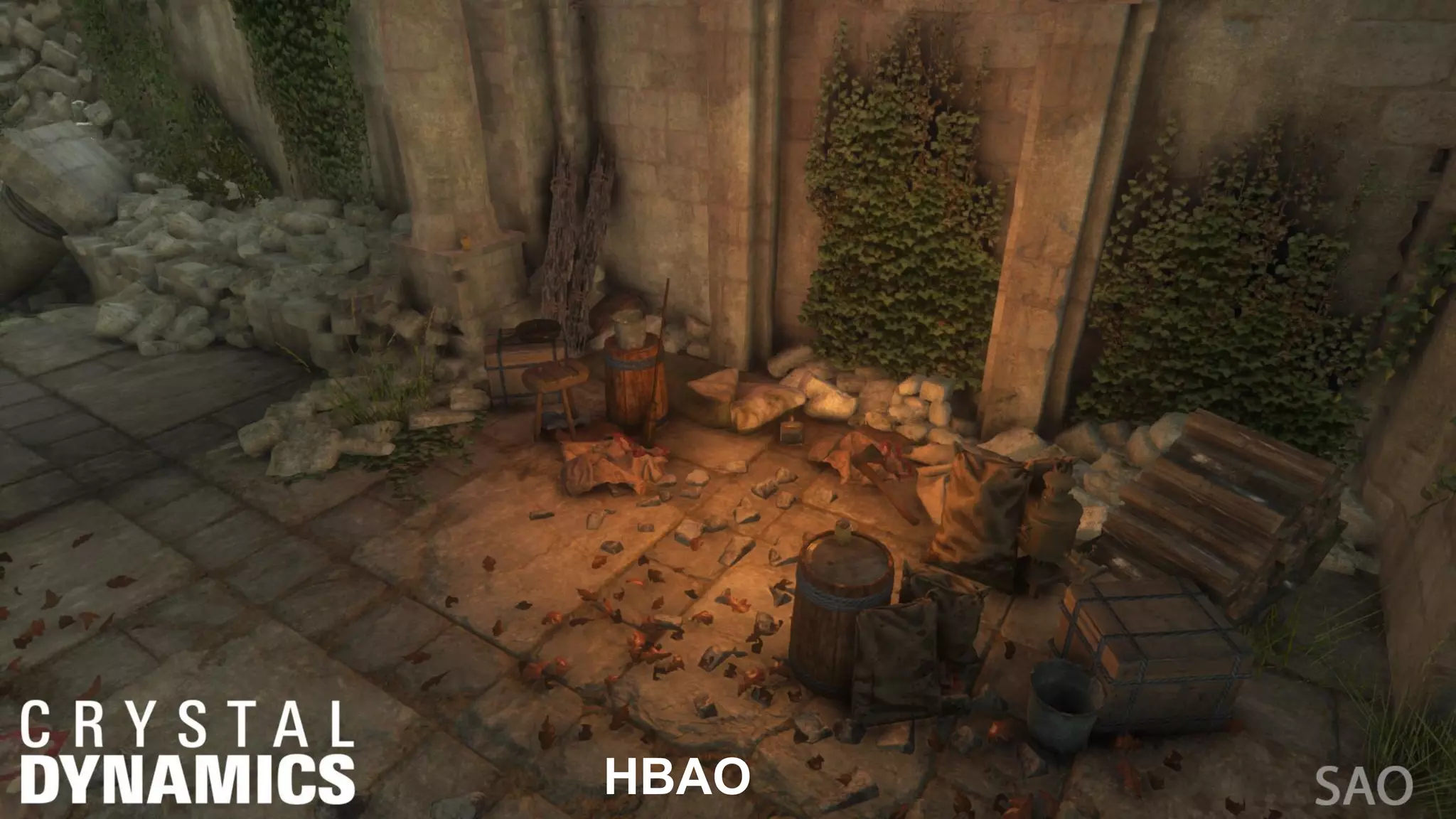

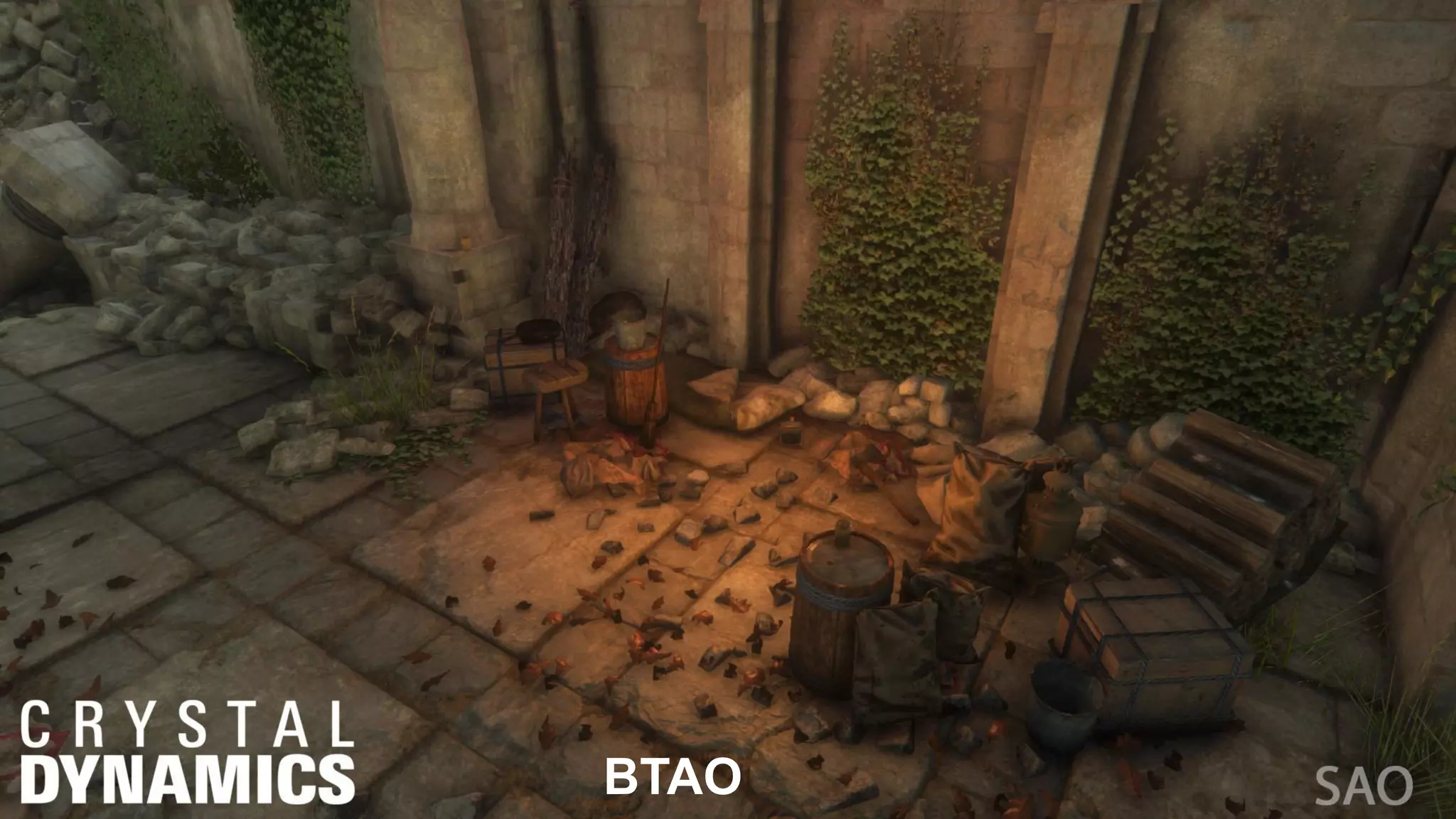

  55. 55. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com HBAO vs BTAO All Rights Reserved SquareEnix Eidos Montreal 2015

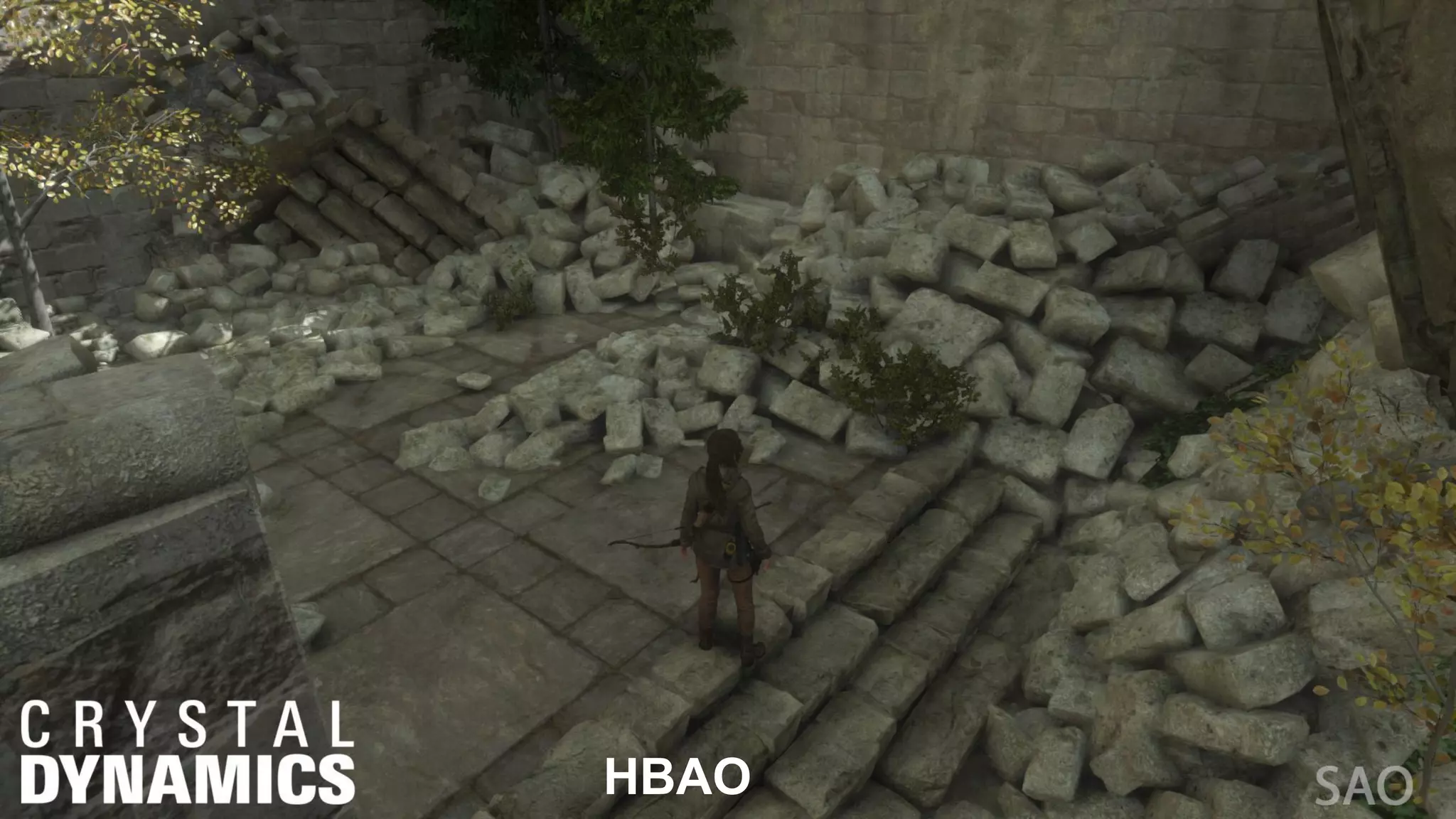

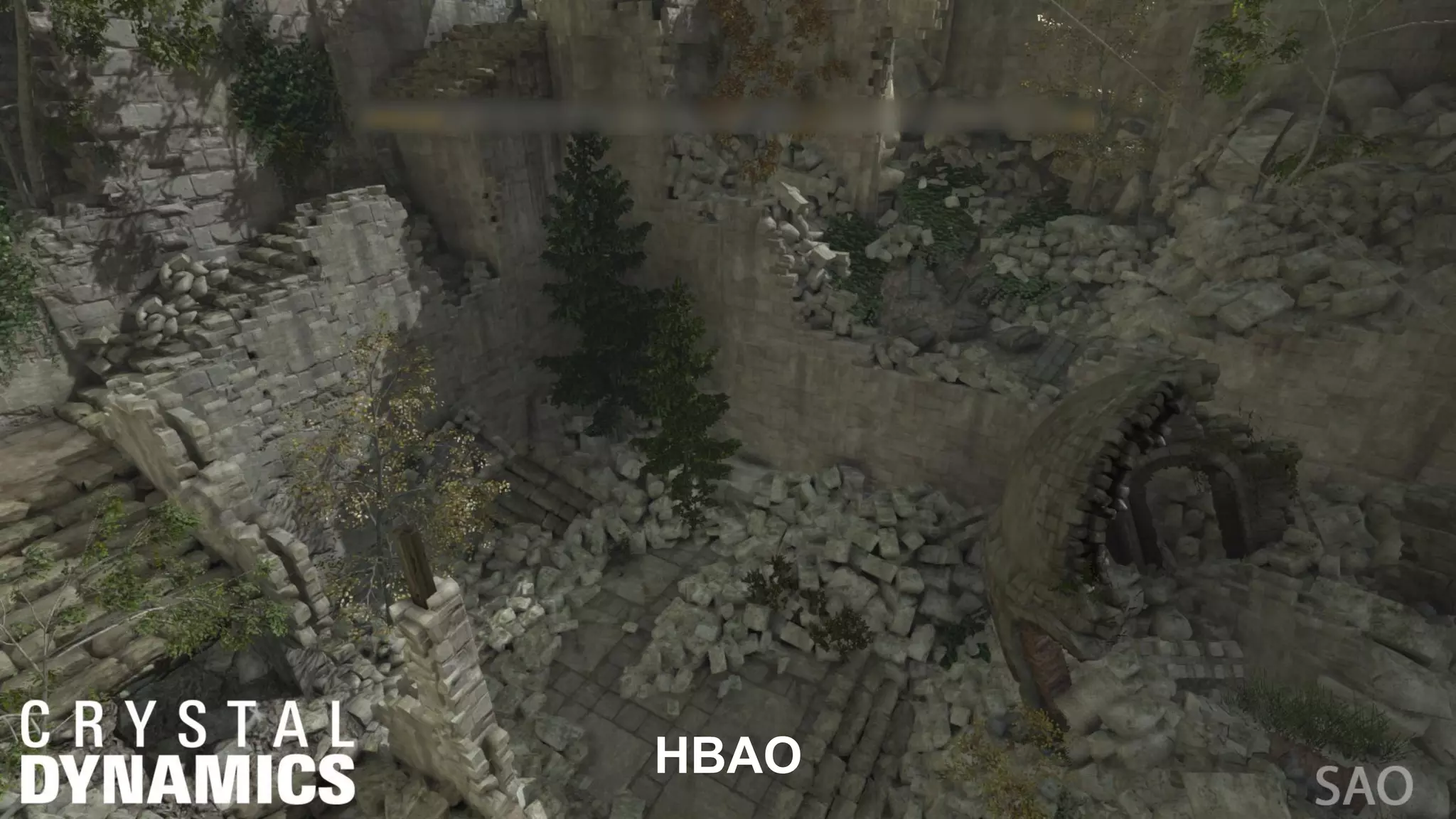

  56. 56. HBAO HBAO
  57. 57. BTAO
  58. 58. HBAO

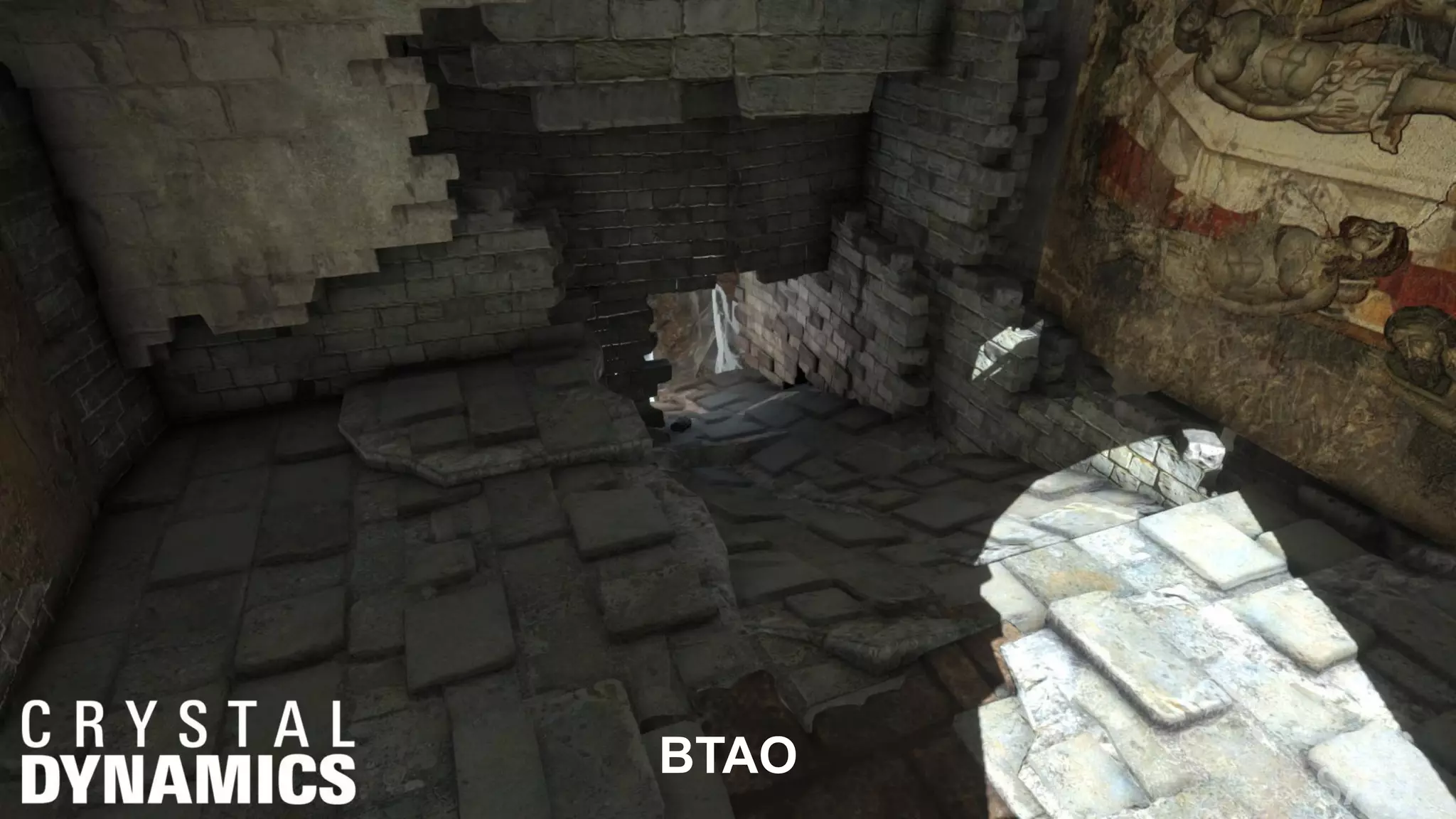

  59. 59. BTAO
  60. 60. HBAO
  61. 61. BTAO
  62. 62. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Motivation ❖ High-quality, temporally stable AO ❖ Large scale AO ❖ Small scale AO ❖ Fixed cost of 1ms on Xbox One (1080p, half res) ❖ Ghosting free 68 Broad TemporalAmbient Obscurance

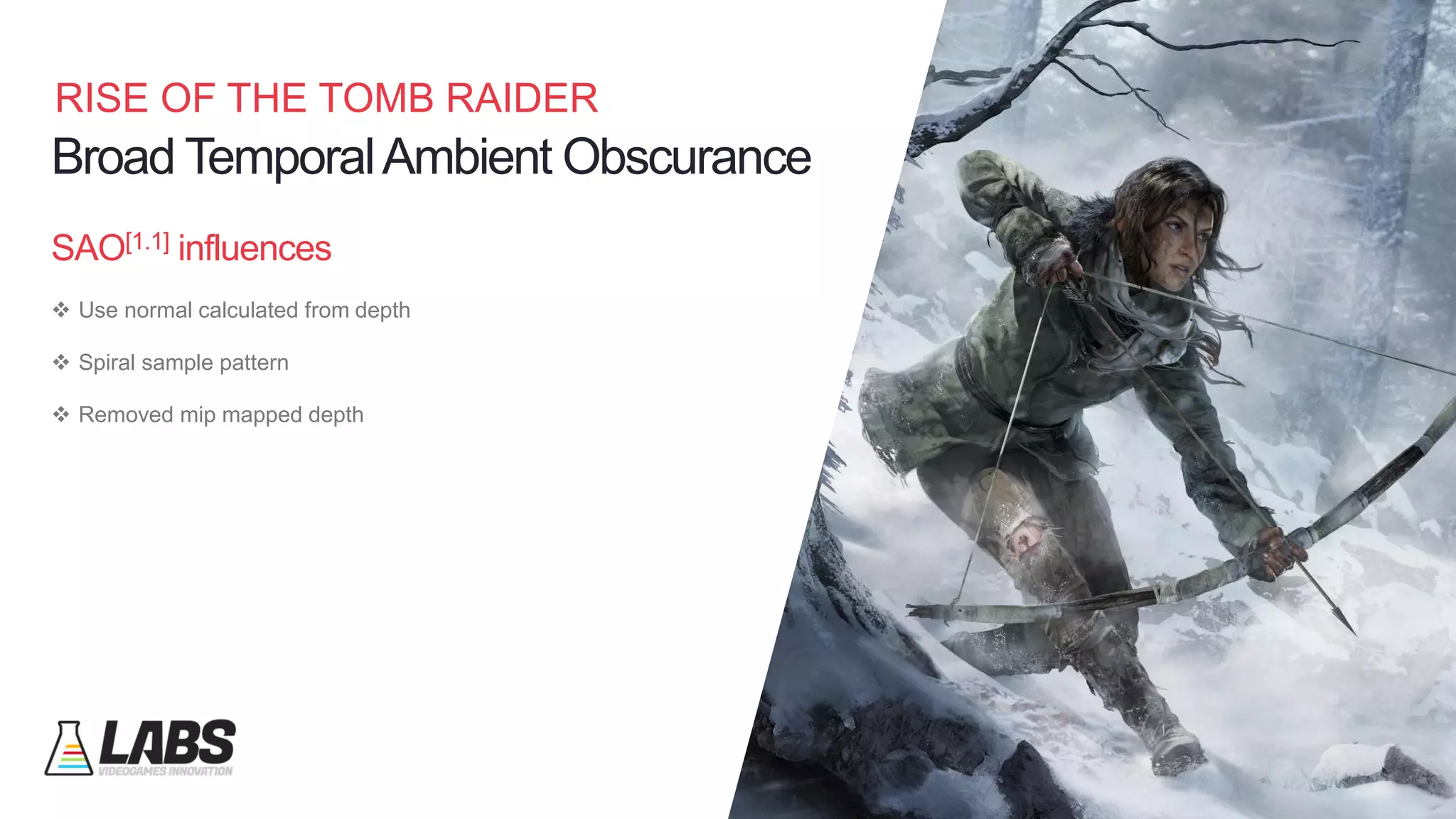

  63. 63. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com SAO[1.1] influences ❖ Use normal calculated from depth ❖ Spiral sample pattern ❖ Removed mip mapped depth 69 Broad TemporalAmbient Obscurance

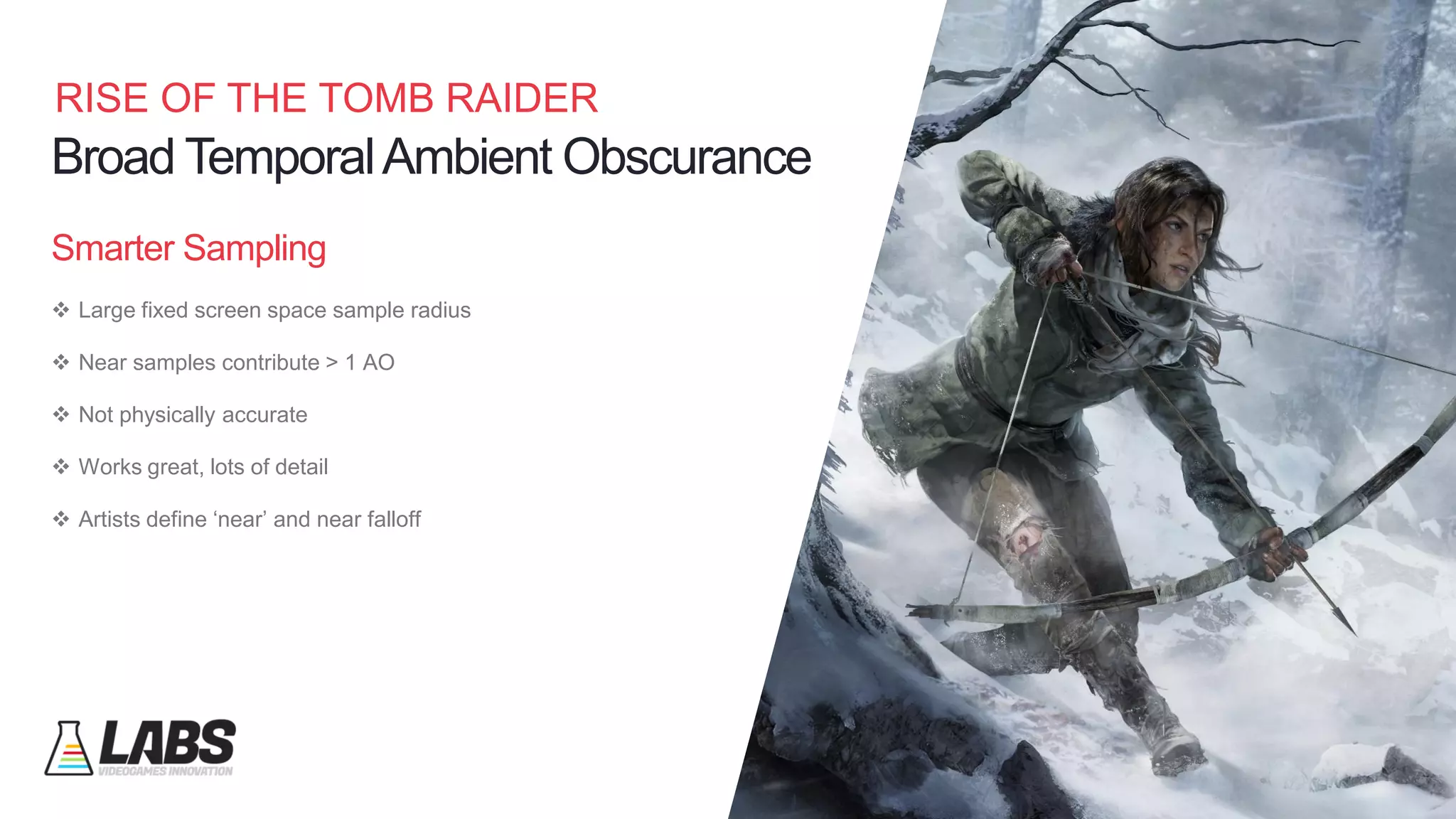

  64. 64. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Smarter Sampling ❖ Large fixed screen space sample radius ❖ Near samples contribute > 1 AO ❖ Not physically accurate ❖ Works great, lots of detail ❖ Artists define ‘near’ and near falloff 70 Broad TemporalAmbient Obscurance

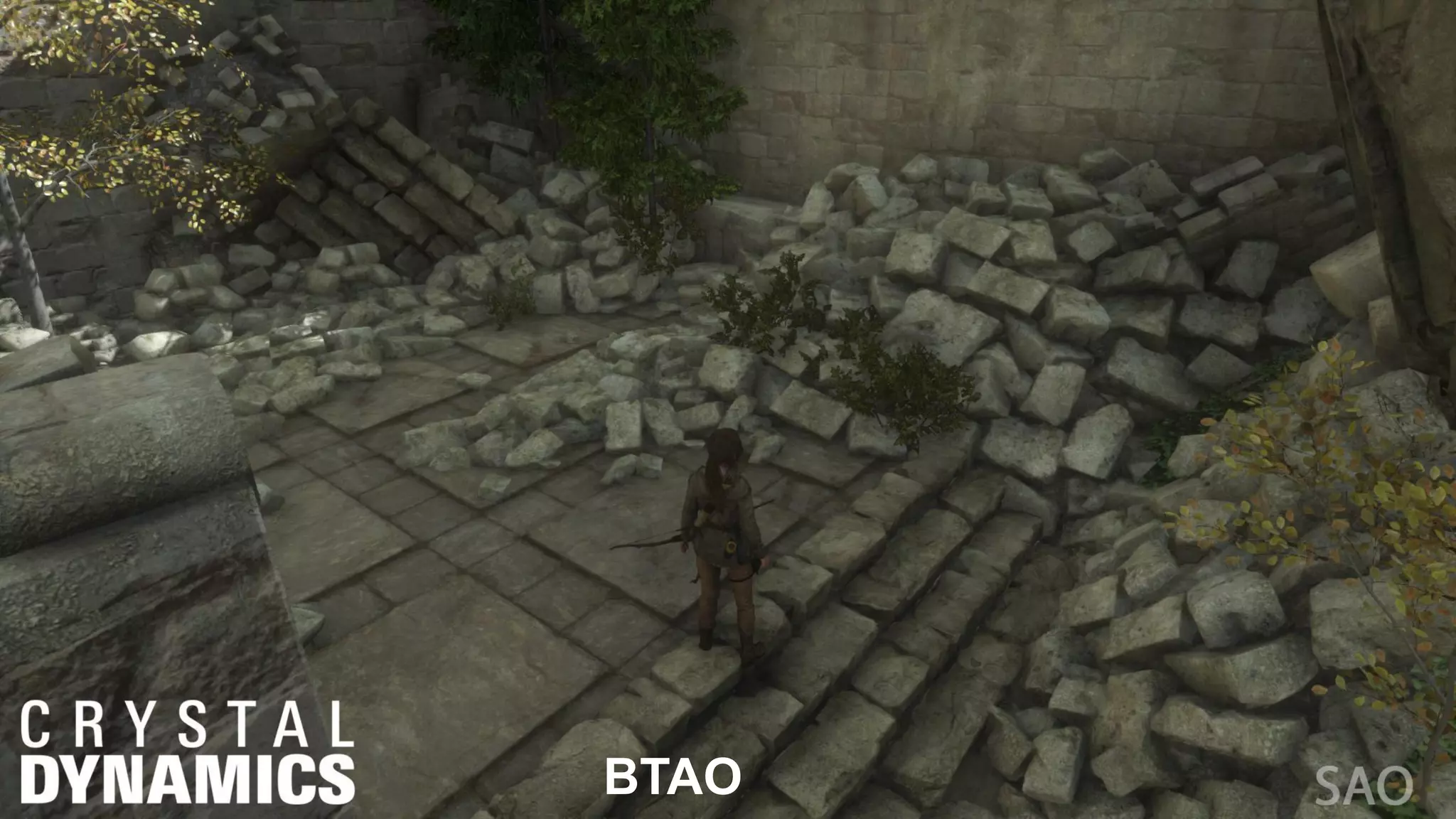

  65. 65. Large and Small ScaleAO All Rights Reserved SquareEnix Eidos Montreal 2015

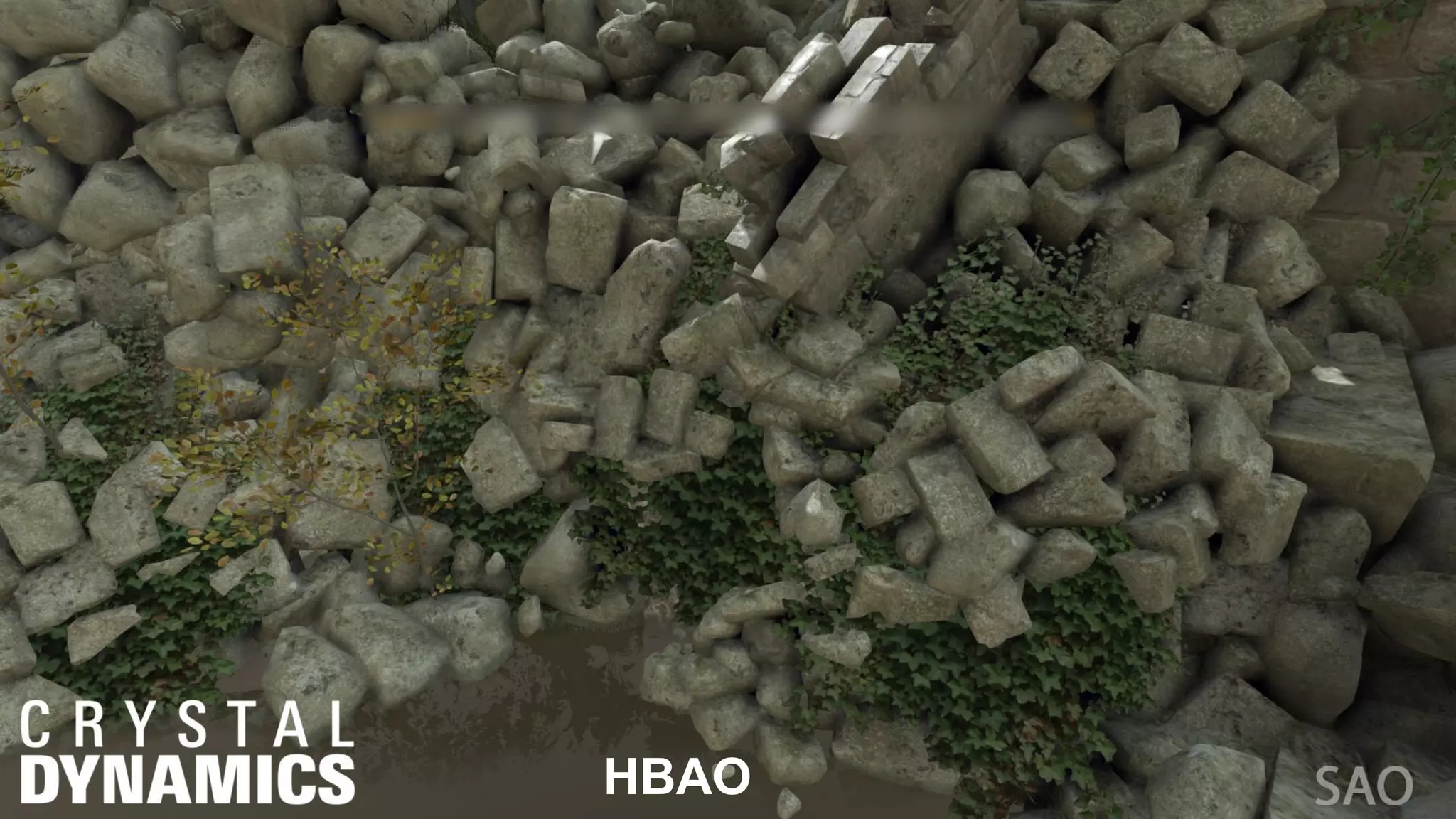

  66. 66. HBAO

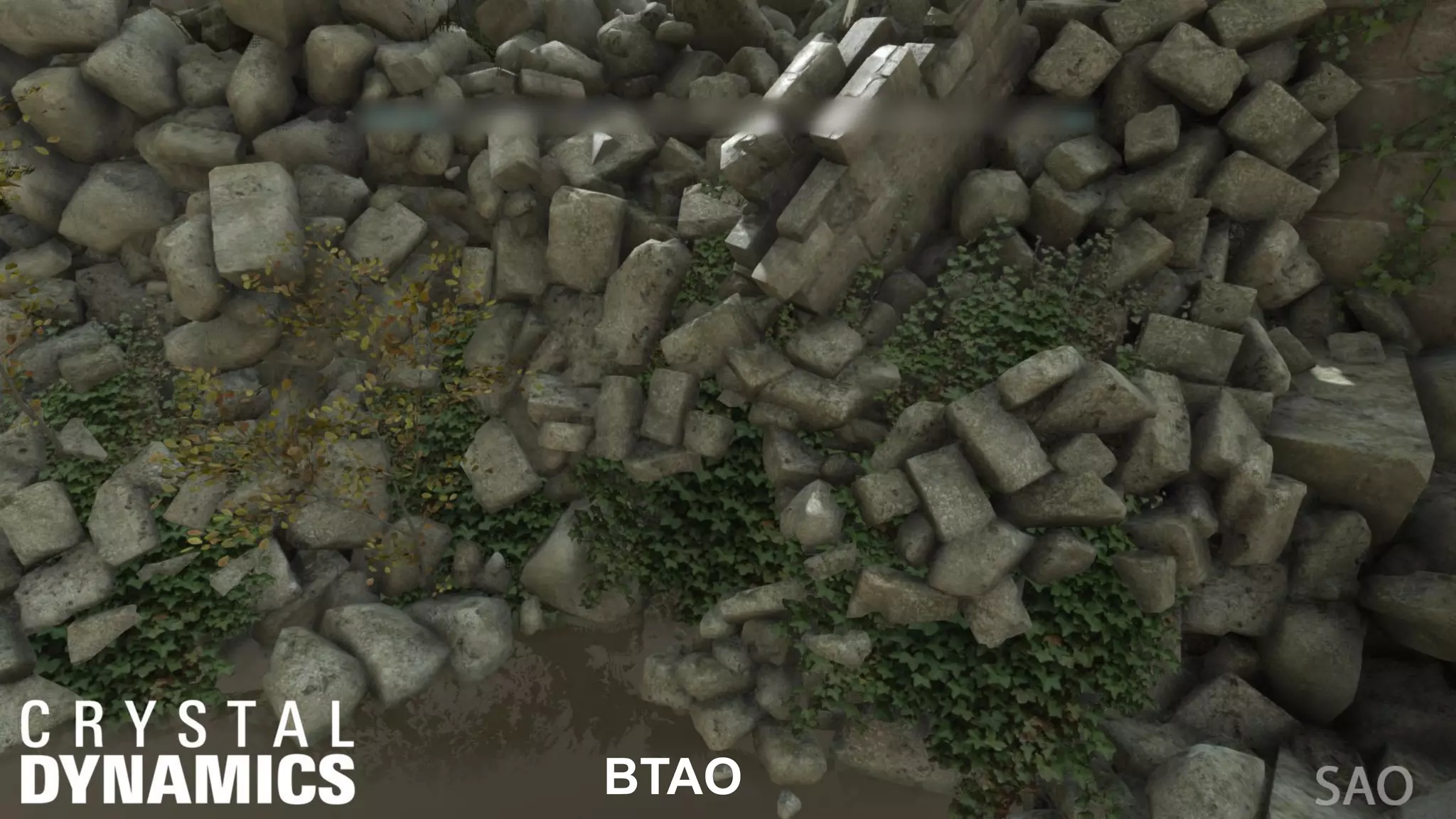

  67. 67. BTAO
  68. 68. HBAO
  69. 69. BTAO

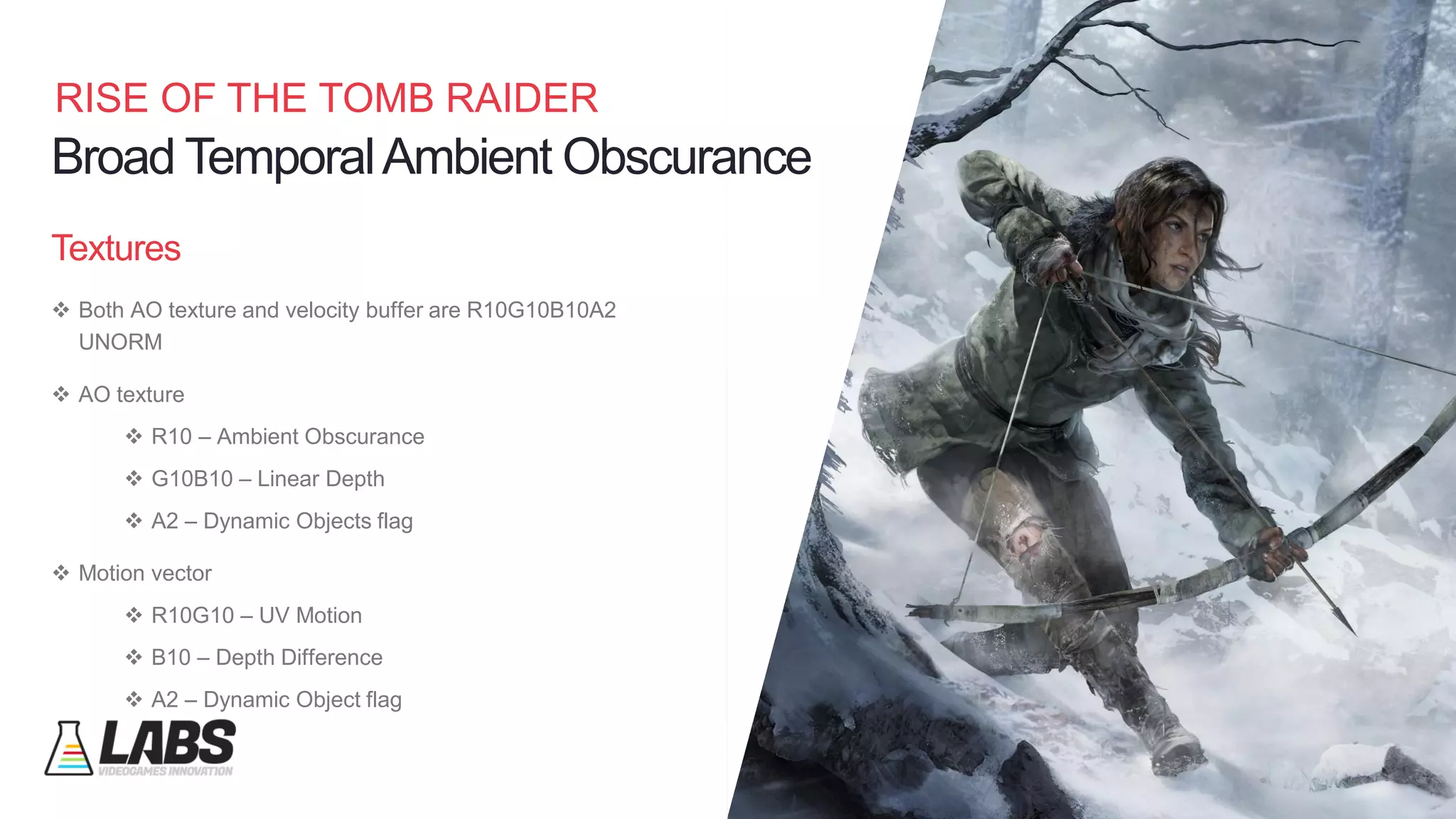

  70. 70. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Textures ❖ Both AO texture and velocity buffer are R10G10B10A2 UNORM ❖ AO texture ❖ R10 – Ambient Obscurance ❖ G10B10 – Linear Depth ❖ A2 – Dynamic Objects flag ❖ Motion vector ❖ R10G10 – UV Motion ❖ B10 – Depth Difference ❖ A2 – Dynamic Object flag Broad TemporalAmbient Obscurance

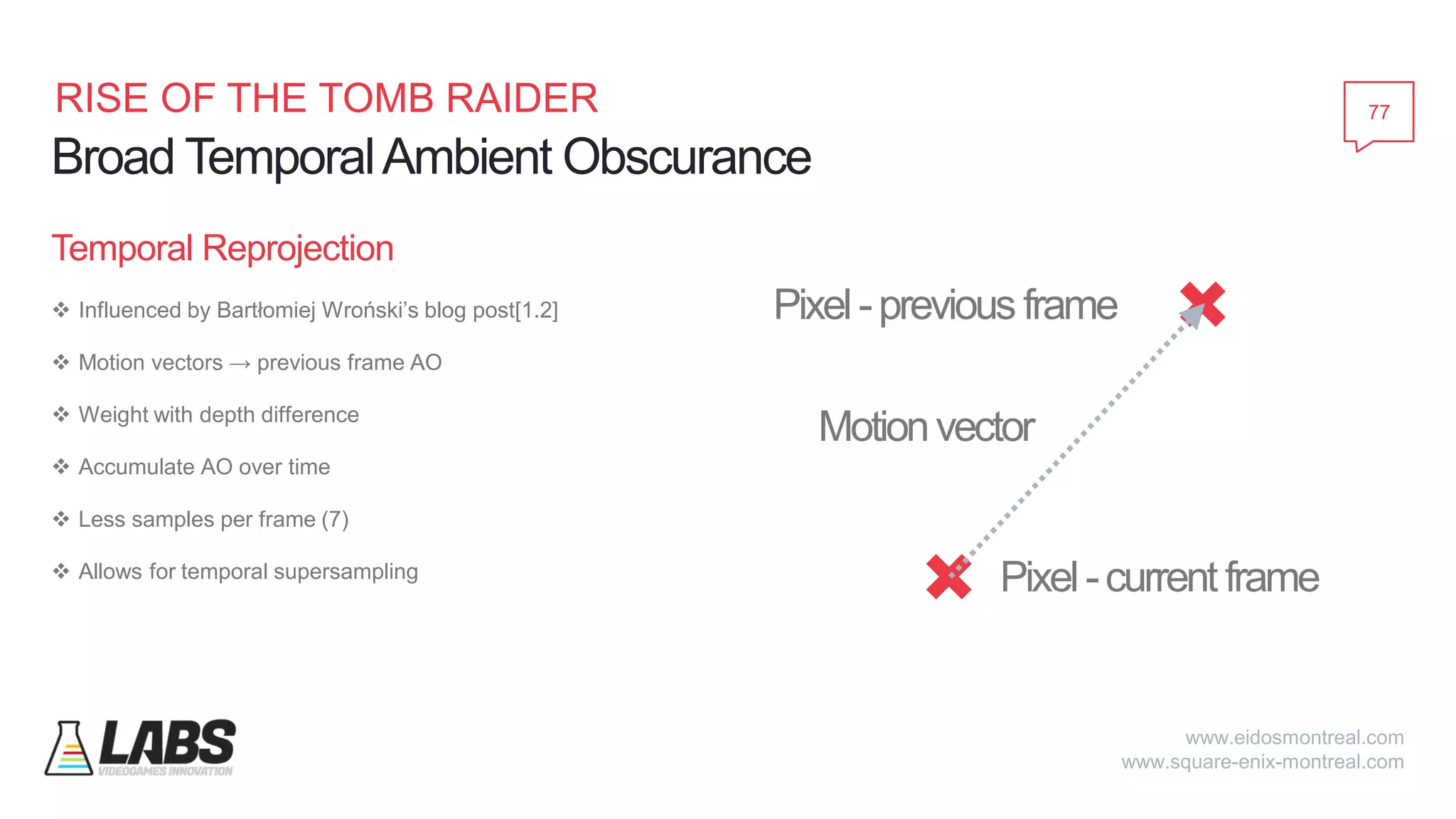

  71. 71. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Temporal Reprojection ❖ Influenced by Bartłomiej Wroński’s blog post[1.2] ❖ Motion vectors → previous frame AO ❖ Weight with depth difference ❖ Accumulate AO over time ❖ Less samples per frame (7) ❖ Allows for temporal supersampling Broad TemporalAmbient Obscurance 77 Pixel-current frame Pixel-previous frame Motionvector
  72. 72. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Temporal Supersampling ❖ Temporal supersampling = AO accumulation + pattern variation ❖ Rotate pattern 121 degrees/frame ❖ ~ Same pattern every 3 frames, no flickering ❖ Hundreds of samples over time ❖ Introduces ghosting 78 Broad TemporalAmbient Obscurance
  73. 73. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Ghosting 79 Broad TemporalAmbient Obscurance Frame 1 Pixel receives AO From dynamic object Frame 1-2 Objects moves away from obscured point Frame 2 Temporal reprojection Applies previous AO Dynamic Obscurer Pixel Dynamic Obscurer Dynamic Obscurer Pixel still obscured

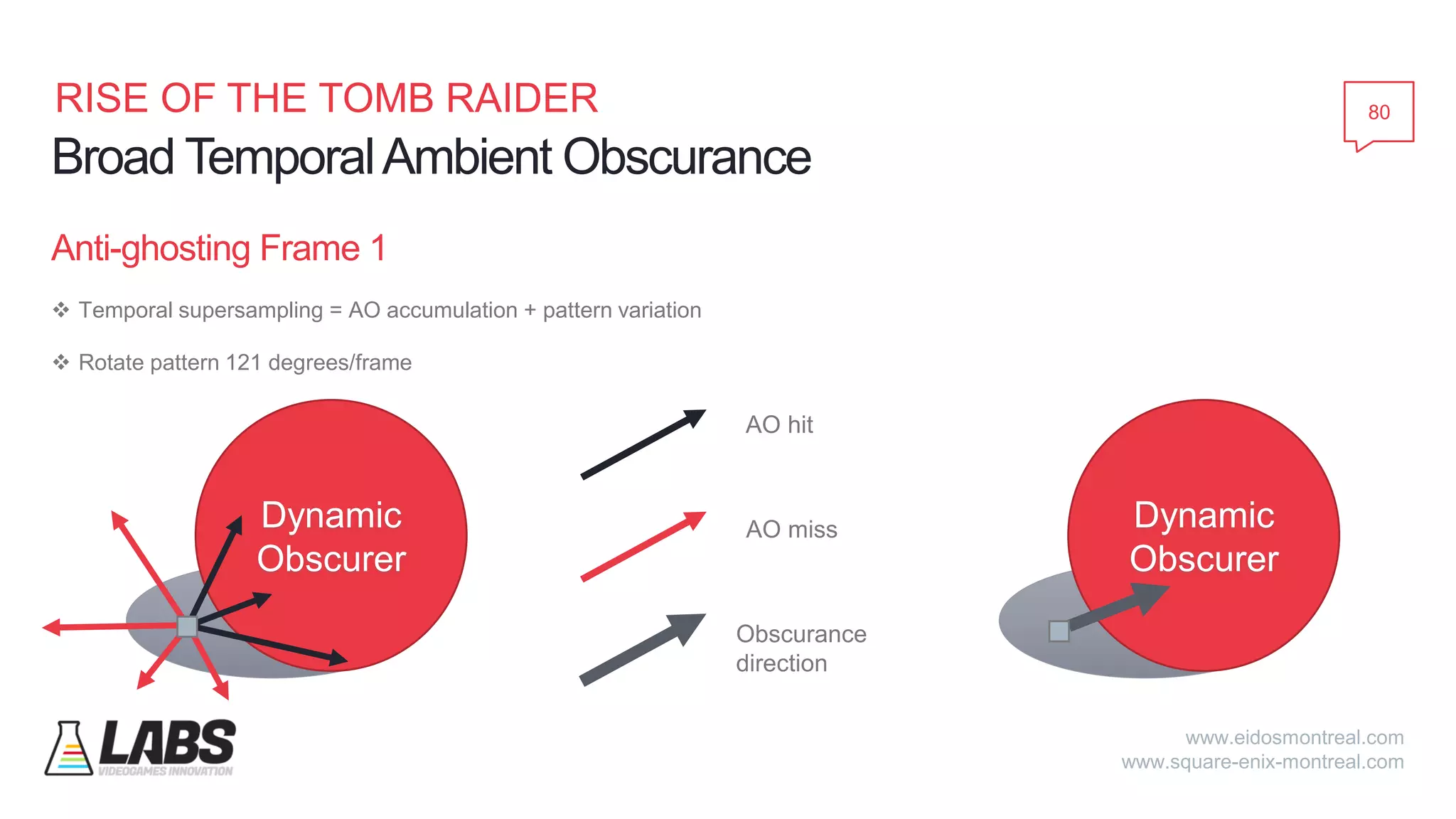

  74. 74. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Anti-ghosting Frame 1 ❖ Temporal supersampling = AO accumulation + pattern variation ❖ Rotate pattern 121 degrees/frame 80 Broad TemporalAmbient Obscurance Dynamic Obscurer AO hit AO miss Obscurance direction Dynamic Obscurer

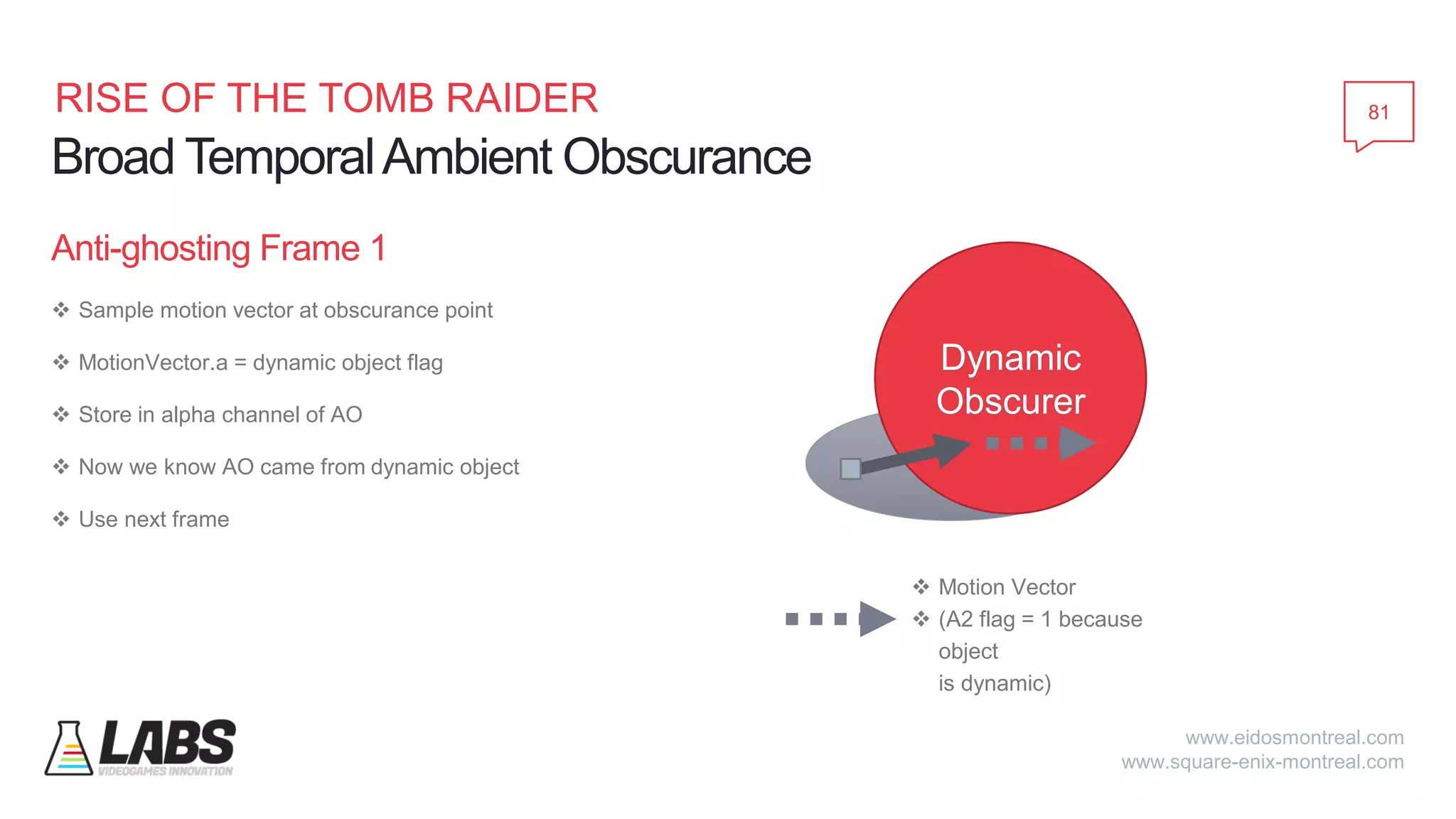

  75. 75. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Anti-ghosting Frame 1 ❖ Sample motion vector at obscurance point ❖ MotionVector.a = dynamic object flag ❖ Store in alpha channel of AO ❖ Now we know AO came from dynamic object ❖ Use next frame 81 Broad TemporalAmbient Obscurance Dynamic Obscurer ❖ Motion Vector ❖ (A2 flag = 1 because object is dynamic)

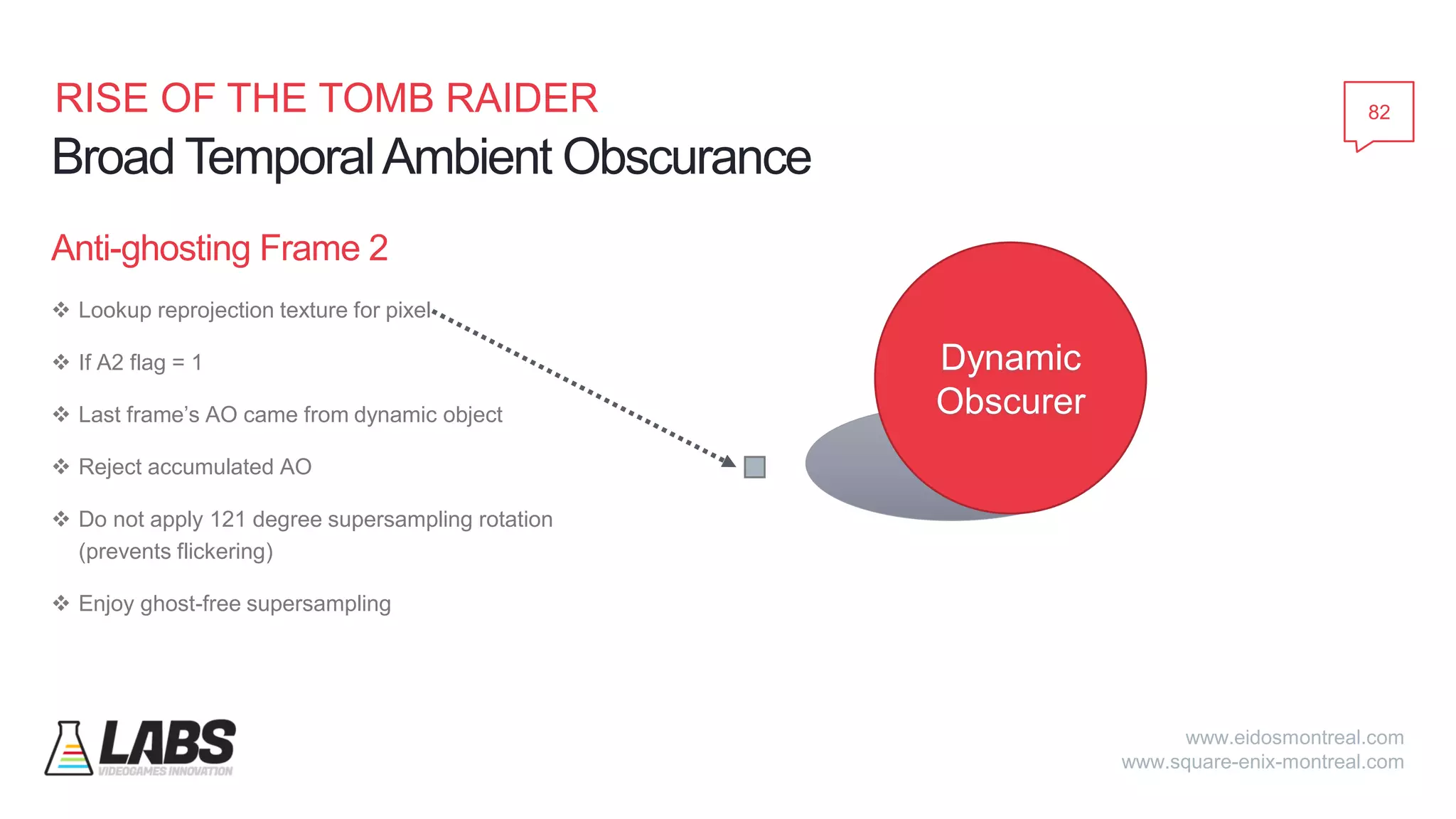

  76. 76. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Anti-ghosting Frame 2 ❖ Lookup reprojection texture for pixel ❖ If A2 flag = 1 ❖ Last frame’s AO came from dynamic object ❖ Reject accumulated AO ❖ Do not apply 121 degree supersampling rotation (prevents flickering) ❖ Enjoy ghost-free supersampling 82 Broad TemporalAmbient Obscurance Dynamic Obscurer
  77. 77. Anti-ghosting video: Before and After AO darkened for visibility All Rights Reserved SquareEnix Eidos Montreal 2015

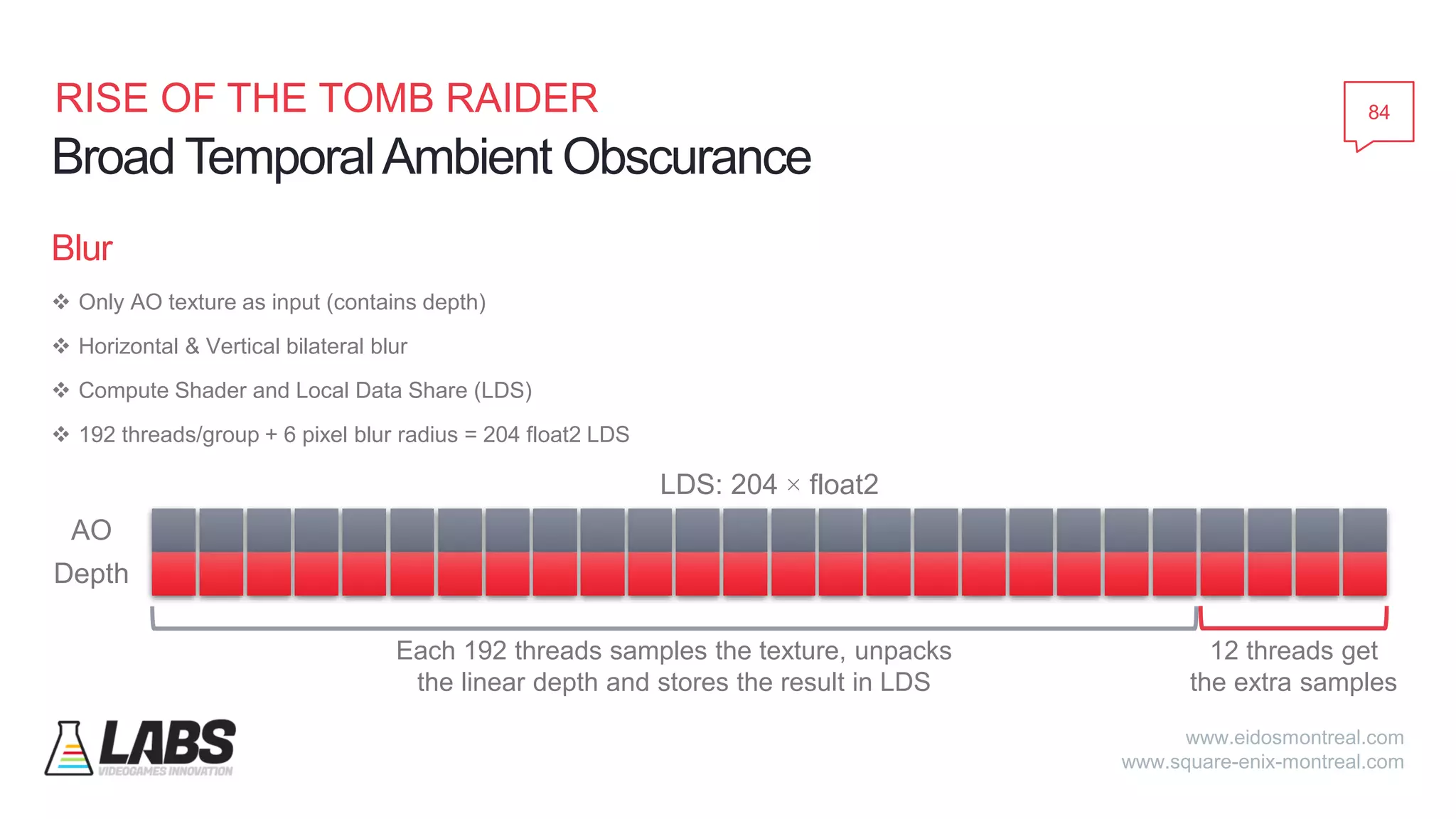

  78. 78. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Blur ❖ Only AO texture as input (contains depth) ❖ Horizontal & Vertical bilateral blur ❖ Compute Shader and Local Data Share (LDS) ❖ 192 threads/group + 6 pixel blur radius = 204 float2 LDS Broad TemporalAmbient Obscurance 84 LDS: 204 × float2 Depth AO Each 192 threads samples the texture, unpacks the linear depth and stores the result in LDS 12 threads get the extra samples

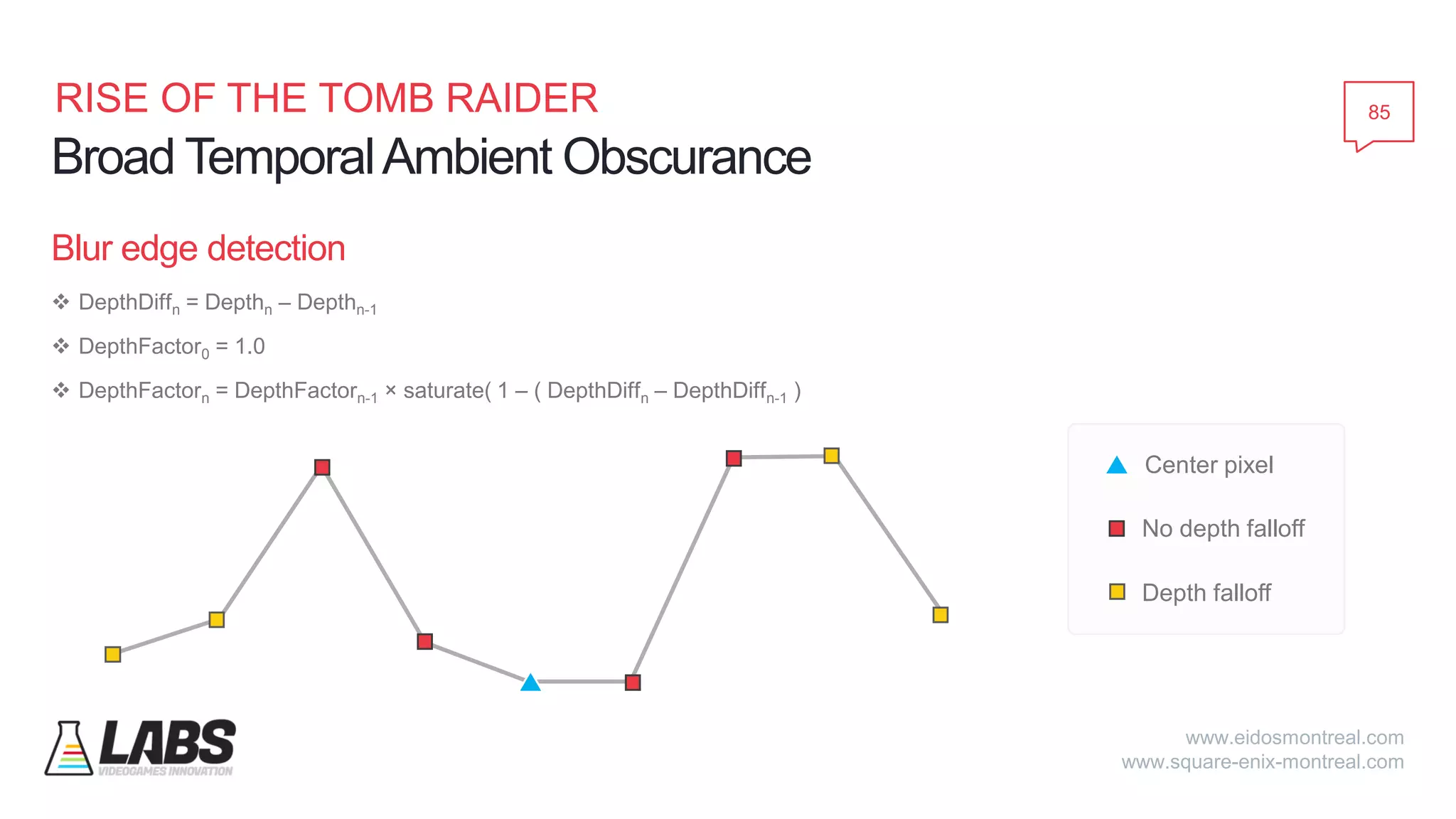

  79. 79. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Blur edge detection ❖ DepthDiffn = Depthn – Depthn-1 ❖ DepthFactor0 = 1.0 ❖ DepthFactorn = DepthFactorn-1 × saturate( 1 – ( DepthDiffn – DepthDiffn-1 ) Broad TemporalAmbient Obscurance 85 Center pixel No depth falloff Depth falloff

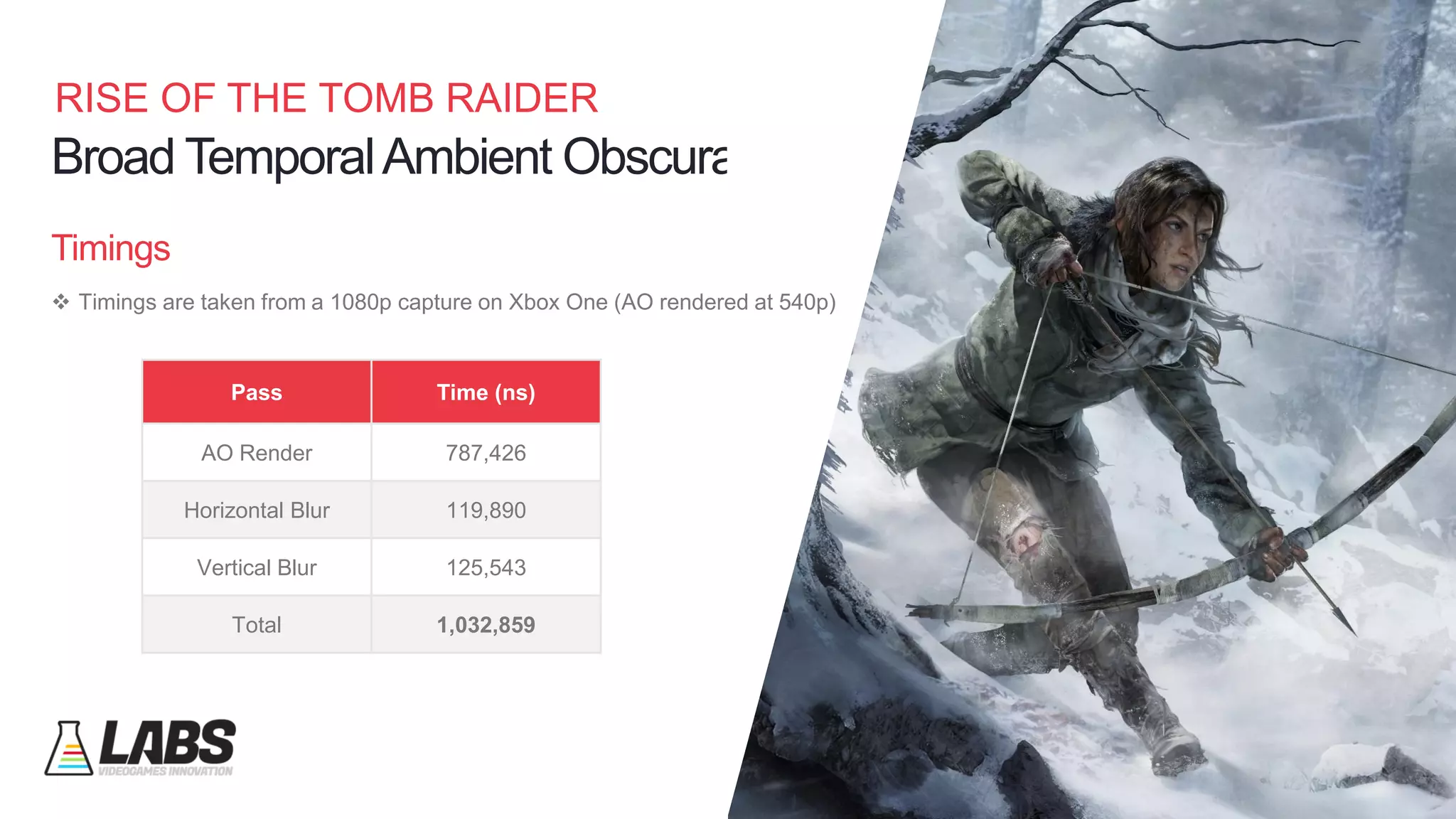

  80. 80. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Broad TemporalAmbient Obscurance 86 Pass Time (ns) AO Render 787,426 Horizontal Blur 119,890 Vertical Blur 125,543 Total 1,032,859 Timings ❖ Timings are taken from a 1080p capture on Xbox One (AO rendered at 540p)

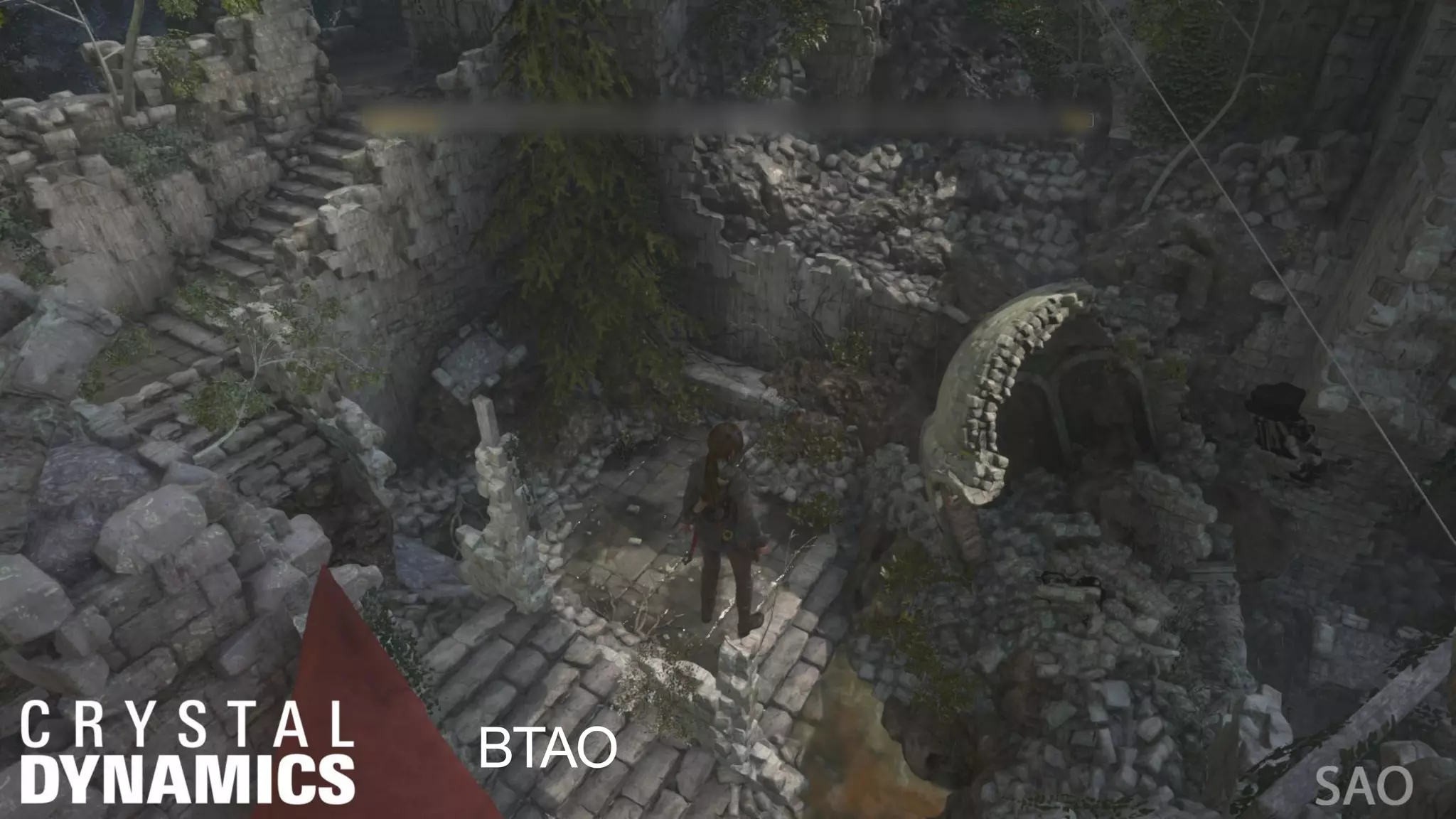

  81. 81. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Bonus Comparison 1ms BTAO vs 1ms SSAO Microsoft Xfest [1.3] All Rights Reserved SquareEnix Eidos Montreal 2015

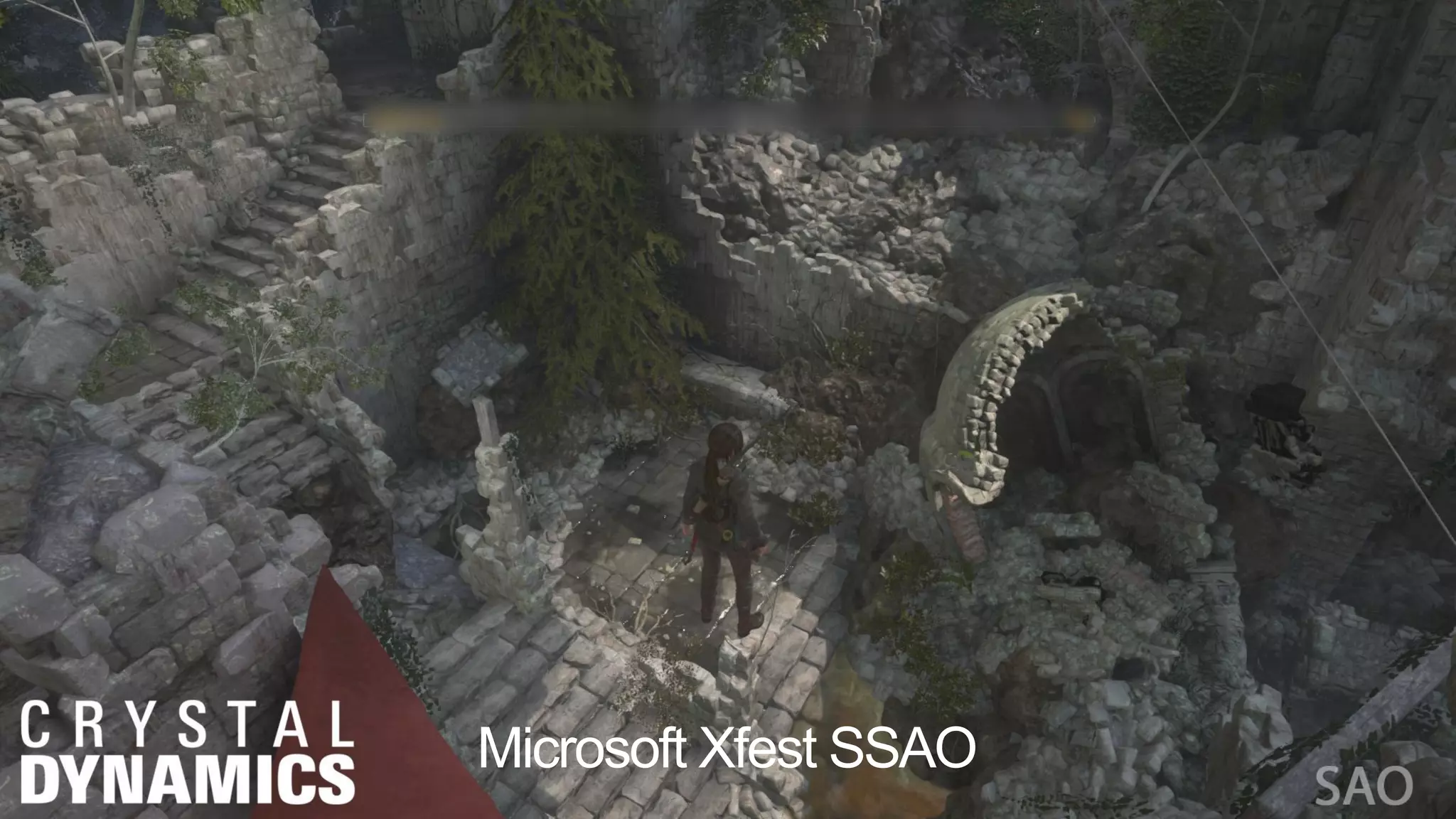

  82. 82. Microsoft Xfest SSAO
  83. 83. BTAO
  84. 84. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Procedural Snow Deformation 90 Peter Sikachev 3D Programmer for Labs at Eidos Montreal Anton Kai Michels R&D Programmer for Labs at Eidos Montreal

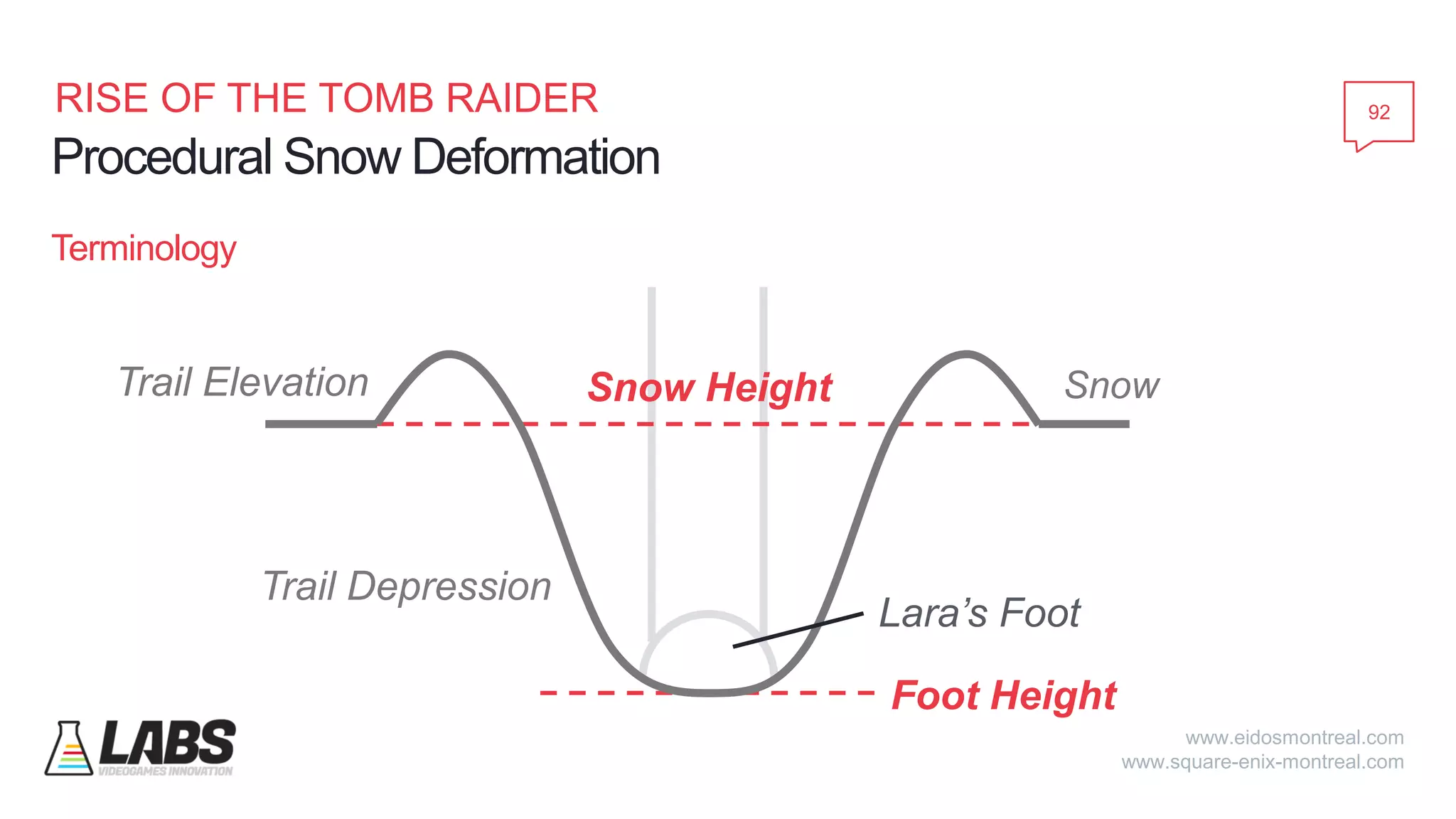

  85. 85. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Terminology Procedural Snow Deformation 92 Snow HeightTrail Elevation Trail Depression Foot Height Lara’s Foot Snow
  86. 86. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Motivation ❖ Defining graphical feature ❖ Trail depression + elevation ❖ Support forests, slopes, mountains ❖ Scale with NPCs and animals ❖ Fill in blizzard 93 Procedural Snow Deformation 93

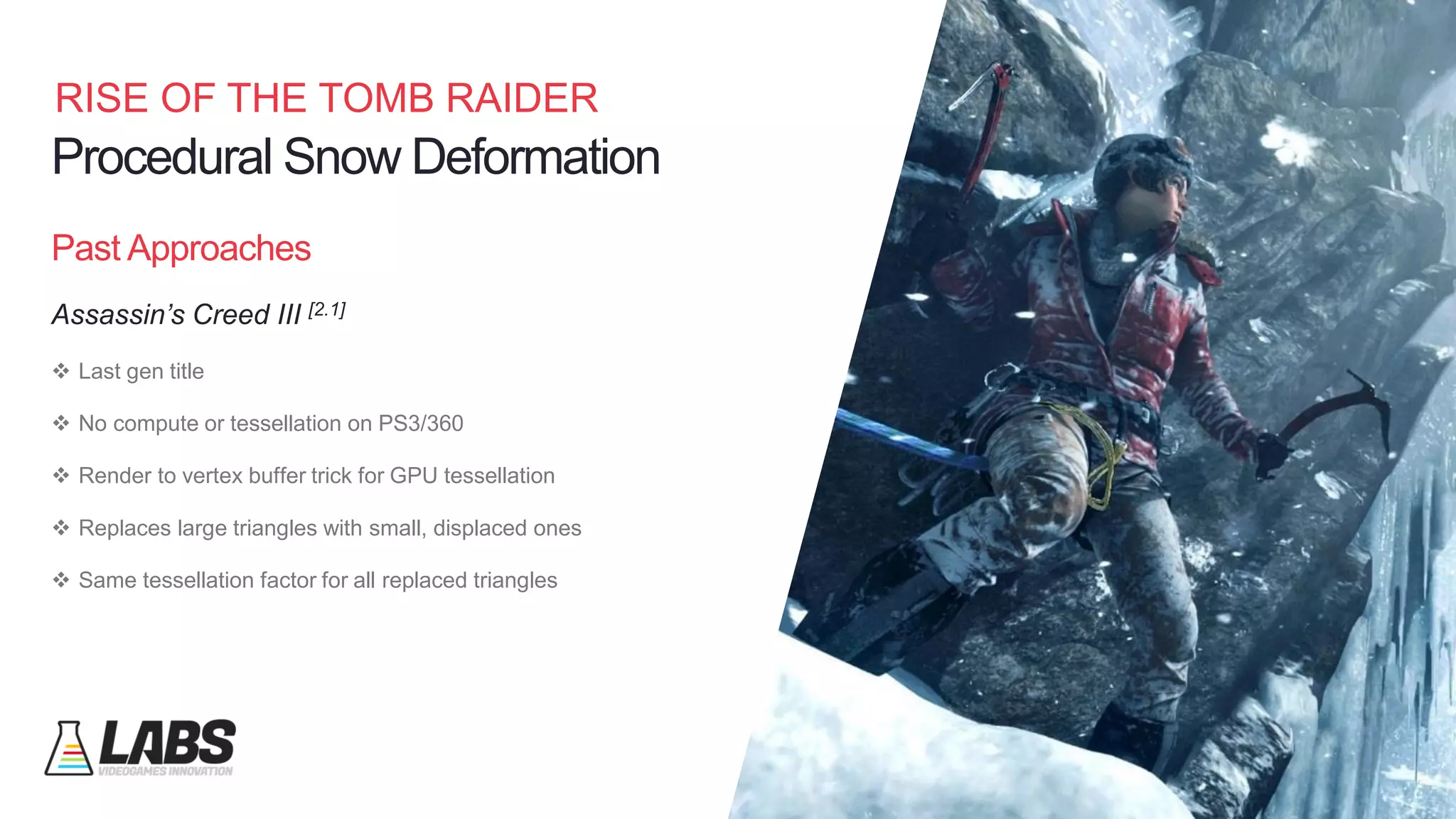

  87. 87. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Past Approaches Assassin’s Creed III [2.1] ❖ Last gen title ❖ No compute or tessellation on PS3/360 ❖ Render to vertex buffer trick for GPU tessellation ❖ Replaces large triangles with small, displaced ones ❖ Same tessellation factor for all replaced triangles Procedural Snow Deformation
  88. 88. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Past Approaches Assassin’s Creed III [2.1] ❖ Pros ❖ Trick for GPU tessellation on last gen ❖ Persistent tracks ❖ Supported slopes and terrain ❖ Cons ❖ Not very detailed ❖ No elevation on trail edges & no filling over time ❖ Mesh encodes max deformation to not reveal ground Procedural Snow Deformation
  89. 89. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Past Approaches Batman: Arkham Origins [2.2] ❖ Snow only on flat, rectangular rooftops ❖ Uses these as orthogonal view frustums ❖ Renders dynamic affecters in frustum ❖ Use the render target as a height map for the snow Procedural Snow Deformation
  90. 90. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Past Approaches Batman: Arkham Origins [2.2] ❖ Pros ❖ Very accurate ❖ Supports snow filling over time ❖ Cons ❖ No elevation on trail edges ❖ Only works on flat, rectangular surfaces ❖ Need to track which actors affect which surfaces. Procedural Snow Deformation

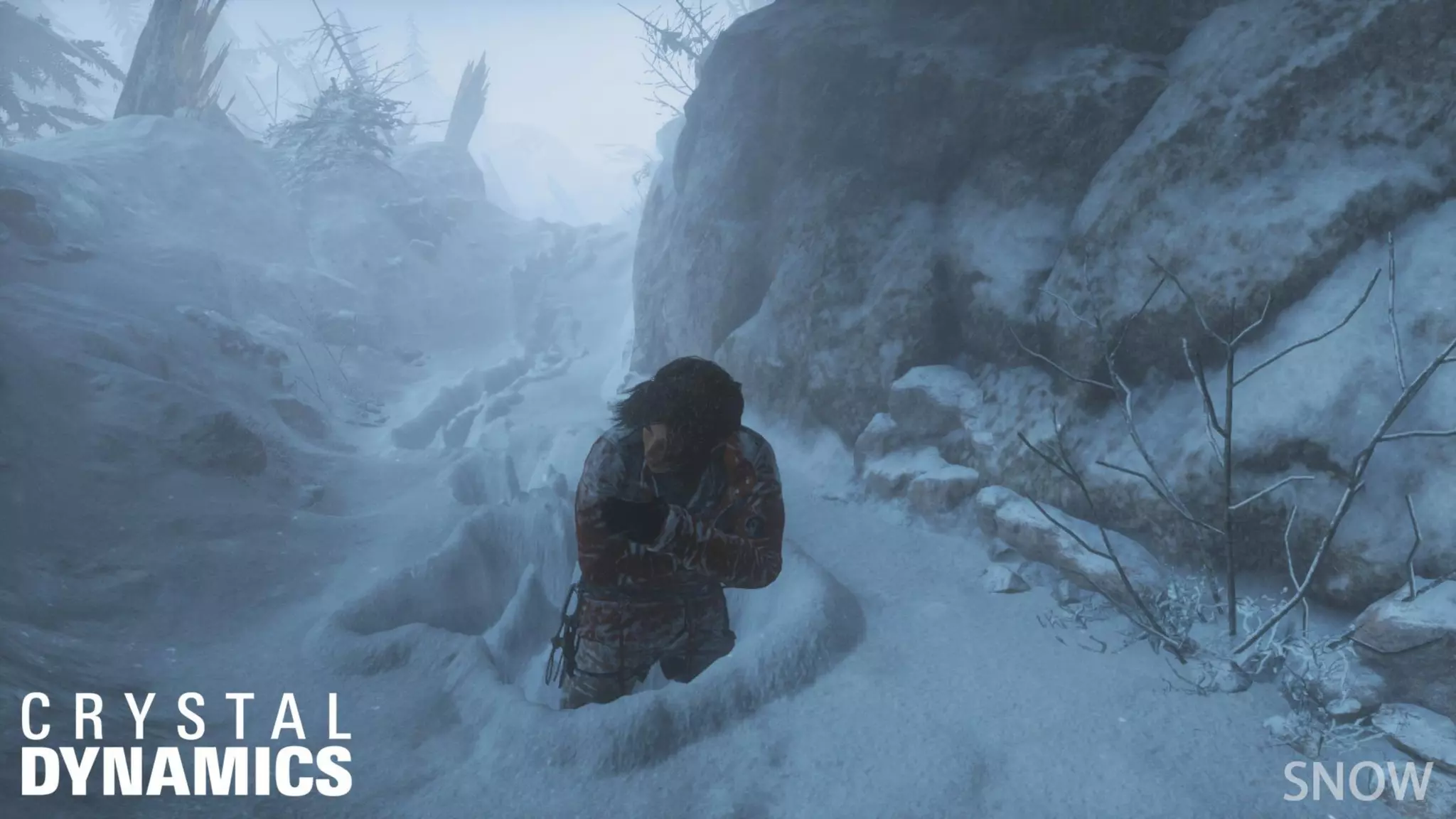

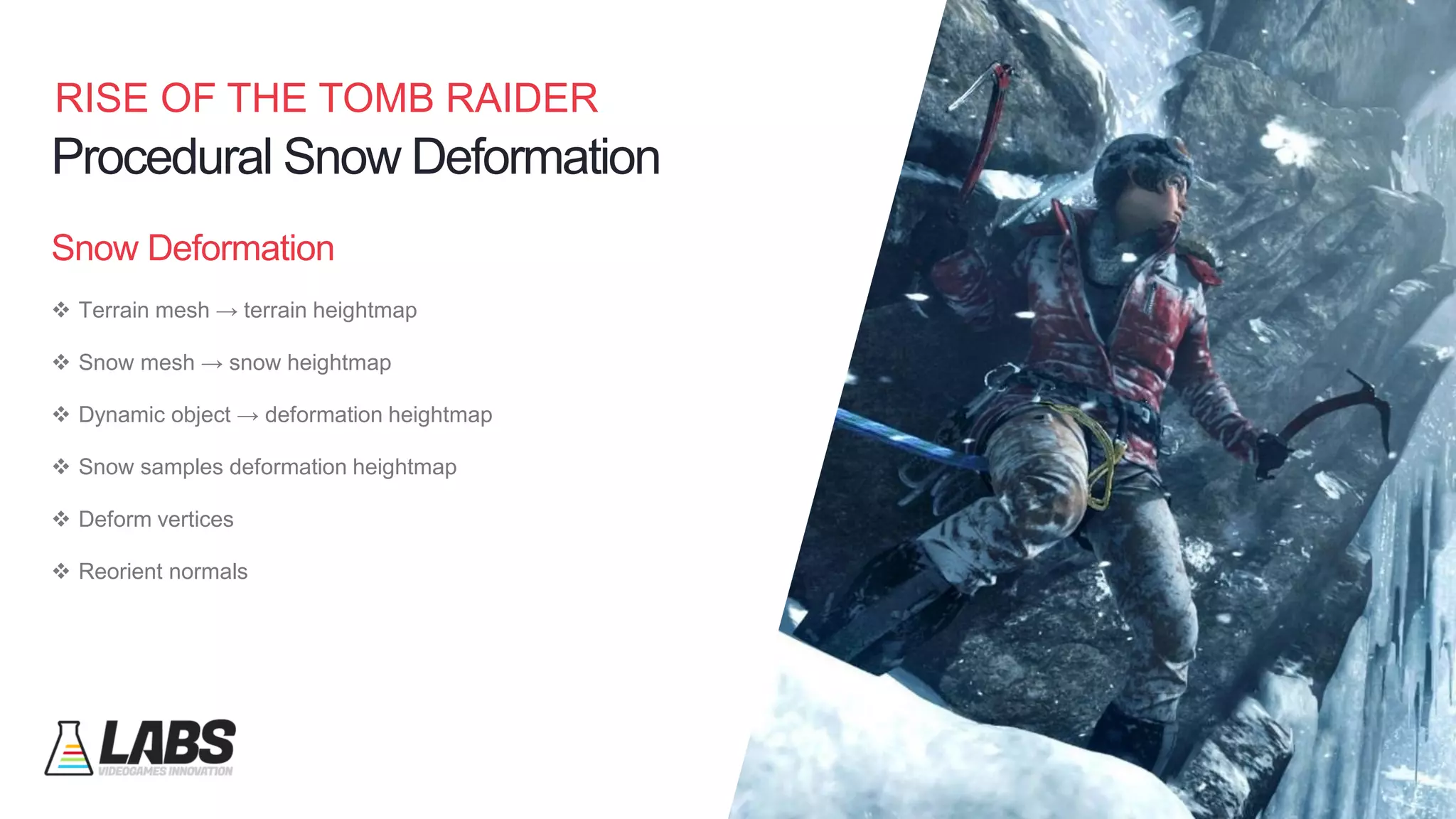

  91. 91. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Snow Deformation ❖ Terrain mesh → terrain heightmap ❖ Snow mesh → snow heightmap ❖ Dynamic object → deformation heightmap ❖ Snow samples deformation heightmap ❖ Deform vertices ❖ Reorient normals 98 Procedural Snow Deformation 98

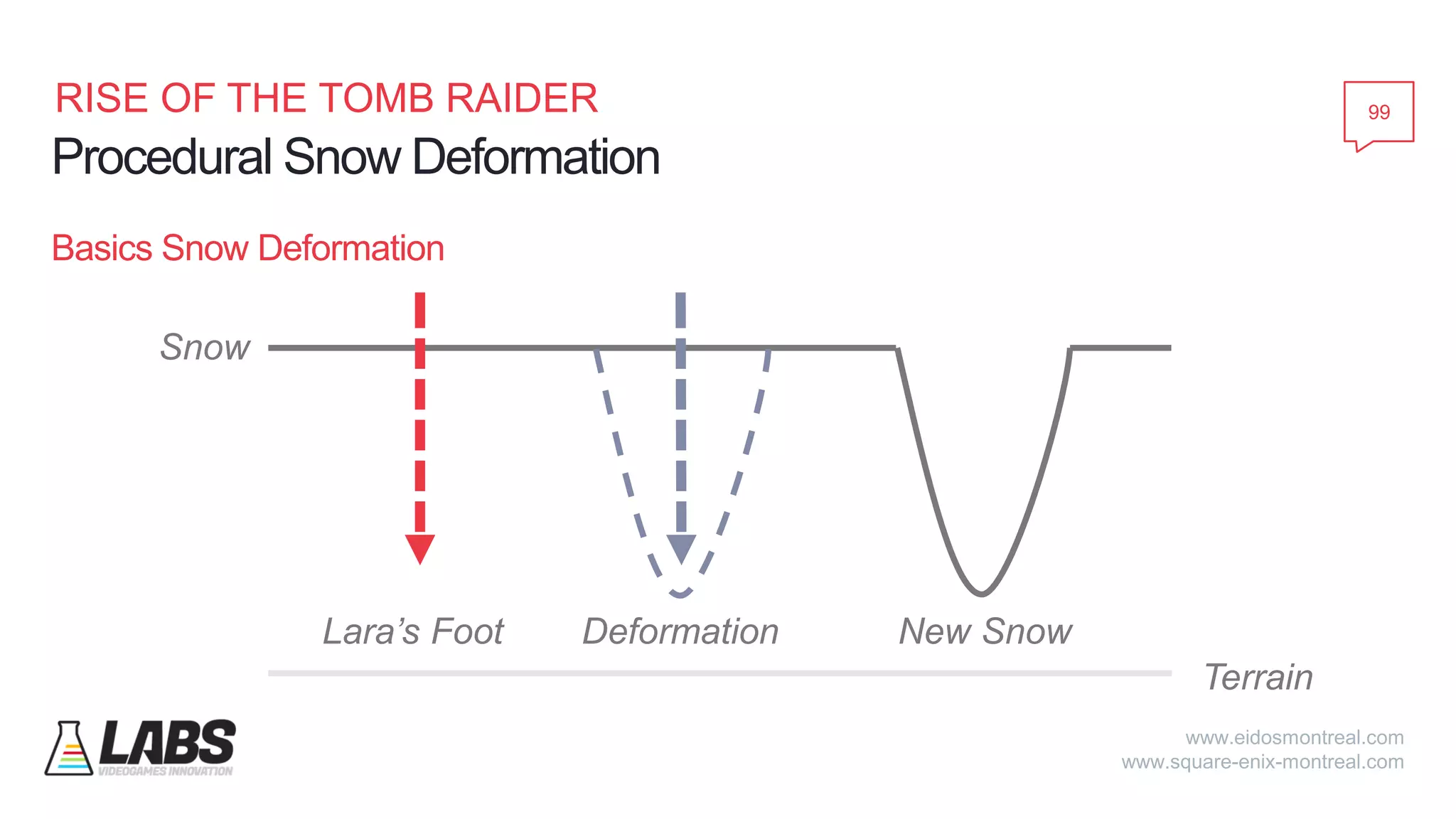

  92. 92. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Basics Snow Deformation 99 Procedural Snow Deformation Snow Terrain Lara’s Foot Deformation New Snow
  93. 93. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Deferred Deformation ❖ Terrain mesh → terrain heightmap ❖ Snow mesh → snow heightmap ❖ Dynamic object → deformation heightmap ❖ Snow samples deformation heightmap ❖ Snow clamps sampled deformation ❖ Deform vertices ❖ Reorient normals 100 Procedural Snow Deformation 100

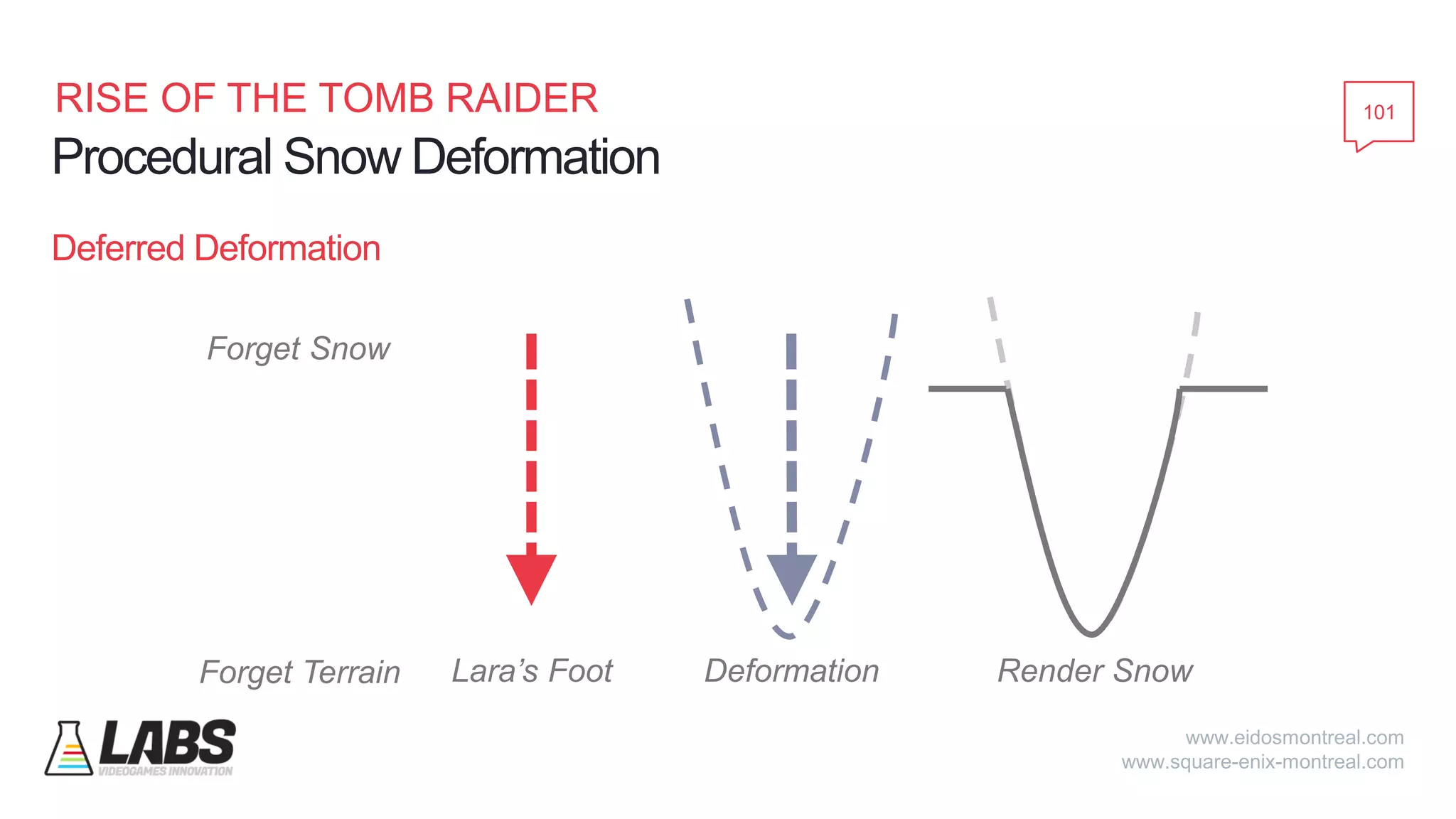

  94. 94. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Deferred Deformation 101 Procedural Snow Deformation Forget Terrain Lara’s Foot Deformation Render Snow Forget Snow
  95. 95. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Heightmap Writing ❖ Approximate objects with points ❖ Lara has points on hands and feet ❖ Accumulate points into buffer ❖ Dispatch single compute shader ❖ Number groups = number points ❖ Groups write 32 × 32 pixels around points ❖ Atomic min ❖ Deformation height = point height + distance(pixel.xy, point.xy) 2 102 Procedural Snow Deformation 102
  96. 96. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Heightmap Reading ❖ Snow rendering samples heightmap ❖ Snow height = vertex.z ❖ New height = min( snow height , deformation height ) ❖ Pass snow height to pixel shader ❖ Per-pixel normals with reoriented normal mapping [2.3] 103 Procedural Snow Deformation 103

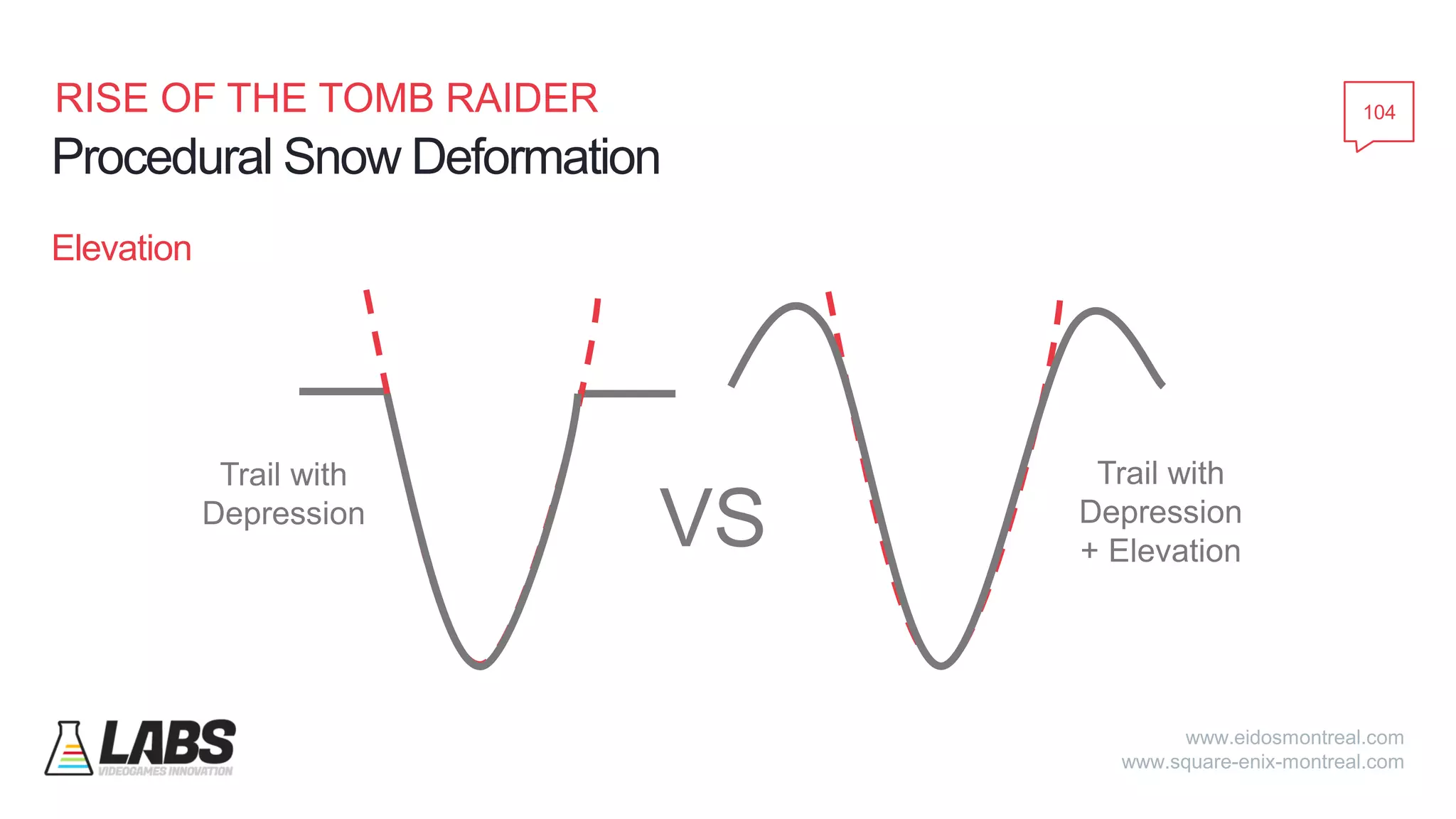

  97. 97. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Elevation 104 Procedural Snow Deformation Trail with Depression Trail with Depression + ElevationVS

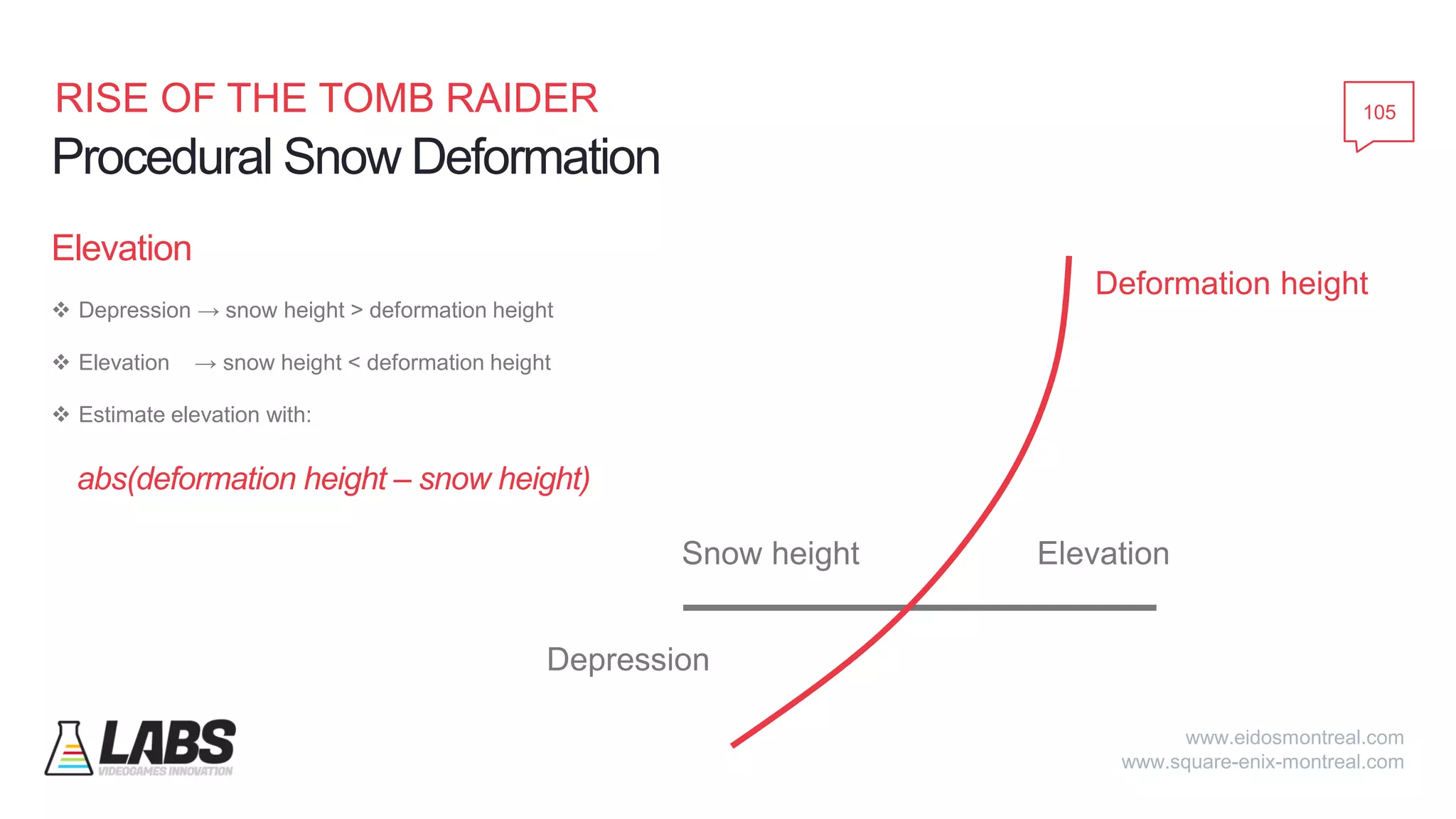

  98. 98. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Elevation ❖ Depression → snow height > deformation height ❖ Elevation → snow height < deformation height ❖ Estimate elevation with: 105 Procedural Snow Deformation abs(deformation height – snow height) Snow height Deformation height Depression Elevation
  99. 99. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Elevation ❖ abs(deformation height – snow height) not enough ❖ Foot height needed 106 Procedural Snow Deformation Snow vertex Z Deformation height V SElevation on side of trail No depression = no elevation Foot height

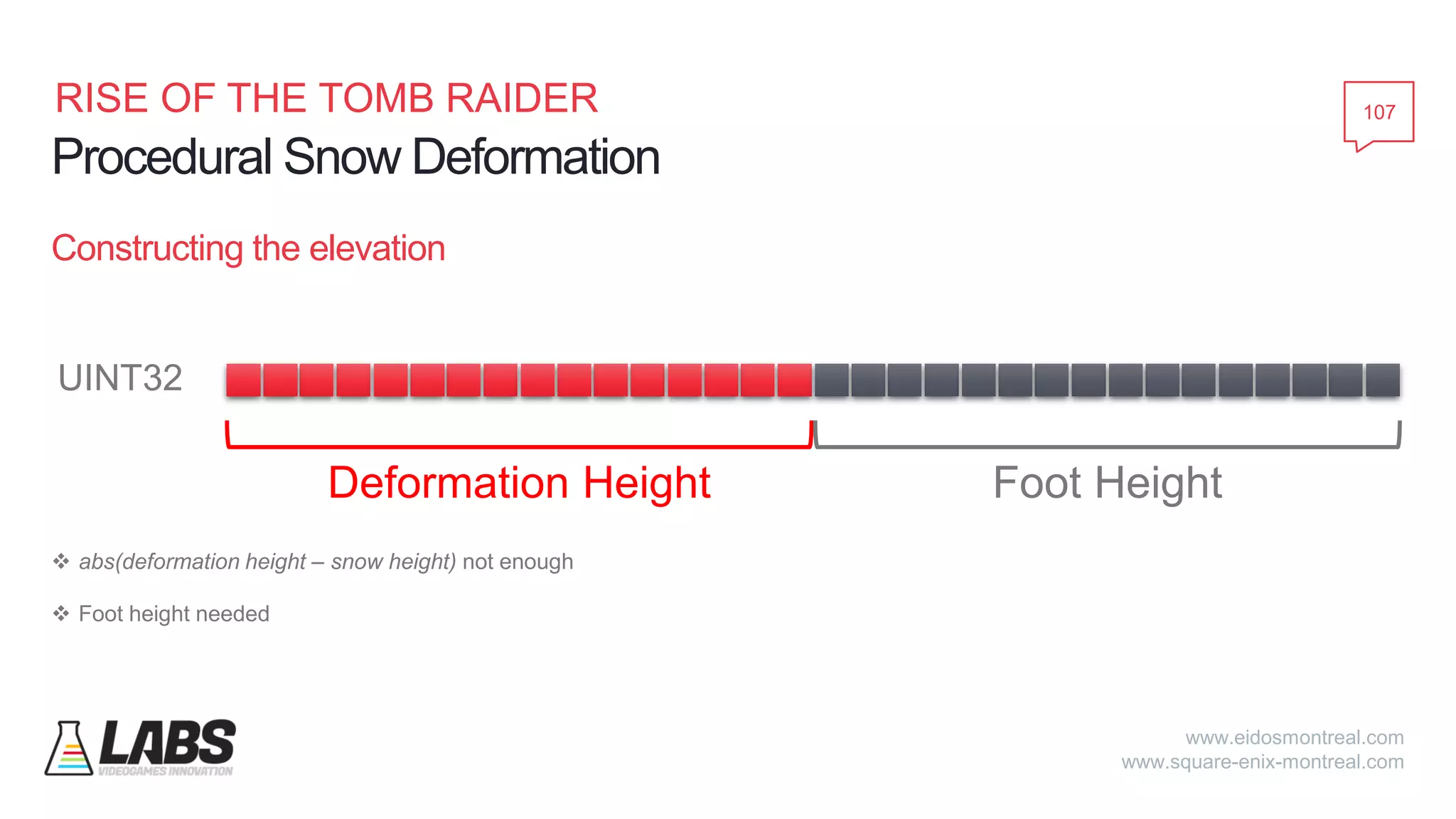

  100. 100. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Constructing the elevation 107 Procedural Snow Deformation ❖ abs(deformation height – snow height) not enough ❖ Foot height needed UINT32 Deformation Height Foot Height

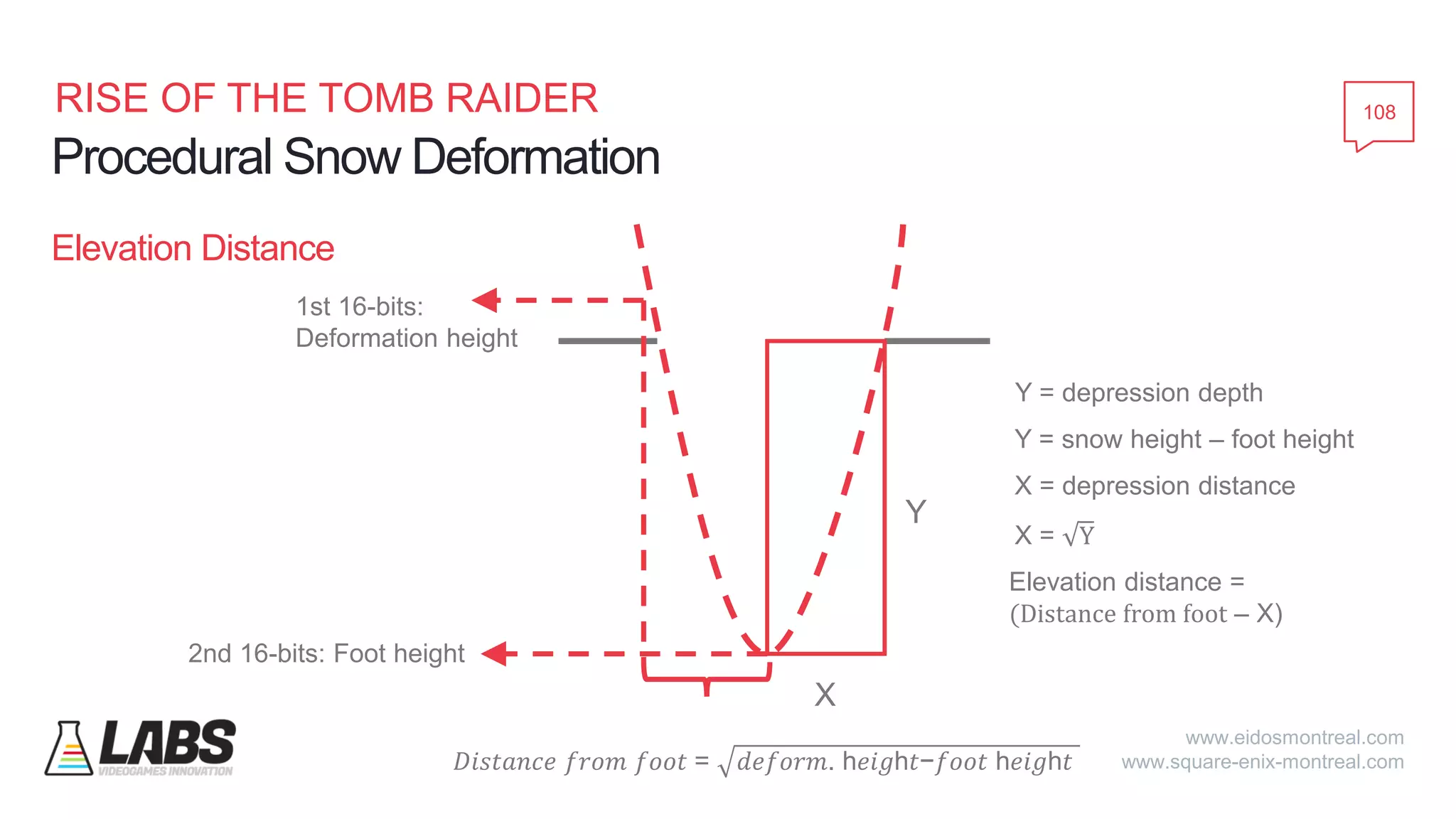

  101. 101. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Elevation Distance 108 Procedural Snow Deformation Y = depression depth X = Y X = depression distance Elevation distance = (Distance from foot – X) Y = snow height – foot height 2nd 16-bits: Foot height 1st 16-bits: Deformation height 𝐷𝑖𝑠𝑡𝑎𝑛𝑐𝑒 𝑓𝑟𝑜𝑚 𝑓𝑜𝑜𝑡 = 𝑑𝑒𝑓𝑜𝑟𝑚. h𝑒𝑖𝑔h𝑡−𝑓𝑜𝑜𝑡 h𝑒𝑖𝑔h𝑡 X Y

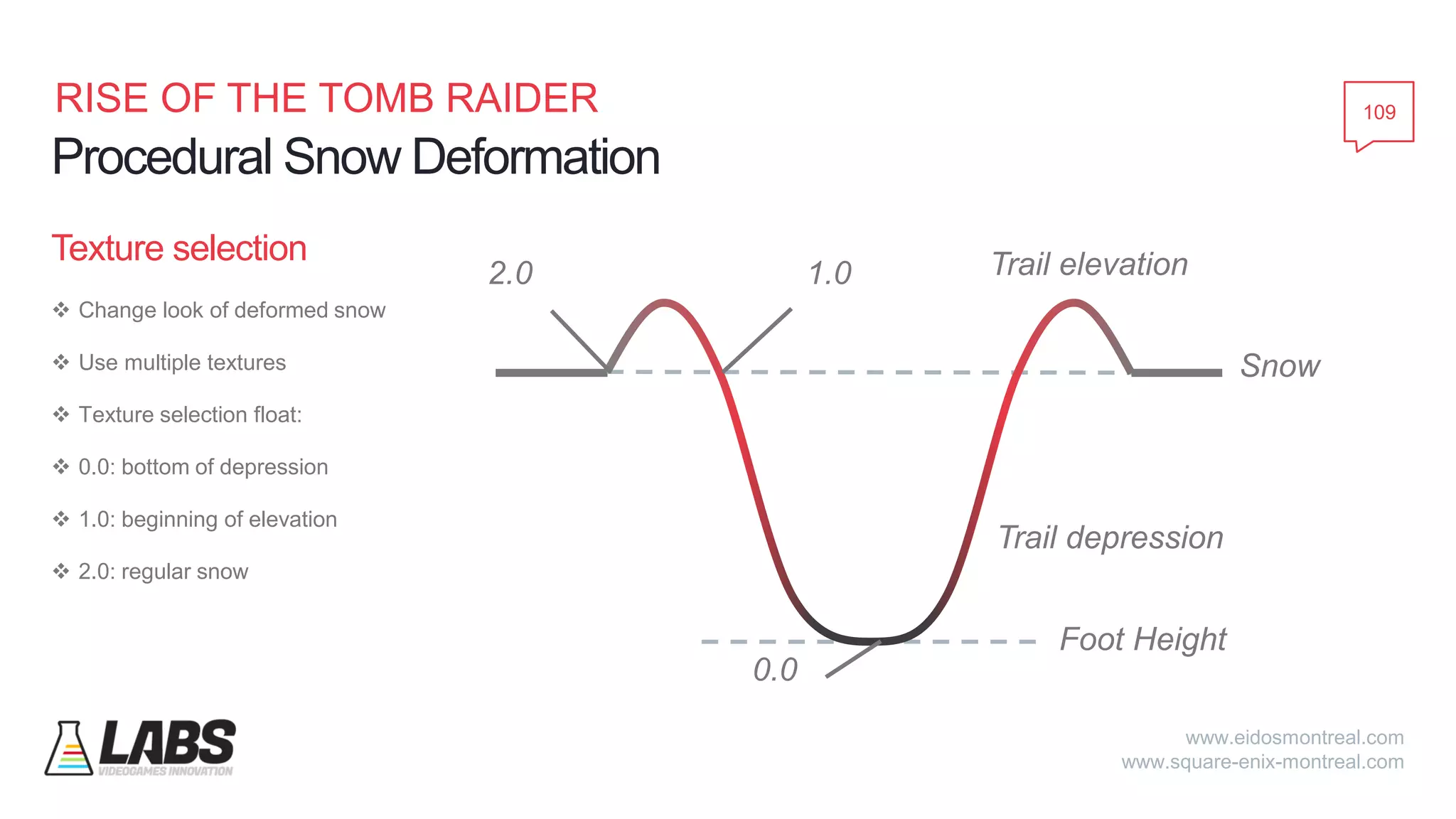

  102. 102. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Texture selection ❖ Change look of deformed snow ❖ Use multiple textures ❖ Texture selection float: ❖ 0.0: bottom of depression ❖ 1.0: beginning of elevation ❖ 2.0: regular snow 109 Procedural Snow Deformation Trail elevation Trail depression Foot Height Snow 0.0 1.02.0

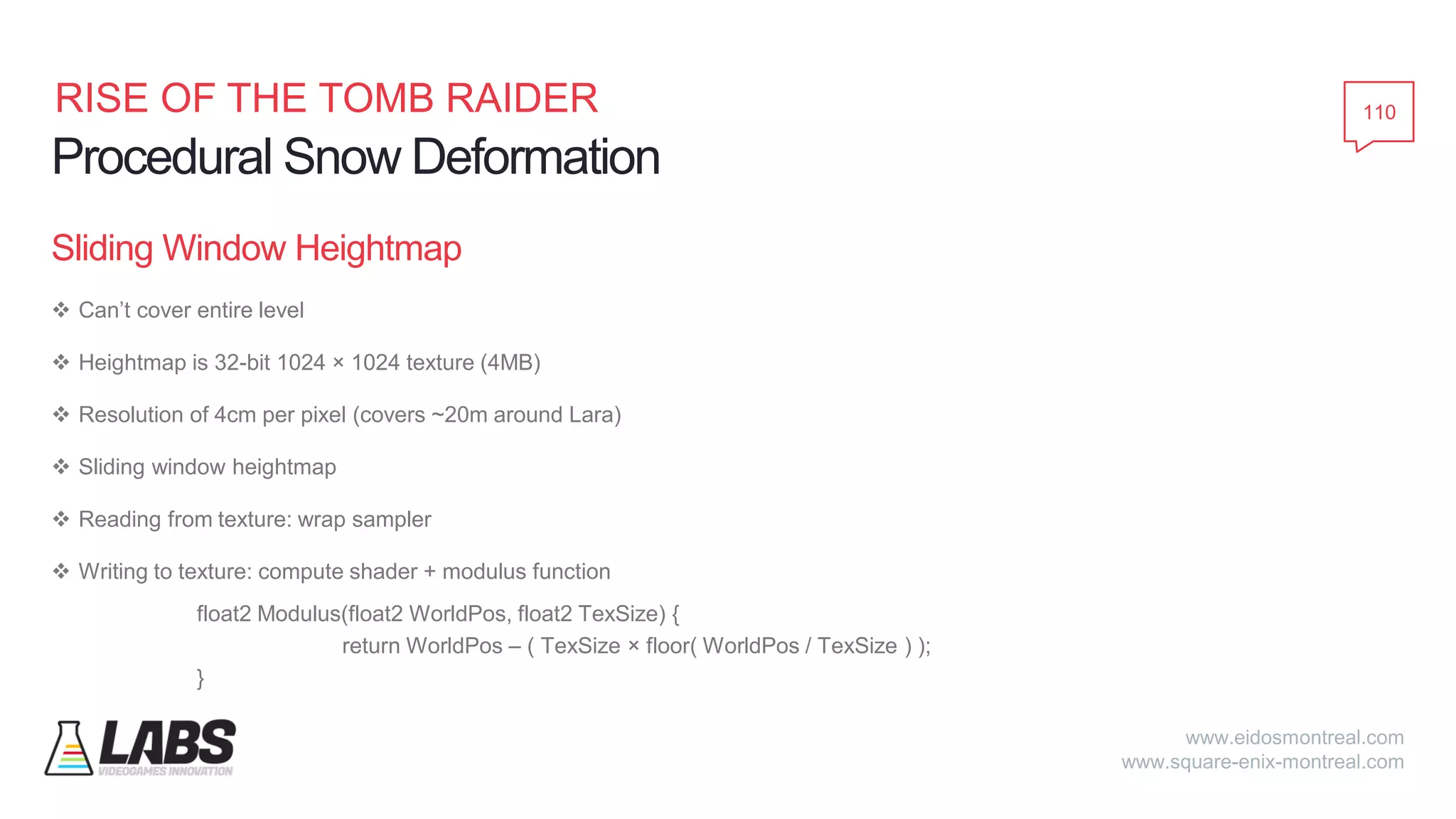

  103. 103. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Sliding Window Heightmap ❖ Can’t cover entire level ❖ Heightmap is 32-bit 1024 × 1024 texture (4MB) ❖ Resolution of 4cm per pixel (covers ~20m around Lara) ❖ Sliding window heightmap ❖ Reading from texture: wrap sampler ❖ Writing to texture: compute shader + modulus function float2 Modulus(float2 WorldPos, float2 TexSize) { return WorldPos – ( TexSize × floor( WorldPos / TexSize ) ); } 110 Procedural Snow Deformation

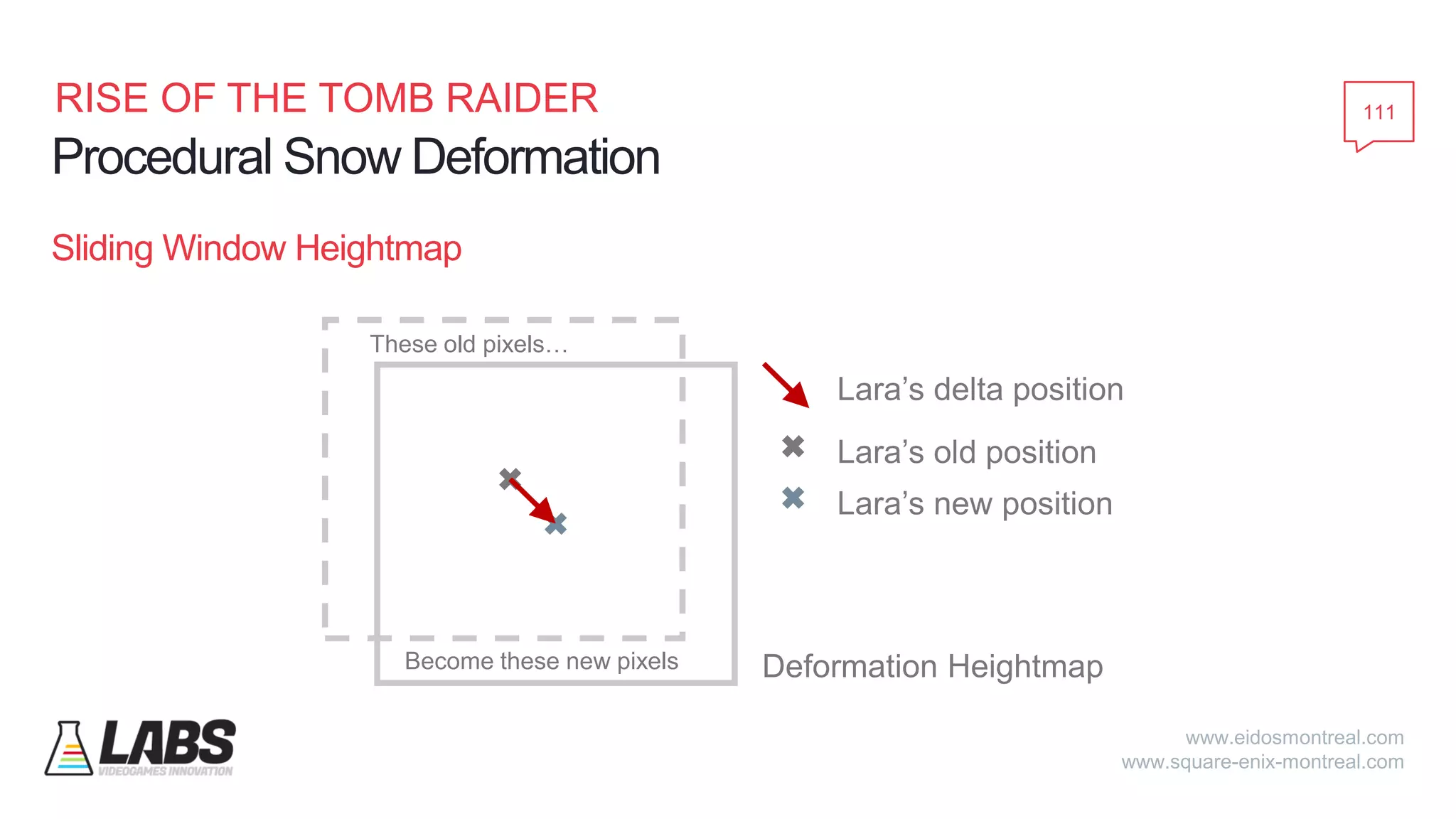

  104. 104. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Sliding Window Heightmap 111 Procedural Snow Deformation Lara’s delta position Lara’s old position These old pixels… Become these new pixels Deformation Heightmap Lara’s new position

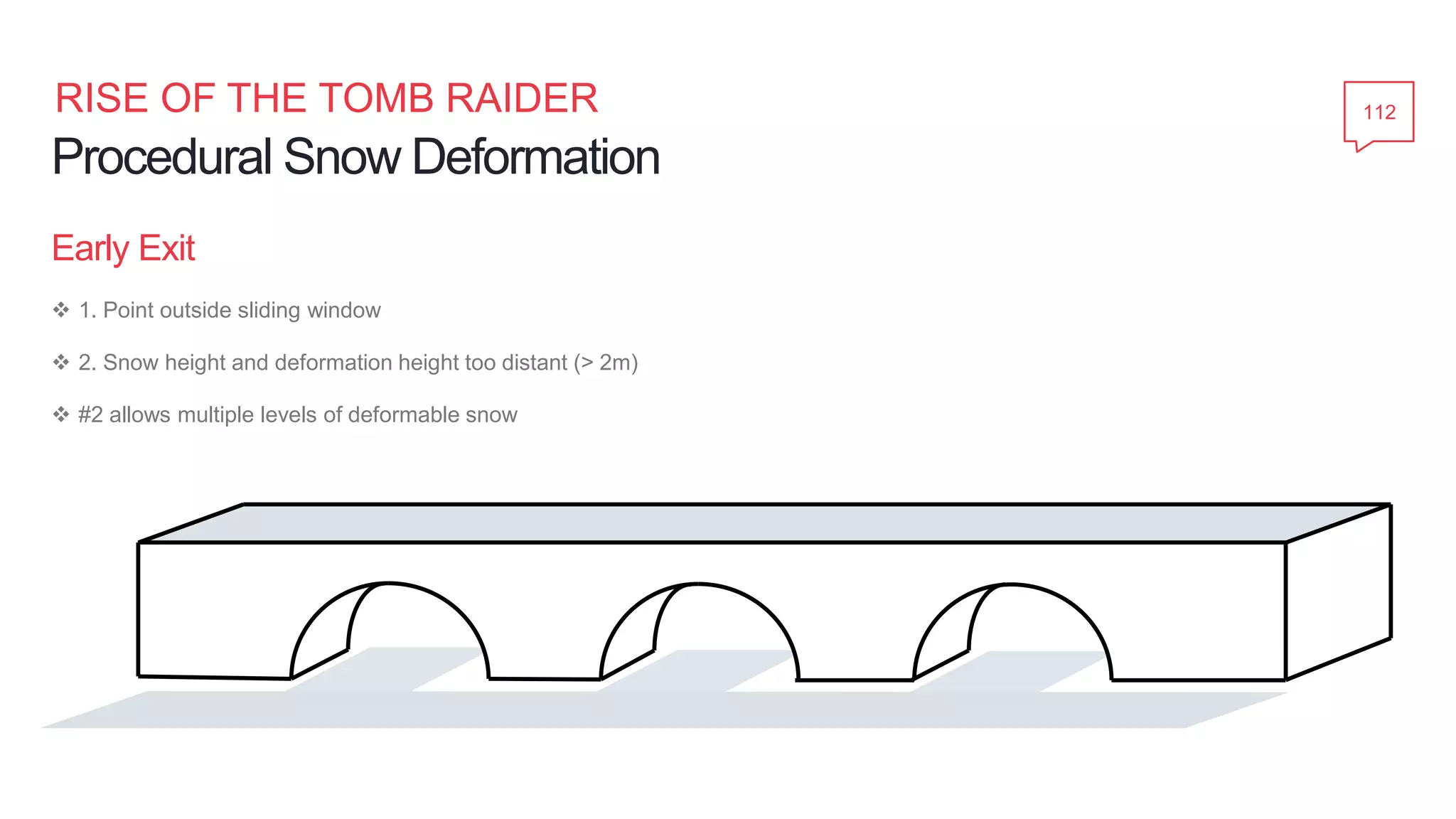

  105. 105. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Early Exit ❖ 1. Point outside sliding window ❖ 2. Snow height and deformation height too distant (> 2m) ❖ #2 allows multiple levels of deformable snow 112 Procedural Snow Deformation

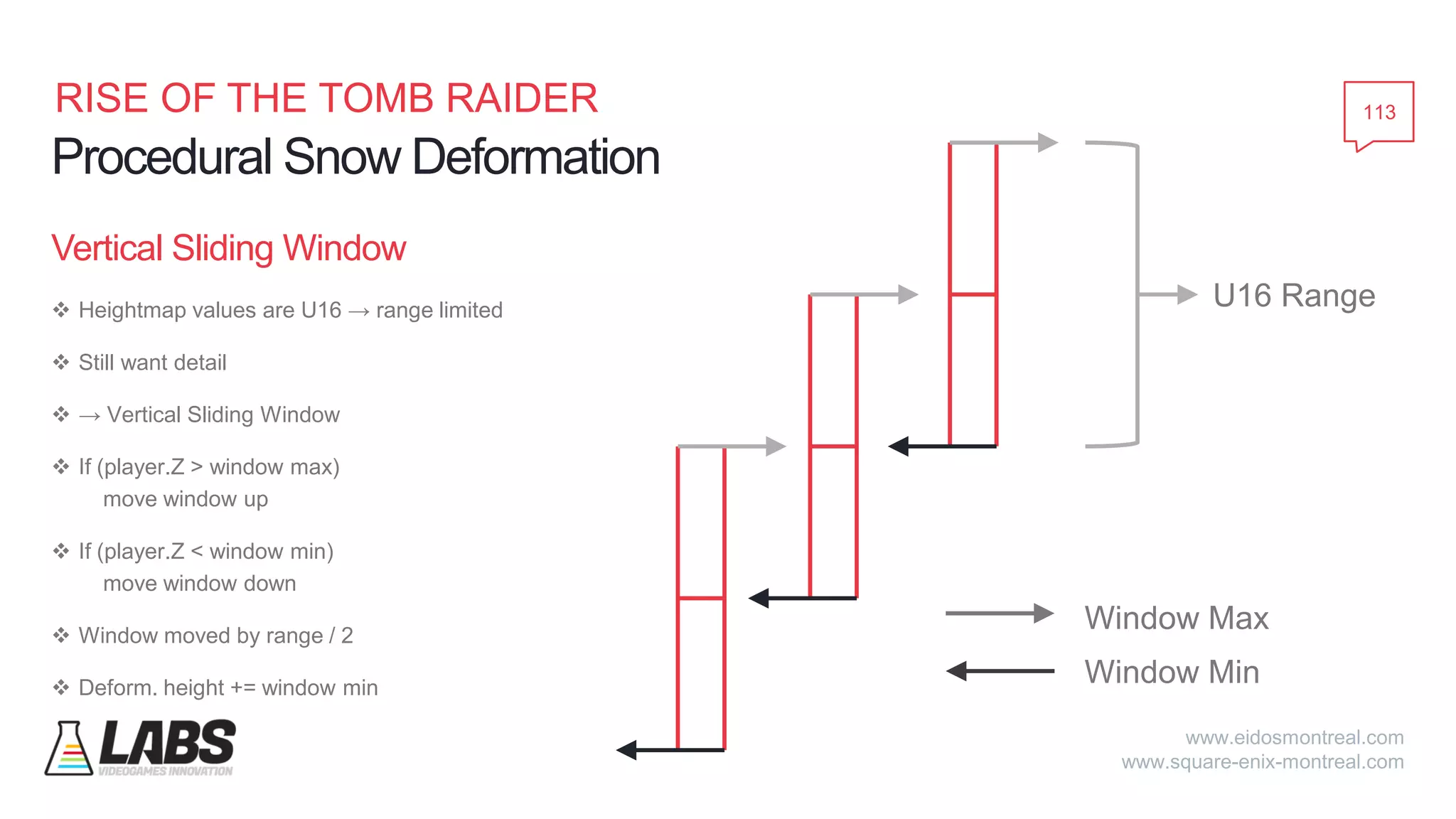

  106. 106. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Vertical Sliding Window ❖ Heightmap values are U16 → range limited ❖ Still want detail ❖ → Vertical Sliding Window ❖ If (player.Z > window max) move window up ❖ If (player.Z < window min) move window down ❖ Window moved by range / 2 ❖ Deform. height += window min 113 Procedural Snow Deformation Window Min Window Max U16 Range
  107. 107. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Filling over time ❖ Simulate trails disappearing in blizzard ❖ Compute shader adds constant to heightmap ❖ Covers entire heightmap (10242 threads) ❖ Erase sliding window edge with extra fill ❖ Exponential function makes window edge smooth 114 Procedural Snow Deformation Deformed Snow Exponential Edge Erase Constant Edge Erase VS

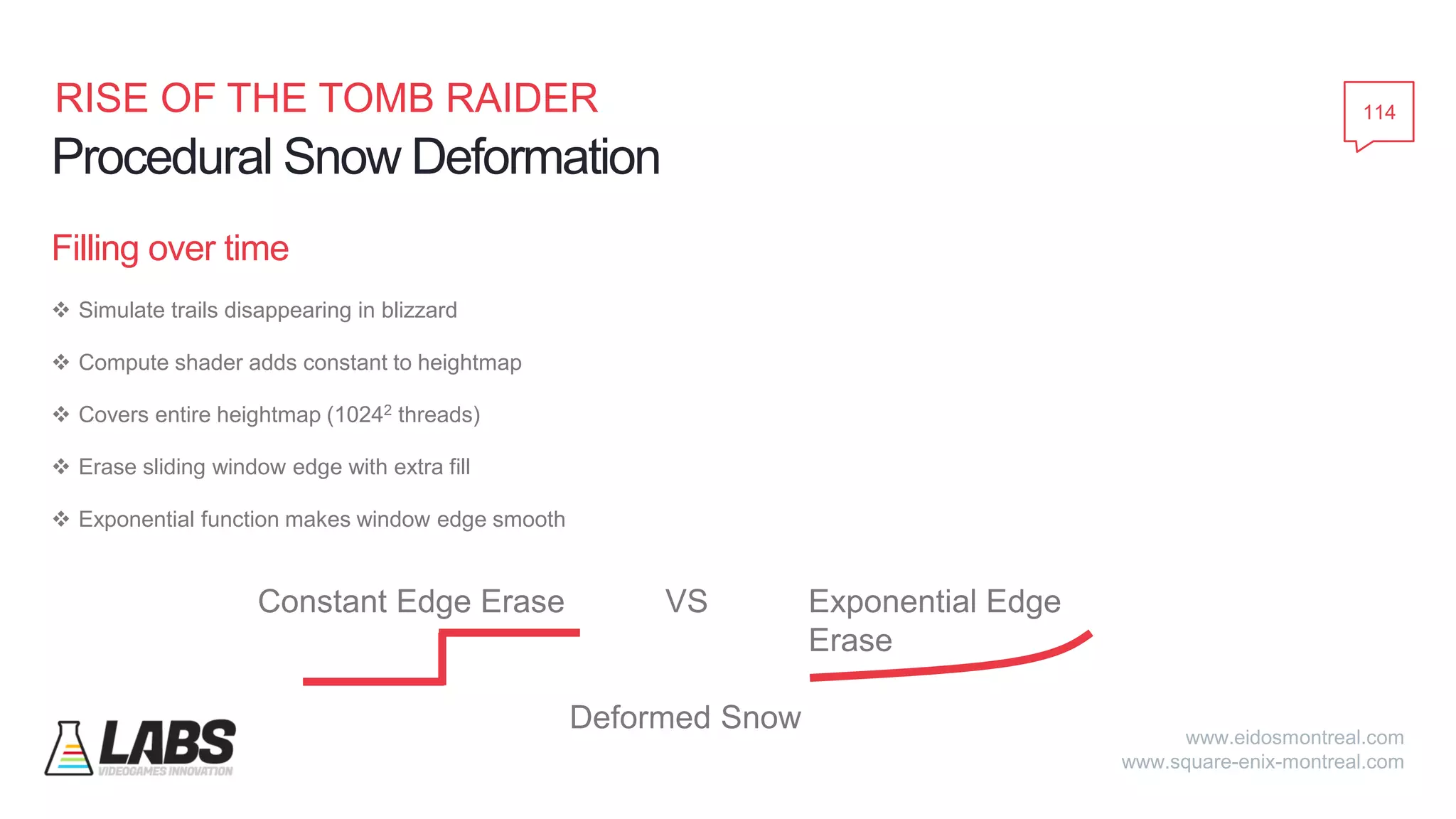

  108. 108. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Filling over time ❖ Filling breaks overlapping snow meshes (bridge scenario) ❖ Only happens after very long fill ❖ Prevent with per-texel lifetime (steal 6 bits from foot height) ❖ When lifetime is max, clear deformation and set texel = U32 max ❖ Increase precision: store foot height - deformation height 115 Procedural Snow Deformation UINT32 Deformation Height Foot – Deformation Lifetime 16-bit 10-bit 6-bit
  109. 109. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Compute Shader Timings ❖ Timings are captured from an Xbox One Procedural Snow Deformation 116 Pass Time (ns) Snow Deformation Shader 0.011 Snow Fill Shader 0.175 Total 0.186 116
  110. 110. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Snow Tessellation ❖ Snow vertex shader is expensive ❖ Adaptively tessellate in image space (maxtessfactor = 10) ❖ Frustum culling done in HS ❖ No backface culling, snow is mainly flat ❖ Normals generated using derivatives [2.4] ❖ Using ShaderFastMathLib [2.5] 117 Procedural Snow Deformation 117
  111. 111. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Snow Tessellation - Performance 118 Procedural Snow Deformation ❖ Untessellated ❖ Normal pass: 3.07 ms ❖ Composite pass: 2.55 ms ❖ Tessellated ❖ Normal pass: 1.6 ms ❖ Composite pass: 1.14 ms
  112. 112. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com Future Applications ❖ Technique doesn’t care about geometry ❖ Very flexible ❖ Single deformation heightmap → snow, mud, sand, dust, grass, ❖ We hope to see this technique adopted and improved in future AAA titles. 119 Procedural Snow Deformation 119
  113. 113. RISE OF THE TOMB RAIDER www.eidosmontreal.com www.square-enix-montreal.com References ❖ [1.1] McGuire et al., Scalable Ambient Obscurance, 2012 ❖ [1.2] Bart Wronski, Temporal Supersampling pt. 2 – SSAO demonstration, 2014 ❖ [1.3] James Stanard, Applied Compute Shaders, Xfest 2015 ❖ [2.1] Jean-Francois St-Amour, Rendering Assassin’s Creed III, GDC 2013 ❖ [2.2] Colin Barre-Brisebois, Defromable Snow Rendering in Batman: Arkham Origins, GDC 2014 ❖ [2.3] Stephen Hill, Blending in Detail, 2012 ❖ [2.4] Morten Mikkelsen, Derivative Maps, 2011 ❖ [2.5] Michał Drobot, ShaderFastMathLib, 2014 ❖ . 120 Procedural Snow Deformation
  114. 114. Any Questions?

×
