EMBARQ TURKEY ROAD SAFETY
LABORATORY (RSLab) PROJECT
RSLab (5 Cities): EMBARQ Turkey, we aim to support cities
and the government in achieving their ambitious targets by
2020 ...
PROJECT TEAM
İMAMOGLU ,CELAL TOLGA
Tranportation Engineer M . Sc.
Road Safety Projects Manager
EMBARQ TURKEY
Gümüşsuyu Mah...
PROJECT TEAM
BAŞARAN,SİVE,
Civil Engineering Student
PROJECT ASİST.
EMBARQ TURKEY
Gümüşsuyu Mahallesi
İnönü Caddesi
Saadet...

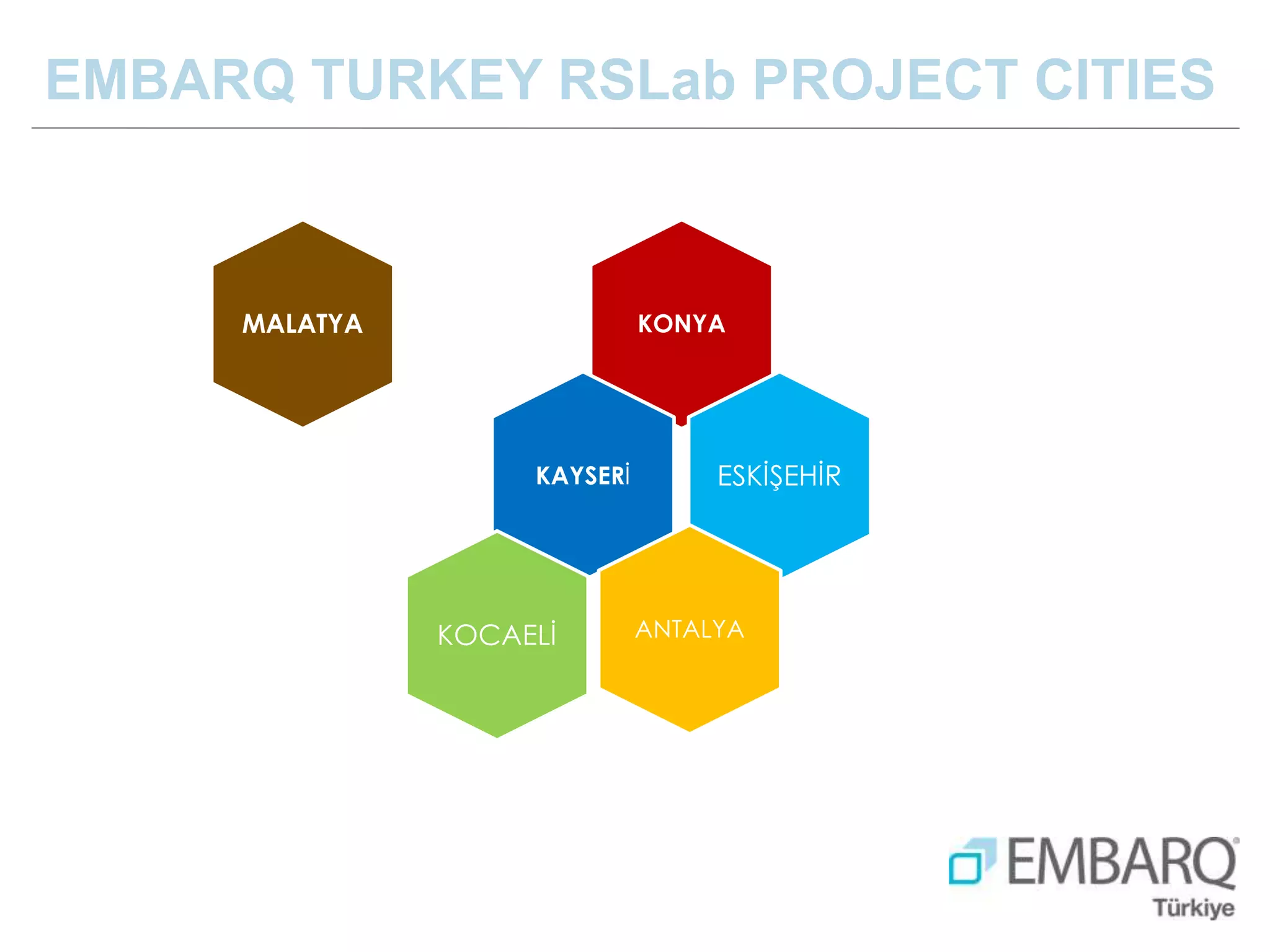

EMBARQ TURKEY RSLab PROJECT CITIES
KONYAMALATYA
KAYSERİ ESKİŞEHİR
ANTALYAKOCAELİ

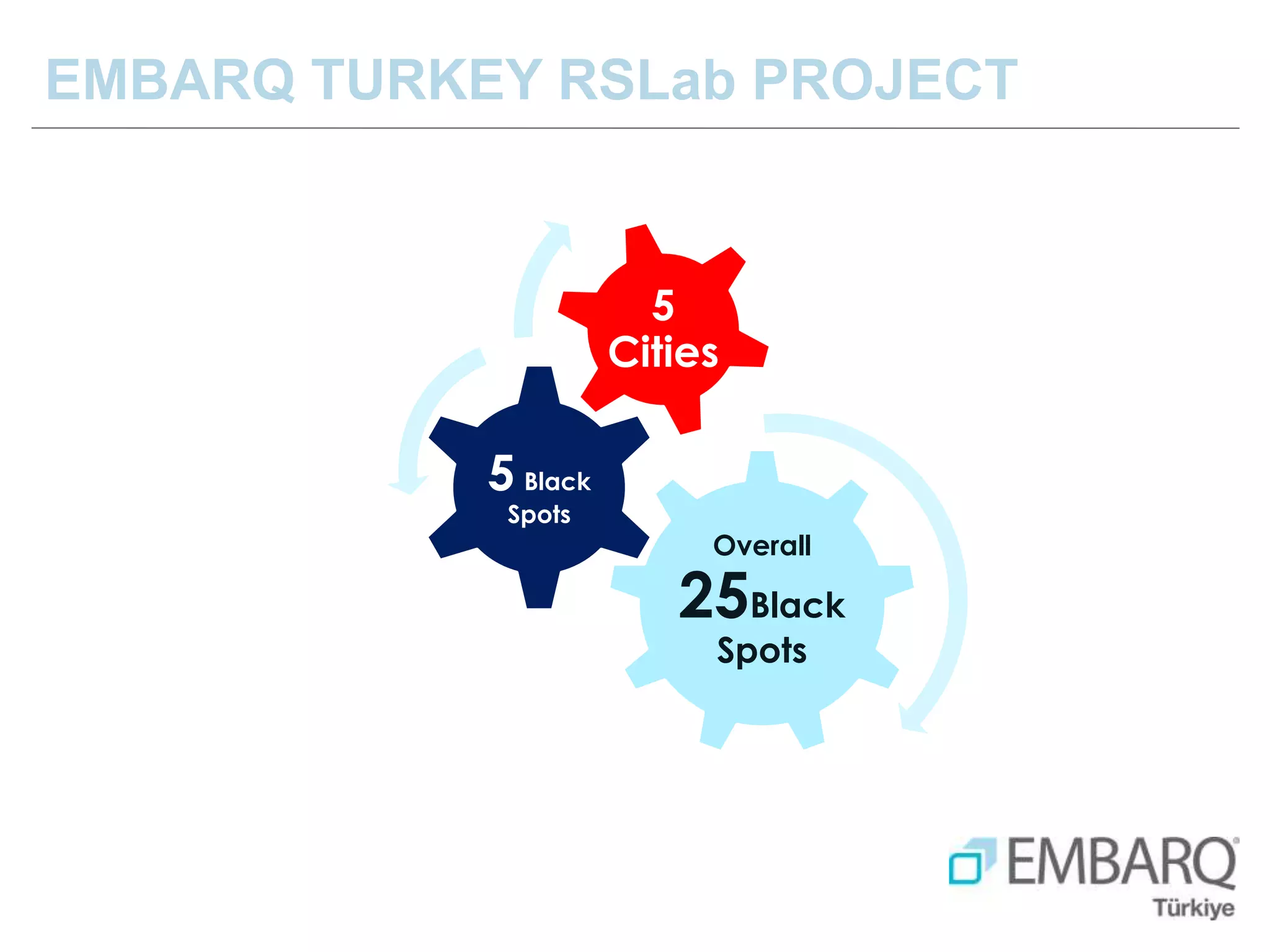

EMBARQ TURKEY RSLab PROJECT
Overall
25Black
Spots
5 Black
Spots
5
Cities
EMBARQ TÜRKİYE RSLAB PROJECTS
5
Cities
5
Customized
Reports

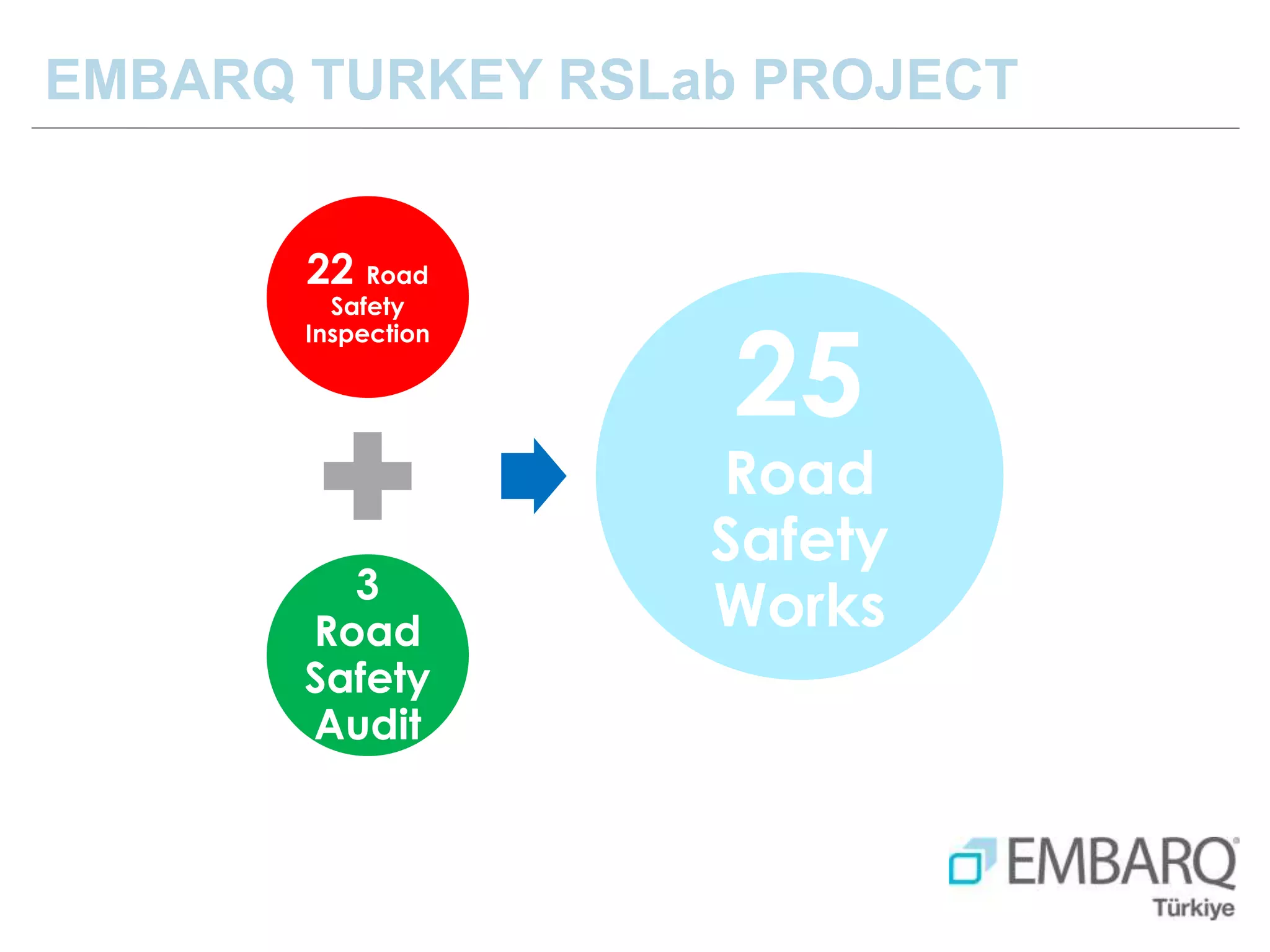

EMBARQ TURKEY RSLab PROJECT
22 Road
Safety
Inspection
3
Road
Safety
Audit
25
Road
Safety
Works
EMBARQ TURKEY RSLAB PROJECT
UNDER LİGHT OF ROAD SAFETY ENGİNEERİNG RECOMMENDATIONS
25Road
Safety Studies
LIVES SAVED
70
TO...

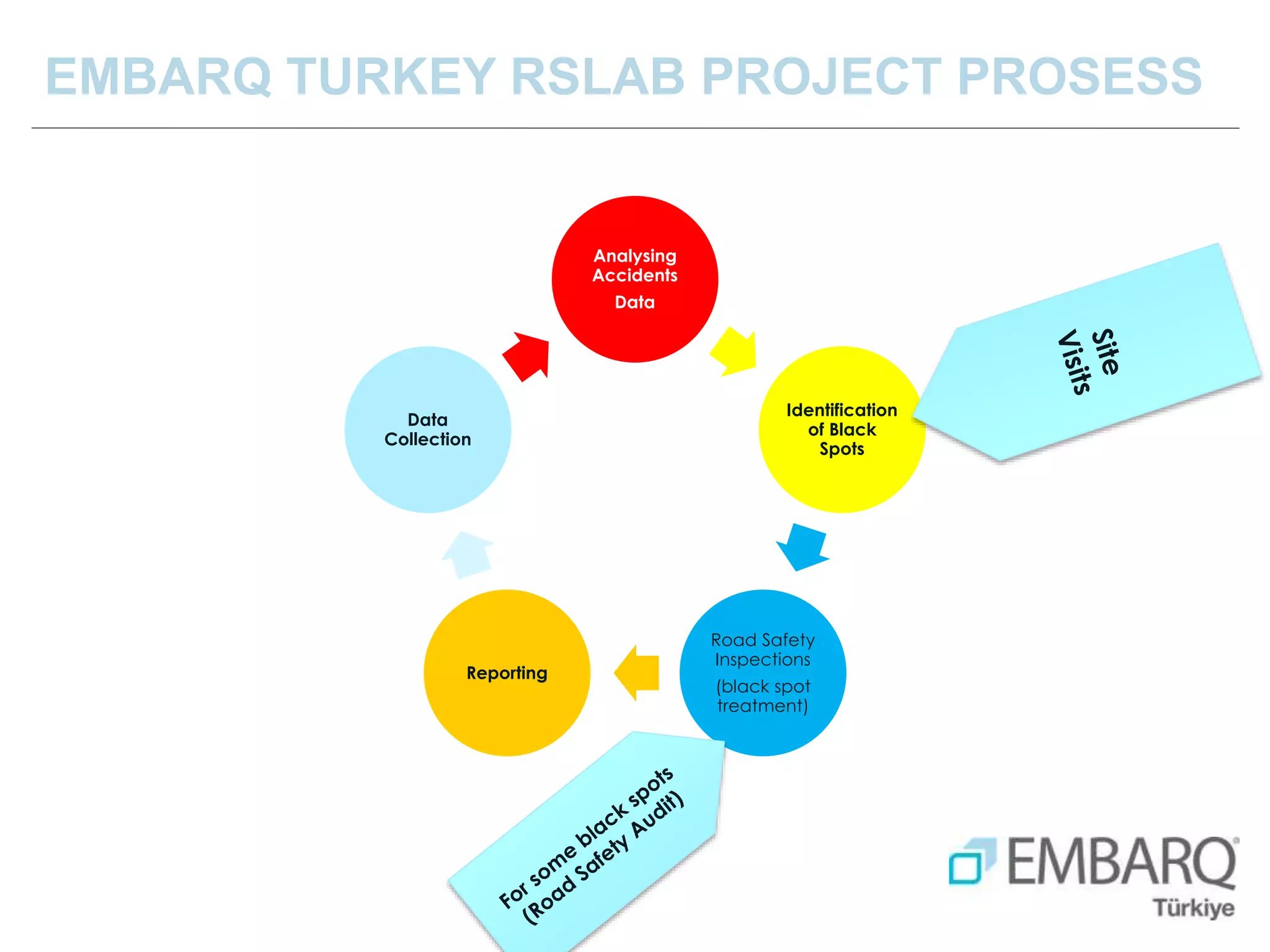

EMBARQ TURKEY RSLAB PROJECT PROSESS
Analysing
Accidents
Data
Identification
of Black
Spots
Road Safety
Inspections
(black ...
DATA COLLECTION
Data
Collection
Responsability
of police
collecting of
accident data
Traffic
accidents
server where
data i...

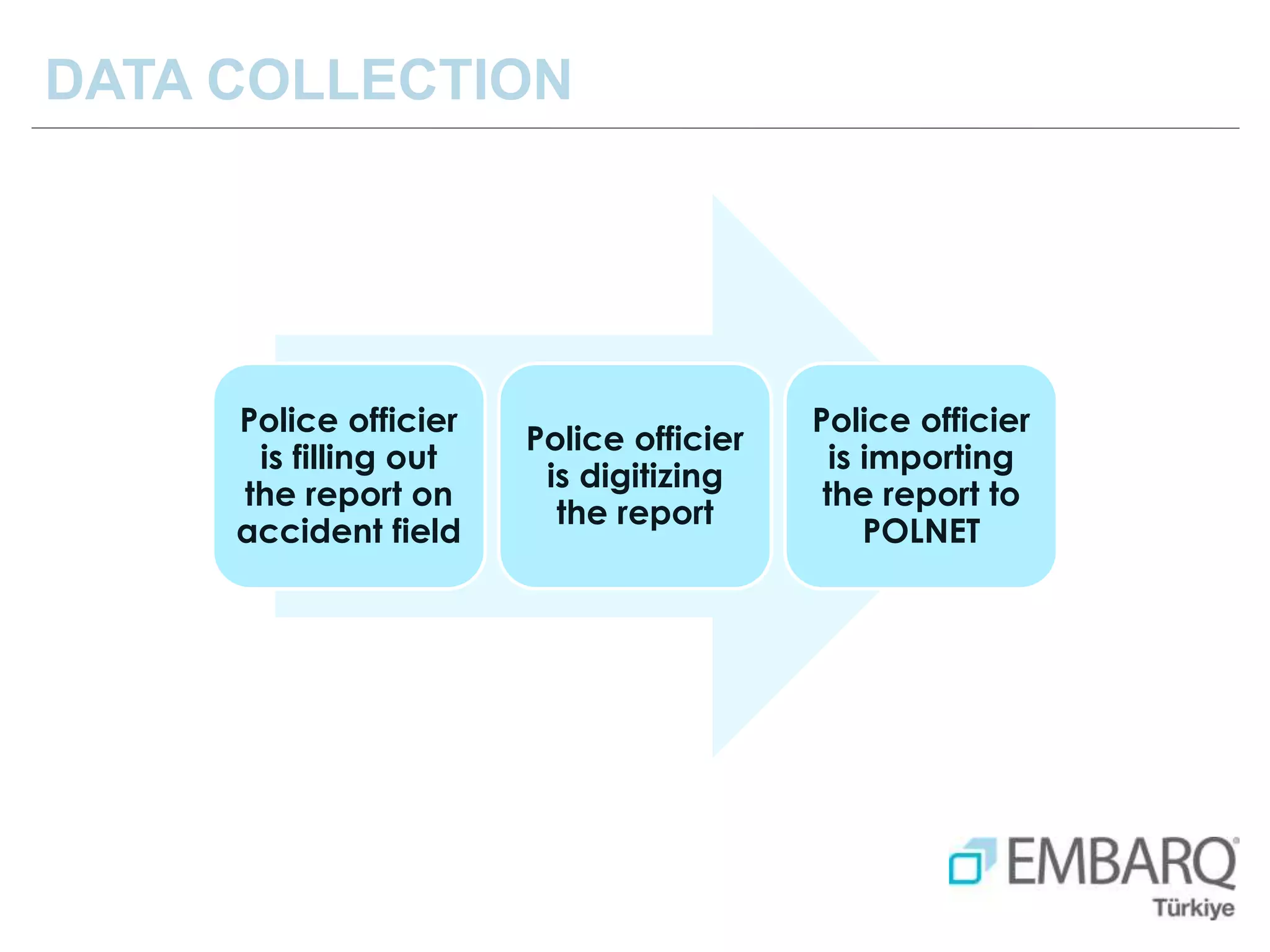

DATA COLLECTION
Police officier
is filling out
the report on
accident field
Police officier
is digitizing
the report
Polic...

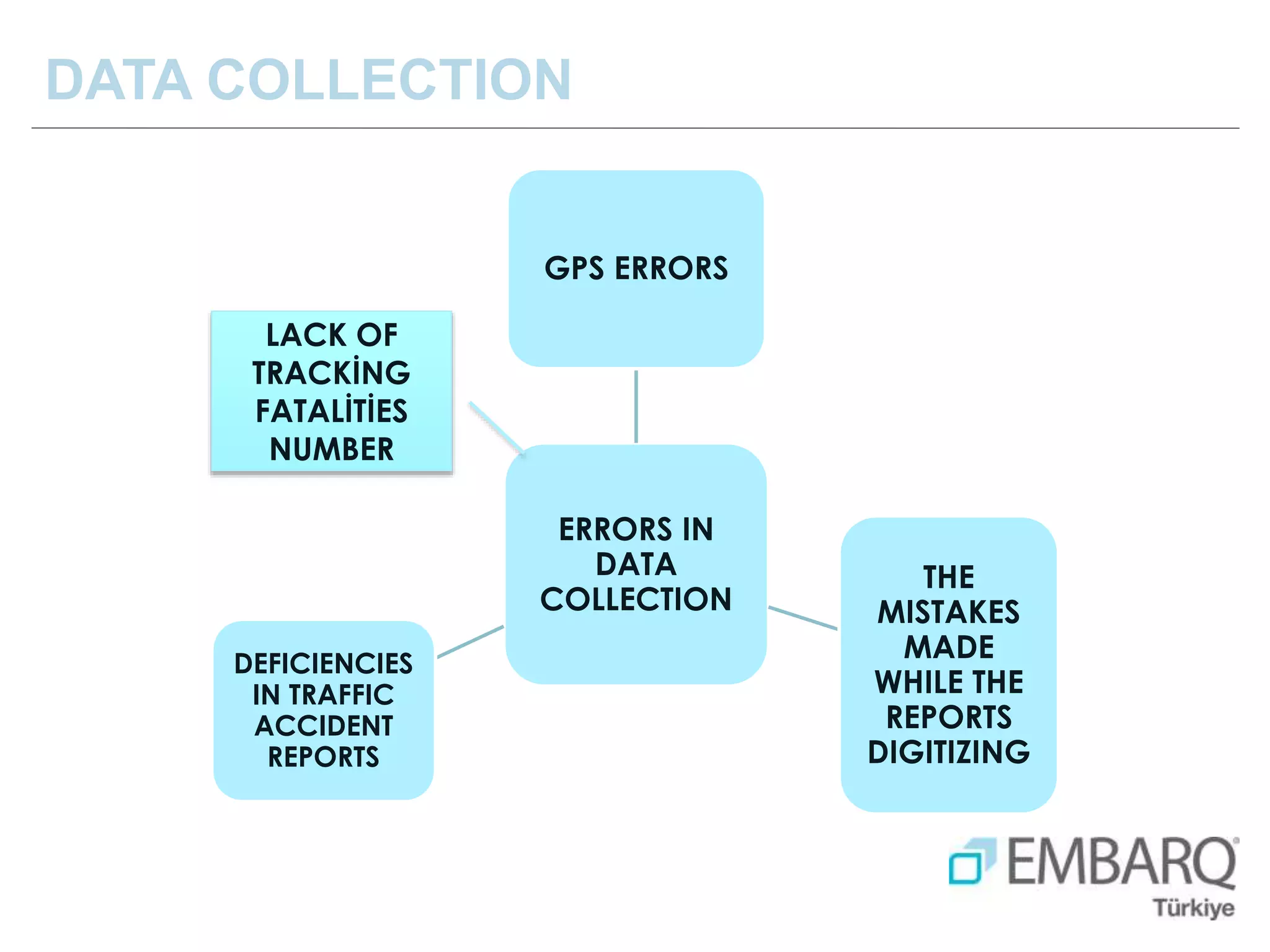

DATA COLLECTION
ERRORS IN
DATA
COLLECTION
GPS ERRORS
THE
MISTAKES
MADE
WHILE THE
REPORTS
DIGITIZING
DEFICIENCIES
IN TRAFFI...

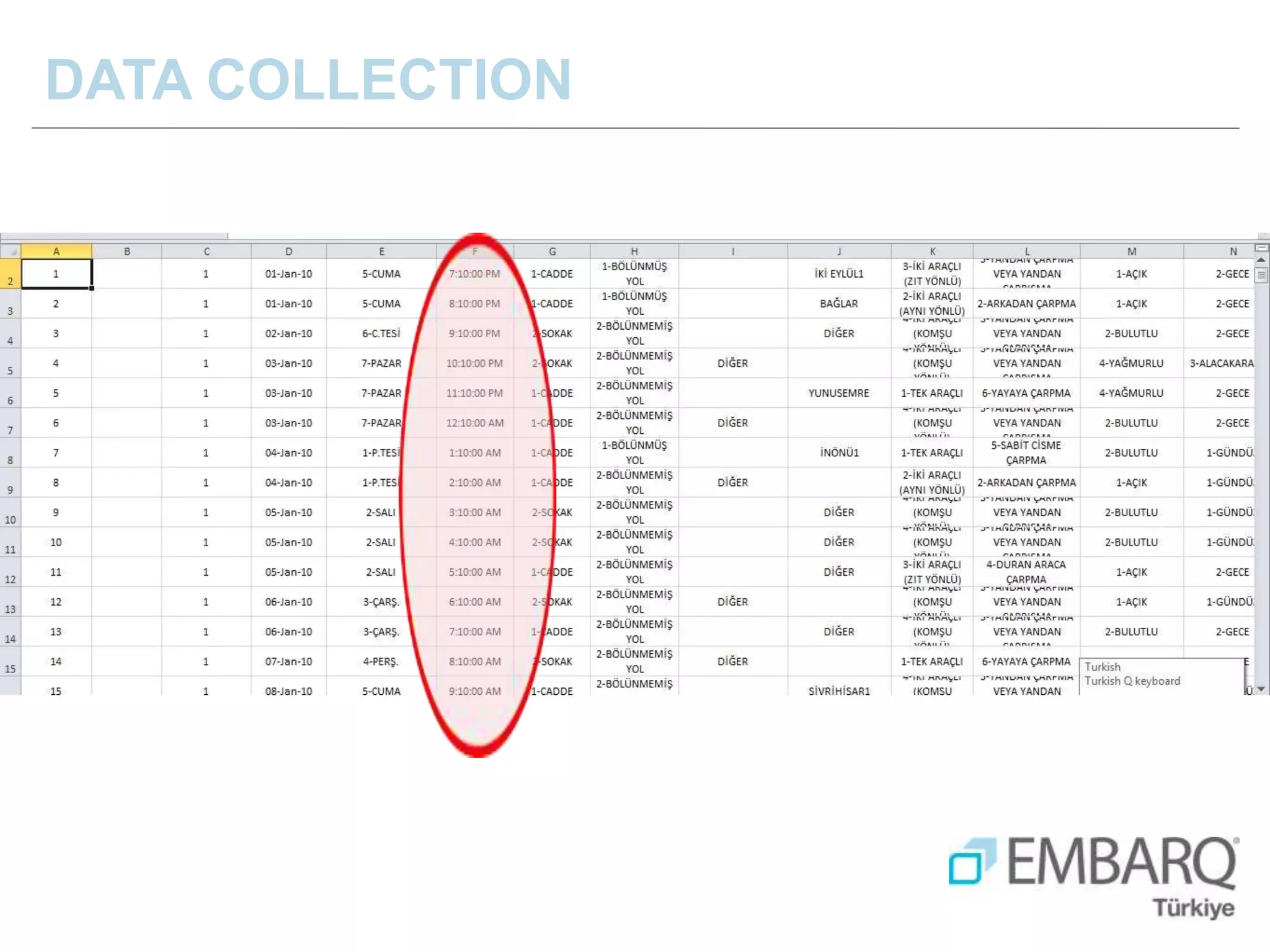

DATA COLLECTION
DATA COLLECTION

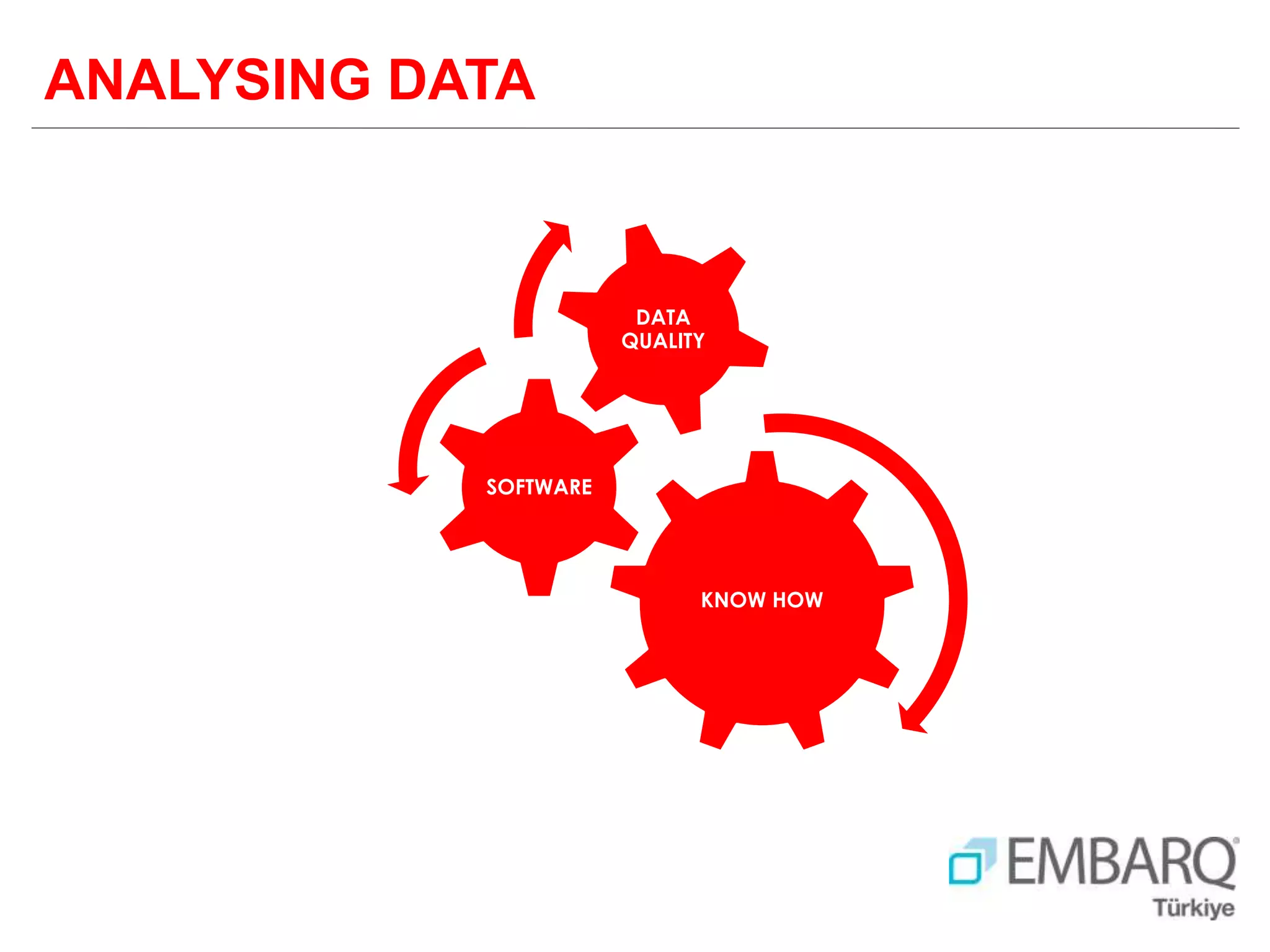

ANALYSING DATA
KNOW HOW
SOFTWARE
DATA
QUALITY

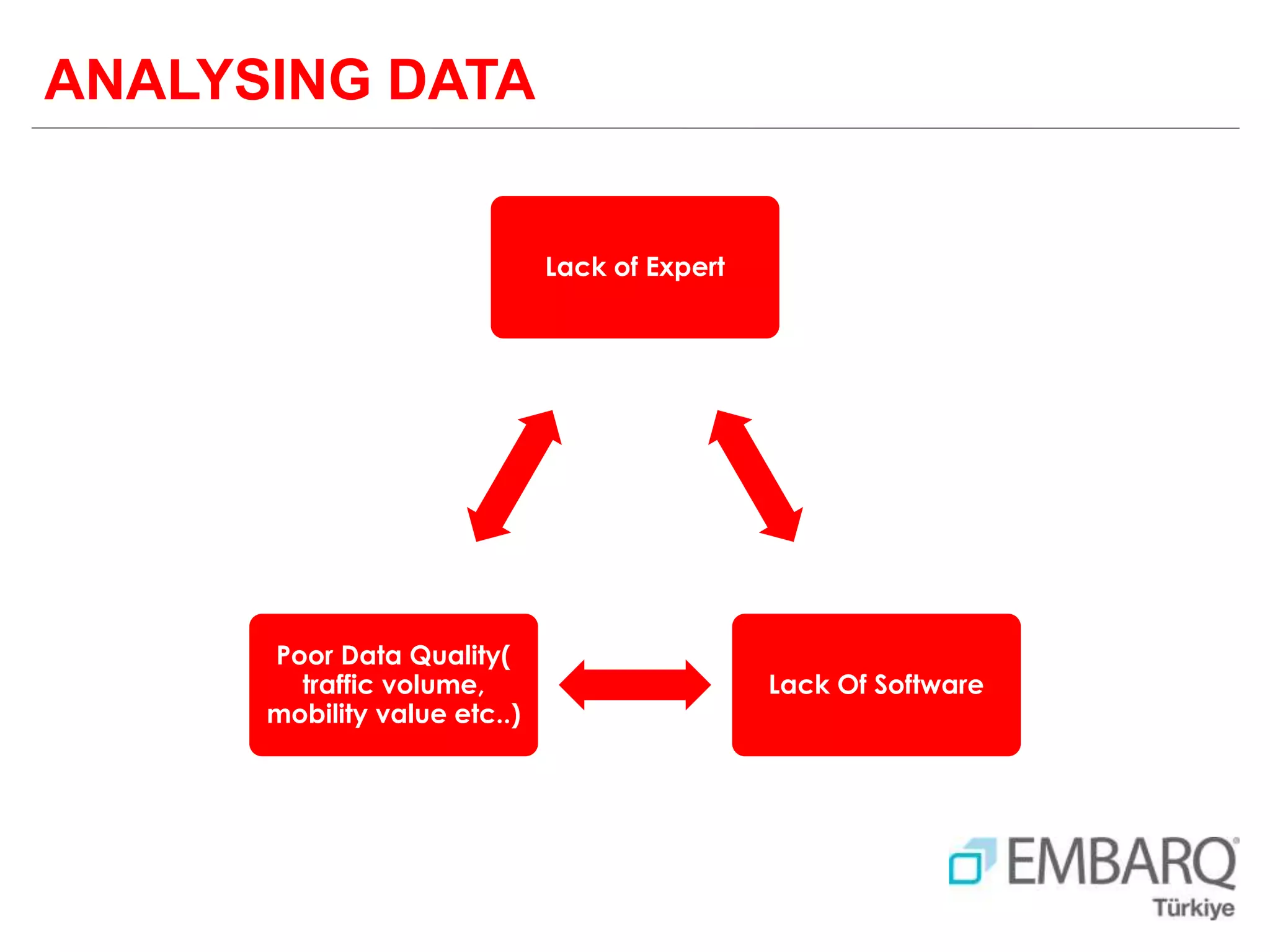

ANALYSING DATA
Lack of Expert
Lack Of Software
Poor Data Quality(
traffic volume,
mobility value etc..)

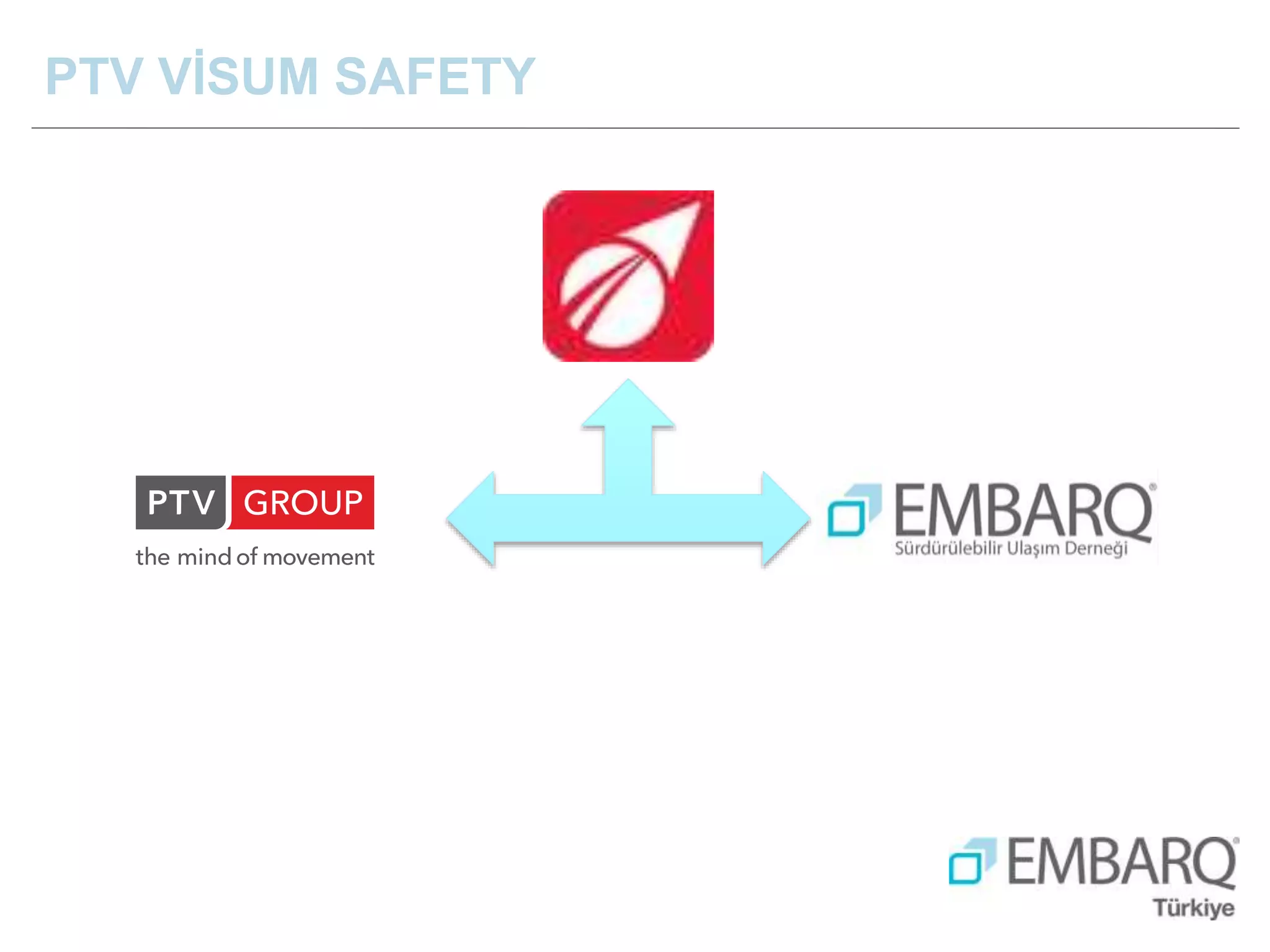

PTV VİSUM SAFETY

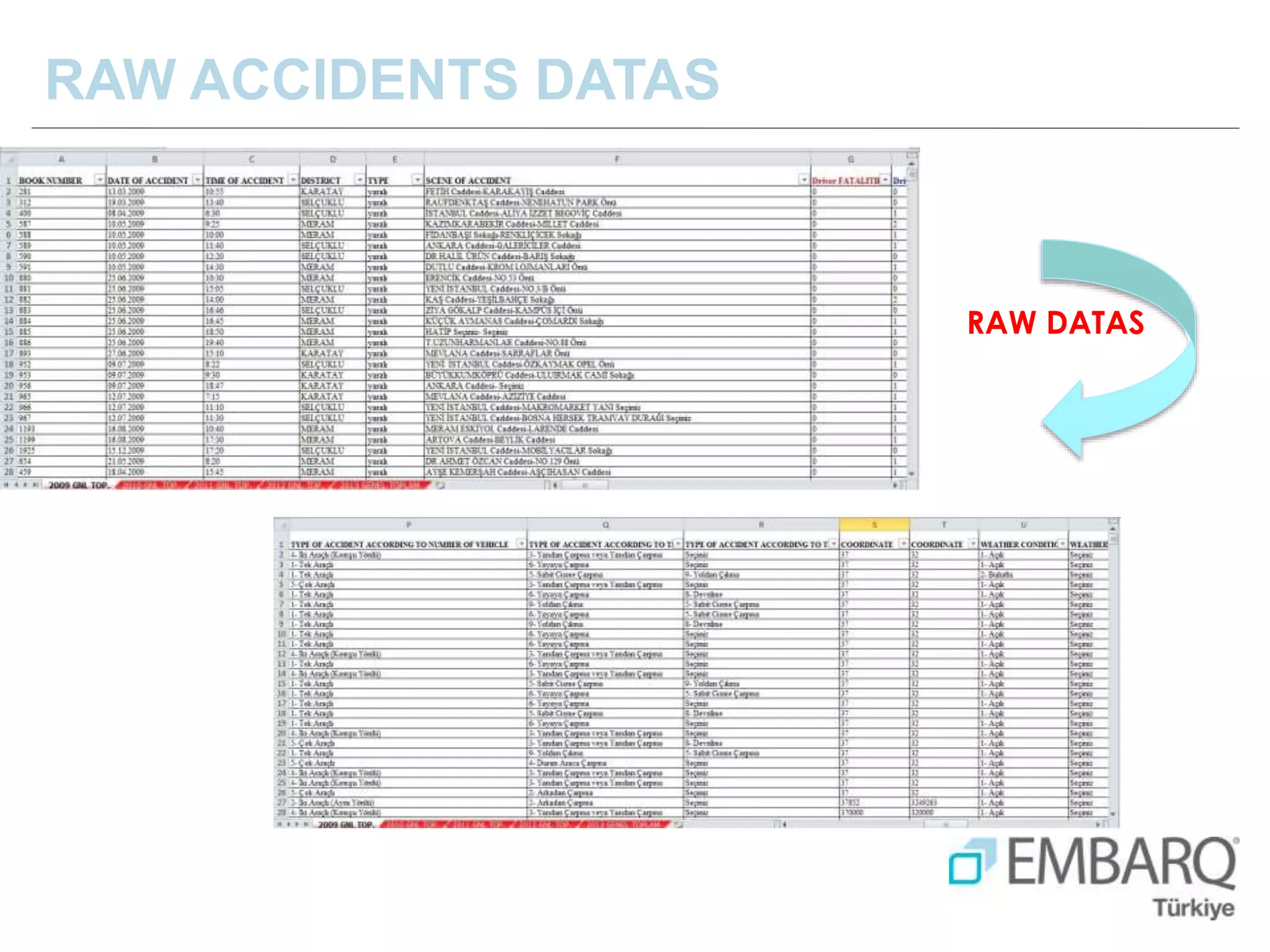

RAW ACCIDENTS DATAS
RAW DATAS
BA
CD
A Arrangement of Raw Datas
B Importing the datas to Visum Safety
C Creating the Heat Maps
D Identification of Black ...
HEAT MAPS

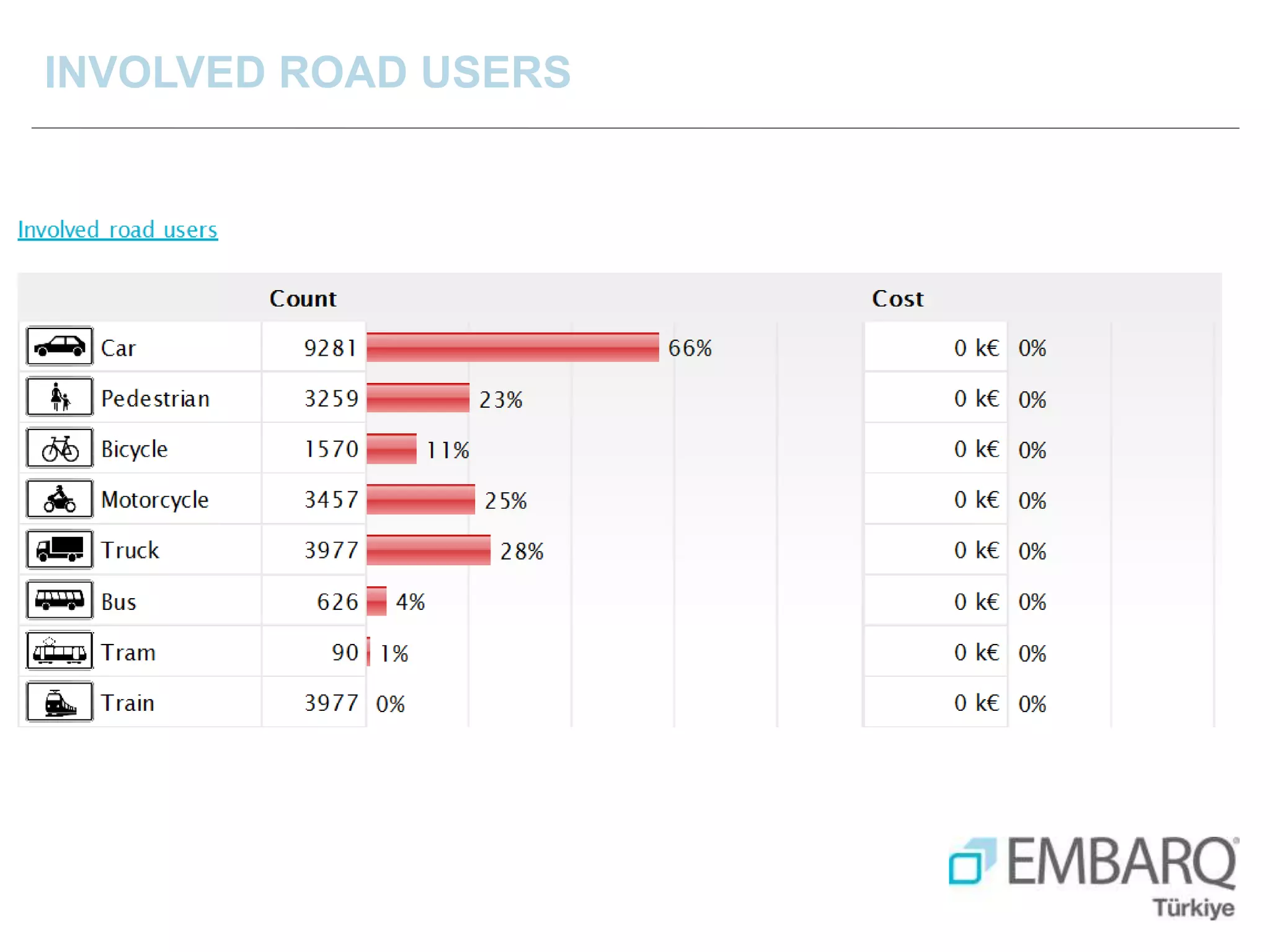

INVOLVED ROAD USERS
ACCIDENT DATA DISTRIBUTION
Hourly/ Daily/ Monthly

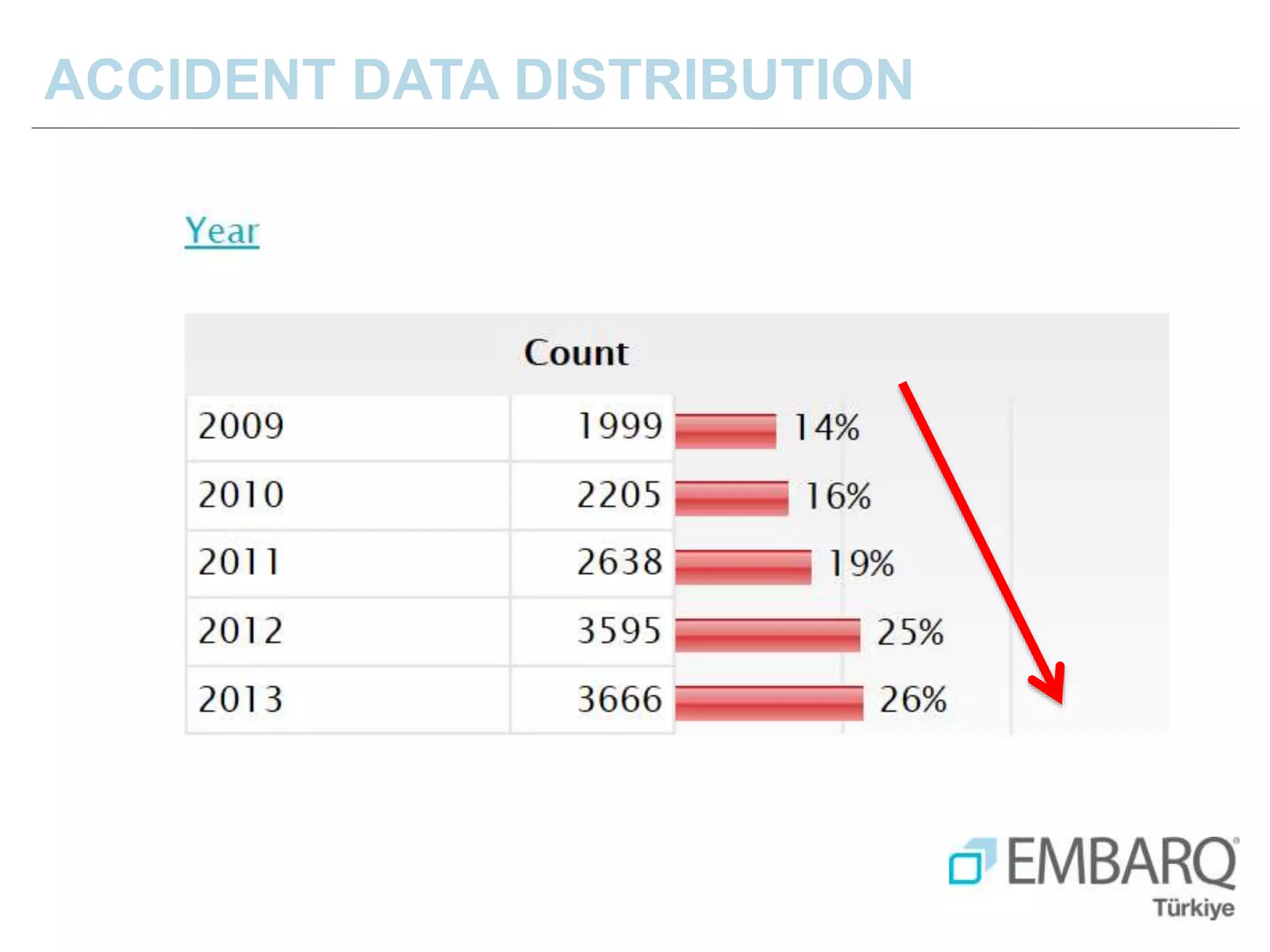

ACCIDENT DATA DISTRIBUTION
HEAT MAPS ( ONLY PEDESTRIAN ACCIDENTS)

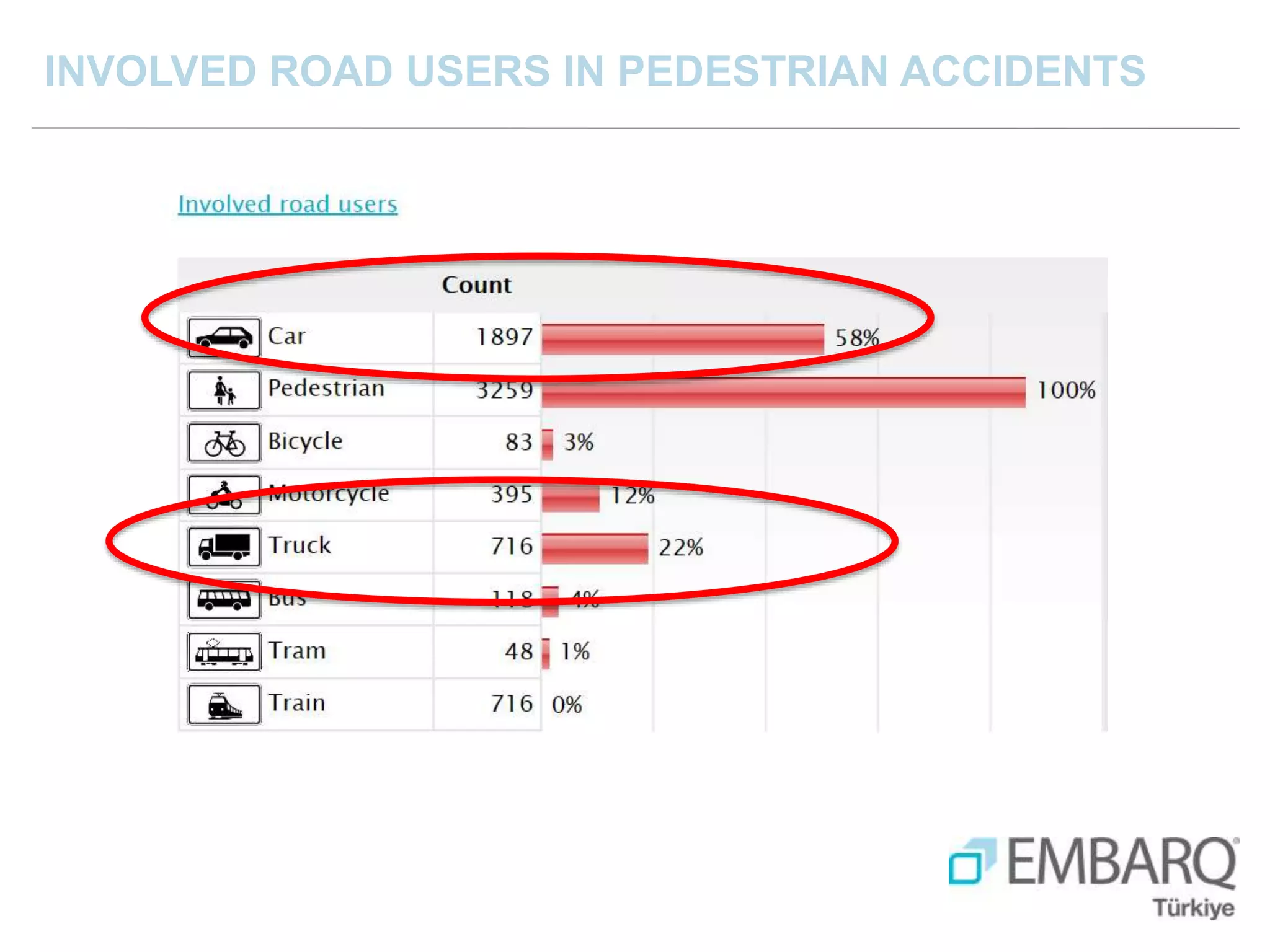

INVOLVED ROAD USERS IN PEDESTRIAN ACCIDENTS
DATA DISTRIBUTION
Hourly / Daily / Monthly
DATA DISTRIBUTION

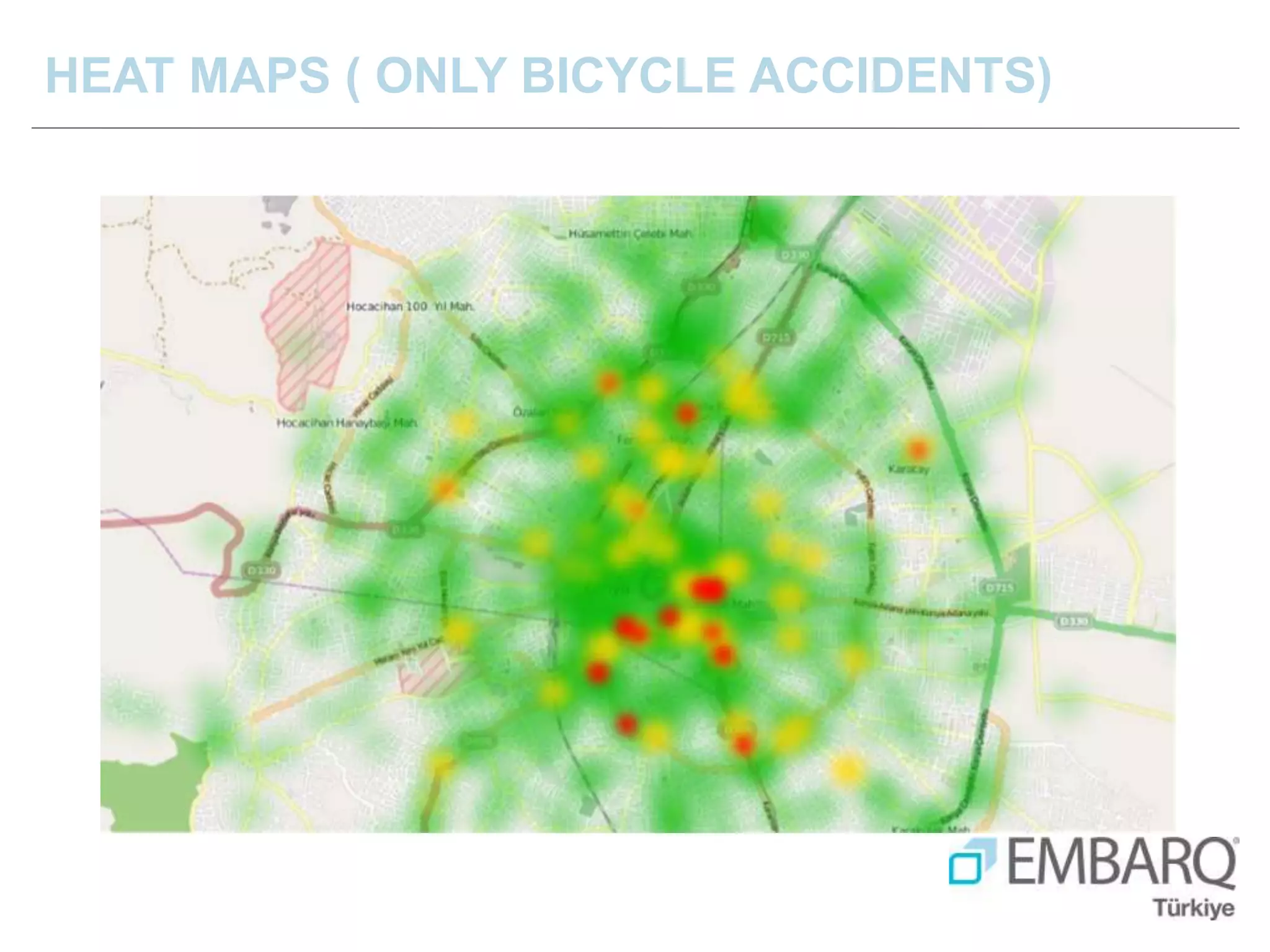

HEAT MAPS ( ONLY BICYCLE ACCIDENTS)

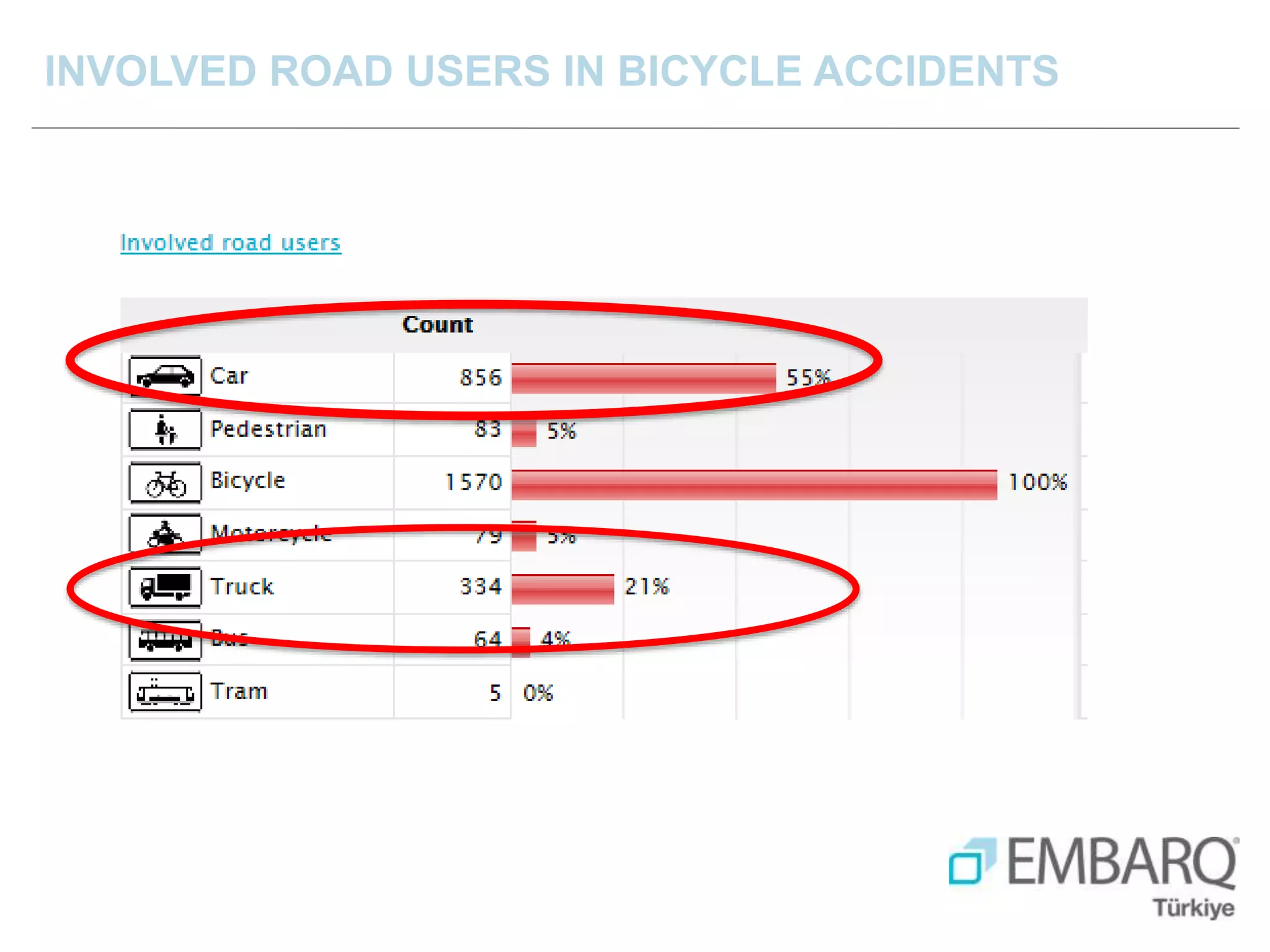

INVOLVED ROAD USERS IN BICYCLE ACCIDENTS
DATA DISTRIBUTION

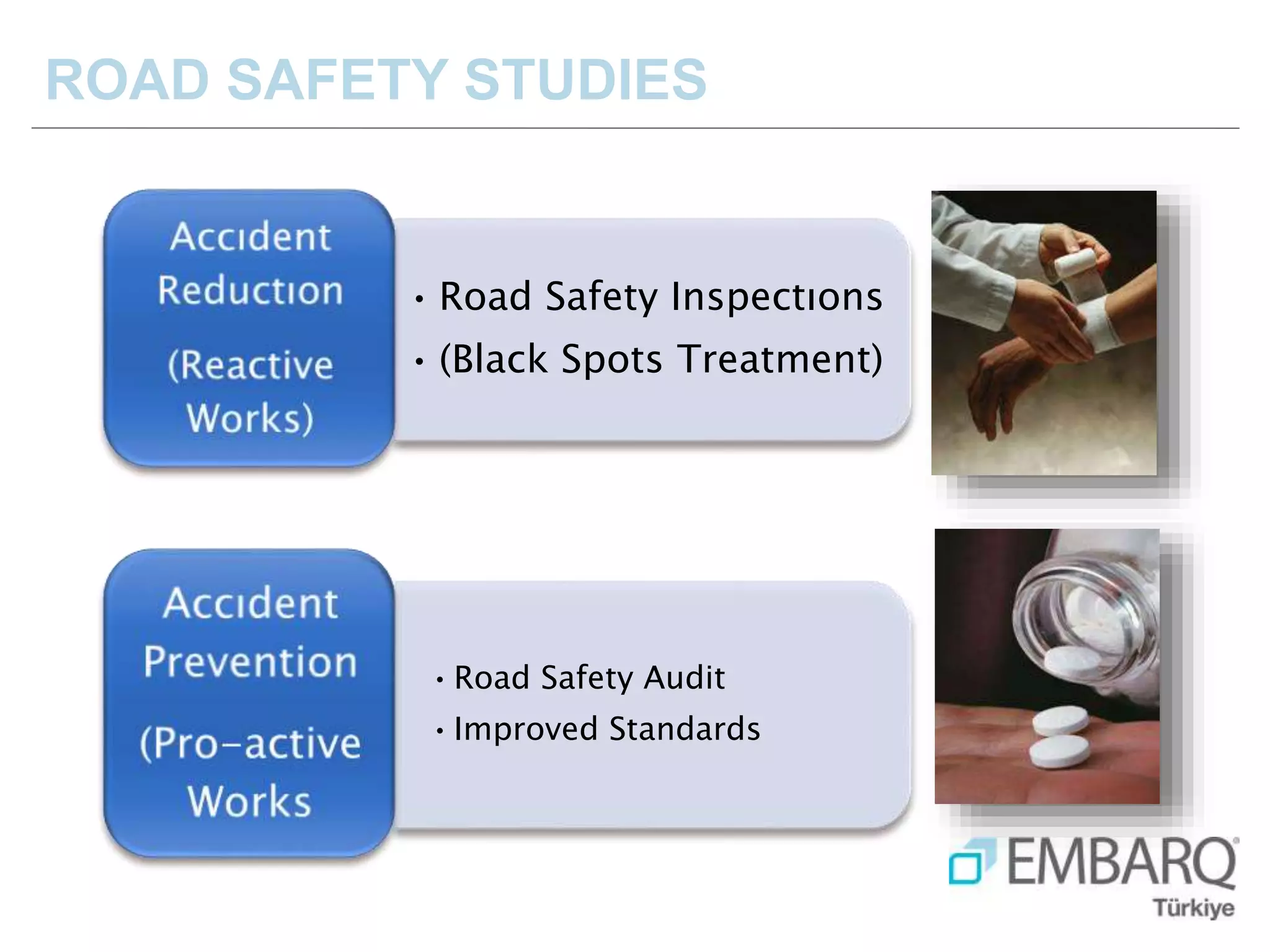

ROAD SAFETY STUDIES
•Road Safety Audit
•Improved Standards
• Road Safety Inspectıons
• (Black Spots Treatment)

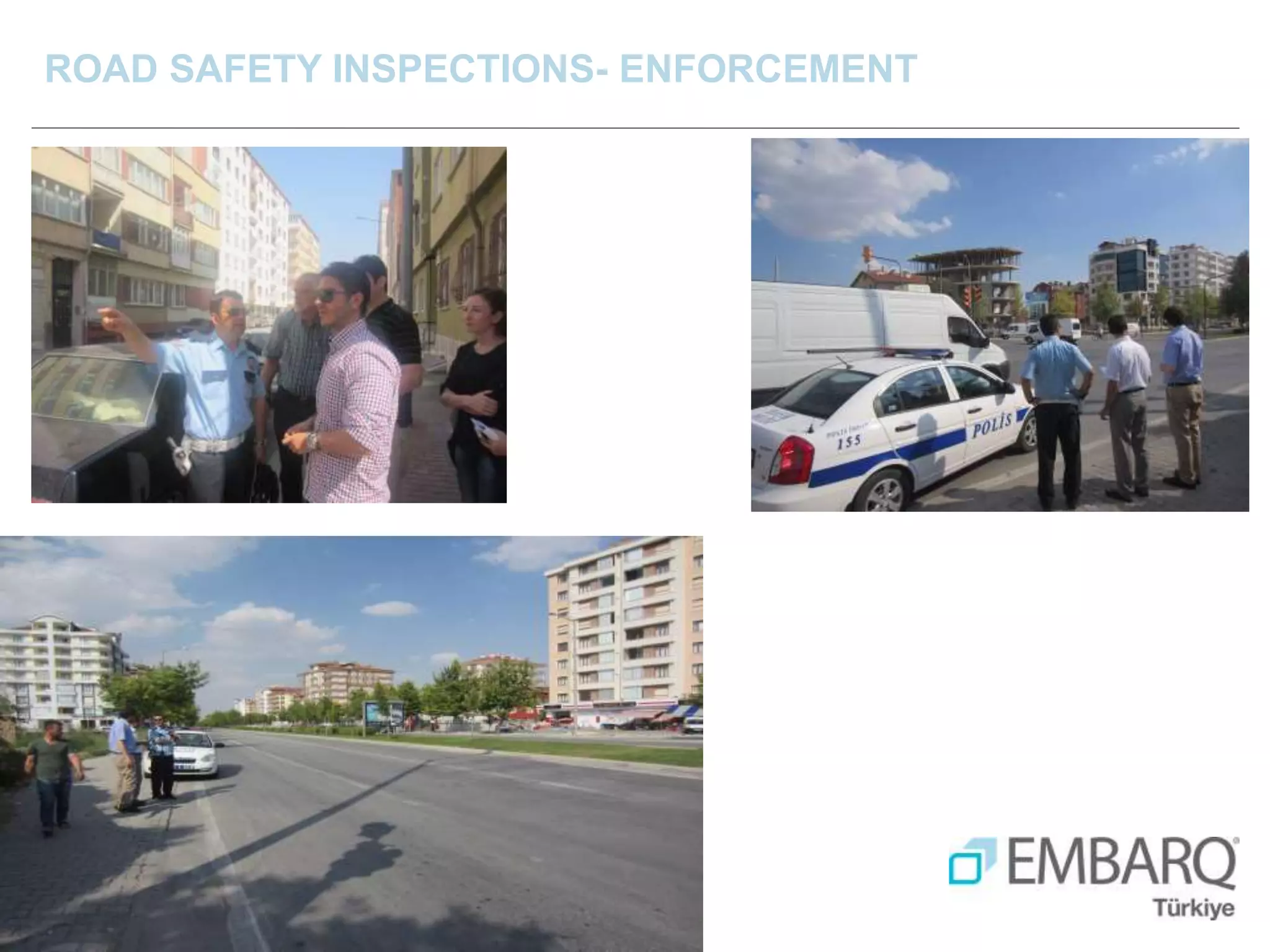

ROAD SAFETY INSPECTIONS- ENFORCEMENT
ROAD SAFETY INSPECTIONS – ROAD LIGHTING CONDITIONS

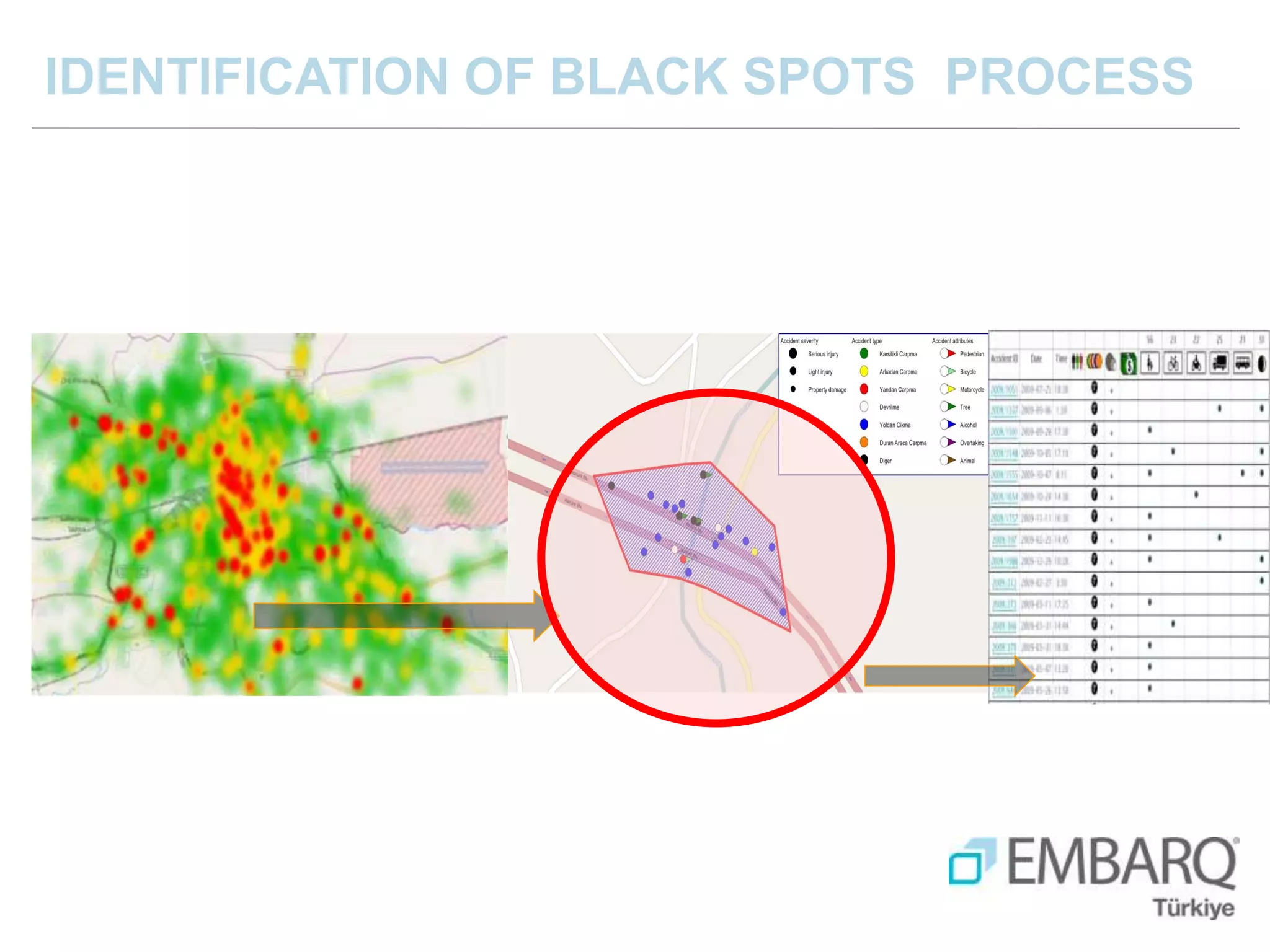

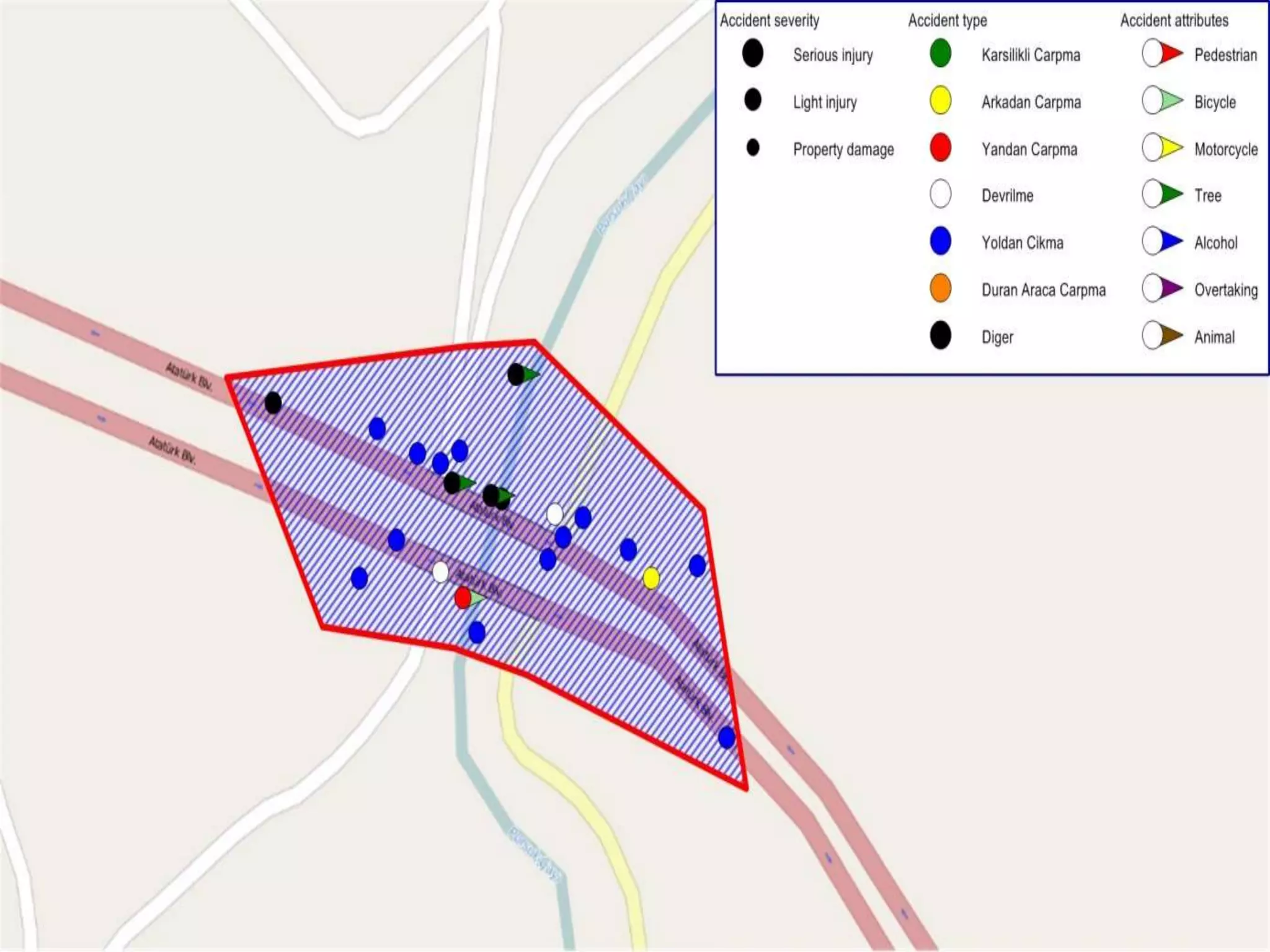

IDENTIFICATION OF BLACK SPOTS PROCESS
PROBLEM

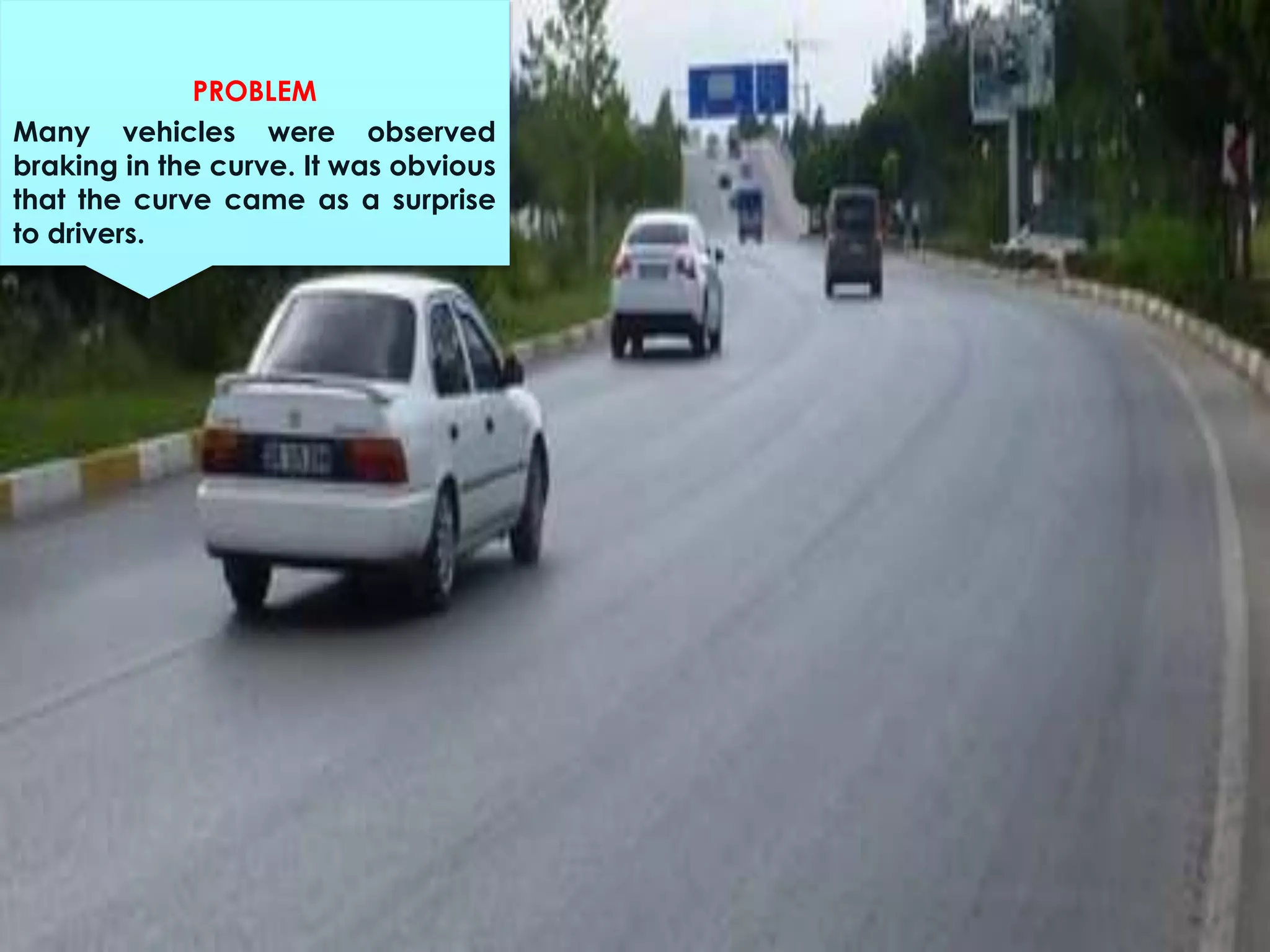

Many vehicles were observed
braking in the curve. It was obvious
that the curve came as a surprise
to drivers.
PROBLEM
Most of the accidents occurred
right after the curve where the kerb
has multiple damage

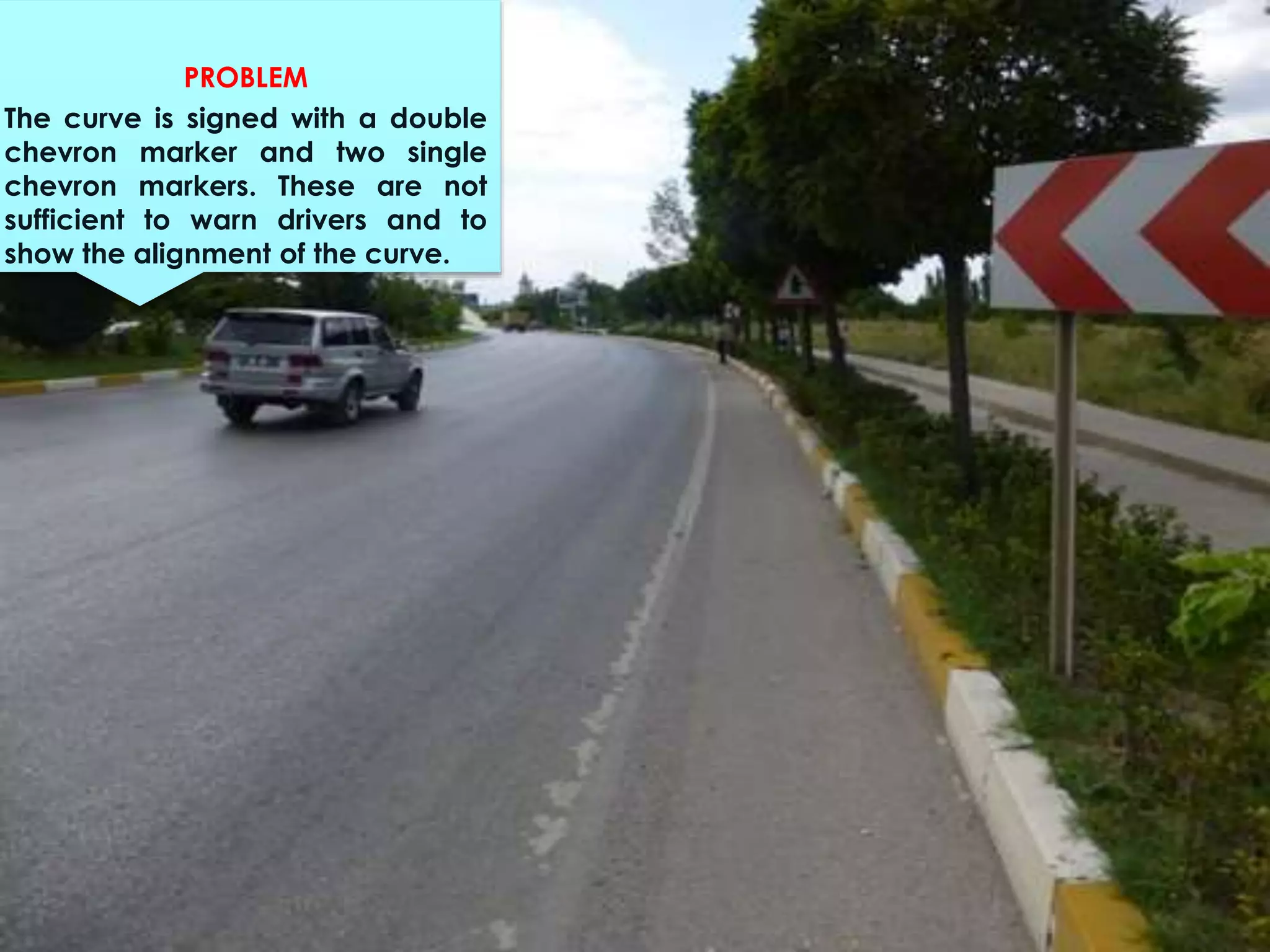

PROBLEM
The curve is signed with a double
chevron marker and two single
chevron markers. These are not
sufficient to warn ...

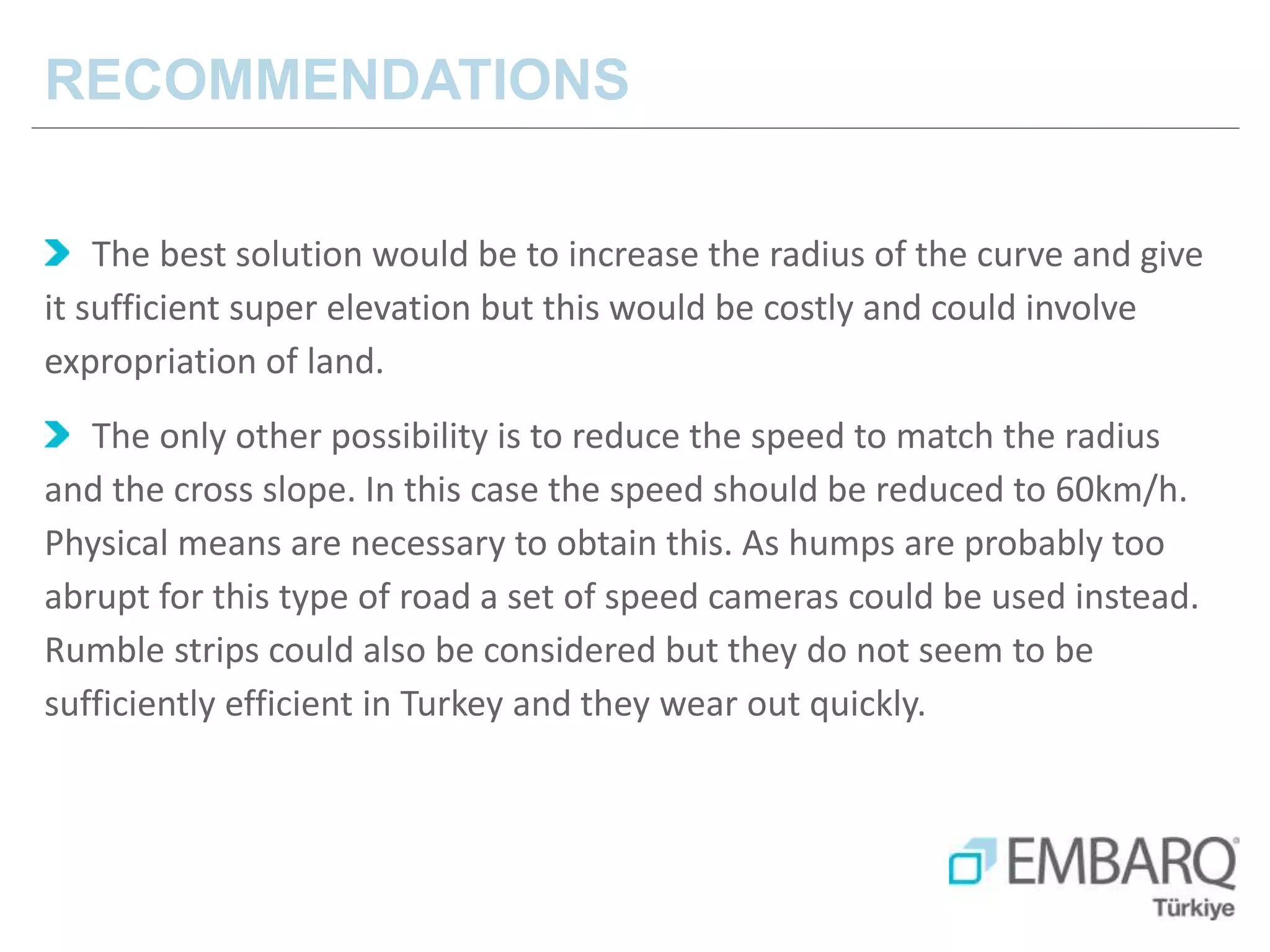

The best solution would be to increase the radius of the curve and give
it sufficient super elevation but this would be co...
Pre-warning signs of the speed limit and the curve should be
installed. They should be highly reflective and preferably ha...
It is assumed that 16 of the accidents will be affected by
changing the speed in the curve. We can expect an effect of
abo...

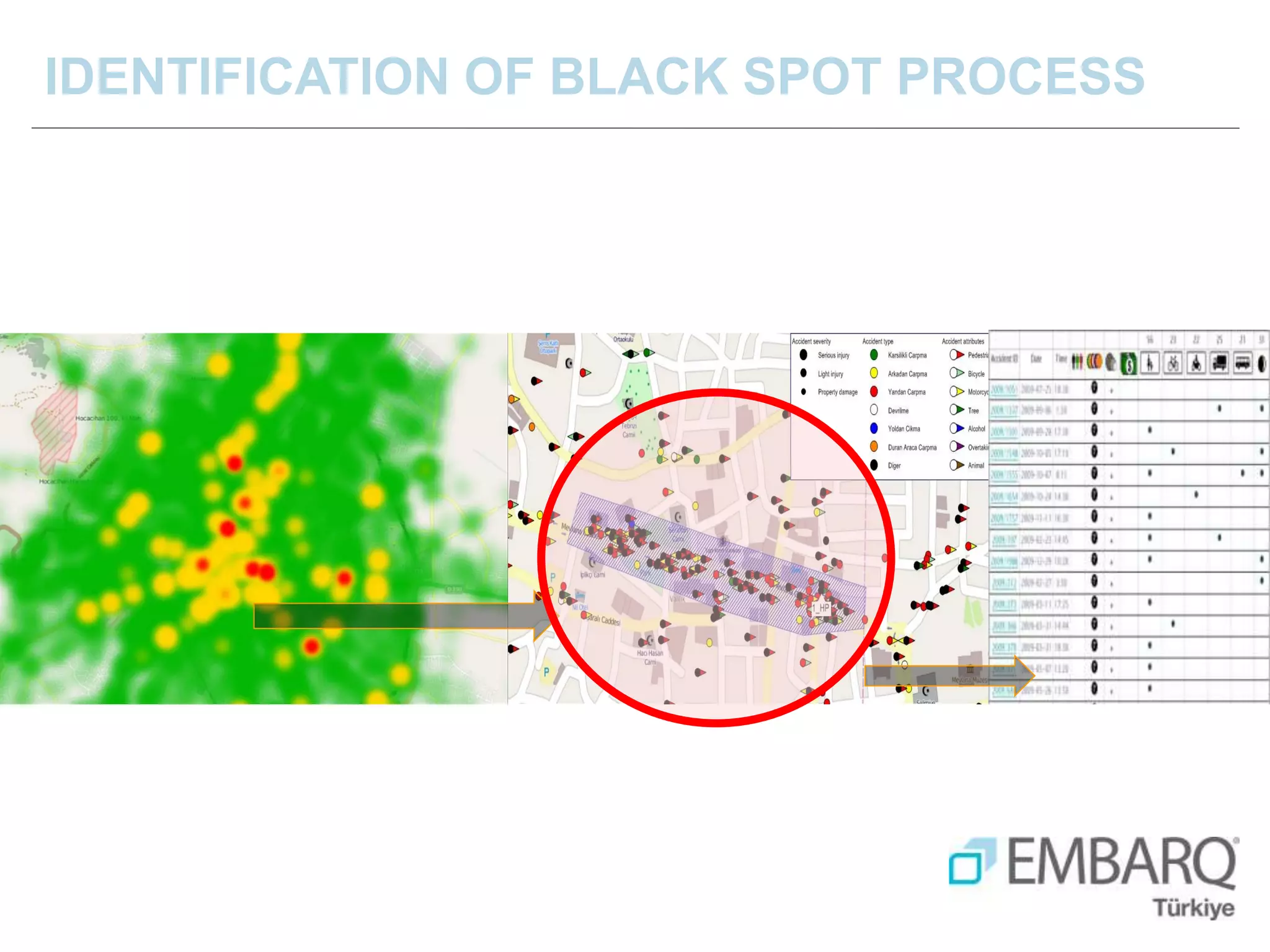

IDENTIFICATION OF BLACK SPOT PROCESS

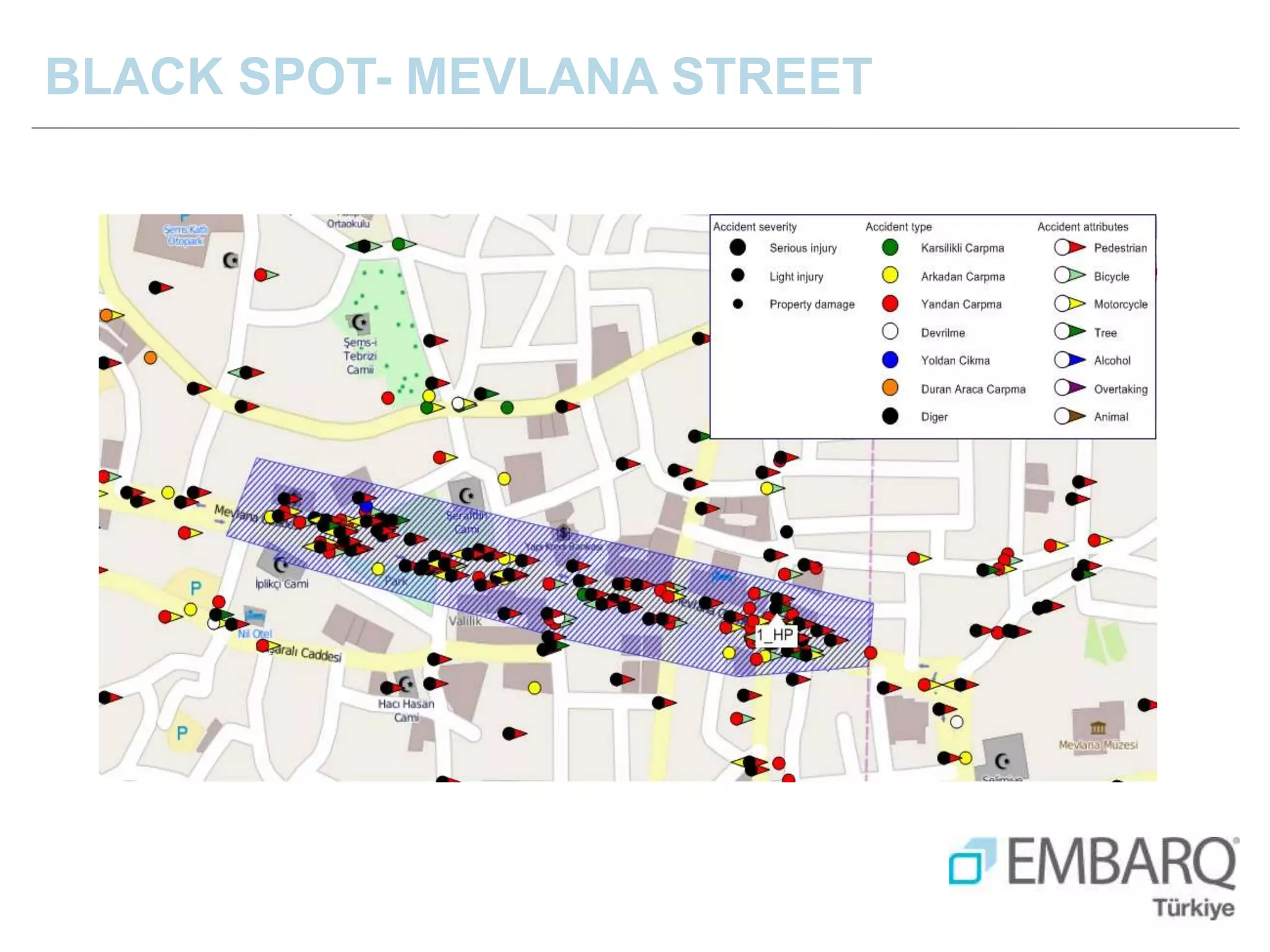

BLACK SPOT- MEVLANA STREET

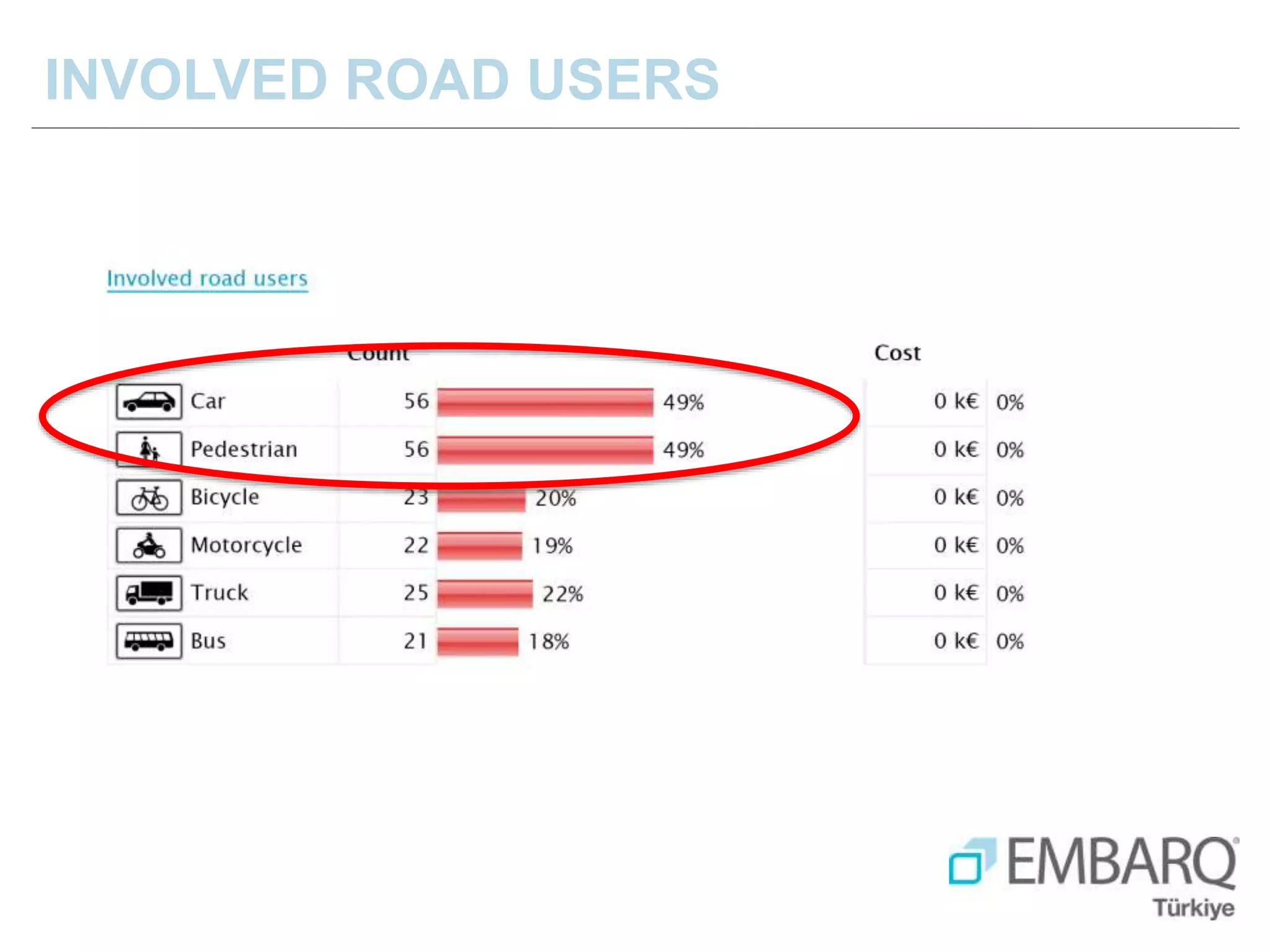

INVOLVED ROAD USERS

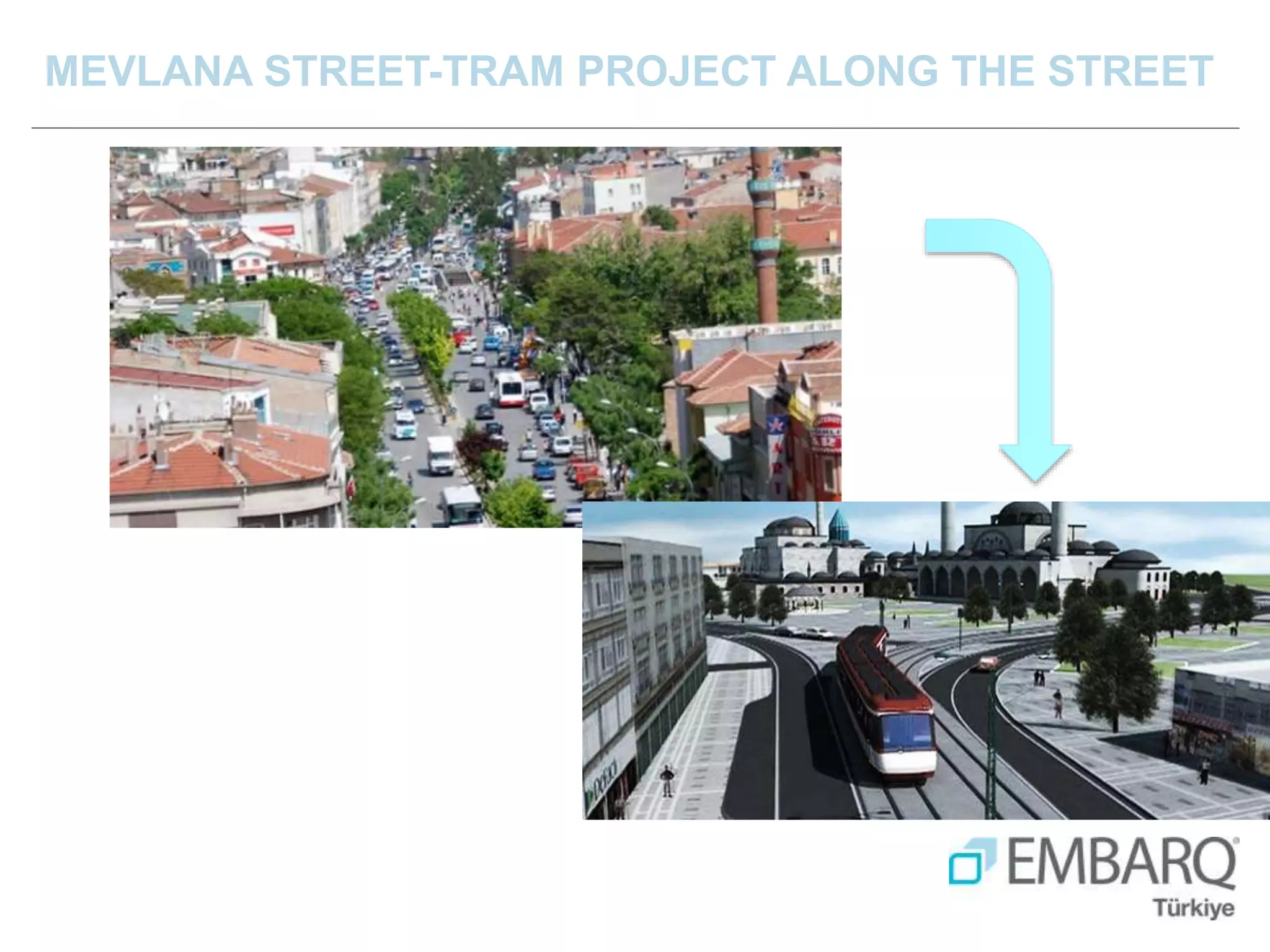

MEVLANA STREET-TRAM PROJECT ALONG THE STREET

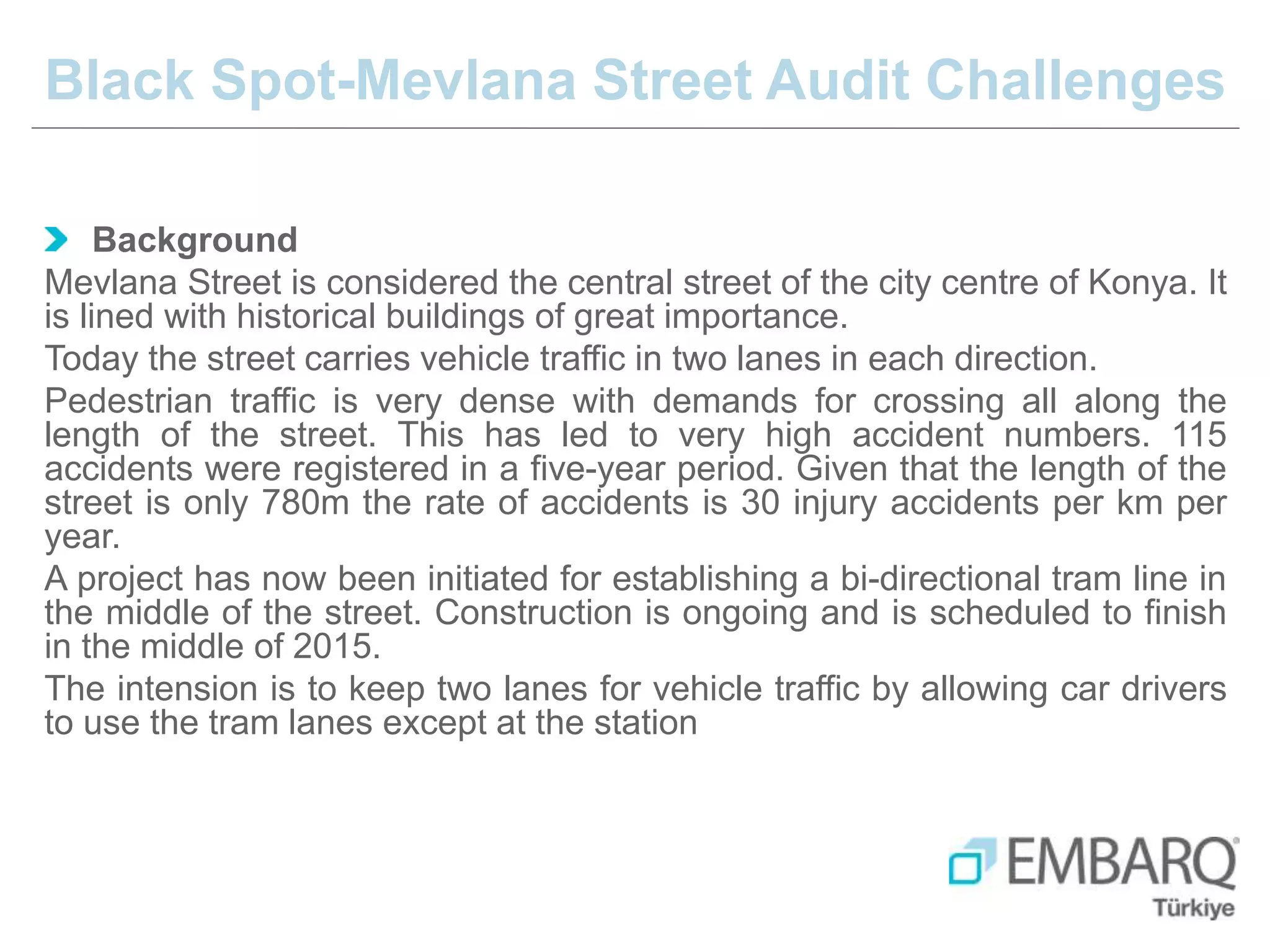

Background
Mevlana Street is considered the central street of the city centre of Konya. It
is lined with historical buildi...
Observation
In cities around the world the trend is to make city centres more liveable by
reducing car traffic and increas...

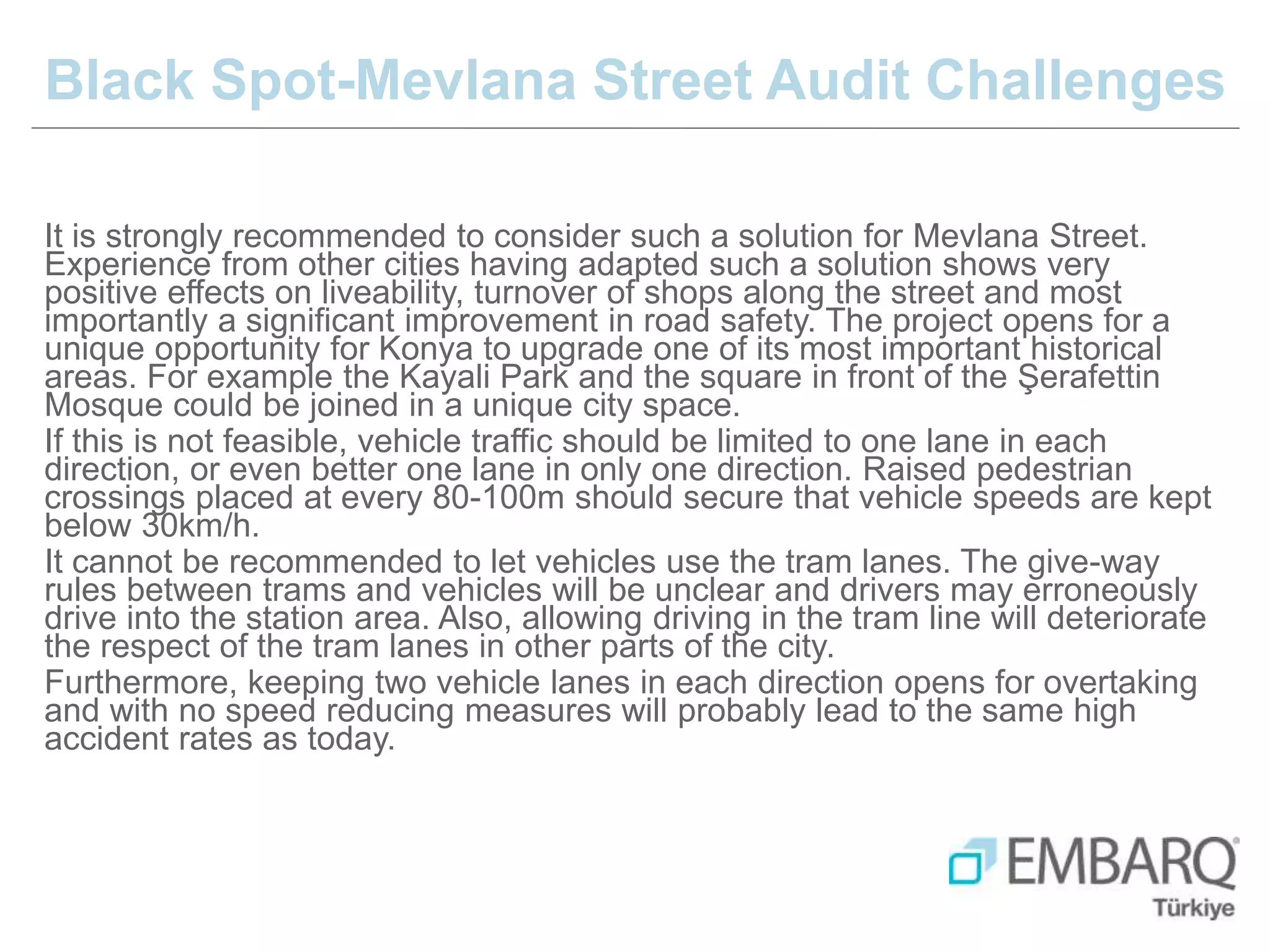

It is strongly recommended to consider such a solution for Mevlana Street.
Experience from other cities having adapted suc...

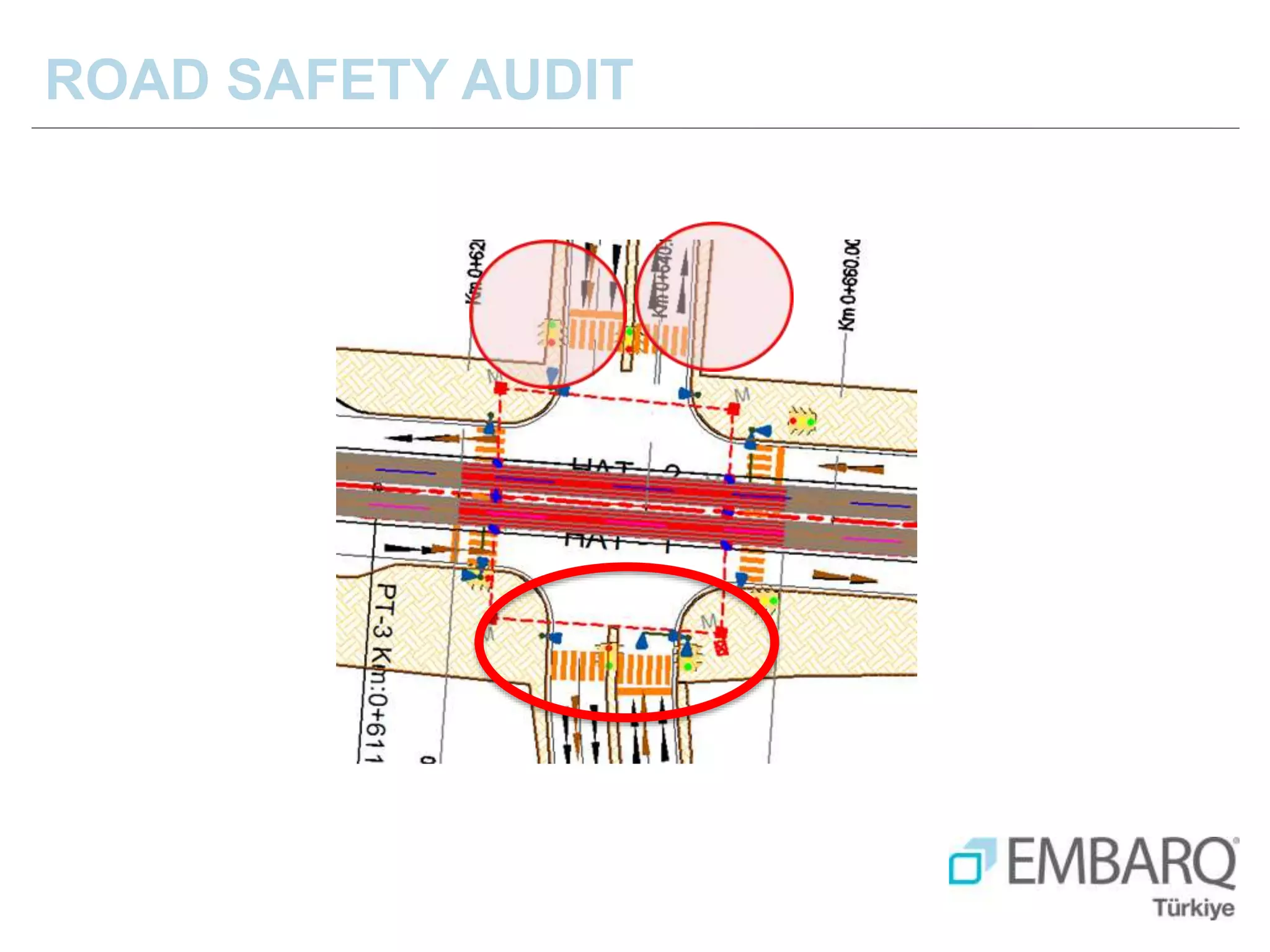

ROAD SAFETY AUDIT

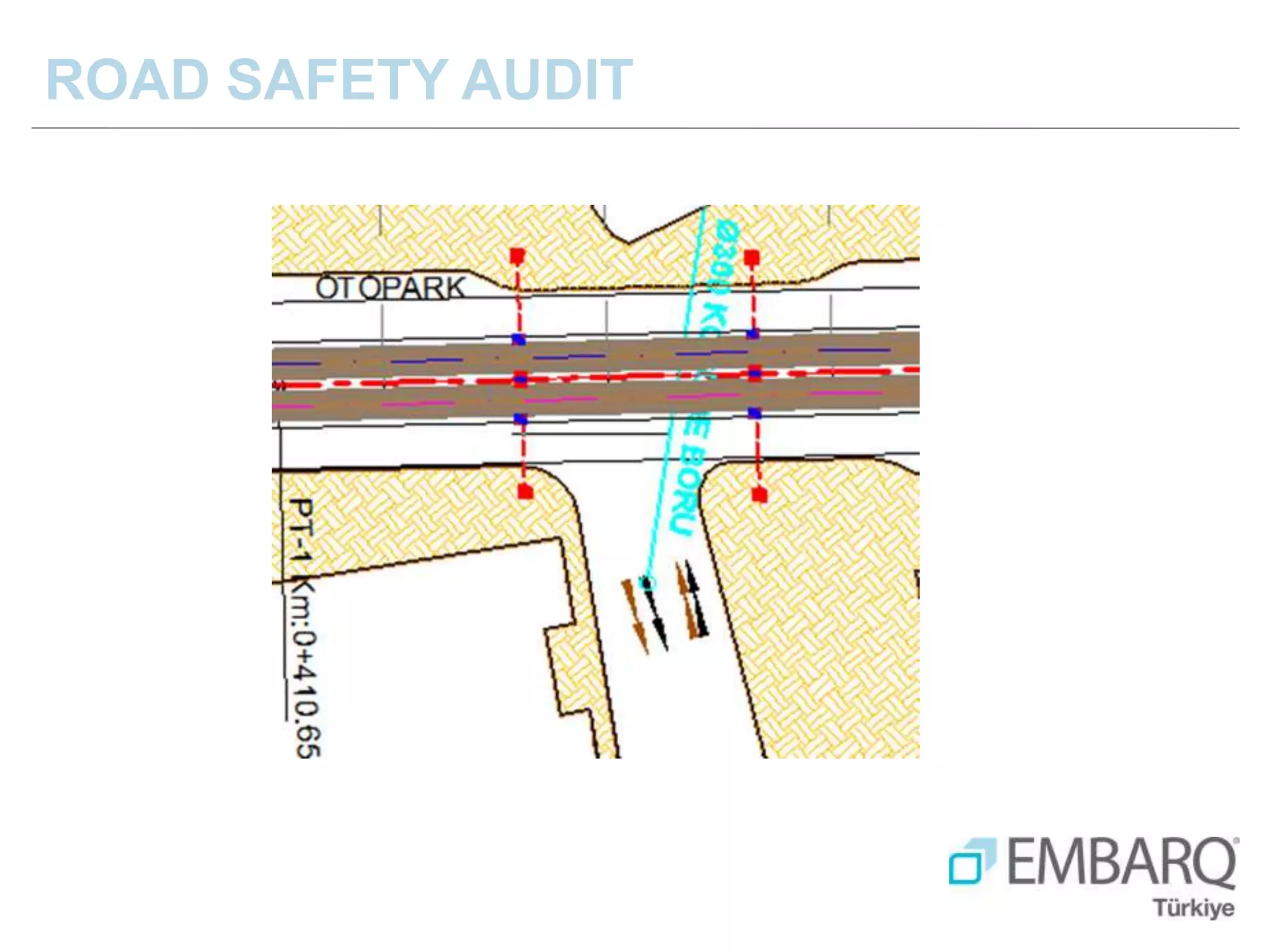

ROAD SAFETY AUDIT
ROAD SAFETY AUDIT

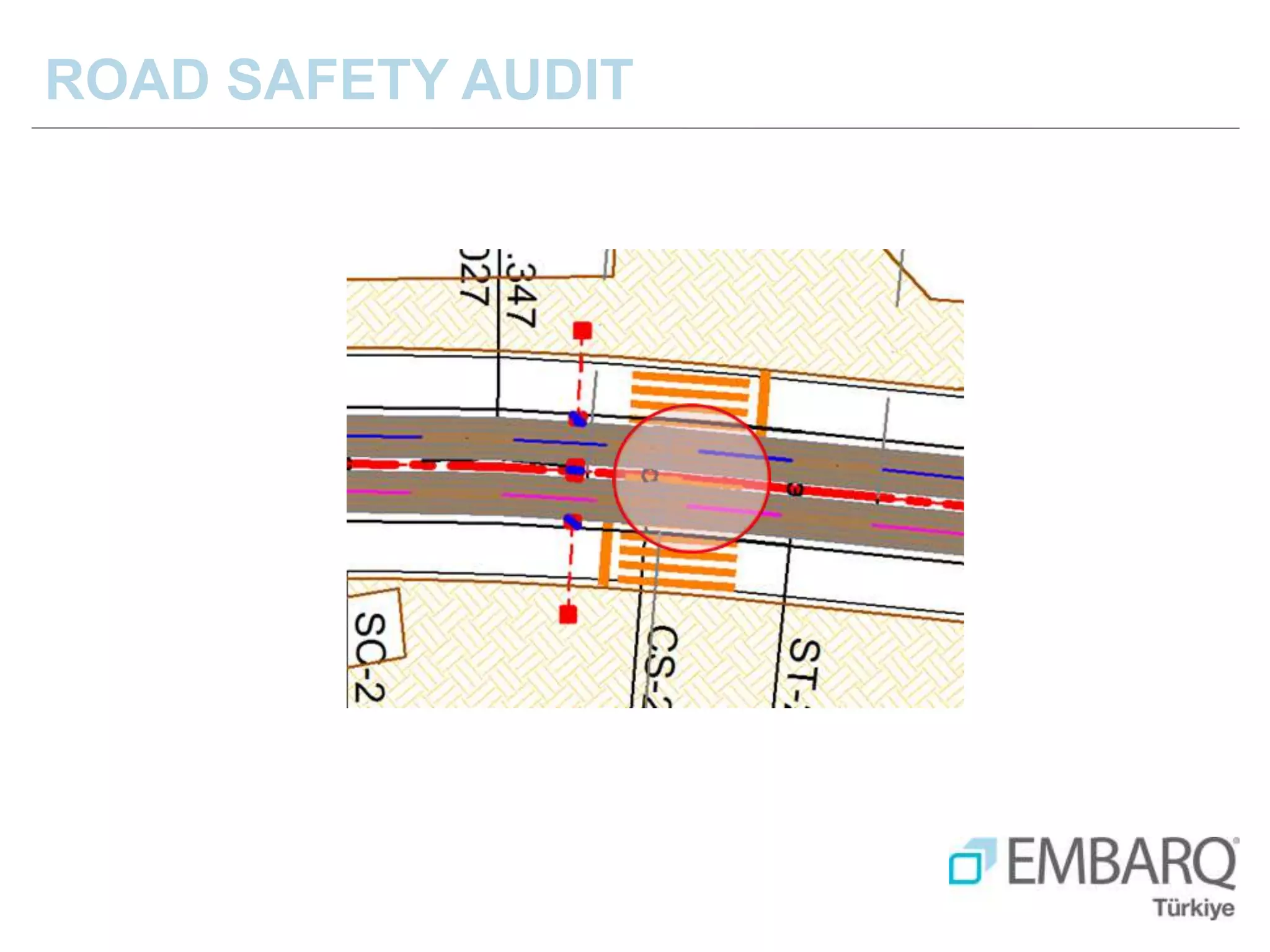

ROAD SAFETY AUDIT
IMPLEMENTATION-3M TRAFFIC SAFETY
www.thecityfixturkiye.com
THANK YOU
EMBARQ Türkiye Yol Güvenliği Laboratuvarı-RSLab Projesi (EMBARQ Turkey Road Safety Laboratory-RSLab Project) - Celal Tolga...
EMBARQ Türkiye Yol Güvenliği Laboratuvarı-RSLab Projesi (EMBARQ Turkey Road Safety Laboratory-RSLab Project) - Celal Tolga...
EMBARQ Türkiye Yol Güvenliği Laboratuvarı-RSLab Projesi (EMBARQ Turkey Road Safety Laboratory-RSLab Project) - Celal Tolga...
Upcoming SlideShare
Loading in …5
×

EMBARQ Türkiye Yol Güvenliği Laboratuvarı-RSLab Projesi (EMBARQ Turkey Road Safety Laboratory-RSLab Project) - Celal Tolga İmamoğlu - EMBARQ Turkey - CODATU 2015

1,255 views

Published on

EMBARQ Türkiye Yol Güvenliği Projeleri Yöneticisi Celal Tolga İmamoğlu, CODATU 2015'in Barselona, Zahle ve Beyrut'tan vaka incelemelerinin olduğu 'Road Safety and Security in Cities' oturumunda EMBARQ Türkiye'nin beş ilimizde yürüttüğü Yol Güvenliği Laboratuvarı Projesi'ni anlattı. Yapılan önerilerle, 70 kişinin hayatı kurtarılırken, 500 çarpışmanın da engellenebileceği öngörülüyor.

CODATU 2015: Enerji, İklim ve Hava Kalitesi Sorunu: Gelişmekte olan Ülkelerde Kent içi Ulaşım Politikalarının Rolü

EMBARQ Turkey Road Safety Projects Manager Celal Tolga İmamoğlu presented RSLab (Road Safety Laboratory) Project that EMBARQ Turkey has implemented in 5 cities in Turkey, during 'Road Safety and Security in Cities' session of CODATU 2015 containing case studies from Barcelona, Zahle and Beirut. According to the recommendations, 70 lives will be saved and 500 crashes will be prevented.

CODATU 2015: Energy, Climate and Air Quality Challenge: The Role of Urban Transport Policies in Developing Countries

Published in: Engineering
  • Be the first to comment

  • Be the first to like this

EMBARQ Türkiye Yol Güvenliği Laboratuvarı-RSLab Projesi (EMBARQ Turkey Road Safety Laboratory-RSLab Project) - Celal Tolga İmamoğlu - EMBARQ Turkey - CODATU 2015

  1. 1. EMBARQ TURKEY ROAD SAFETY LABORATORY (RSLab) PROJECT

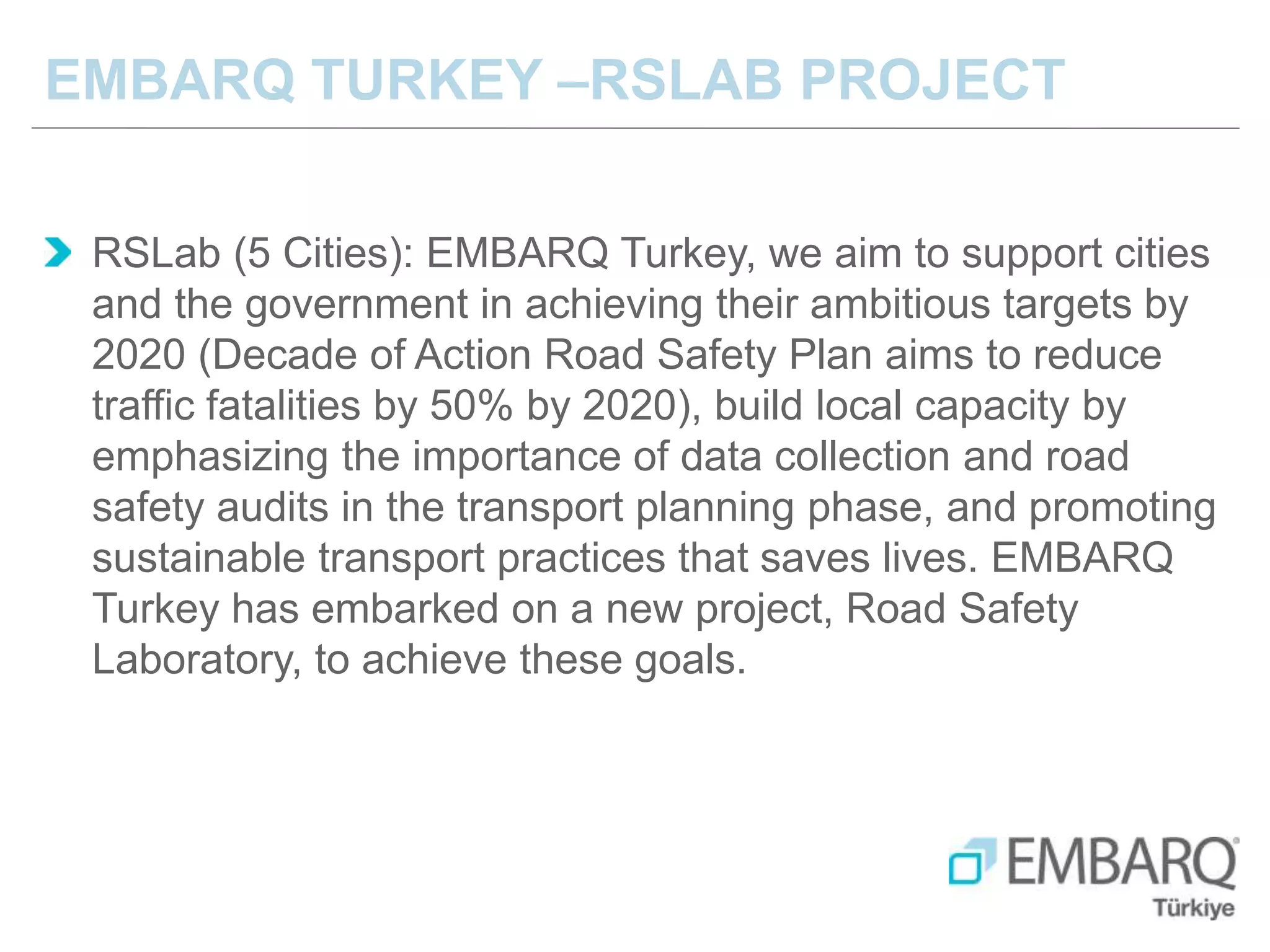

  2. 2. RSLab (5 Cities): EMBARQ Turkey, we aim to support cities and the government in achieving their ambitious targets by 2020 (Decade of Action Road Safety Plan aims to reduce traffic fatalities by 50% by 2020), build local capacity by emphasizing the importance of data collection and road safety audits in the transport planning phase, and promoting sustainable transport practices that saves lives. EMBARQ Turkey has embarked on a new project, Road Safety Laboratory, to achieve these goals. EMBARQ TURKEY –RSLAB PROJECT
  3. 3. PROJECT TEAM İMAMOGLU ,CELAL TOLGA Tranportation Engineer M . Sc. Road Safety Projects Manager EMBARQ TURKEY Gümüşsuyu Mahallesi İnönü Caddesi Saadet apt. No:29/7 Tel:212 243 53 05 E-Posta: timamoglu@embarqturkiye.org GHASEMLOU, Kiarash Tranportation Engineer M.Sc. EMBARQ TURKEY Gümüşsuyu Mahallesi İnönü Caddesi Saadet apt. No:29/7 Tel:212 243 53 05 E-Posta: kghasemlou@embarqturkiye.org
  4. 4. PROJECT TEAM BAŞARAN,SİVE, Civil Engineering Student PROJECT ASİST. EMBARQ TURKEY Gümüşsuyu Mahallesi İnönü Caddesi Saadet apt. No:29/7 Tel:212 243 53 05 E-Posta: sbasaran@embarqturkiye.org WASS CARSTEN, Certified Road Safety Auditor CONSİA CONSULTİNG Headquarters Consia Consultants Skelbaekgade 4, 6th. DK-1717 Copenhagen V Denmark
  5. 5. EMBARQ TURKEY RSLab PROJECT CITIES KONYAMALATYA KAYSERİ ESKİŞEHİR ANTALYAKOCAELİ
  6. 6. EMBARQ TURKEY RSLab PROJECT Overall 25Black Spots 5 Black Spots 5 Cities

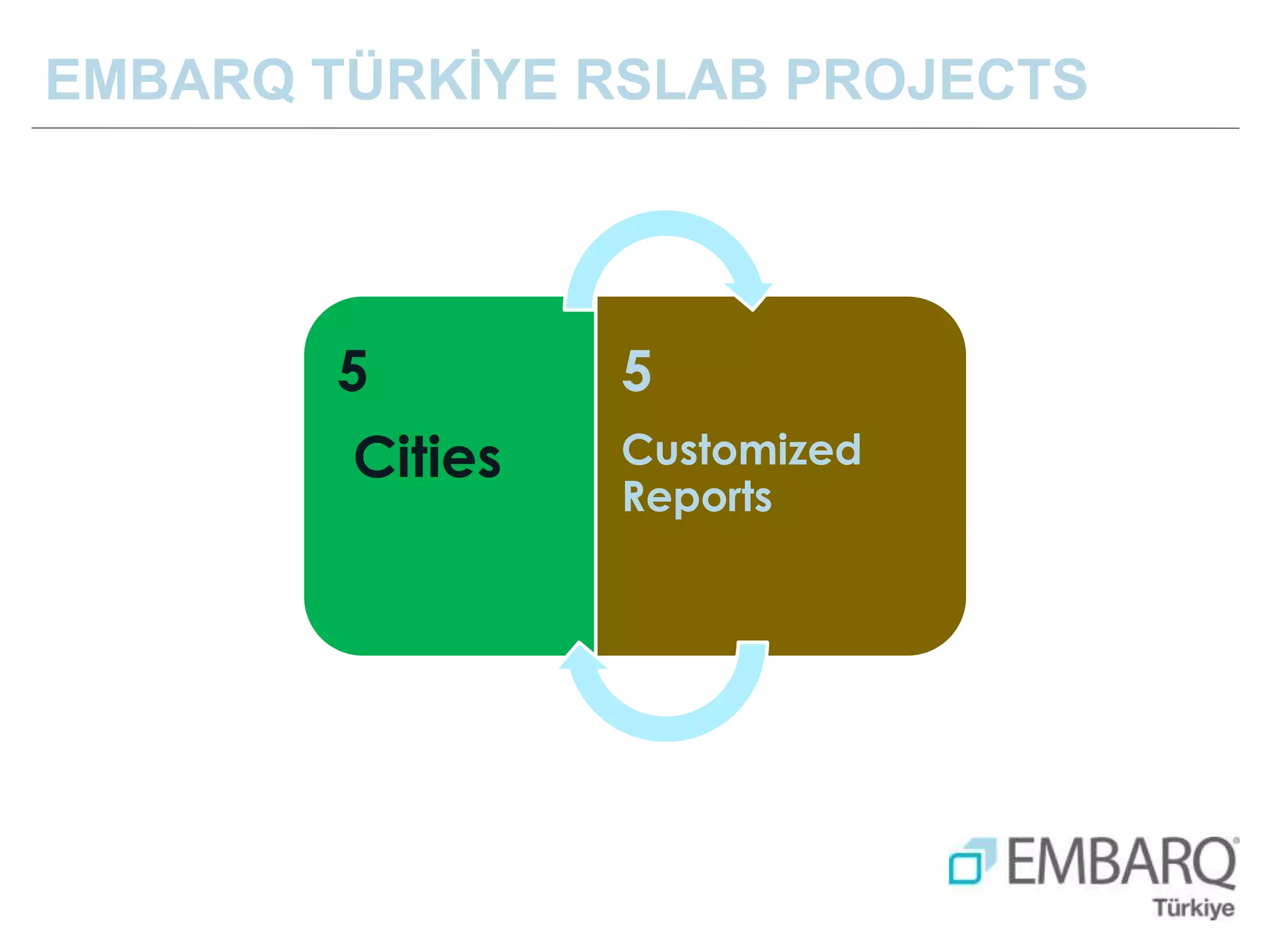

  7. 7. EMBARQ TÜRKİYE RSLAB PROJECTS 5 Cities 5 Customized Reports
  8. 8. EMBARQ TURKEY RSLab PROJECT 22 Road Safety Inspection 3 Road Safety Audit 25 Road Safety Works
  9. 9. EMBARQ TURKEY RSLAB PROJECT UNDER LİGHT OF ROAD SAFETY ENGİNEERİNG RECOMMENDATIONS 25Road Safety Studies LIVES SAVED 70 TOTAL NUMBER OF TRAFFİIC CRASHES WİLL BE PREVENTED 500
  10. 10. EMBARQ TURKEY RSLAB PROJECT PROSESS Analysing Accidents Data Identification of Black Spots Road Safety Inspections (black spot treatment) Reporting Data Collection
  11. 11. DATA COLLECTION Data Collection Responsability of police collecting of accident data Traffic accidents server where data is stored They don’t want to share data
  12. 12. DATA COLLECTION Police officier is filling out the report on accident field Police officier is digitizing the report Police officier is importing the report to POLNET
  13. 13. DATA COLLECTION ERRORS IN DATA COLLECTION GPS ERRORS THE MISTAKES MADE WHILE THE REPORTS DIGITIZING DEFICIENCIES IN TRAFFIC ACCIDENT REPORTS LACK OF TRACKİNG FATALİTİES NUMBER
  14. 14. DATA COLLECTION
  15. 15. DATA COLLECTION
  16. 16. ANALYSING DATA KNOW HOW SOFTWARE DATA QUALITY
  17. 17. ANALYSING DATA Lack of Expert Lack Of Software Poor Data Quality( traffic volume, mobility value etc..)
  18. 18. PTV VİSUM SAFETY
  19. 19. RAW ACCIDENTS DATAS RAW DATAS

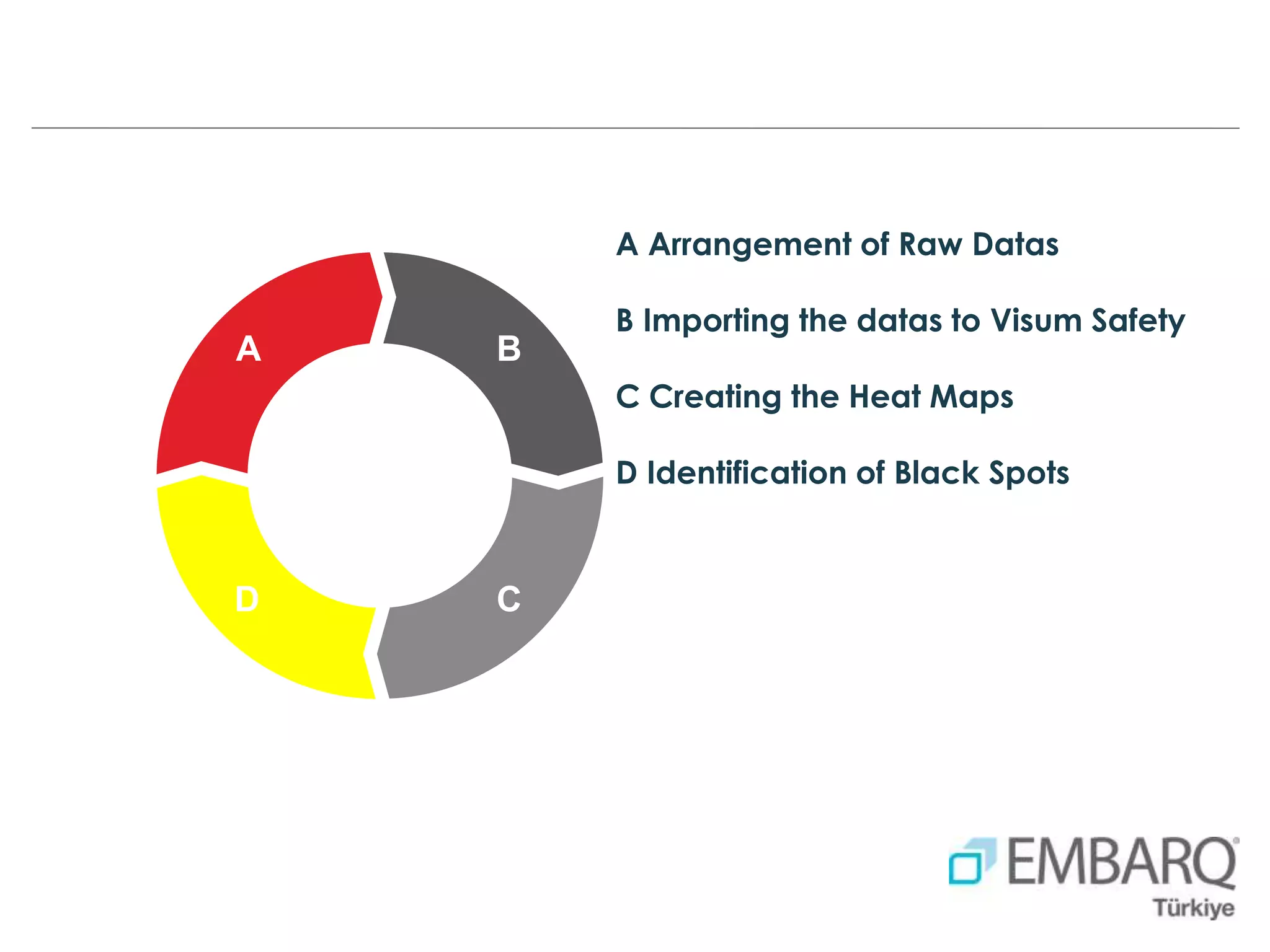

  20. 20. BA CD A Arrangement of Raw Datas B Importing the datas to Visum Safety C Creating the Heat Maps D Identification of Black Spots
  21. 21. HEAT MAPS
  22. 22. INVOLVED ROAD USERS

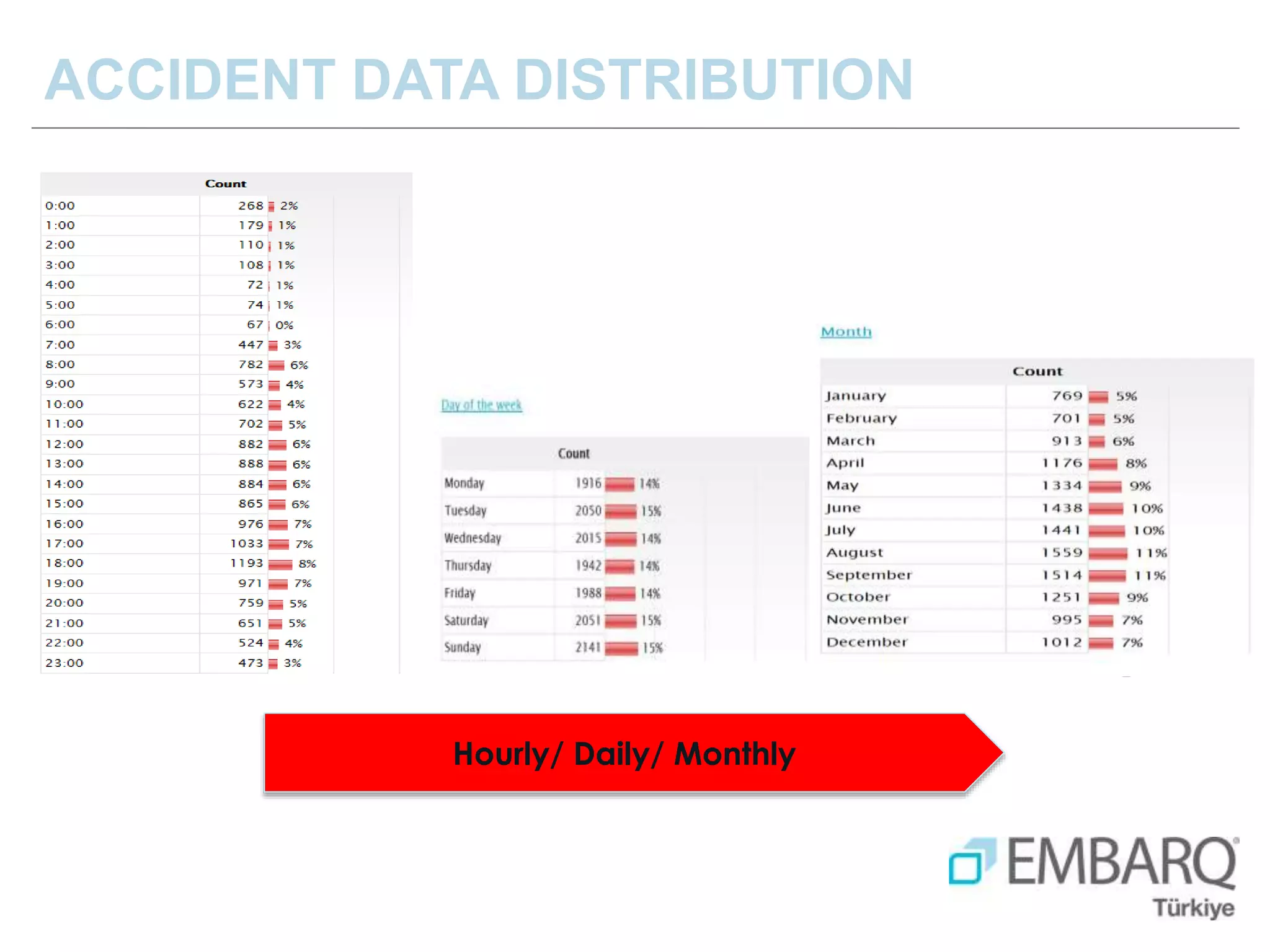

  23. 23. ACCIDENT DATA DISTRIBUTION Hourly/ Daily/ Monthly
  24. 24. ACCIDENT DATA DISTRIBUTION

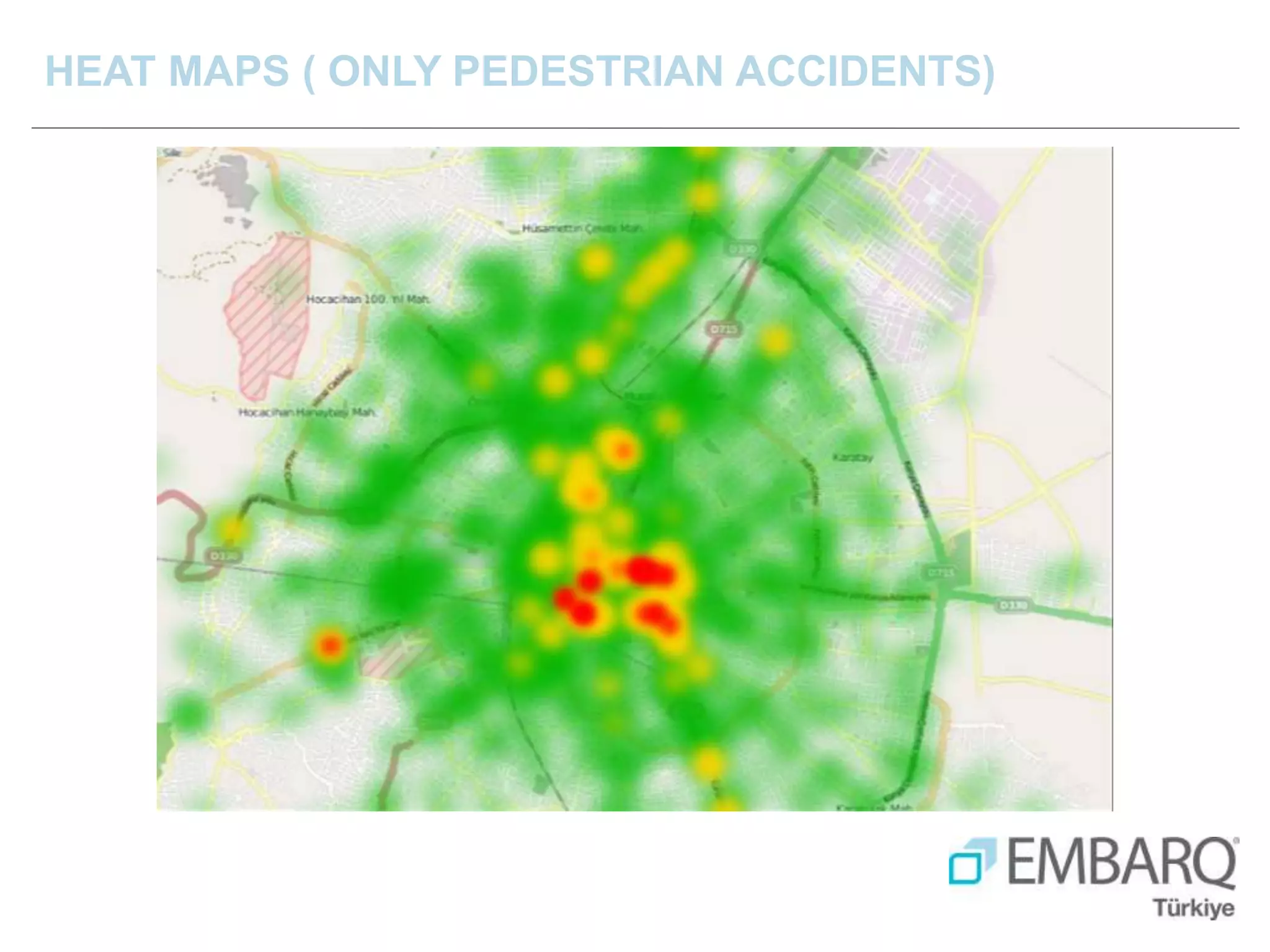

  25. 25. HEAT MAPS ( ONLY PEDESTRIAN ACCIDENTS)
  26. 26. INVOLVED ROAD USERS IN PEDESTRIAN ACCIDENTS

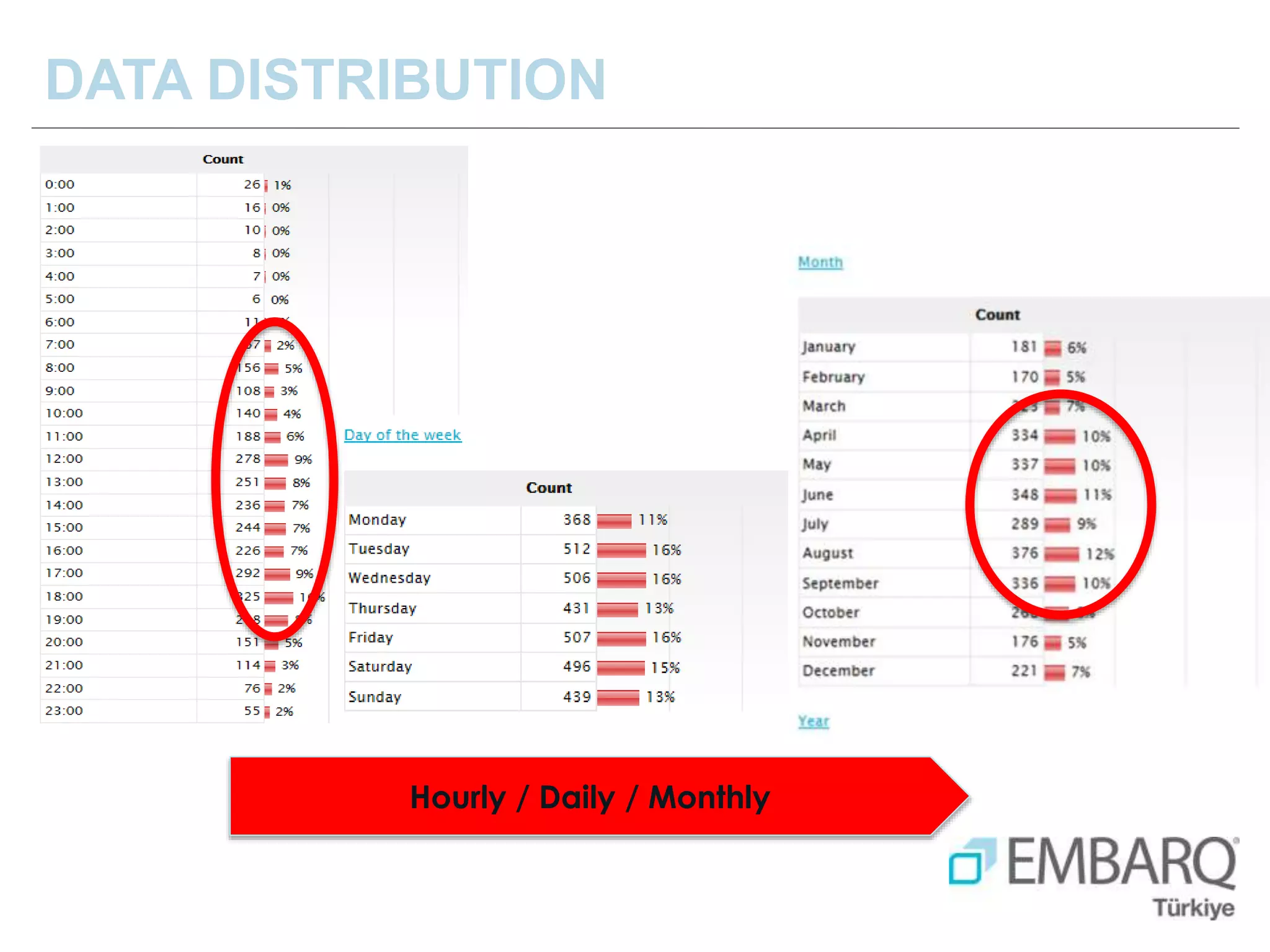

  27. 27. DATA DISTRIBUTION Hourly / Daily / Monthly

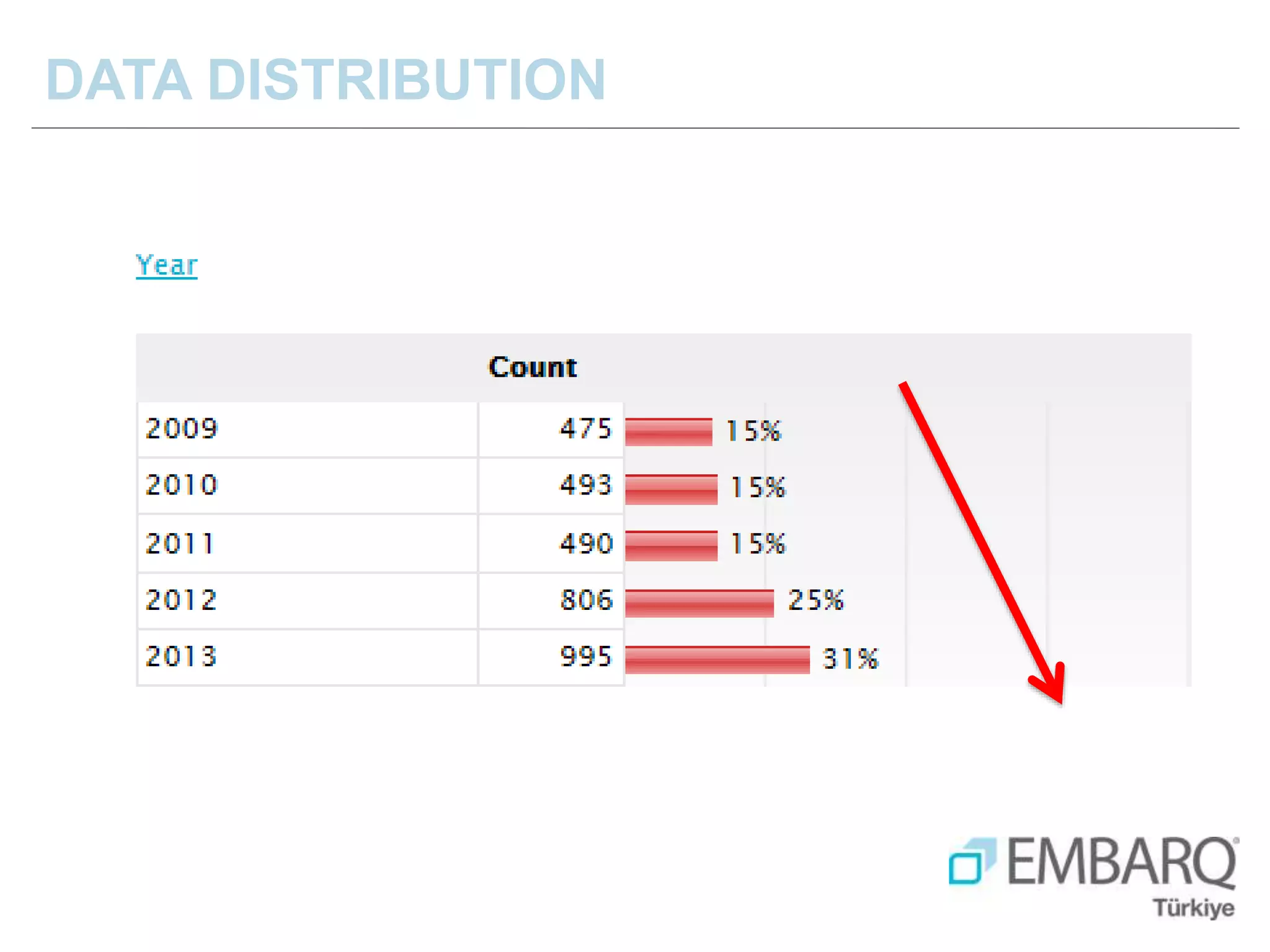

  28. 28. DATA DISTRIBUTION
  29. 29. HEAT MAPS ( ONLY BICYCLE ACCIDENTS)
  30. 30. INVOLVED ROAD USERS IN BICYCLE ACCIDENTS

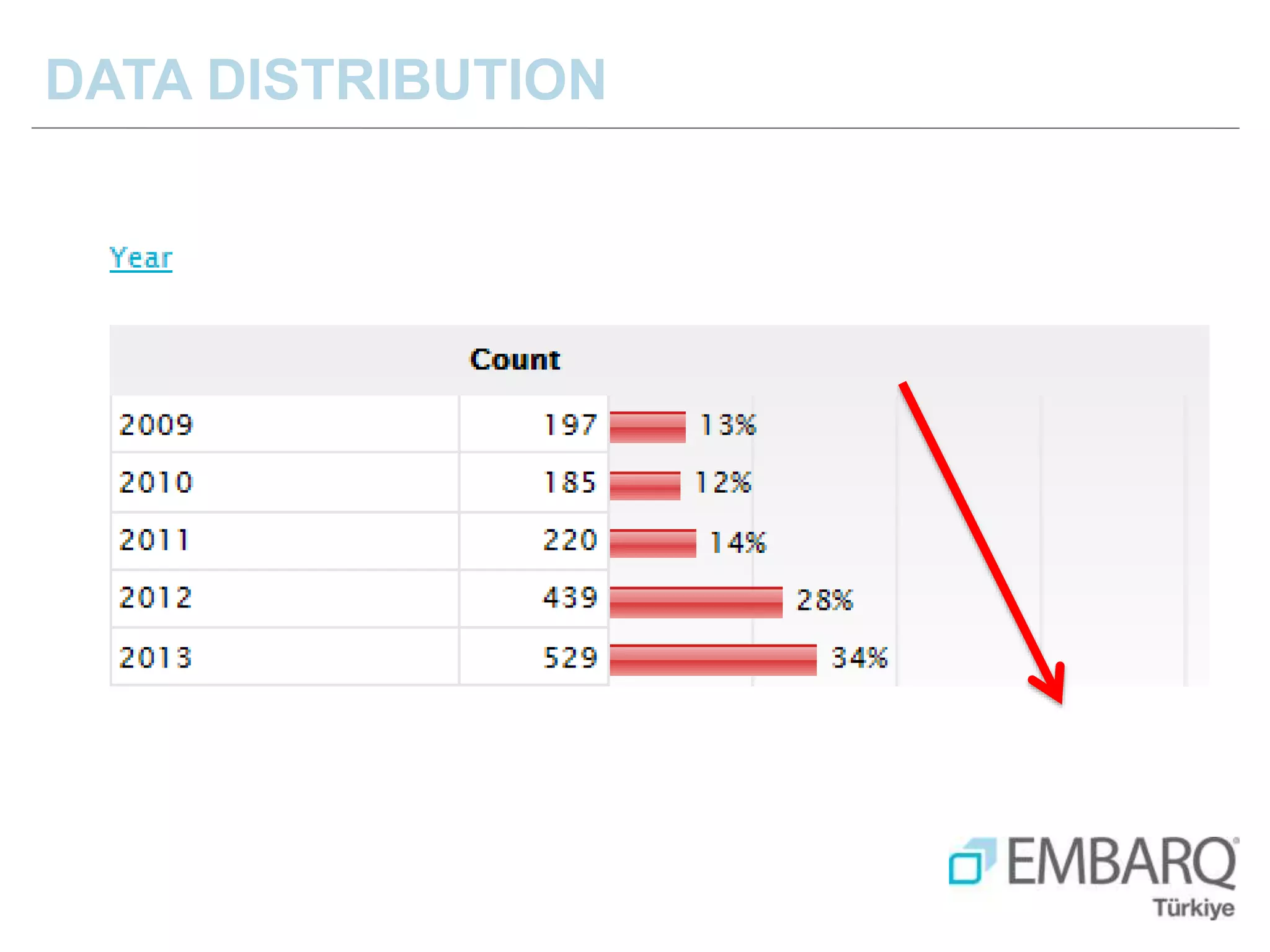

  31. 31. DATA DISTRIBUTION
  32. 32. ROAD SAFETY STUDIES •Road Safety Audit •Improved Standards • Road Safety Inspectıons • (Black Spots Treatment)
  33. 33. ROAD SAFETY INSPECTIONS- ENFORCEMENT
  34. 34. ROAD SAFETY INSPECTIONS – ROAD LIGHTING CONDITIONS
  35. 35. IDENTIFICATION OF BLACK SPOTS PROCESS
  36. 36. PROBLEM Many vehicles were observed braking in the curve. It was obvious that the curve came as a surprise to drivers.
  37. 37. PROBLEM Most of the accidents occurred right after the curve where the kerb has multiple damage
  38. 38. PROBLEM The curve is signed with a double chevron marker and two single chevron markers. These are not sufficient to warn drivers and to show the alignment of the curve.
  39. 39. The best solution would be to increase the radius of the curve and give it sufficient super elevation but this would be costly and could involve expropriation of land. The only other possibility is to reduce the speed to match the radius and the cross slope. In this case the speed should be reduced to 60km/h. Physical means are necessary to obtain this. As humps are probably too abrupt for this type of road a set of speed cameras could be used instead. Rumble strips could also be considered but they do not seem to be sufficiently efficient in Turkey and they wear out quickly. RECOMMENDATIONS

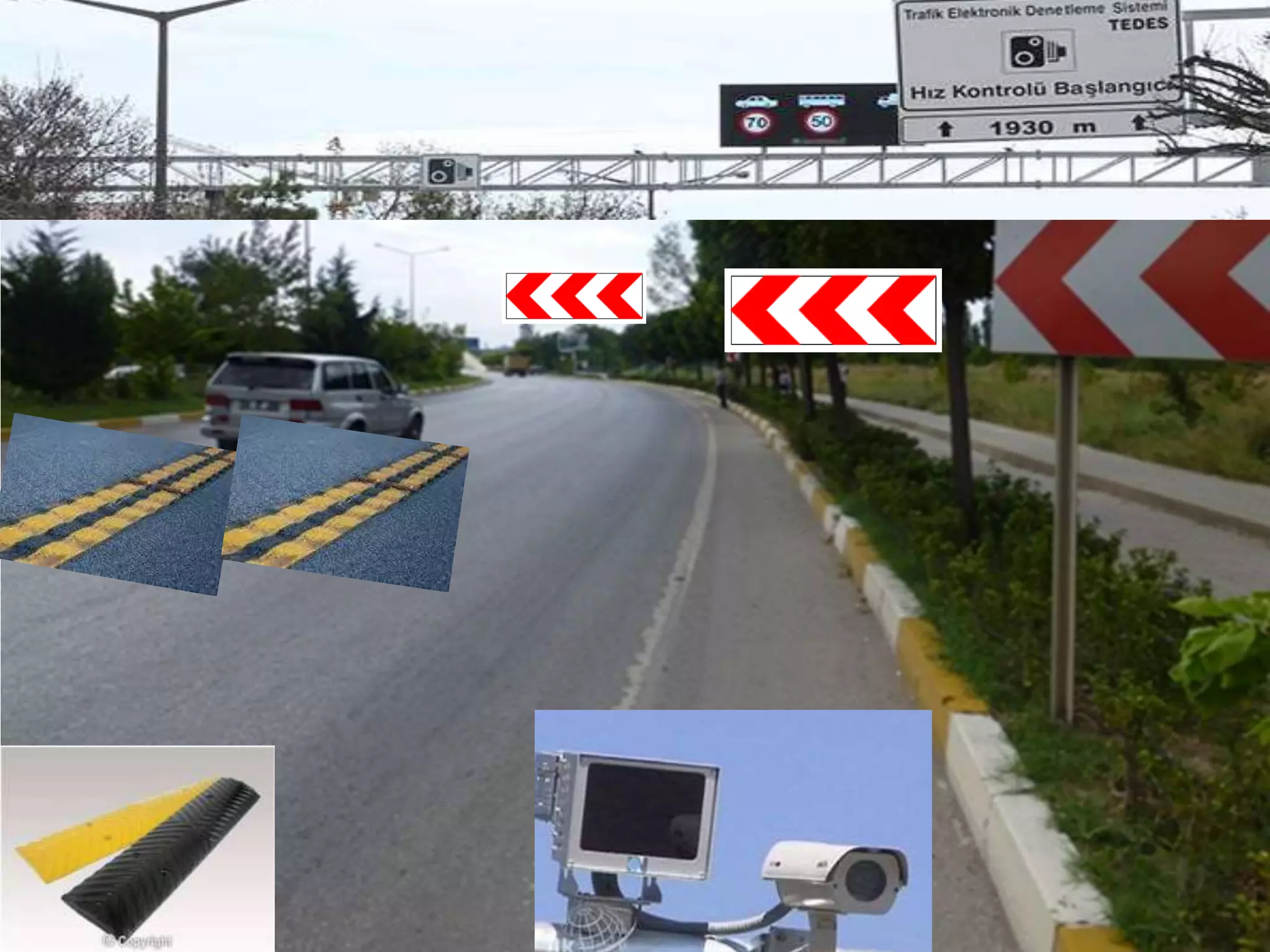

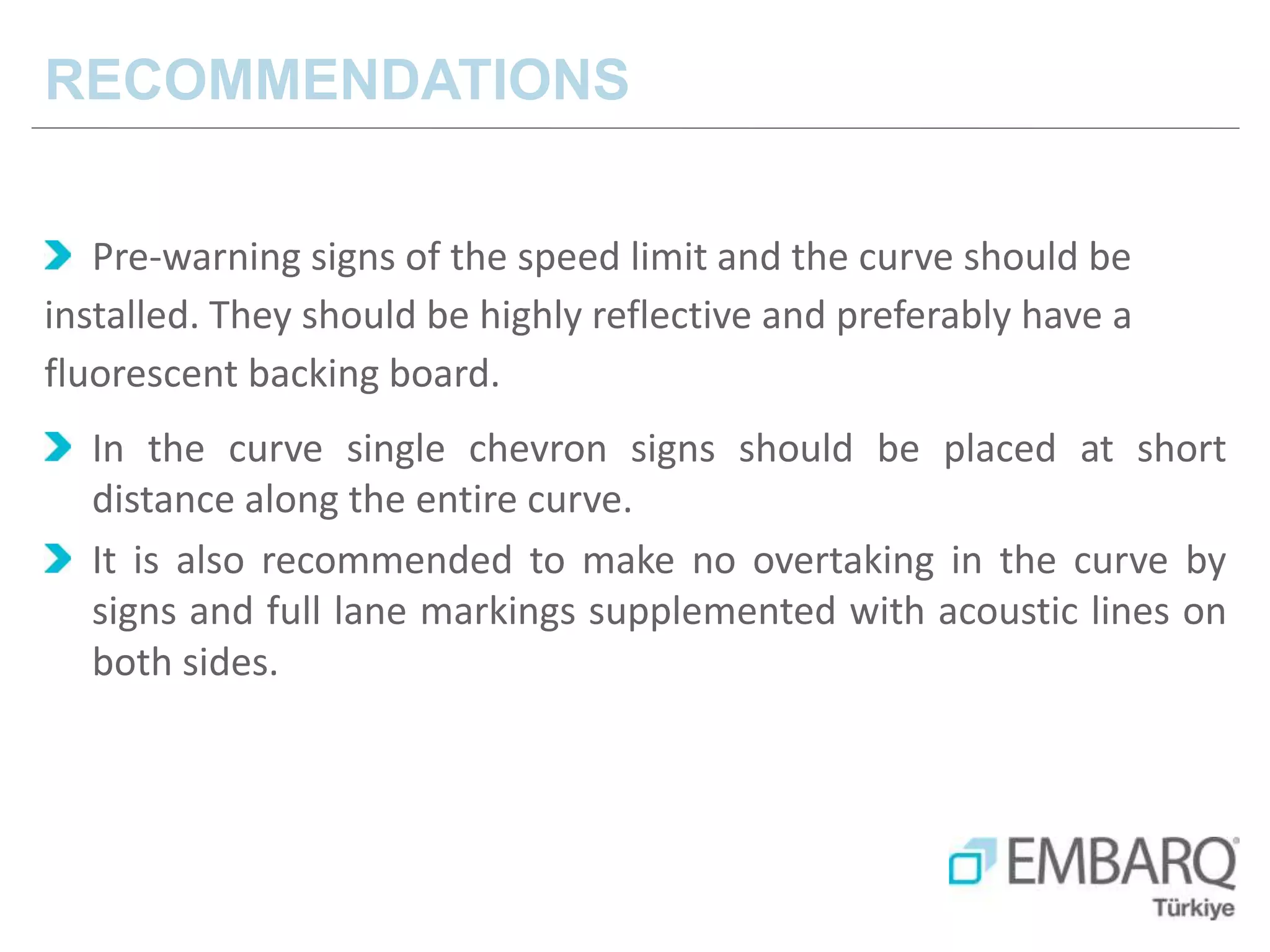

  40. 40. Pre-warning signs of the speed limit and the curve should be installed. They should be highly reflective and preferably have a fluorescent backing board. In the curve single chevron signs should be placed at short distance along the entire curve. It is also recommended to make no overtaking in the curve by signs and full lane markings supplemented with acoustic lines on both sides. RECOMMENDATIONS
  41. 41. It is assumed that 16 of the accidents will be affected by changing the speed in the curve. We can expect an effect of about 60% on injury accidents. Taking the regression effect into consideration the expected saving in injury accidents will be 8.0 accidents. The total estimated effect is a reduction of 2 injury accidents per year. RESULTS
  42. 42. IDENTIFICATION OF BLACK SPOT PROCESS

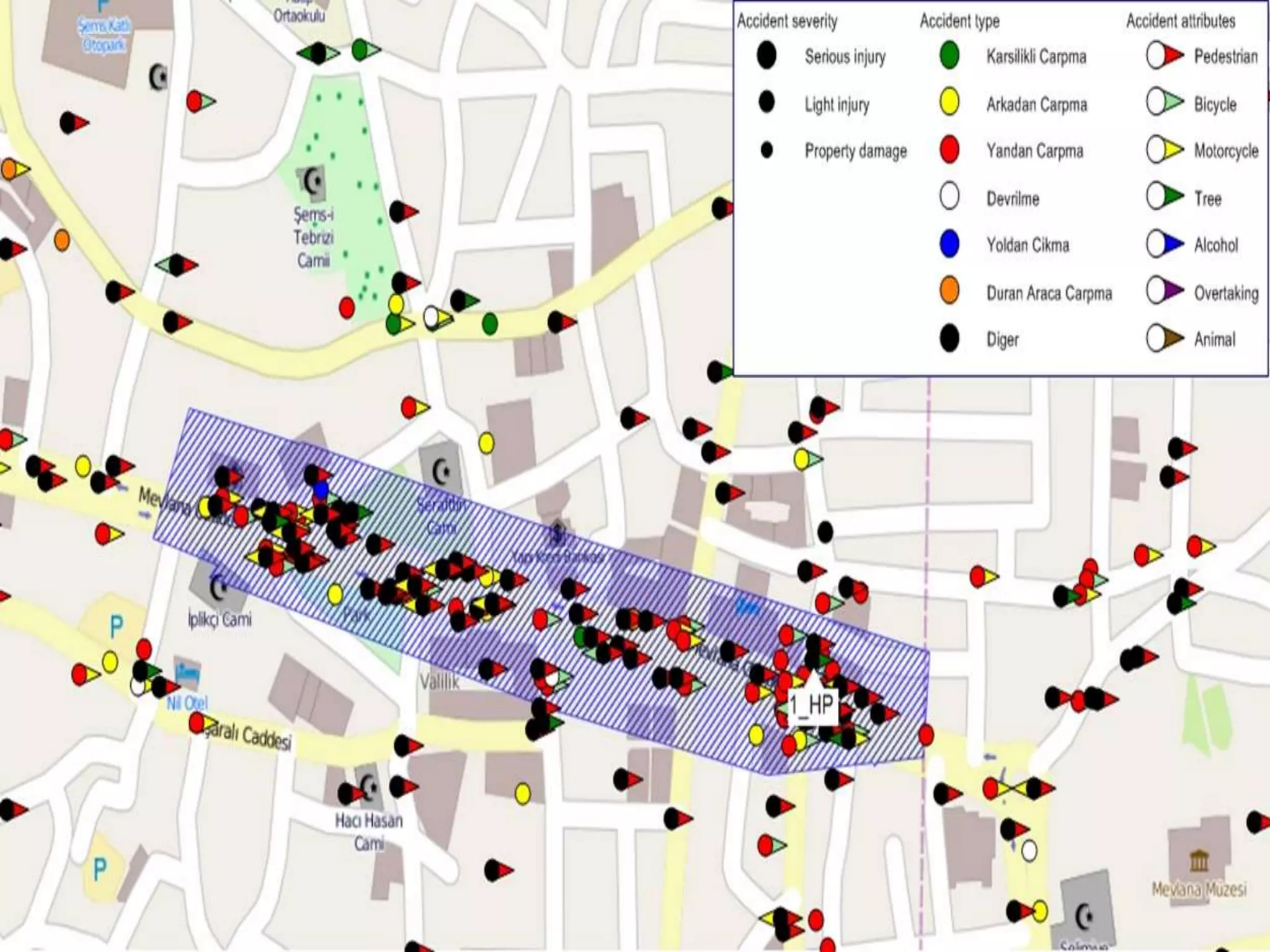

  43. 43. BLACK SPOT- MEVLANA STREET
  44. 44. INVOLVED ROAD USERS
  45. 45. MEVLANA STREET-TRAM PROJECT ALONG THE STREET
  46. 46. Background Mevlana Street is considered the central street of the city centre of Konya. It is lined with historical buildings of great importance. Today the street carries vehicle traffic in two lanes in each direction. Pedestrian traffic is very dense with demands for crossing all along the length of the street. This has led to very high accident numbers. 115 accidents were registered in a five-year period. Given that the length of the street is only 780m the rate of accidents is 30 injury accidents per km per year. A project has now been initiated for establishing a bi-directional tram line in the middle of the street. Construction is ongoing and is scheduled to finish in the middle of 2015. The intension is to keep two lanes for vehicle traffic by allowing car drivers to use the tram lanes except at the station Black Spot-Mevlana Street Audit Challenges

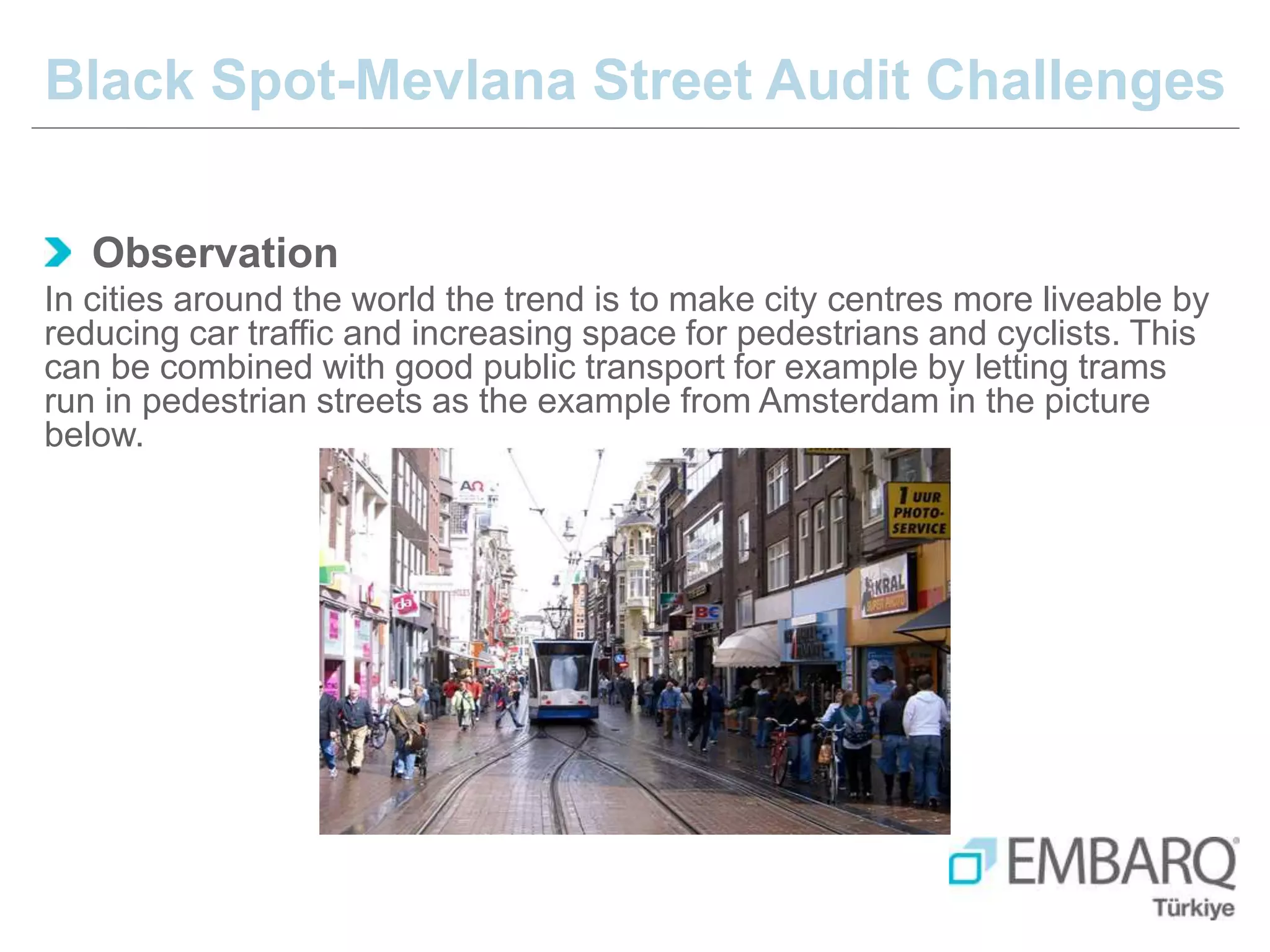

  47. 47. Observation In cities around the world the trend is to make city centres more liveable by reducing car traffic and increasing space for pedestrians and cyclists. This can be combined with good public transport for example by letting trams run in pedestrian streets as the example from Amsterdam in the picture below. Black Spot-Mevlana Street Audit Challenges
  48. 48. It is strongly recommended to consider such a solution for Mevlana Street. Experience from other cities having adapted such a solution shows very positive effects on liveability, turnover of shops along the street and most importantly a significant improvement in road safety. The project opens for a unique opportunity for Konya to upgrade one of its most important historical areas. For example the Kayali Park and the square in front of the Şerafettin Mosque could be joined in a unique city space. If this is not feasible, vehicle traffic should be limited to one lane in each direction, or even better one lane in only one direction. Raised pedestrian crossings placed at every 80-100m should secure that vehicle speeds are kept below 30km/h. It cannot be recommended to let vehicles use the tram lanes. The give-way rules between trams and vehicles will be unclear and drivers may erroneously drive into the station area. Also, allowing driving in the tram line will deteriorate the respect of the tram lanes in other parts of the city. Furthermore, keeping two vehicle lanes in each direction opens for overtaking and with no speed reducing measures will probably lead to the same high accident rates as today. Black Spot-Mevlana Street Audit Challenges

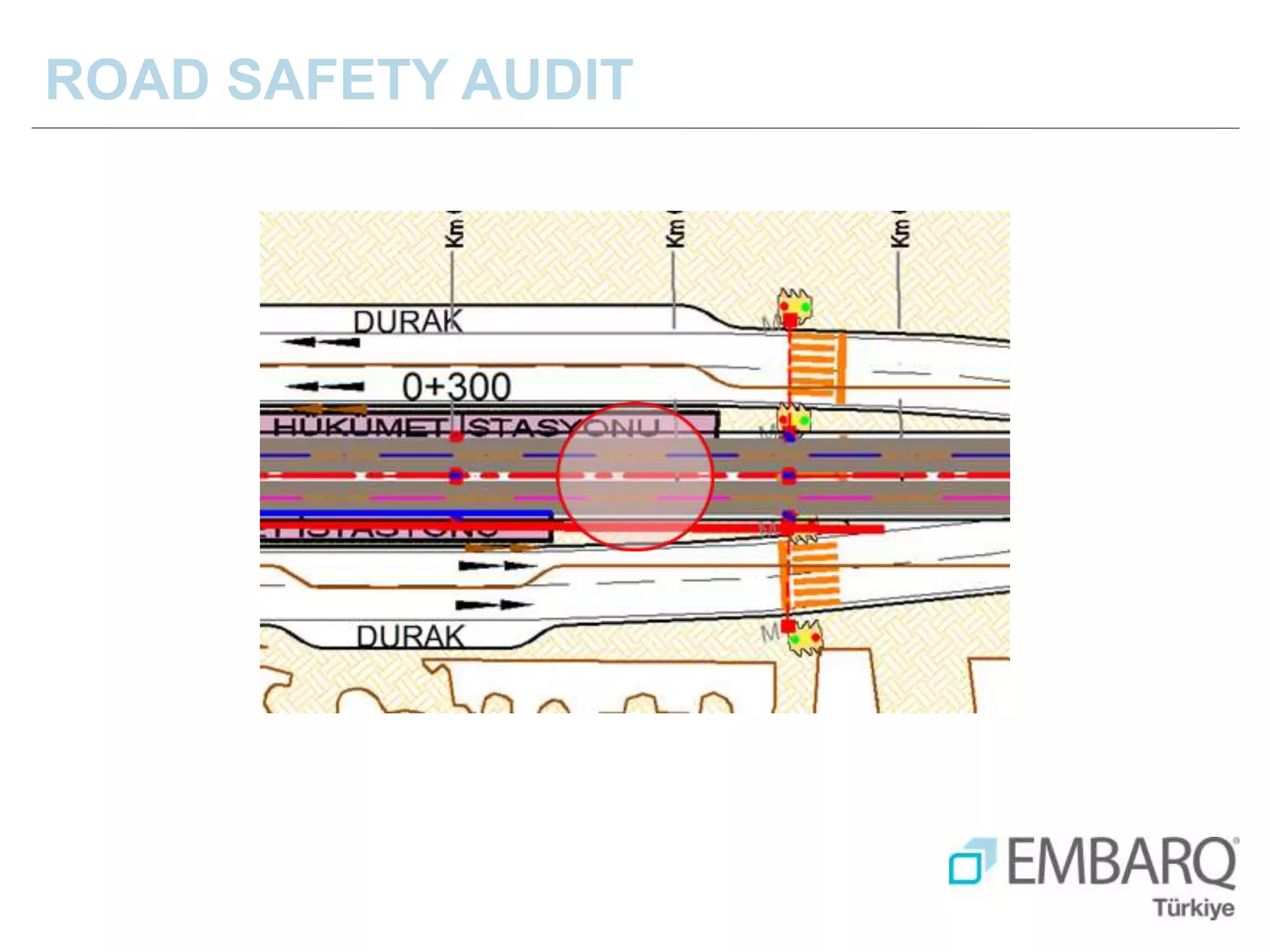

  49. 49. ROAD SAFETY AUDIT
  50. 50. ROAD SAFETY AUDIT
  51. 51. ROAD SAFETY AUDIT
  52. 52. ROAD SAFETY AUDIT
  53. 53. IMPLEMENTATION-3M TRAFFIC SAFETY
  54. 54. www.thecityfixturkiye.com
  55. 55. THANK YOU

×
