From email to BIM: 20 years of construction collaboration technologies

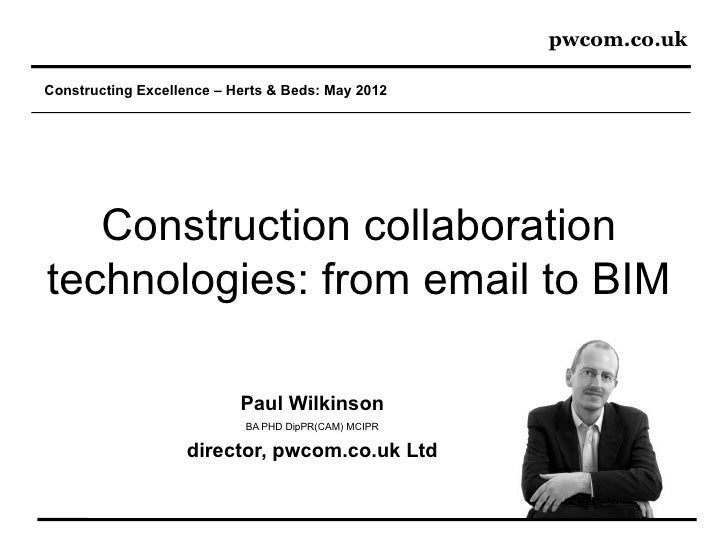

  1. 1. pwcom.co.ukConstructing Excellence – Herts & Beds: May 2012 Construction collaborationtechnologies: from email to BIM Paul Wilkinson BA PHD DipPR(CAM) MCIPR director, pwcom.co.uk Ltd
  2. 2. • who am I? • from paper to email to extranet • from 2D to nD • what is BIM? • why is it important now? • whats happening now? • what can we deliver with BIM?2
  3. 3. 3
  4. 4. Who am I? • B2B PR since 1987 – in-house: Halcrow, Tarmac, BIW – consultancy clients include: 4Projects, AEngD, BIW, CodeBook, Unit4, Sypro • writer, technology consultant • collaborative working champion4
  5. 5. 5
  6. 6. 1982 – first SMTP email standard the first MIME email attachment was sent by Nathaniel Borenstein on 11 March 1992 On 30 April 1993, CERN announced that the World Wide Web would be free to anyone 1997 – first release of Microsoft Outlook Google incorporated on 4 September 19986
  7. 7. 7
  8. 8. 8
  9. 9. 9
  10. 10. Traditional AEC collaboration (c. 1990s) Specs Drawings Minutes Programmes Cost plans etc Email Courier Post Fax10
  11. 11. 11
  12. 12. 12
  13. 13. Online AEC collaboration (c. 2000s) Online file management  Single central repository  Fewer interoperability issues  Less paper  Latest information  Complete project record  Full information audit trail  Greater re-use of information But ...  nearly all still 2D  email often used instead13
  14. 14. 14
  15. 15. 15
  16. 16. ICT once overlooked in construction initiatives Then… “Accelerating Change” (2002): first industry report to mention IT explicitly “2012 Construction Commitments” (2006) said: "IT-based collaborative tools and communication technologies will be exploited." But… just two sentences on ICT in “Strategy for Sustainable Construction’ (2008) No meaningful mention of ICT in “Construction Matters” (July 2008)16
  17. 17. Key research agenda (2008) Collaborative prototyping to define and deliver client requirements Efficient, seamless sharing of information across the built environment stakeholders Ability to interact with real-time information regardless of physical location or timezone Mass adoption and application of off-site manufacturing, automation and mechanisation processes Well trained, well qualified workforce able to use the latest best practice technologies17
  18. 18. BIM is not CAD “CAD helps people to draw. BIM helps people to construct.” (Richard Saxon, Ecobuild, February 2009) “BIM is not CAD. BIM was never meant to be CAD. CAD is a replacement for pen and paper, a documentation tool. By comparison, BIM programs are design applications in which the documentation flows from and is a derivative of the process, from schematic design to construction to facility management.” (Pete Zyskowski, Cadalyst) “Drawing is Dead – Long Live Modelling” (CPIC)18
  19. 19. BIM is not ... BIM is not  … new  … just an IT issue... or just software  … 3D  … something designers do  … just about project delivery  … a short-lived fad  … irrelevant to small projects  … “the silver bullet” or “Holy Grail”  … optional?19
  20. 20. What is BIM? Building Information Modelling is digital representation of physical and functional characteristics of a facility creating a shared knowledge resource for information about it forming a reliable basis for decisions during its life cycle, from earliest conception to demolition. (definition: CPIC)20
  21. 21. What is BIM?  Building Information Modelling  Building Information Model  Building Information Management Hence BIM(M) (definitions courtesy: Dave Jellings, SmartBIM Solutions)21
  22. 22. What is BIM? Building Information Modelling is … a business process for generating and leveraging building data to design, construct and operate the building during its lifecycle. (NB: not just buildings, infrastructure, etc too)22
  23. 23. What is BIM? A Building Information Model is ... the output of the business process resulting in a digital prototype, a virtual computer model of a project which holds selected structured data about the asset (design, quantity, time, cost, as-built, etc). 3D + time (4D) + cost (5D) + .... (nD)23
  24. 24. What is BIM? Building Information Management is ... the organisation and control of the business process using the digital prototype to effect the sharing of information over the entire lifecycle of an asset. (NB: whole life approach)24
  25. 25. Why is BIM important now? 2009 “... I need no persuading [of] the enormous potential that lies in more intelligent use of ICT...” “... on my agenda … to encourage the take-up of existing and future ICT tools...” (ExtranetEvolution, December 2009)25
  26. 26. Why is BIM important now? Nov 2010 Spring 201126
  27. 27. Why is BIM important now?27 www.bimtaskgroup.org/
  28. 28. Why is BIM important now? 201628
  29. 29. Why is BIM important now? 201629
  30. 30. 30
  31. 31. COBie UK 2012 (revised 5 April 2012)31
  32. 32. 32
  33. 33. 33
  34. 34. Not just technology. People and process too34
  35. 35. 35
  36. 36. Not just technology. People and process too Spring 2011 Spring 201236
  37. 37. Not just technology. People and process too37
  38. 38. 38
  39. 39. OPEN BIM  launched March 2012  collaborative design, realisation and operation of buildings based on open standards and workflows  founding partners  buildingSMART International (bSI)  vendors (eg: Tekla, Nemetschek, Graphisoft);  backed in UK by Constructing Excellence  using the open buildingSMART Data Model, IFCs  Poor interoperability cost US AEC industry $15.8bn per annum (NIST, 2004) – mainly borne by owners!39 www.graphisoft.com/openbim/
  40. 40. BIM libraries (some offering IFC objects)40
