The effects of seasonal variation on archaeologicaldetection using earth resistance: Preliminary results                fr...
Introduction                                                                         Introduction• A study to aid archaeol...
The DART Project                                                                              Introduction• Detection of A...
The DART Project• The Universities of Leeds and Nottingham                            Introduction   • Hyper-spectral and ...
Test Areas• 4 Test Areas                                              Introduction   • All ditches (old field boundaries o...
Harnhill, Cirencester                        Introduction                        DART Project                        Seaso...
Harnhill, Cirencester           IntroductionFluxgate gradiometer greyscale   DART ProjectQuarry FieldHeavy clay geology   ...
Harnhill, Cirencester           IntroductionFluxgate gradiometer greyscale   DART ProjectQuarry FieldHeavy clay geology   ...
Harnhill, Cirencester                                             Introduction            Fluxgate gradiometer greyscale  ...
Harnhill, Cirencester                                             Introduction            Fluxgate gradiometer greyscale  ...
Quarry Field, Cirencester - Heavy Clay           Ground-truthing                                                  Introduc...
Fieldwork                   Monthly Surveys – Twin Probe                                                                  ...
FieldworkMonthly Surveys – FlashRes64 ERI                      • New technology – usually       Introduction              ...
Monthly Surveys - FlashRes64                                       Introduction                                       DART...
IntroductionERT                      DART Project(FlashRes64 transects)                         Seasonality               ...
IntroductionERT                      DART Project(FlashRes64 transects)                         Seasonality               ...
IntroductionERT                      DART Project(FlashRes64 transects)                         Seasonality               ...
IntroductionEarth Resistance            FlashRes64(Multiplexed area survey)                            DART Project       ...
IntroductionEarth Resistance            FlashRes64(Multiplexed area survey)                            DART Project       ...
IntroductionEarth Resistance            DART Project(Multiplexed area survey)                            Seasonality      ...
IntroductionEarth Resistance            DART Project(Multiplexed area survey)                            Seasonality      ...
Monthly Surveys – Twin Probe                                                              Introduction                    ...
Initial analysis - Earth Resistance        Characteristic Seasonal Responses? Free Draining                               ...
Characteristic Seasonal Responses? – Free Draining             Magnitude of anomaly at Cherry Copse (a=0.25m) after median...
Characteristic Seasonal Responses? – Free Draining                Magnitude of anomaly at Cherry Copse (a=0.25m) after med...
Characteristic Seasonal Responses? – clay-on-clay                                                                         ...
Characteristic Seasoanl Responses? – clay-on-clay   12                                                                    ...
Characteristic Seasoanl Responses? – clay-on-clay   12                                                                    ...
Summer
Autumn
Winter
Change in resistivity through the    profile from June 2011
Change in resistivity through the           profile from June 2011Summer:-Generally increased resistivity (around 10-20% h...
Change in resistivity through the              profile from June 2011Autumn:-Resistivity decreased to a depth of 1m toJune...
Change in resistivity through the               profile from June 2011Autumn:-Resistivity decreased to a depth of 1m toJun...
So it must have been a really wet             winter, right?Well………
So it must have been a really wet             winter, right?Well………
10                                                 15                                                                 20  ...
Thoughts so far…                                                                  Introduction• Resistivity decreases from...
Proposed Work                                                                                IntroductionLots more to do… ...
IntroductionThank you for listening                                                  FlashRes64                           ...
Upcoming SlideShare
Loading in …5
×

The effects of seasonal variation on archaeological detection using earth resistance: Preliminary results from an ongoing study

1,061 views

Published on

A presentation by Rob Fry at the 2012 Computer Applications in Archaeology conference in Southampton

Published in: Education, Technology
0 Comments
1 Like
Statistics
Notes
  • Be the first to comment

No Downloads
Views
Total views
1,061
On SlideShare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
10
Comments
0
Likes
1
Embeds 0
No embeds

No notes for slide

The effects of seasonal variation on archaeological detection using earth resistance: Preliminary results from an ongoing study

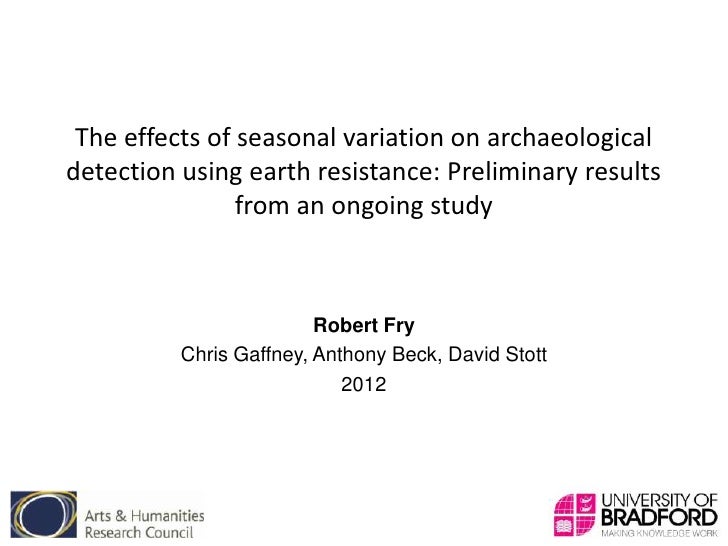

  1. 1. The effects of seasonal variation on archaeologicaldetection using earth resistance: Preliminary results from an ongoing study Robert Fry Chris Gaffney, Anthony Beck, David Stott 2012
