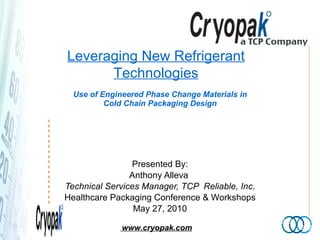

Use of Engineered Phase Change Materials in Cold Chain Packaging Design Presented By: Anthony Alleva  Technical Services M...
Table of Contents <ul><li>PCM Science </li></ul><ul><li>PCM Selection and Design </li></ul><ul><li>Other Considerations </...
Temperature Controlled Packaging 101 <ul><li>The purpose of a temperature controlled package is to maintain an interior th...
Solid – Liquid - Gas <ul><li>Phase change is when a material changes between the states of matter. </li></ul><ul><li>Phase...
“ Frozen” means “Solid” not “Cold”! <ul><li>Anything that is in its “solid state” of matter is correctly referred to as “f...
Enthalpy of Fusion <ul><li>The Enthalpy of Fusion is the amount of thermal energy which must be absorbed or released for a...
Why Water? <ul><li>Water is a common material used in refrigerant packs as it is relatively cheap and ubiquitous.  </li></...
Phase Change Materials (PCM’s) <ul><li>A PCM is a material chosen for use in an application due to its phase change proper...
PCM Selection <ul><li>First and foremost a PCM must have a phase change temperature within the desired range and ideally c...
Water is the Standard of Comparison <ul><li>Most current temperature control packaging applications are using water as the...
When Designing a PCM <ul><li>Use a Pure Chemical </li></ul><ul><ul><li>Search published tables of Phase Change temperature...
Case Study: Deuterium Oxide  <ul><li>D 2 0 (Also known as Heavy Water) is water that contains a very high (99%+) concentra...
Designing a PCM <ul><li>Use a Mixture of Two (or more) Chemicals </li></ul><ul><li>Binary Phase Diagram is a graph of the ...
Case Study: Water / Ethylene Glycol Mixture <ul><li>Water mixed with Ethylene Glycol is commonly referred to as “antifreez...
Case Study: Water / Ethylene Glycol Mixture <ul><li>Packaging: Can be contained in any material that can contain water. </...
The   T Problem: Time to Freeze/Melt <ul><li>This equation can be used to calculate heat absorption: </li></ul><ul><li>Th...
Experimental Example: The   T Problem <ul><li>Compare the Phase Change of Three PCM’s </li></ul><ul><li>Materials chosen:...
Photo of Cube Test Set-Up
Result for Freezing
Result for Melting
Conclusions from Experiment : The   T Problem <ul><li>The ambient temperature is a large factor in time to freeze or melt...
Dry Ice: A Special Case <ul><li>Dry Ice is Carbon Dioxide in its Frozen State </li></ul><ul><li>The phase change it underg...
Dry Ice: Breaking the Law <ul><li>Very difficult to store </li></ul><ul><ul><li>To prevent it from sublimating it would ne...
Dry Ice: Mitigating Factors  <ul><li>Dry Ice has a very high Enthalpy of Sublimation at 571 kJ/kg.  (Water’s Enthalpy of F...
Dry Ice Performance Example
Other Considerations: Insulation <ul><li>Passive temperature control can only be achieved if something in the packaging sy...
Experiment: Insulation Quality and Freeze Time <ul><li>Test Set-Up </li></ul><ul><ul><li>All Containers included one (1) 8...
Insulation Quality vs. Time
Other Considerations: Combining PCM’s <ul><li>PCM’s with different phase change temperatures can be used together to resul...
Experiment: Combination of 5°C PCM and 0°C PCM <ul><li>Test Set-Up </li></ul><ul><ul><li>EPS Insulated package with a wate...
Results for Combination Experiment
Package Design Case Studies <ul><li>The examples that follow showcase the various uses of PCM’s discussed in the previous ...
Temperature Range: Below –20°C (Dry Ice) EPS Lid EPS Collar with cut out for monitor EPS Product Housing Outer EPS Trough ...
Temperature Range: –40°C to –20°C EPS Lid Corrugate Divider -20°C PCM Dry Ice -20°C PCM Outer shipper with EPS
Temperature Range: 2°C to 8°C EPS Lid Refrigerated Water Gels Frozen Water Gels Payload Carton Outer shipper with EPS Froz...
Temperature Range: 2°C to 8°C EPS Lid Water Gels  5°C PCM Outer shipper with dual chamber EPS walls
Temperature Range: 15°C to 30°C EPS Lid 22°C PCM Outer shipper with EPS 22°C PCM Payload
Temperature Range: Below 37°C EPS Lid Thermos Lid 27°C PCM Vial Holder Thermos Outer shipper with EPS
<ul><li>Questions? </li></ul>
Thank you! <ul><li>Anthony Alleva </li></ul><ul><li>Technical Services Manager </li></ul><ul><li>TCP Reliable, Inc. </li><...
