Geographically Distributed Multi-Master MySQL Clusters

2. VMware Continuent Quick Introduction History Products VMware Continuent Industry-leading clustering and replication for open source DBMS Clustering – Commercial-grade HA, performance scaling and data management for MySQL Replication – Flexible, high- performance data movement 2004 Continuent established in USA 2009 3rd Generation Continuent Tungsten (aka VMware Continuent) ships 2014 100+ customers running business critical applications Oct 2014 Acquisition by VMware: Now part of the vCloud Air Business Unit Oct 2015 Continuent solutions available through VMware sales

3. VMware Continuent Facts Business Critical Deployment Examples High Availability for MySQL Largest cluster deployment performs 800M+ transactions/ day on 275 TB of relational data Business Continuity Cross-site cluster topologies widely deployed including Primary/DR and Multi-Master High Performance Replication Largest installations transfer billions of transactions daily using high speed, parallel replication Heterogeneous Integration Customers replicate from MySQL to Oracle, Hadoop, Redshift, Vertica and others Real-time Analytics Optimized data loading for data warehouses with deployments of up to 200 MySQL masters feeding Hadoop

4. Select VMware Continuent Customers

5. The Case For Many Sites

6. Registering and Updating Distributed Devices •  There are many handheld and portable devices that move between cities and regions. •  These devices need constant access to pull data or updates. •  DNS routes the user to an available site with the lowest latency •  Each site has full access to modify data for the user •  Benefit: Transactions are always processed at the fastest location

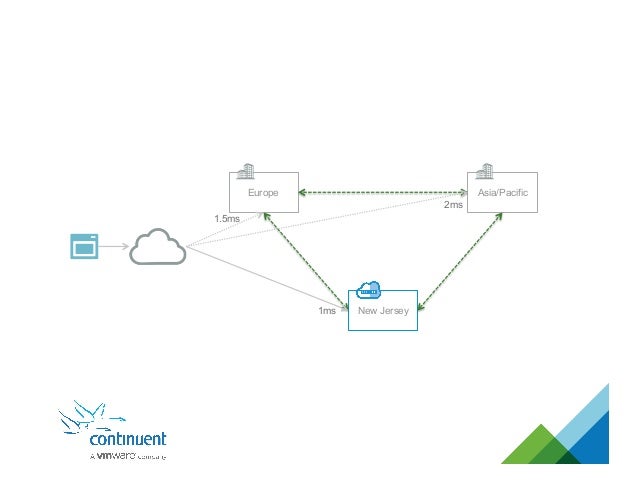

7. Europe Asia/Pacific New Jersey1ms 2ms 1.5ms

8. Credit Card Transaction Processing •  Application connectivity to a particular location isn’t guaranteed •  Processing apps use a list of potential sites •  Connectivity to each site is attempted until successful •  The application proceeds as normal with the successful site •  Benefit: Automatic failover to any data center by the application

9. Europe Asia/Pacific New Jersey3 2 1

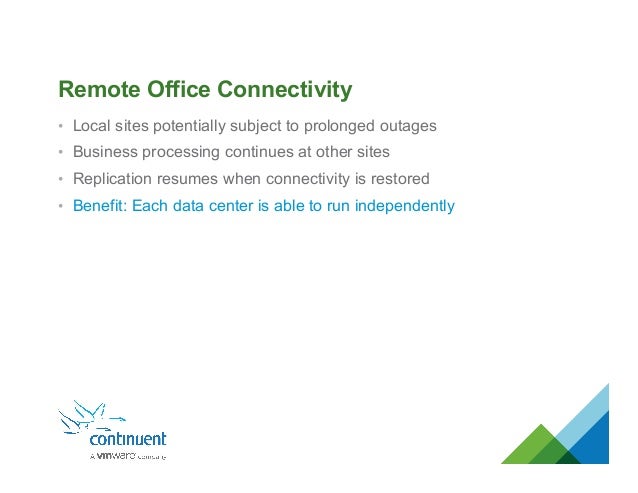

10. Remote Office Connectivity •  Local sites potentially subject to prolonged outages •  Business processing continues at other sites •  Replication resumes when connectivity is restored •  Benefit: Each data center is able to run independently

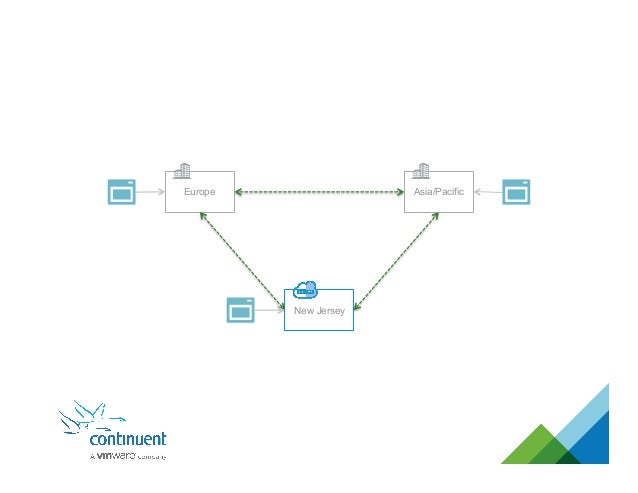

11. Europe Asia/Pacific New Jersey

12. Introducing Multi-Site Multi-Master (MSMM)

13. CROSS-REGION REPLICATION Public Internet or VMware NSX Secure Gateway vCLOUD AIR VIRTUAL DATA CENTER ON-PREMISES DATA CENTER DB2.CA SLAVE DB1.CA MASTER DB3.CA SLAVE Continuent Connector Continuent Connector DB2.NJ SLAVE DB1.NJ MASTER DB3.NJ SLAVE Continuent Connector Continuent Connector Asynchronous Multi-Master MSMM Topology

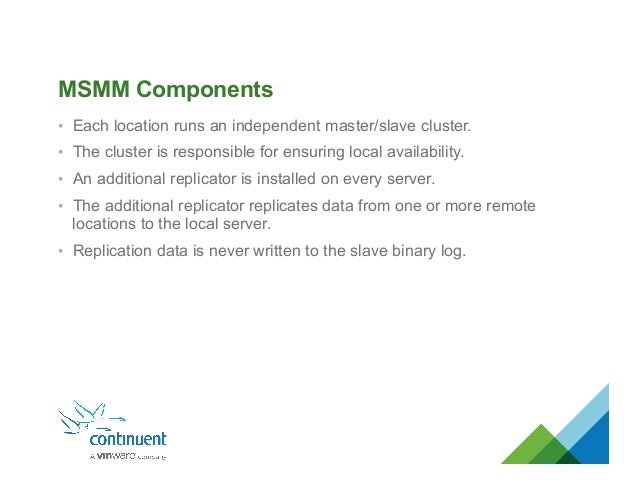

14. MSMM Components •  Each location runs an independent master/slave cluster. •  The cluster is responsible for ensuring local availability. •  An additional replicator is installed on every server. •  The additional replicator replicates data from one or more remote locations to the local server. •  Replication data is never written to the slave binary log.

15. MSMM Replication •  Each node runs an additional replicator to apply data from remote data centers. •  Each cluster should run with 3 nodes (1 is hidden). vCLOUD AIR VIRTUAL DATA CENTER DB2.NJ DB1.NJ CA NJ CA NJ NJ MASTER ON-PREMISES DATA CENTER DB2.CA DB1.CA CA NJ CA NJ CA MASTER

16. Local Failover ON-PREMISES DATA CENTER DB2.CA SLAVE DB1.CA MASTER DB3.CA SLAVE Continuent Connector Continuent Connector X •  The master has failed. •  The manager on a remaining server identifies the failure.

17. Local Failover ON-PREMISES DATA CENTER DB2.CA MASTER DB1.CA SHUNNED DB3.CA SLAVE Continuent Connector Continuent Connector X •  The failed server is shunned. •  One of the slaves is promoted to master. •  The connectors send writes to the new master.

18. Local Failover ON-PREMISES DATA CENTER DB2.CA MASTER DB1.CA SLAVE DB3.CA SLAVE Continuent Connector Continuent Connector •  An administrator checks the failed server and corrects the issue. •  They run a recover command to reintroduce the server.

19. MSMM Replication After Failover •  Each node runs an additional replicator to apply data from remote data centers. •  Each cluster should run with 3 nodes (1 is hidden). vCLOUD AIR VIRTUAL DATA CENTER DB2.NJ DB1.NJ CA NJ CA NJ NJ MASTER ON-PREMISES DATA CENTER DB2.CA DB1.CA CA NJ CA NJ CA MASTER X

20. Demo

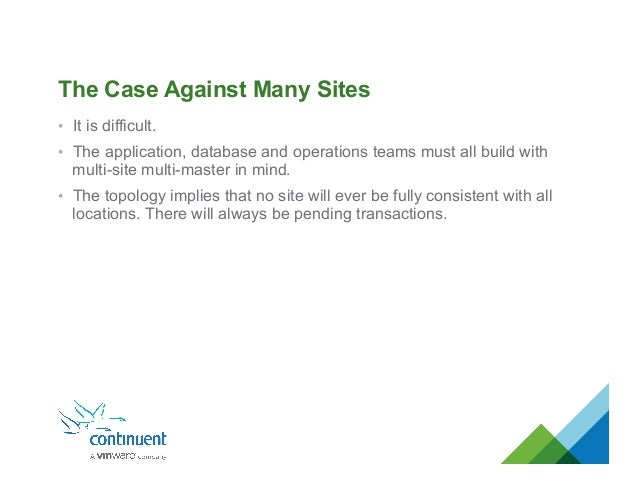

21. The Case Against Many Sites •  It is difficult. •  The application, database and operations teams must all build with multi-site multi-master in mind. •  The topology implies that no site will ever be fully consistent with all locations. There will always be pending transactions.

22. Successful MSMM

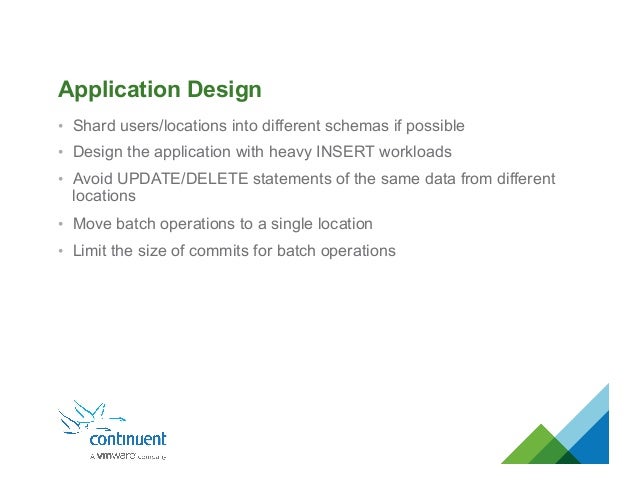

23. Application Design •  Shard users/locations into different schemas if possible •  Design the application with heavy INSERT workloads •  Avoid UPDATE/DELETE statements of the same data from different locations •  Move batch operations to a single location •  Limit the size of commits for batch operations

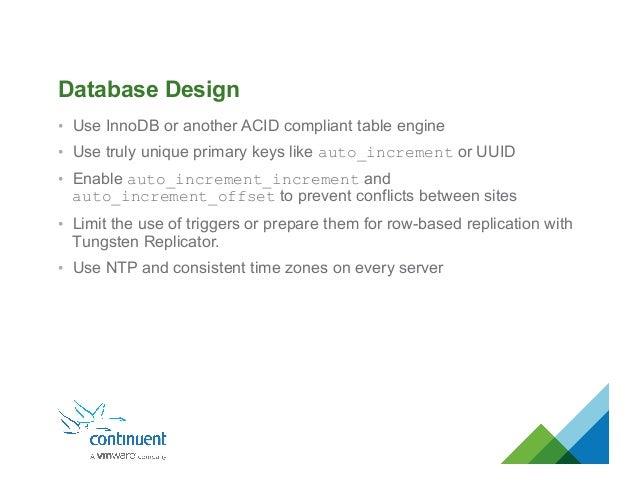

24. Database Design •  Use InnoDB or another ACID compliant table engine •  Use truly unique primary keys like auto_increment or UUID •  Enable auto_increment_increment and auto_increment_offset to prevent conflicts between sites •  Limit the use of triggers or prepare them for row-based replication with Tungsten Replicator. •  Use NTP and consistent time zones on every server

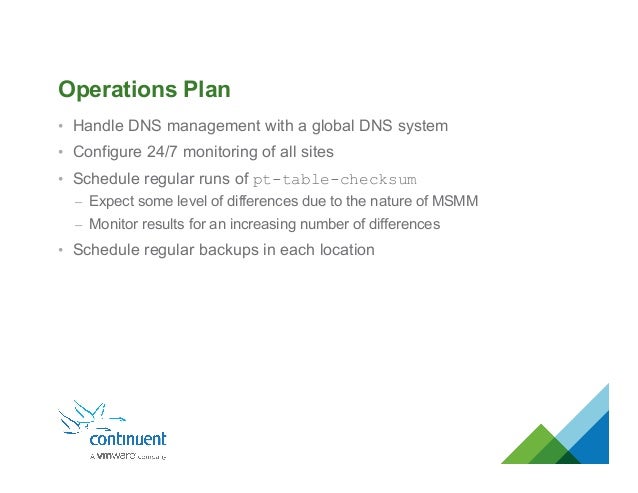

25. Operations Plan •  Handle DNS management with a global DNS system •  Configure 24/7 monitoring of all sites •  Schedule regular runs of pt-table-checksum –  Expect some level of differences due to the nature of MSMM –  Monitor results for an increasing number of differences •  Schedule regular backups in each location

26. Wrapping Up

27. Synchronous Clustering Fails Over Distance •  Synchronous replication adds server performance drag (Daniel Abadi, Yale University) •  Global locks create exploding deadlock problems (Jim Gray, Microsoft) •  Strong consistency between DBMS requires some/all regions to stop when network fails (CAP proof by Nancy Lynch, MIT)

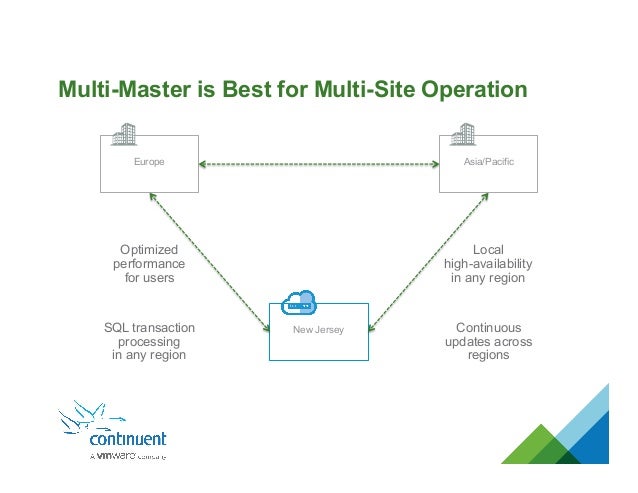

28. Multi-Master is Best for Multi-Site Operation Europe Asia/Pacific New Jersey Optimized performance for users SQL transaction processing in any region Local high-availability in any region Continuous updates across regions
